Plan 23722JD

Lavish Traditional House Plan

Pageloader

Lavish Traditional House Plan

Plan 23722JD

  • 3,635

    Heated s.f.

  • 4-5

    Beds

  • 3

    Baths

  • 2

    Stories

  • 3

    Cars

  • Beauty and functionality merge in this upscale Traditional house plan.
  • Wide openings on each side of the two-story foyer give you an instant glimpse of the formal living room with fireplace and large formal dining room - both with elegant double tray ceilings.
  • A built-in display niche in the hall lets you show off your collectibles.

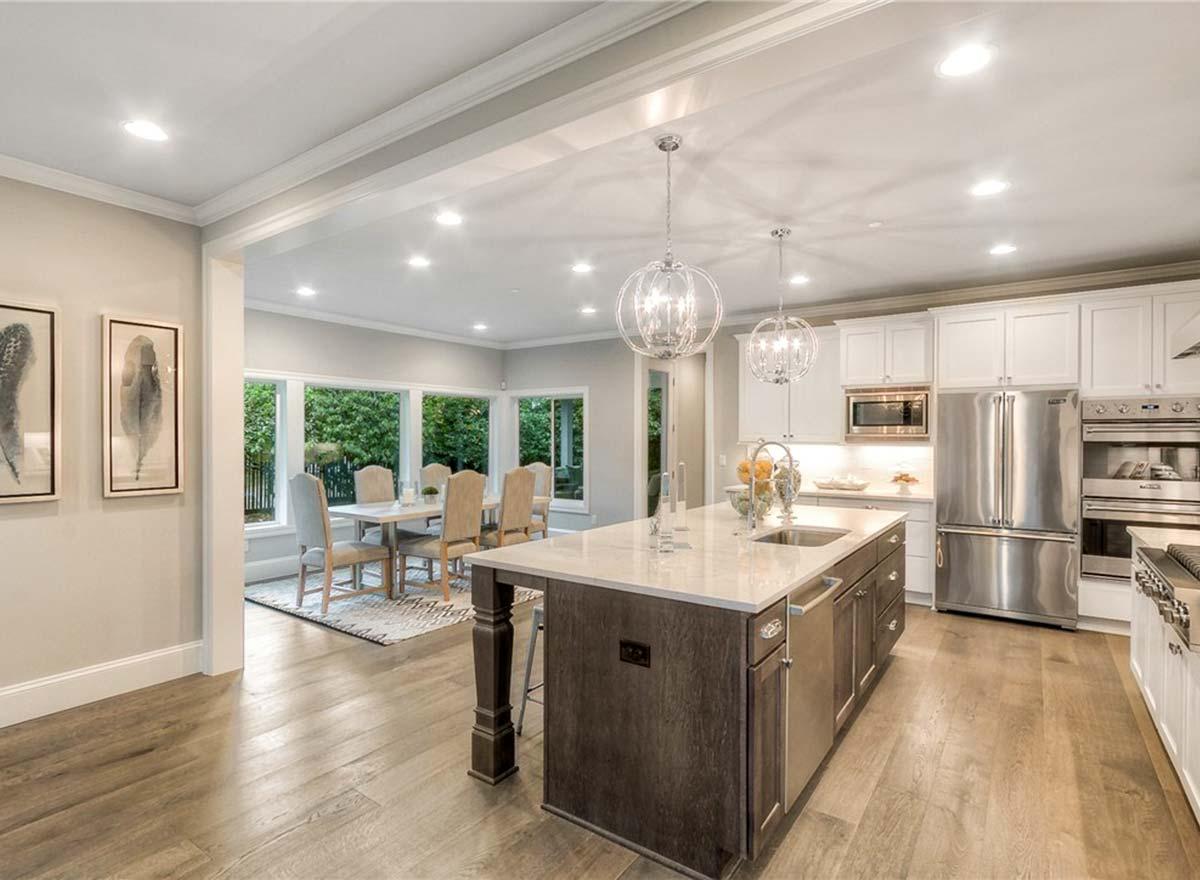

  • Bask in the sunshine that streams in from nine windows in the large breakfast nook.
  • A secluded den stands way off to the side away from any noise from the main rooms.
  • All four bedrooms are up on the second floor and bedroom 3 gets a lovely vaulted ceiling.

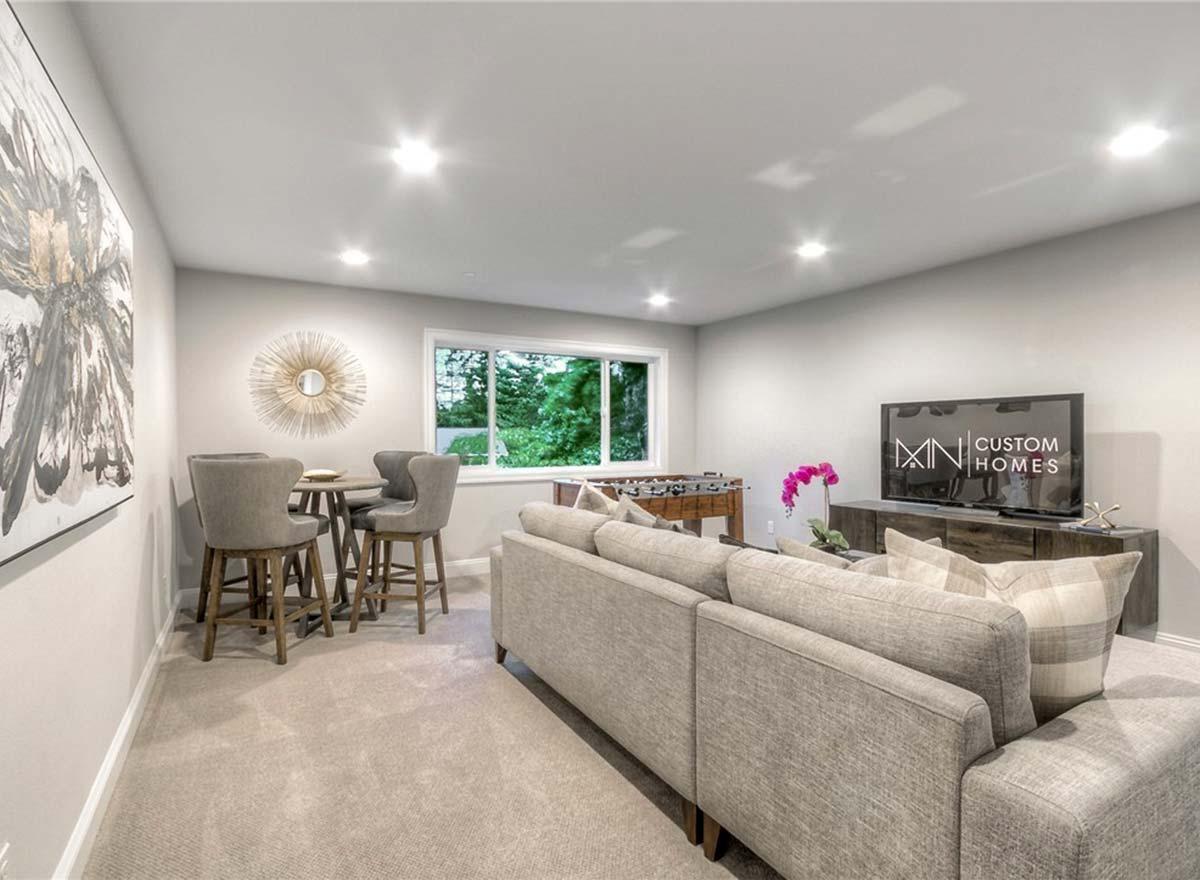

  • Bonus space can be enjoyed by the whole family.
  • The second floor laundry room is a wonderful convenience.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet

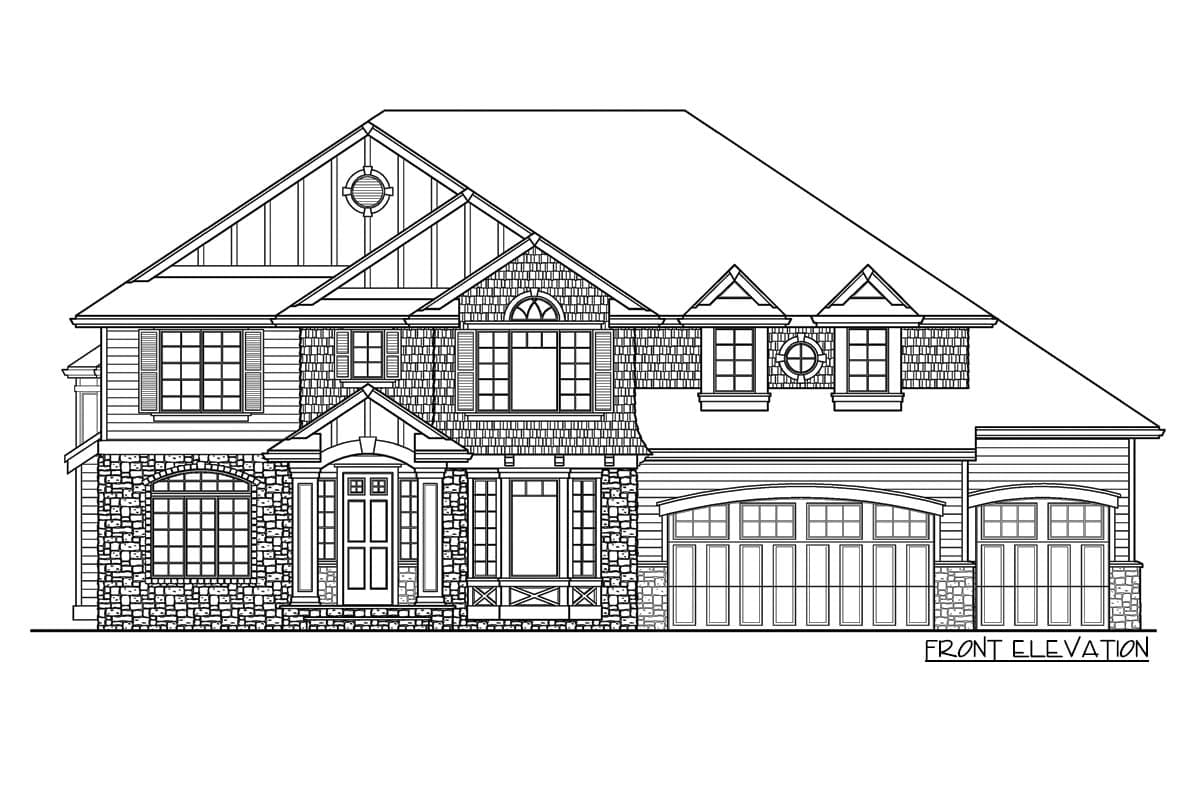

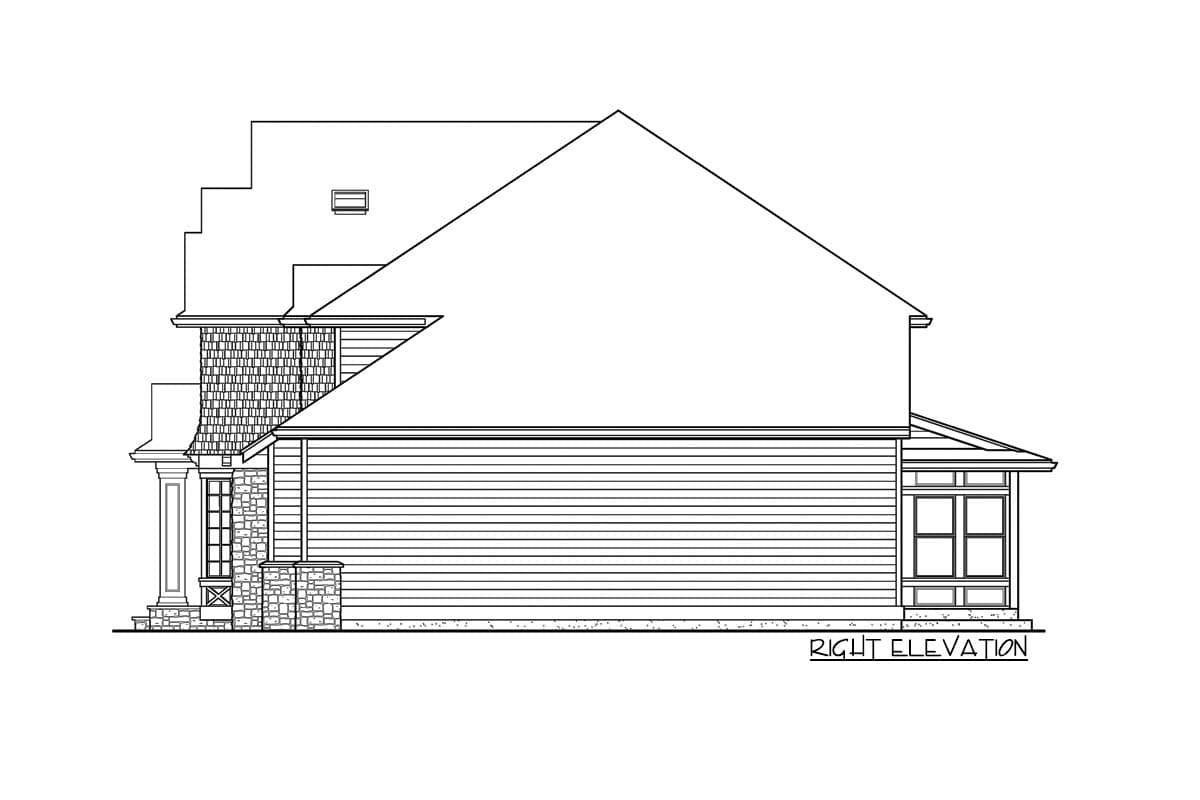

Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
Please note that an electrical schematic is not included.

Floor Plan

Plan details



Lavish Traditional House Plan

  • 3,635

    Heated s.f.

  • 4 - 5

    Beds

  • 3

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $1,650
  • 5 Sets PLUS $1,800
  • CAD - multi-use $2,900
  • View all purchase option online

About This Plan

  • Beauty and functionality merge in this upscale Traditional house plan.
  • Wide openings on each side of the two-story foyer give you an instant glimpse of the formal living room with fireplace and large formal dining room - both with elegant double tray ceilings.
  • A built-in display niche in the hall lets you show off your collectibles.
  • Bask in the sunshine that streams in from nine windows in the large breakfast nook.
  • A secluded den stands way off to the side away from any noise from the main rooms.
  • All four bedrooms are up on the second floor and bedroom 3 gets a lovely vaulted ceiling.
  • Bonus space can be enjoyed by the whole family.
  • The second floor laundry room is a wonderful convenience.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

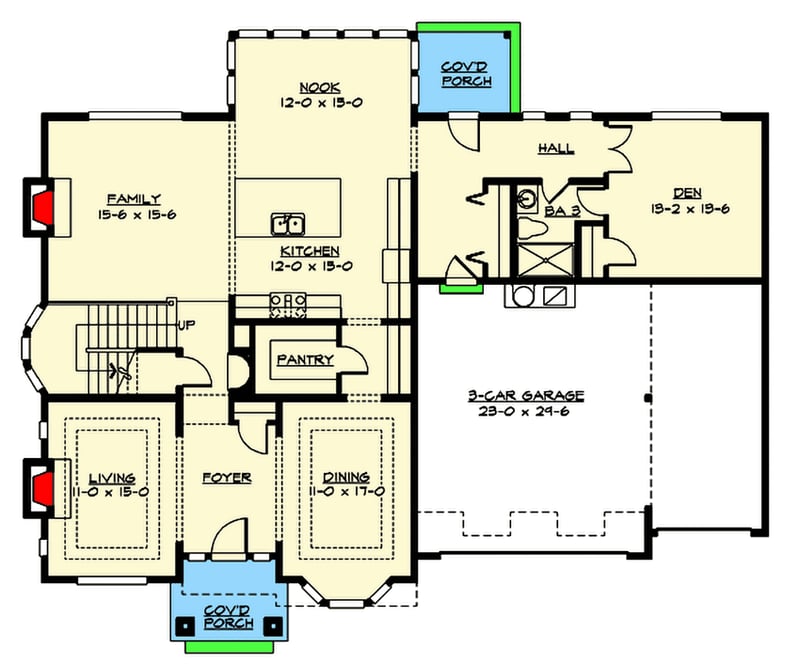

Floor Plans

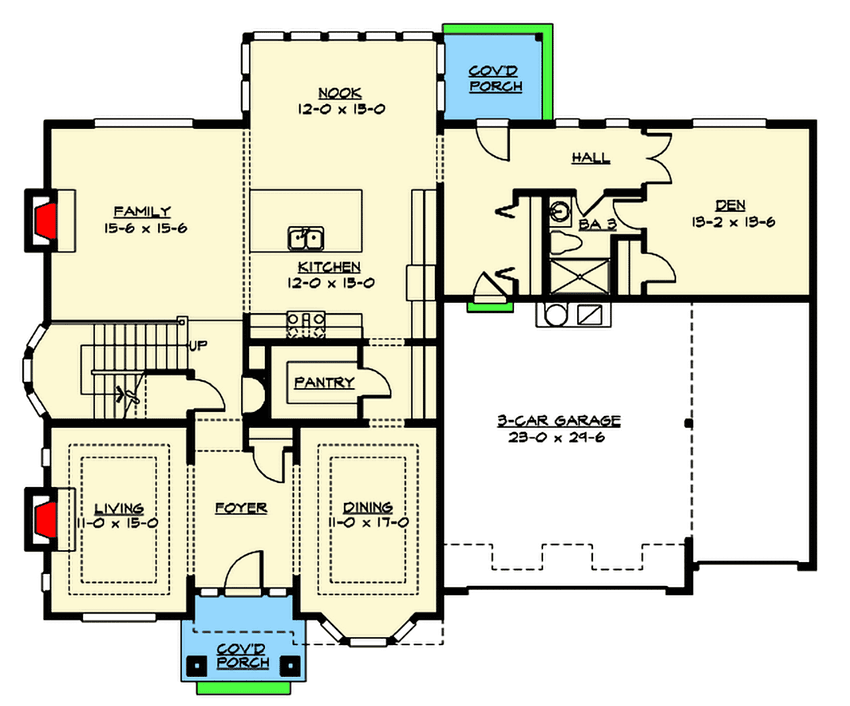

  • Main Level

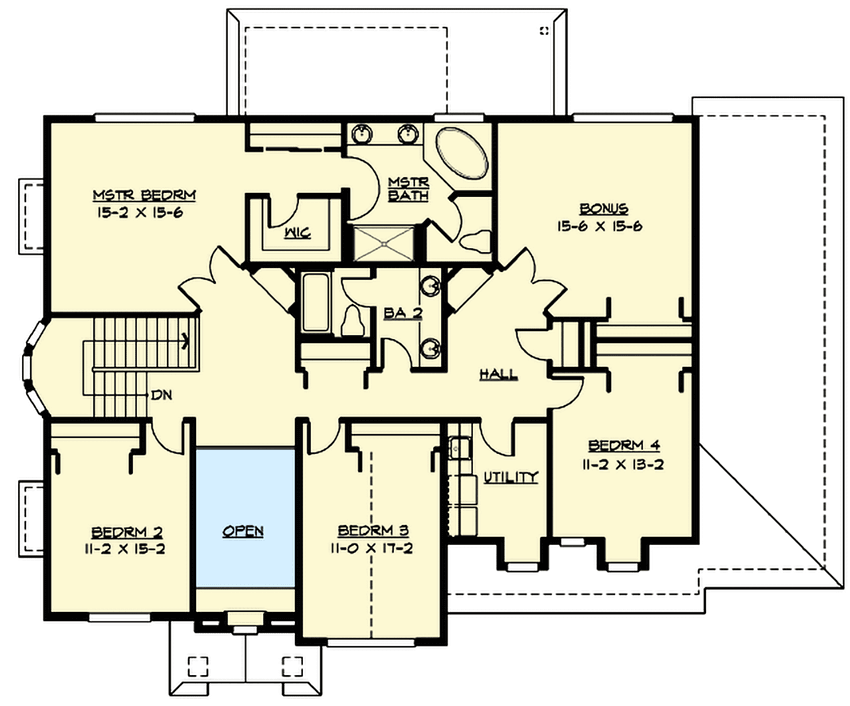

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,635 sq. ft.
  • 1st Floor: 1,823 sq. ft.
  • 2nd Floor: 1,812 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 62' 0"
  • Depth: 52' 0"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 685 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
Pageloader
