Plan 680201VR
Lift-Friendly 1500 Square Foot Barn with 1155 Square Foot 2-Bed Apartment Above
Heated S.F.
1,155
Beds
1
Baths
1
Stories
2
Cars
2
Floor Plan

Plan 680201VR

Main Level
slide image 0
2nd Floor
slide image 1

Plan 680201VR

1-800-854-7852

1-262-521-4596

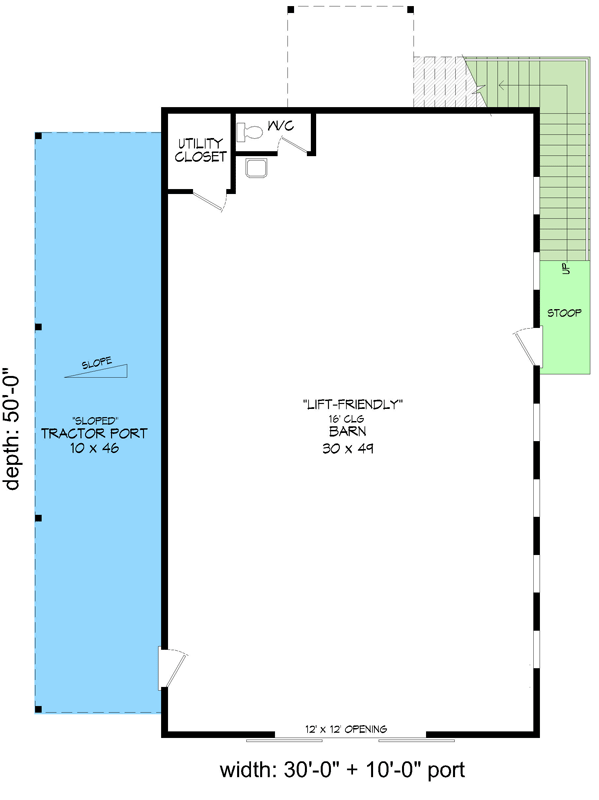

Main Level
floor plan image Main Level

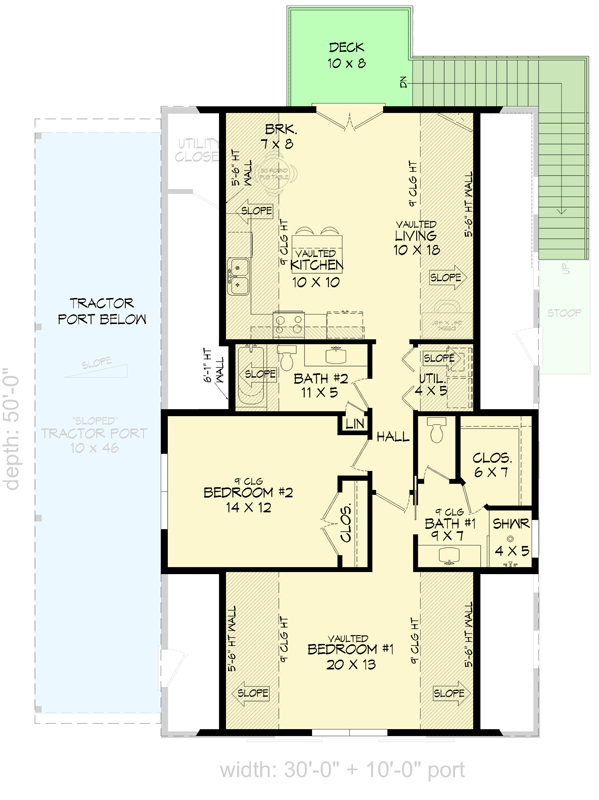

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This barn plan gives you 1,500 square feet of parking space on the ground floor accessible through 12' by 12' barn doors, large enough to fit most RVs up to Super Class C Motorhomes. The 16' ceiling offers a lift-friendly environment to use this space as a mechanic's dream workshop.
  • A half bath and utility closet are located in the back.
  • A 460 square foot tractor port on the left gives you more vehicle storage.
  • Stairs running along the right side take you to the 1,155 square foot apartment above with a kitchen in back an open space in front and a full bath in the middle.
  • Related Plans: Get alternate versions with plans 680023VR, 680132VR, and 680186VR.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,155 sq. ft.

2nd Floor

1,155 sq. ft.

Carport

460 sq. ft.

Deck

80 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

29' 0"

Depth

36' 9"

Max Ridge Height

25' 5"

Garage

Type

Attached, Drive Under

Area

1500 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

13' 3"

Roof Details

Primary Pitch

2.5 on 12

Secondary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Country

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Upstairs

Master Suite - 2nd Floor

Square Footage Breakdown

Total Heated Area

1,155 sq. ft.

2nd Floor

1,155 sq. ft.

Carport

460 sq. ft.

Deck

80 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

29' 0"

Depth

36' 9"

Max Ridge Height

25' 5"

Garage

Type

Attached, Drive Under

Area

1500 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

13' 3"

Roof Details

Primary Pitch

2.5 on 12

Secondary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Country

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Upstairs

Master Suite - 2nd Floor
