1400 Square Foot Barn with 1016 Square Foot Apartment Above
Heated S.F.
1,016
Baths
1.5
Stories
2
Cars
2
What's Included
Plan Details

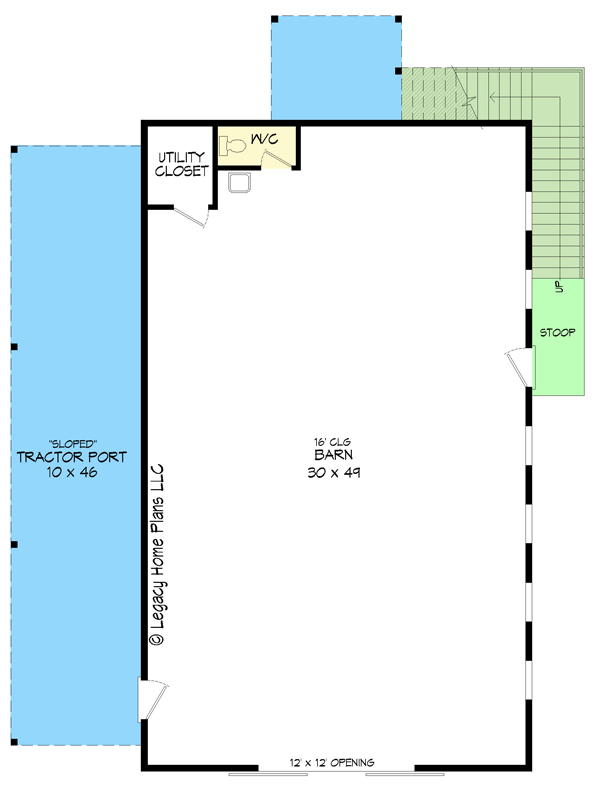

  • This barn plan gives you 1,400 square feet of parking space on the ground floor accessible through 12' by 12' barn doors. A half bath and utility closet are located in the back.
  • A 460 square foot tractor port on the left gives you more vehicle storage.

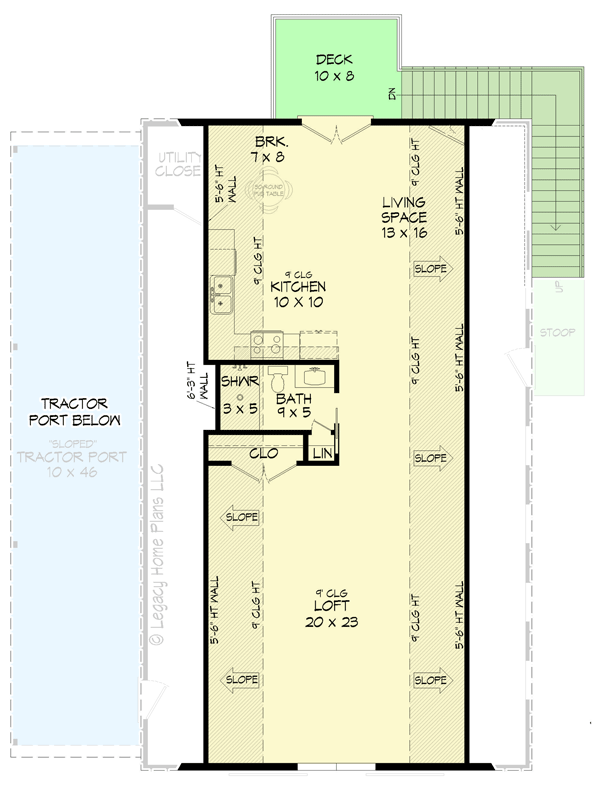

  • Stairs running along the right side take you to the 1,013 square foot apartment above with a kitchen in back an open space in front and a full bath in the middle.
  • Related Plans: Get two bedrooms upstairs and a bathroom and an island in the kitchen with house plan 680201VR. Get alternate versions with plans 680132VR and 680023VR.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

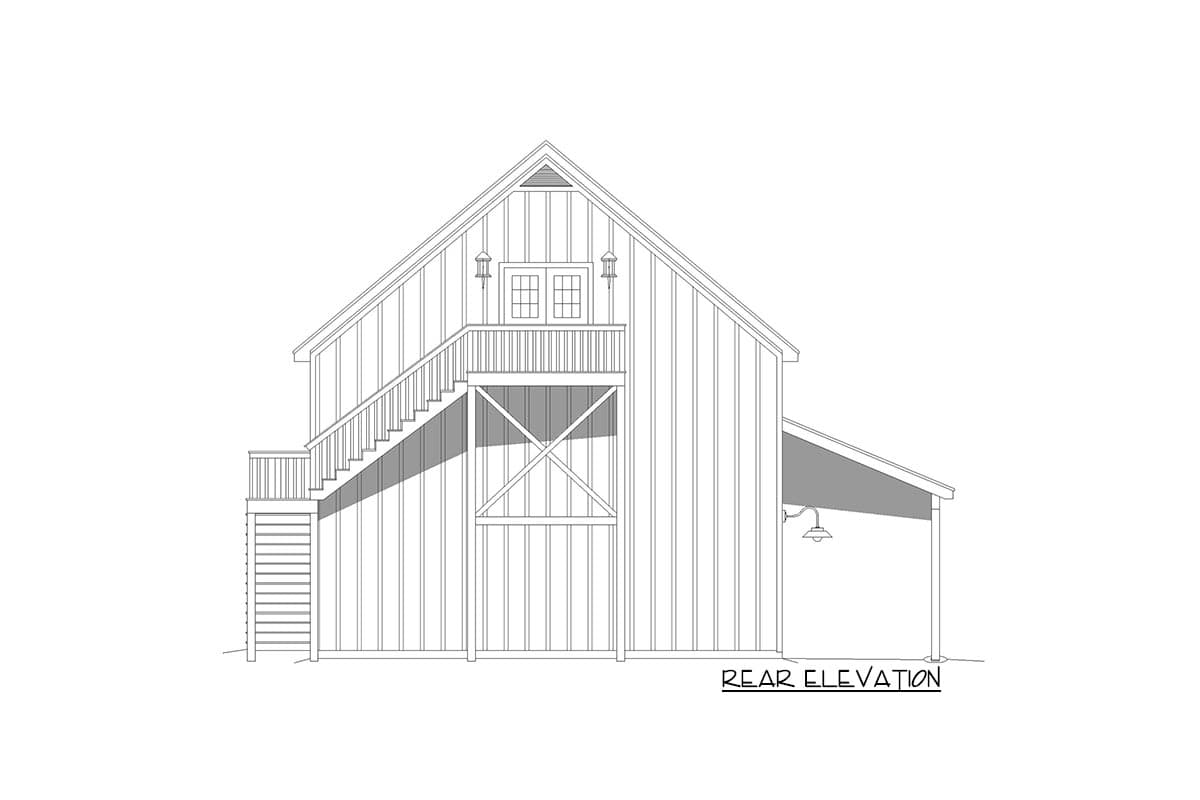

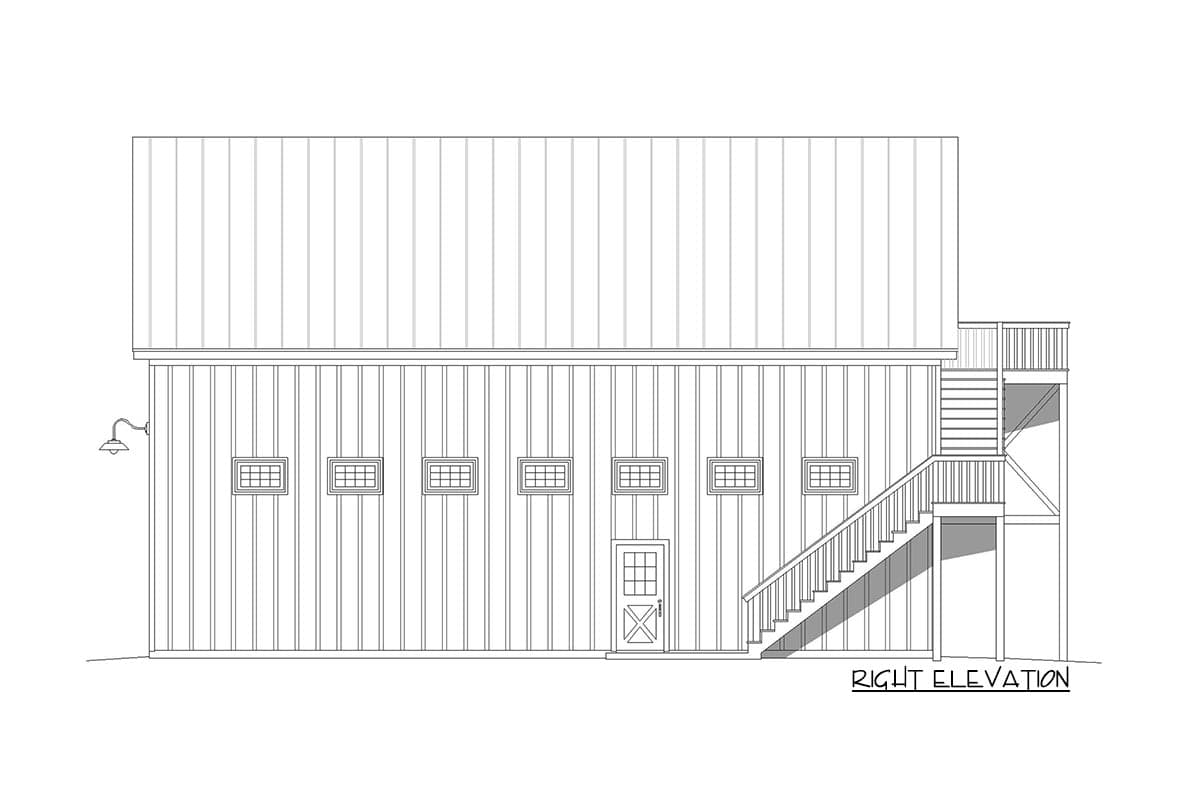

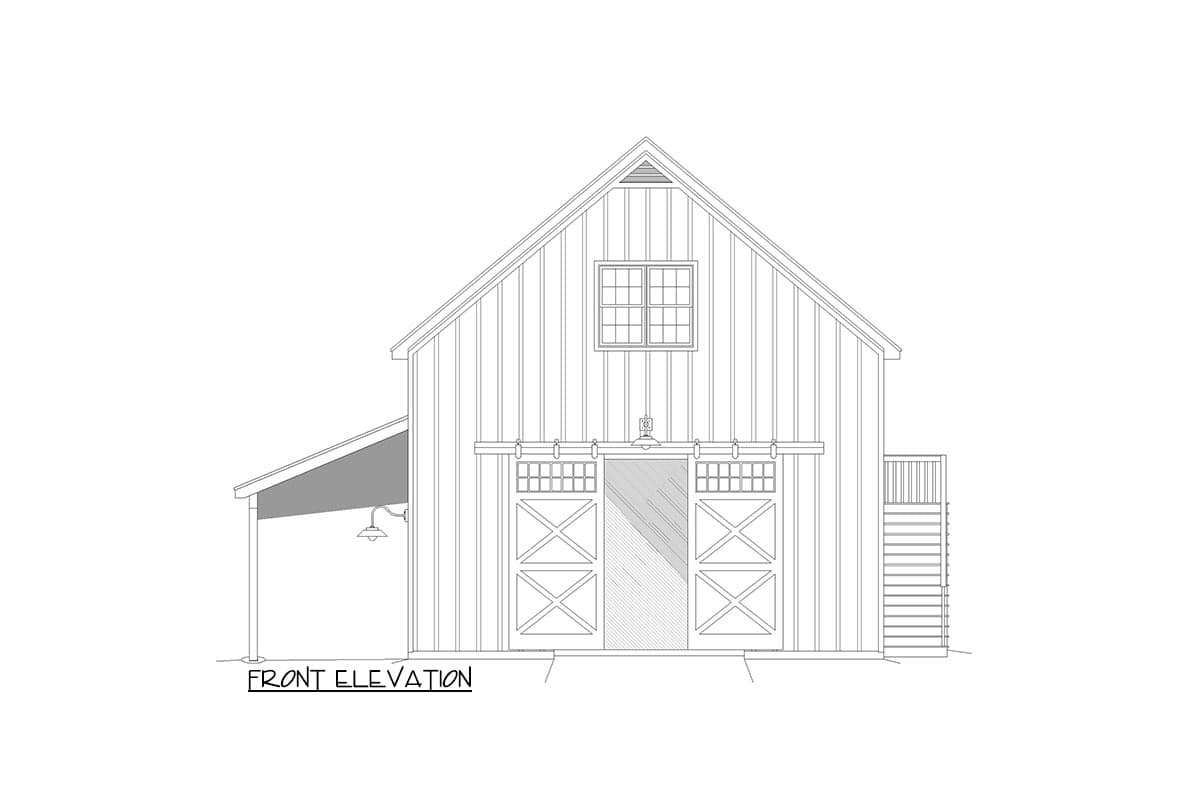

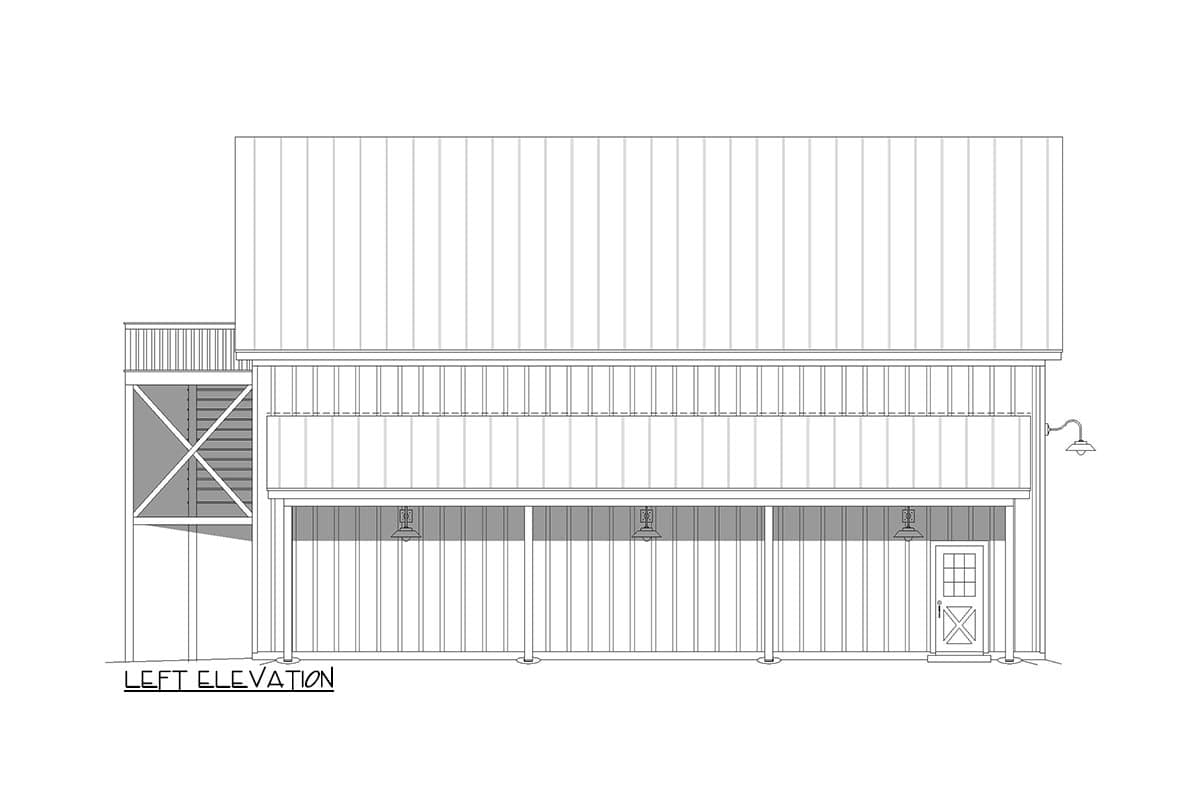

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • A building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
