Plan 666029RAF Light-Filled Contemporary with Two Kitchens for a Rear and Side Sloping Lot

Light-Filled Contemporary with Two Kitchens for a Rear and Side Sloping Lot

Plan 666029RAF

  • 3,936

    Heated s.f.

  • 5-6

    Beds

  • 4

    Baths

  • 2

    Stories

  • 2

    Cars

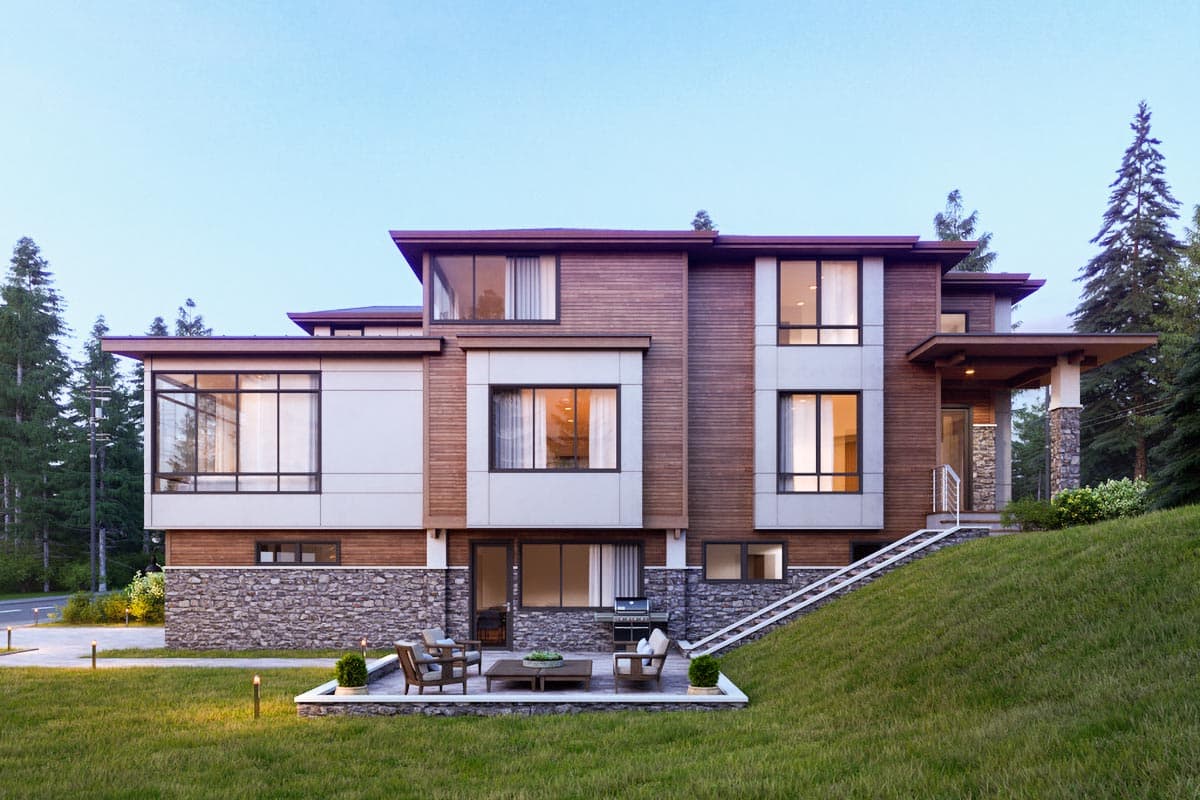

  • Ideal as an in-law apartment, the lower level of this light-filled Contemporary home comes with a complete kitchen, laundry room, dining room and two bedrooms. This home is ideal for a rear and side sloping lot.
  • The main entrance to the home is at the back of the second floor where a wide foyer leads back past a den to the open concept main living area.
  • A triple window brightens the kitchen sink and there's extra counter space behind the sink for plants and herb gardens.
  • The cook top kitchen island is huge and faces the dining room.
  • More windows wrap around the great room that has a big fireplace as its focal point.
  • Three bedrooms upstairs have their own laundry room for the ultimate in convenience.

Plans include:

  • Cover Sheet
  • General notes
  • Fully dimensioned floor plans
  • Elevations
  • Building cross sections

What is NOT included in the plans:
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

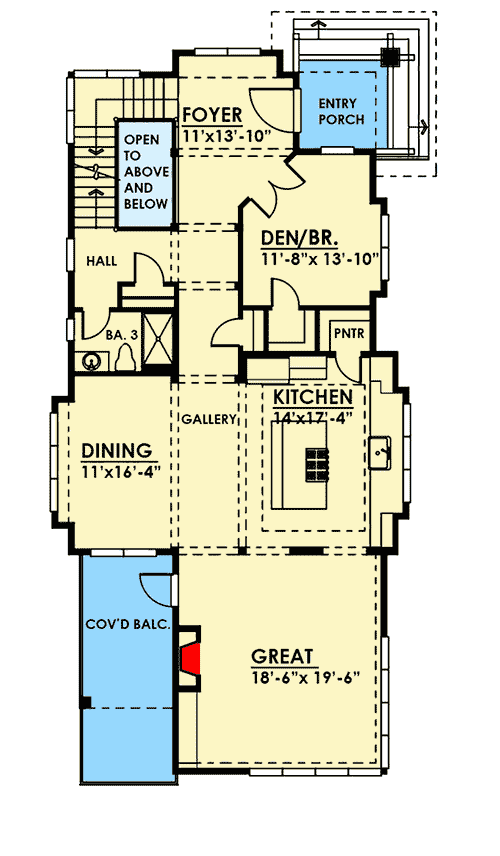

Light-Filled Contemporary with Two Kitchens for a Rear and Side Sloping Lot - 666029RAF floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

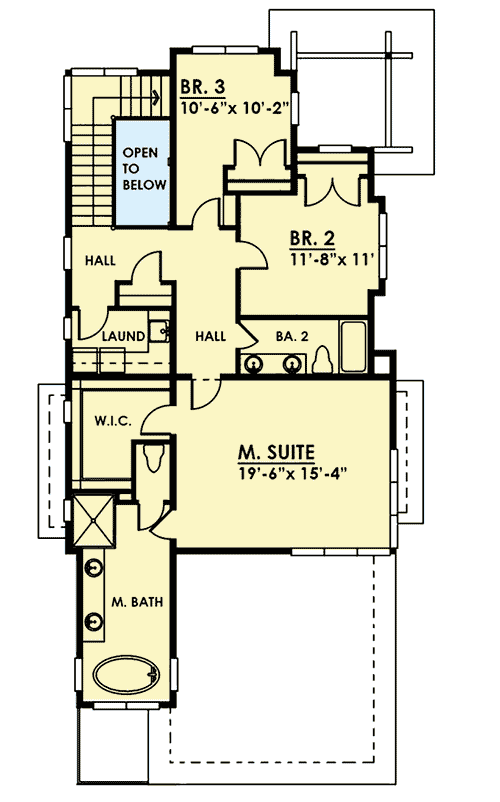

Light-Filled Contemporary with Two Kitchens for a Rear and Side Sloping Lot - 666029RAF floor plan - 2nd Floor
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

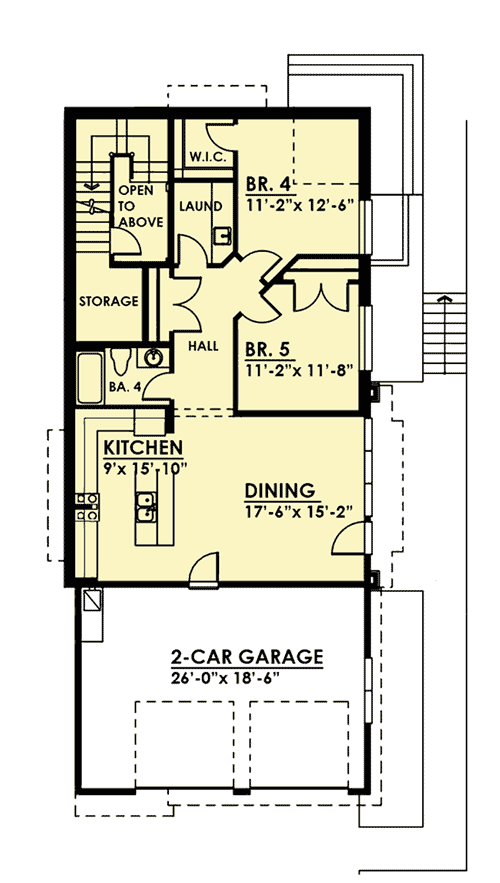

Light-Filled Contemporary with Two Kitchens for a Rear and Side Sloping Lot - 666029RAF floor plan - Lower Level

Plan details

Light-Filled Contemporary with Two Kitchens for a Rear and Side Sloping Lot

  • 3,936

    Heated s.f.

  • 5-6

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,379
  • 5 Sets $1,534
  • 8 Sets $1,639
  • CAD - Single-Build $3,750
  • View all purchase option online

About This Plan

  • Ideal as an in-law apartment, the lower level of this light-filled Contemporary home comes with a complete kitchen, laundry room, dining room and two bedrooms. This home is ideal for a rear and side sloping lot.
  • The main entrance to the home is at the back of the second floor where a wide foyer leads back past a den to the open concept main living area.
  • A triple window brightens the kitchen sink and there's extra counter space behind the sink for plants and herb gardens.
  • The cook top kitchen island is huge and faces the dining room.
  • More windows wrap around the great room that has a big fireplace as its focal point.
  • Three bedrooms upstairs have their own laundry room for the ultimate in convenience.

Floor Plans

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,936 sq. ft.
  • Lower Level: 1,166 sq. ft.
  • 1st Floor: 1,534 sq. ft.
  • 2nd Floor: 1,236 sq. ft.
  • Deck: 178 sq. ft.
  • Porch, Front: 104 sq. ft.

Beds/Baths

  • Bedrooms: 5 or 6
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 28' 0"
  • Depth: 64' 0"

Garage

  • Type: Attached
  • Area: 481 sq. ft.
  • Count: 2 Cars

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 5 on 12
  • Framing Type: Truss
