Plan 68855VR Light-filled Mountain Home Plan with 3-Car Drive-under Garage

Light-filled Mountain Home Plan with 3-Car Drive-under Garage

Plan 68855VR

  • 925

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Stories

  • 3

    Cars

  • The simplicity of the square footprint of this modern mountain home plan keeps budget in mind. Designed for a lot that slopes to the rear, it offers a drive-under garage for three vehicles.
  • On the main living level, oversized windows surround the space, providing a light and airy interior with a vaulted ceiling. The kitchen and living room are open to one another, and extend outdoors onto a spacious balcony.
  • The ceiling rises from 7' on the back bedroom wall to 12'6" on the window-filled living room wall.
  • Related Plans: Change the roofline with house plan 68854VR and build on a non-sloping lot with house plan 68640VR.

This plan set has the following details:

Cover Page

At least 4 exterior elevations

Floor plans

Foundation Plan (with no specifications of structural elements)

Roof Plan (with no specifications of structural elements)

Electrical plans for each floor plan

Typical Wall sections

Floor framing plans (It shows the framing information, regarding size and directions.  There is not a framing diagram)

Cross Sections

‘Some’ interior details/ elevations, such as cabinet elevations

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

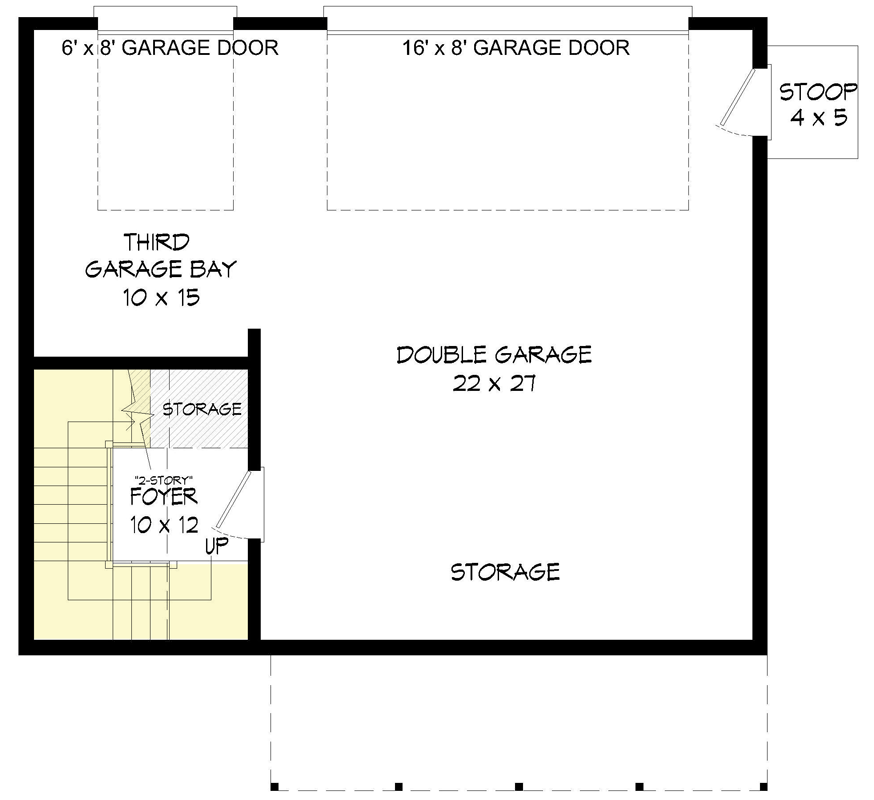

Light-filled Mountain Home Plan with 3-Car Drive-under Garage - 68855VR floor plan - Ground Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

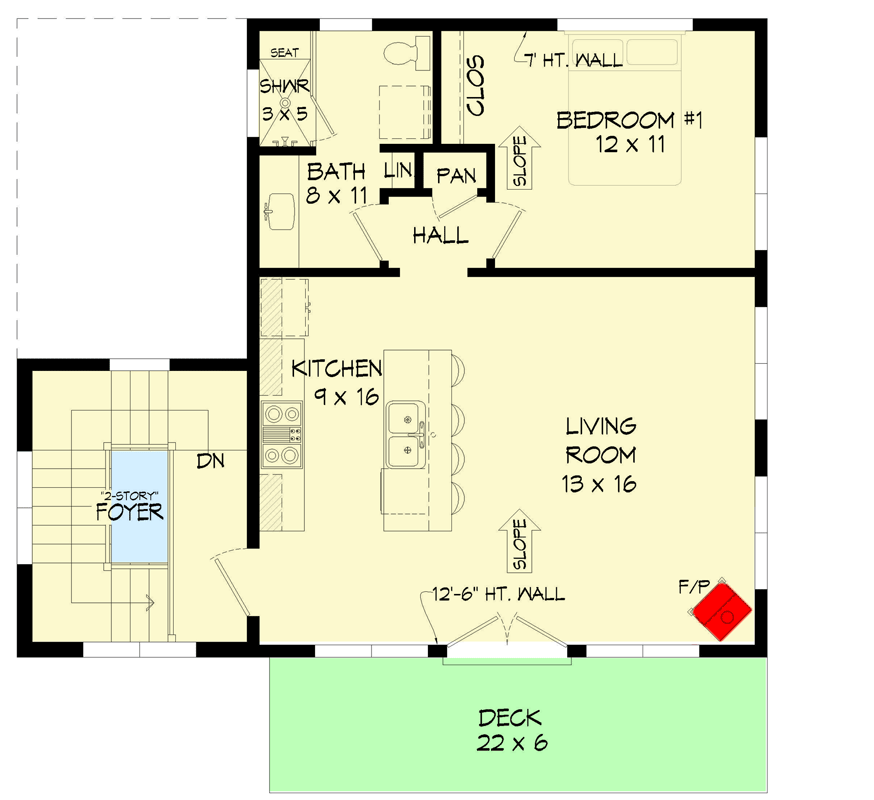

Light-filled Mountain Home Plan with 3-Car Drive-under Garage - 68855VR floor plan - Main Level

Plan details

Architectural Style

Special features

Plan Collections

Light-filled Mountain Home Plan with 3-Car Drive-under Garage

  • 925

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $695
  • 5 Sets $795
  • 5 Sets + PDF $820
  • CAD + PDF - Single-Build $995
  • View all purchase option online

About This Plan

  • The simplicity of the square footprint of this modern mountain home plan keeps budget in mind. Designed for a lot that slopes to the rear, it offers a drive-under garage for three vehicles.
  • On the main living level, oversized windows surround the space, providing a light and airy interior with a vaulted ceiling. The kitchen and living room are open to one another, and extend outdoors onto a spacious balcony.
  • The ceiling rises from 7' on the back bedroom wall to 12'6" on the window-filled living room wall.
  • Related Plans: Change the roofline with house plan 68854VR and build on a non-sloping lot with house plan 68640VR.

Floor Plans

  • Ground Level

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 925 sq. ft.
  • Lower Level: 141 sq. ft.
  • 1st Floor: 784 sq. ft.
  • Deck: 126 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 33' 2"
  • Depth: 34' 3"
  • Max ridge height: 25' 6"

Garage

  • Type: RV Garage, Attached
  • Area: 796 sq. ft.
  • Count: 3 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 12' 6"

Roof

  • Primary Pitch: 2.5 on 12
  • Framing Type: Stick
