Light-Filled Vacation Retreat with Options

Plan 21763DR

This plan plants 3 trees

480
Heated s.f.
2
Beds
1
Baths
1
Stories

This vacation retreat is light-filled thanks to the three pairs of clerestory windows.
Out front, relax on your covered front porch.
In the main area you'll find a kitchenette, table area and a few chairs and also a space for a wood stove. When its time to turn in, you'll find a shower and room for simple beds or bunks.
The ceiling rises from 8' to 11'4" in the open living area.
SPECIAL BONUS: Purchase of this plan gets you two versions. Choose which one you want to build. The 3-Season Version is not insulated or heated and gives you 2x4 exterior walls, 2x8 floor joists and 2x8 roof rafters. The 4-Season Version gives you 2x6 exterior walls , 2x10 floor joists and a truss roof design. Both versions are provided on screw piles to ensure stability.
Related Plans: For a simpler porch design, see vacation plan 21762DR (400 sq. ft.). For a smaller getaway, see house plans 21760DR (320 sq. ft.) and 21761DR (384 sq. ft.). Get more room with house plans 22457DR (576 sq. ft.) and 22458DR (676 sq. ft.).

Each plan includes the following:

* 4 Elevations

* Foundation Plan

* Main Floor Plan

* Upper Floor Plans (if applicable)

* Roof Plan

* Building Section

* Construction Details

* Typical Wall Section

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

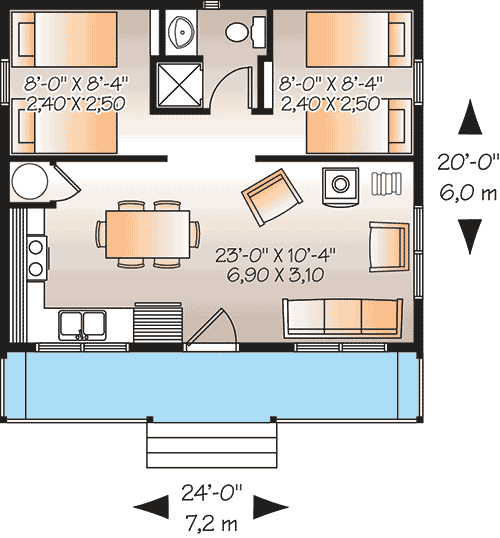

Light-Filled Vacation Retreat with Options - 21763DR floor plan - Main Level

Plan details

Square Footage Breakdown

Total Heated Area: 480 sq. ft.
1st Floor: 480 sq. ft.

Beds/Baths

Bedrooms: 2

Full bathrooms: 1

Foundation Type

Standard Foundations: Piling

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4 or 2x6

Dimensions

Width: 24' 0"
Depth: 20' 0"
Max ridge height: 13' 9"

Ceiling Heights

Floor / Height: First Floor / 8' 2"

Roof Details

Framing Type: Stick Or Truss

Architectural Style

Special features

Plan Collections

Scroll


Light-Filled Vacation Retreat with Options 480 Heated s.f. 2 Beds 1 Baths 1 Floors Buy This Plan PDF - Single-Build $1,050 CAD + PDF - Single-Build $1,650 View all purchase option online About This Plan This vacation retreat is light-filled thanks to the three pairs of clerestory windows. Out front, relax on your covered front porch. In the main area you'll find a kitchenette, table area and a few chairs and also a space for a wood stove. When its time to turn in, you'll find a shower and room for simple beds or bunks. The ceiling rises from 8' to 11'4" in the open living area. SPECIAL BONUS: Purchase of this plan gets you two versions. Choose which one you want to build. The 3-Season Version is not insulated or heated and gives you 2x4 exterior walls, 2x8 floor joists and 2x8 roof rafters. The 4-Season Version gives you 2x6 exterior walls , 2x10 floor joists and a truss roof design. Both versions are provided on screw piles to ensure stability. Related Plans: For a simpler porch design, see vacation plan 21762DR (400 sq. ft.). For a smaller getaway, see house plans 21760DR (320 sq. ft.) and 21761DR (384 sq. ft.). Get more room with house plans 22457DR (576 sq. ft.) and 22458DR (676 sq. ft.). Floor Plans Main Level Plan Details Square Footage Breakdown Total Heated Area: 480 sq. ft. 1st Floor: 480 sq. ft. Beds/Baths Bedrooms: 2 Full bathrooms: 1 Foundation Type Standard Foundations: Piling Exterior Walls Standard Type(s): 2x4 or 2x6 Dimensions Width: 24' 0" Depth: 20' 0" Max ridge height: 13' 9" Ceiling Heights Floor / Height: First Floor / 8' 2" Roof Framing Type: Stick Or Truss
