Plan 23542JD Live on Three Levels

3,205 4 3.5 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Live on Three Levels

Plan 23542JD

  • 3,205

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

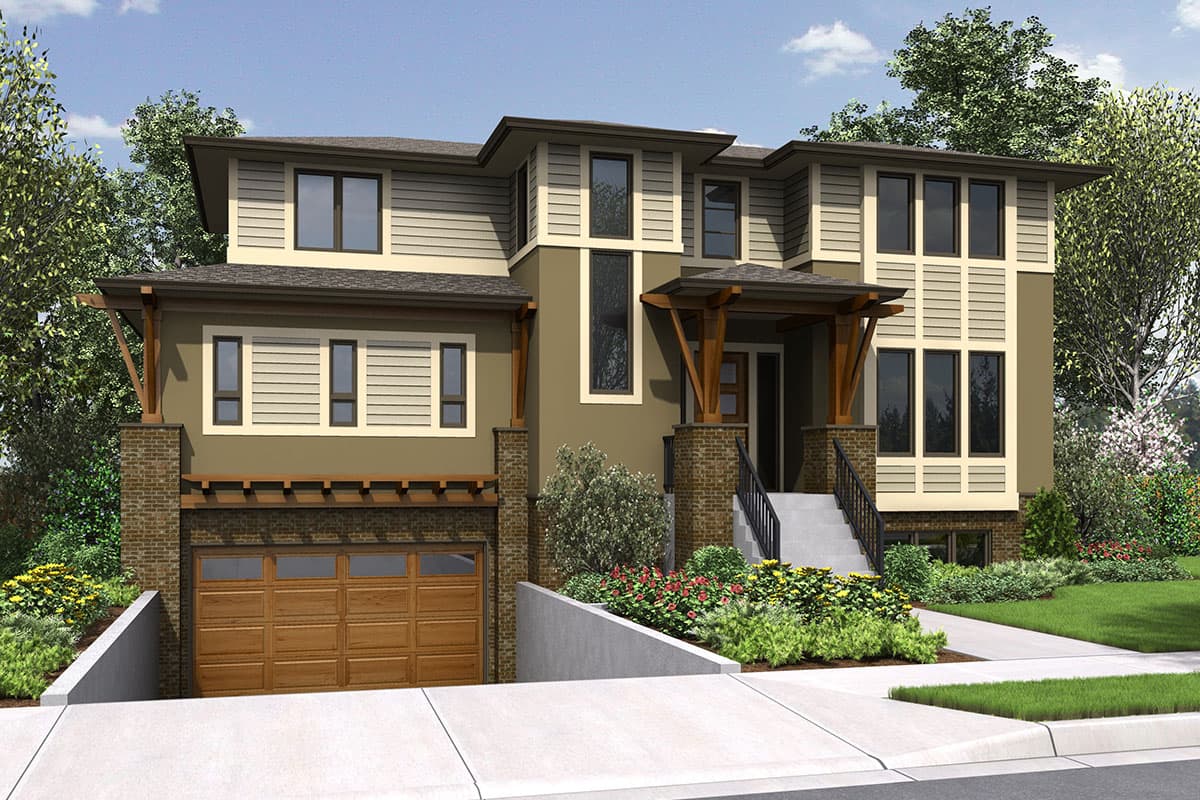

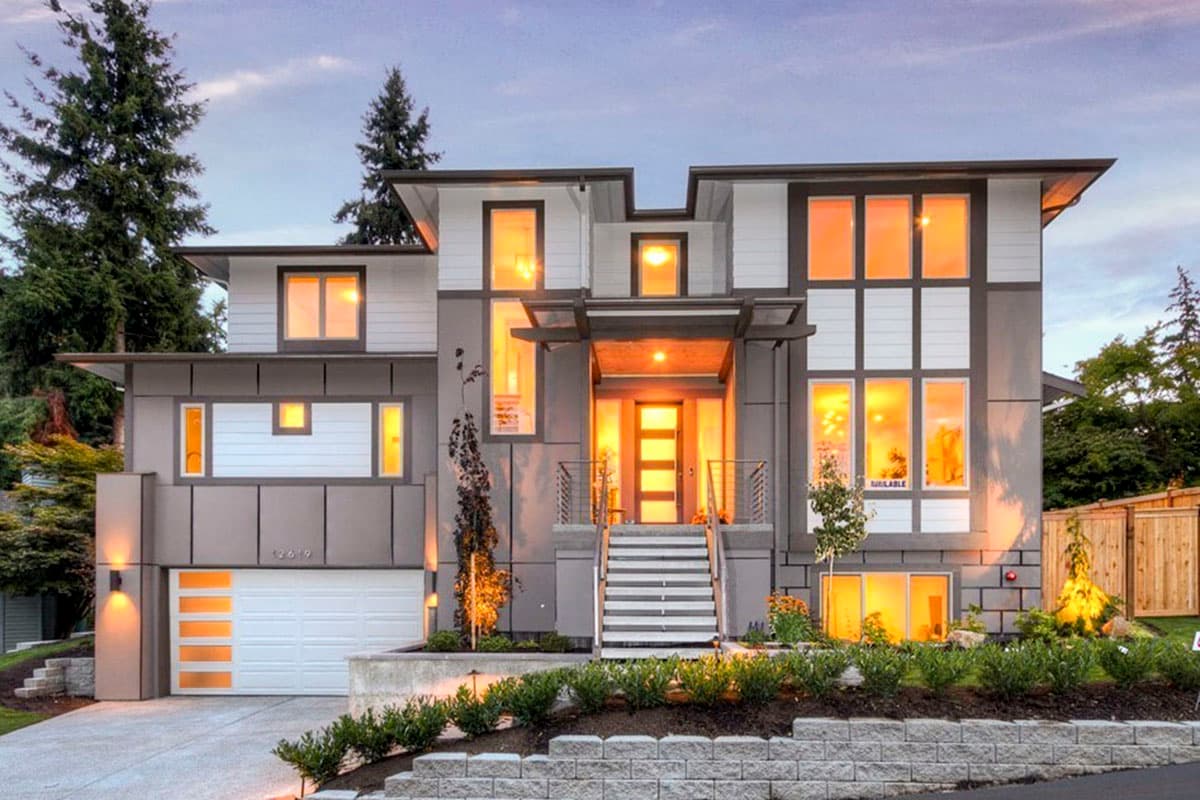

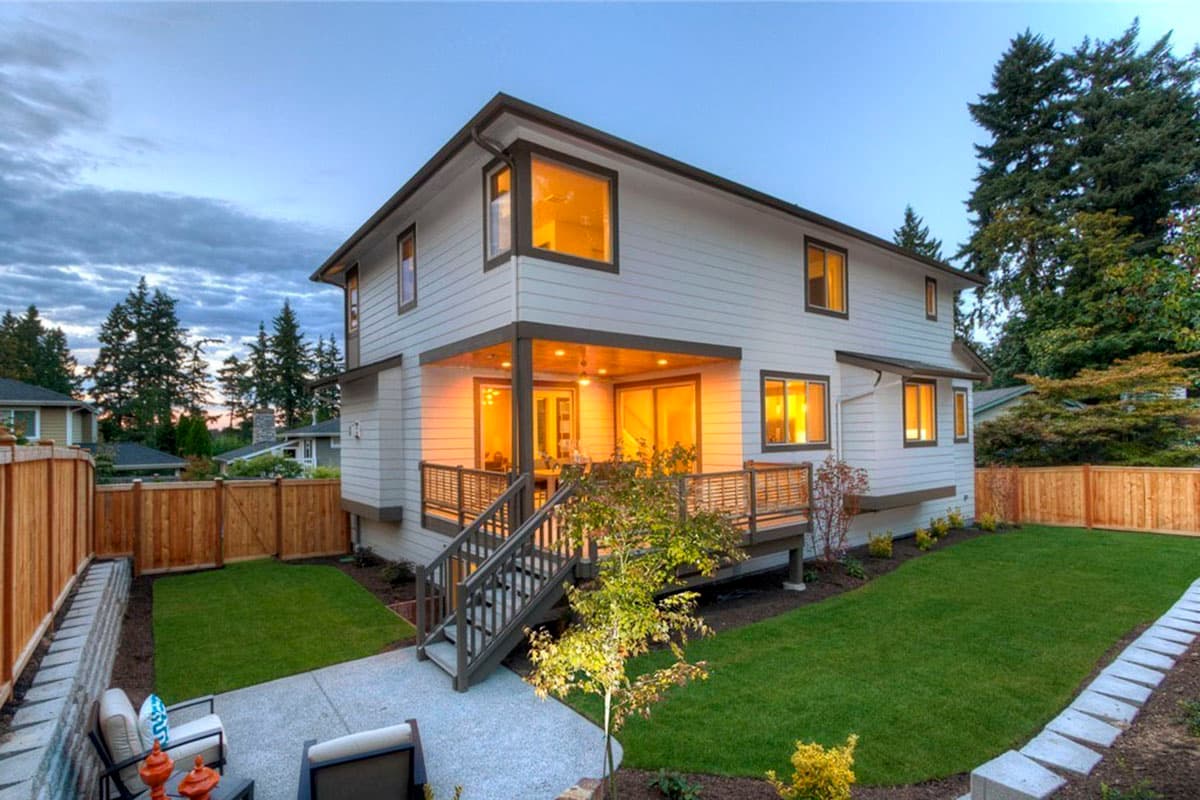

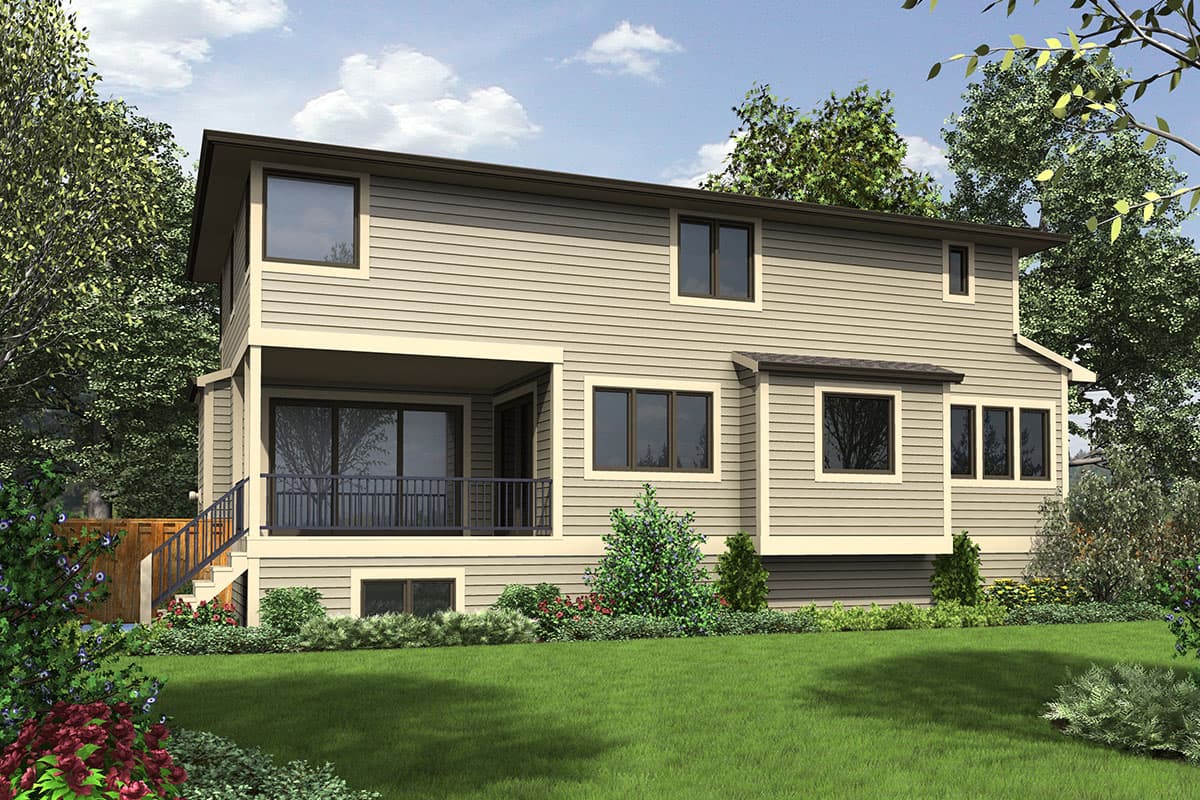

  • Designed for a front sloping lot, this Northwest home plan has clean, contemporary lines and a drive under garage.

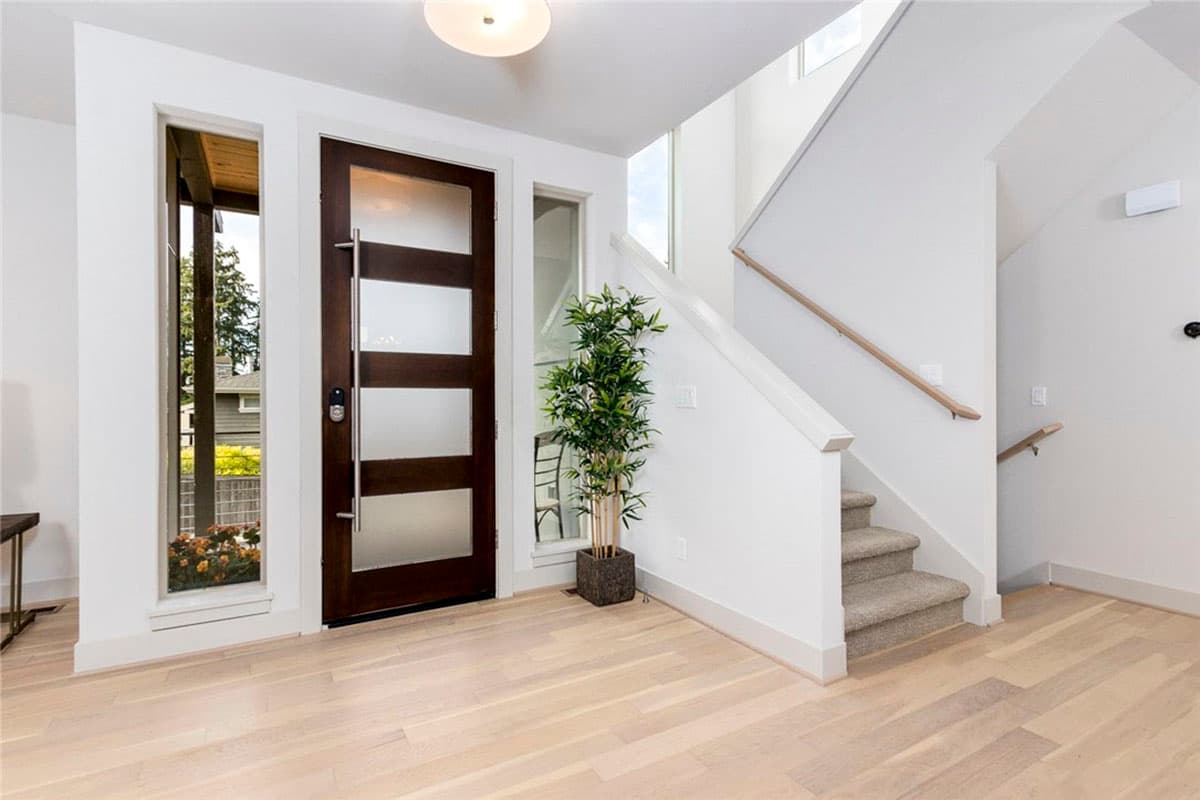

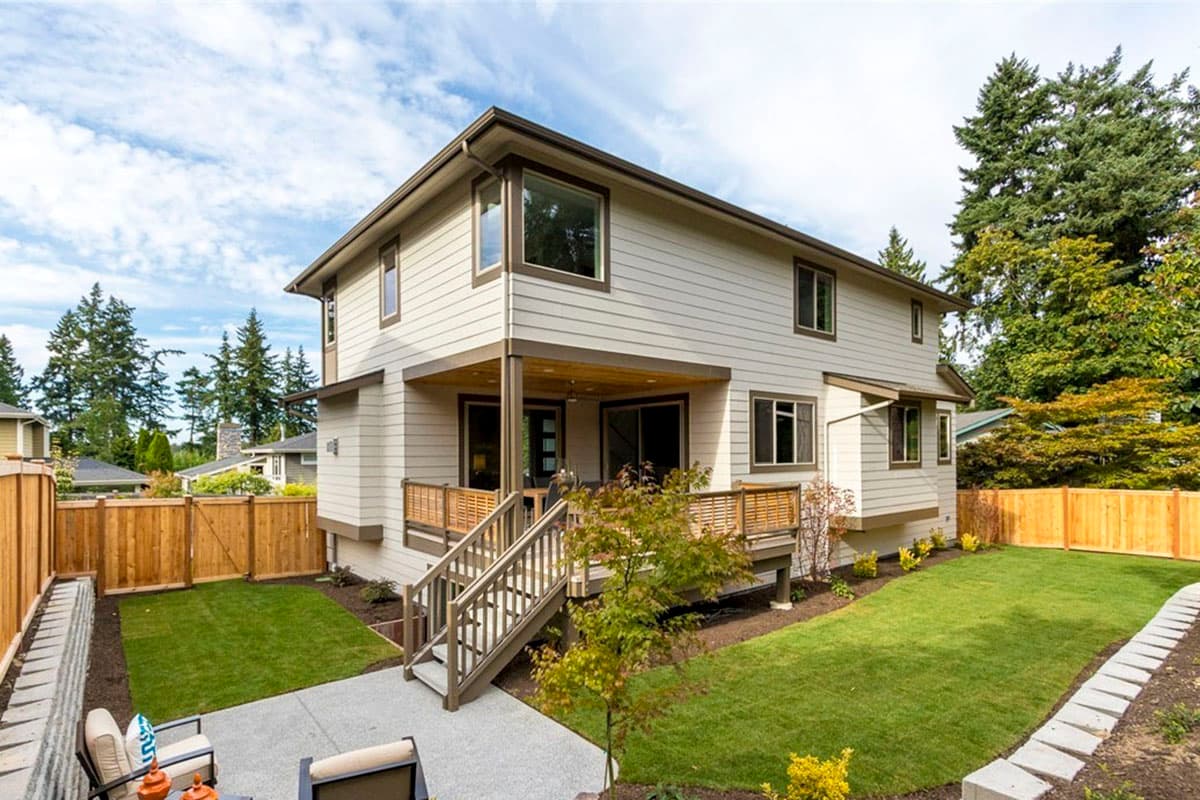

  • You can enter the home through the garage or up a short flight of outside stairs to the handsome entry porch.

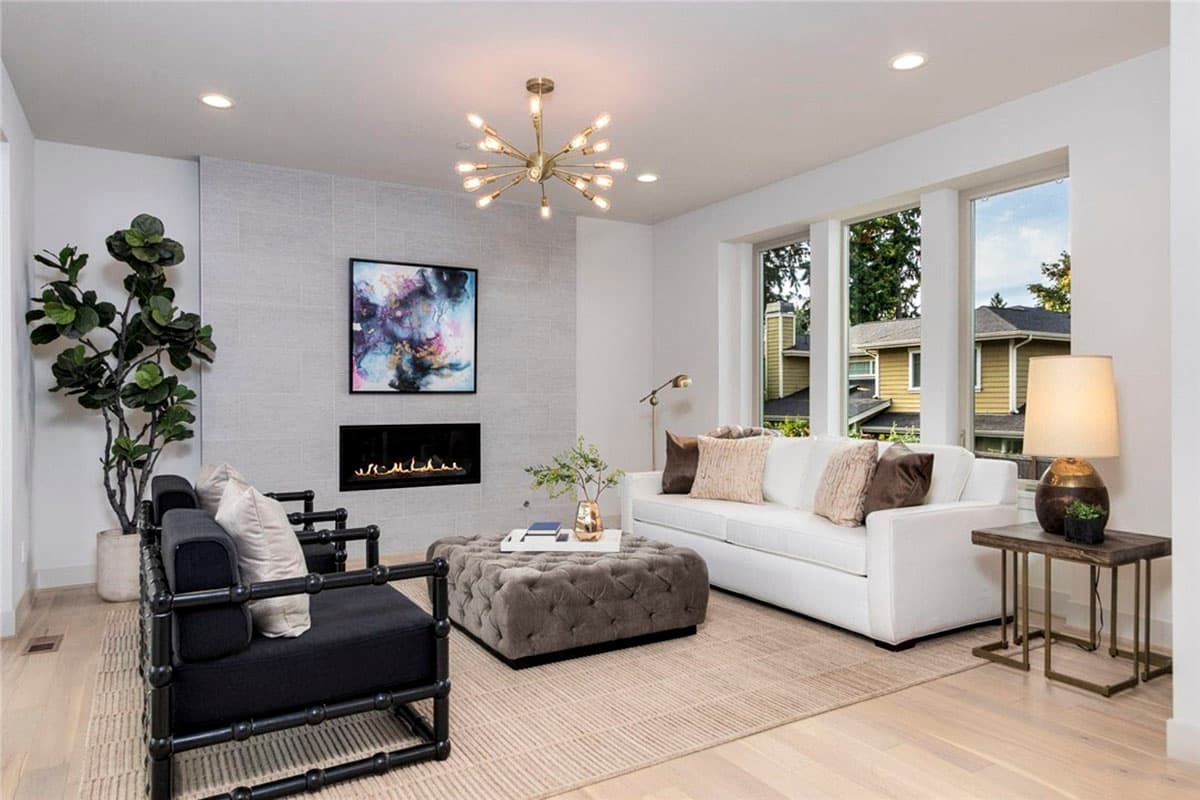

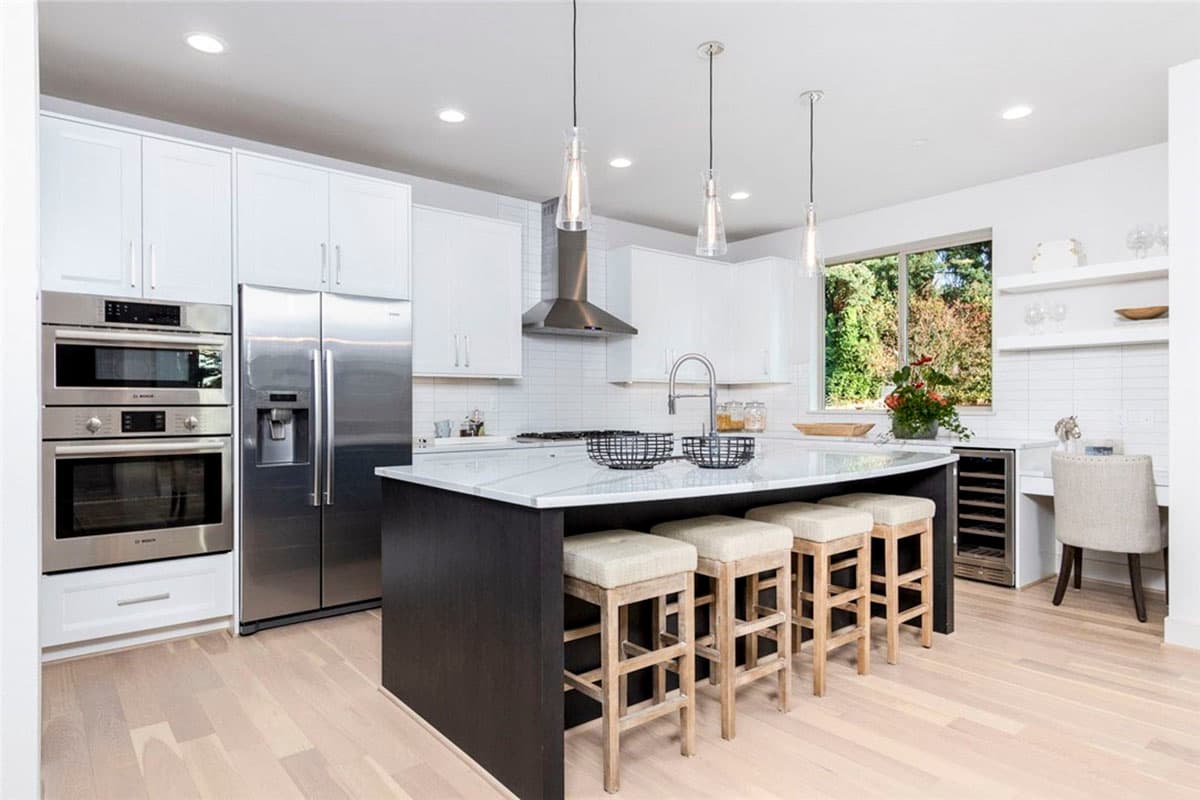

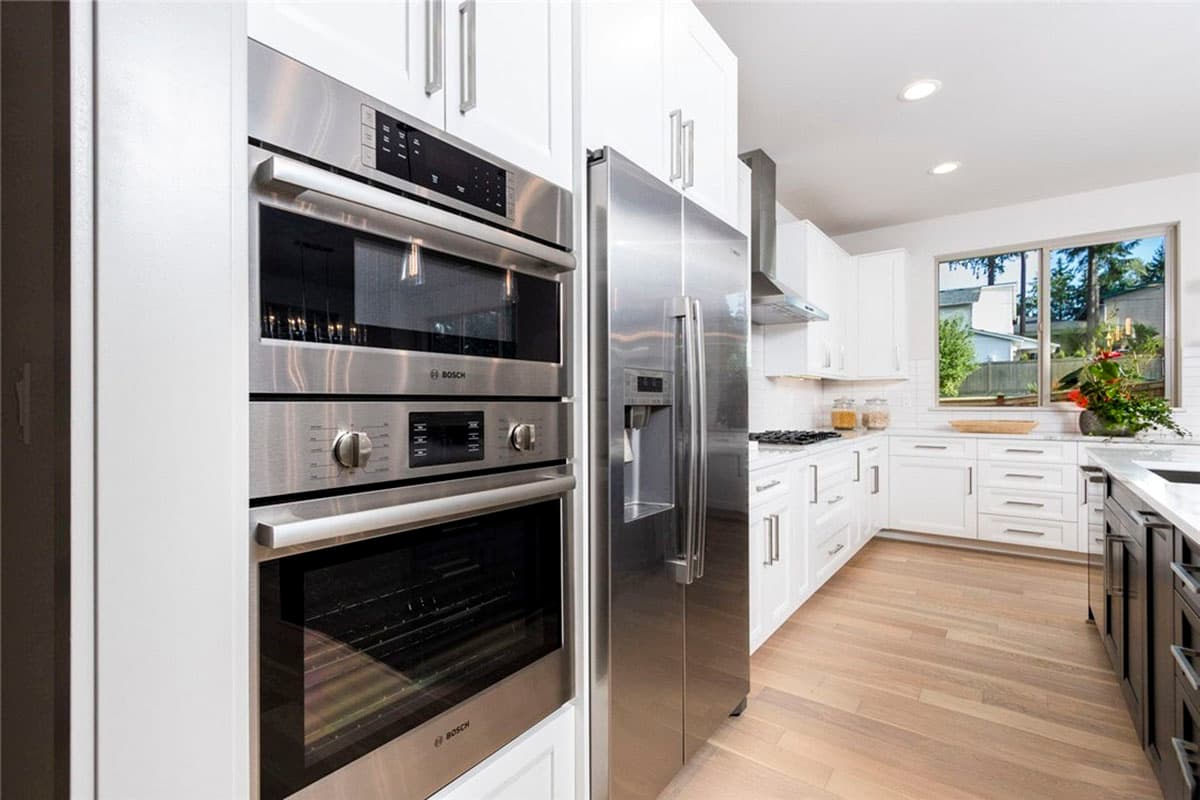

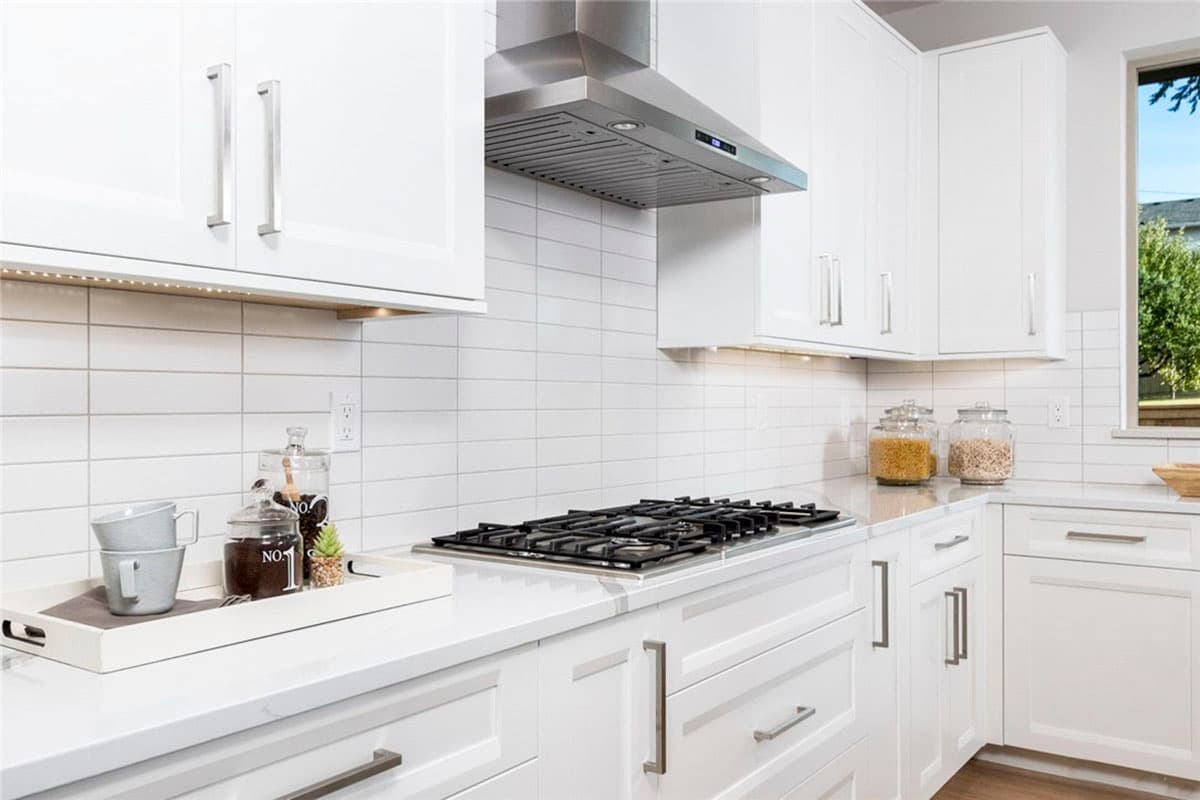

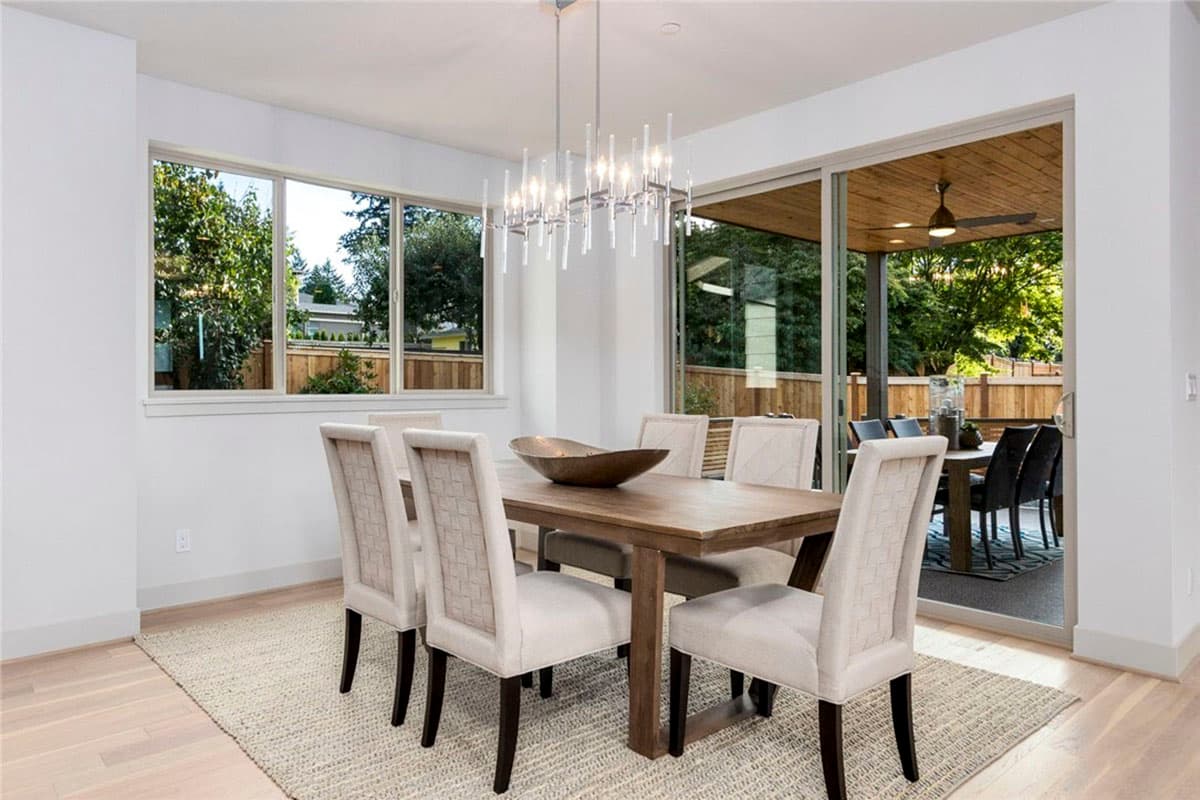

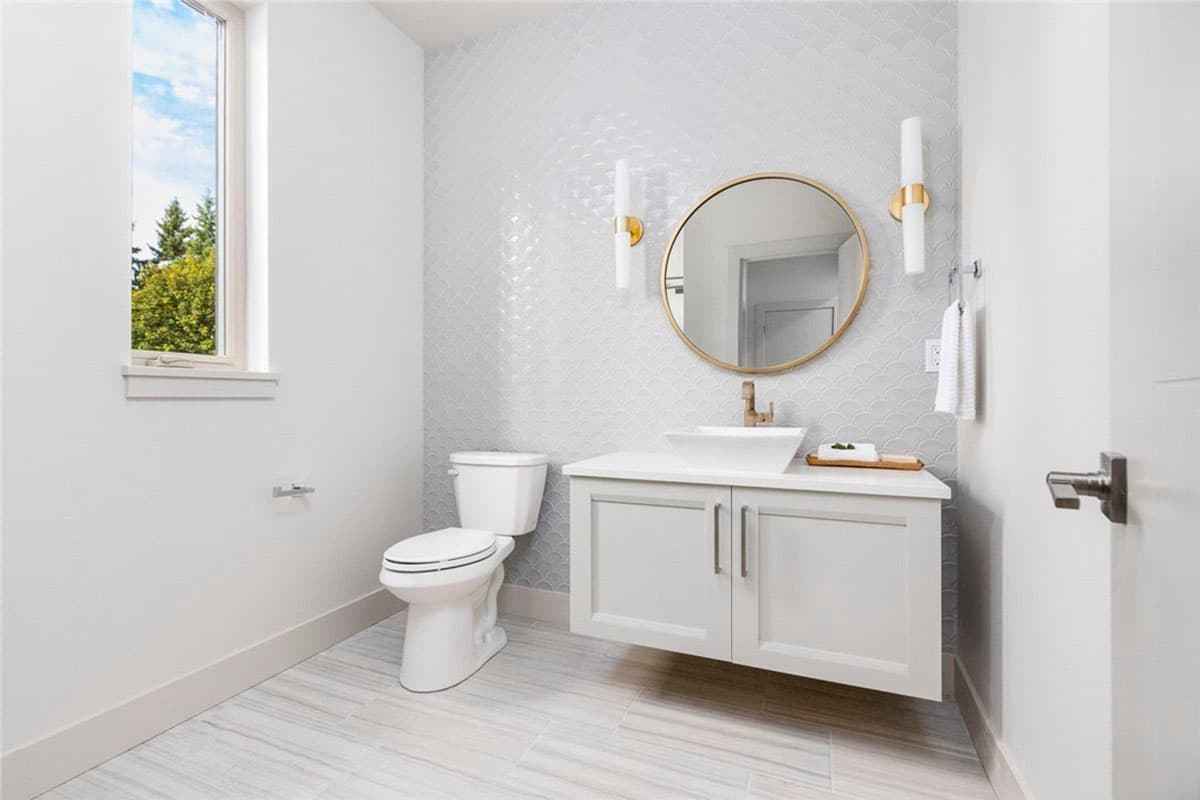

  • Once you step through the front door, wonderful sightlines greet you, giving you views of the great room, dining area and kitchen all at the same time.

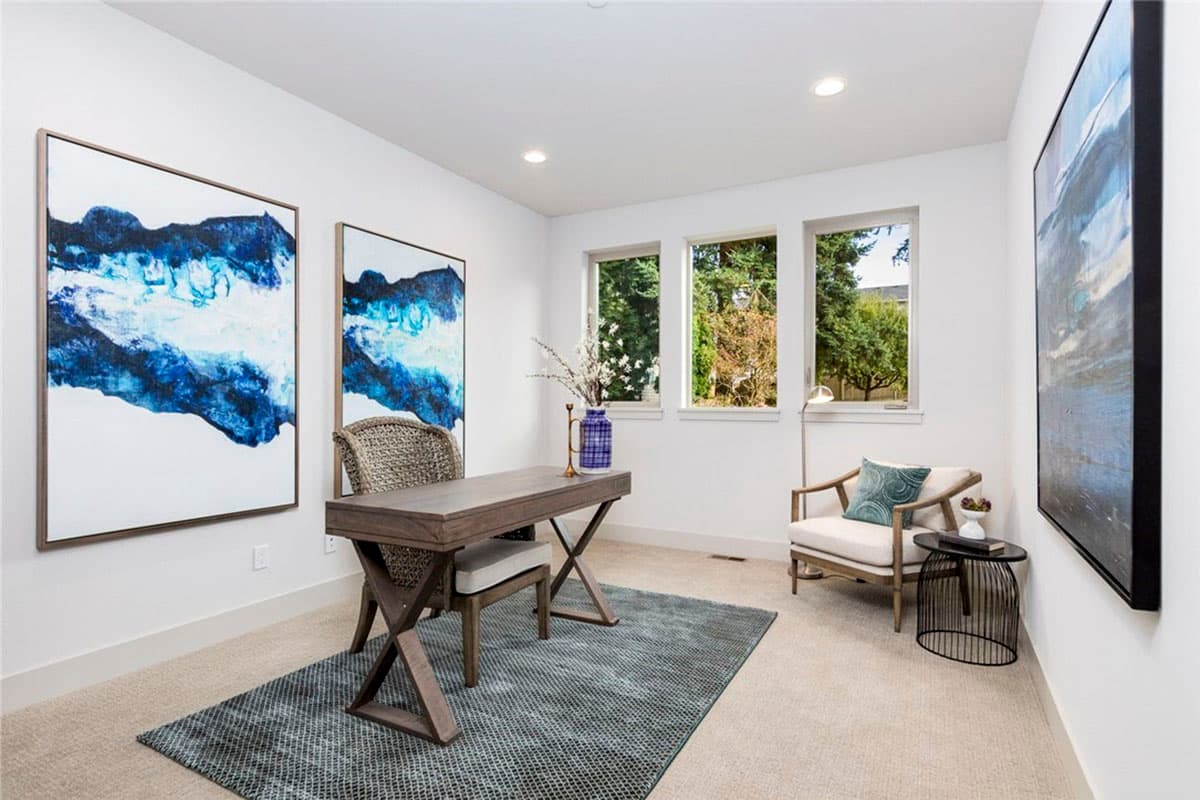

  • A quiet den is off to one side near the walk-in pantry and walk-in coat closet.

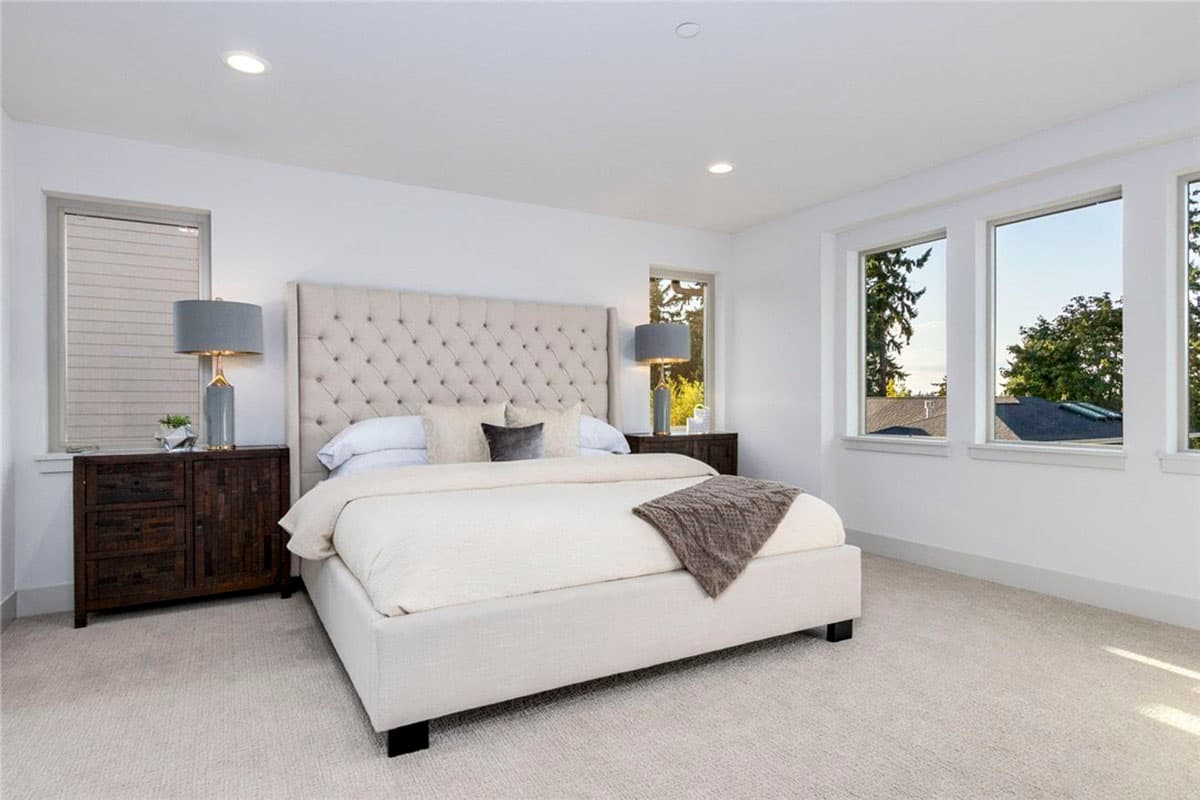

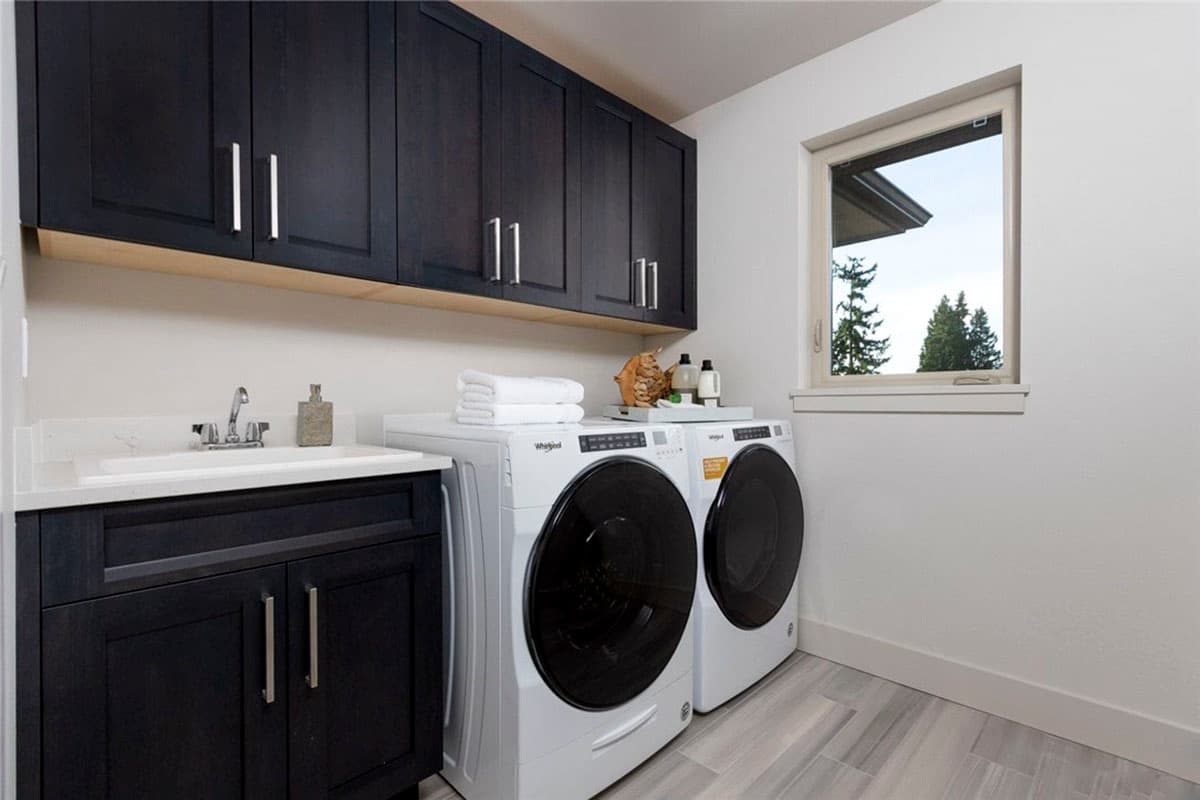

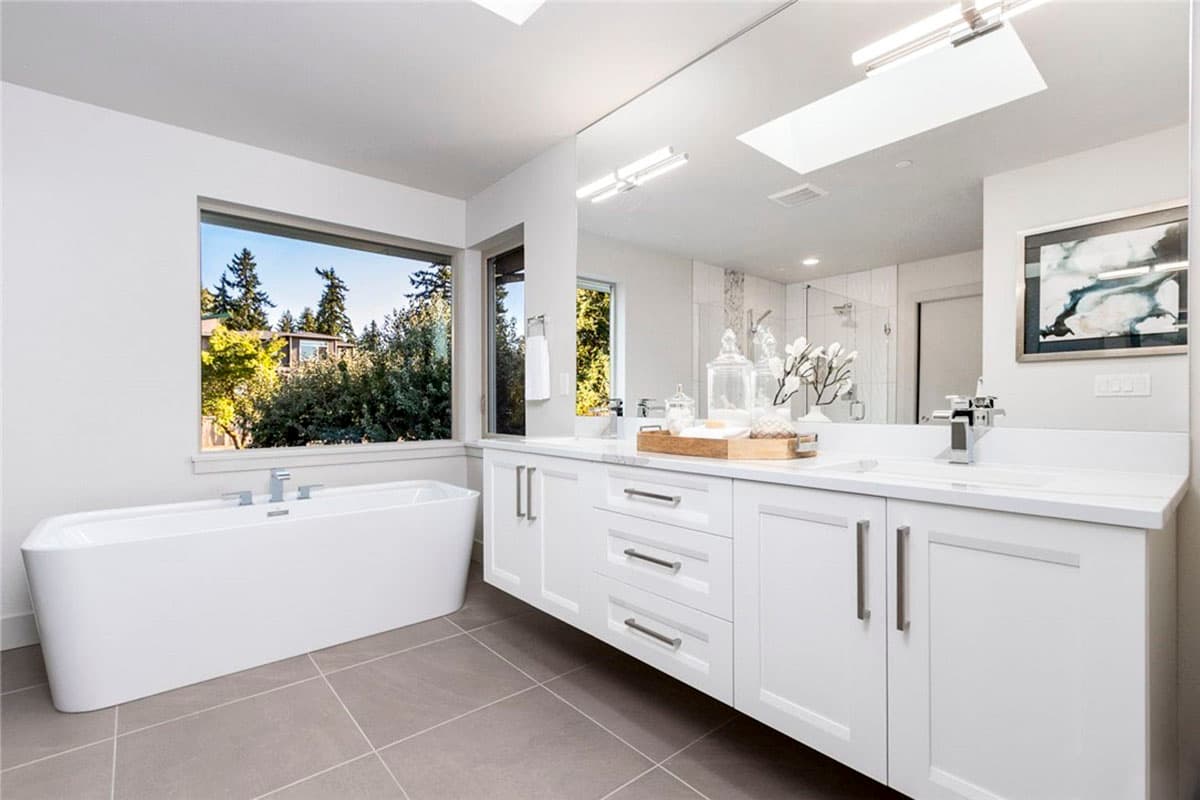

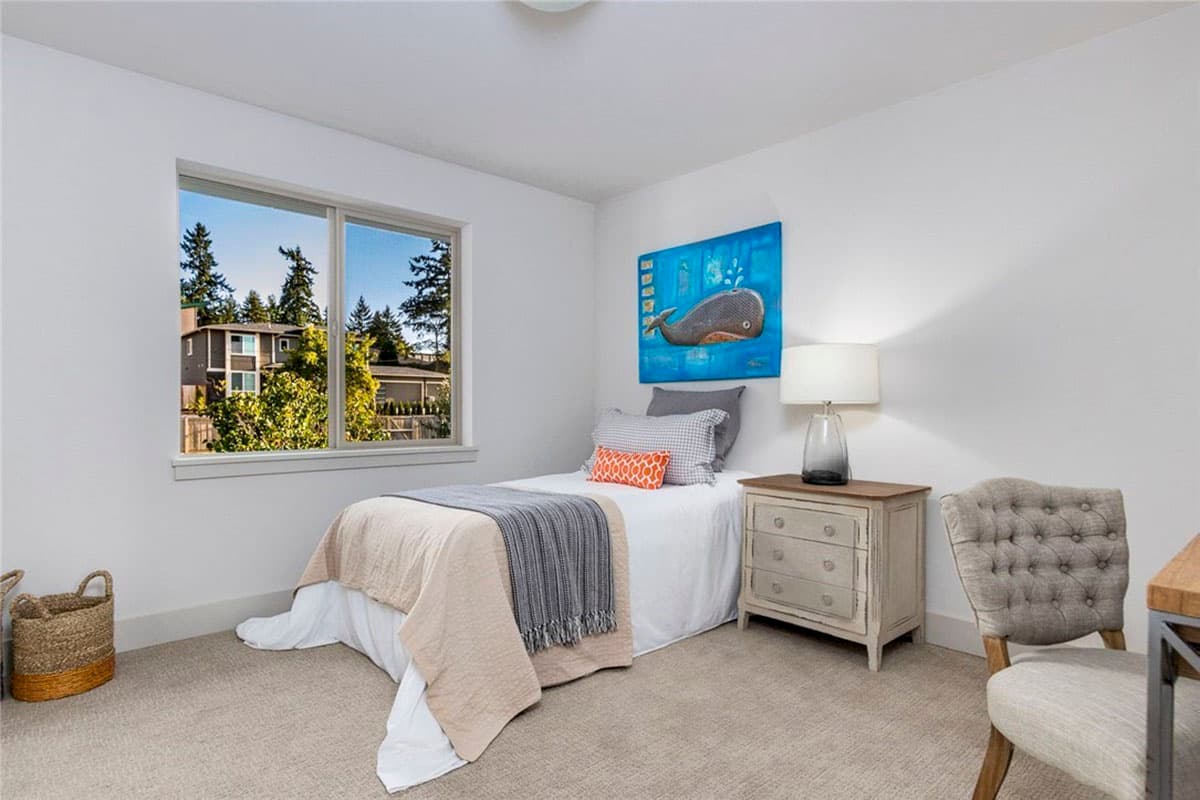

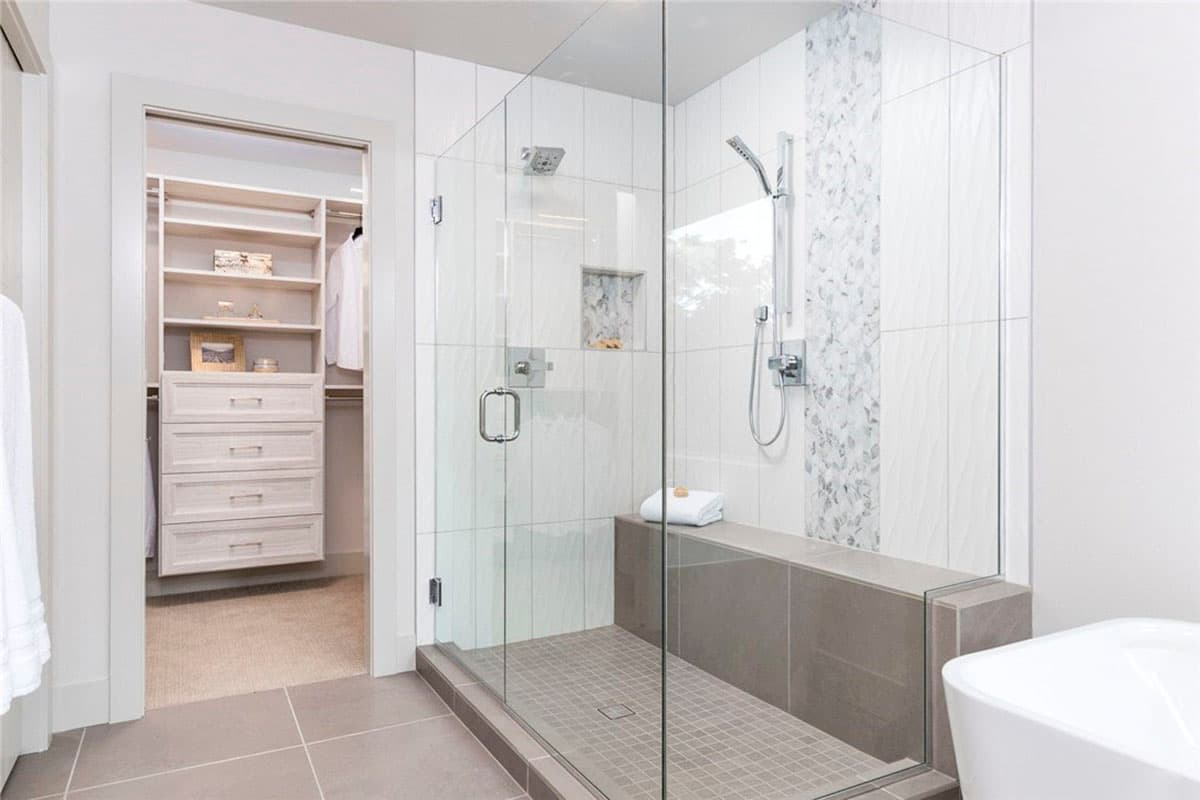

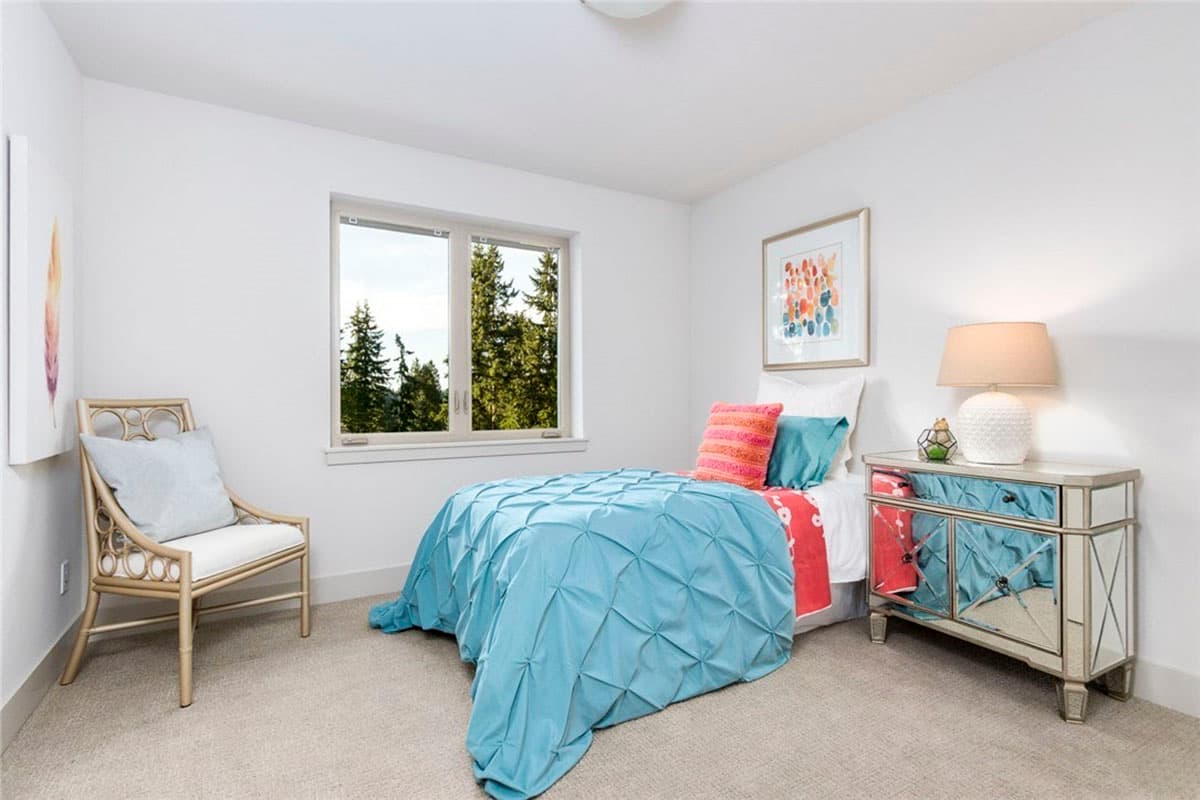

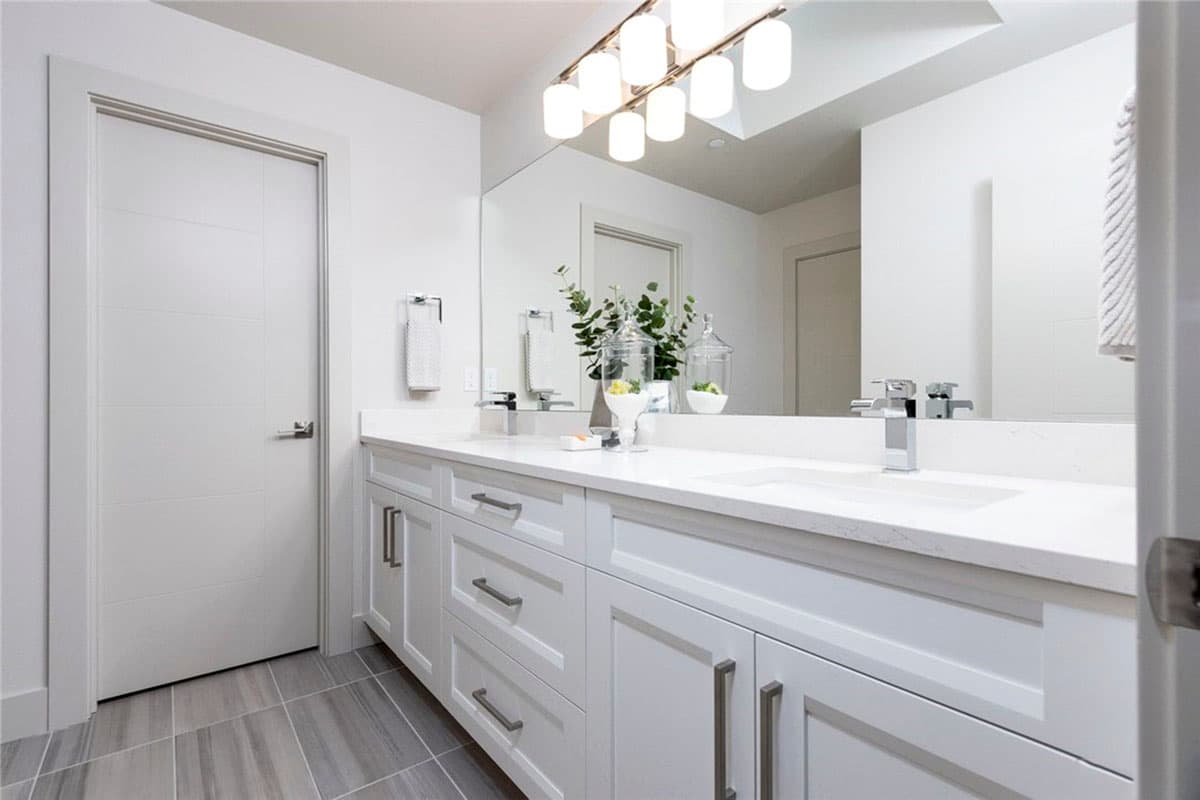

  • Three bedrooms and the laundry room can be found up on the second level including the spacious master suite.

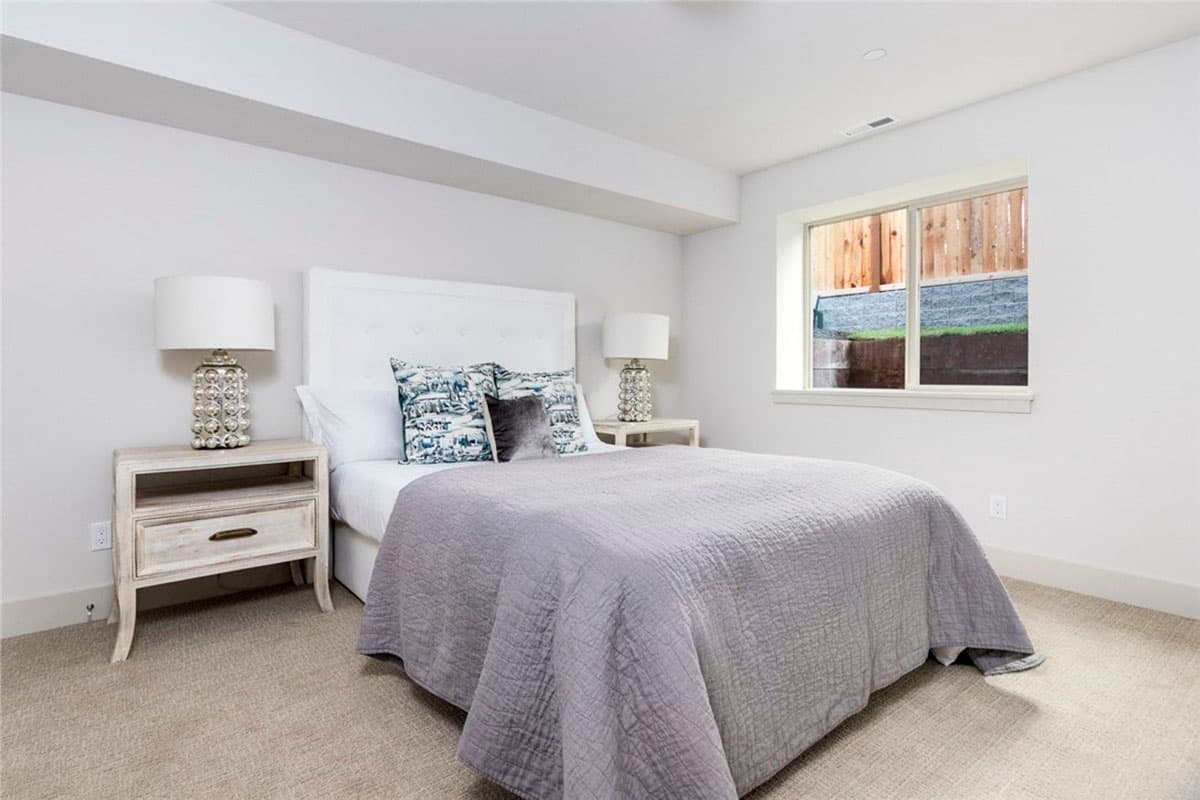

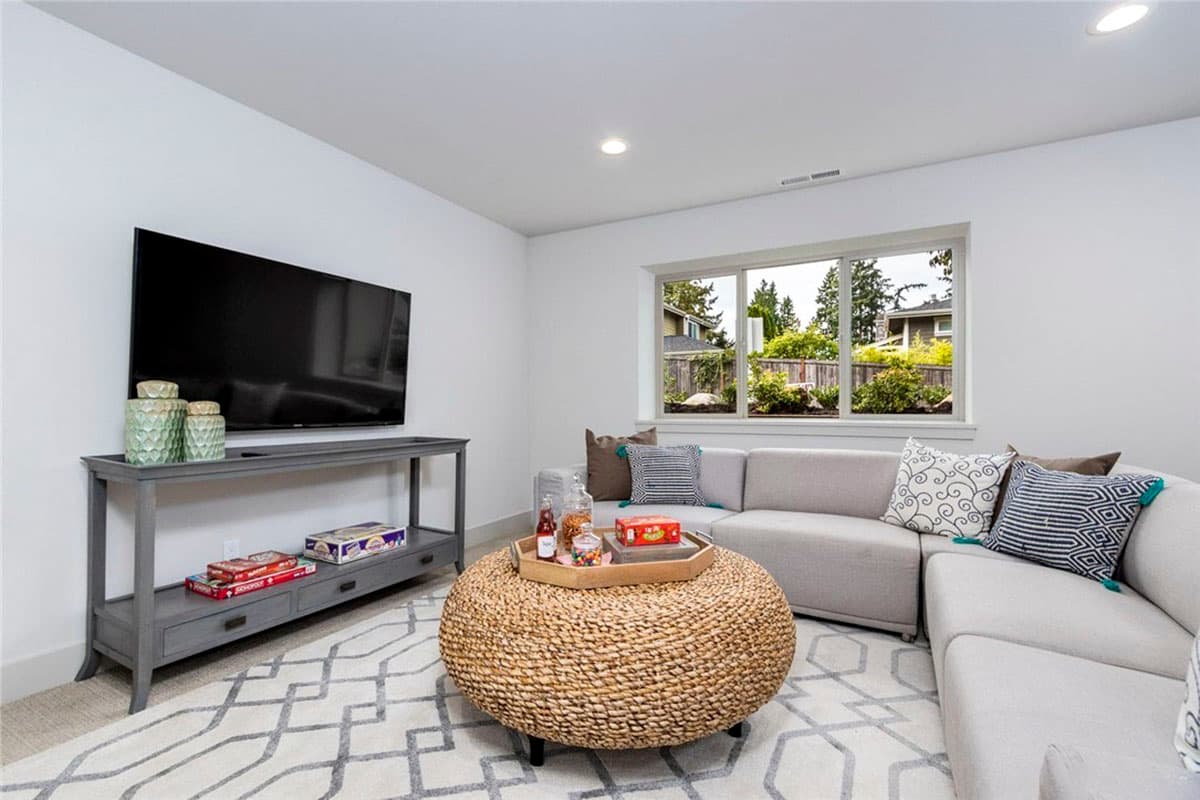

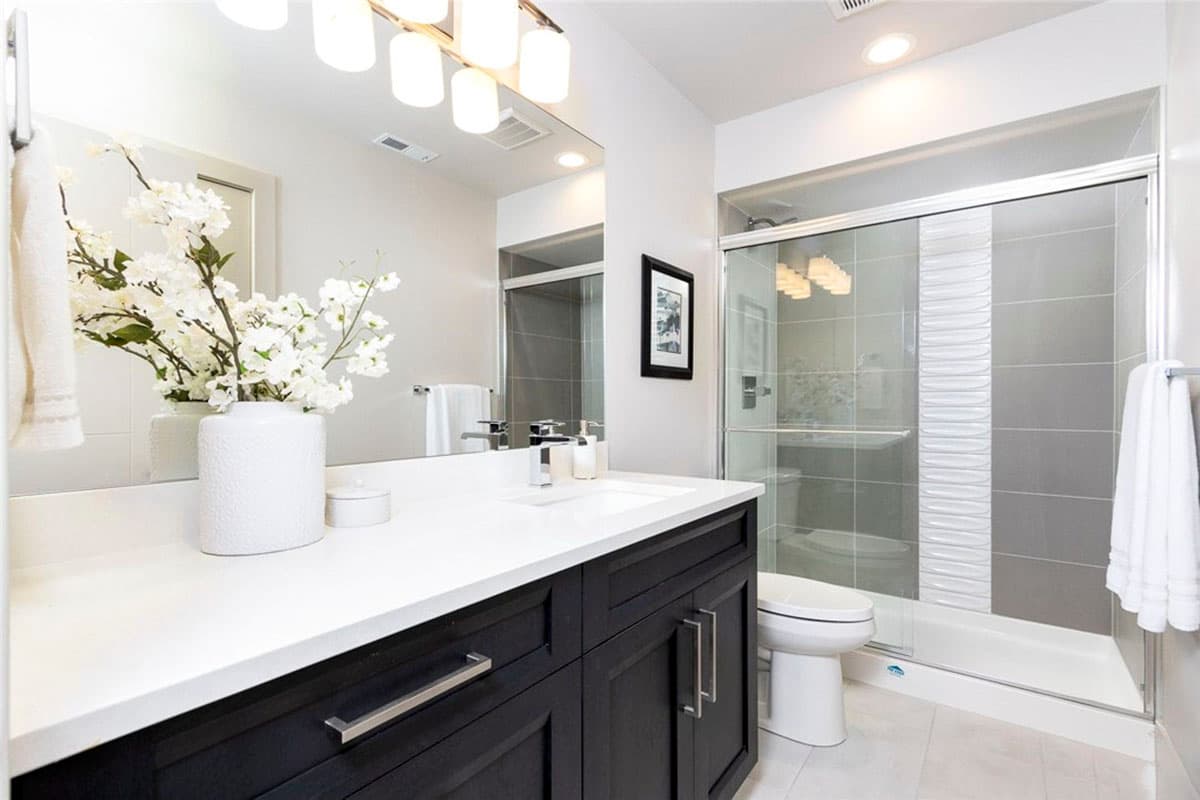

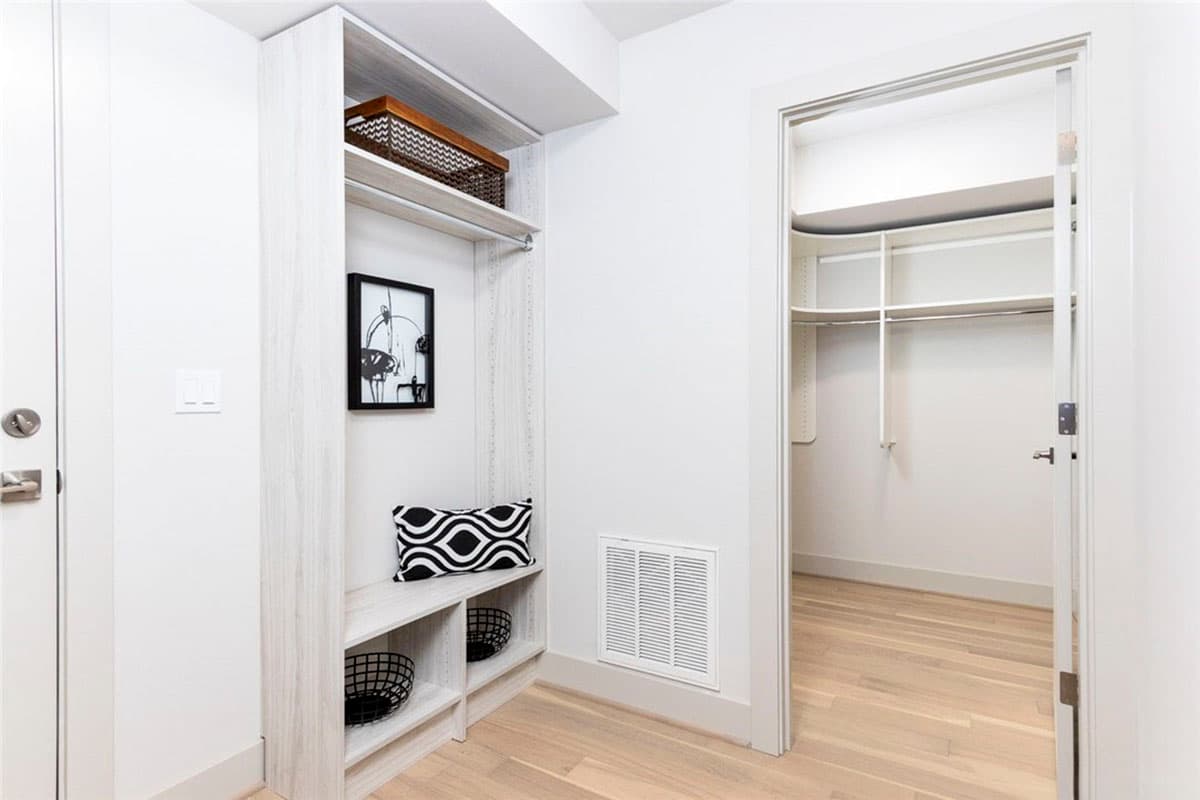

  • Off the garage on the ground level, you have wonderful storage with big walk-in closets, a media room with coffered ceiling and the fourth bedroom plus a bathroom.
  • Related Plan: Build on a flat lot with house plan 23519JD.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

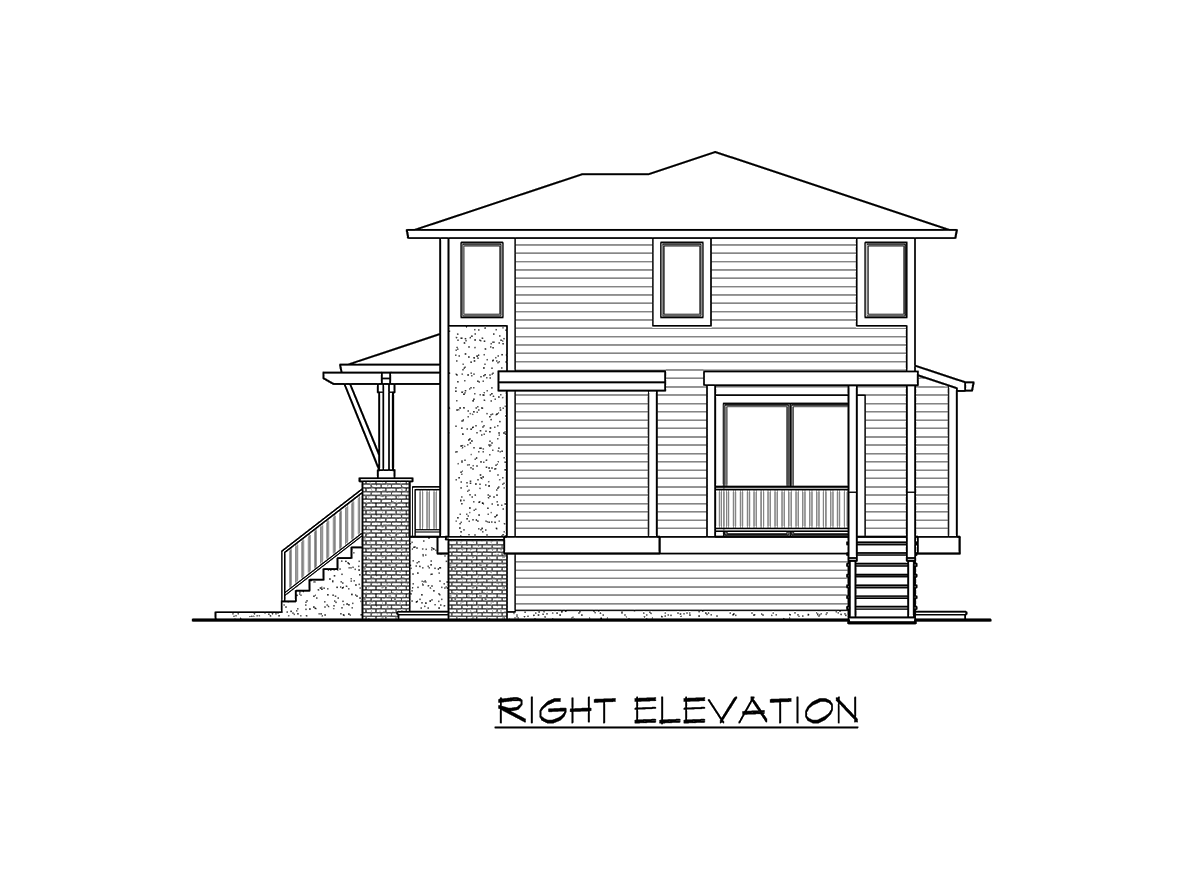

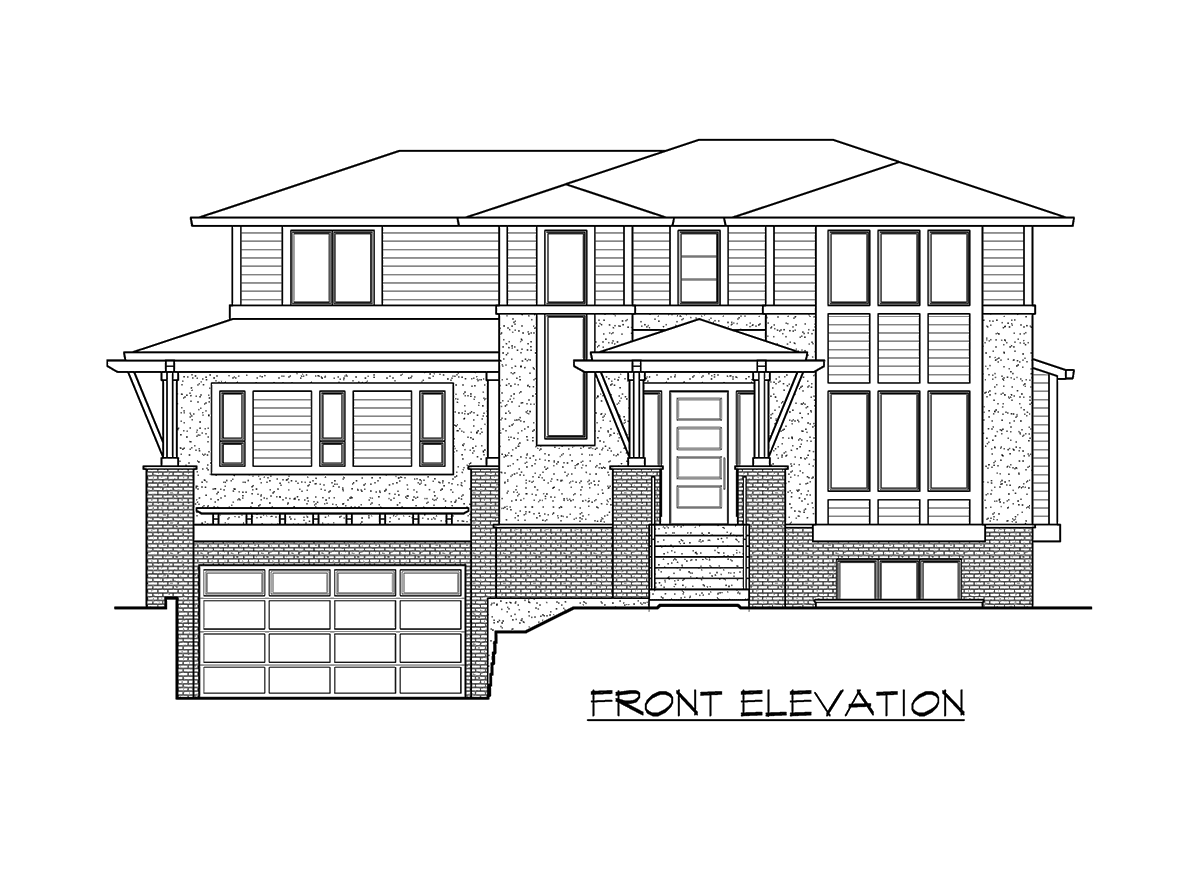

Elevation Sheet

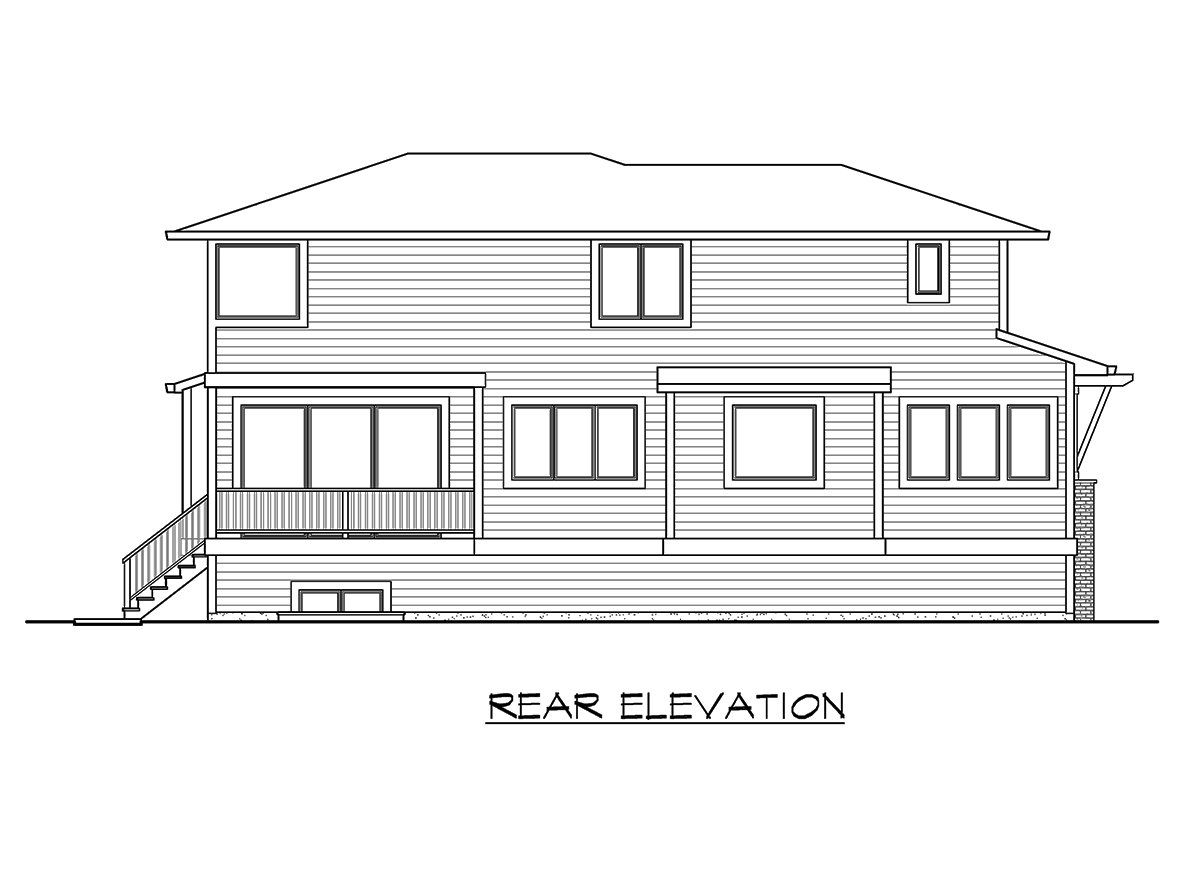

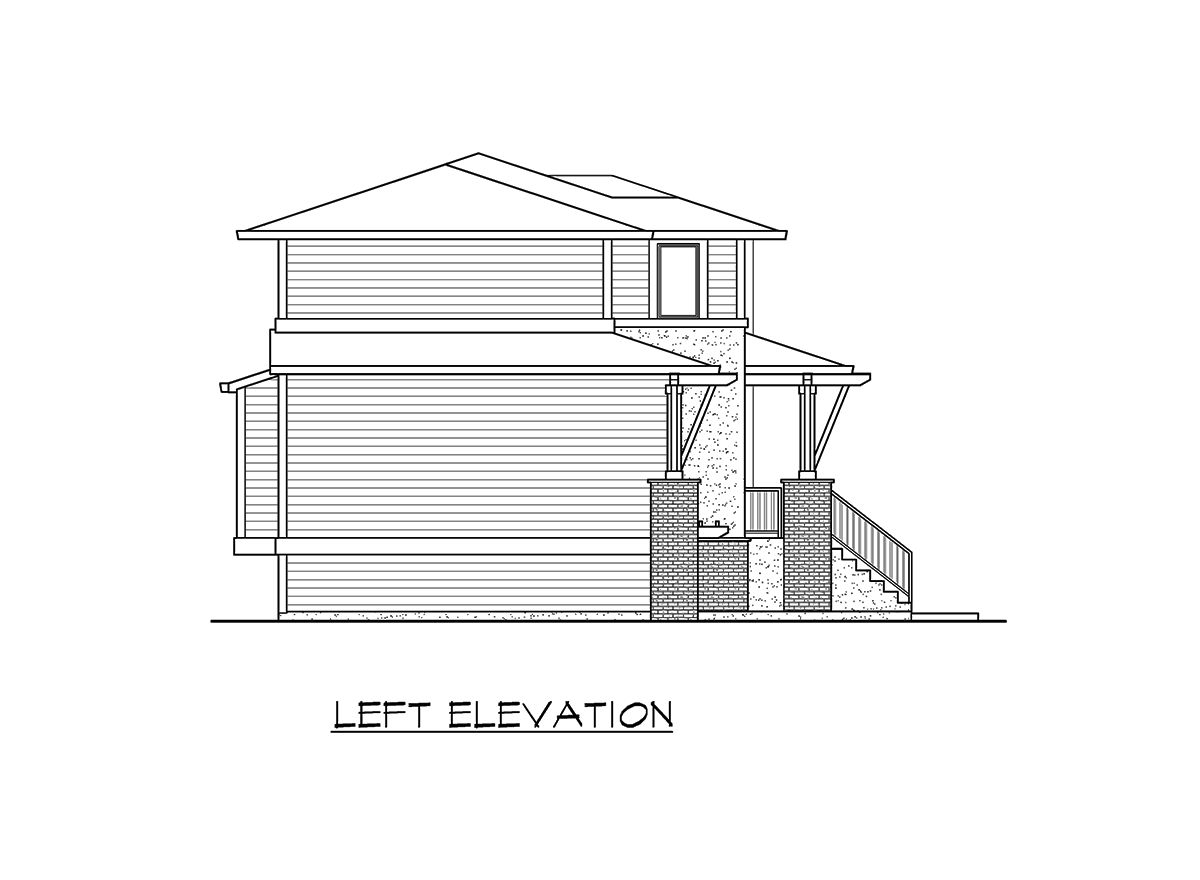

Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

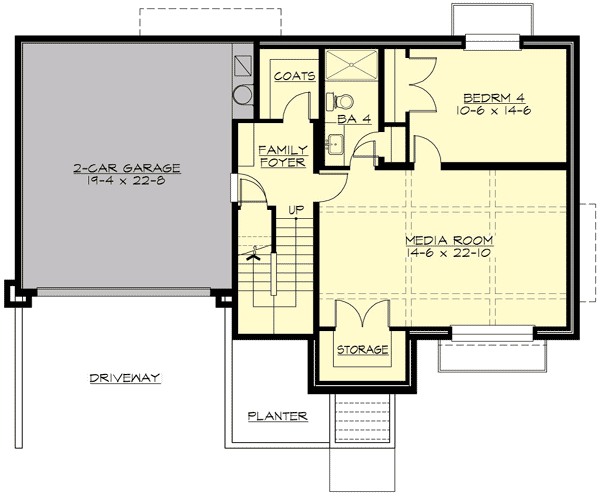

Live on Three Levels - 23542JD floor plan - Basement

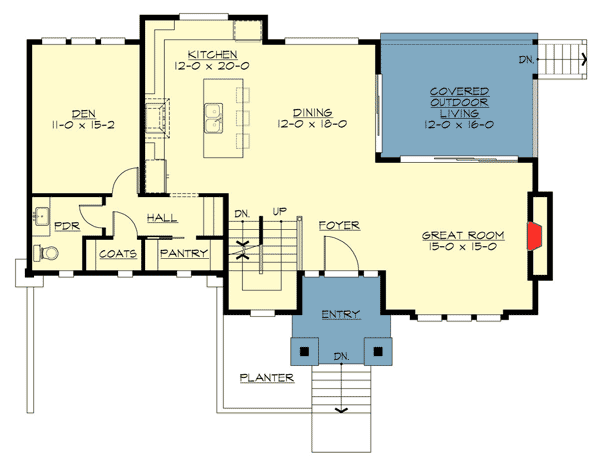

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Live on Three Levels - 23542JD floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

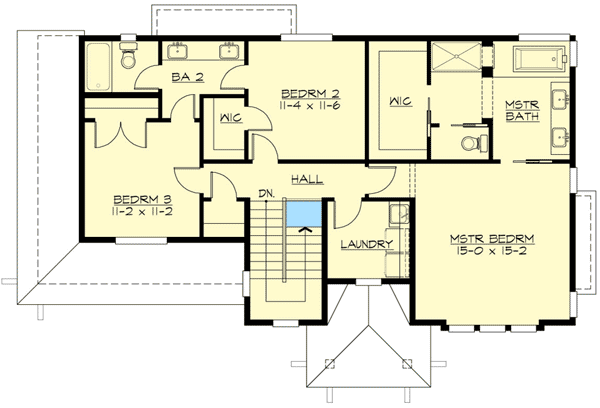

Live on Three Levels - 23542JD floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,205 sq. ft.
  • Lower Level: 923 sq. ft.
  • 1st Floor: 1,183 sq. ft.
  • 2nd Floor: 1,099 sq. ft.

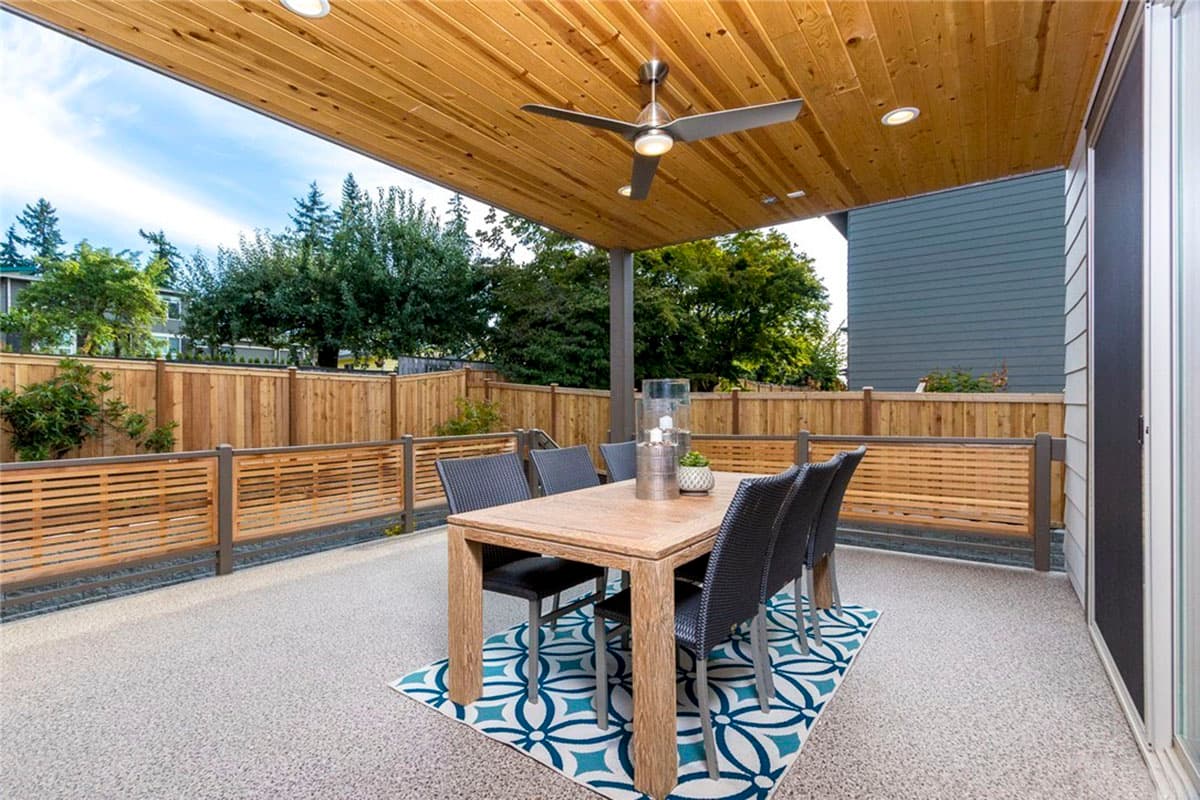

  • Porch, Rear: 192 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 52' 0"
  • Depth: 35' 6"
  • Max ridge height: 23' 0"

Garage

  • Type: Drive Under
  • Area: 493 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 4 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Live on Three Levels

  • 3,205

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $2,000
  • CAD + PDF - Unlimited Build $3,500
  • View all purchase option online

About This Plan

  • Designed for a front sloping lot, this Northwest home plan has clean, contemporary lines and a drive under garage.
  • You can enter the home through the garage or up a short flight of outside stairs to the handsome entry porch.
  • Once you step through the front door, wonderful sightlines greet you, giving you views of the great room, dining area and kitchen all at the same time.
  • A quiet den is off to one side near the walk-in pantry and walk-in coat closet.
  • Three bedrooms and the laundry room can be found up on the second level including the spacious master suite.
  • Off the garage on the ground level, you have wonderful storage with big walk-in closets, a media room with coffered ceiling and the fourth bedroom plus a bathroom.
  • Related Plan: Build on a flat lot with house plan 23519JD.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Floor Plans

  • Basement

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,205 sq. ft.
  • Lower Level: 923 sq. ft.
  • 1st Floor: 1,183 sq. ft.
  • 2nd Floor: 1,099 sq. ft.
  • Porch, Rear: 192 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 52' 0"
  • Depth: 35' 6"
  • Max ridge height: 23' 0"

Garage

  • Type: Drive Under
  • Area: 493 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
