Loaded Lower Level

Plan 80688PM

This plan plants 3 trees

3,362
Heated s.f.
3
Beds
2.5
Baths
2
Stories

This three bedroom house plan has a fully-loaded lower level with two bedrooms, a rec area with fireplace plus a full bath, storage area and wine room.
On the main floor, a main attraction is the L-shaped open deck giving you great views in three directions.
The dining room has a raised ceiling and the living room has a vaulted section.
A large island in the kitchen makes a great casual gathering place. It is a roomy area with views to the back and to the sunroom.
The master is on the upper floor giving you great privacy and views over the treetops.

Please note this plan is designed to the National Building Code of Canada.

Plan sets include the following:

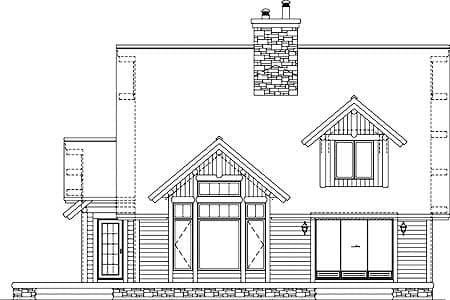

Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Basement

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

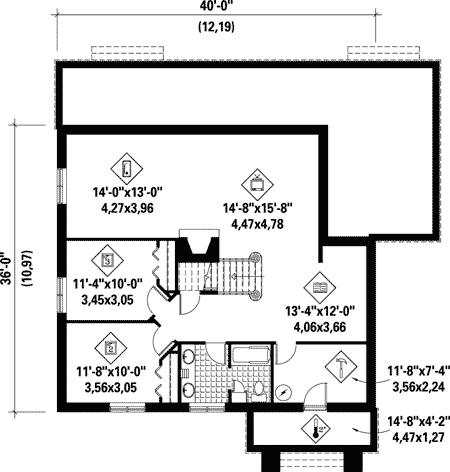

Loaded Lower Level - 80688PM floor plan - Basement

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

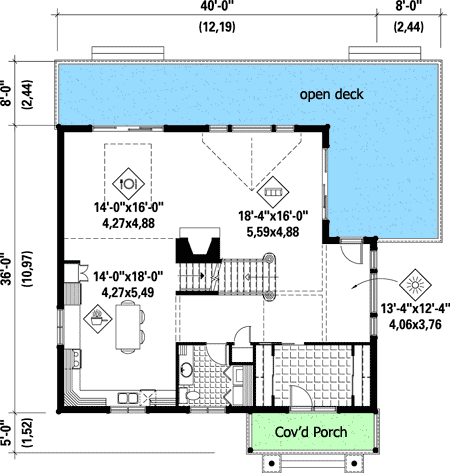

Loaded Lower Level - 80688PM floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

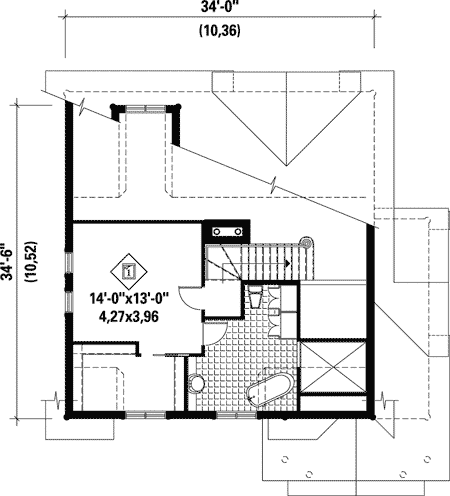

Loaded Lower Level - 80688PM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 3,362 sq. ft.
Lower Level: 1,438 sq. ft.
1st Floor: 1,356 sq. ft.
2nd Floor: 568 sq. ft.

Beds/Baths

Bedrooms: 3

Full bathrooms: 2
Half bathrooms: 1

Foundation Type

Standard Foundations: Basement

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 40' 0"
Depth: 36' 0"
Max ridge height: 31' 11"

Roof Details

Framing Type: Truss

Architectural Style

Special features

Plan Collections
