Plan 35399GH

Log Home Living

Heated S.F.
1,805
Beds
2
Baths
2
Stories
2
Cars
2

Floor Plan

Plan 35399GH

Main Level
Main Level
Upper Floor
Upper Floor
Lower Level
Lower Level

Plan 35399GH

M-F 9am-5pm EST |

1-203-761-8500

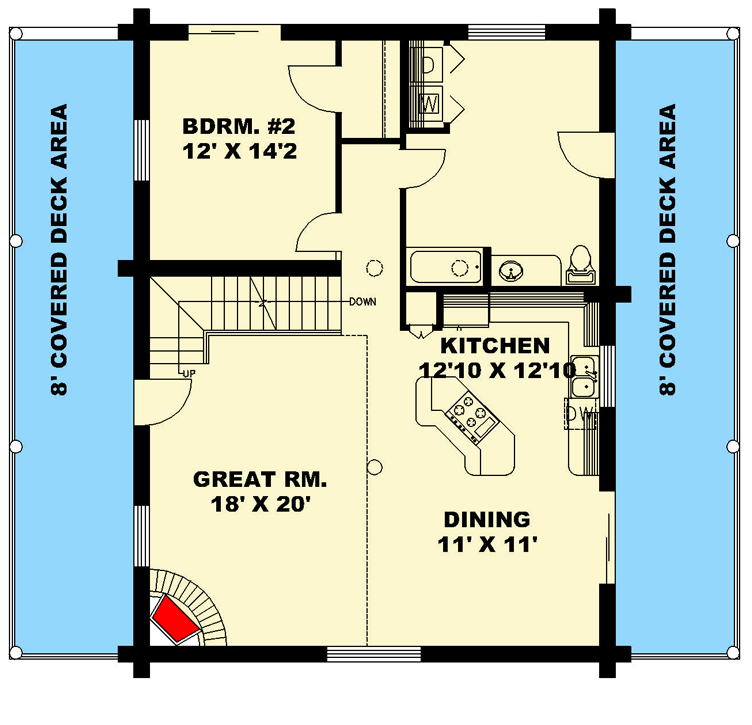

Main Level

Plan 35399GH: Log Home Living - Floor Plan - Main Level - Log Cabin, Mountain, Rustic, Vacation

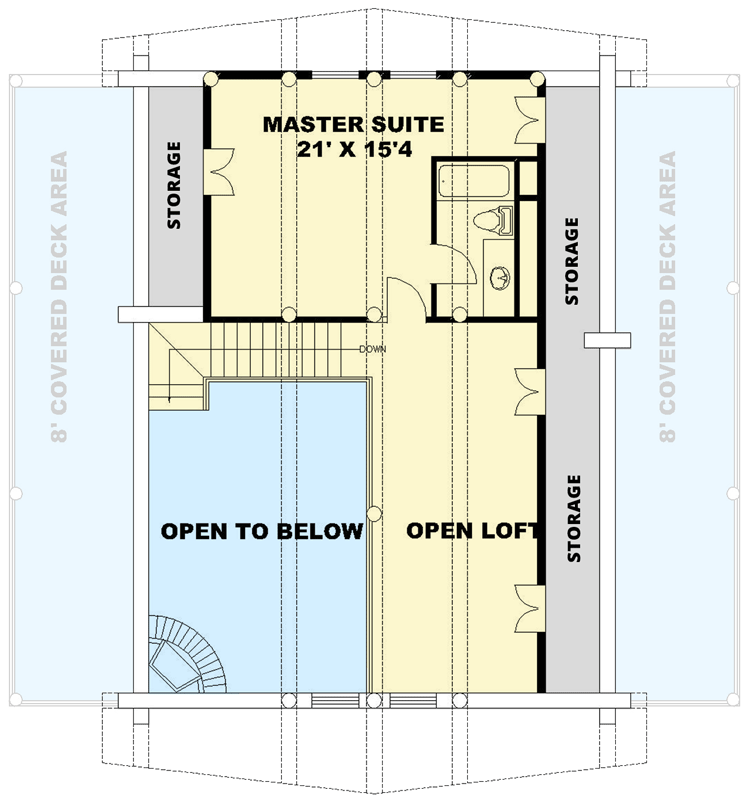

Upper Floor

Plan 35399GH: Log Home Living - Floor Plan - Upper Floor - Log Cabin, Mountain, Rustic, Vacation

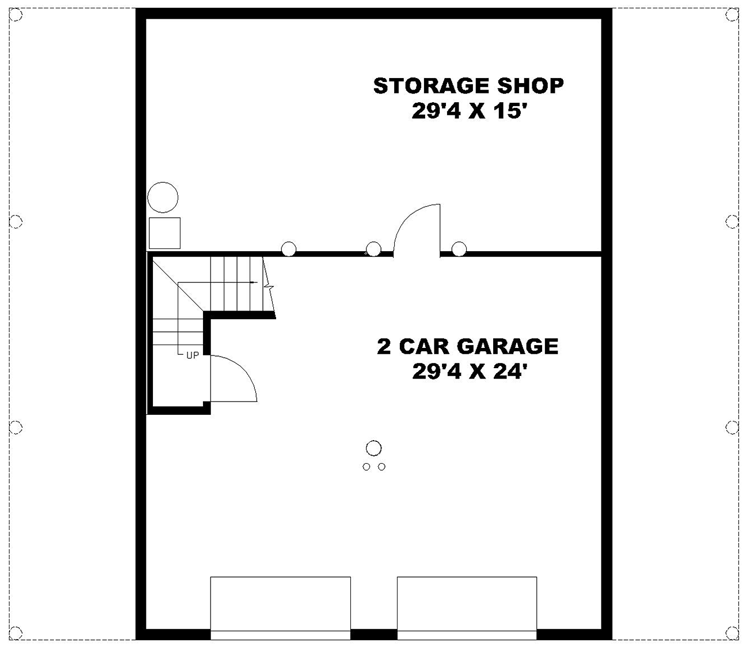

Lower Level

Plan 35399GH: Log Home Living - Floor Plan - Lower Level - Log Cabin, Mountain, Rustic, Vacation

Plan Details

  • This log house plan delivers great views from both the main and upper floors with a dramatic wall of windows.
  • The great room features a soaring cathedral ceiling.
  • Let the kids play in the second floor loft where they can look down into rooms below.
  • A fireplace nestles nicely in the corner of the vaulted great room.
  • The master suite enjoys the best views of all and is a very private space all by itself on the second floor.
  • The drive-under garage has a huge storage area that can be closed off.

What's Included

  • Exterior Elevations:  The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
  • Floor Plans:  The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
  • Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
  • Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
  • Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
  • Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
  • Details: This page includes the structural details for the construction of the house.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,805 sq. ft.

1st Floor

1,200 sq. ft.

2nd Floor

605 sq. ft.

Basement Unfinished

440 sq. ft.

Deck

640 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Basement, Slab

Exterior Walls

Exterior Walls

Log

Dimensions

Width

47' 0"

Depth

40' 0"

Max Ridge Height

31' 3"

Garage

Type

Drive Under

Area

807 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Second Floor

13' 8"

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

N on N

Framing Type

Stick

Architectural Style

Log Cabin

Mountain

Rustic

Vacation

Special Features

Loft

Master Suite - Upstairs

Mudroom

Plan Collections

Lake House Plans

Metric

Sloping Lot
