Plan 59194ND

Lovely Split-Level Home Plan

Heated S.F.
2,237
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 59194ND

Main Level
Main Level

Plan 59194ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

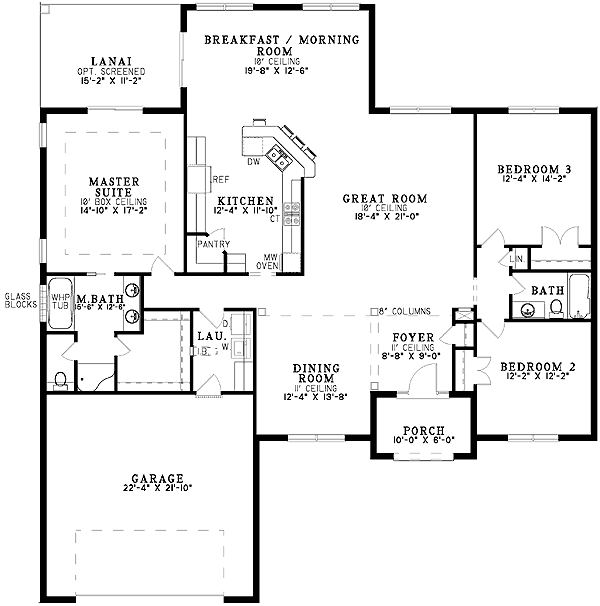

Plan 59194ND: Lovely Split-Level Home Plan - Floor Plan - Main Level - Florida-Style, Mediterranean

Plan Details

  • Lots of open space capable of both formal and casual entertaining characterize this lovely split-bedroom home plan.
  • The extensive great room allows unencumbered transitions to the formal dining room, kitchen and enormous breakfast room with access to the Lanai.
  • The kitchen enjoys a walk-in pantry and an angled eat-at bar.
  • The secluded master suite offer a private entrance to the screened lanai, 10' boxed ceiling, and a substantial walk-in closet.
  • Note: Exterior framing is 8" concrete

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,237 sq. ft.

1st Floor

2,237 sq. ft.

Porch, Front

60 sq. ft.

Porch, Rear

180 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

60' 2"

Depth

64' 8"

Max Ridge Height

23' 0"

Garage

Type

Attached

Area

524 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9' 4"

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Florida-Style

Mediterranean

Special Features

Bedrooms - Split

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Split Level

Square Footage Breakdown

Total Heated Area

2,237 sq. ft.

1st Floor

2,237 sq. ft.

Porch, Front

60 sq. ft.

Porch, Rear

180 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

60' 2"

Depth

64' 8"

Max Ridge Height

23' 0"

Garage

Type

Attached

Area

524 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9' 4"

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Florida-Style

Mediterranean

Special Features

Bedrooms - Split

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Split Level
