Plan 24115BG Luxurious Mediterranean Beach Home Plan with Private Master Suite

Luxurious Mediterranean Beach Home Plan with Private Master Suite

Plan 24115BG

  • 3,604

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 1

    Stories

  • 3

    Cars

  • Luxury defines this Mediterranean beach home plan with ornate ceilings throughout the home, a thoughtful interior flow, and a spacious outdoor living area conducive to entertaining on a large scale.
  • Two sets of french doors open to the back lanai from the great room. The adjacent kitchen boasts a prep island and wrap-around counters with bar-height seating, while the sun-filled breakfast room offers rearward views.
  • The right wing of the home is occupied by the master suite, which provides a private entrance to the lanai.  Dual closets flank the hallway leading to the lavish en suite with an oversized shower and a bidet in the toilet room.
  • Three secondary bedrooms reside on the opposite side of the home; two include a full bath, and one neighbors a full bath.
  • The 3-car garage protrudes from the front of the home with a mud / laundry room just inside.

Plans include the following:

  • Cover page showing front elevation, contents and notes
  • Fully dimensioned floor plans including ceiling heights
  • Roof plan
  • All four exterior elevations
  • Typical cross section
  • Suggested electrical schematic
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

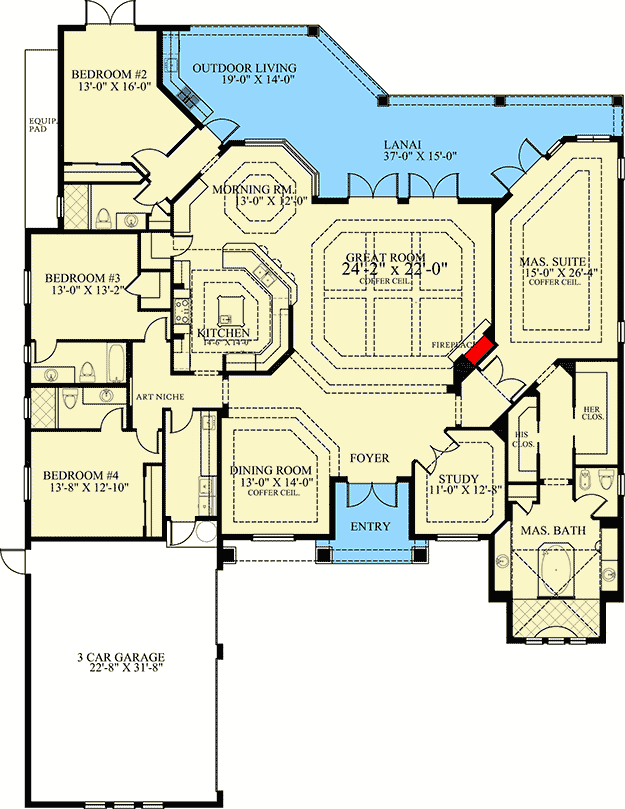

Luxurious Mediterranean Beach Home Plan with Private Master Suite - 24115BG floor plan - Main Level

Plan details

Luxurious Mediterranean Beach Home Plan with Private Master Suite

  • 3,604

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $3,200
  • CAD - Single-Build $3,450
  • View all purchase option online

About This Plan

  • Luxury defines this Mediterranean beach home plan with ornate ceilings throughout the home, a thoughtful interior flow, and a spacious outdoor living area conducive to entertaining on a large scale.
  • Two sets of french doors open to the back lanai from the great room. The adjacent kitchen boasts a prep island and wrap-around counters with bar-height seating, while the sun-filled breakfast room offers rearward views.
  • The right wing of the home is occupied by the master suite, which provides a private entrance to the lanai.  Dual closets flank the hallway leading to the lavish en suite with an oversized shower and a bidet in the toilet room.
  • Three secondary bedrooms reside on the opposite side of the home; two include a full bath, and one neighbors a full bath.
  • The 3-car garage protrudes from the front of the home with a mud / laundry room just inside.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,604 sq. ft.
  • 1st Floor: 3,604 sq. ft.
  • Lanai: 680 sq. ft.
  • Porch, Front: 105 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Dimensions

  • Width: 73' 0"
  • Depth: 95' 0"
  • Max ridge height: 29' 6"

Garage

  • Type: Attached
  • Area: 791 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
