Plan 72840DA
Luxurious Mountain House Plan
Heated S.F.
4,007
Beds
3-4
Baths
4
Stories
2
Plan Details
  • All sorts of extras come with this luxurious Mountain house plan, benefiting every member of the family.
  • There's a quiet den for Dad, a second floor game room for the kids and a vaulted balcony off the master suite for Mom and Dad.
  • And everyone will love having a dedicated exercise room so you never have to run out to the gym.
  • Or, re-purpose it as a craft room or extra bedroom.

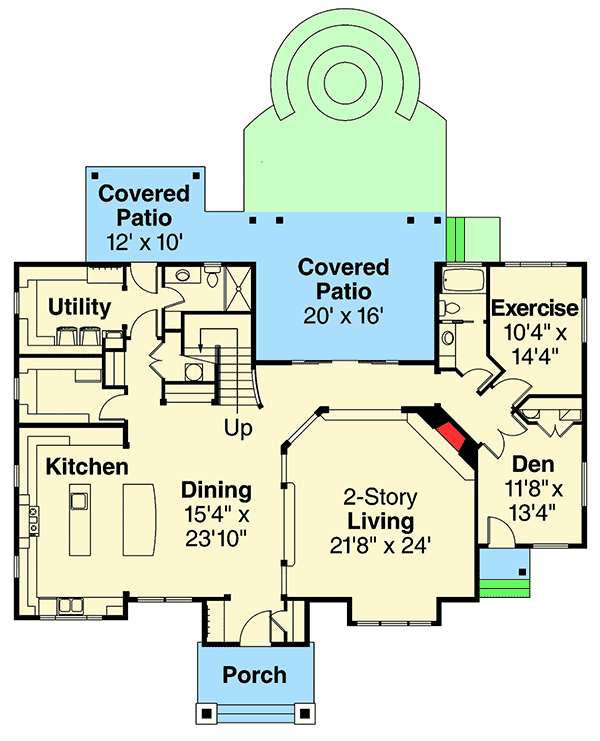

  • There's an enormous amount of counter space in the huge kitchen that has two islands facing the dining room and the sunken living room with its two-story ceiling.
  • Two sinks in the kitchen and a huge walk-in pantry make this gourmet kitchen a delight to work in.

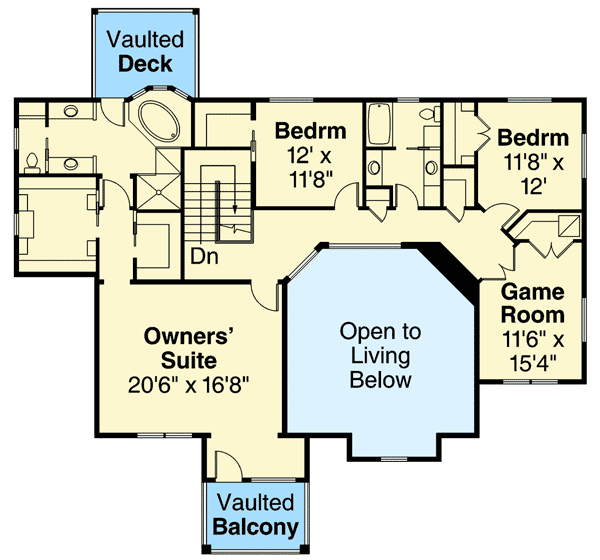

  • All three bedrooms are upstairs with the huge owner's suite having the extra benefit of a vaulted deck off the bathroom.
What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations

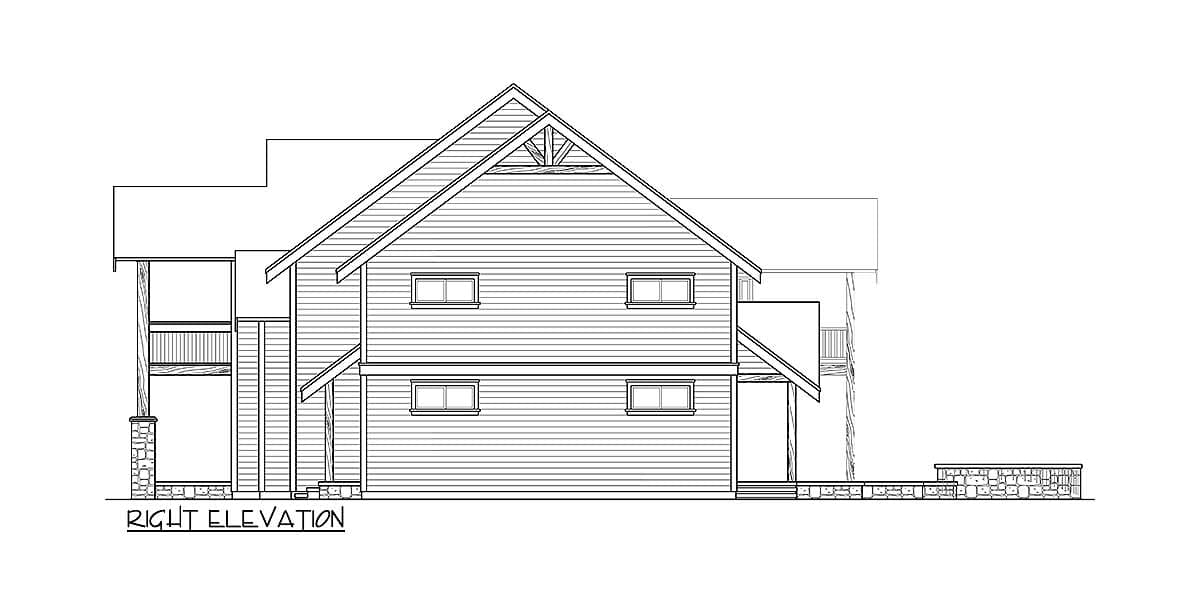

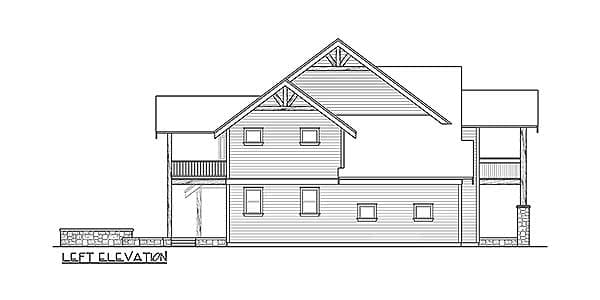

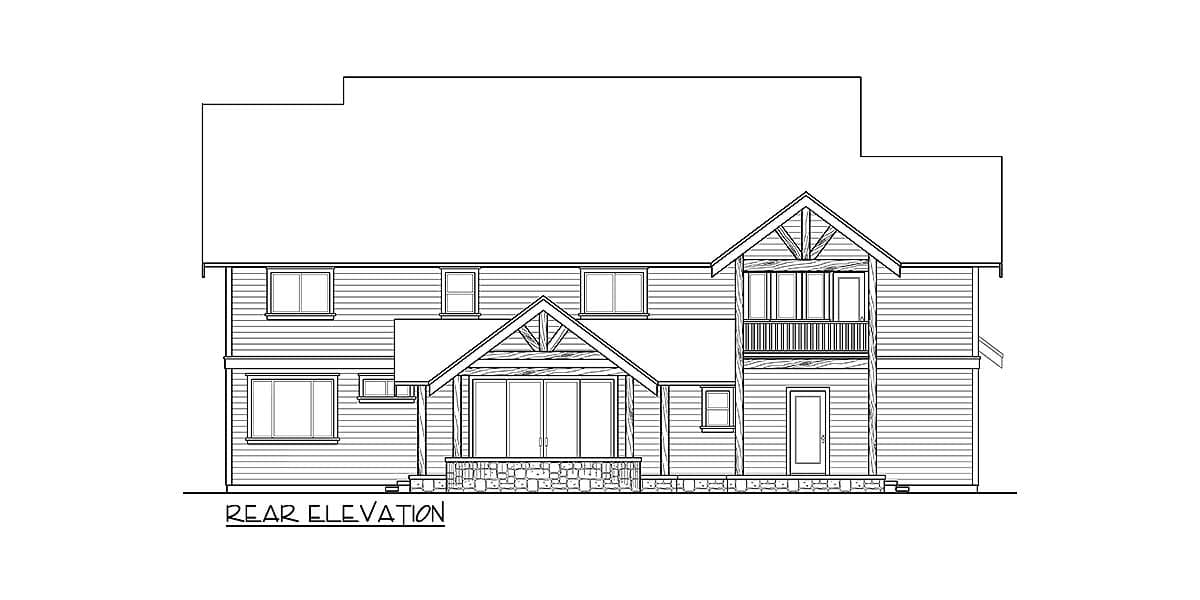

Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Luxurious Mountain House Plan

  • 4,007

    Heated s.f.

  • 3-4

    Beds

  • 4

    Baths

  • 2

    Floors

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 4,007 sq. ft.
  • 1st Floor: 2,255 sq. ft.
  • 2nd Floor: 1,752 sq. ft.

Dimensions

  • Width: 64' 0"
  • Depth: 61' 0"
  • Max ridge height: 35' 5"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Roof

  • Primary Pitch: 9 on 12
