Plan 666154RAF
Luxury 2-Story Mediterranean Home Plan with Office and Party Room
Heated S.F.
10,281
Beds
7
Baths
7.5
Stories
2
Cars
4
Floor Plan

Plan 666154RAF

Main Level
slide image 0
2nd Floor
slide image 1

Plan 666154RAF

1-800-854-7852

1-262-521-4596

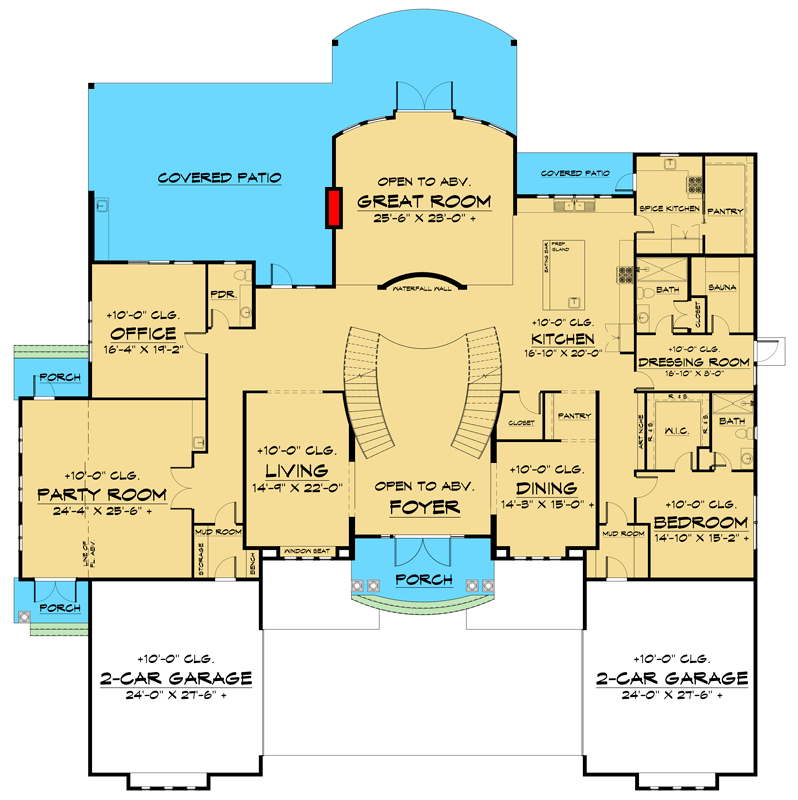

Main Level
floor plan image Main Level

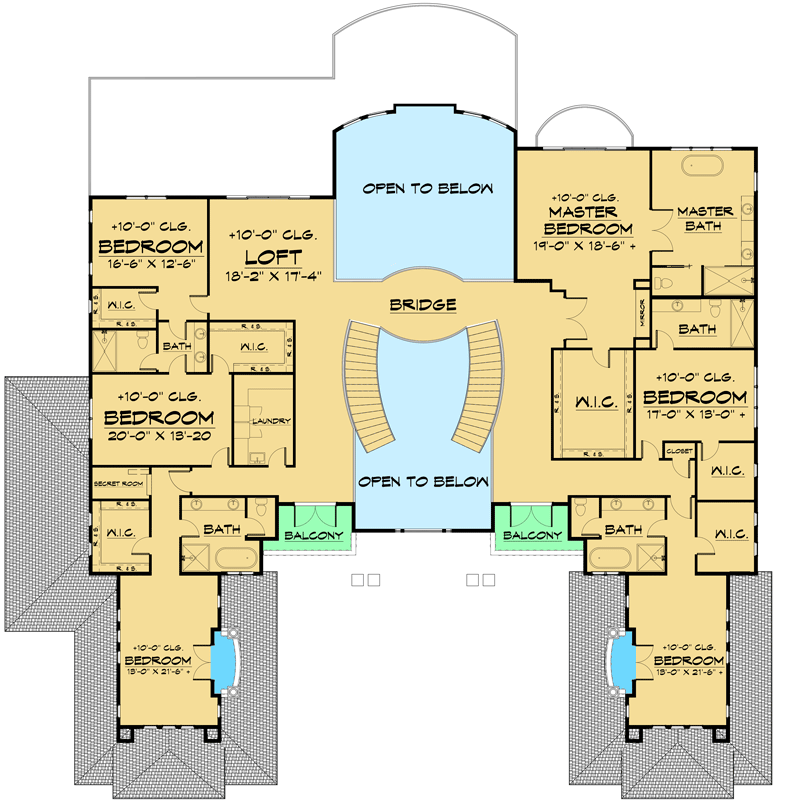

2nd Floor
floor plan image 2nd Floor
Plan Details
  • The grand exterior of this Mediterranean home plan sets the scene for an interior filled with luxury features throughout the two stories; a total of 10,281 square feet of living space.
  • The stunning foyer delivers twin staircases that lead upstairs, while formal dining and living rooms frame the entryway. The gourmet kitchen boasts a prep island, spice kitchen with a second range, cold storage, and sink, as well as a walk-in pantry.
  • The great room boasts tall ceilings and french doors that lead to the expansive covered patio. Other notable main-level features include a home office, party room, and bedroom suite.
  • Six bedrooms and the laundry room consume the second level, including the master bedroom with a deluxe ensuite and walk-in closet.
  • Two double garages extend from each side of the home; the bedrooms above the garage feature balconies that overlook the motor court below.
What's Included
  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans

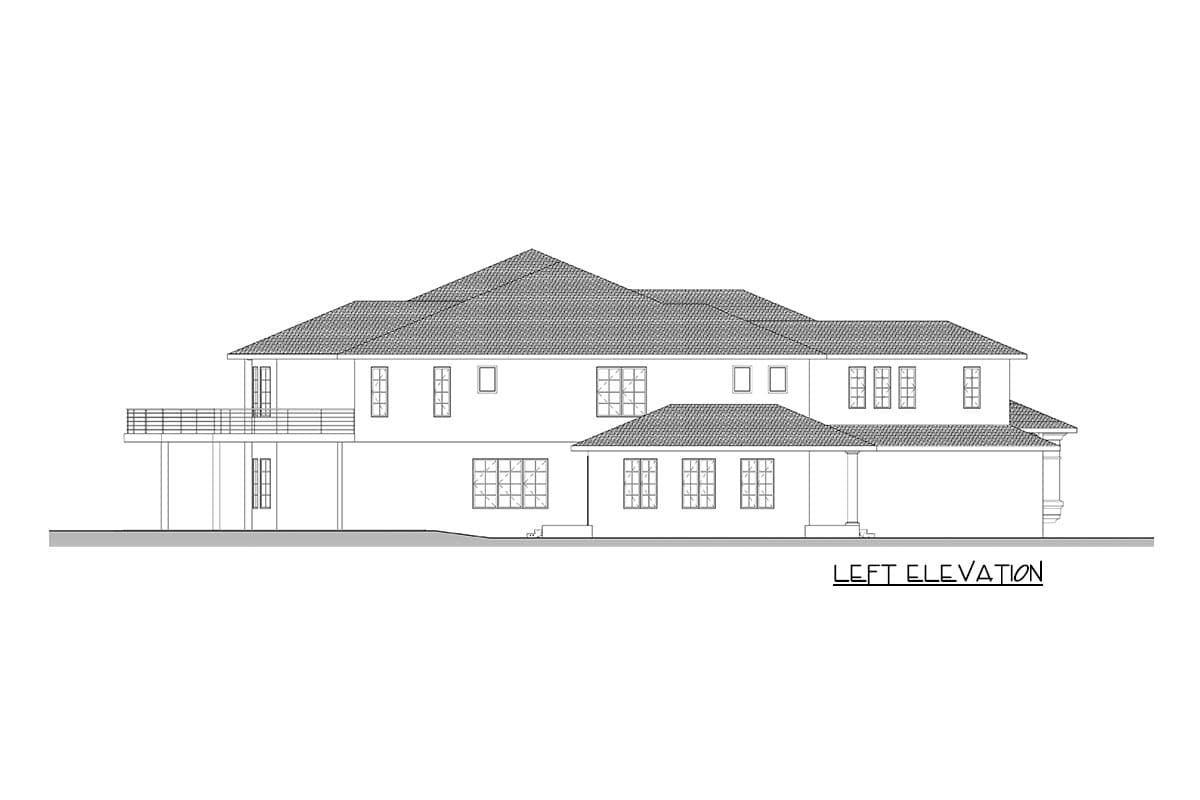

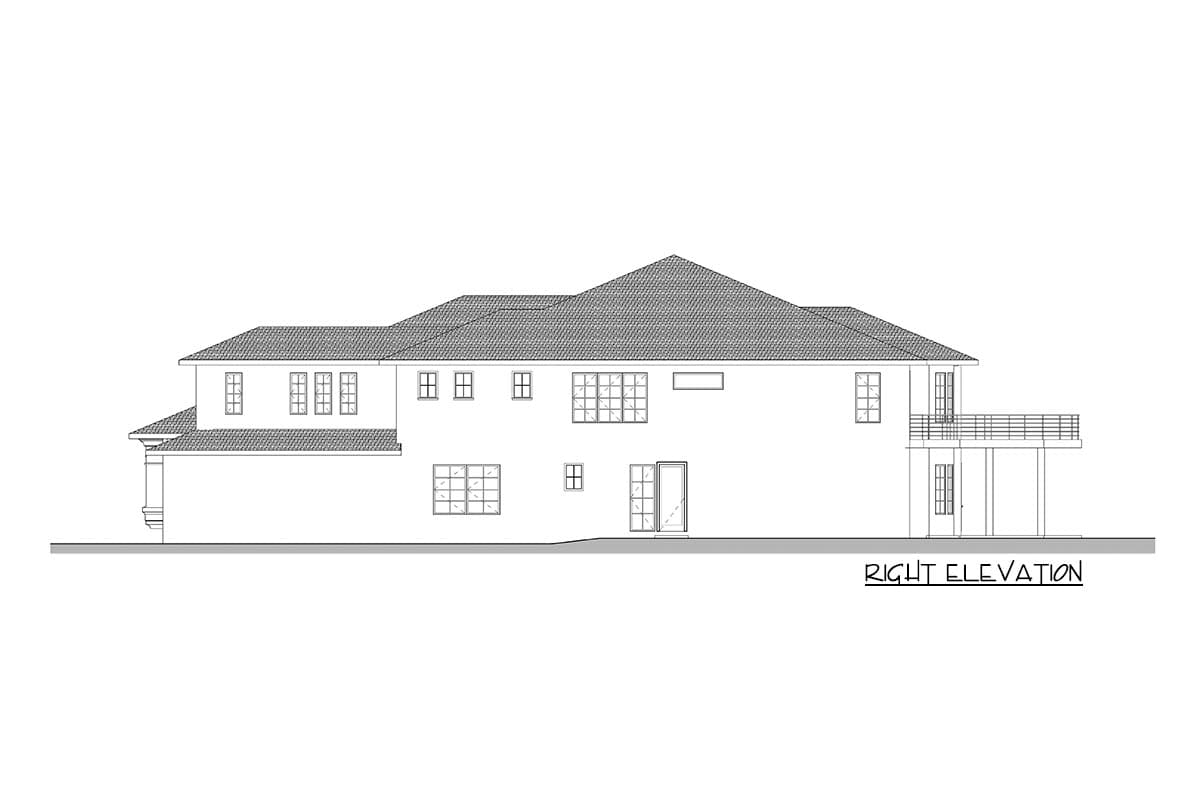

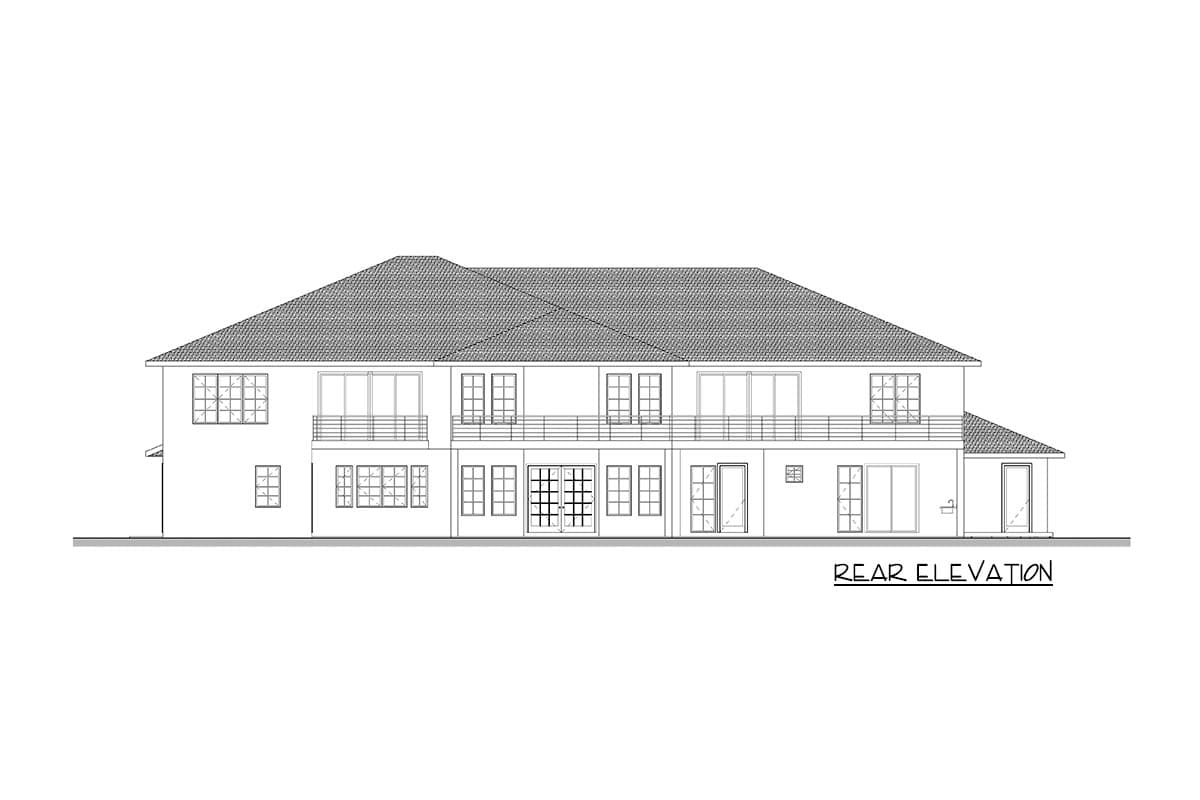

  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
What's Not Included
  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

10,281 sq. ft.

1st Floor

5,416 sq. ft.

2nd Floor

4,865 sq. ft.

Porch, Front

237 sq. ft.

Porch, Rear

59 sq. ft.

Deck

975 sq. ft.

Balcony / Veranda

142 sq. ft.

Covered Patio

1,411 sq. ft.

Beds/Baths

Bedrooms

7

Full bathrooms

7

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

106' 0"

Depth

97' 10"

Max Ridge Height

31' 5"

Garage

Type

Attached

Area

724 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

Lower Level

10'

First Floor

10'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

5 on 12

Framing Type

Architectural Style

European

Mediterranean

Transitional

Special Features

Butler Walk-in Pantry

Formal Dining

Home Office

Laundry - Upstairs

Loft

Mudroom

Two Story Great Room

Plan Collections

Luxury

Square Footage Breakdown

Total Heated Area

10,281 sq. ft.

1st Floor

5,416 sq. ft.

2nd Floor

4,865 sq. ft.

Porch, Front

237 sq. ft.

Porch, Rear

59 sq. ft.

Deck

975 sq. ft.

Balcony / Veranda

142 sq. ft.

Covered Patio

1,411 sq. ft.

Beds/Baths

Bedrooms

7

Full bathrooms

7

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

106' 0"

Depth

97' 10"

Max Ridge Height

31' 5"

Garage

Type

Attached

Area

724 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

Lower Level

10'

First Floor

10'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

5 on 12

Framing Type

Architectural Style

European

Mediterranean

Transitional

Special Features

Butler Walk-in Pantry

Formal Dining

Home Office

Laundry - Upstairs

Loft

Mudroom

Two Story Great Room

Plan Collections

Luxury
