Plan 660027JMD

Luxury Coastal Contemporary House Plan: 5 Beds, Outdoor Kitchen, Observation Deck

Name: Plan 660027JMD: Luxury Coastal Contemporary House Plan: 5 Beds, Outdoor Kitchen, Observation Deck
Brand: Architectural Designs
SKU: 660027JMD
Price: 3142.88 USD
Availability: InStock

Heated S.F.

3,856

Beds

Baths

5.5

Stories

Cars

Floor Plan

Main Level

2nd Floor

3rd Floor

Plan Details

This magnificent 3,856 sq. ft. Coastal Contemporary house plan offers 5 bedrooms, 5 full baths, 1 half bath, and an attached 843 sq. ft. three-car garage, embodying the serene elegance of Florida-style architecture.

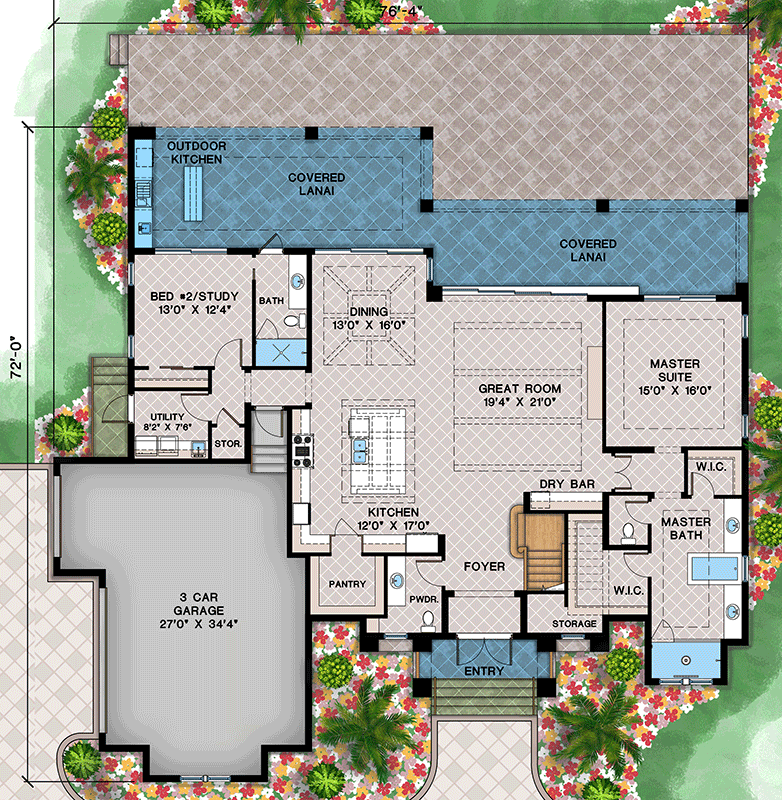

Upon entering, the grand foyer, spanning 152 sq. ft., introduces an expansive open-concept great room designed for seamless living and entertaining, with a flexible space nearby ideal for a home office or study.
The heart of the home is a chef-inspired kitchen featuring an oversized island, a butler's walk-in pantry, and a convenient wet bar, flowing effortlessly into the formal dining area and out to the covered lanai.
The first floor hosts a luxurious split master suite, a private sanctuary complete with dual walk-in closets and a spa-like bath featuring dual vanities, a soaking tub, and a spacious walk-in shower; a secondary bedroom on this level provides versatility for guests or an additional study.

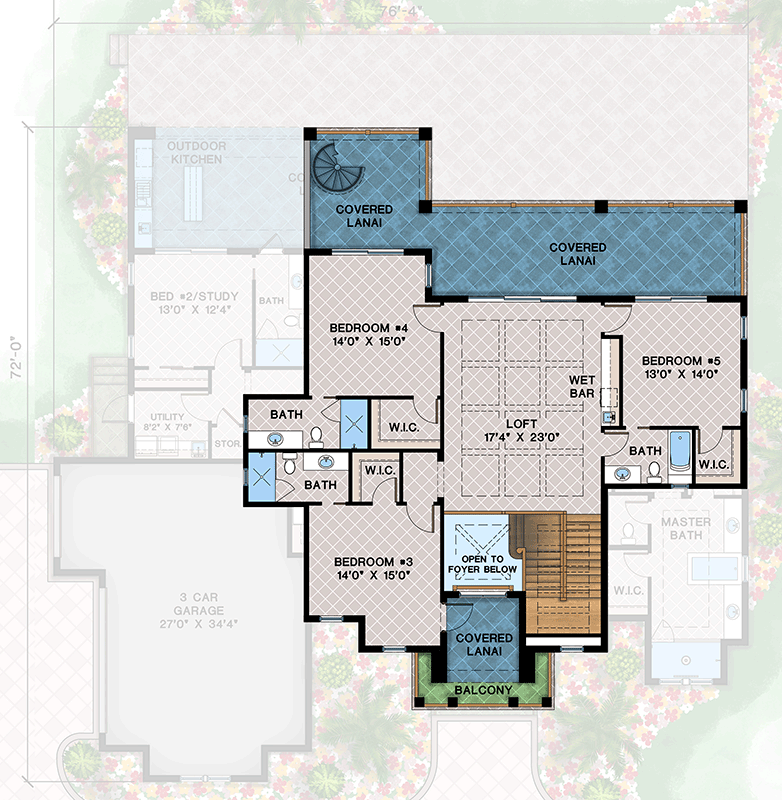

Ascend to the second floor to discover three additional well-appointed bedrooms, each with a walk-in closet, centered around a versatile loft space and another wet bar, creating an ideal gathering spot or private retreat.

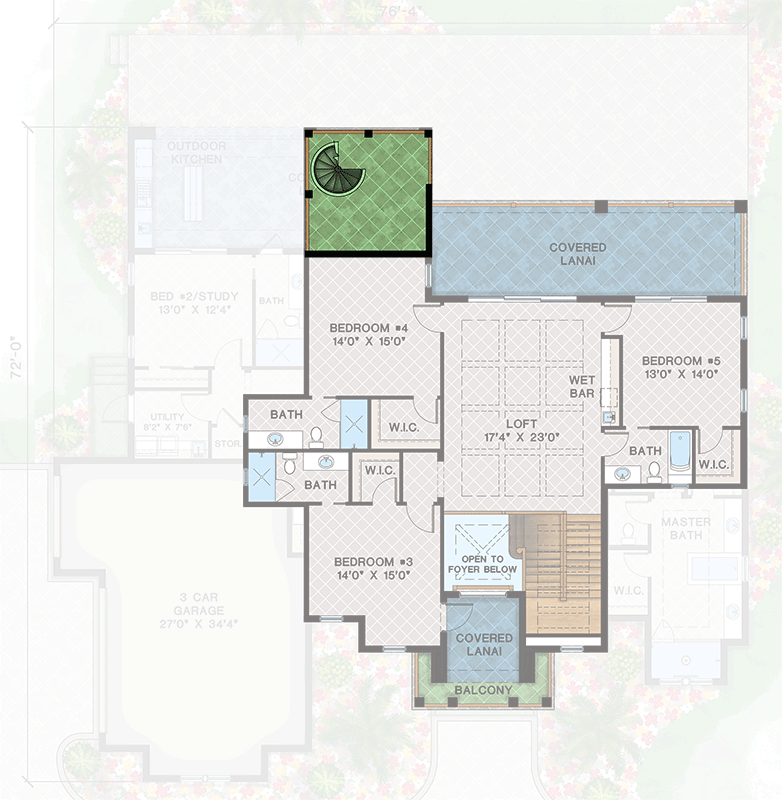

Experience unparalleled outdoor living with an 811 sq. ft. covered patio featuring an outdoor kitchen, perfect for al fresco dining, and imagine morning coffee or sunset views from the multiple covered lanais and the unique spiral staircase leading to an observation deck offering panoramic vistas.

What's Included

Elevations Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

*Slab Plan Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)

Roof Design Plan Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)

*We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you. Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
