Luxury Coastal Contemporary House Plan with Entertaining Lanai in Back

Plan 33230ZR

  • 5,797

    Heated s.f.

  • 5-6

    Beds

  • 6.5+

    Baths

  • 2

    Stories

  • 3

    Cars

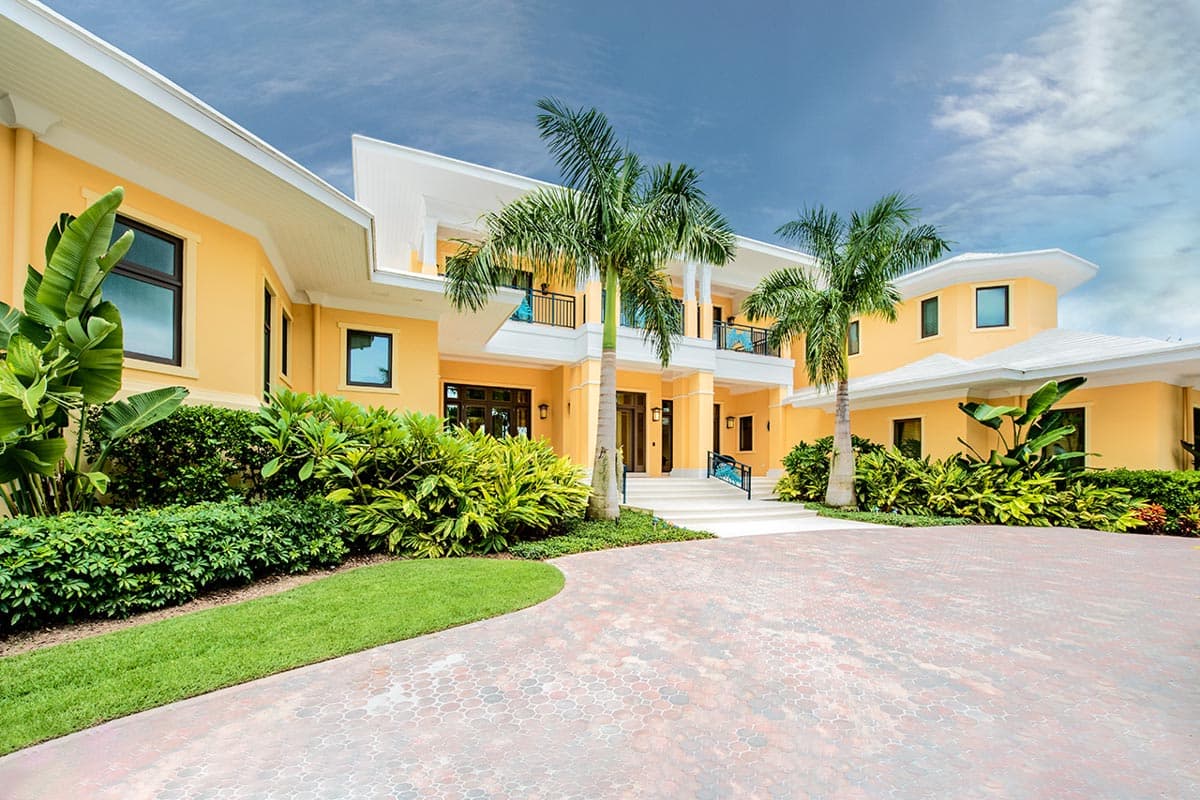

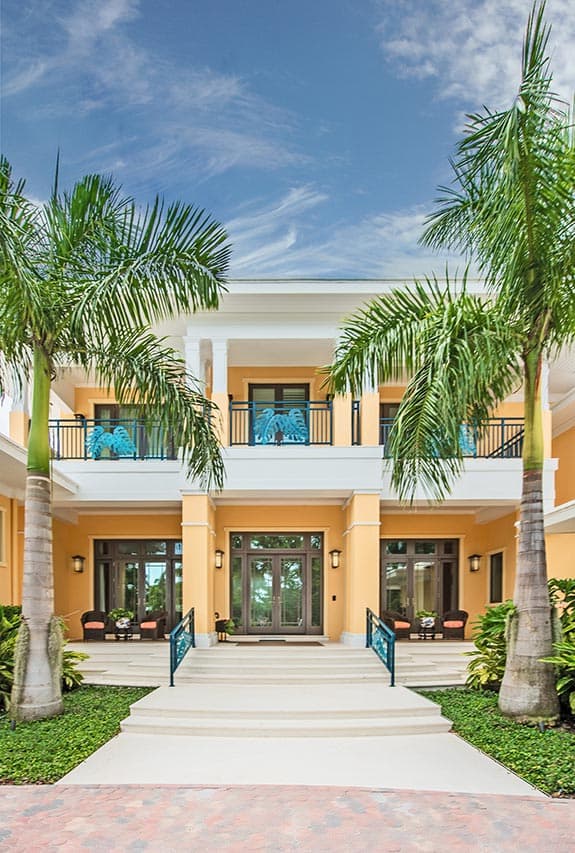

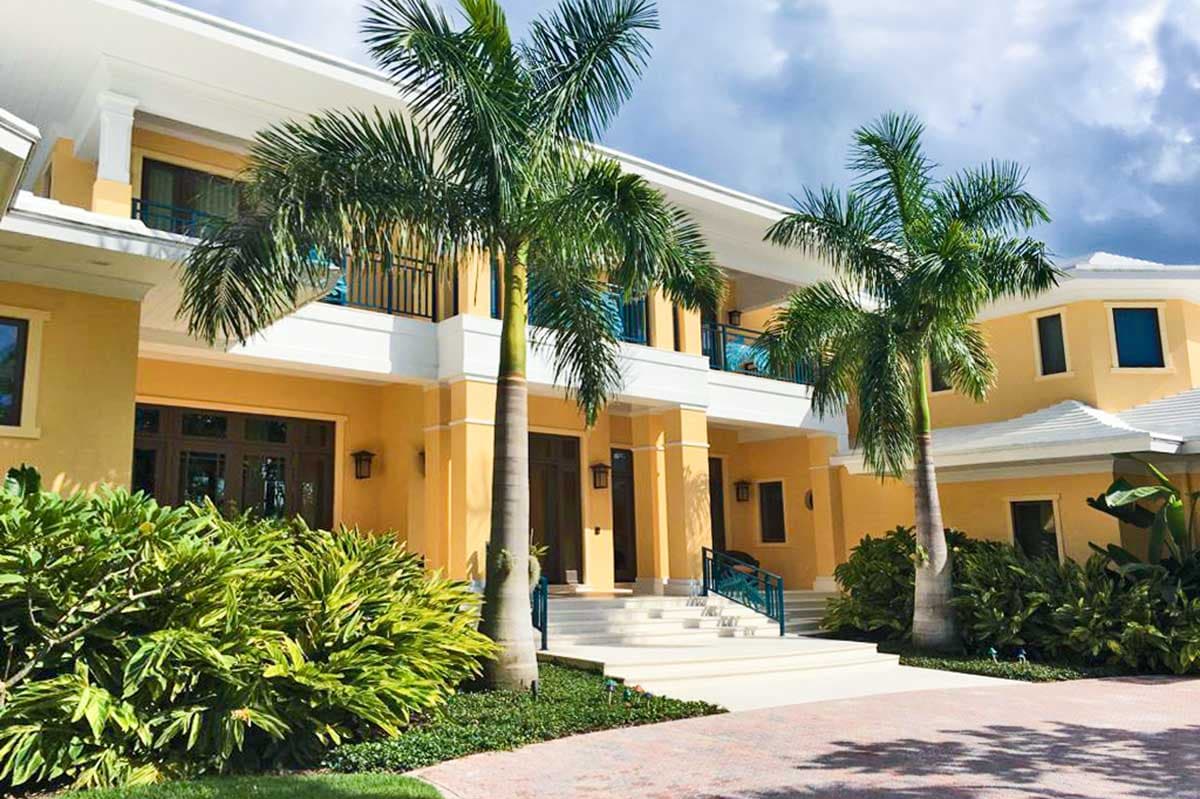

  • This coastal-style house plan offers grand living and a view from every angle. An expansive front porch topped with a balcony greets you while French doors with transom windows above abound.

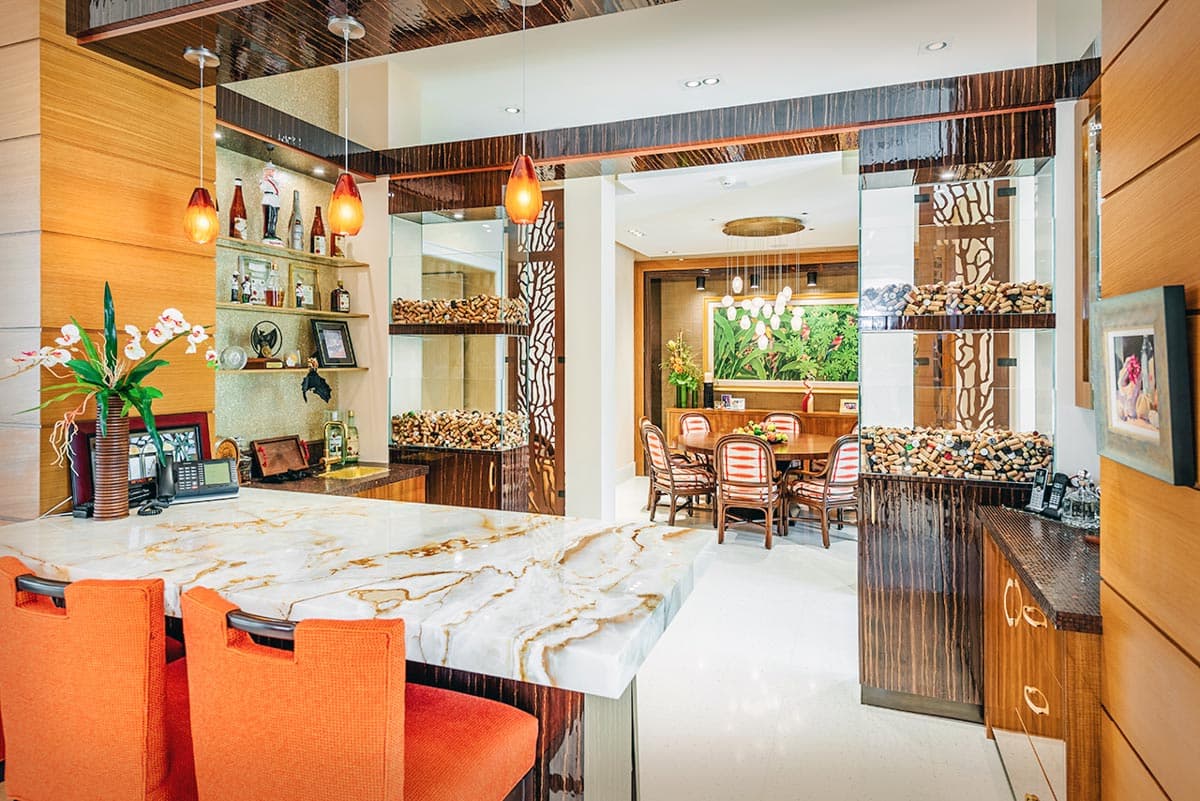

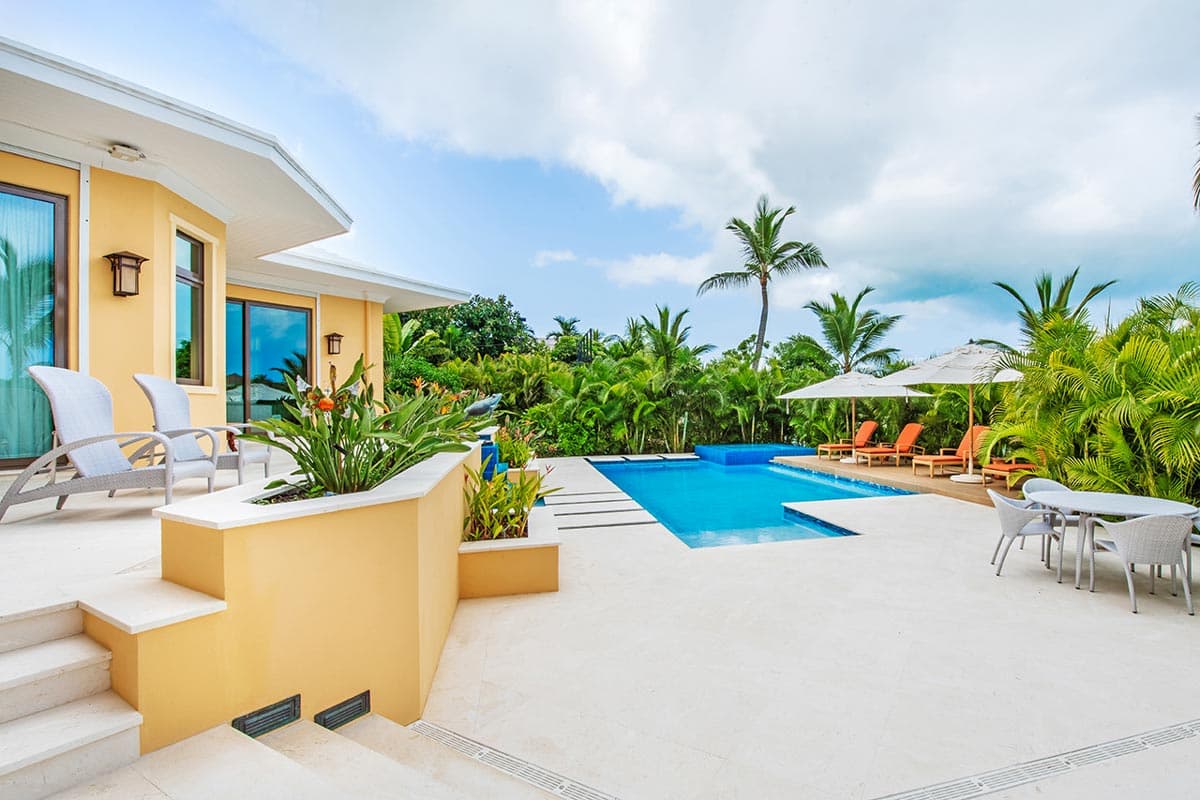

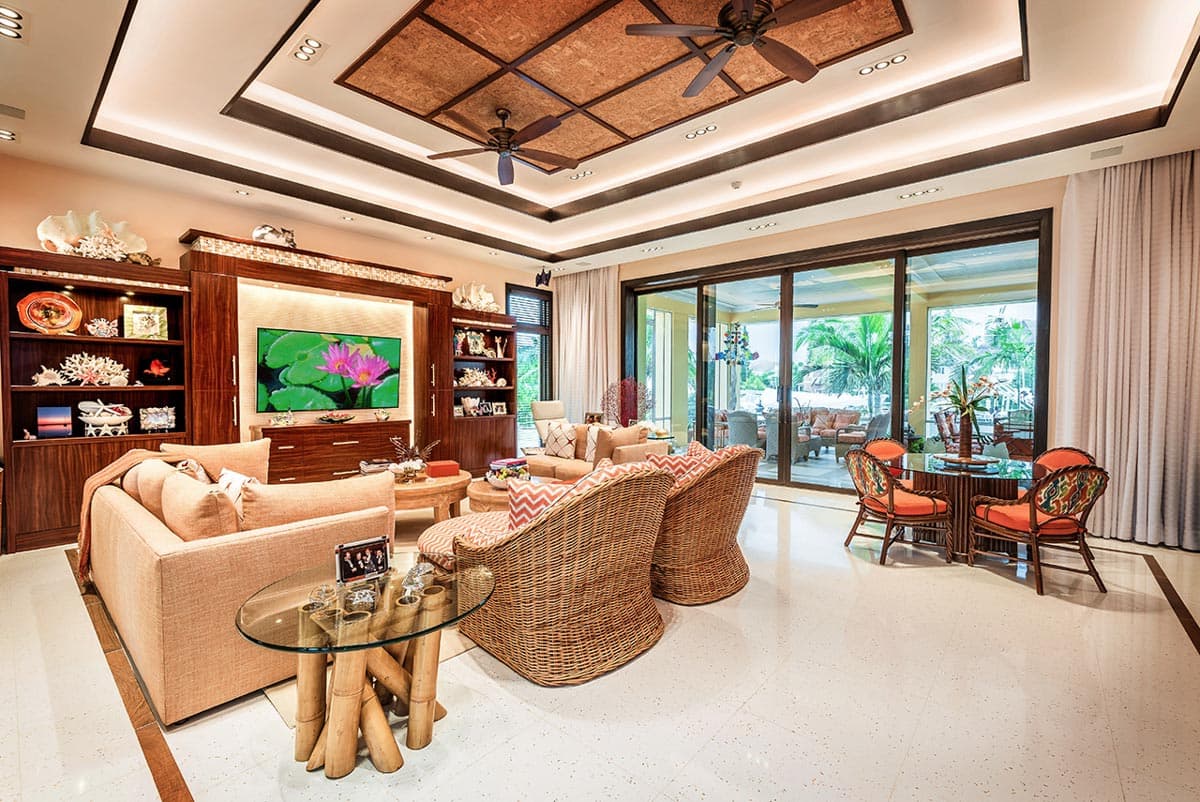

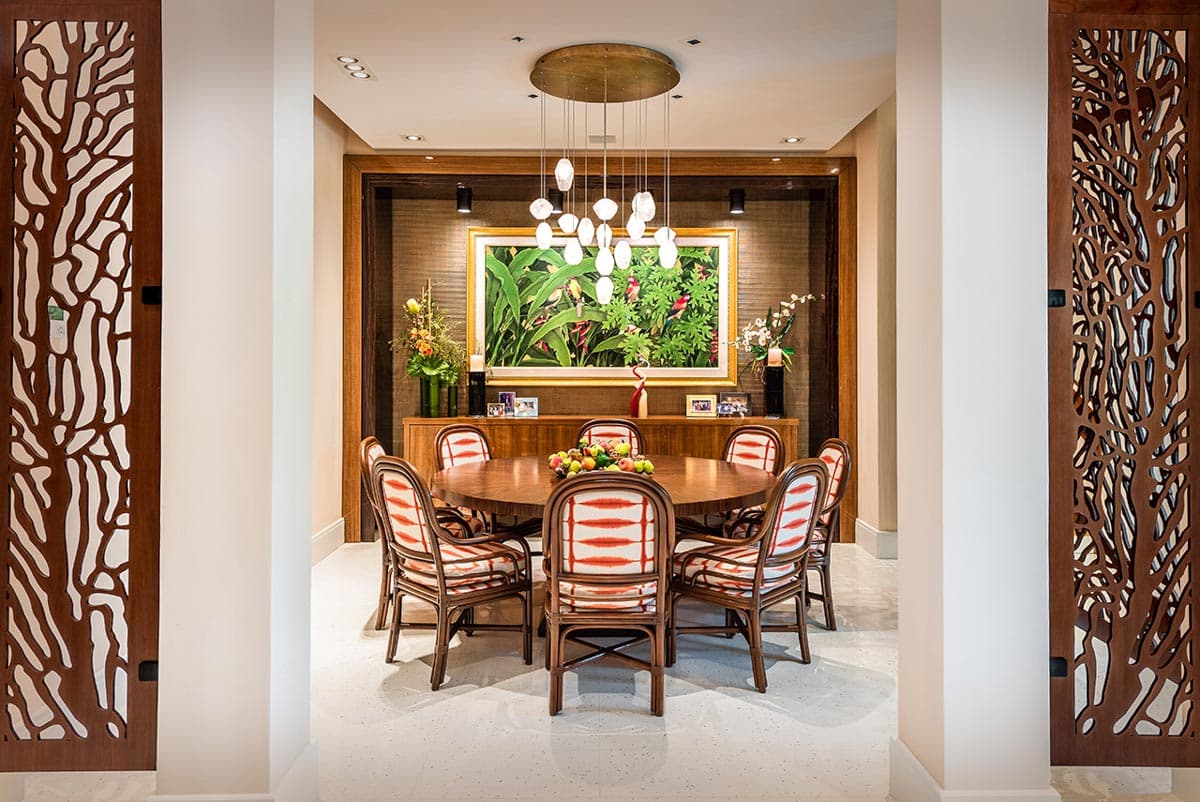

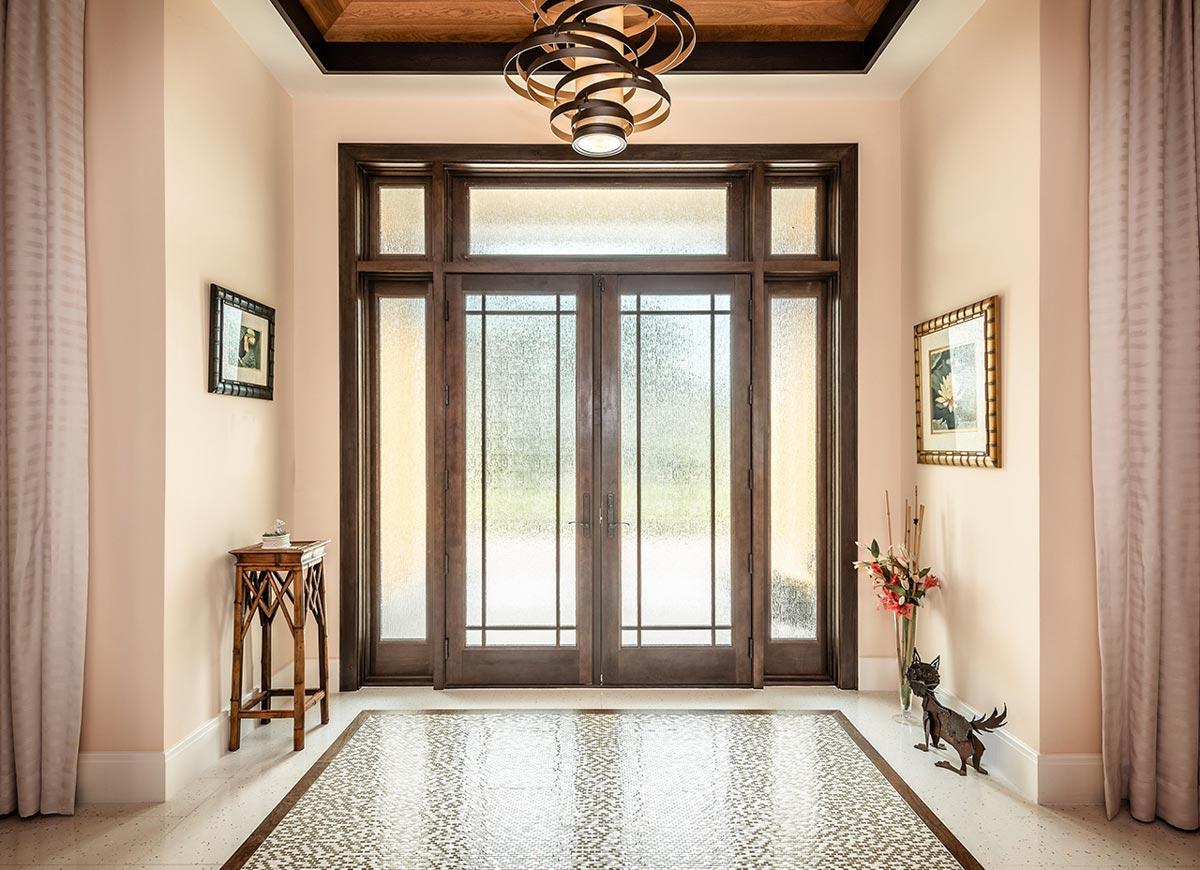

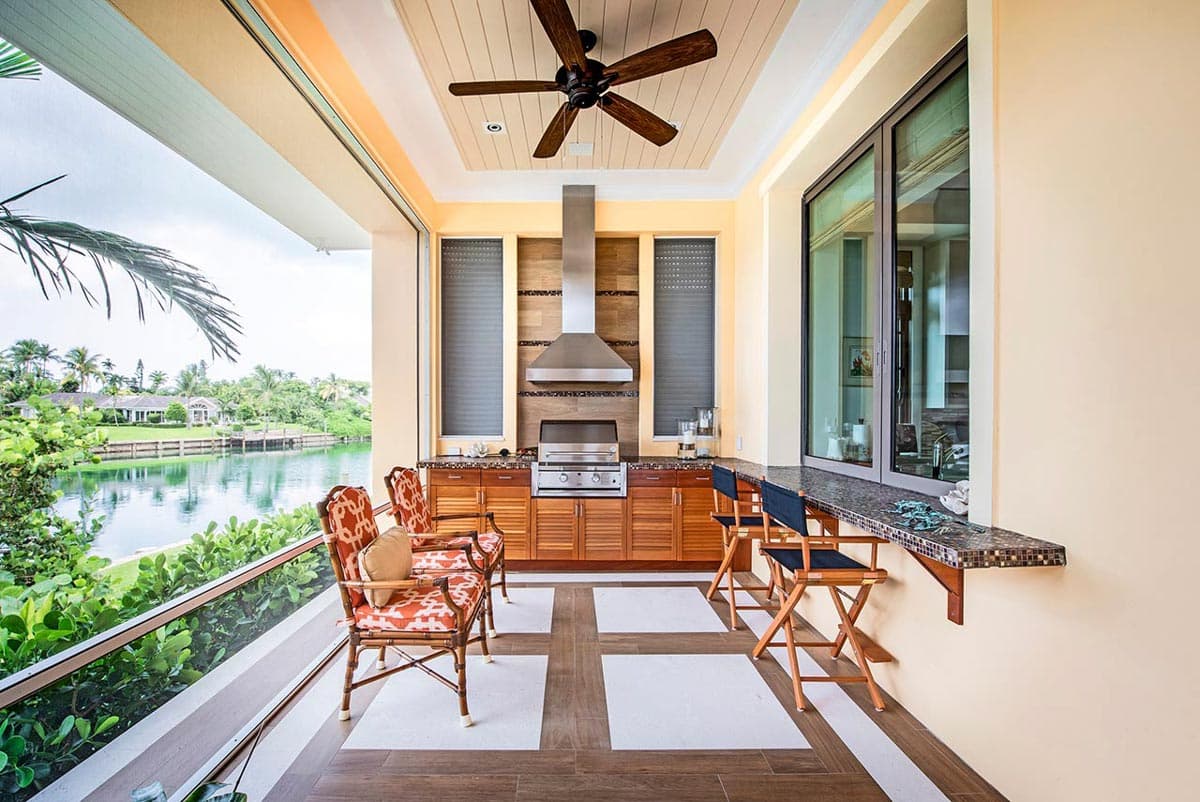

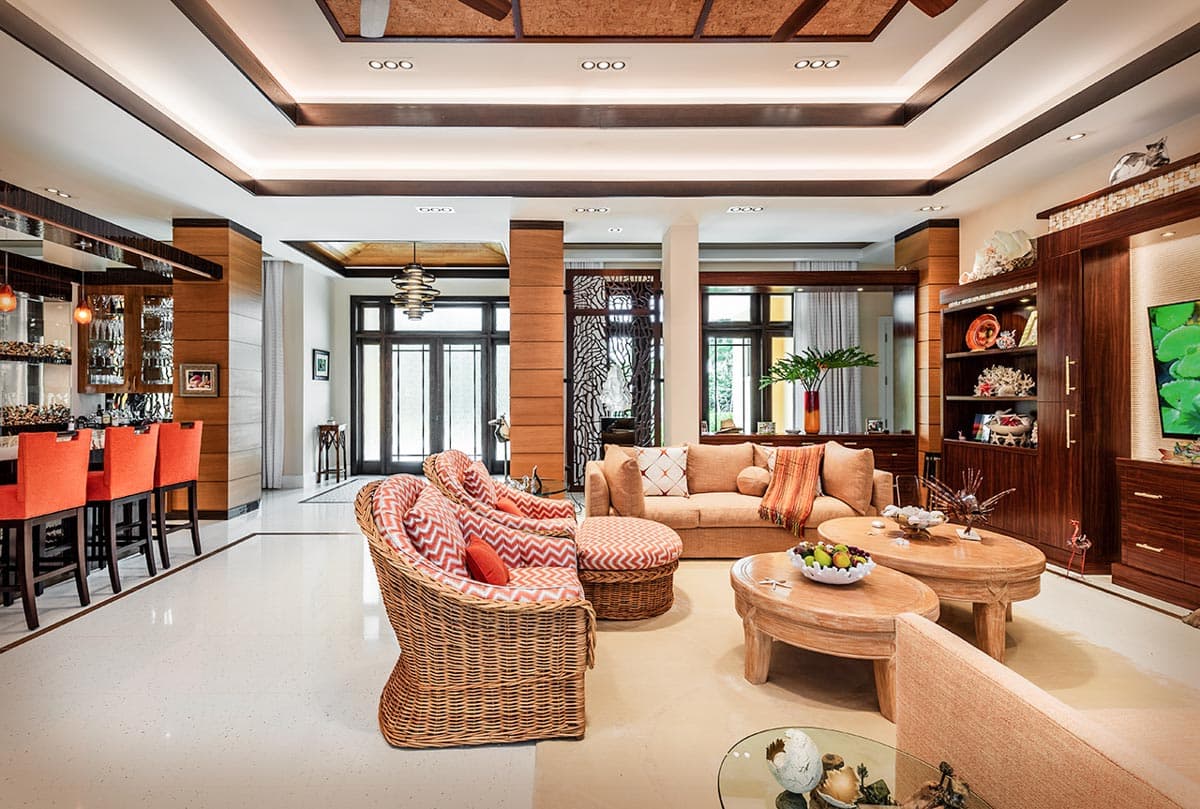

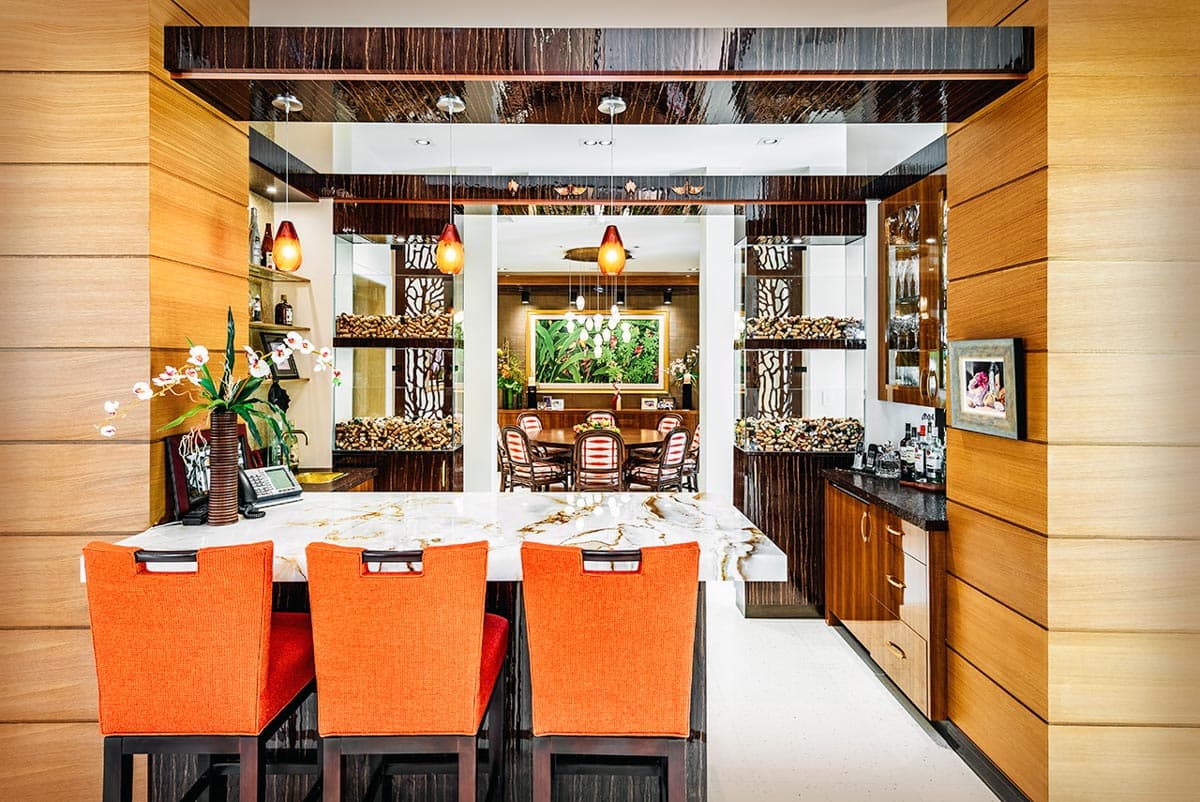

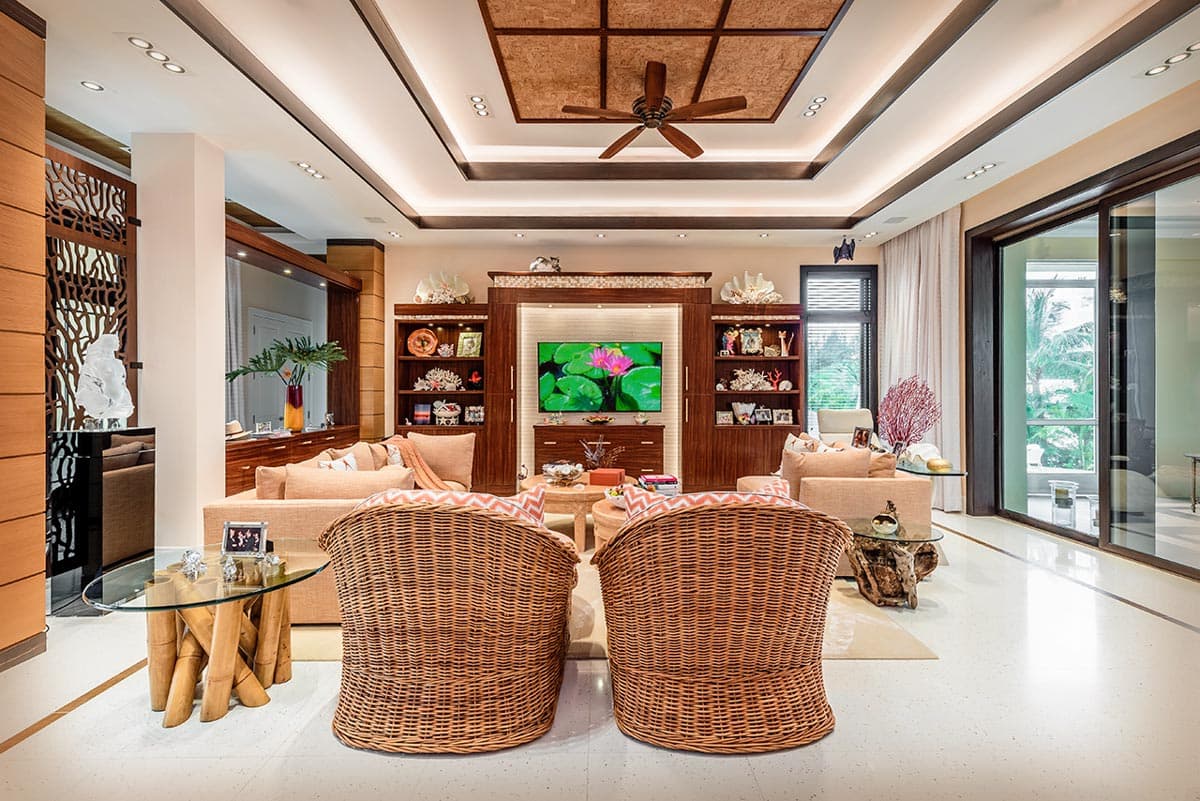

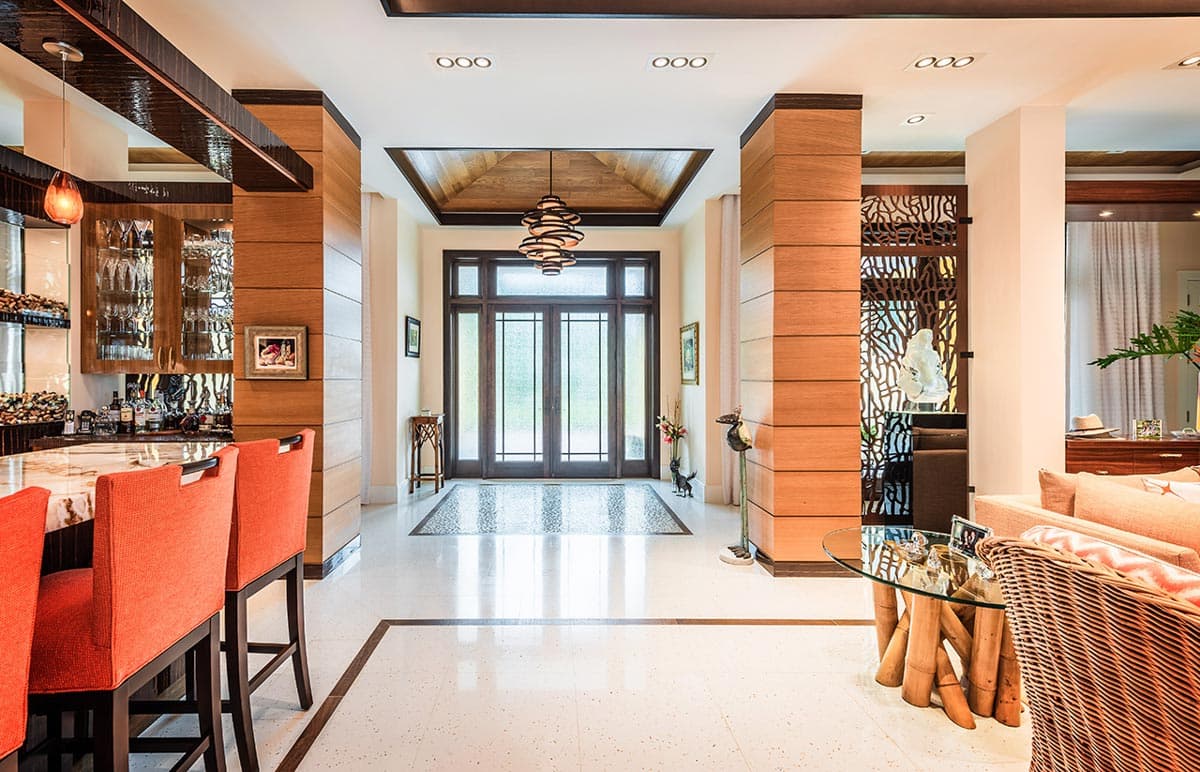

  • Inside the sunny foyer a wide open expanse brings into focus the beautiful rear view. The open concept living areas are defined by substantial columns and stepped ceiling treatments. A large covered lanai is accessed by a wall of pocketing sliding glass doors. A generous great room is perfect for entertaining guests. The dining and kitchen are side-by-side, separated by pocket doors for privacy. A convenient wine cellar is just to the side of the dining room.

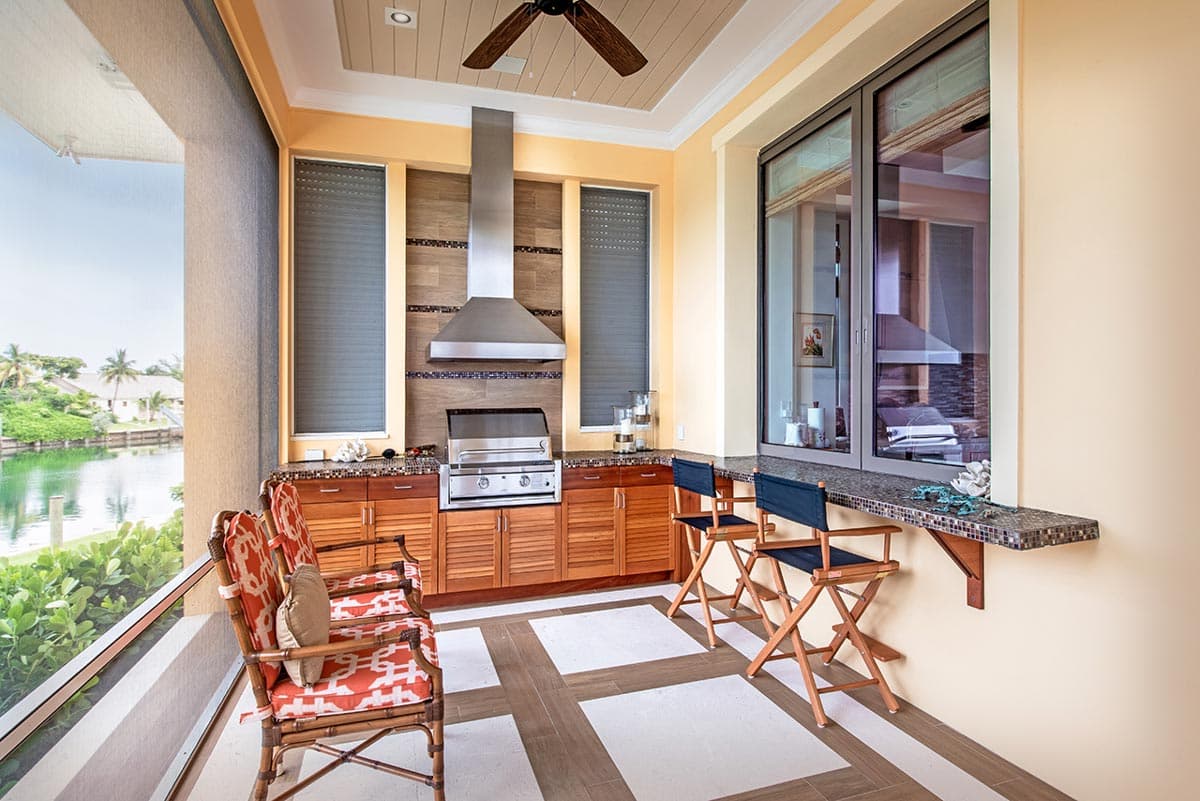

  • The focus of the gourmet kitchen is the large central island perfect for food prep, gatherings and quick meals. A pass-thru window allows easy drink access to the outdoor dining area. Just steps beyond the central island is an extra large pantry. The side hallway also supplies access to the wine cellar and utility room, powder room and finally the garage.

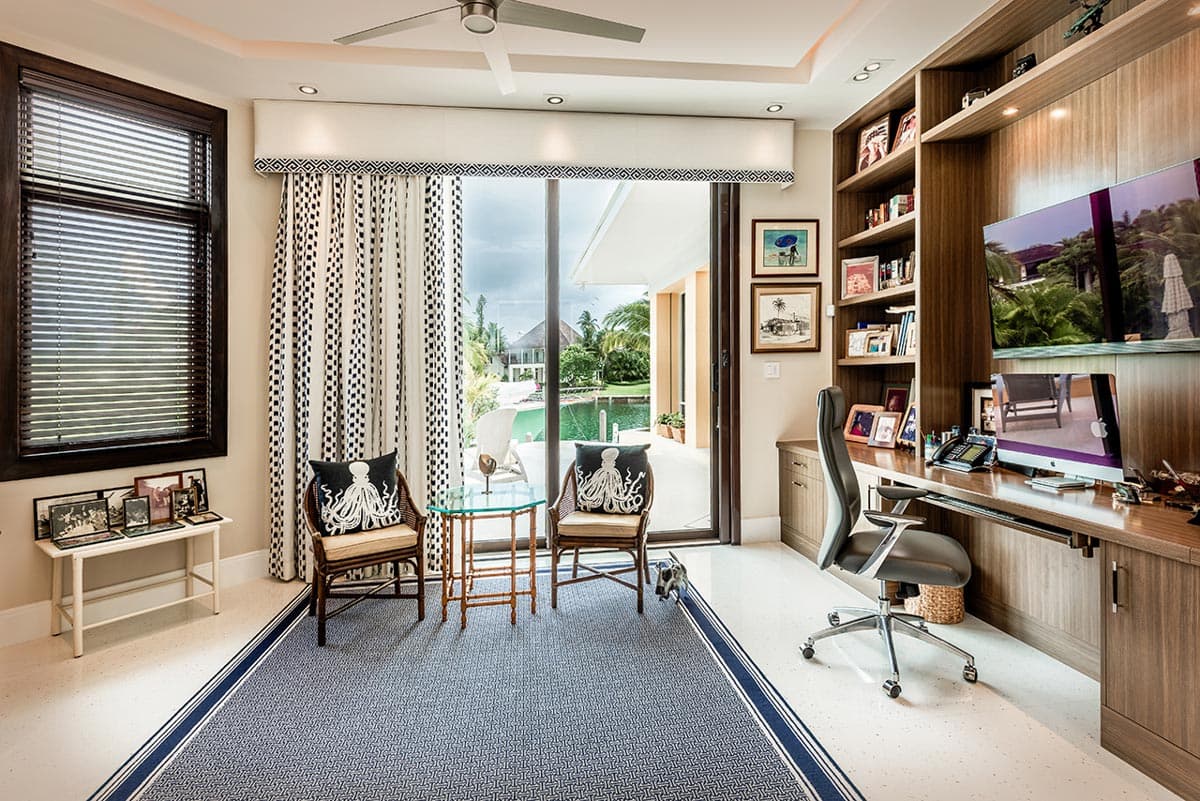

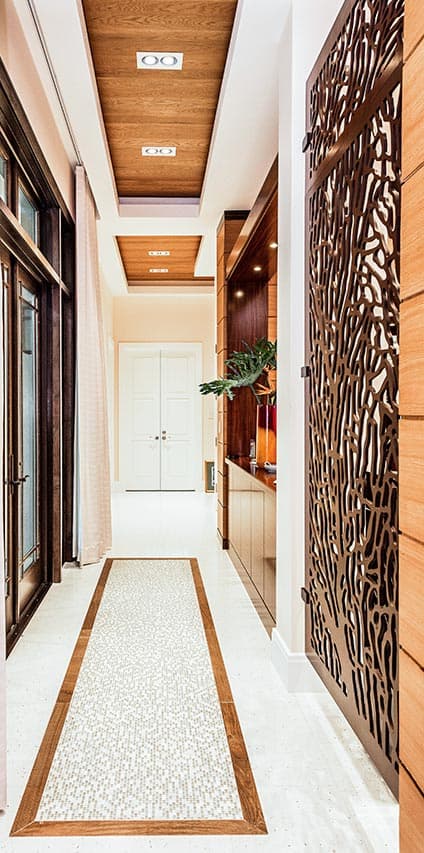

  • The front gallery provides access to both sides of the home. On one side, double doors open to the private vestibule, granting access to the extra large study, powder bath that services the study and finally the secluded master bedroom with a tray ceiling and rear terrace access. The master bath opens to a free-standing soaking tub. A privacy wall hides the extra large walk-thru shower. Dual vanities line the bath walls, and a private privy. An extra large his-and-hers wardrobe is completely separate from the bath.

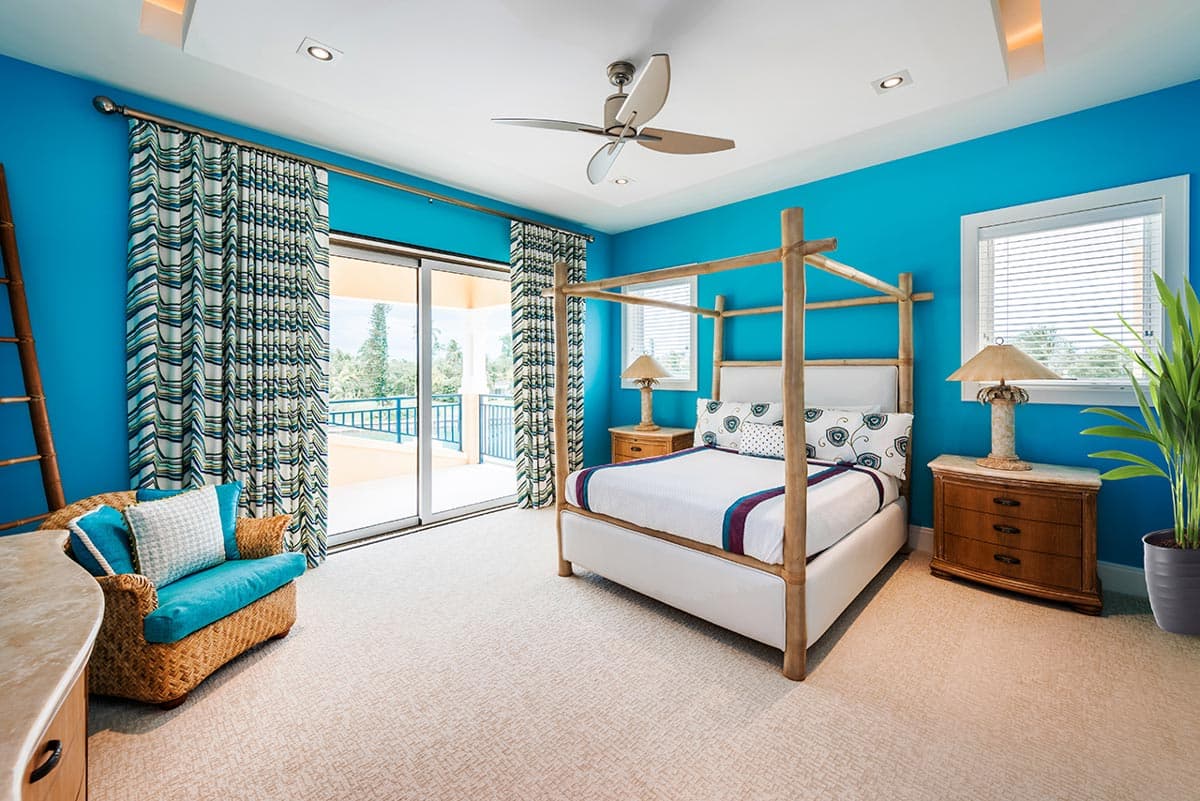

  • Stairs tucked in the corner near the garage side of the house lead to the second floor with four bedrooms each with private baths. All but one of the bedrooms have French door access to covered balconies. The two rear bedrooms have generous walk-in closets. The guest suite above the garage could easily double as a game room, media room or play room for the kids.
  • The side load 3-car garage offers plenty of space for a golf cart or workshop and is ieally positioned for convenient unloading of groceries at the pantry near the kitchen.
  • Designed into this luxury home plan are exclusive energy-saving techniques. When built to these specs, it can result in a 50% savings when compared to other new homes. A 60-70% savings when compared to older homes.

COVER SHEET – / INDEX / SITE PLAN - The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.



WALL SECTIONS -The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.

FOUNDATION PLAN - The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.

SECOND FLOOR FRAMING (where appropriate) - The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.

FLOOR PLANS - The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.

ROOF PLAN & SOFFIT (CHASE LAYOUT) PLAN - The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.

REFLECTED CEILING PLAN - The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.

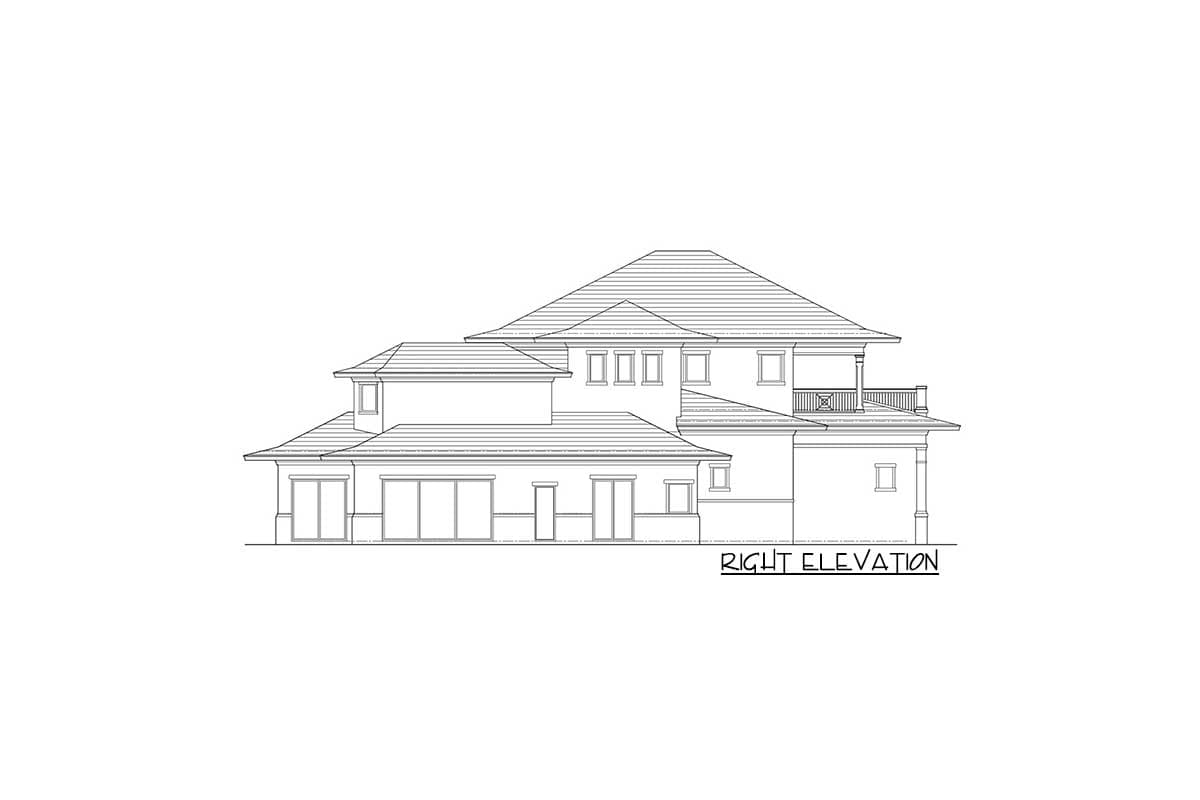

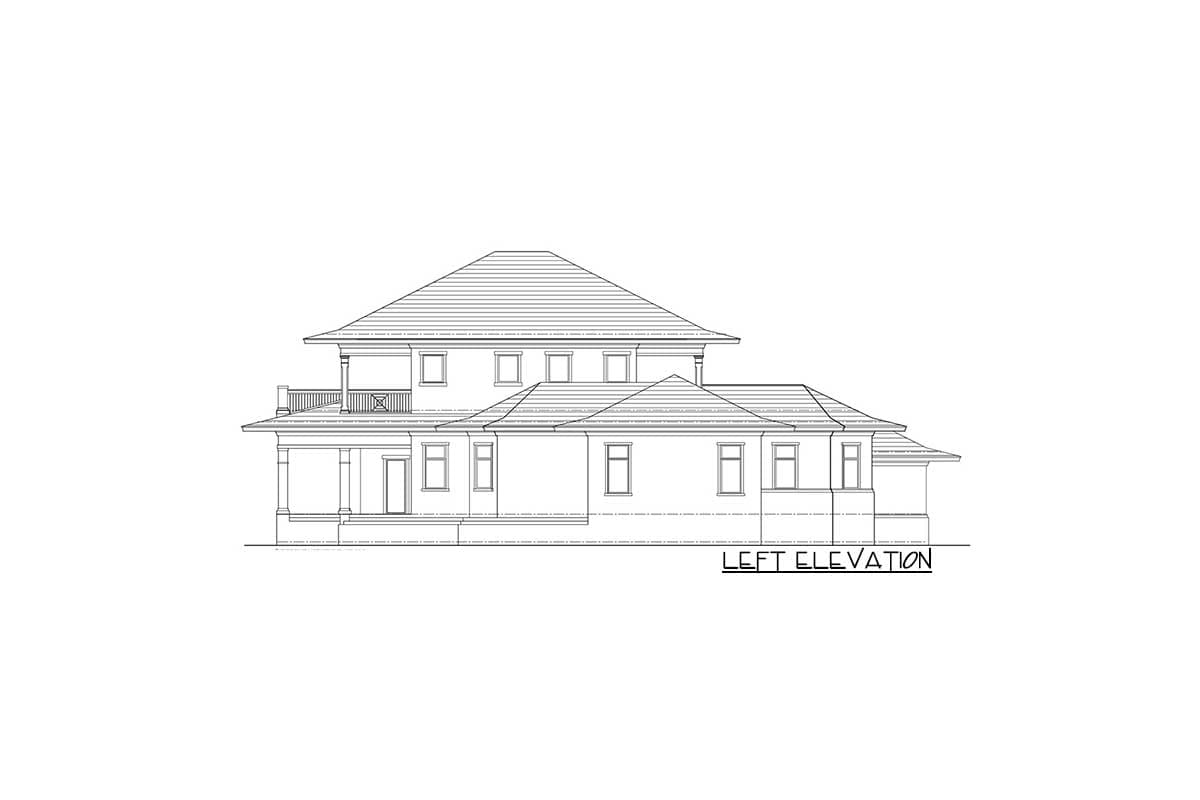

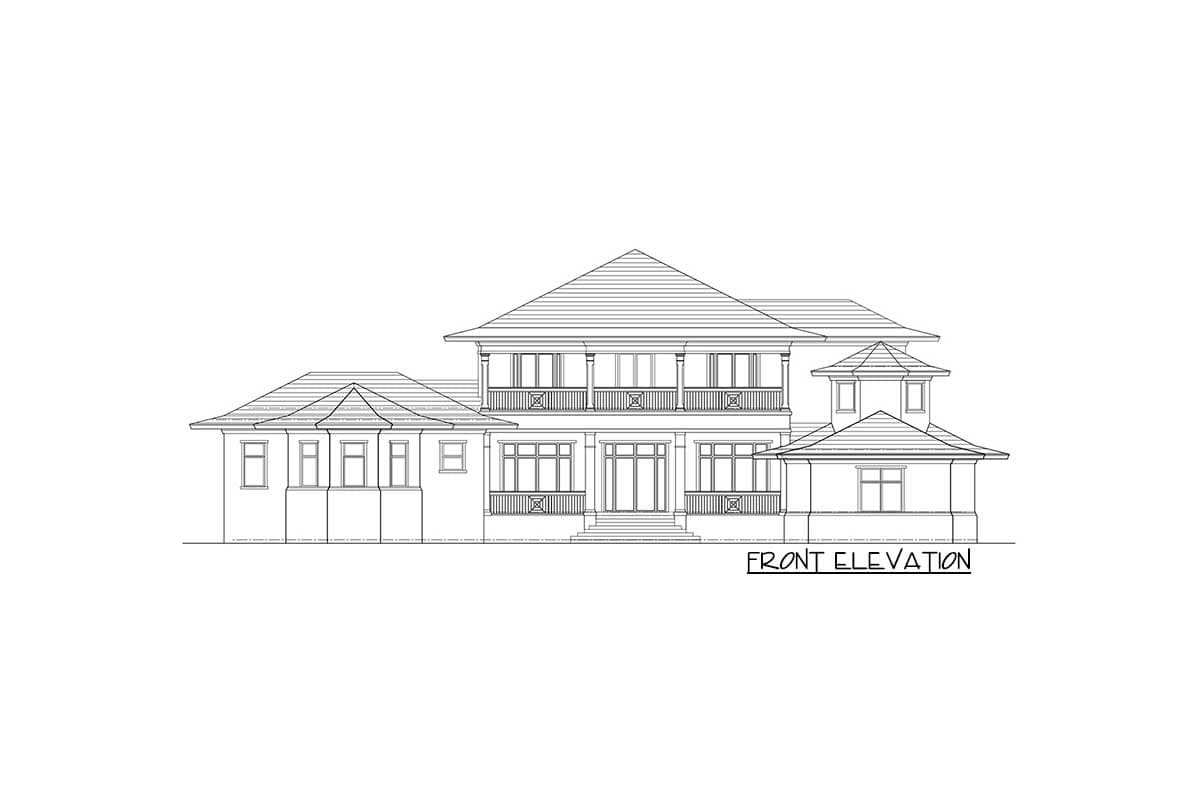

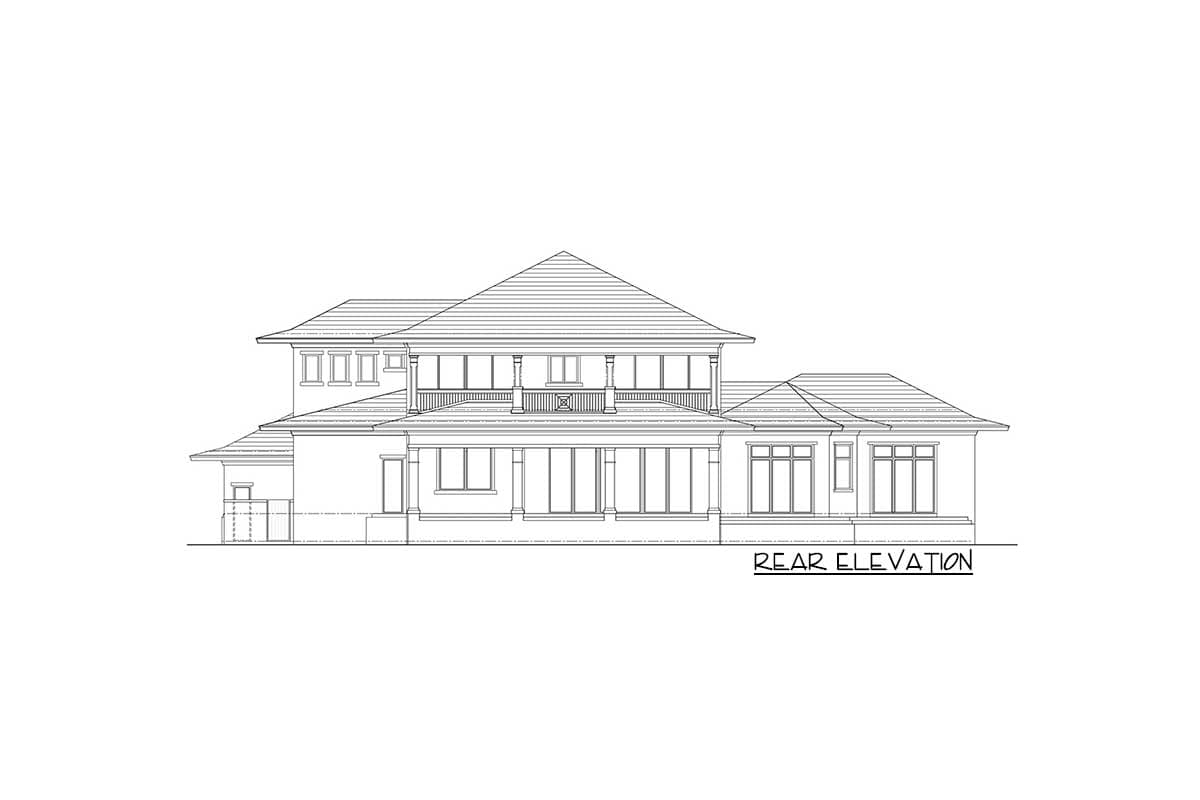

EXTERIOR ELEVATIONS - The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.



CROSS SECTION & INTERIOR ELEVATIONS - The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design. (Interior elevations may not be available for all stock plans.)



ELECTRICAL PLAN - The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

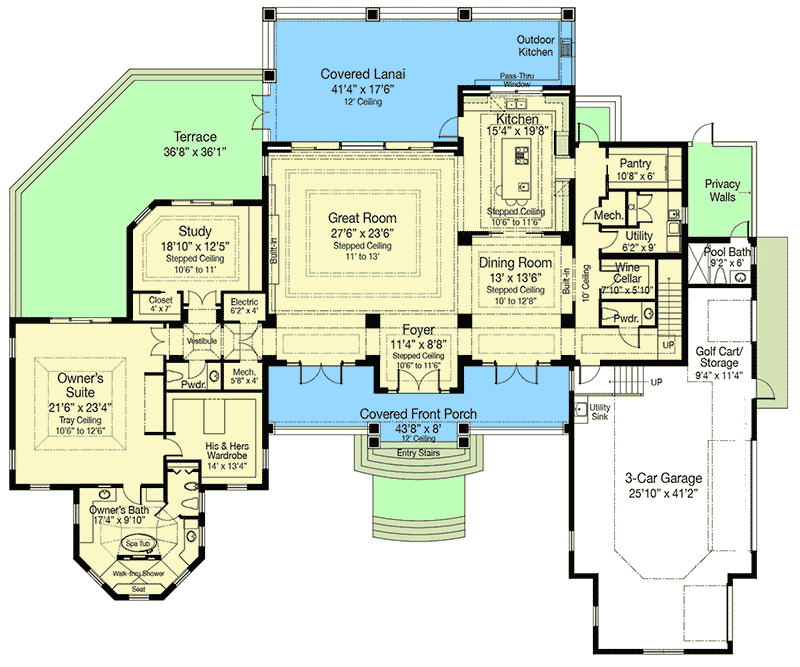

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Luxury Coastal Contemporary House Plan with Entertaining Lanai in Back - 33230ZR floor plan - Main Level

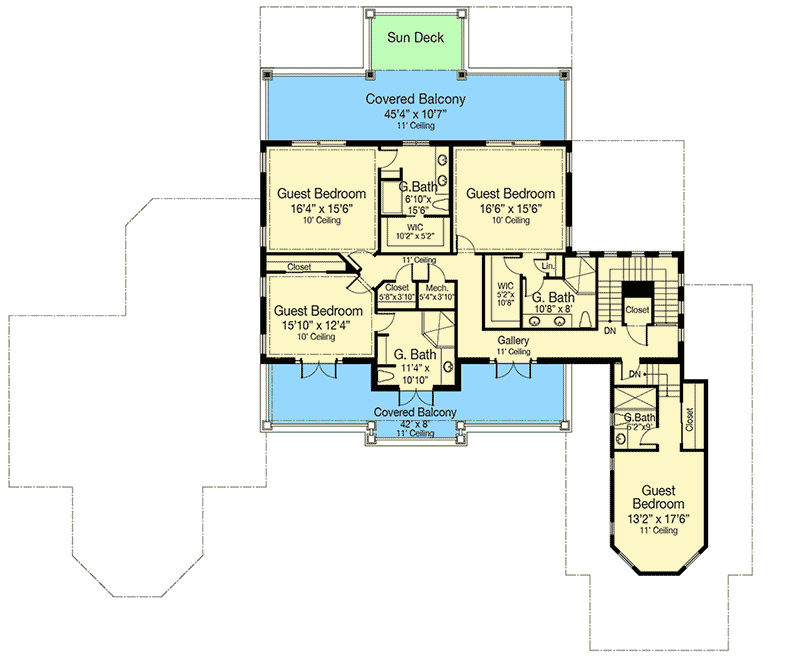

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Luxury Coastal Contemporary House Plan with Entertaining Lanai in Back - 33230ZR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 5,797 sq. ft.
  • 1st Floor: 3,722 sq. ft.
  • 2nd Floor: 2,075 sq. ft.
  • Lanai: 745 sq. ft.
  • Porch, Front: 414 sq. ft.

Beds/Baths

  • Bedrooms: 5 or 6
  • Full bathrooms: 6
  • Half bathrooms: 2

Foundation Type

  • Standard Foundations: Piling

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Dimensions

  • Width: 108' 4"
  • Depth: 93' 10"
  • Max ridge height: 42' 0"

Garage

  • Type: Attached
  • Area: 1246 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Luxury Coastal Contemporary House Plan with Entertaining Lanai in Back

  • 5,797

    Heated s.f.

  • 5-6

    Beds

  • 6.5+

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $4,150
  • CAD + PDF - Single-Build $4,950
  • View all purchase option online

About This Plan

  • This coastal-style house plan offers grand living and a view from every angle. An expansive front porch topped with a balcony greets you while French doors with transom windows above abound.
  • Inside the sunny foyer a wide open expanse brings into focus the beautiful rear view. The open concept living areas are defined by substantial columns and stepped ceiling treatments. A large covered lanai is accessed by a wall of pocketing sliding glass doors. A generous great room is perfect for entertaining guests. The dining and kitchen are side-by-side, separated by pocket doors for privacy. A convenient wine cellar is just to the side of the dining room.
  • The focus of the gourmet kitchen is the large central island perfect for food prep, gatherings and quick meals. A pass-thru window allows easy drink access to the outdoor dining area. Just steps beyond the central island is an extra large pantry. The side hallway also supplies access to the wine cellar and utility room, powder room and finally the garage.
  • The front gallery provides access to both sides of the home. On one side, double doors open to the private vestibule, granting access to the extra large study, powder bath that services the study and finally the secluded master bedroom with a tray ceiling and rear terrace access. The master bath opens to a free-standing soaking tub. A privacy wall hides the extra large walk-thru shower. Dual vanities line the bath walls, and a private privy. An extra large his-and-hers wardrobe is completely separate from the bath.
  • Stairs tucked in the corner near the garage side of the house lead to the second floor with four bedrooms each with private baths. All but one of the bedrooms have French door access to covered balconies. The two rear bedrooms have generous walk-in closets. The guest suite above the garage could easily double as a game room, media room or play room for the kids.
  • The side load 3-car garage offers plenty of space for a golf cart or workshop and is ieally positioned for convenient unloading of groceries at the pantry near the kitchen.
  • Designed into this luxury home plan are exclusive energy-saving techniques. When built to these specs, it can result in a 50% savings when compared to other new homes. A 60-70% savings when compared to older homes.
