Luxury Coastal Contemporary House Plan with Private Office and Elevator - 7572 Sq Ft

Name: Plan 660005JMD: Luxury Coastal Contemporary House Plan with Private Office and Elevator - 7572 Sq Ft
Brand: Architectural Designs
SKU: 660005JMD
Price: 4660.13 USD
Availability: InStock

Heated S.F.

7,572

Beds

Baths

6.5+

Stories

Cars

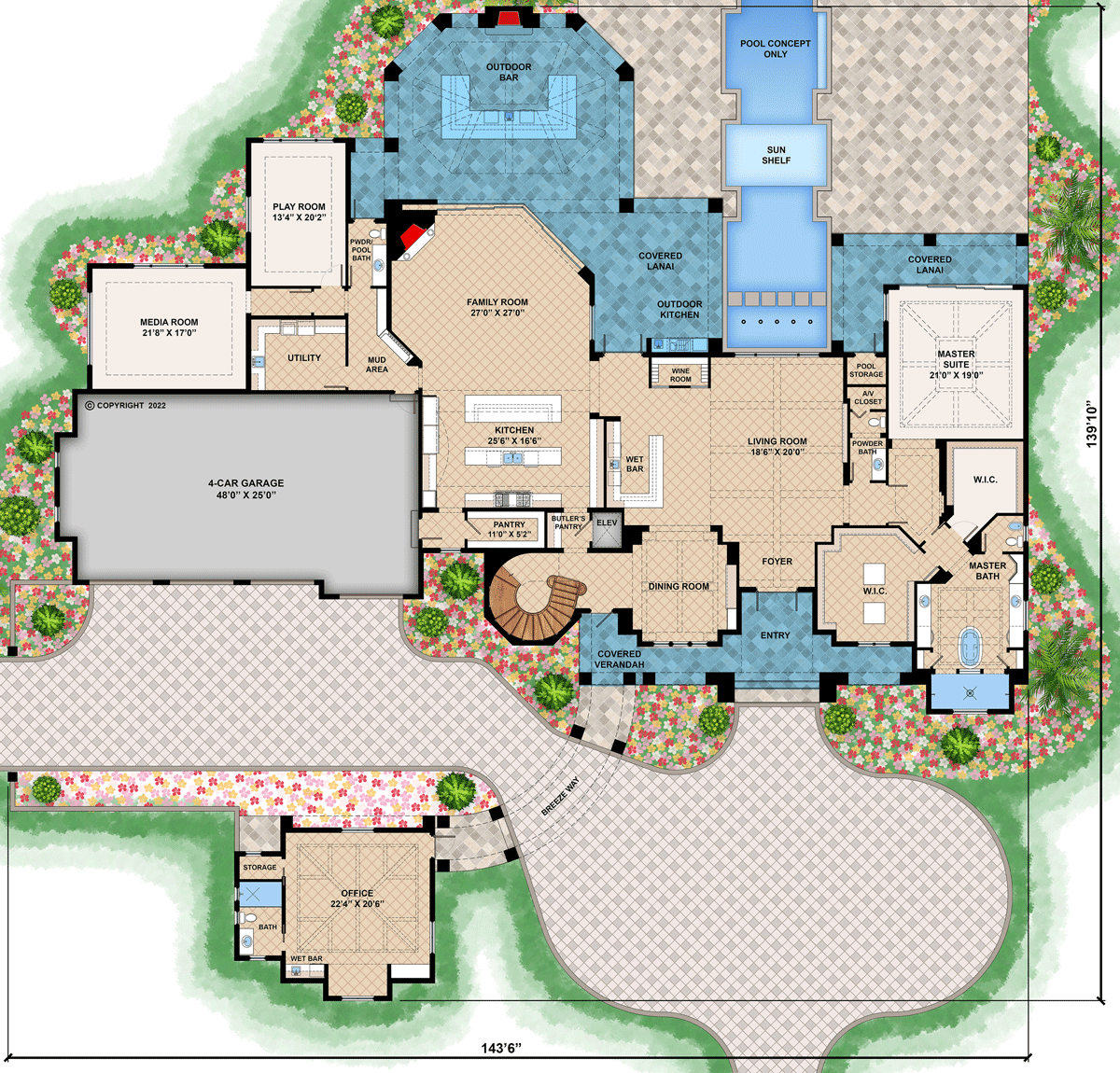

Floor Plan

Main Level

2nd Floor

Plan Details

With over 7,500 square feet of living space, this Coastal Contemporary House Plan is filled with luxurious details and provides a layout that is perfect for entertaining.
In the family room, a retractable glass wall provides a seamless connection to the covered lanai that features an outdoor bar with a fireplace. The chef's kitchen boasts two islands along with plenty of pantry space.
The living room's wet bar and wine room is ready for your dinner parties while the play and media rooms support fun for any age.
A coffered ceiling decorates the master suite, which features two large closets and a spa-like bathroom on the main level. The remaining 4 bedroom suites are located upstairs by way of the curved stairwell or elevator.
Other notable features include a 4-car garage, private home office connected by a breezeway, and a formal dining room.

What's Included

Elevations Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

*Slab Plan Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)

Roof Design Plan Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)

*We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you. Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
