Luxury Coastal Home Plan for Rear Sloping Lot

Plan 871015JEN

  • 6,374

    Heated s.f.

  • 4

    Beds

  • 5.5+

    Baths

  • 2

    Stories

  • 4

    Cars

  • With over 6,300 square feet, this Coastal home plan delivers 4 bedrooms, a home theatre, 4-car garage, and loads of outdoor living space.
  • Coffered ceilings lend a cohesive element above the open great room, kitchen, and dining area. The partially-screened covered porch provides multiple access points and includes a fireplace and summer kitchen.
  • The dreamy kitchen hosts a large island with two dishwashers, oversized range, and a neighboring spice kitchen / pantry that is ideal when entertaining.
  • Retreat to the deluxe master bedroom and discover a private deck, fireplace, and his and hers closets. The size of the laundry and mud rooms should not go unnoticed, and a porte cochere connects the main home to a second 2-car garage with a workshop.
  • The walkout basement provides a fun space for all to enjoy and features a wet bar in the rec room, exercise room, two bedroom suites, and loads of storage space.
  • BUILDING RESTRICTION: This plan may not be built on Lake Norman, NC; Lake Wylie, NC; Mecklenburg Co. NC; Gaston Co. NC; Iredell Co. NC; Catawba Co. NC; Lincoln Co.; York Co. SC; Lancaster Co. SC.

This house plan set has the following details:


Foundation plan
Detailed floor plans
Roof plan

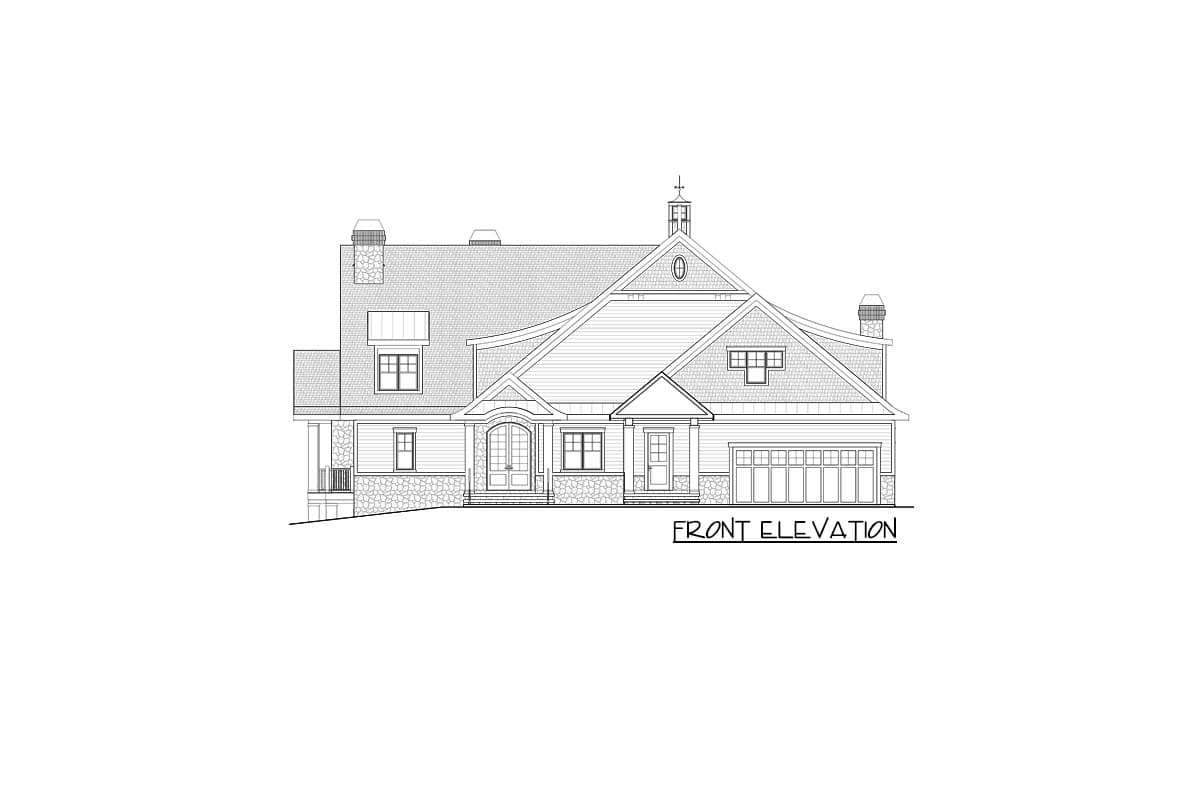

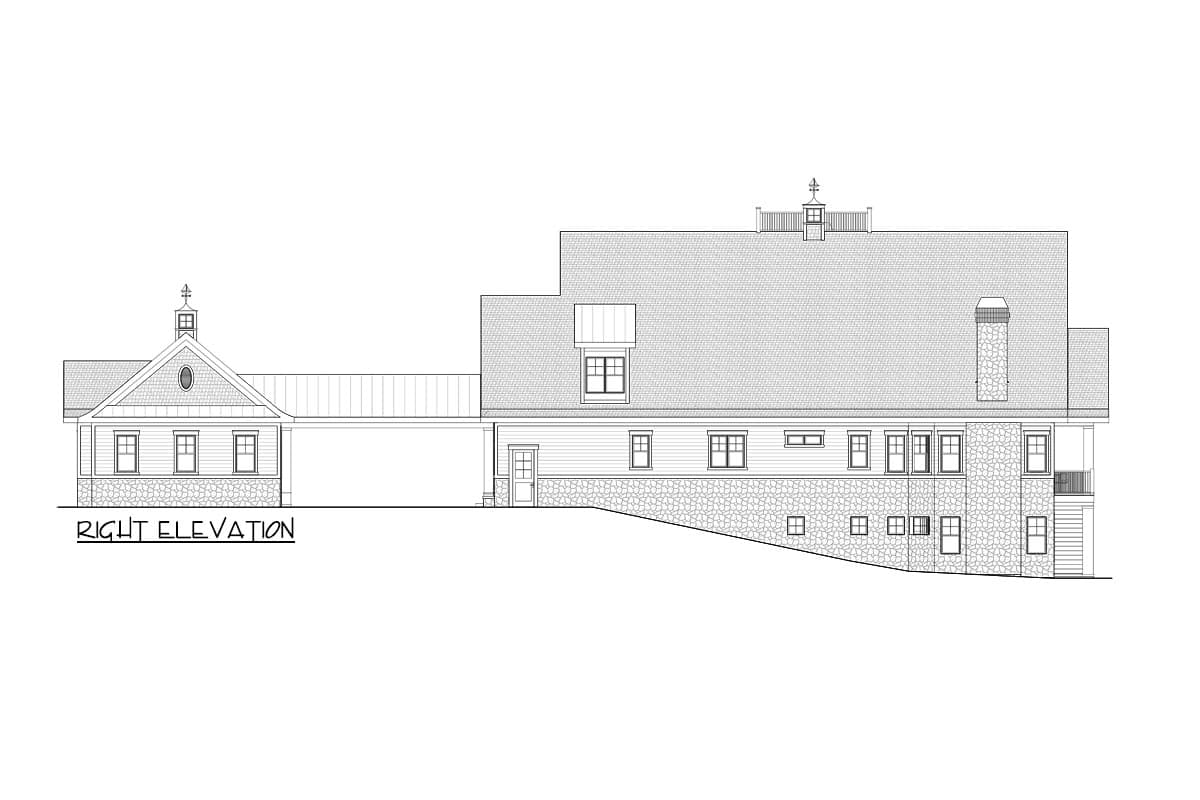

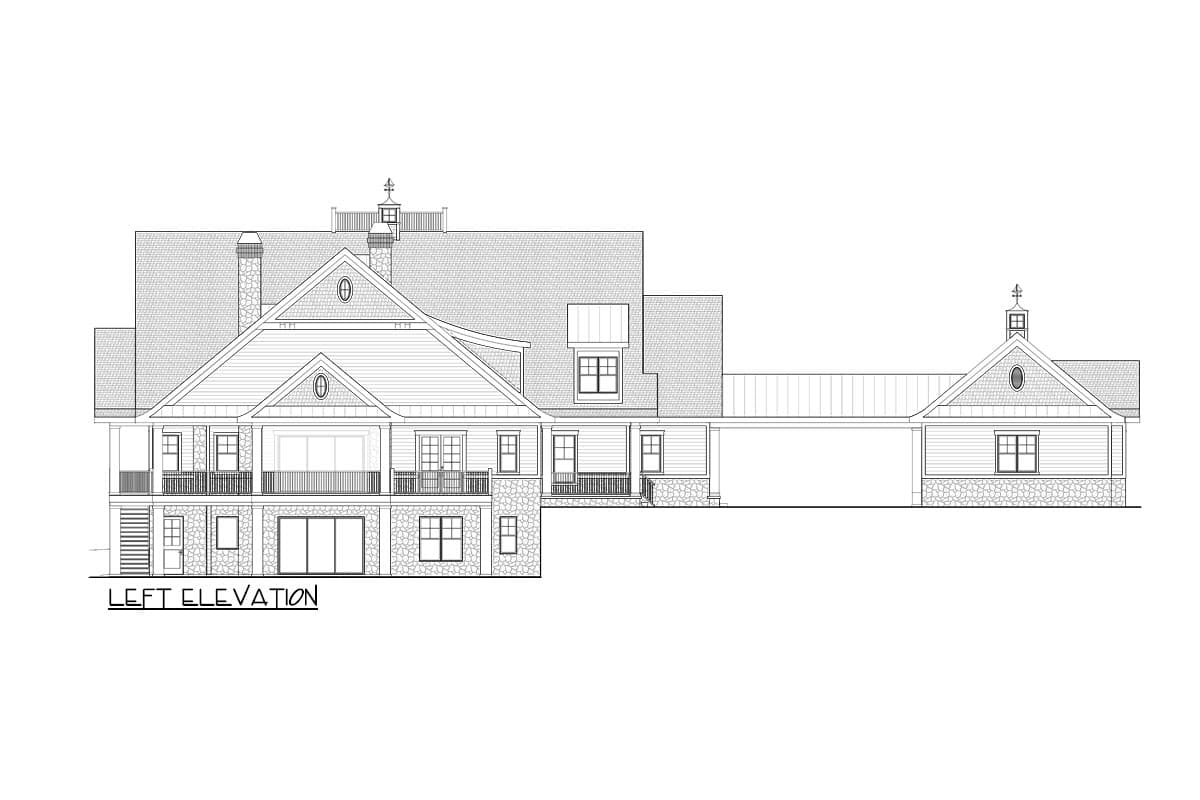

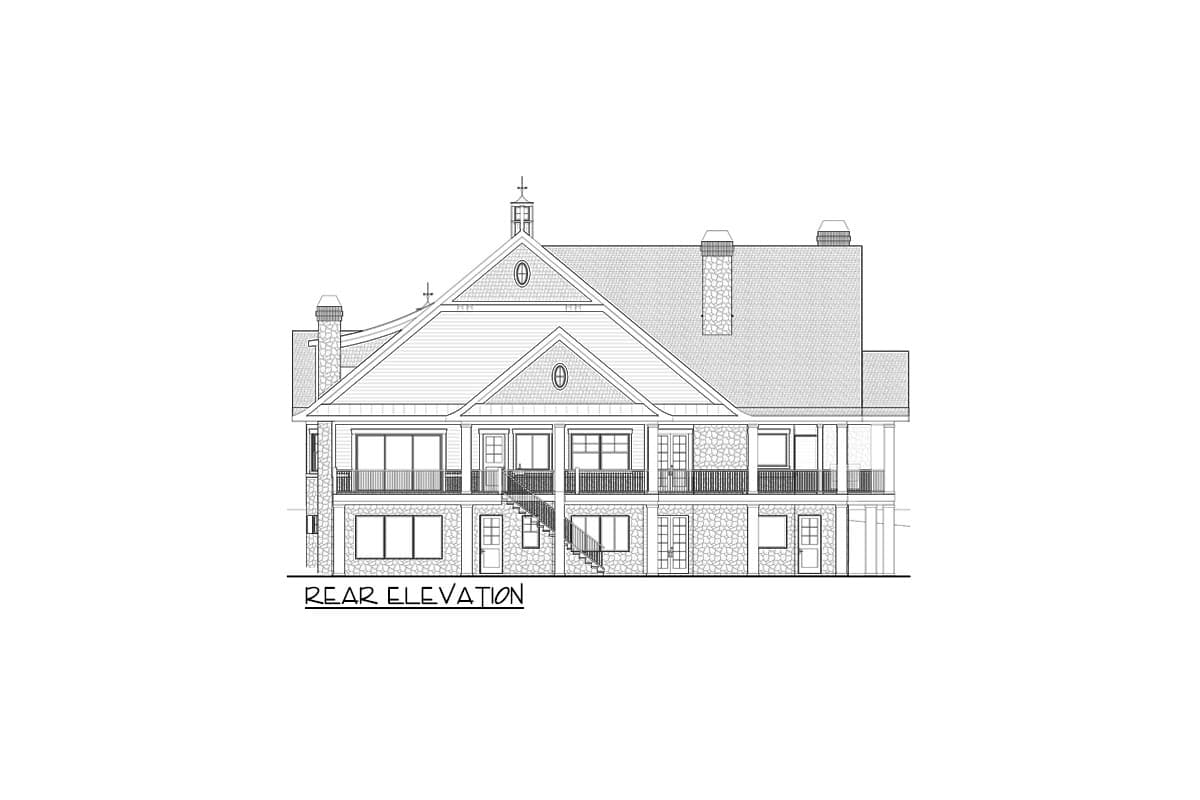

Elevations (all four sides)
Sections
3D model views
Electrical plans
Framing details

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

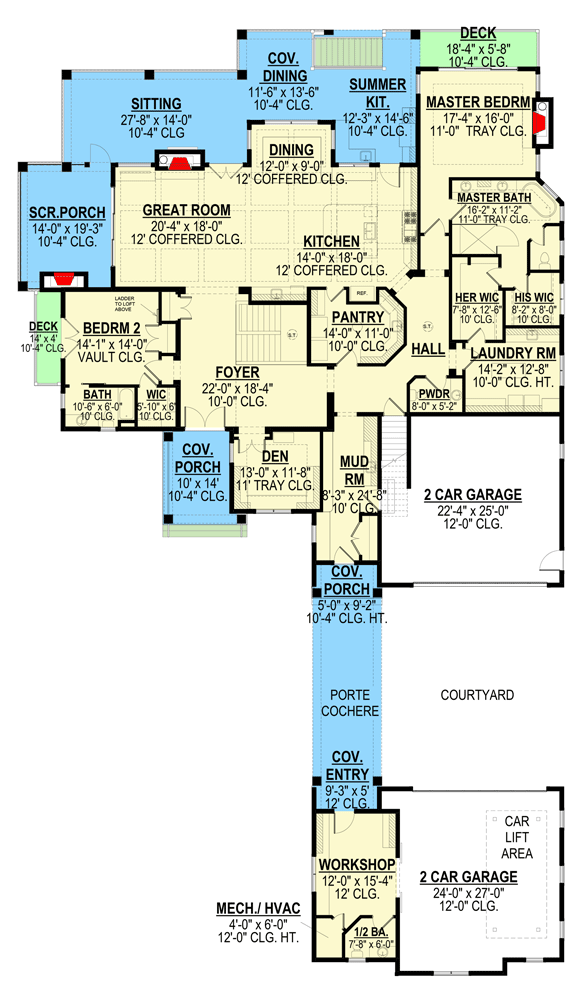

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Luxury Coastal Home Plan for Rear Sloping Lot - 871015JEN floor plan - Main Level

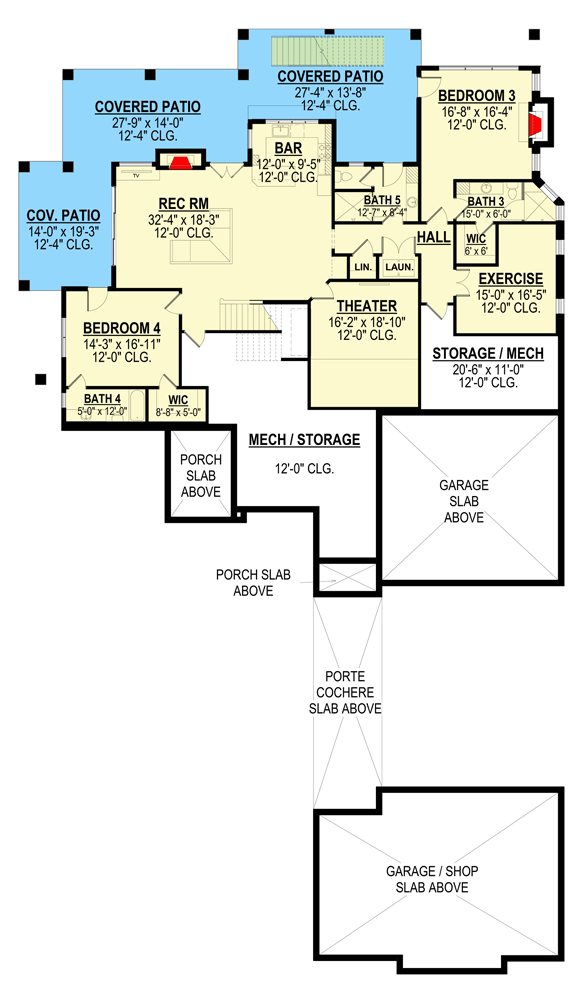

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Luxury Coastal Home Plan for Rear Sloping Lot - 871015JEN floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 6,374 sq. ft.
  • Lower Level: 2,608 sq. ft.
  • 1st Floor: 3,487 sq. ft.
  • 2nd Floor: 279 sq. ft.
  • Workshop: 969 sq. ft.
  • Storage: 1,402 sq. ft.
  • Covered Patio: 1,075 sq. ft.
  • Deck: 160 sq. ft.
  • Screened Porch: 249 sq. ft.
  • Porch, Rear: 749 sq. ft.
  • Porch, Front: 146 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5
  • Half bathrooms: 2

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 81' 4"
  • Depth: 141' 0"
  • Max ridge height: 47' 7"

Garage

  • Type: Detached, Attached
  • Area: 1685 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 12' 0" First Floor / 12' 0"
Room Details Ceiling Type Width Depth Height
Den Tray 13' 0" 11' 8" 11' 0"
Foyer 22' 0" 18' 4" 10' 0"
Master Bedroom Tray 17' 4" 16' 0" 11' 0"
Bedroom 2 Vaulted 14' 1" 14' 0"
Bonus Vaulted 20' 1" 25' 2"
Loft Vaulted 11' 2" 18' 2"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Luxury Coastal Home Plan for Rear Sloping Lot

  • 6,374

    Heated s.f.

  • 4

    Beds

  • 5.5+

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - Single-Build $2,395
  • 5 Sets + PDF $2,695
  • PDF - Unlimited Build $3,195
  • CAD - Single-Build $3,395
  • View all purchase option online

About This Plan

  • With over 6,300 square feet, this Coastal home plan delivers 4 bedrooms, a home theatre, 4-car garage, and loads of outdoor living space.
  • Coffered ceilings lend a cohesive element above the open great room, kitchen, and dining area. The partially-screened covered porch provides multiple access points and includes a fireplace and summer kitchen.
  • The dreamy kitchen hosts a large island with two dishwashers, oversized range, and a neighboring spice kitchen / pantry that is ideal when entertaining.
  • Retreat to the deluxe master bedroom and discover a private deck, fireplace, and his and hers closets. The size of the laundry and mud rooms should not go unnoticed, and a porte cochere connects the main home to a second 2-car garage with a workshop.
  • The walkout basement provides a fun space for all to enjoy and features a wet bar in the rec room, exercise room, two bedroom suites, and loads of storage space.
  • BUILDING RESTRICTION: This plan may not be built on Lake Norman, NC; Lake Wylie, NC; Mecklenburg Co. NC; Gaston Co. NC; Iredell Co. NC; Catawba Co. NC; Lincoln Co.; York Co. SC; Lancaster Co. SC.

Floor Plans

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 6,374 sq. ft.
  • Lower Level: 2,608 sq. ft.
  • 1st Floor: 3,487 sq. ft.
  • 2nd Floor: 279 sq. ft.
  • Workshop: 969 sq. ft.
  • Storage: 1,402 sq. ft.
  • Covered Patio: 1,075 sq. ft.
  • Deck: 160 sq. ft.
  • Screened Porch: 249 sq. ft.
  • Porch, Rear: 749 sq. ft.
  • Porch, Front: 146 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 81' 4"
  • Depth: 141' 0"
  • Max ridge height: 47' 7"

Garage

  • Type: Detached, Attached
  • Area: 1685 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 12' 0" First Floor / 12' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Truss
