Plan 93230EL

Exclusive

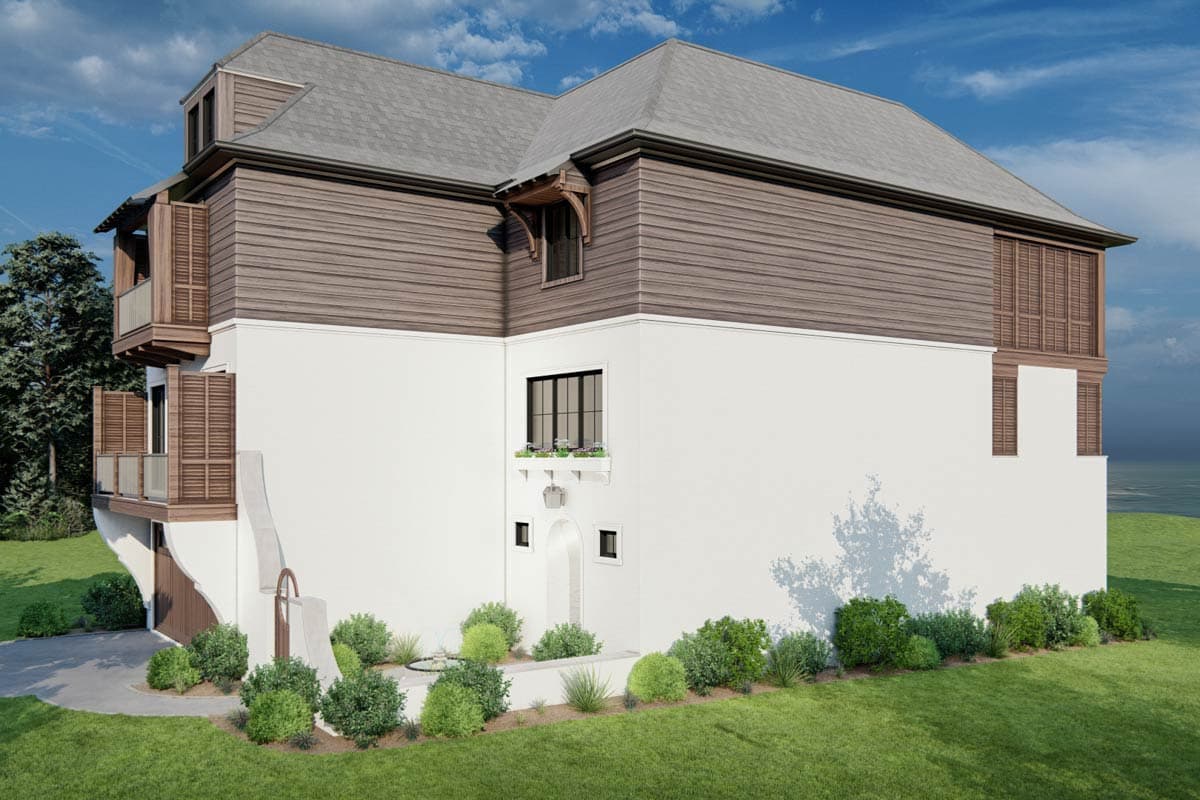

Luxury Coastal House Plan with Elevator, Scullery, and Lanai

Heated S.F.
4,614
Beds
4
Baths
5
Stories
3-4
Cars
2

Floor Plan

Plan 93230EL

Main Level
Main Level
2nd Floor
2nd Floor
3rd Floor
3rd Floor
Floor Plan 4

Plan 93230EL

M-F 9am-5pm EST |

1-203-761-8500

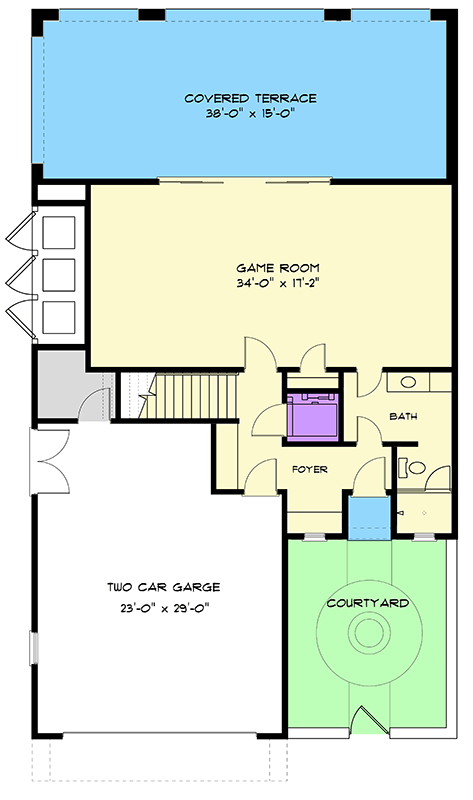

Main Level

Plan 93230EL: Luxury Coastal House Plan with Elevator, Scullery, and Lanai - Floor Plan - Main Level - Beach, Coastal Contemporary

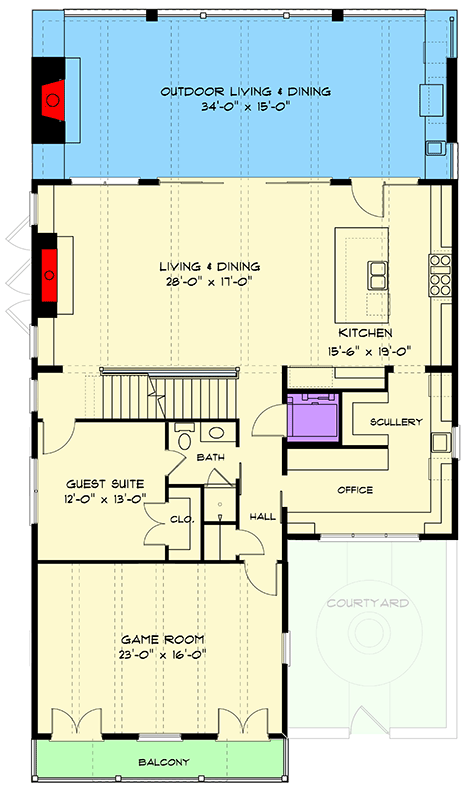

2nd Floor

Plan 93230EL: Luxury Coastal House Plan with Elevator, Scullery, and Lanai - Floor Plan - 2nd Floor - Beach, Coastal Contemporary

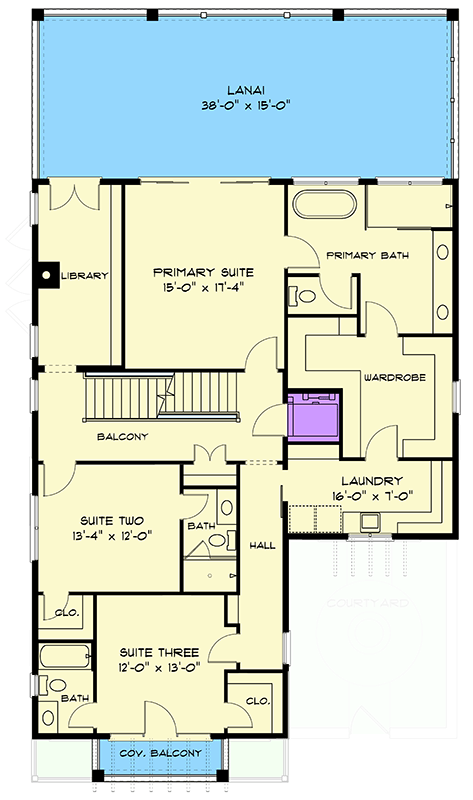

3rd Floor

Plan 93230EL: Luxury Coastal House Plan with Elevator, Scullery, and Lanai - Floor Plan - 3rd Floor - Beach, Coastal Contemporary

Plan 93230EL: Luxury Coastal House Plan with Elevator, Scullery, and Lanai - Floor Plan - null - Beach, Coastal Contemporary

Plan Details

  • This luxurious 4,614 sq. ft. coastal modern house plan boasts 4 bedrooms, 5 full bathrooms, and a spacious 716 sq. ft. attached two-car garage, offering ample space and elegant design.
  • Upon entry, a practical foyer on the ground floor leads to a spacious game room, setting the stage for entertainment, while the convenient elevator provides seamless access to all three levels of the home.
  • The second floor unveils the vibrant heart of the home, featuring an expansive open-concept living and dining area seamlessly connected to a gourmet kitchen, complete with a dedicated scullery for discreet meal prep, a private home office, and an additional game room for flexible family enjoyment.
  • Ascend to the third floor where the opulent primary suite awaits, offering direct access to the upstairs laundry for ultimate convenience, alongside two additional private bedroom suites, each with its own full bath, ensuring comfort and privacy for all. A guest suite on the second level provides a perfectly split arrangement.
  • Expansive outdoor living spaces enhance the coastal experience, from the ground-floor covered terrace and charming courtyard to the second-floor outdoor living and dining area complete with an outdoor fireplace and kitchen, perfect for entertaining or enjoying the sea breeze, complemented by a large third-floor lanai and multiple private balconies.

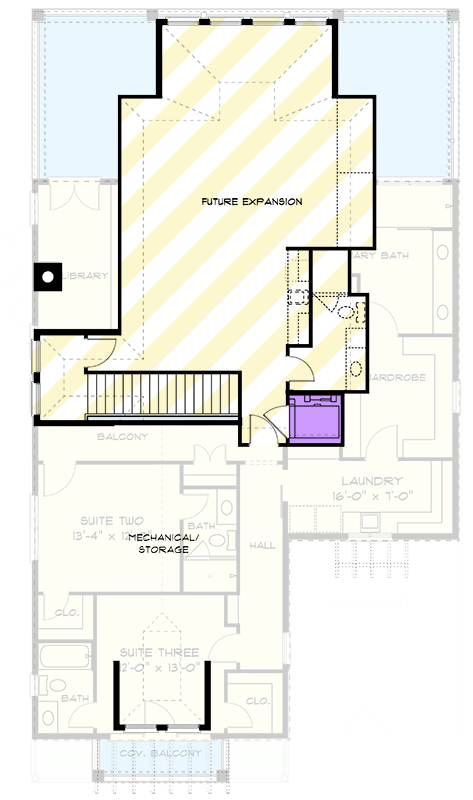

  • The fourth floor also includes a substantial 'Future Expansion' area, offering the potential to create an optionally finished bonus room tailored to your specific needs, whether a, home theater, media room, or additional living space.
  • DELIVERY NOTE: Please allow 5 to 7 business days for delivery.

What's Included

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • Floor Plan
  • Bird's Eye Roof Plan
  • 4 Elevations
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • Electrical

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,614 sq. ft.

1st Floor

2,883 sq. ft.

2nd Floor

1,415 sq. ft.

3rd Floor

1,805 sq. ft.

Porch, Combined

376 sq. ft.

Balcony / Veranda

51 sq. ft.

Lanai

640 sq. ft.

Covered Patio

640 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

5

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 2"

Depth

68' 10"

Max Ridge Height

44' 2"

Garage

Type

Standard, Attached

Area

716 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Architectural Style

Beach

Coastal Contemporary

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Courtyard

Elevator

Game/Rec Room

Home Office

Laundry Access from Master Suite

Laundry - Upstairs

Library/Study

Master Suite - Upstairs

Mudroom

Optionally Finished Bonus Room

Outdoor Fireplace

Outdoor Kitchen

Plan Collections
