Plan 64560SC

Luxury Contemporary House Plan with Elevator, Sunroom, and 4-Car Garage

Name: Plan 64560SC: Luxury Contemporary House Plan with Elevator, Sunroom, and 4-Car Garage
Brand: Architectural Designs
SKU: 64560SC
Price: 1995.0 USD
Availability: InStock

Heated S.F.

3,560

Beds

2 - 4

Baths

2.5 - 3.5

Stories

Cars

Tour

Floor Plan

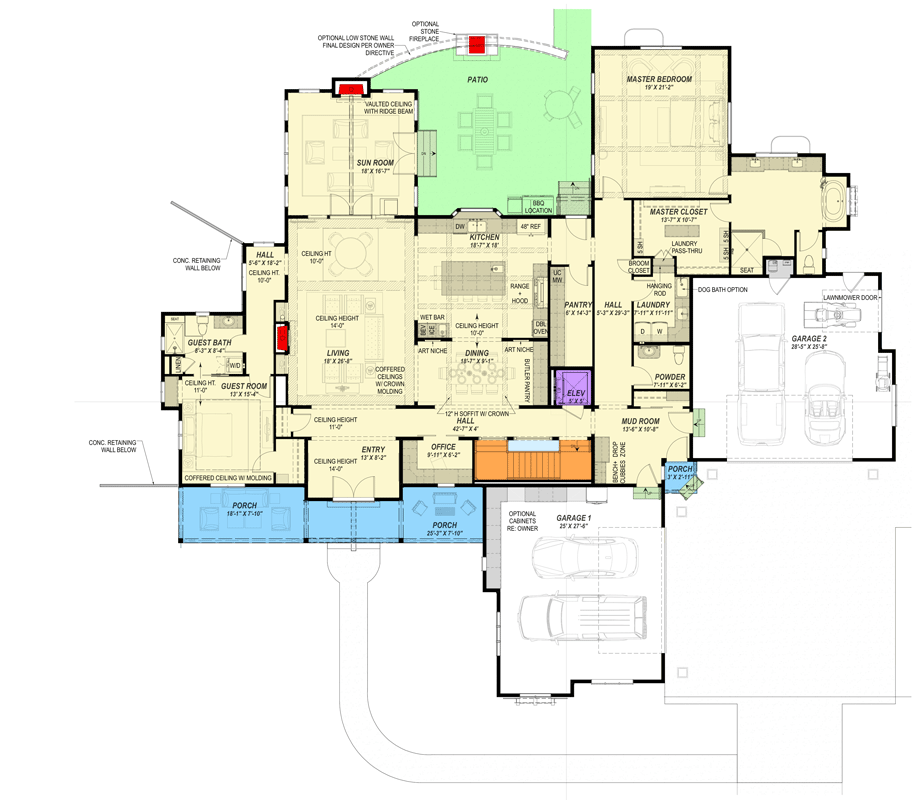

Main Level

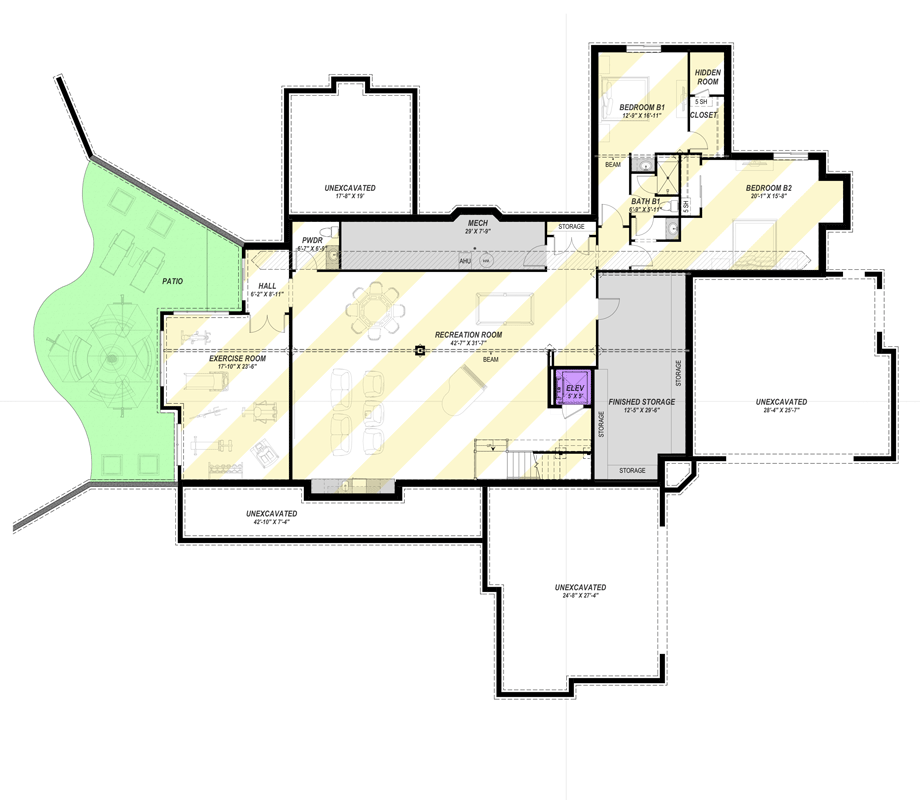

Optionally Finished Lower Level

Plan Details

This expansive 3,560 sq. ft. Contemporary house plan offers up to 2-4 bedrooms, 2 or 3 full baths, and a convenient half bath, complemented by a substantial 1,469 sq. ft. attached 4-car garage.
Step into an impressive entry foyer with soaring 10-foot ceilings, revealing an open-concept main living area seamlessly connecting the elegant formal dining room, a dedicated home office, and a convenient elevator for effortless access to both levels.
The heart of the home centers around a gourmet kitchen featuring an oversized island and a butler's walk-in pantry, flowing gracefully into the spacious living room with its vaulted ceiling and fireplace, creating an inviting atmosphere for daily life and special occasions.
Retreat to the luxurious first-floor master suite, designed for ultimate comfort with a private sitting area, a lavish ensuite bathroom, and an expansive walk-in closet that provides direct access to the main-level laundry room; two additional bedrooms and a full bath are thoughtfully placed on the lower level, offering privacy and convenience.
The optionally finished lower level unfolds into a vast recreation room, ideal for entertaining or family activities, alongside a dedicated exercise room and generous finished storage, all easily accessible via the home's private elevator.

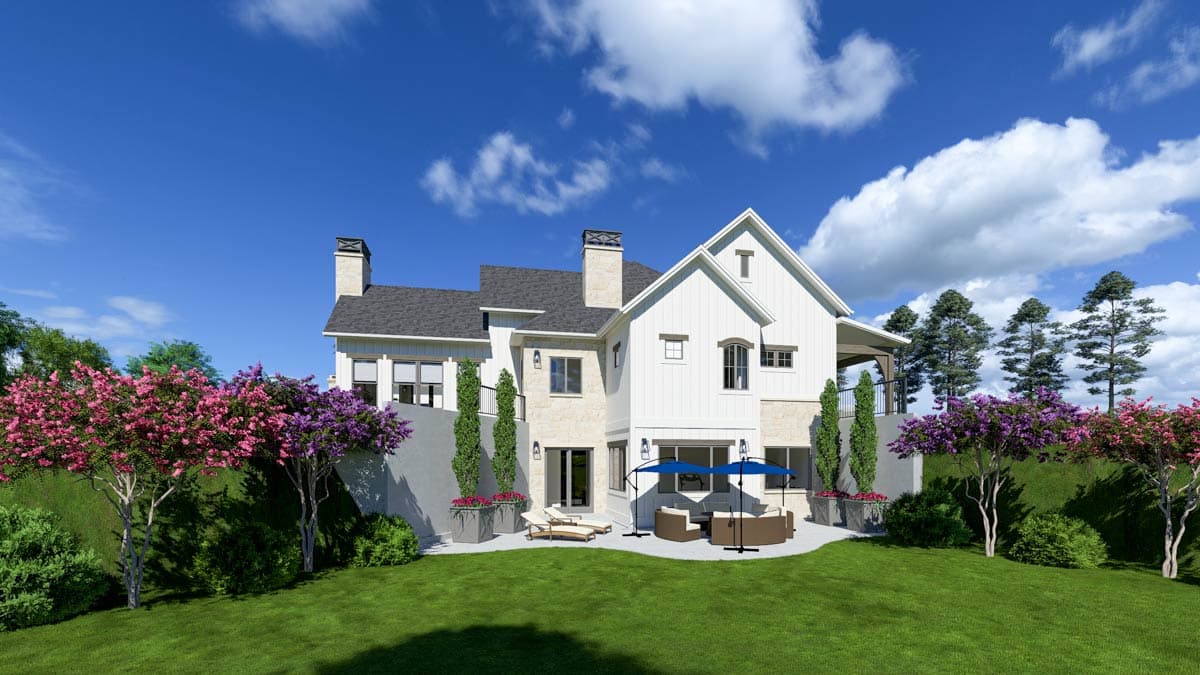

Enjoy the outdoors from multiple vantage points, including a welcoming front porch, an expansive rear porch, and a sun-drenched sunroom with a vaulted ceiling that opens onto a spacious patio, complete with an optional outdoor fireplace and kitchen for al fresco dining and relaxation.

What's Included

Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
Upper Level Plan (if needed) - same information as Main Level.
Roof Plan - layout with pitch markers, dimensions and notes.
Main Level Electrical Plan - electrical outlets, switches and light locations shown.
Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.

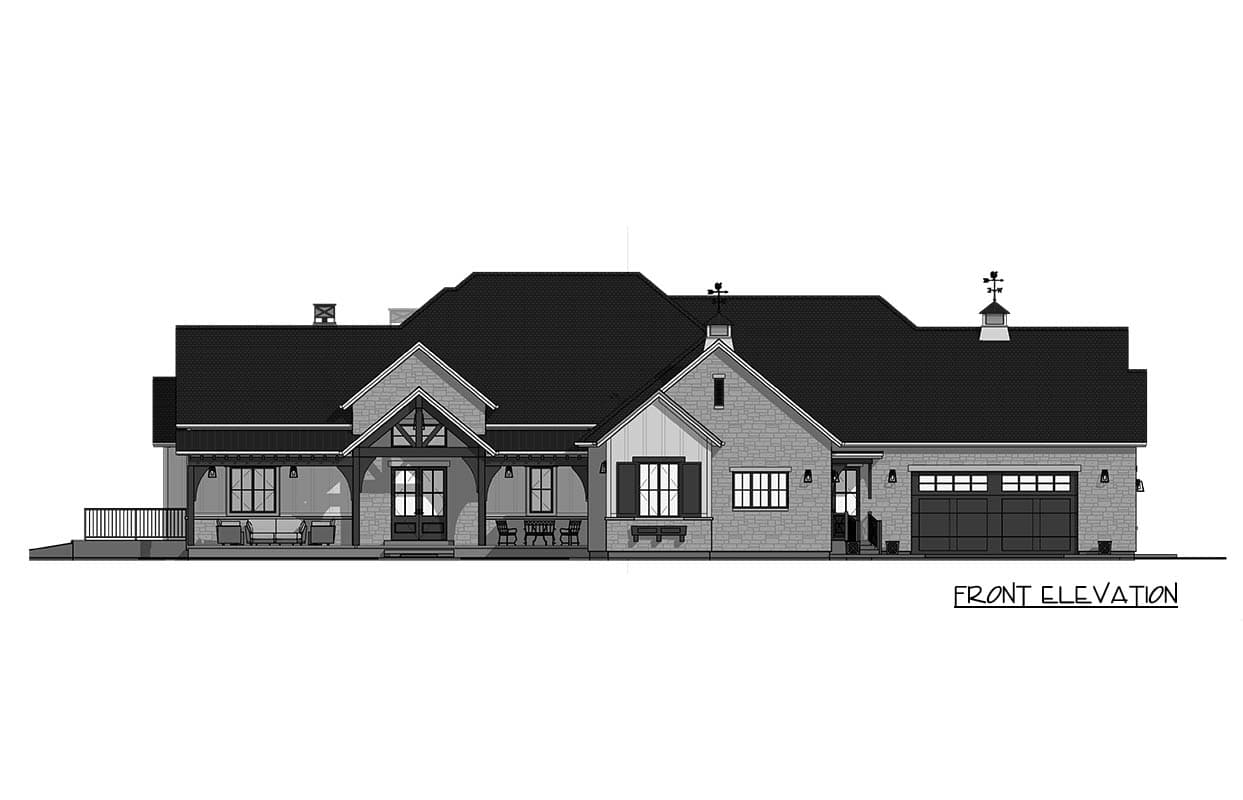

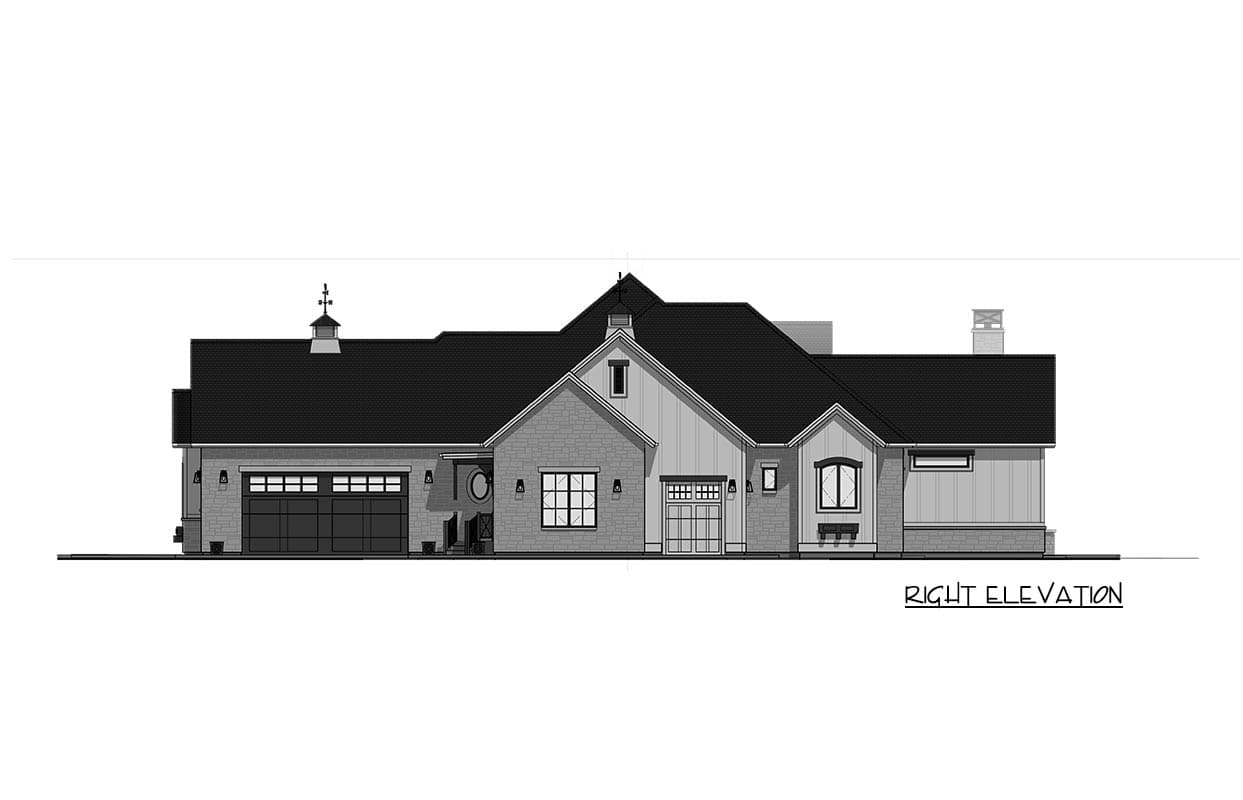

Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.

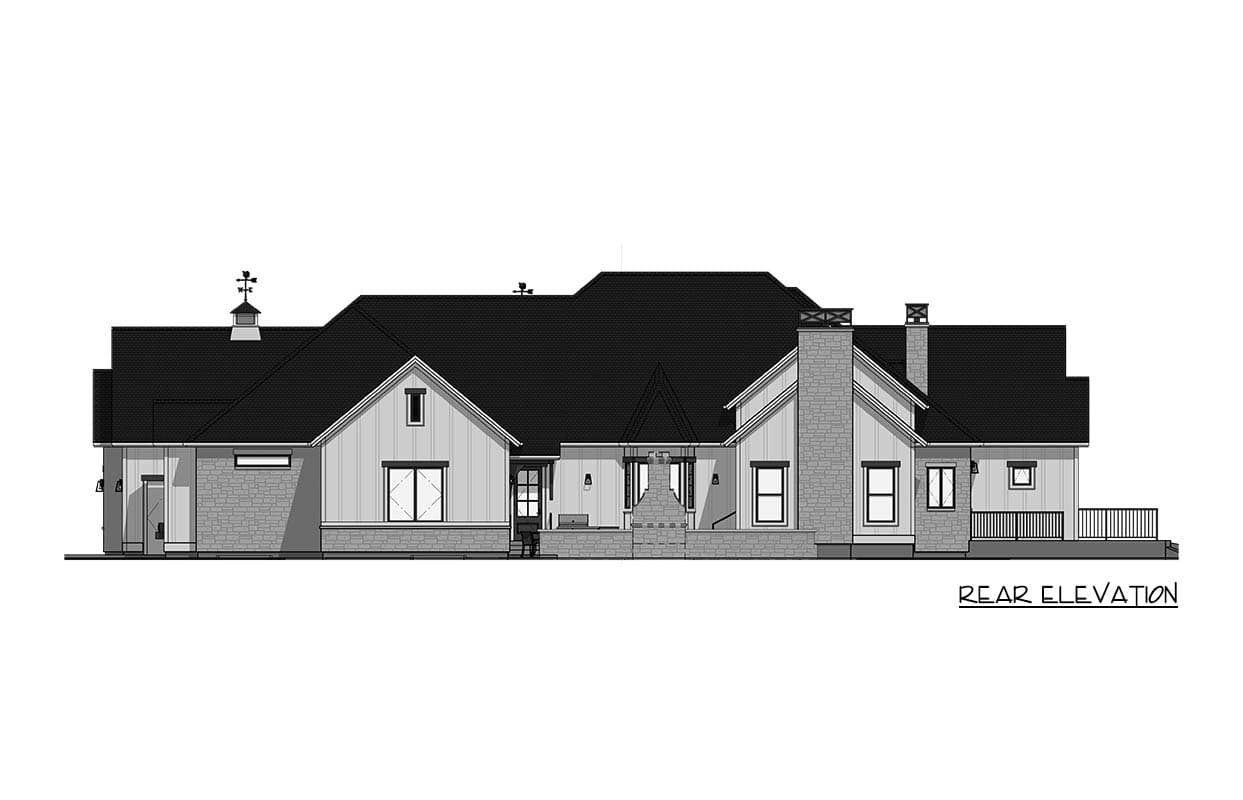

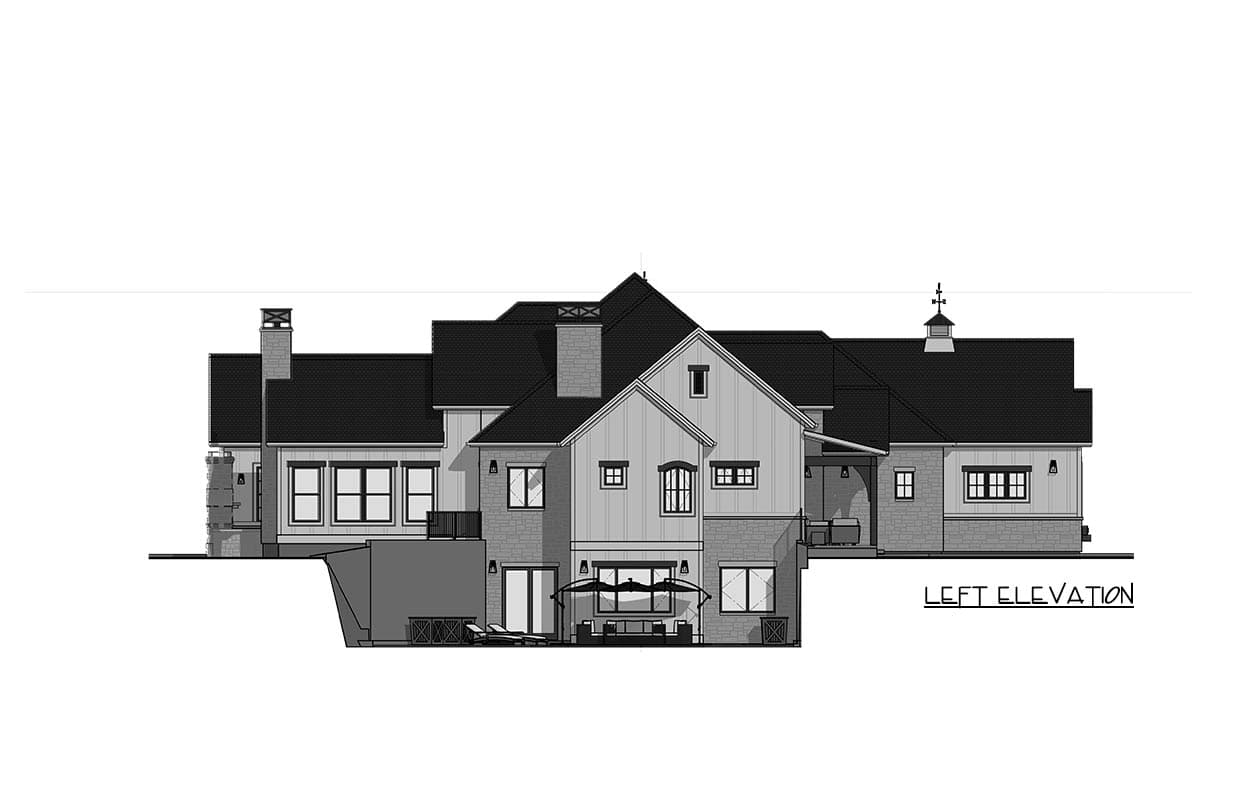

Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
