Plan 2308JD Luxury Craftsman Dream Home Plan

6,275 5 5.5 2 4
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Luxury Craftsman Dream Home Plan

Plan 2308JD

  • 6,275

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 4

    Cars

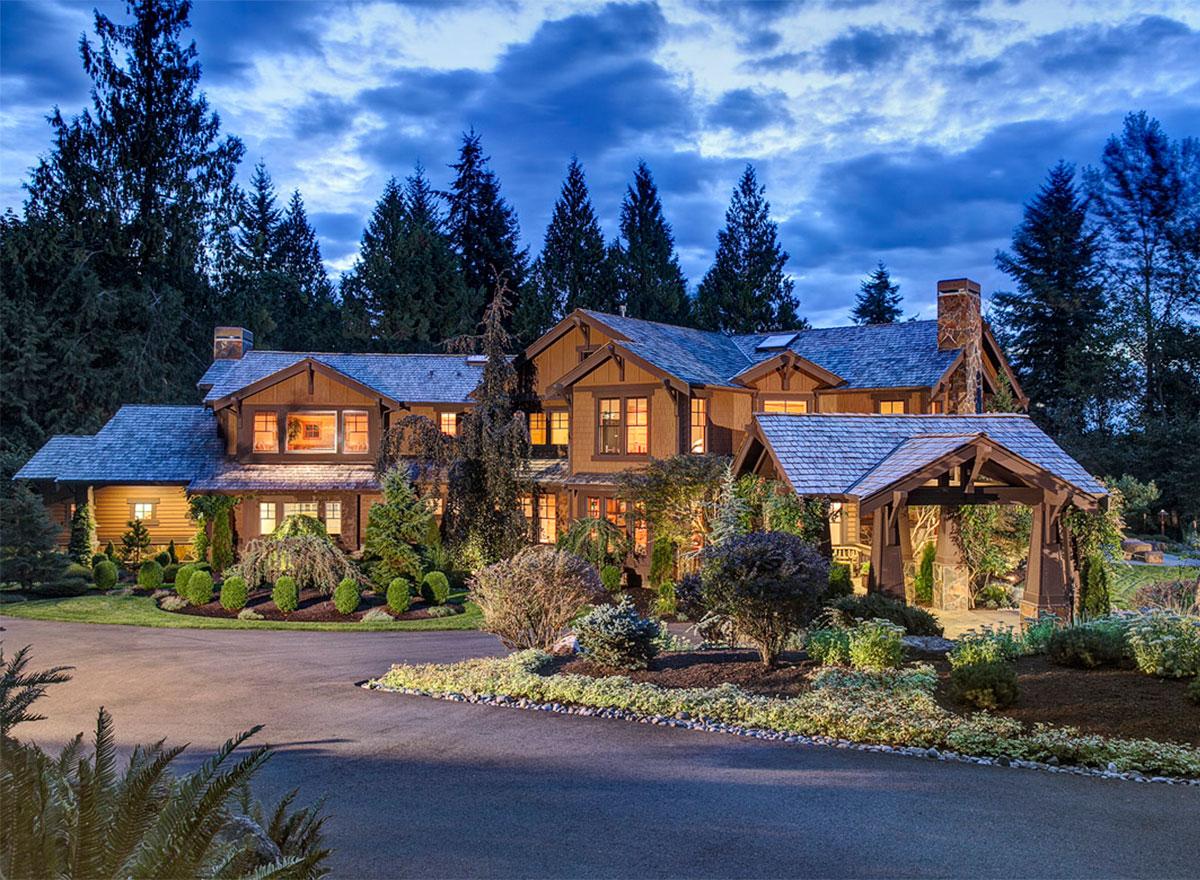

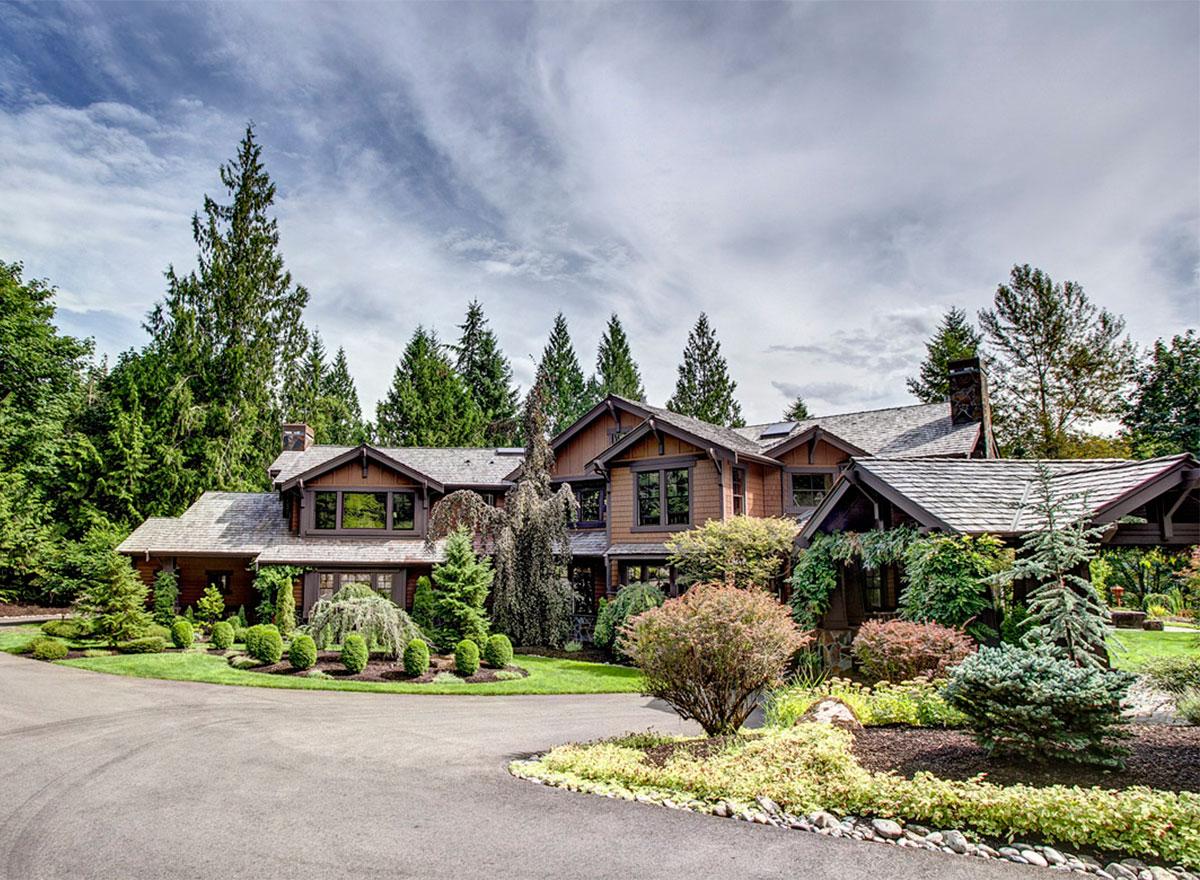

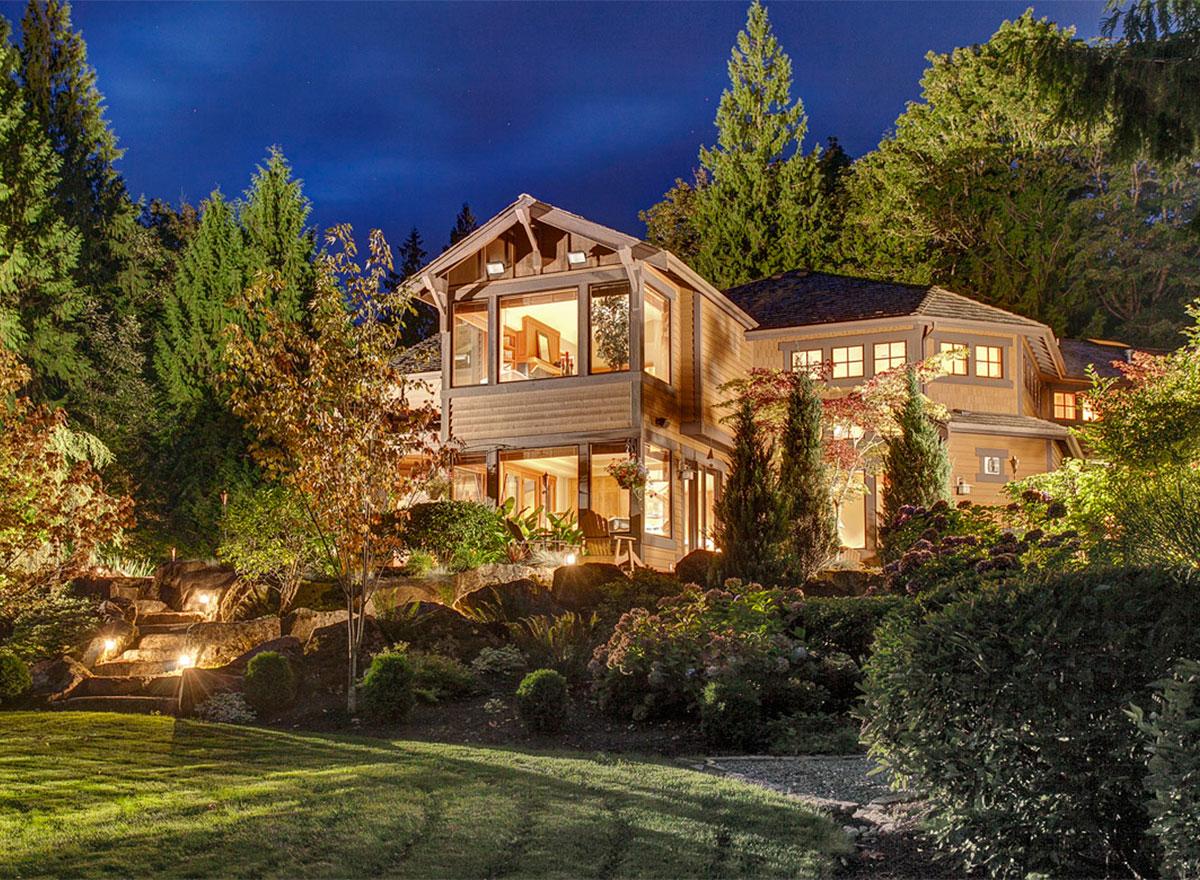

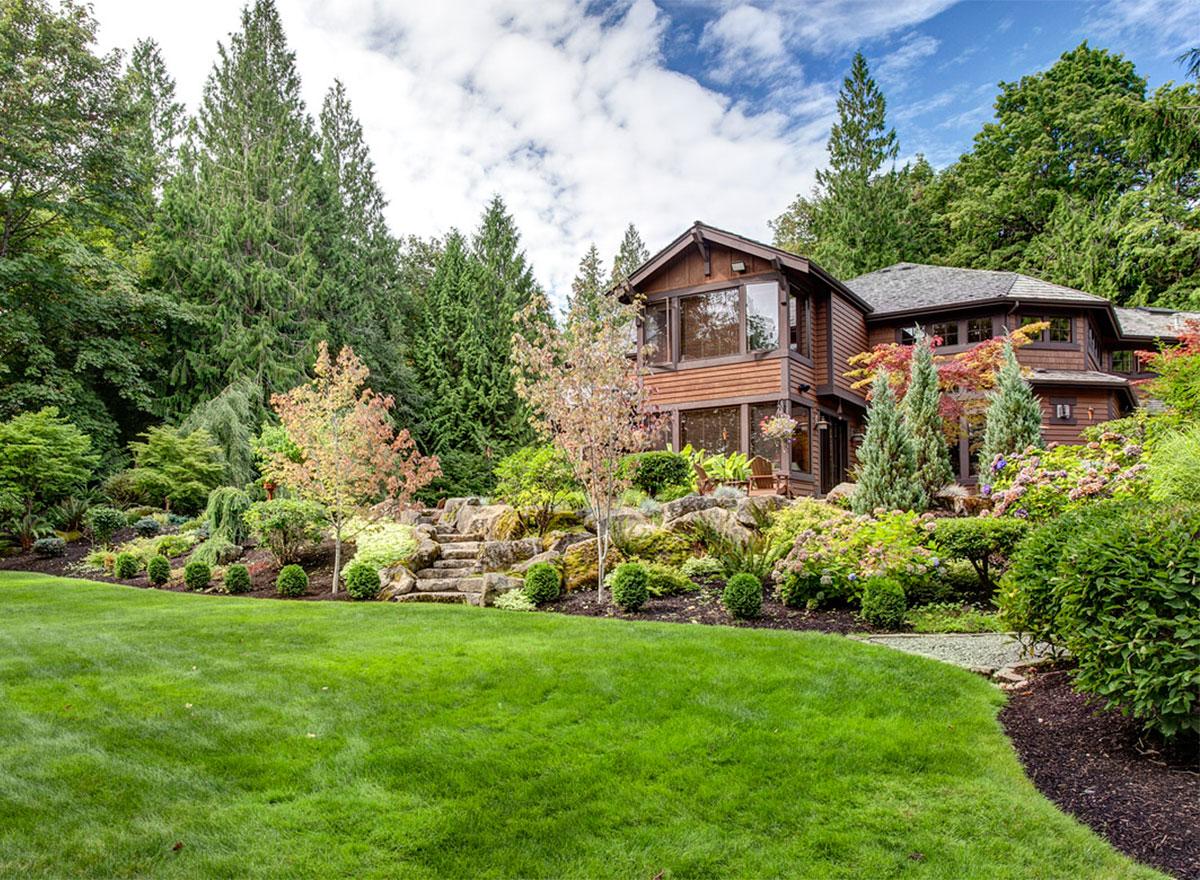

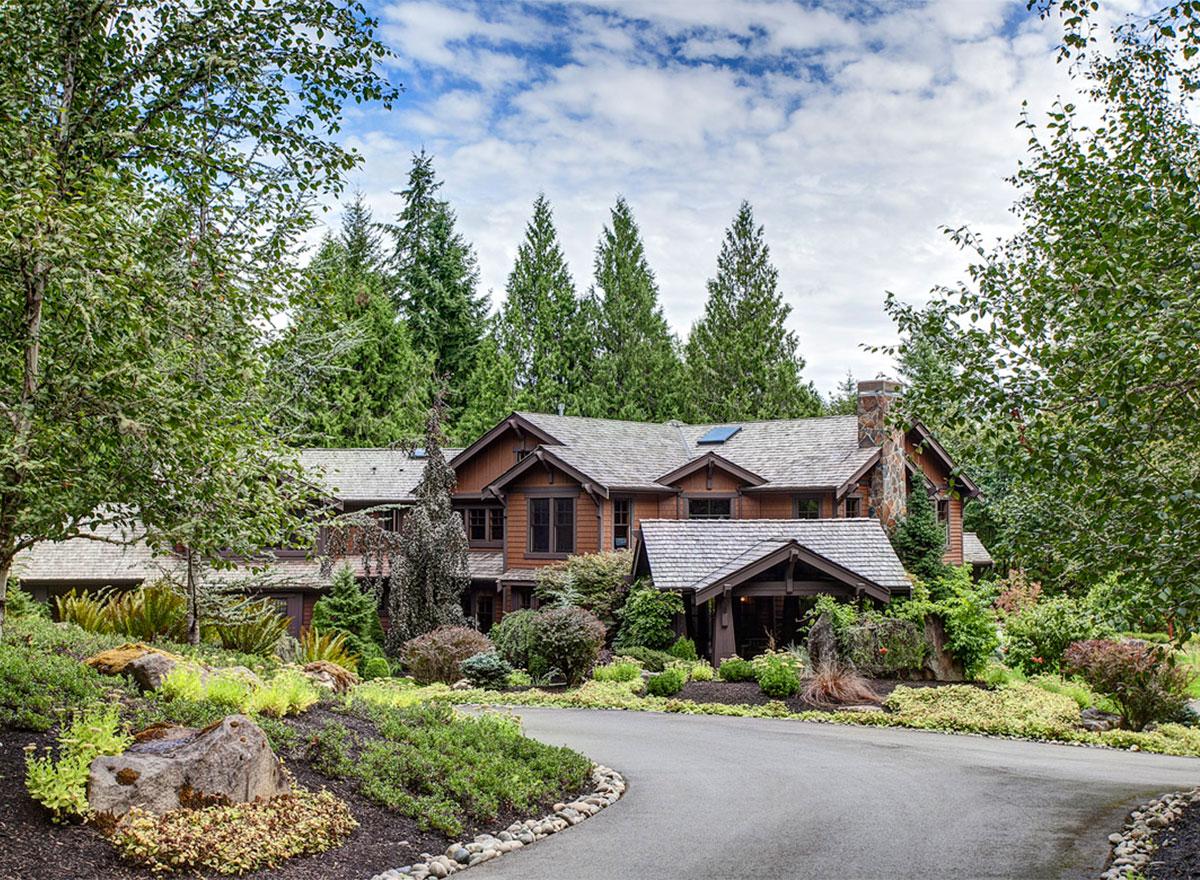

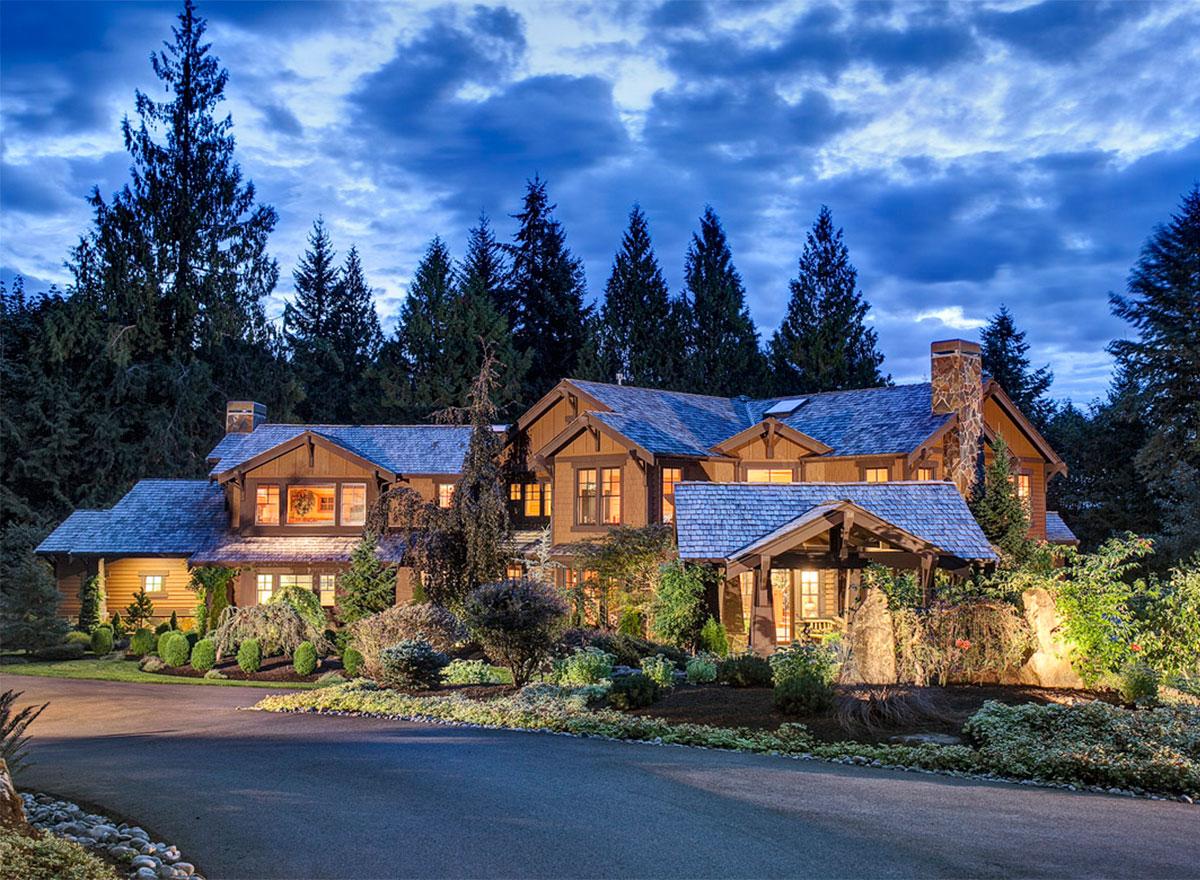

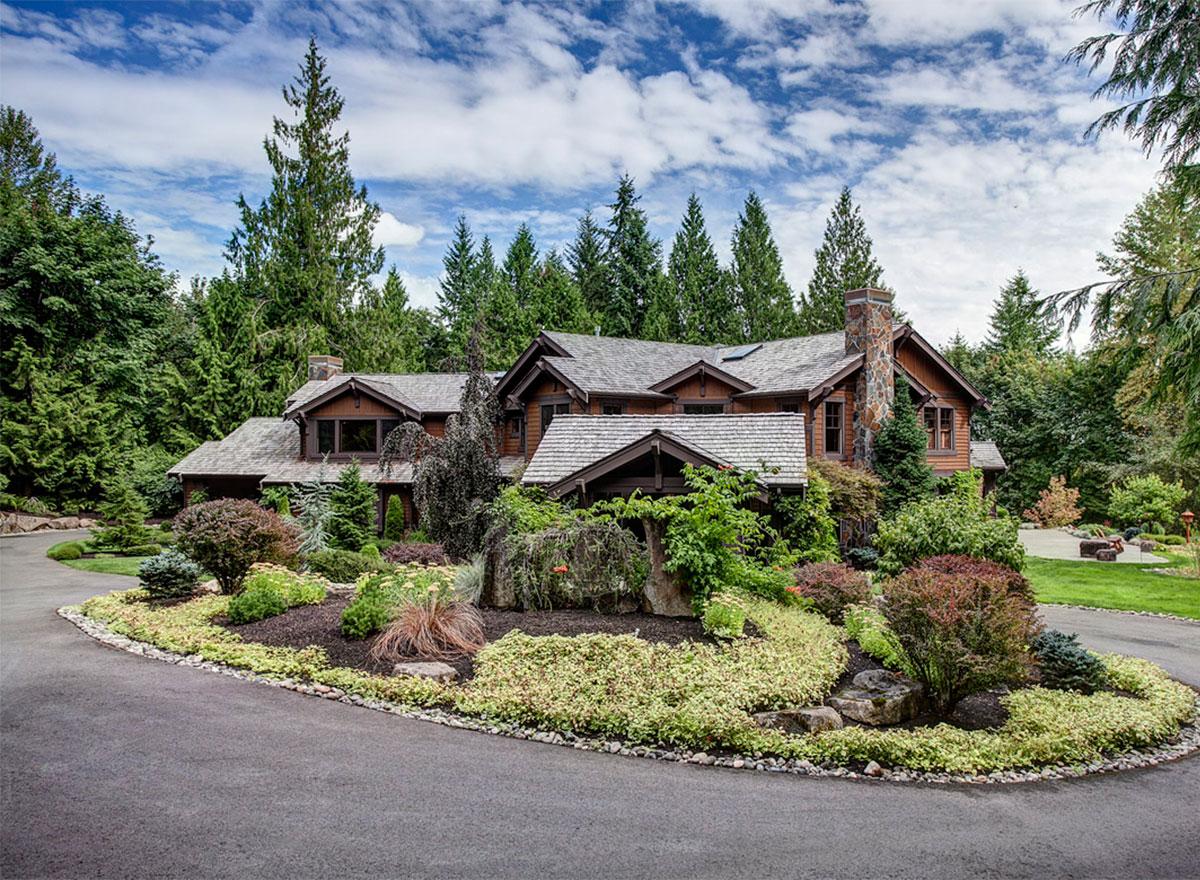

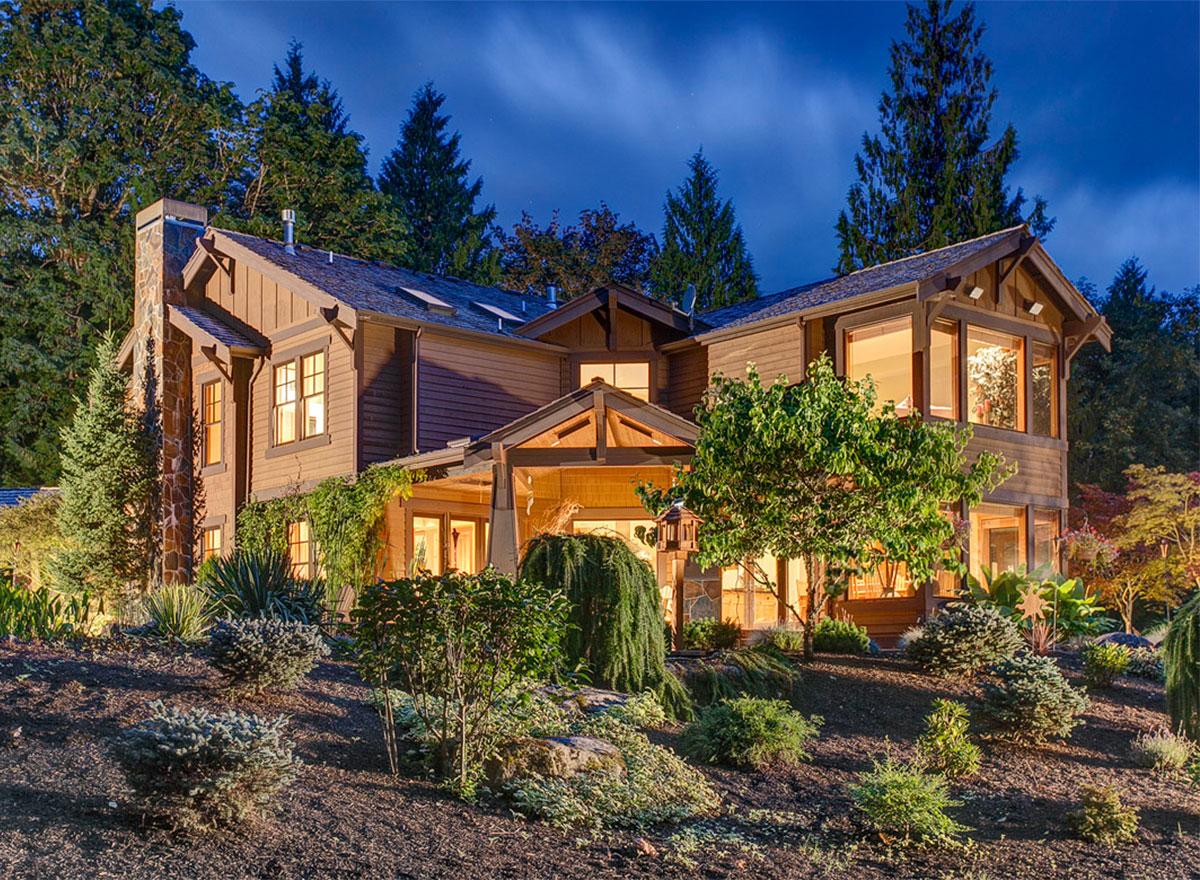

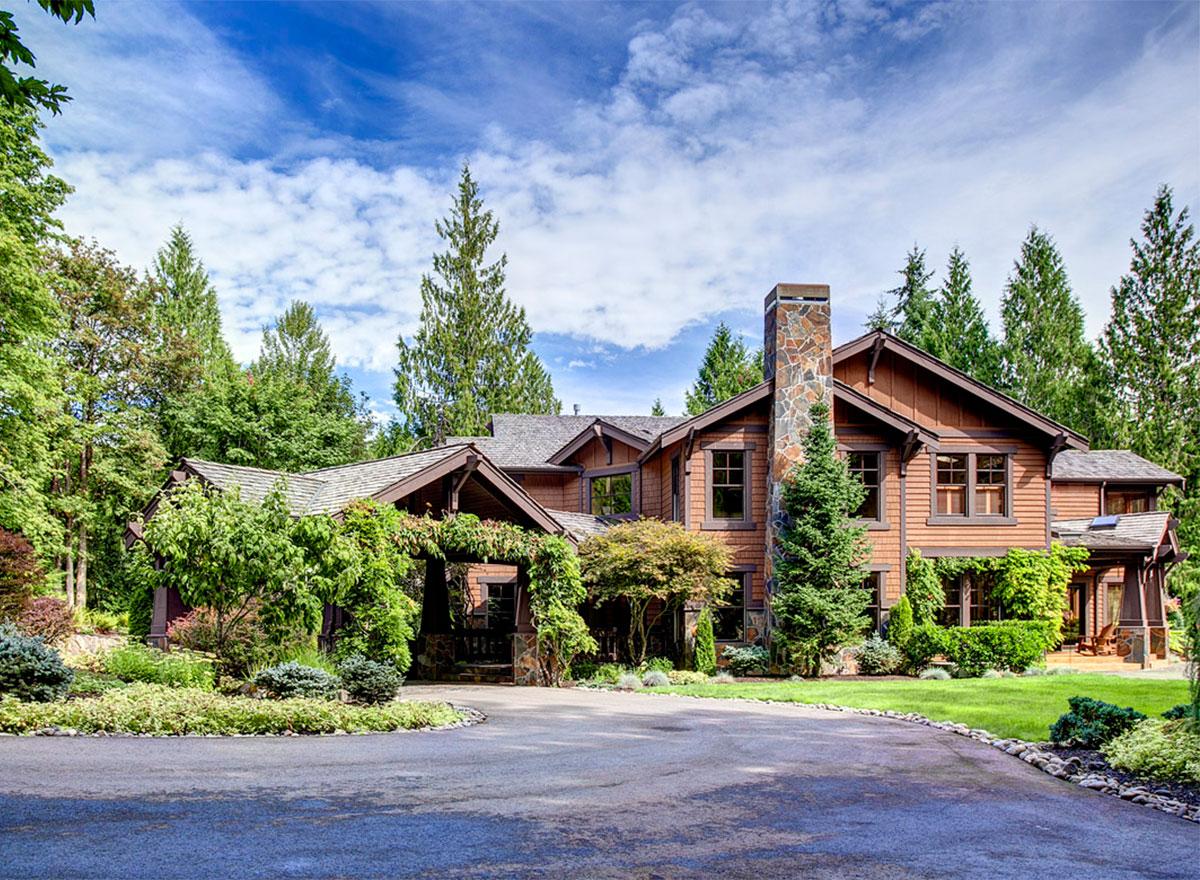

  • Unusual angles and multiple rooflines set this luxurious Craftsman home apart.

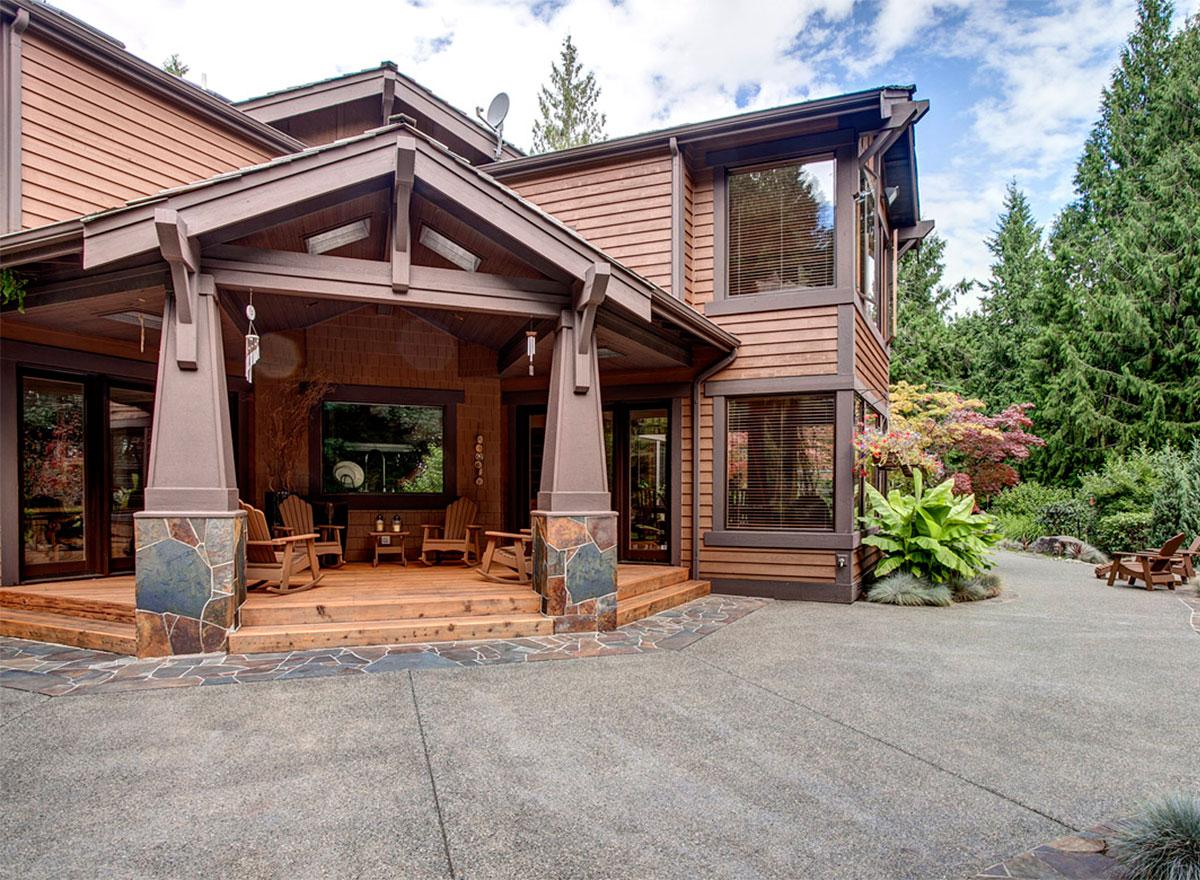

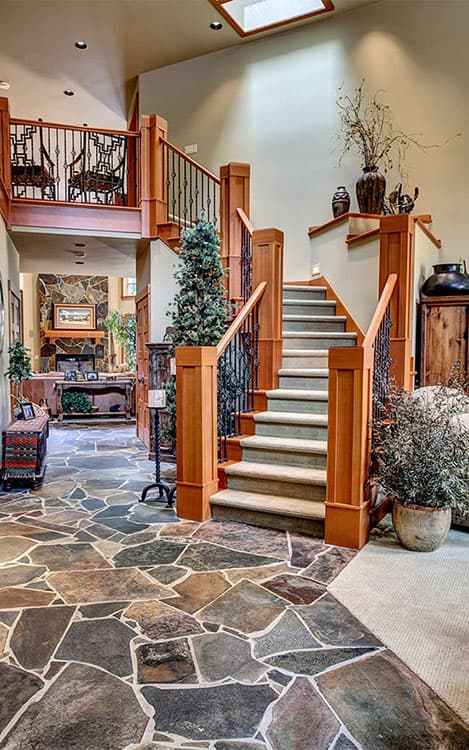

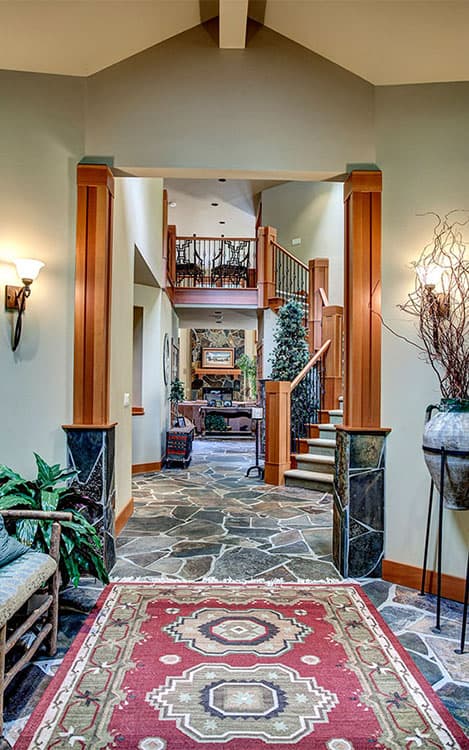

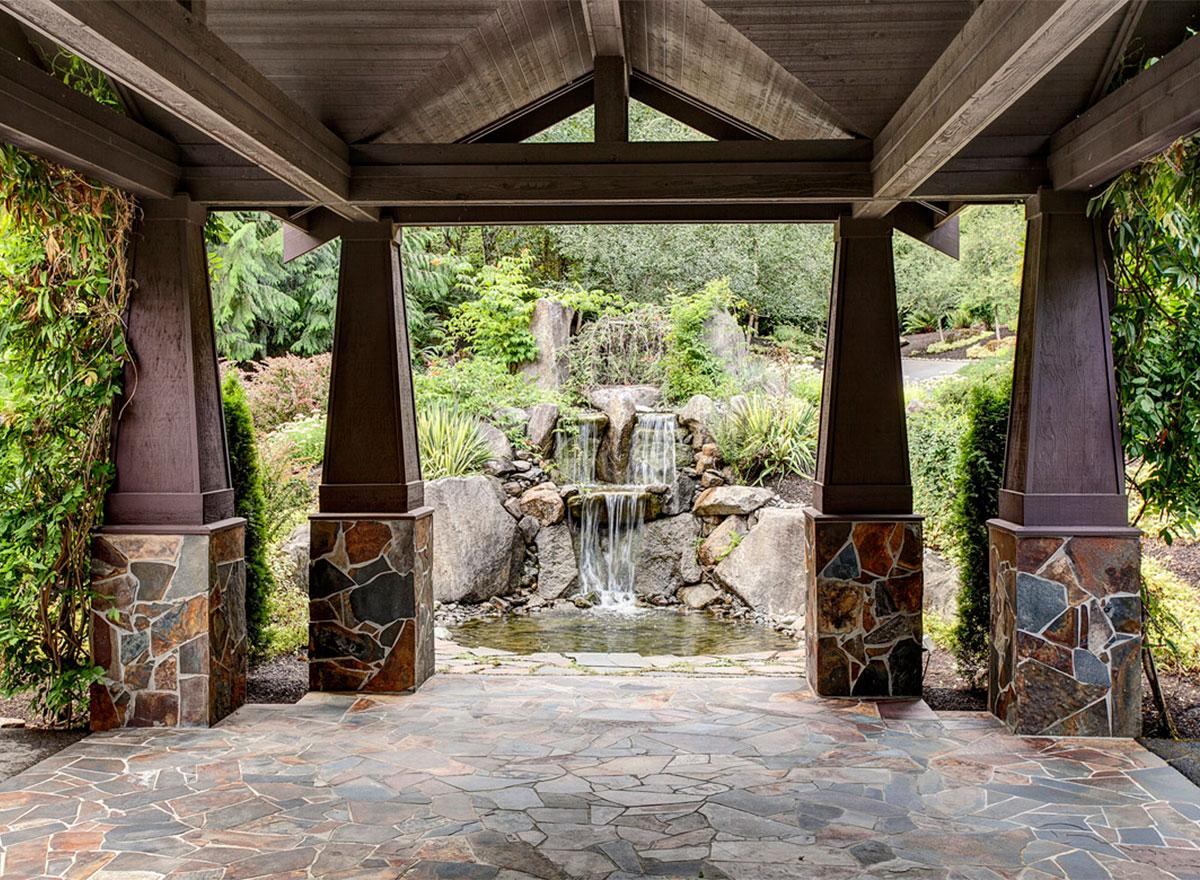

  • A vaulted portico makes a grand entrance to this spacious home that combines formal and informal areas.

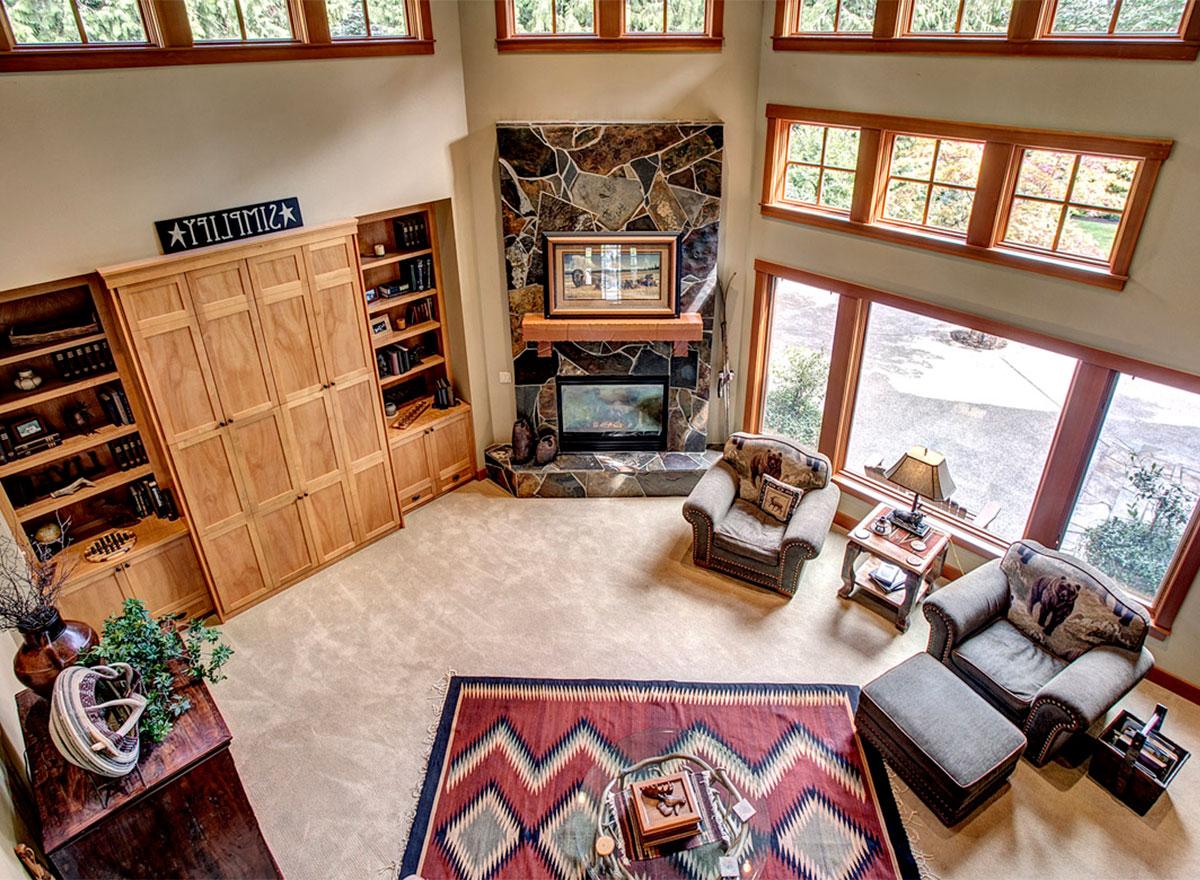

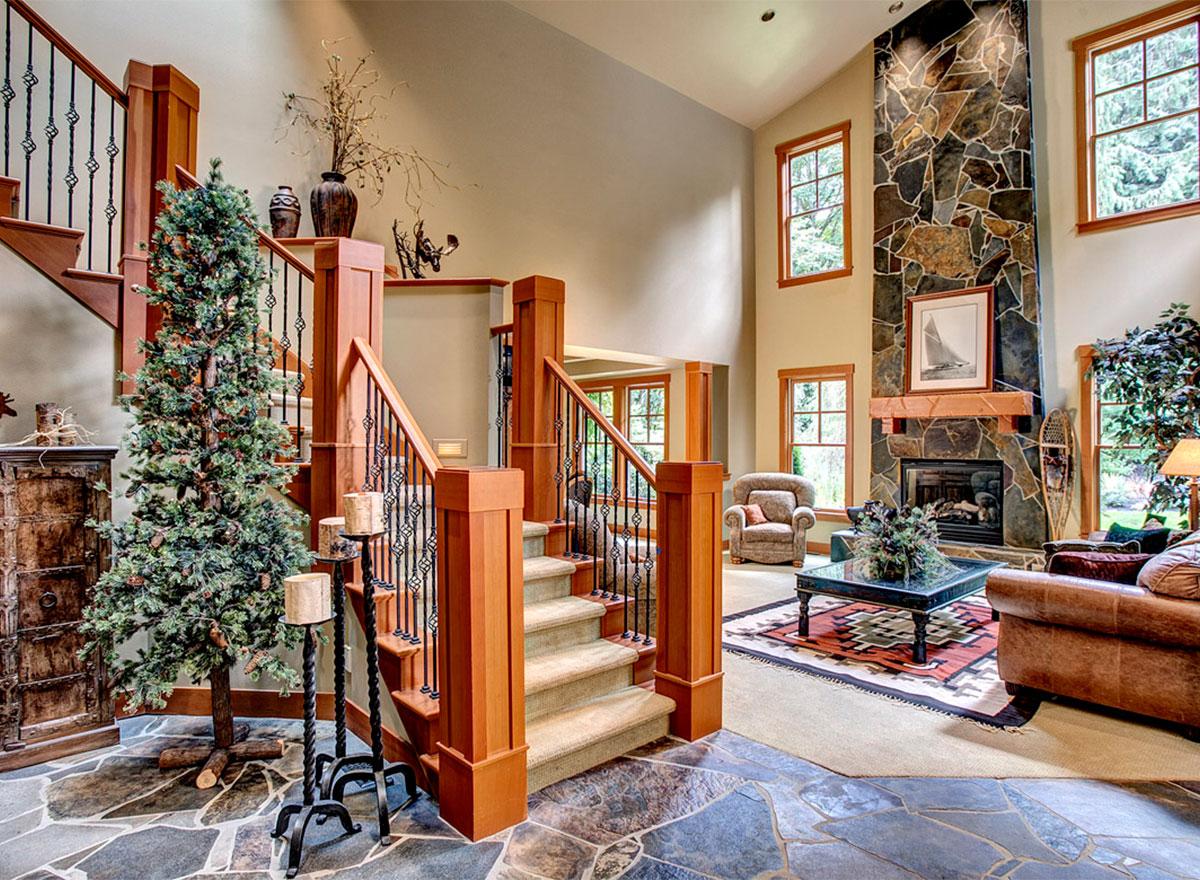

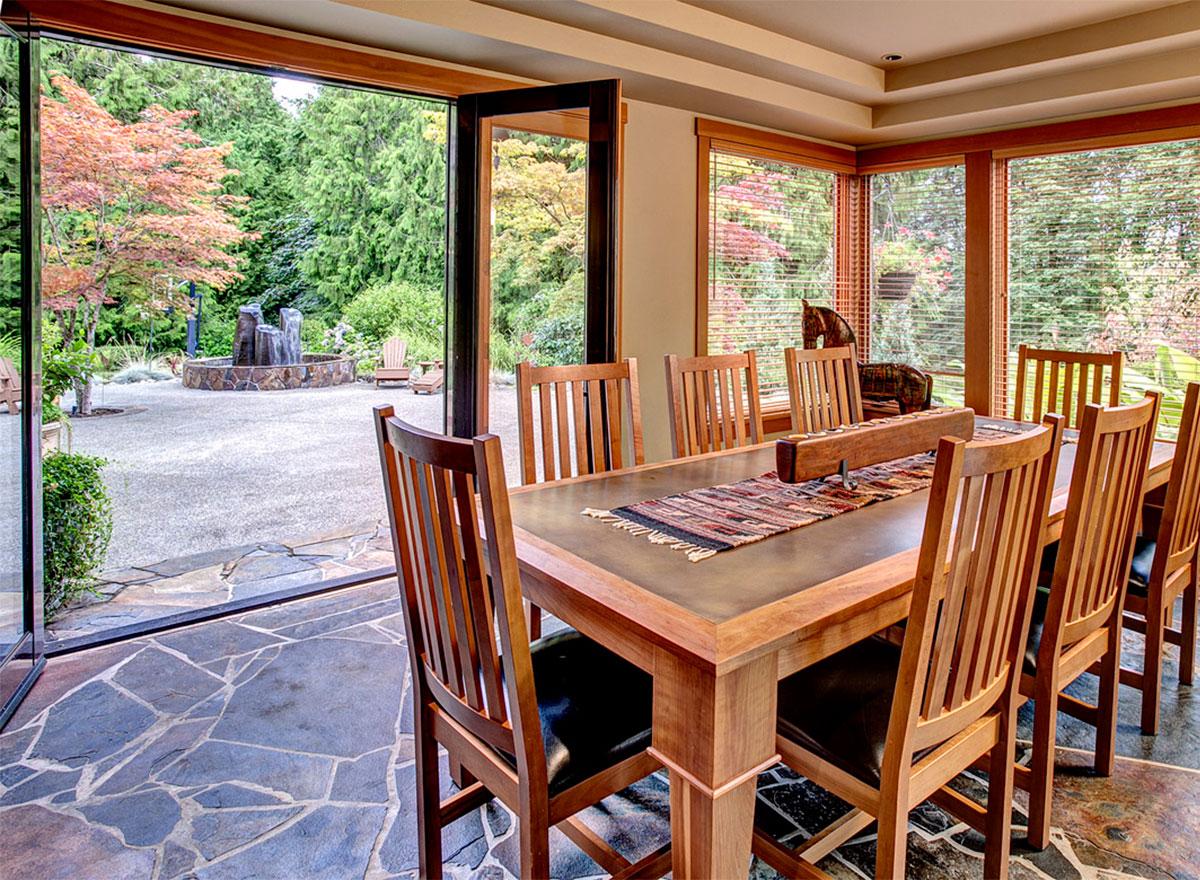

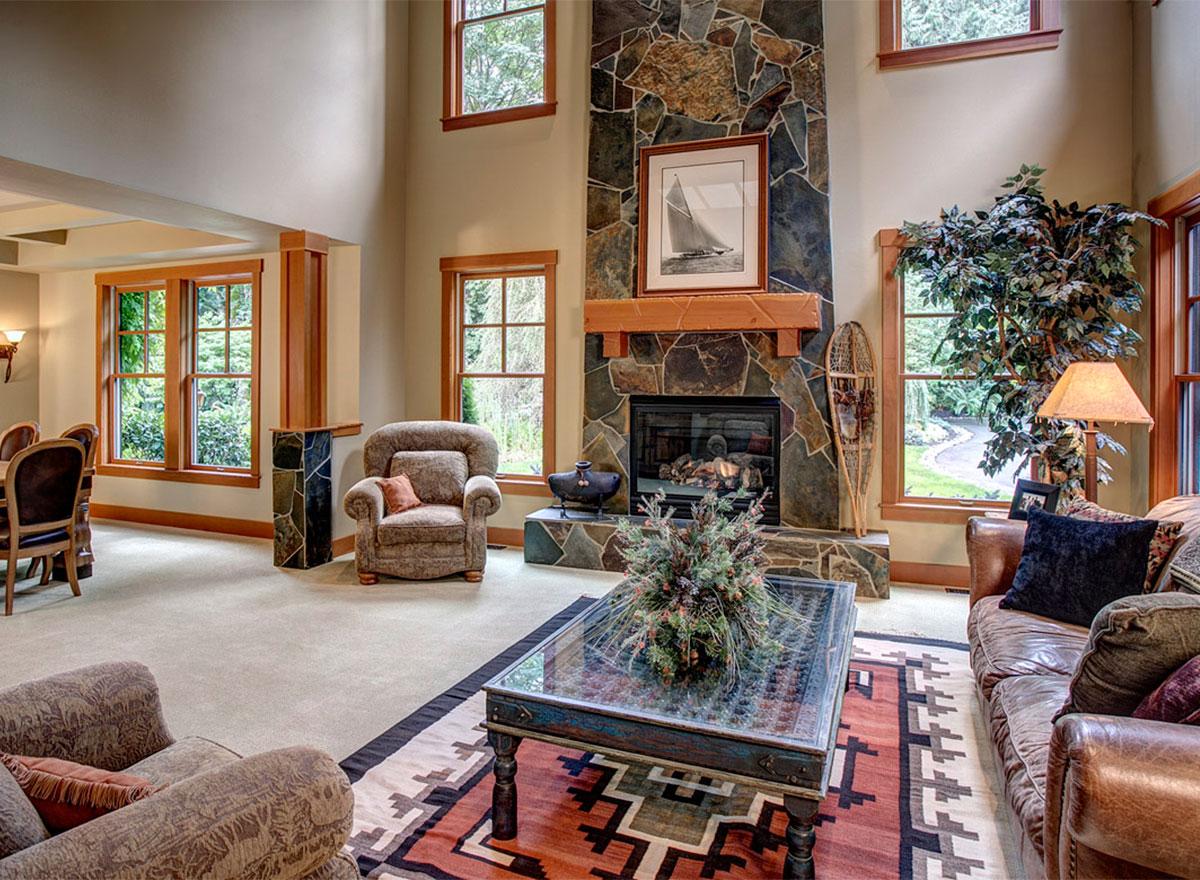

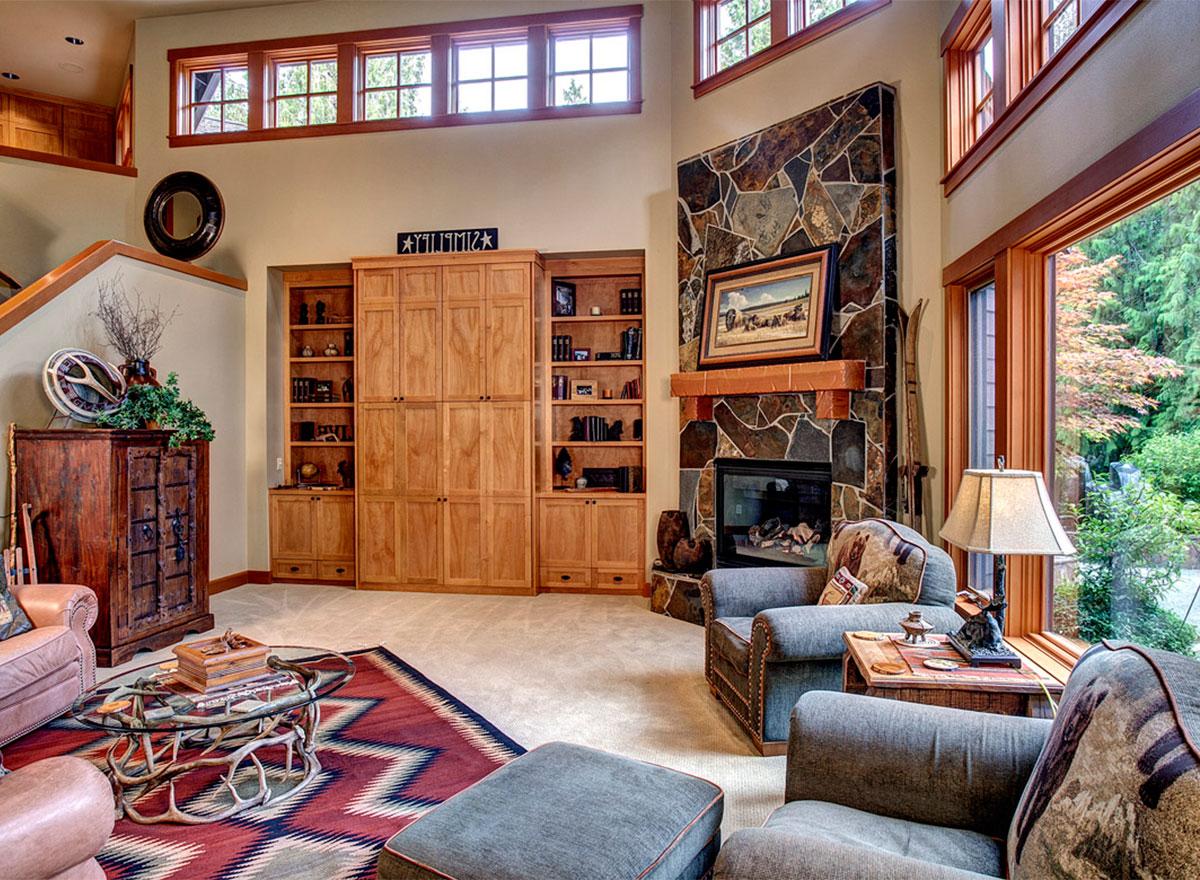

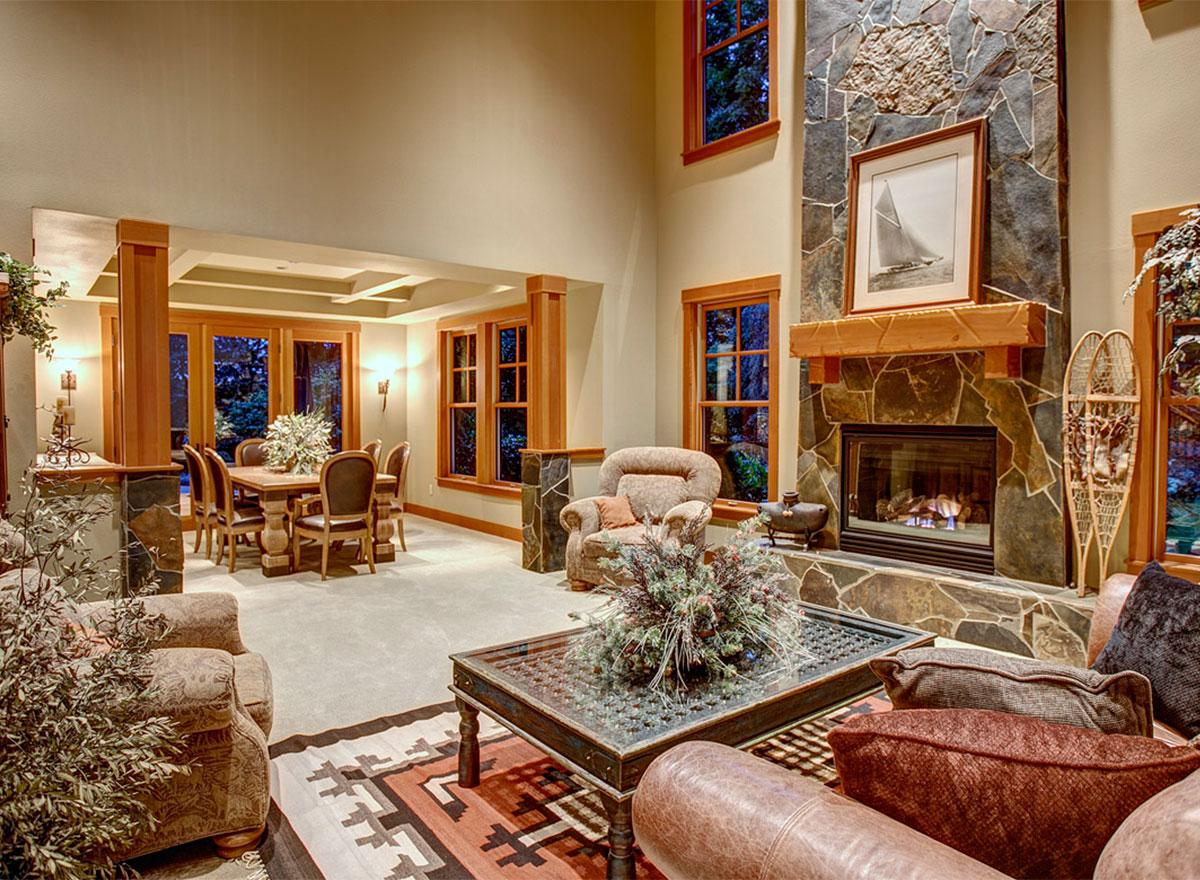

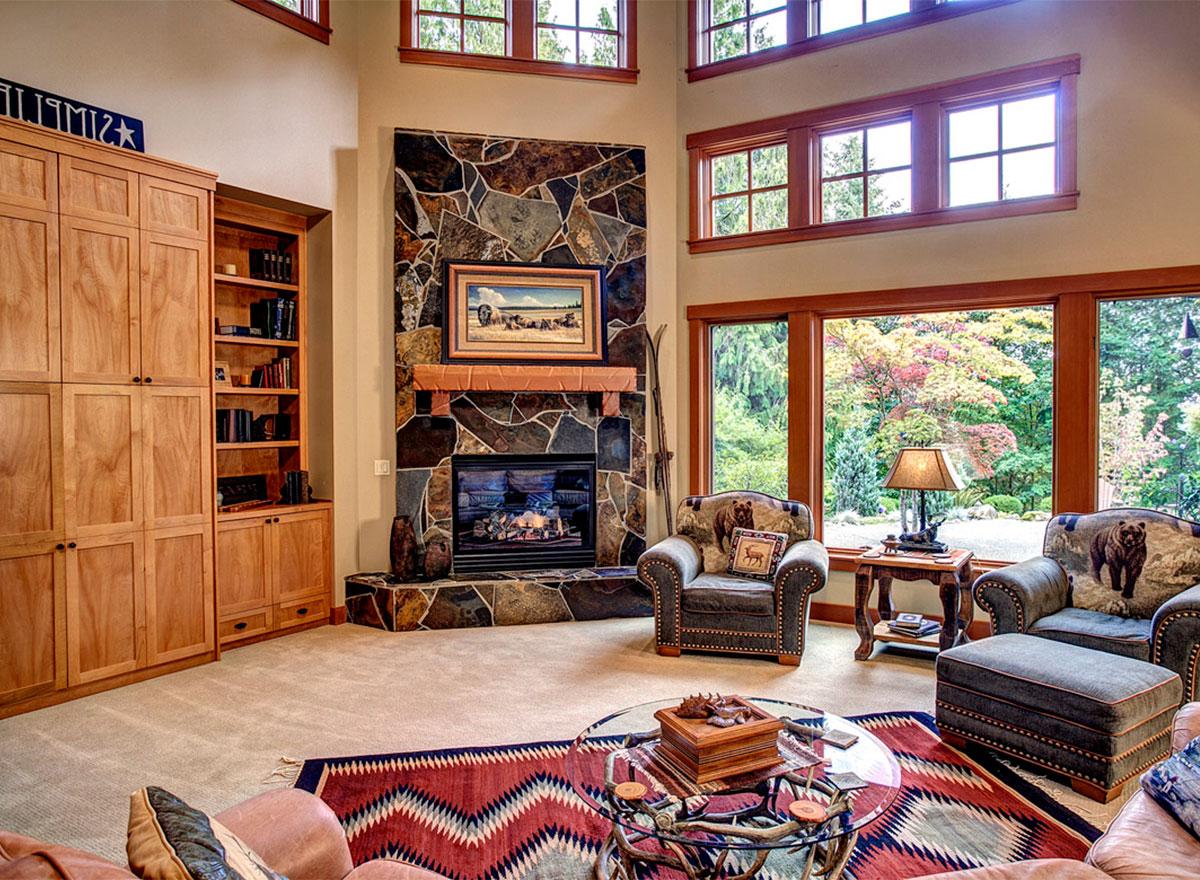

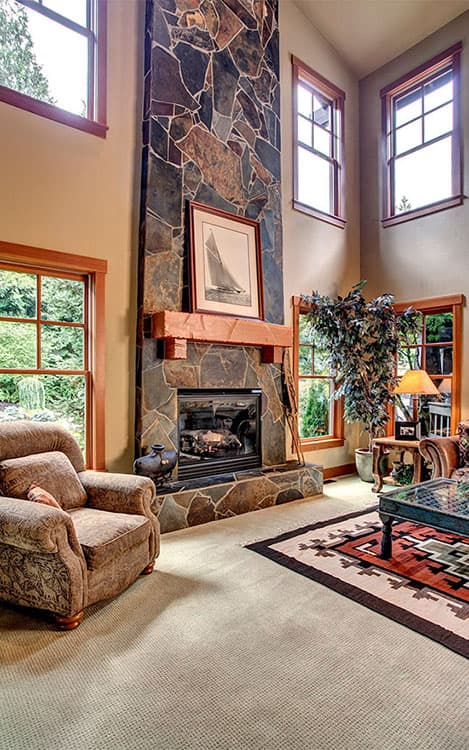

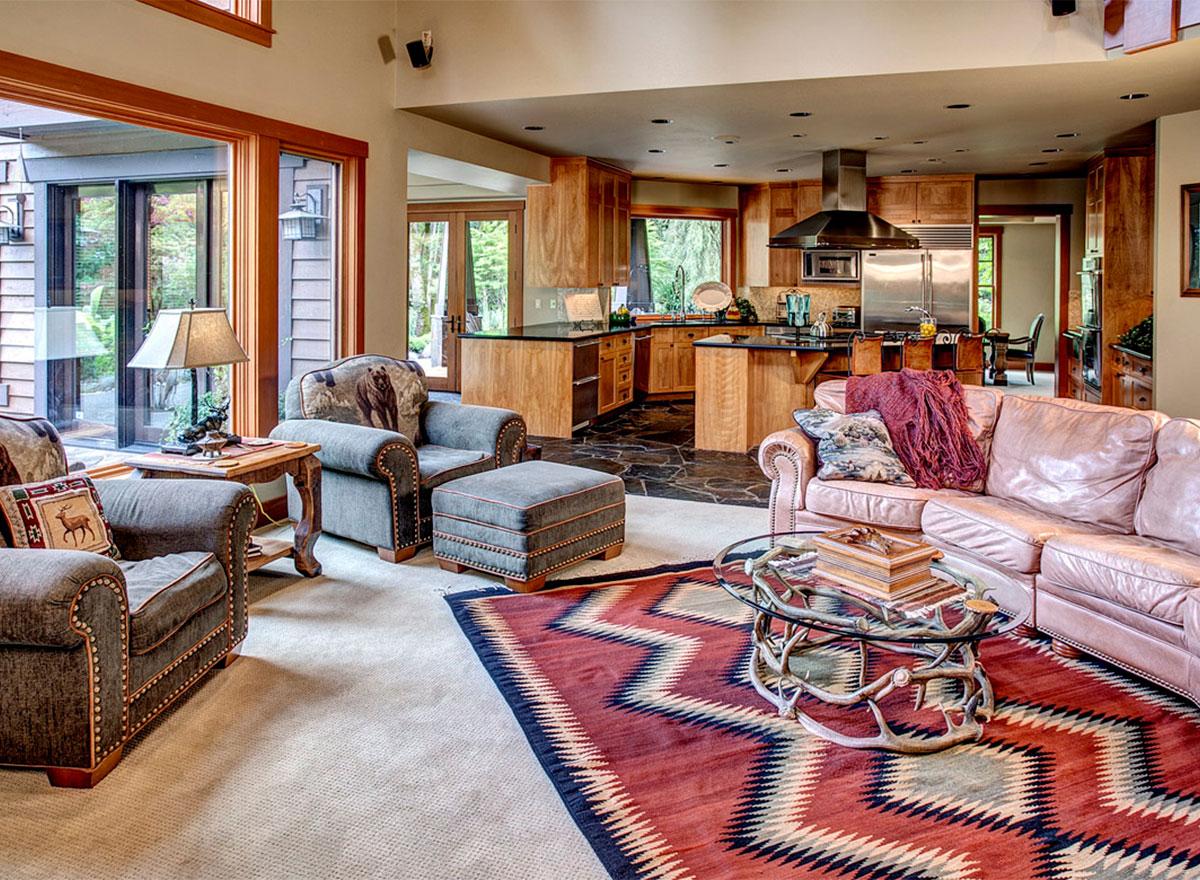

  • The heart of the home is the huge two-story family room with fireplace that can be seen all the way from the kitchen and dining nook.

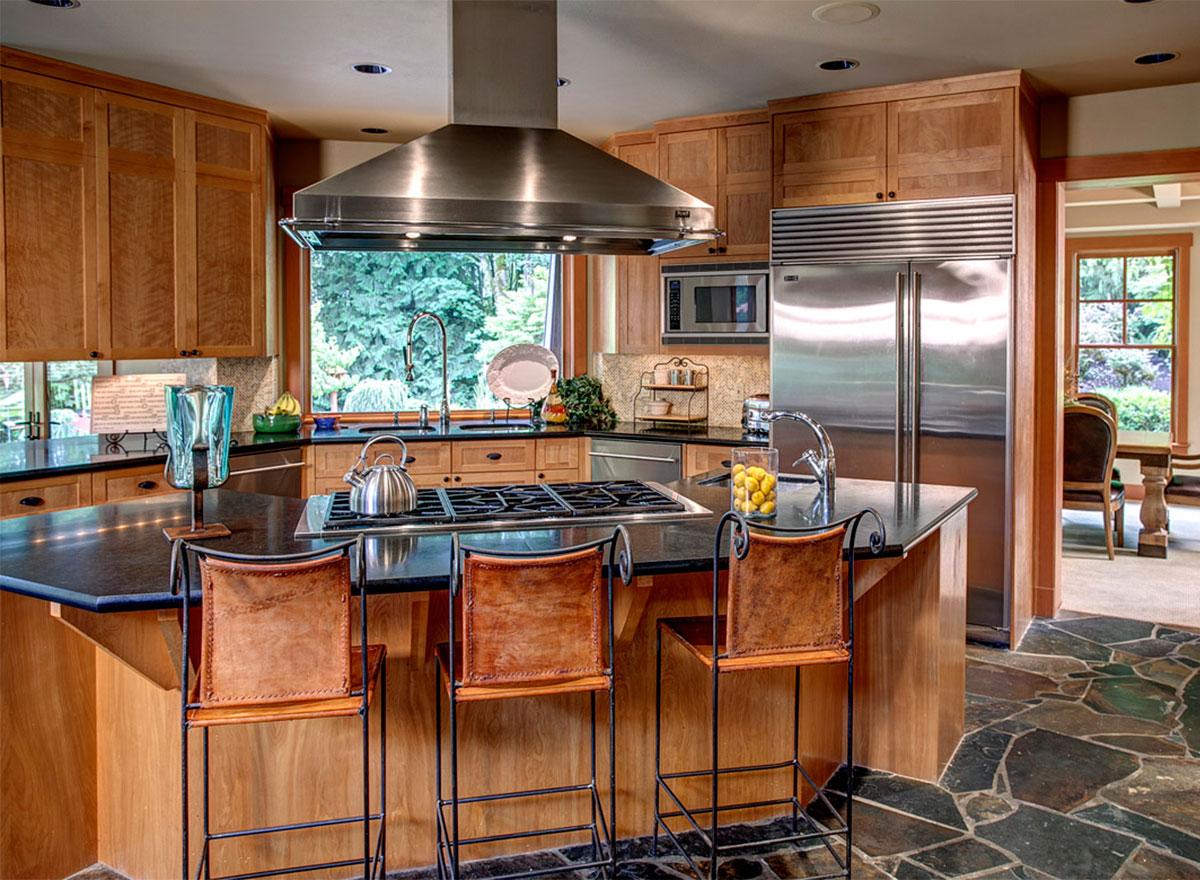

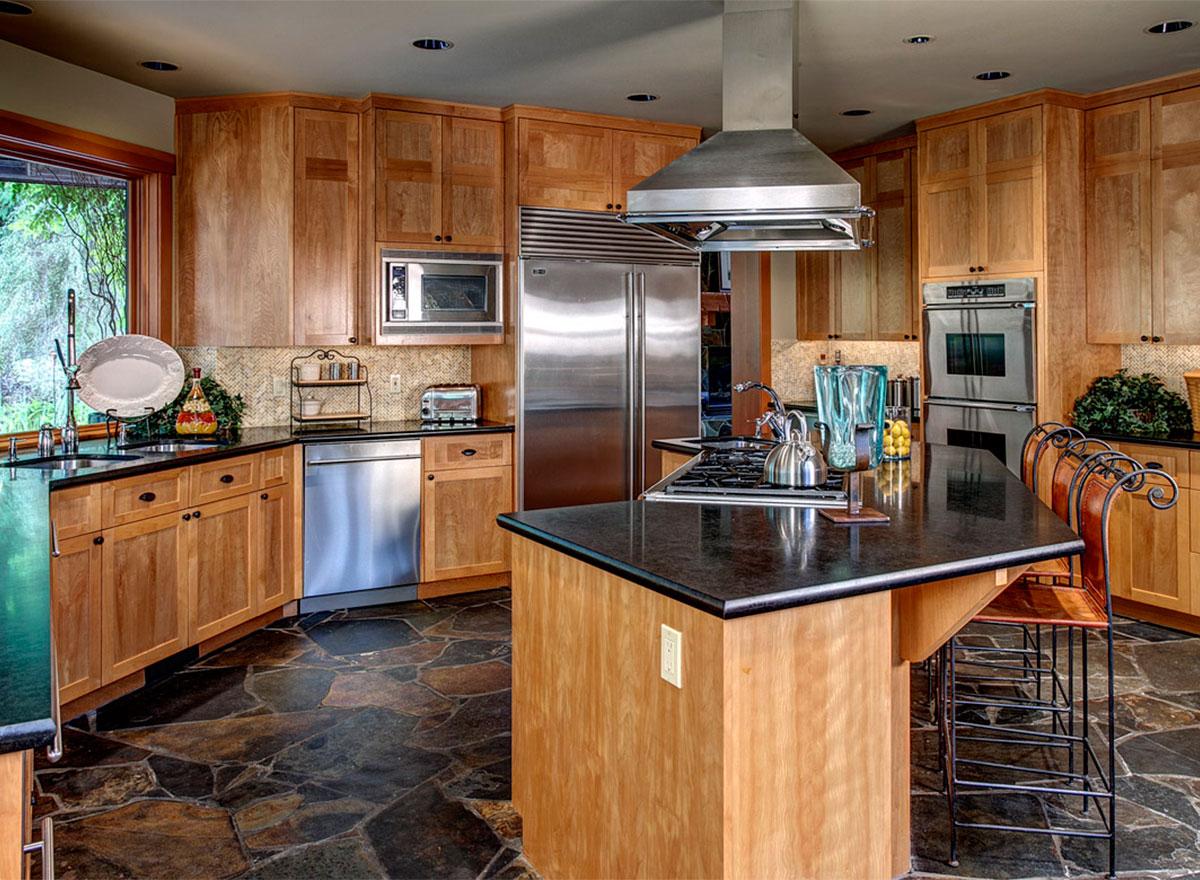

  • The kitchen island is massive and nearby you have a large walk-in pantry.

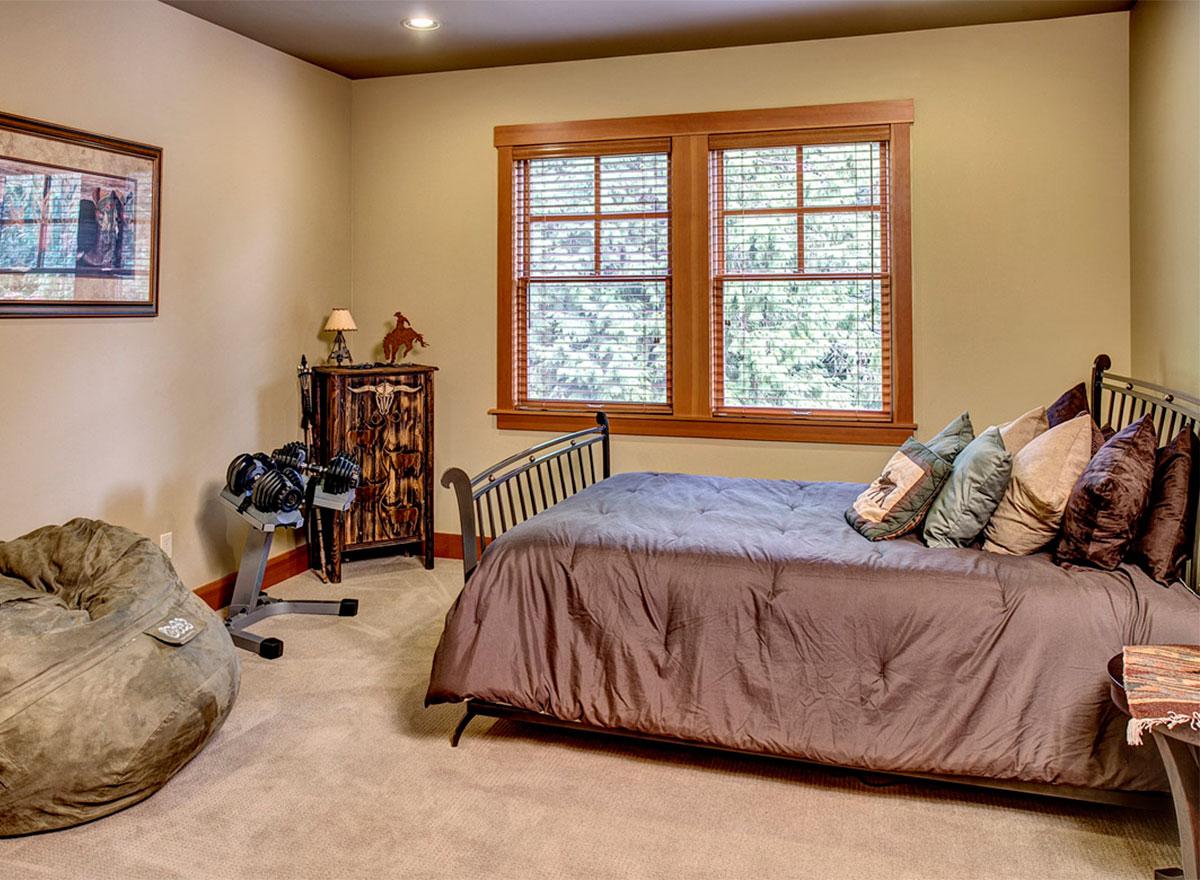

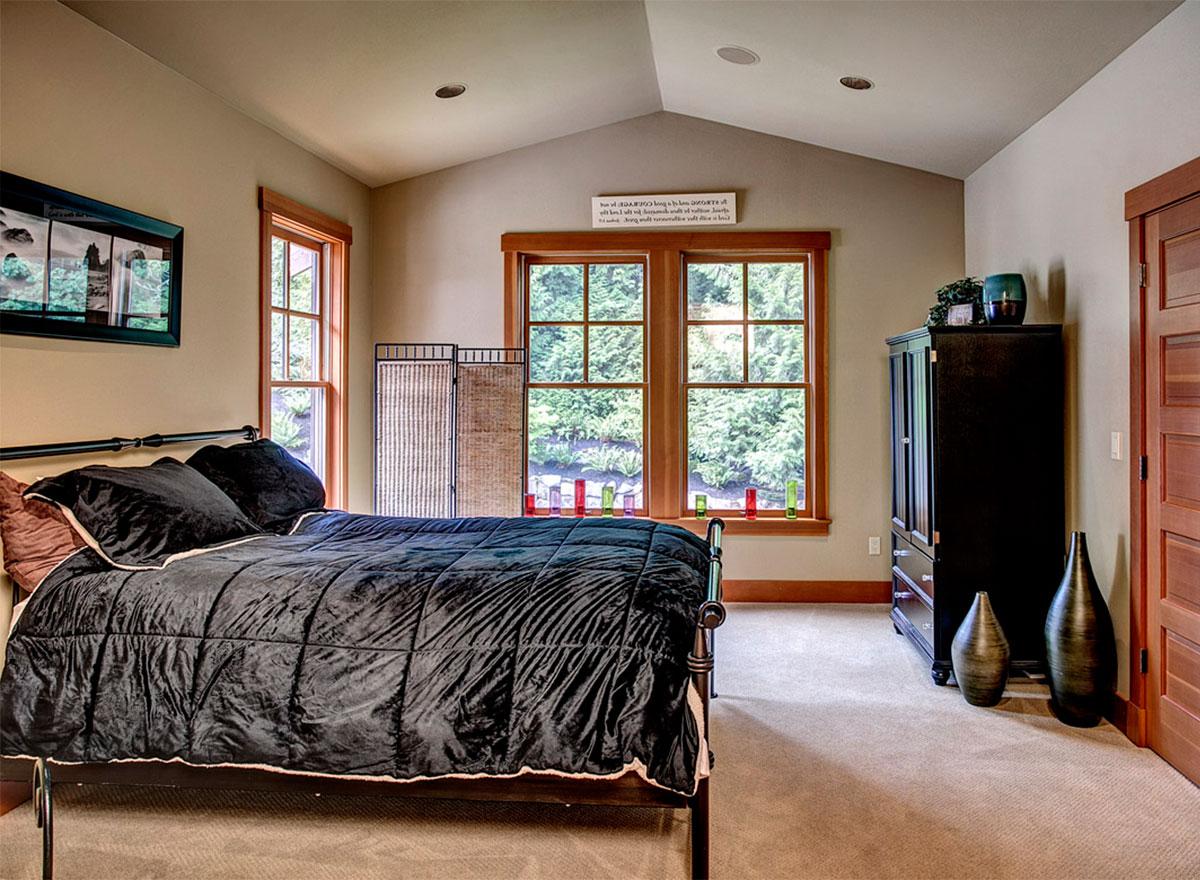

  • A first floor guest suite is joined by four more bedrooms on the second floor.

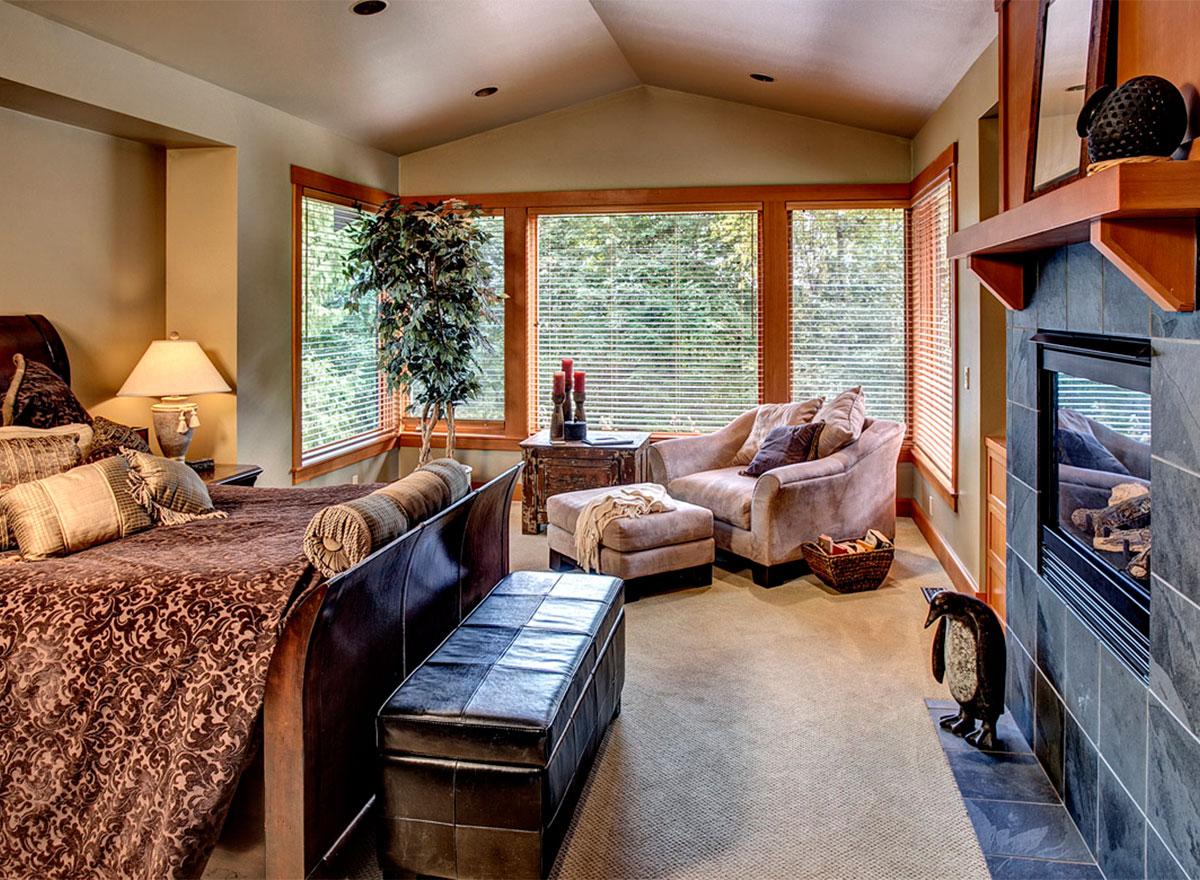

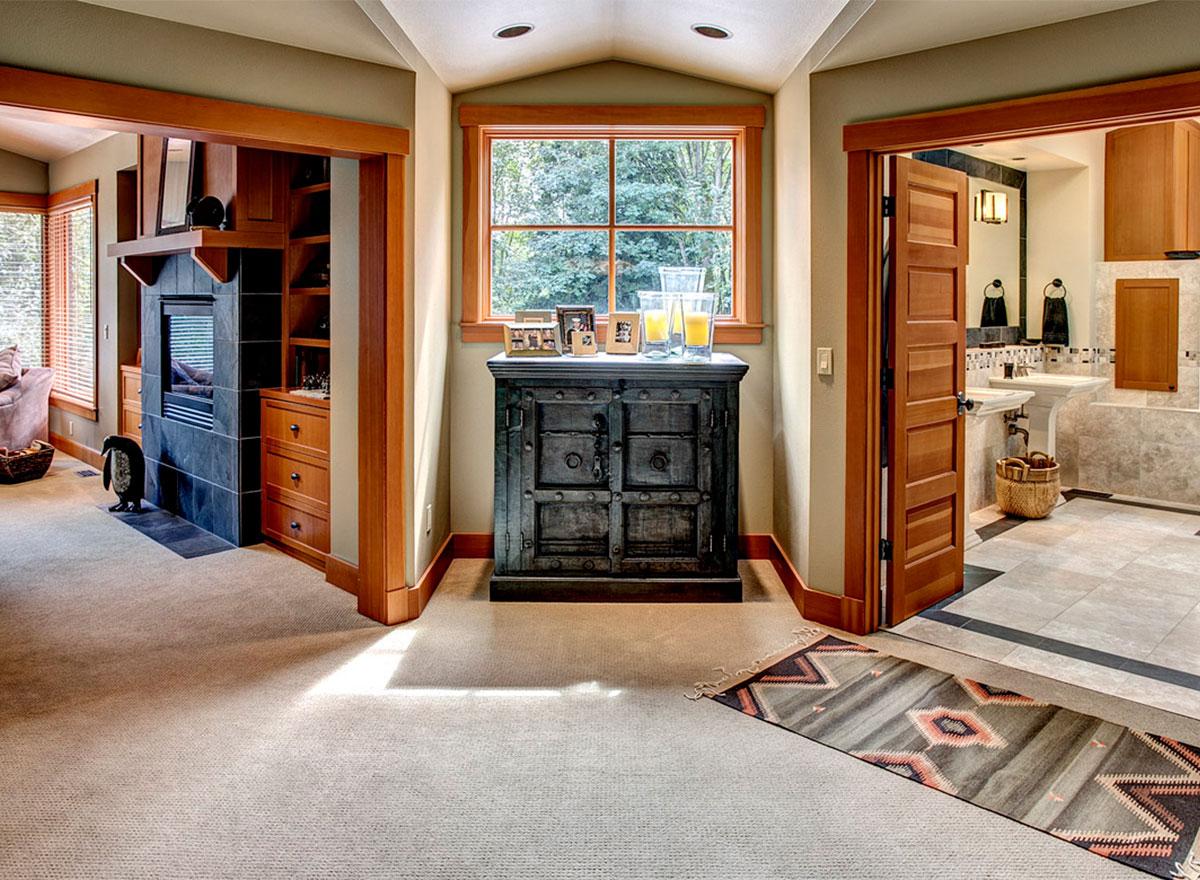

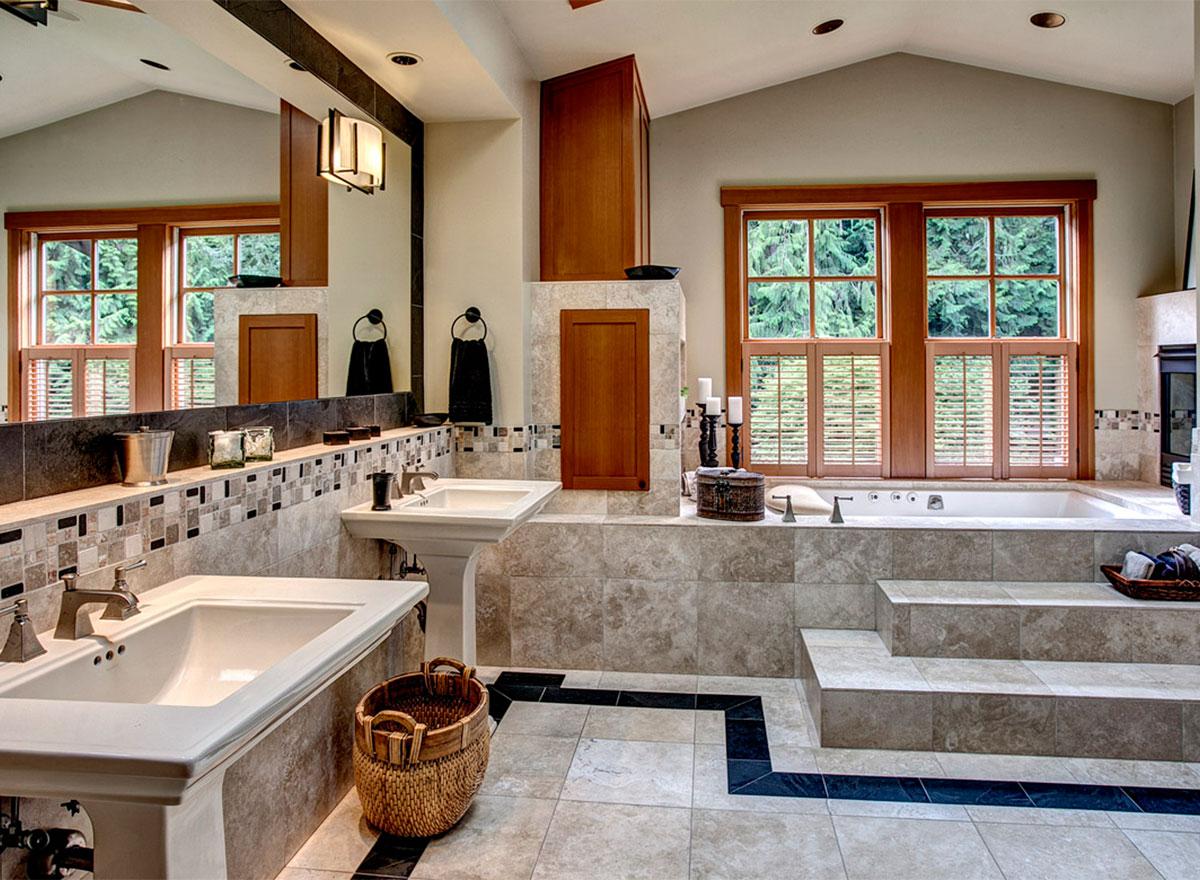

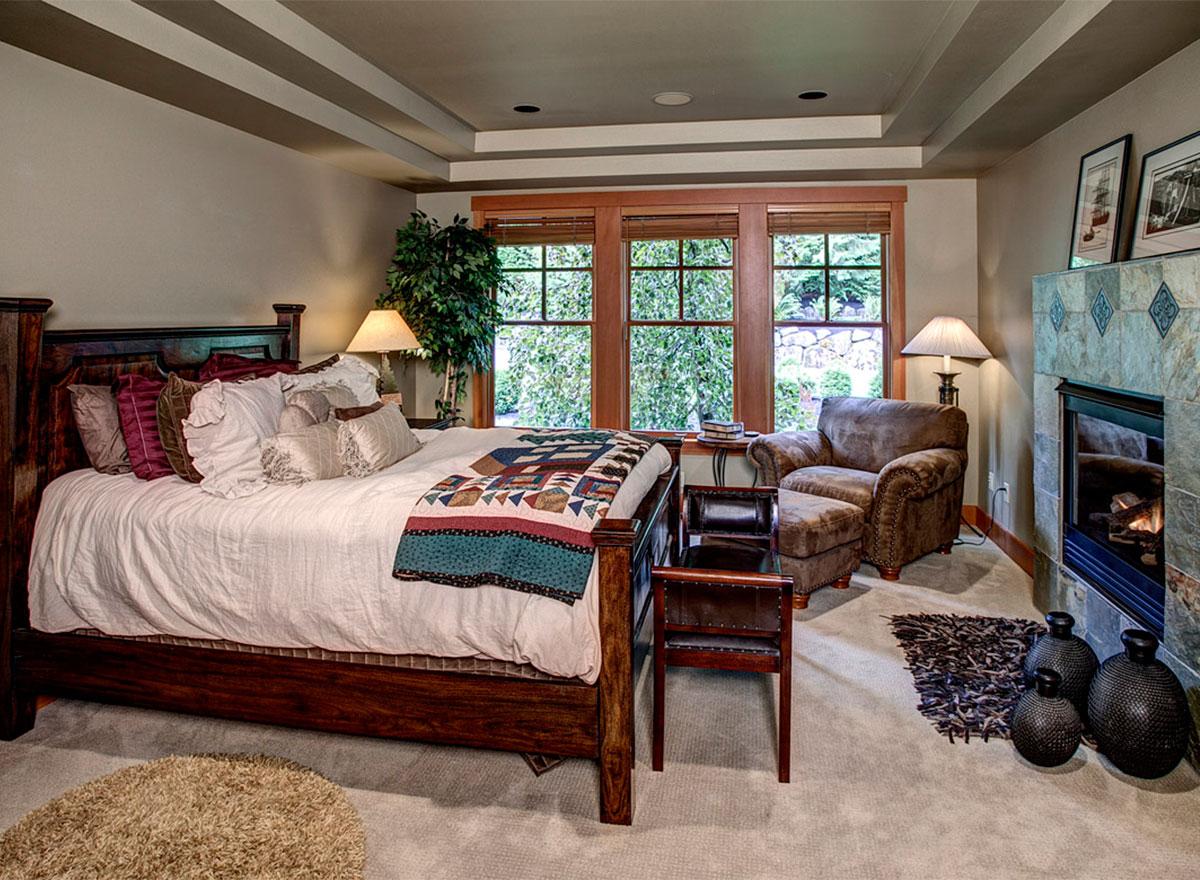

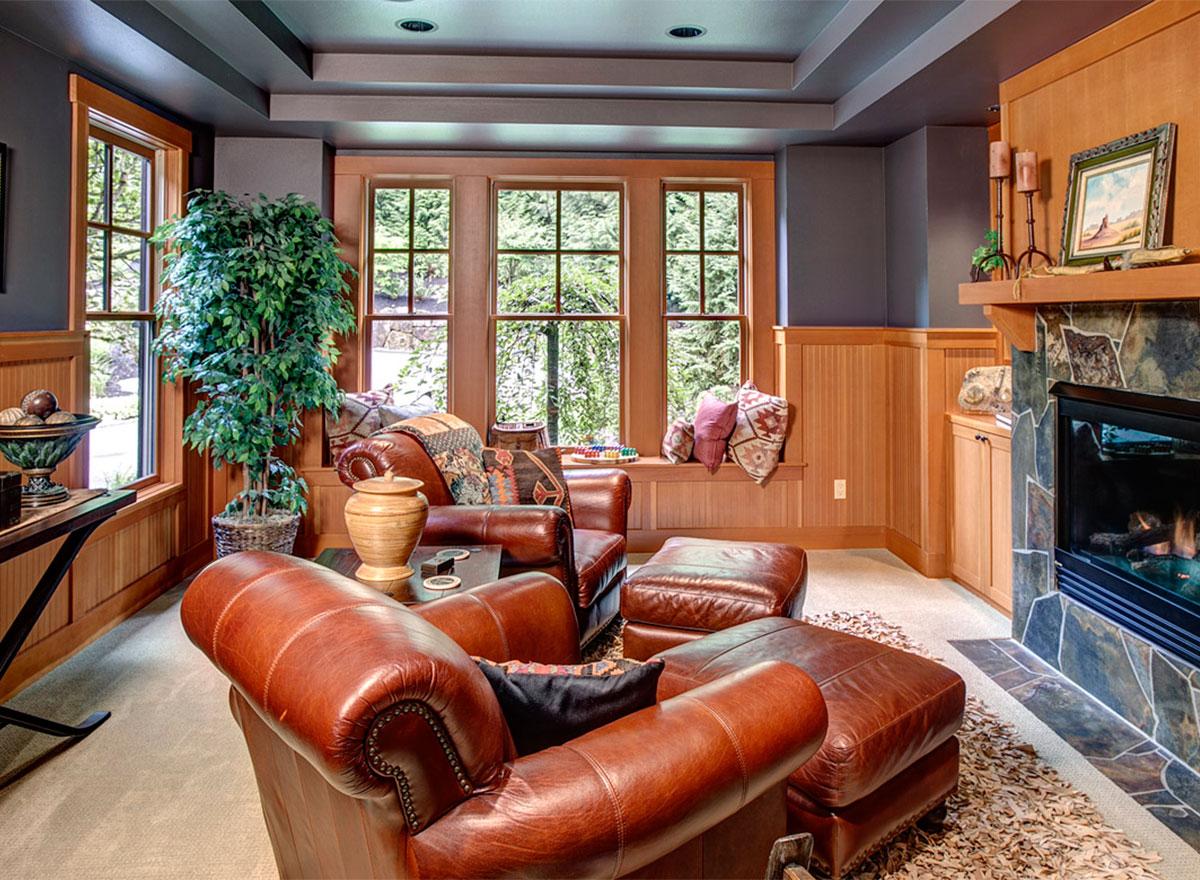

  • The opulent master suite has a private vestibule, two walk-in closets and a separate sitting room with a romantic fireplace.

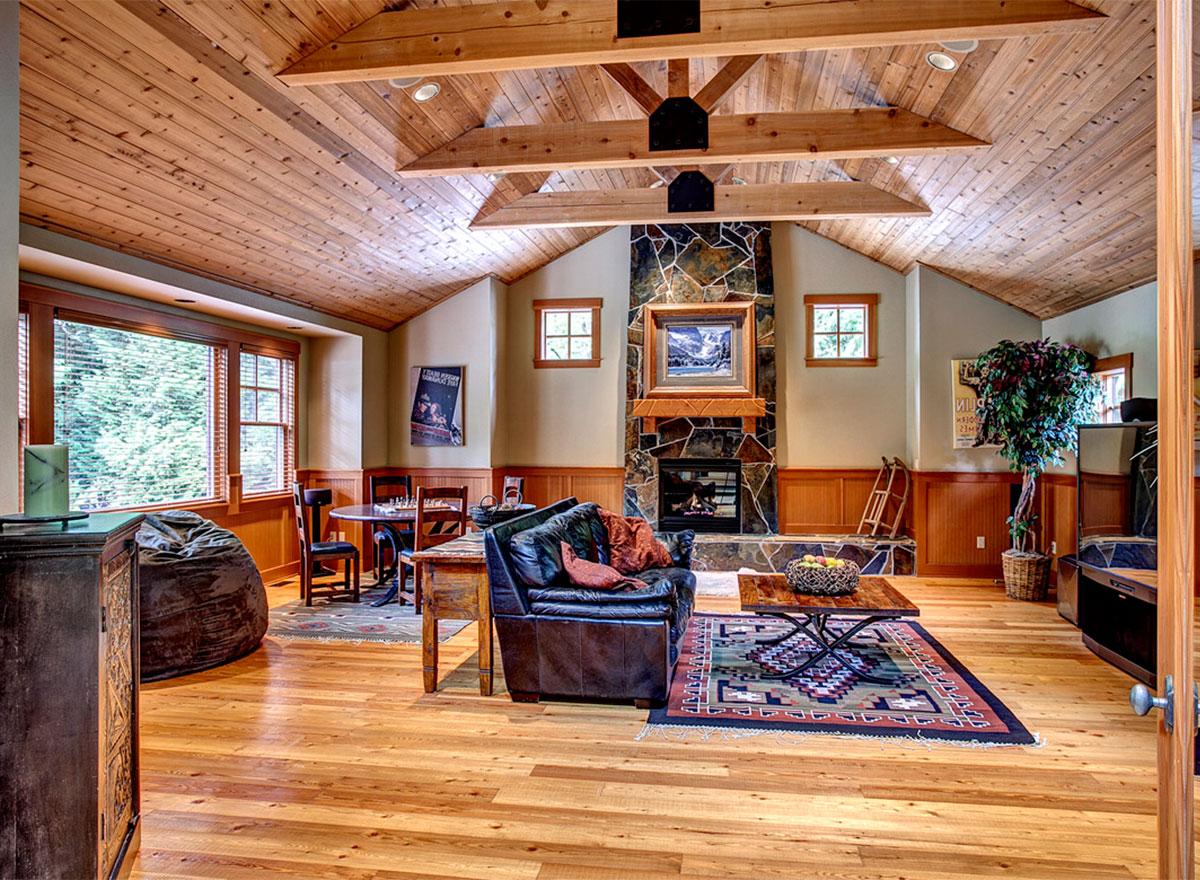

  • The over-sized vaulted bonus room has windows on three sides, making it bright and airy.
  • Related Plans: Get an alternate master suite with house plan 23299JD. Get a front-facing garage with house plan 2309JD.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

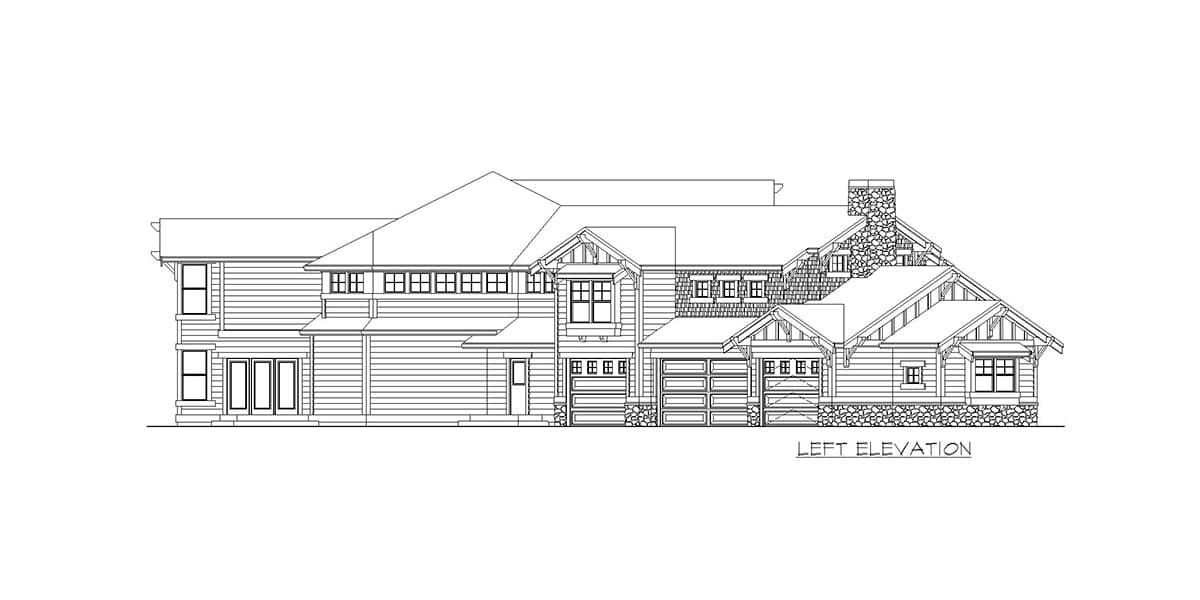

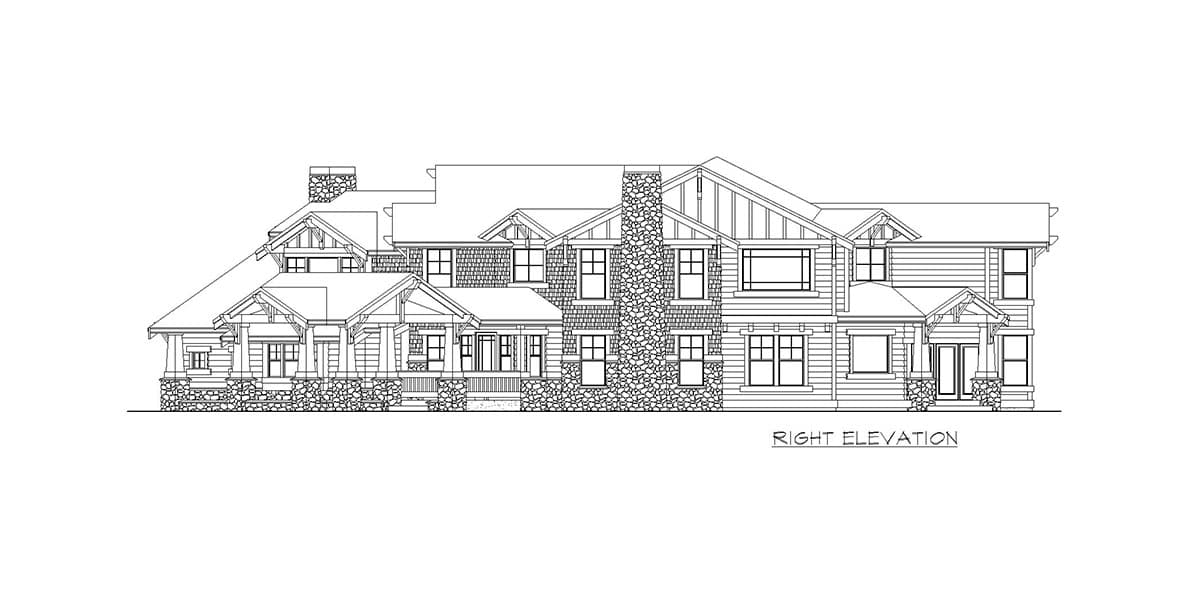

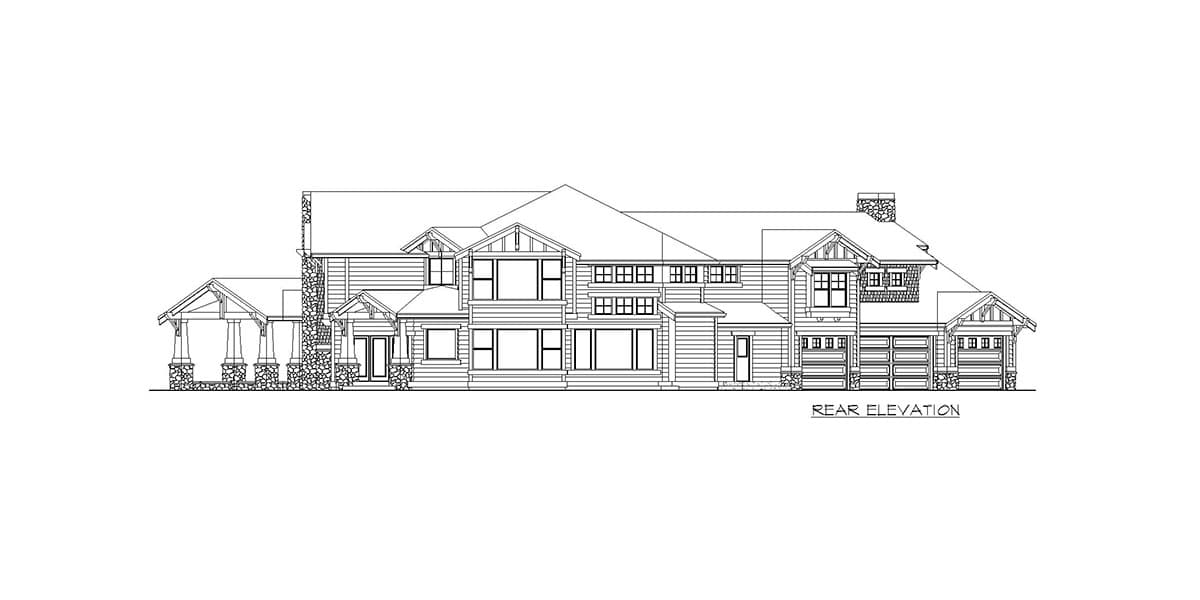

Elevation Sheet
Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

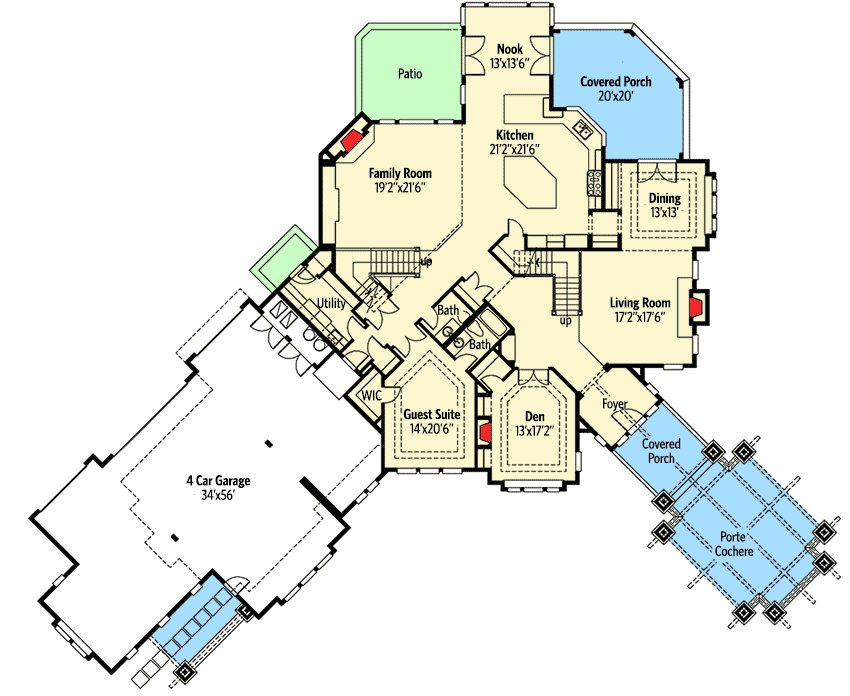

Luxury Craftsman Dream Home Plan - 2308JD floor plan - Main Level

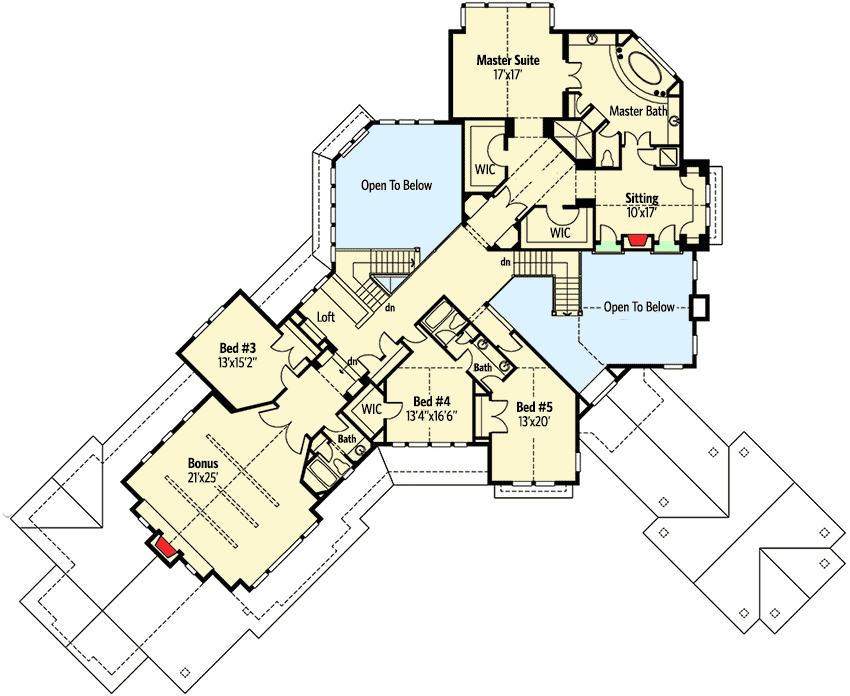

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Luxury Craftsman Dream Home Plan - 2308JD floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 6,275 sq. ft.
  • 1st Floor: 3,065 sq. ft.
  • 2nd Floor: 3,210 sq. ft.
  • Porch, Front: 472 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 124' 0"
  • Depth: 104' 0"
  • Max ridge height: 28' 6"

Garage

  • Type: Attached
  • Area: 1700 sq. ft.
  • Count: 4 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"
Room Details Ceiling Type Width Depth Height
Living Room Vaulted 18' 0"
Family Room Flat 18' 0"
Bonus Vaulted 14' 0"
Master Bedroom Vaulted 11' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Stick and Truss

Architectural Style

Special features

Plan Collections

Luxury Craftsman Dream Home Plan

  • 6,275

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - Single-Build $3,700
  • CAD + PDF - Unlimited Build $5,700
  • View all purchase option online

About This Plan

  • Unusual angles and multiple rooflines set this luxurious Craftsman home apart.
  • A vaulted portico makes a grand entrance to this spacious home that combines formal and informal areas.
  • The heart of the home is the huge two-story family room with fireplace that can be seen all the way from the kitchen and dining nook.
  • The kitchen island is massive and nearby you have a large walk-in pantry.
  • A first floor guest suite is joined by four more bedrooms on the second floor.
  • The opulent master suite has a private vestibule, two walk-in closets and a separate sitting room with a romantic fireplace.
  • The over-sized vaulted bonus room has windows on three sides, making it bright and airy.
  • Related Plans: Get an alternate master suite with house plan 23299JD. Get a front-facing garage with house plan 2309JD.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 6,275 sq. ft.
  • 1st Floor: 3,065 sq. ft.
  • 2nd Floor: 3,210 sq. ft.
  • Porch, Front: 472 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 124' 0"
  • Depth: 104' 0"
  • Max ridge height: 28' 6"

Garage

  • Type: Attached
  • Area: 1700 sq. ft.
  • Count: 4 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Stick and Truss
