Luxury Craftsman House Plan

Plan 2309JD

This plan plants 10 trees

5,865
Heated s.f.
5
Beds
4.5
Baths
2
Stories
4
Cars

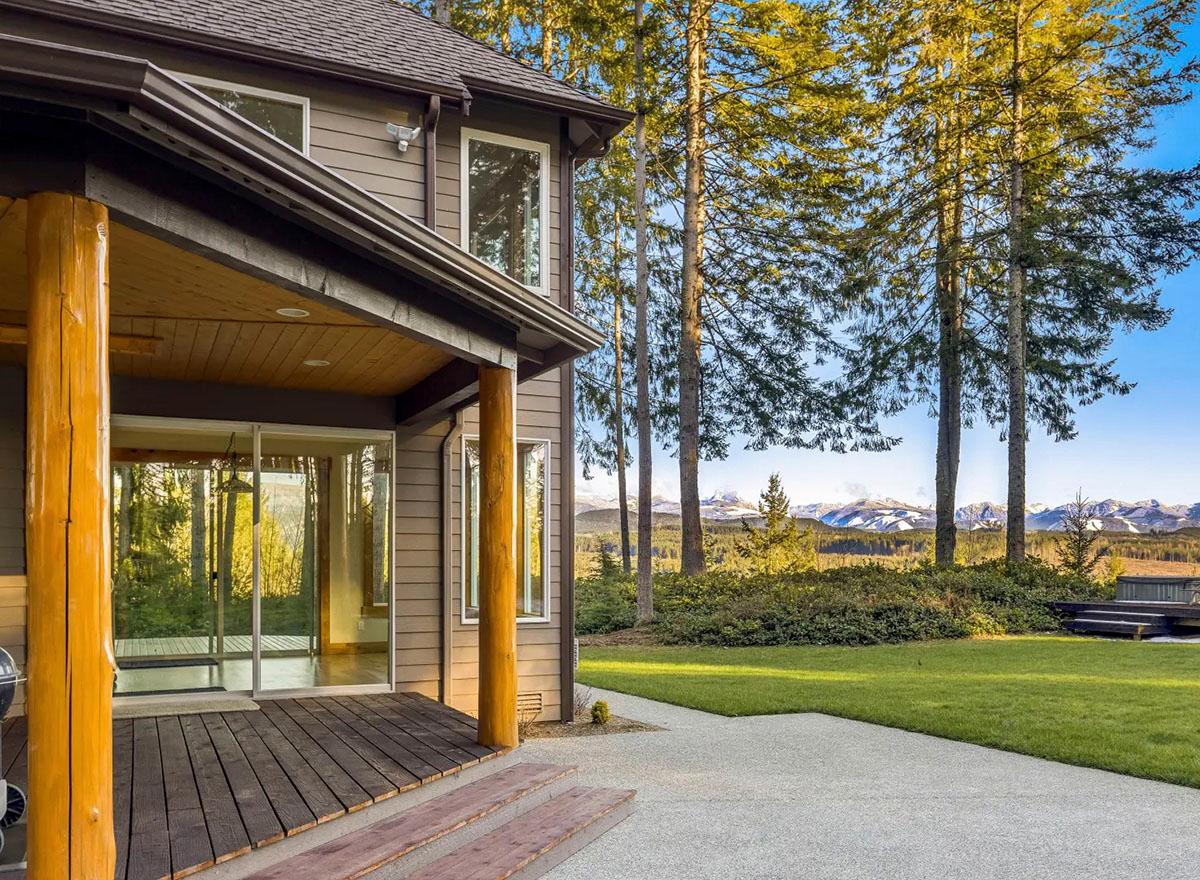

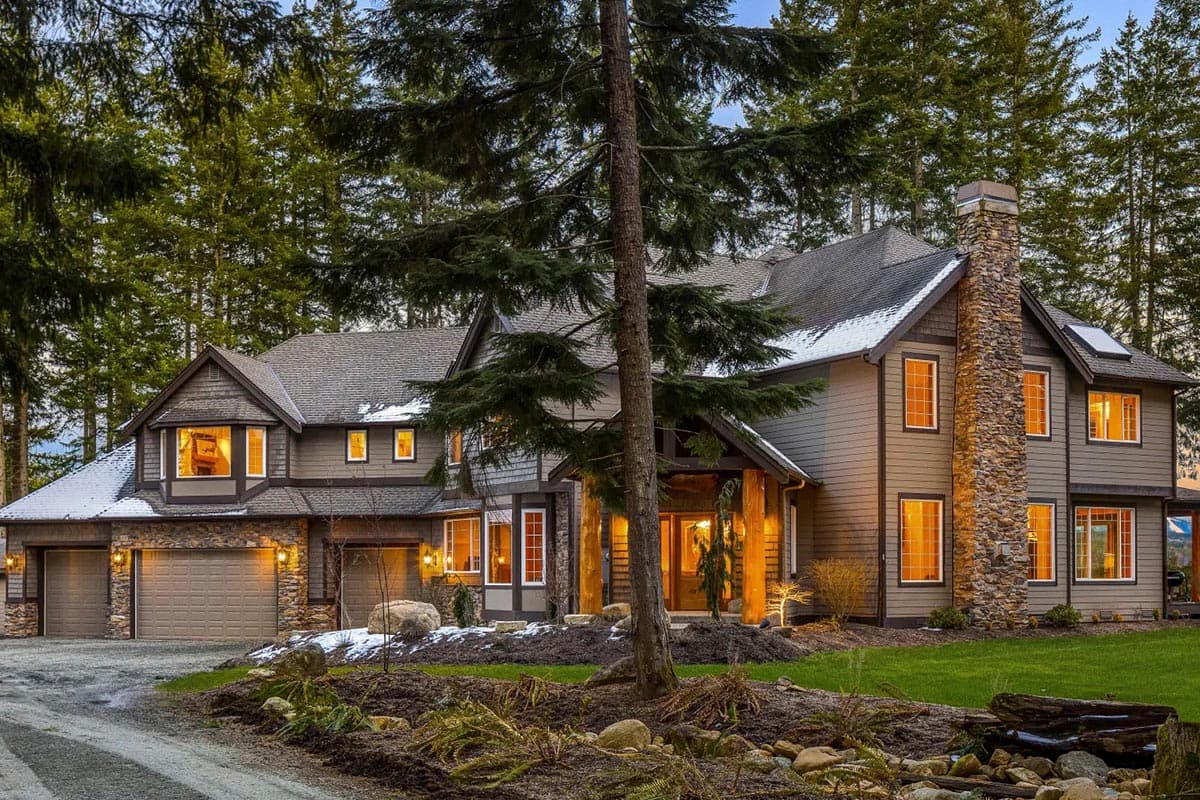

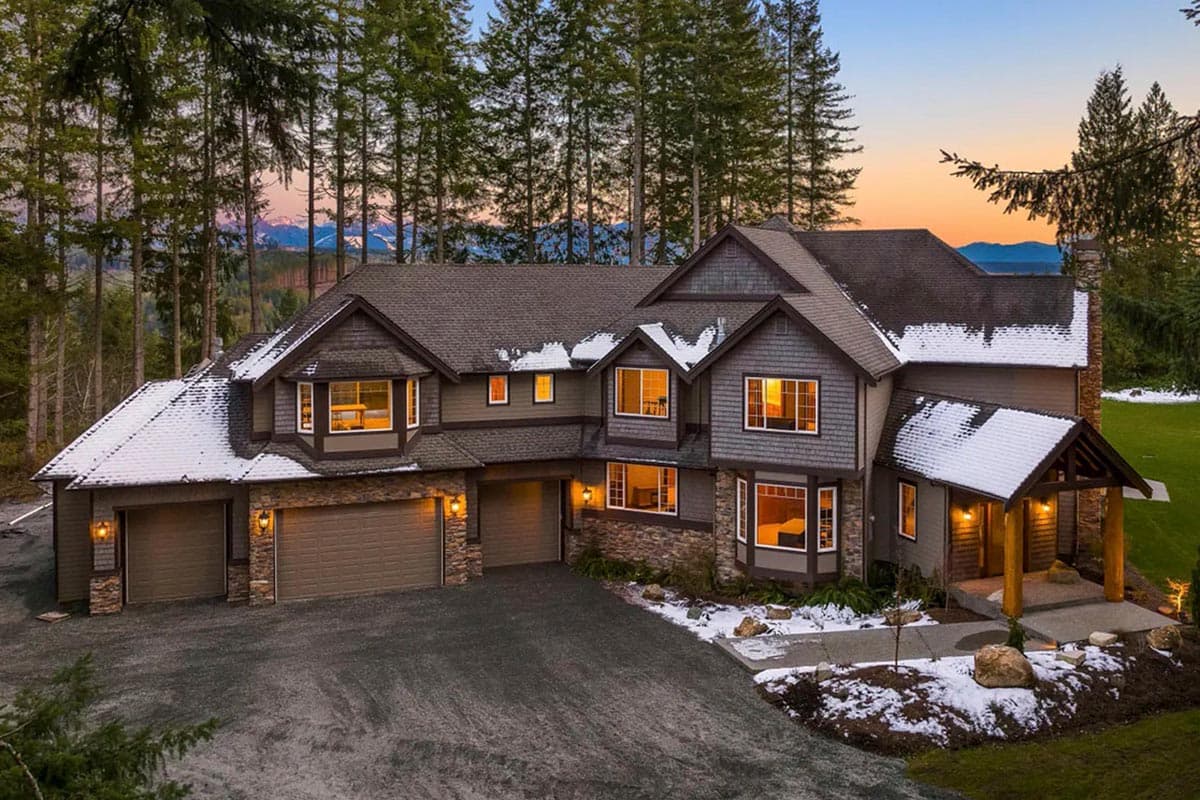

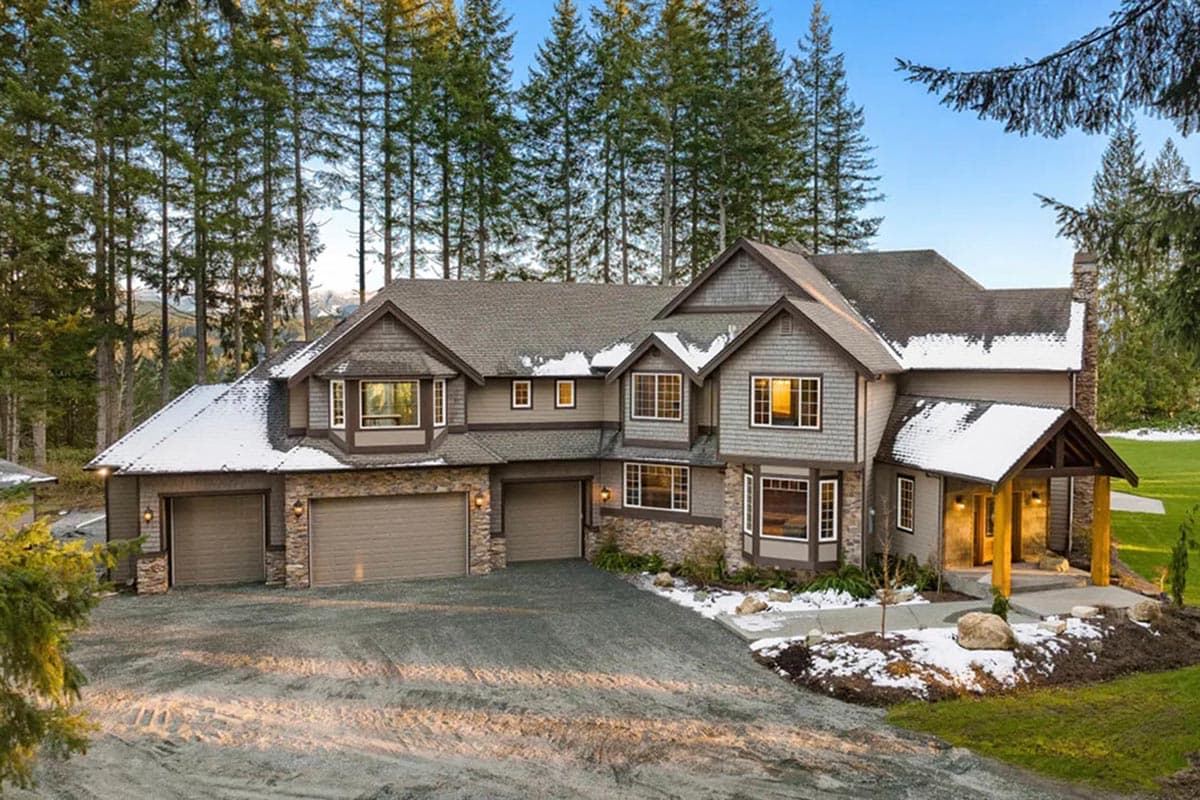

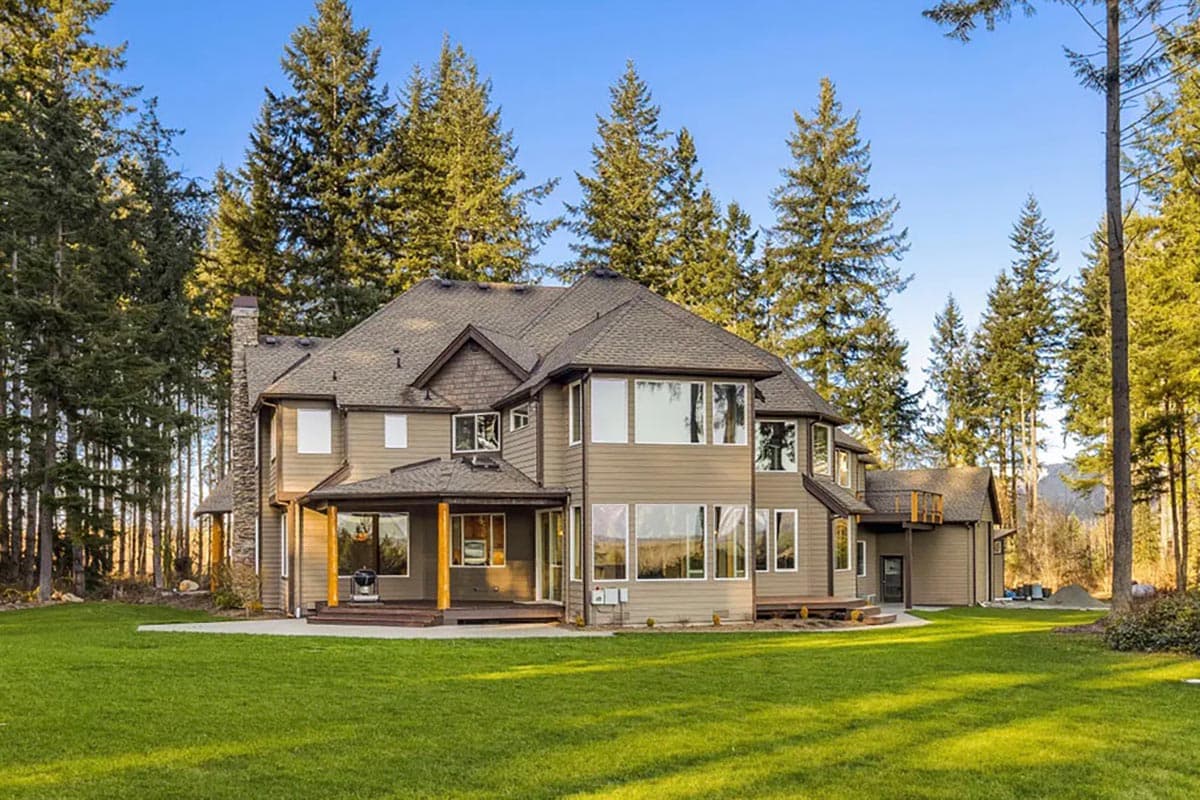

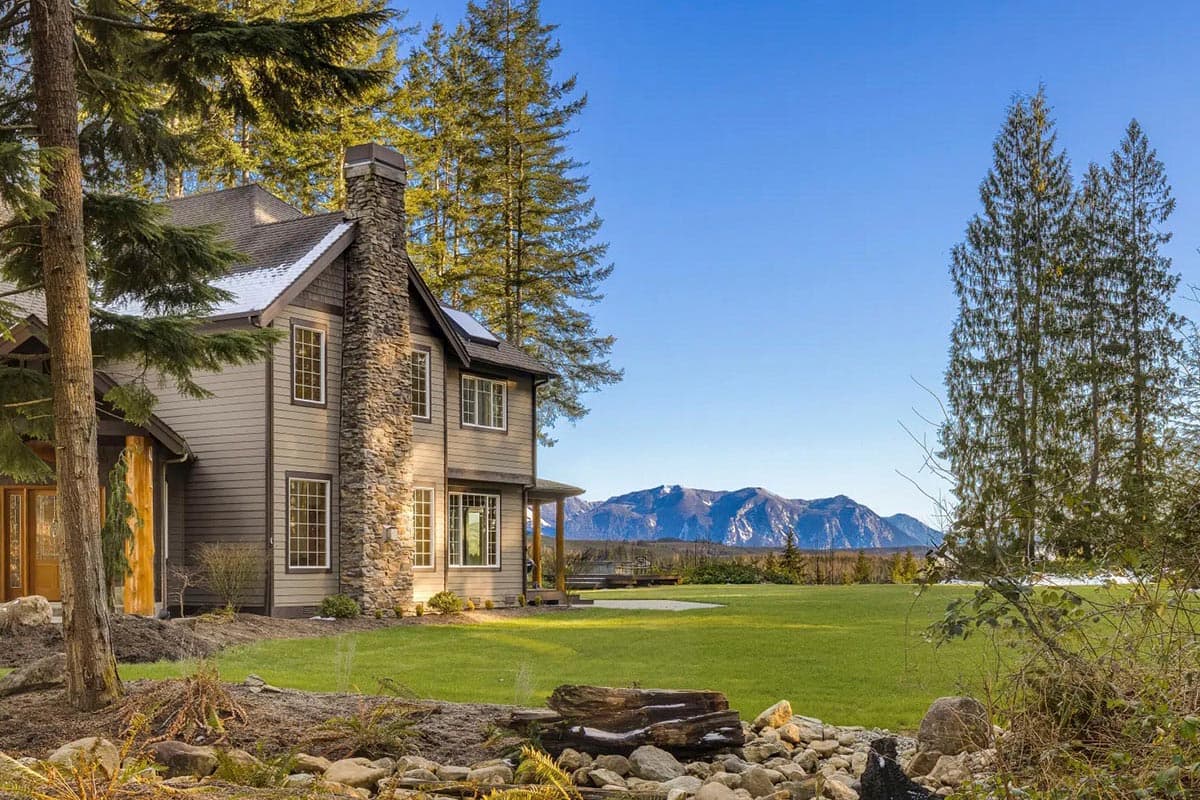

Unusual angles and multiple rooflines set this luxurious Craftsman home apart. A vaulted portico makes a grand entrance to this spacious home that combines formal and informal areas.
The heart of the home is the huge two-story family room with fireplace that can be seen all the way from the kitchen and dining nook.
The kitchen island is massive and nearby you have a large walk-in pantry.
A first floor guest suite is joined by four more bedrooms on the second floor.
The opulent master suite has a private vestibule, two walk-in closets and a romantic fireplace.
The over-sized vaulted bonus room has windows on two sides, making it bright and airy.
Related Plans: For an alternate master suite and a rear facing garage with house plan 23299JD. And a rear garage with house plan 2308JD.
Note: Additional fees apply when building in the State of Washington. Contact us for more information.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.

Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.

Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.

Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.

Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.

Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

Elevation Sheet
Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.

Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

Electrical Plan - handled by your subcontractor to match your individual needs
Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

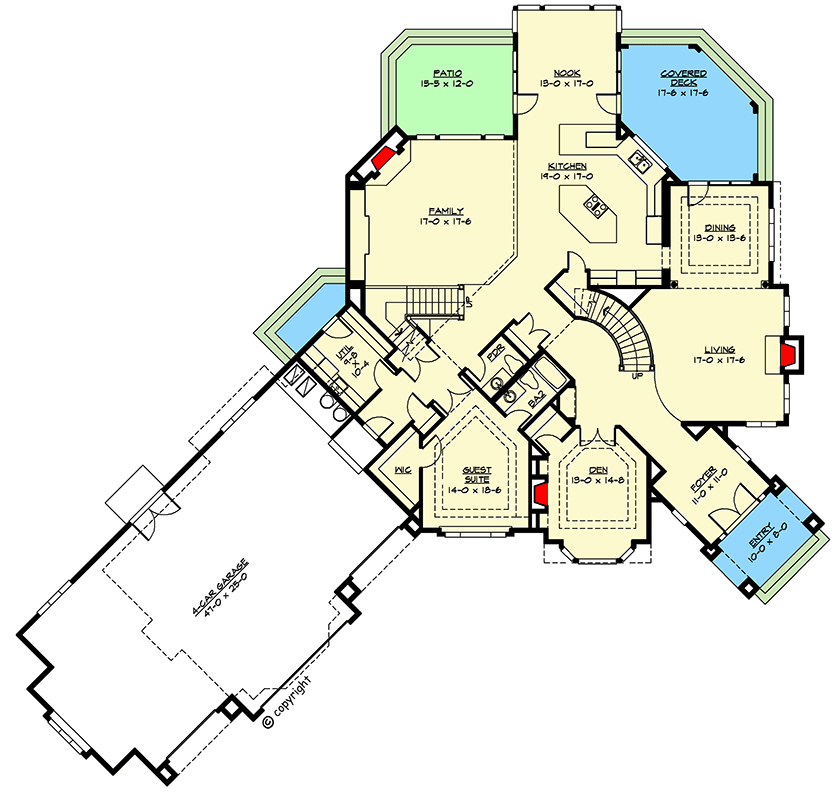

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Luxury Craftsman House Plan - 2309JD floor plan - Main Level

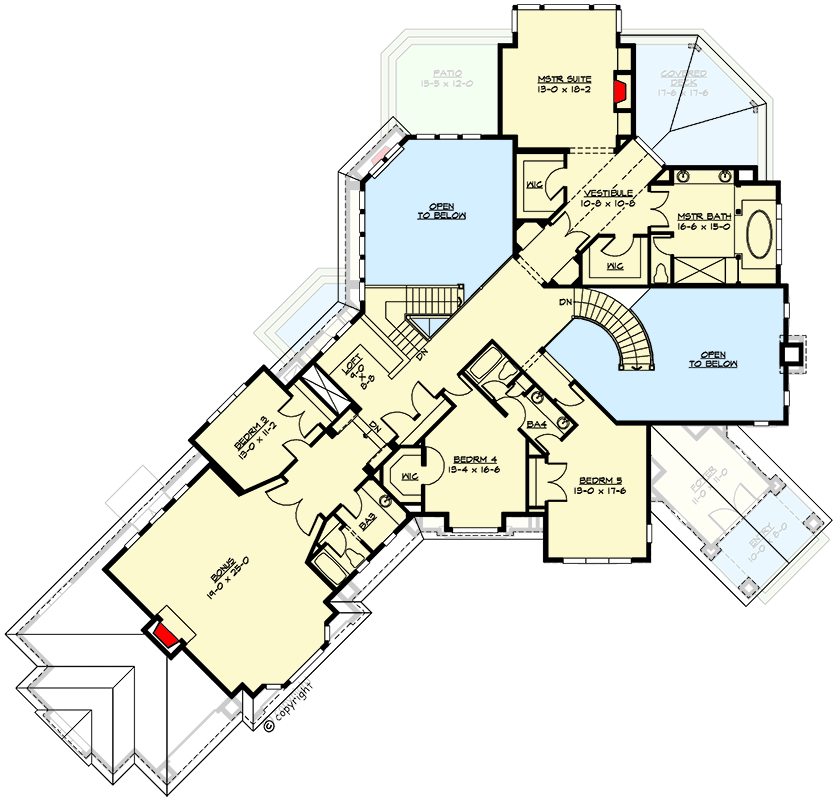

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Luxury Craftsman House Plan - 2309JD floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 5,865 sq. ft.
1st Floor: 3,005 sq. ft.
2nd Floor: 2,860 sq. ft.

Covered Patio: 260 sq. ft.
Deck: 182 sq. ft.
Porch, Front: 80 sq. ft.
Bonus: 350 sq. ft.

Beds/Baths

Bedrooms: 5

Full bathrooms: 4
Half bathrooms: 1

Foundation Type

Standard Foundations: Crawl

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 106' 0"
Depth: 102' 0"
Max ridge height: 39' 0"

Garage

Type: Attached
Area: 1455 sq. ft.
Count: 4 Cars
Entry Location: Rear

Ceiling Heights

Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

Primary Pitch: 12 on 12

Framing Type: Truss

Architectural Style

Special features
