Plan 95348RW

Luxury Craftsman Ranch House Plan with Split Bedrooms and Angled 3-Car Garage

Heated S.F.
2,180
Beds
3
Baths
2
Stories
1
Cars
3

Floor Plan

Plan 95348RW

Main Level
Main Level
Optionally Finished Lower Level
Optionally Finished Lower Level

Plan 95348RW

M-F 9am-5pm EST |

1-203-761-8500

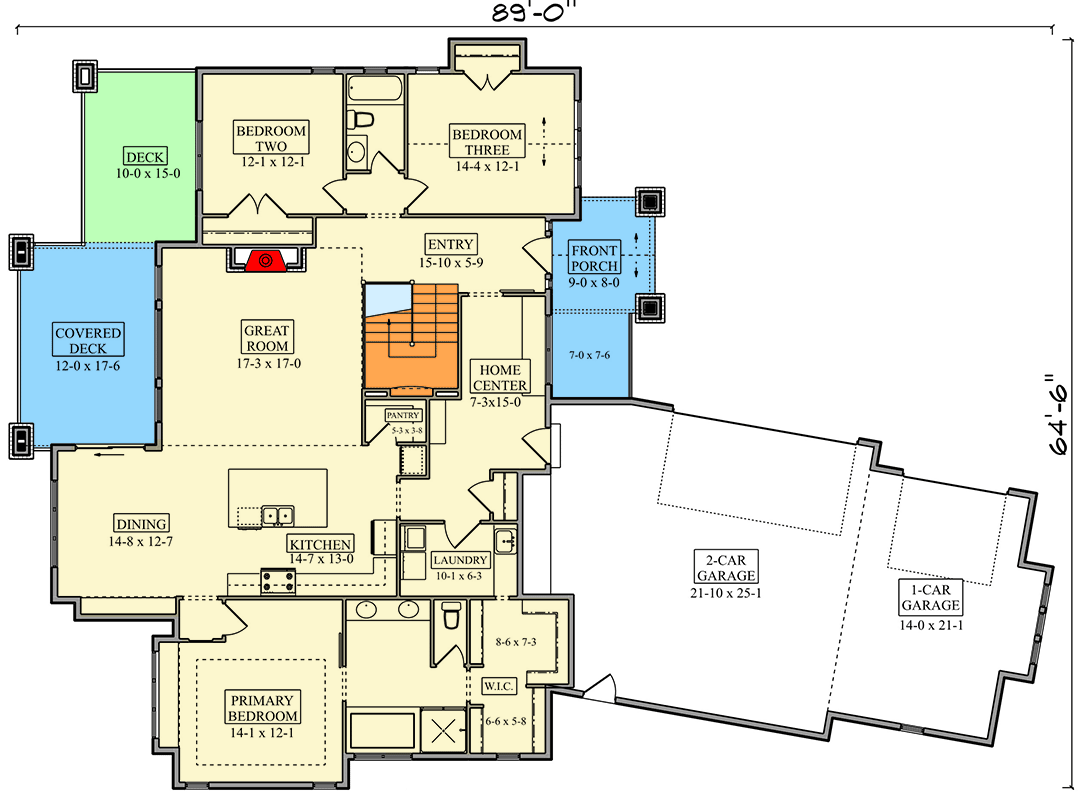

Main Level

Plan 95348RW: Luxury Craftsman Ranch House Plan with Split Bedrooms and Angled 3-Car Garage - Floor Plan - Main Level - Craftsman, Mountain, New American, Ranch, Traditional

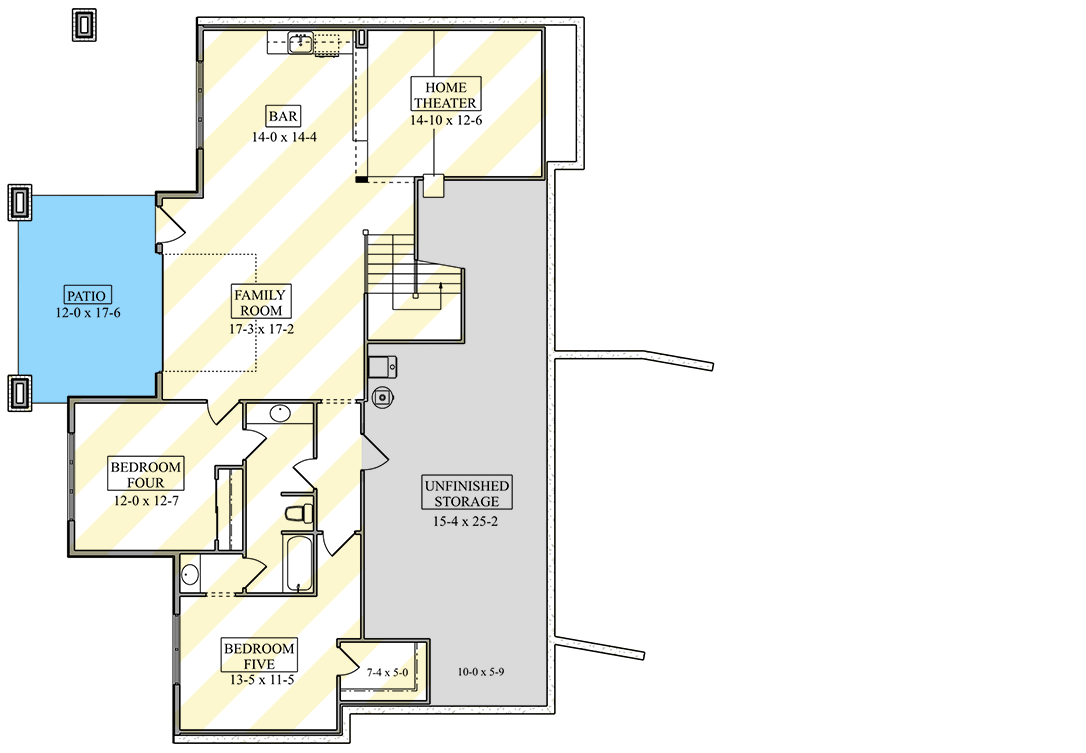

Optionally Finished Lower Level

Plan 95348RW: Luxury Craftsman Ranch House Plan with Split Bedrooms and Angled 3-Car Garage - Floor Plan - Optionally Finished Lower Level - Craftsman, Mountain, New American, Ranch, Traditional

Plan Details

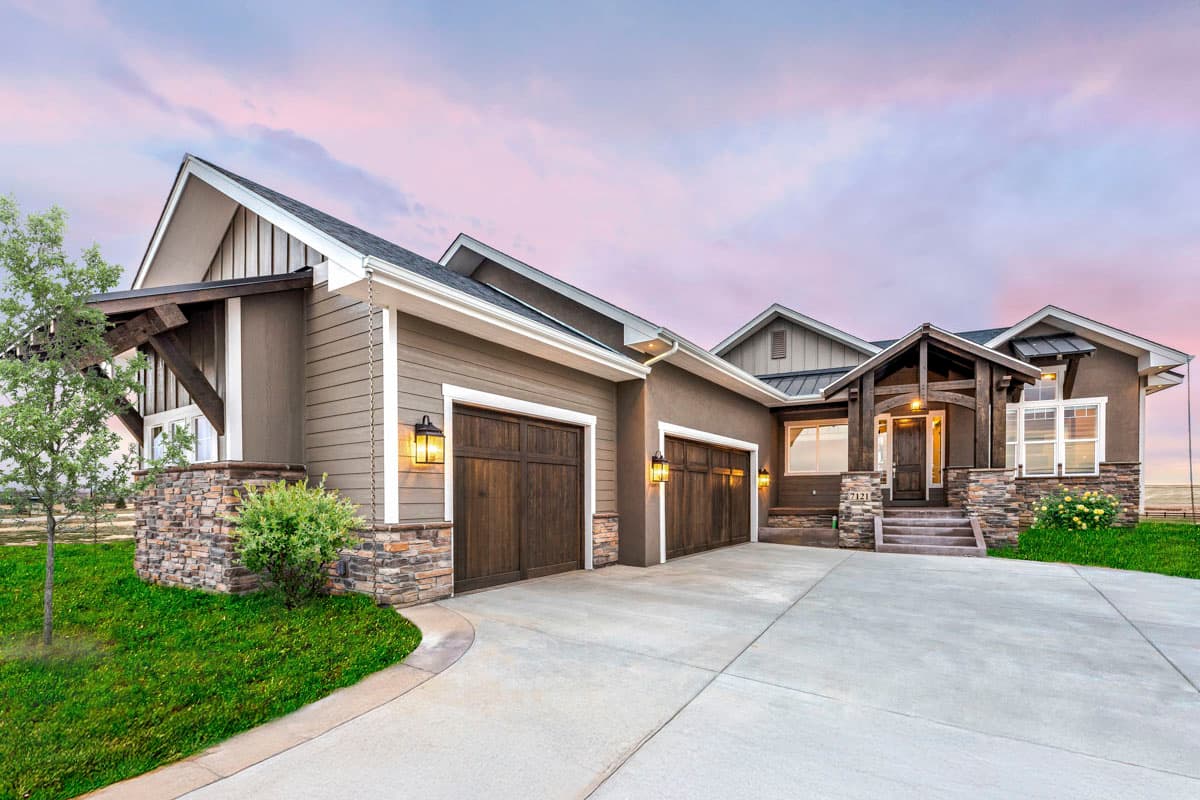

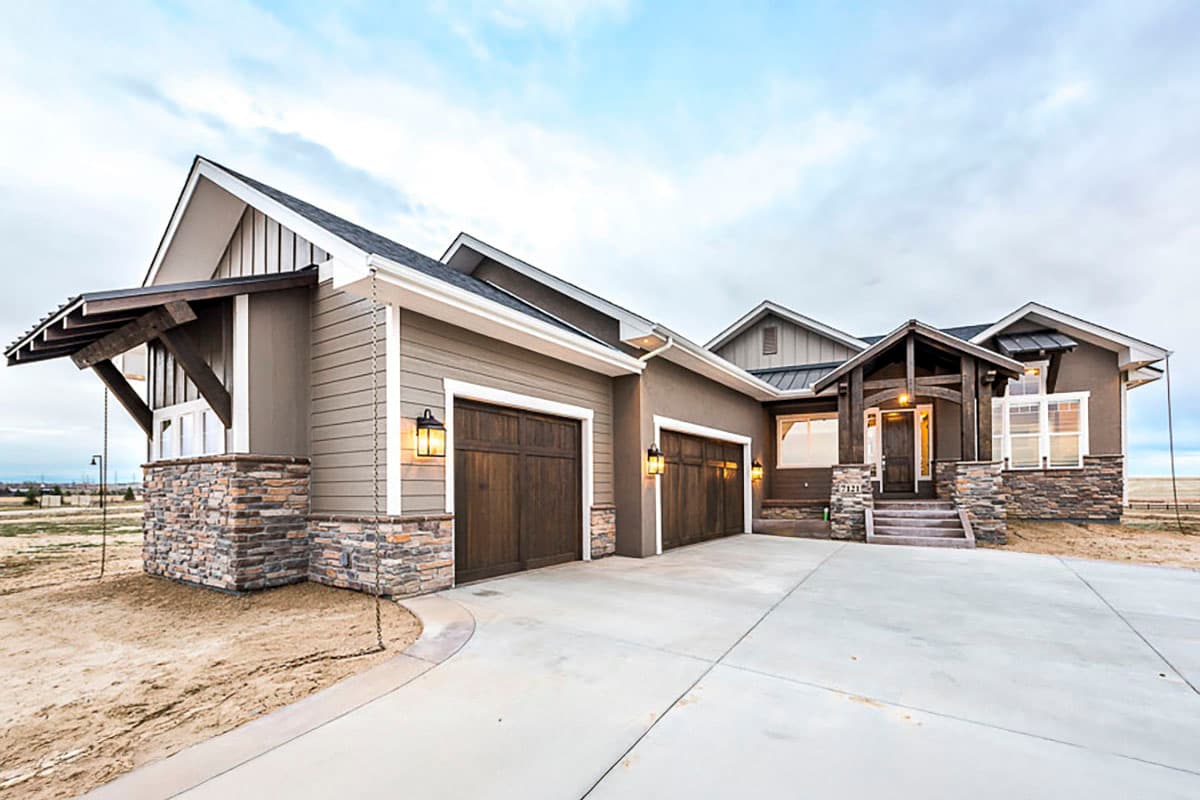

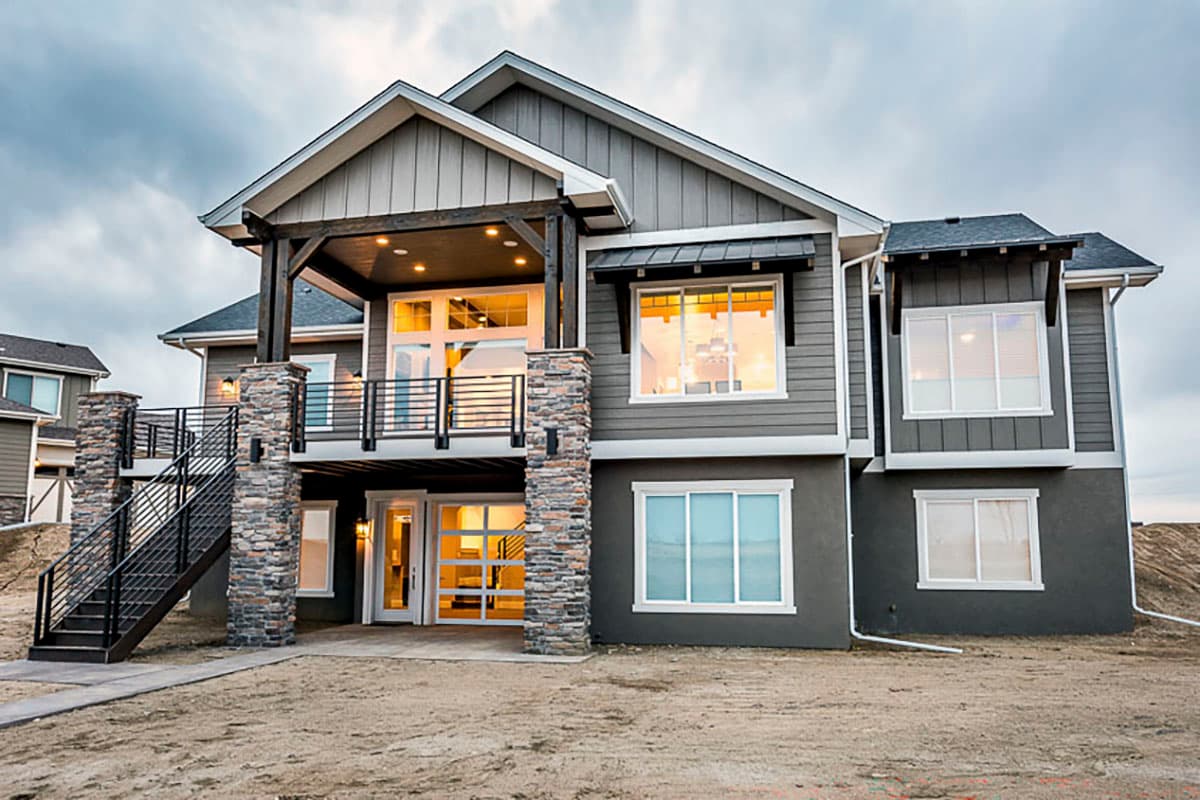

  • This impressive 2,180 sq. ft. Craftsman Mountain Ranch house plan offers three comfortable bedrooms, two full bathrooms, and an expansive 1,027 sq. ft. angled three-car garage, all wrapped in a harmonious blend of stone and natural siding.

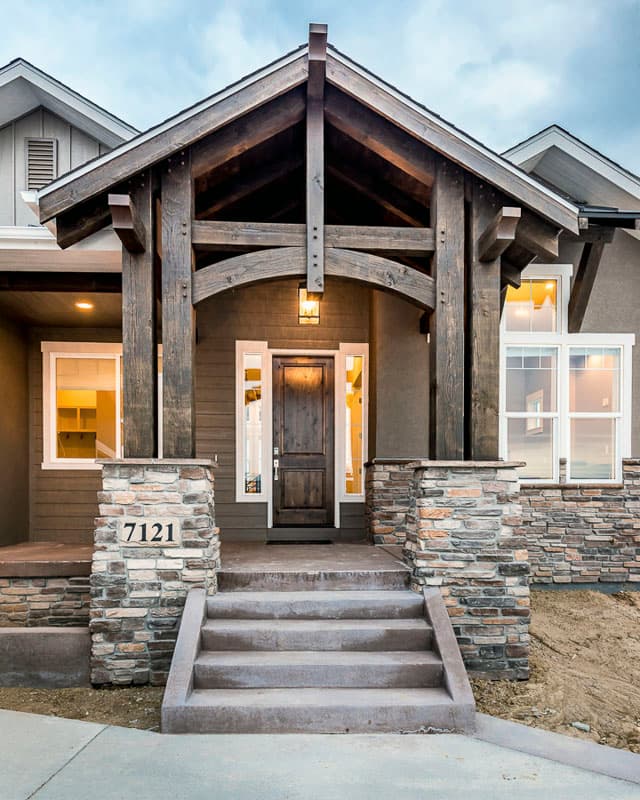

  • Step inside through the inviting covered entry to discover a thoughtfully designed open-concept layout, where the main living areas flow seamlessly, creating an ideal environment for daily life and gatherings.

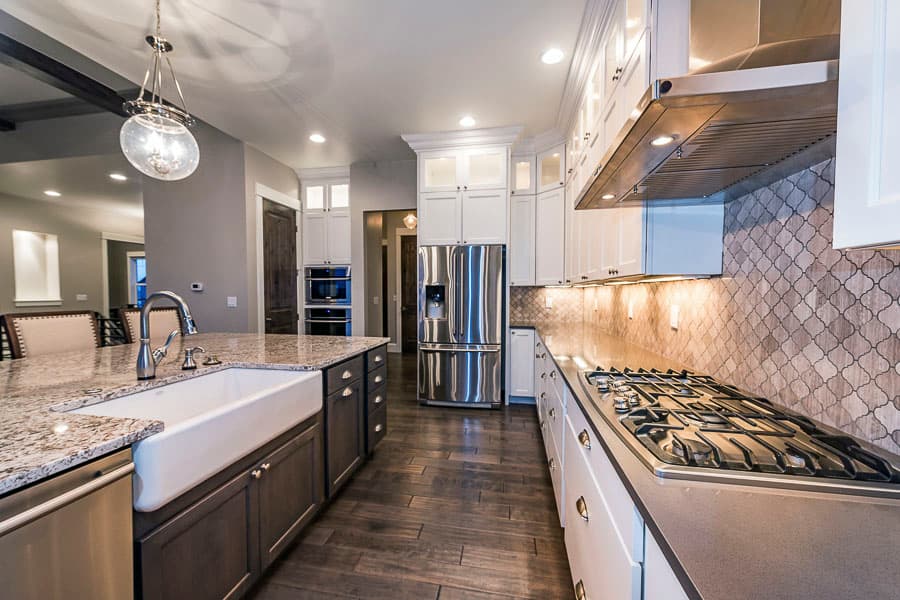

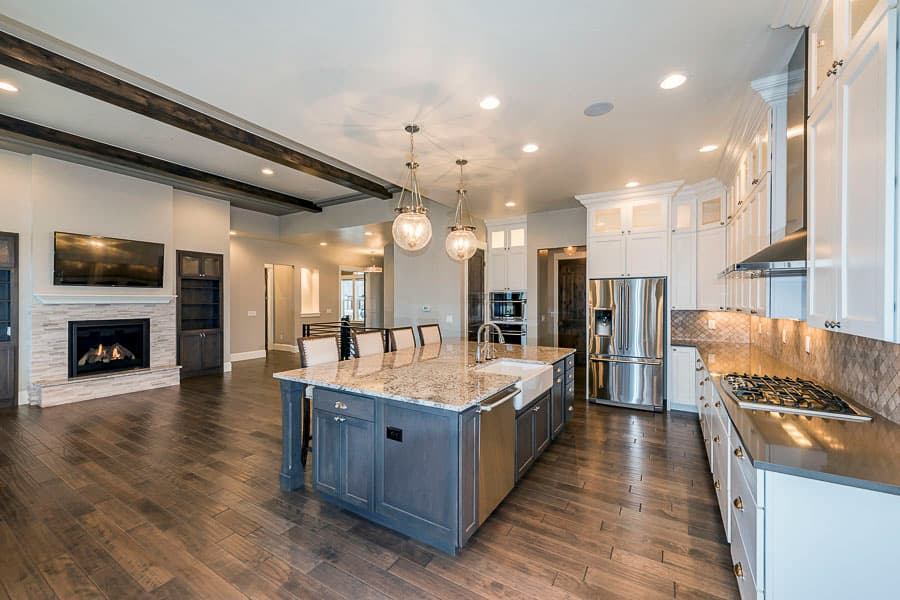

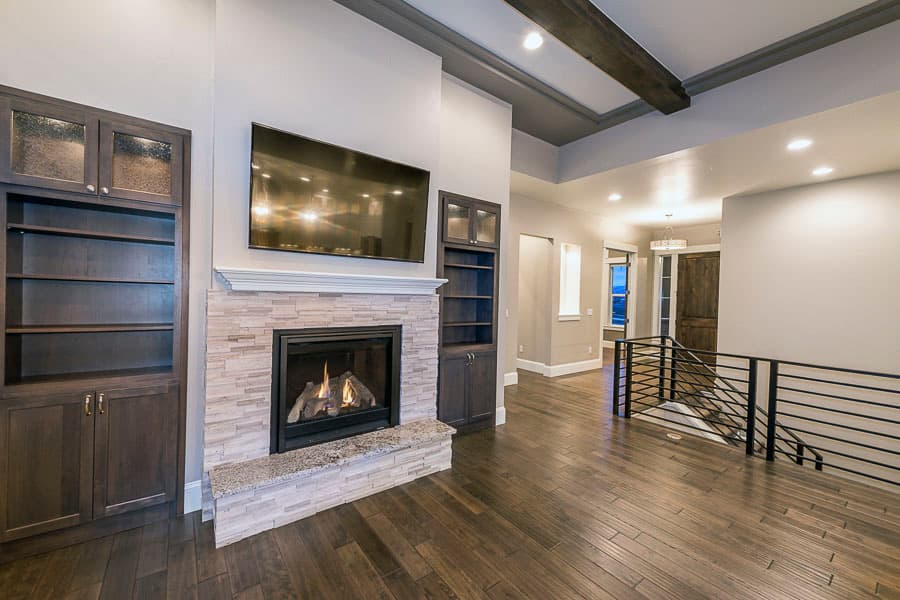

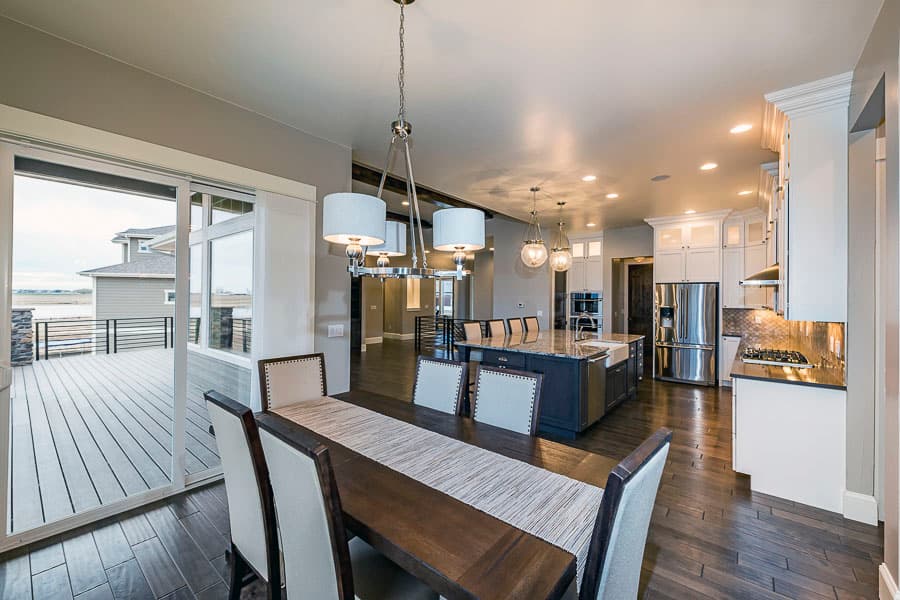

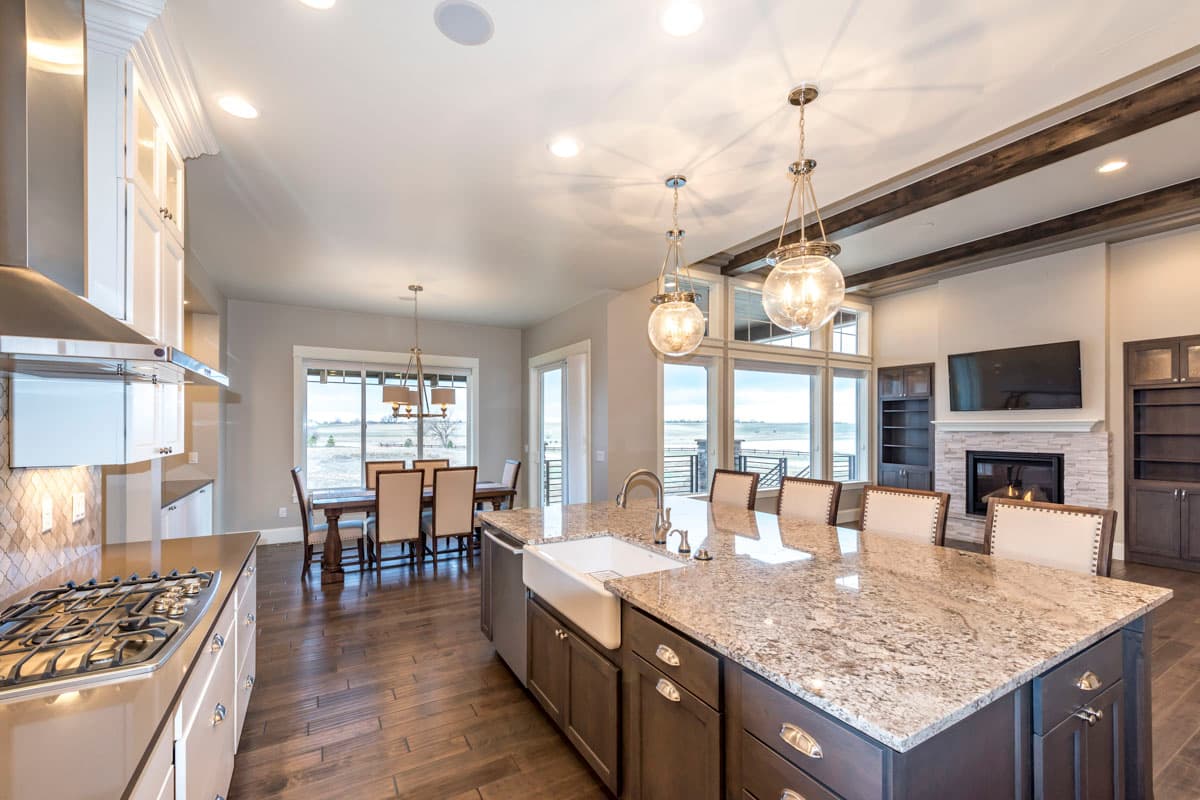

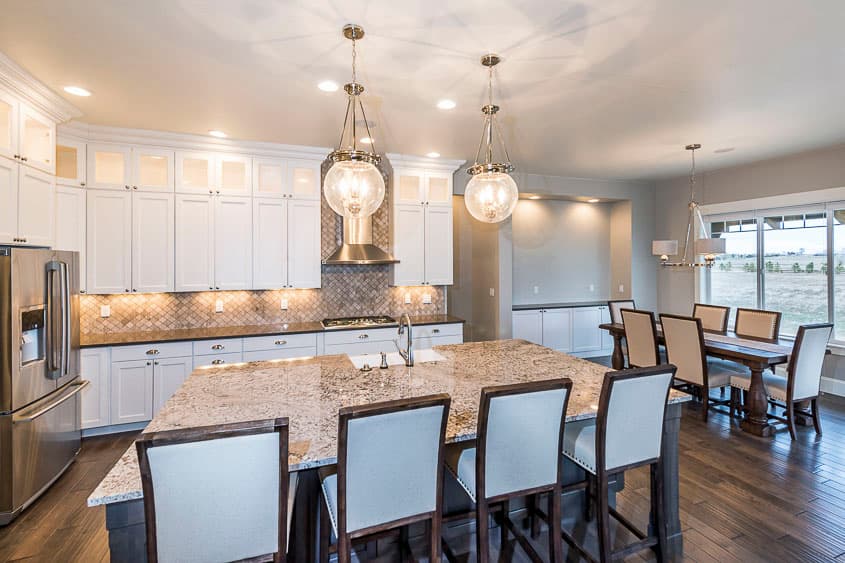

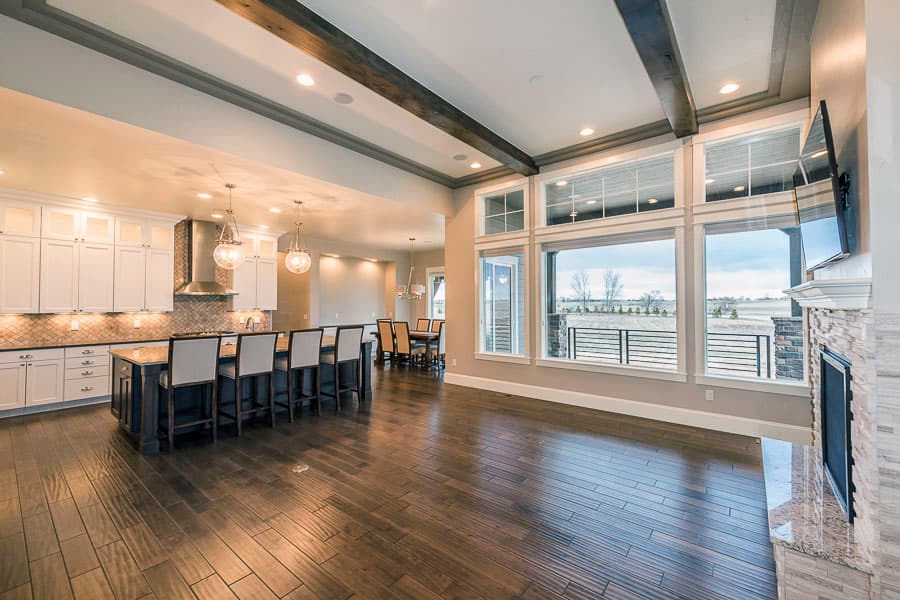

  • The heart of the home features a generous great room that transitions effortlessly into a gourmet kitchen, complete with a convenient breakfast nook, ensuring easy conversation and access to dining. A practical mudroom, adjacent to the garage, keeps daily clutter contained.

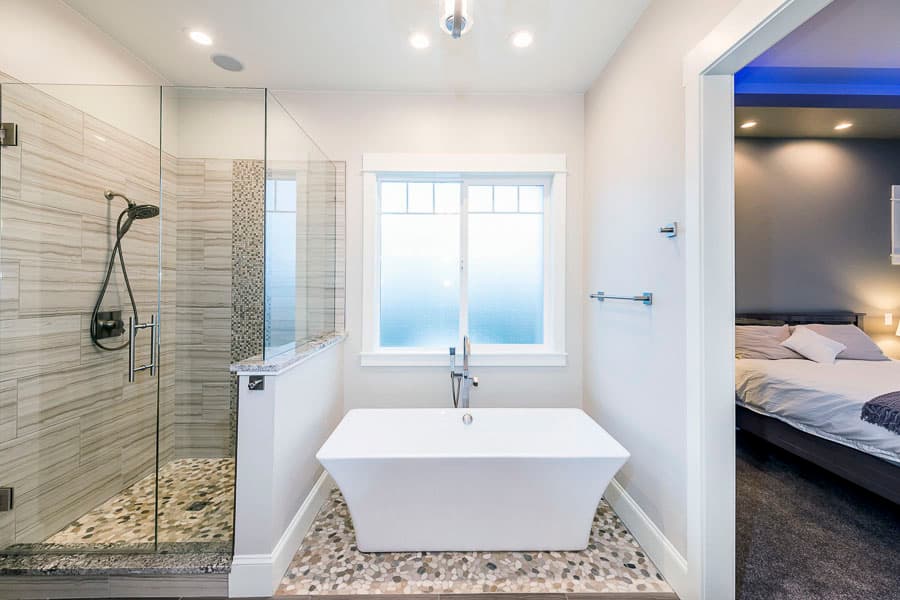

  • The private primary suite, located on the main floor, offers a tranquil retreat, featuring direct access to the main-level laundry room for ultimate convenience. Secondary bedrooms are thoughtfully split, providing privacy and comfort, and share a well-appointed Jack & Jill bathroom.

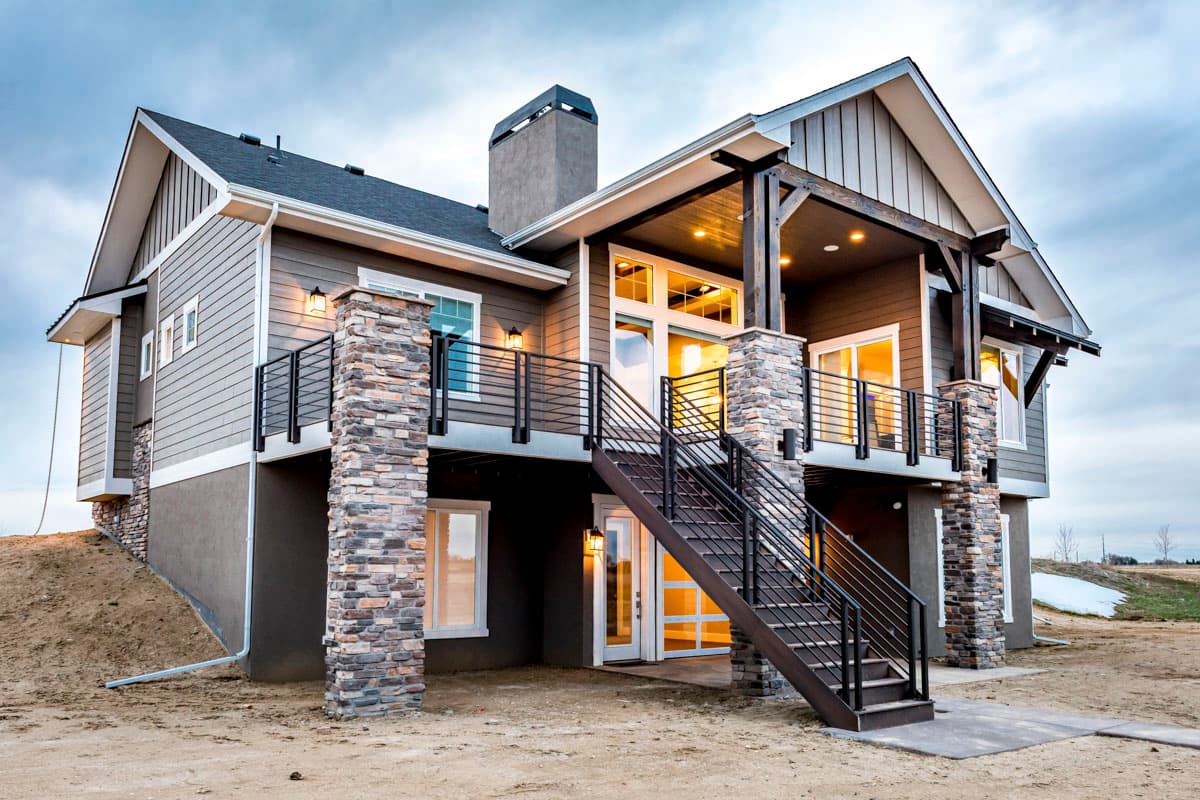

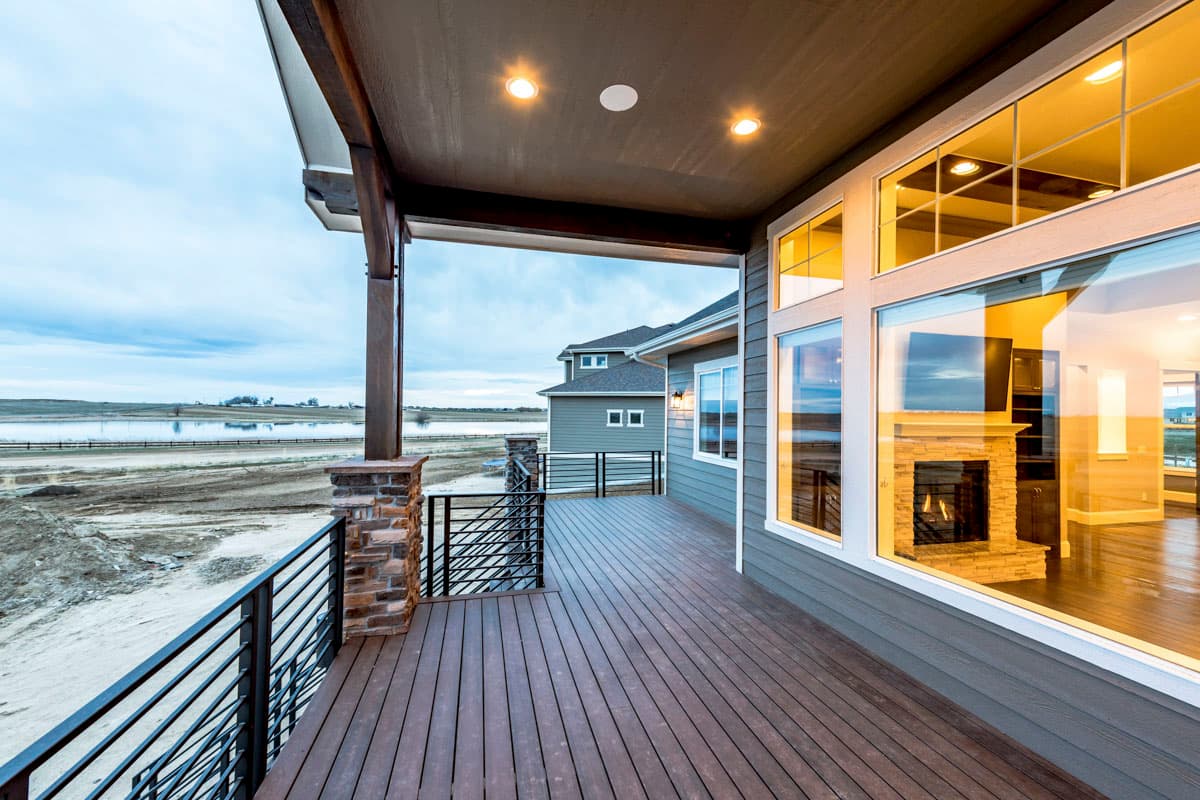

  • Enjoy the outdoors on the expansive 706 sq. ft. of deck and porch space, perfect for morning coffee, evening relaxation, or alfresco dining under the open sky.

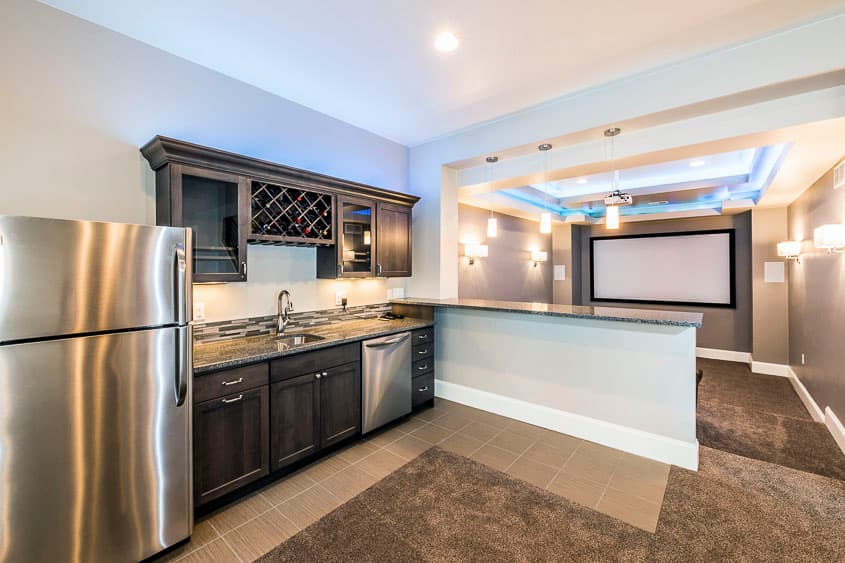

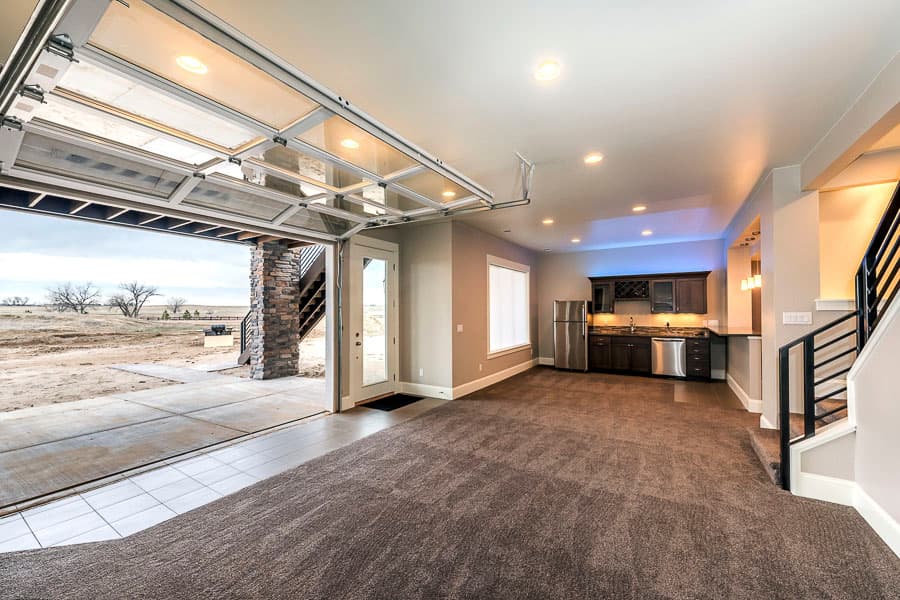

  • The design includes an impressive 1,456 sq. ft. optional lower level, offering the potential to add a vibrant game or recreation room, a dedicated home theater for cinematic experiences, and a stylish wet bar, transforming this area into a dynamic entertainment hub.

What's Included

  • Cover Page
  • All Four Exterior Elevations (front, left, rear and right)
  • Dimensioned Floor Plans
  • Foundation Plan (with no specifications of structural elements)
  • Roof Plan (with no specifications of structural elements)
  • Typical Wall Sections
  • Electrical plan
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,180 sq. ft.

1st Floor

2,180 sq. ft.

Basement Unfinished

665 sq. ft.

Optional Lower Level

1,456 sq. ft.

Deck & Porch

706 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

64' 6"

Depth

89' 0"

Max Ridge Height

21' 0"

Garage

Type

Standard, Attached

Area

1027 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

10'

First Floor

10'

Roof Details

Primary Pitch

7 on 12

Architectural Style

Craftsman

Mountain

New American

Ranch

Traditional

Special Features

Angled Garage

Bedrooms - Split

Breakfast Nook

Game/Rec Room

Home Theater

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Wet Bar

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,180 sq. ft.

1st Floor

2,180 sq. ft.

Basement Unfinished

665 sq. ft.

Optional Lower Level

1,456 sq. ft.

Deck & Porch

706 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

64' 6"

Depth

89' 0"

Max Ridge Height

21' 0"

Garage

Type

Standard, Attached

Area

1027 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

10'

First Floor

10'

Roof Details

Primary Pitch

7 on 12

Architectural Style

Craftsman

Mountain

New American

Ranch

Traditional

Special Features

Angled Garage

Bedrooms - Split

Breakfast Nook

Game/Rec Room

Home Theater

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Wet Bar
