Plan 66376WE

Luxury European Coastal House Plan with 6 Bedrooms and 5-Car Garage

Heated S.F.
11,672
Beds
6
Baths
7.5
Stories
3
Cars
5

Floor Plan

Plan 66376WE

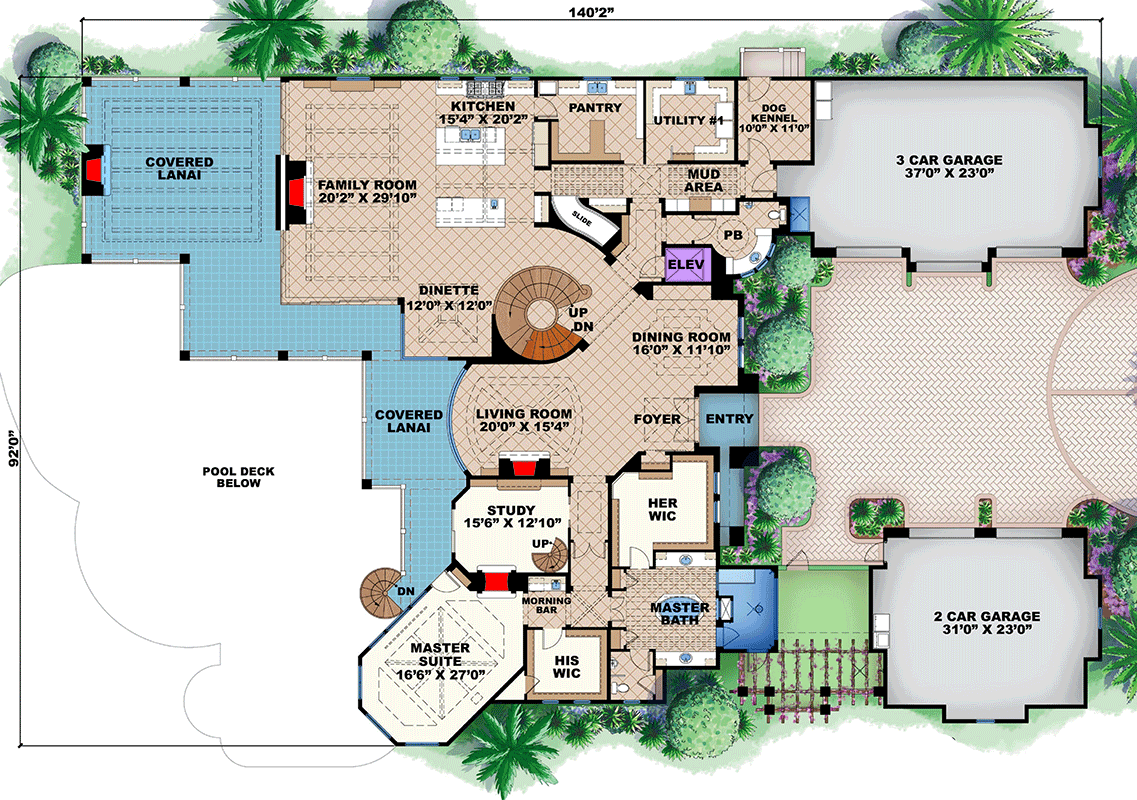

Floor Plan 1

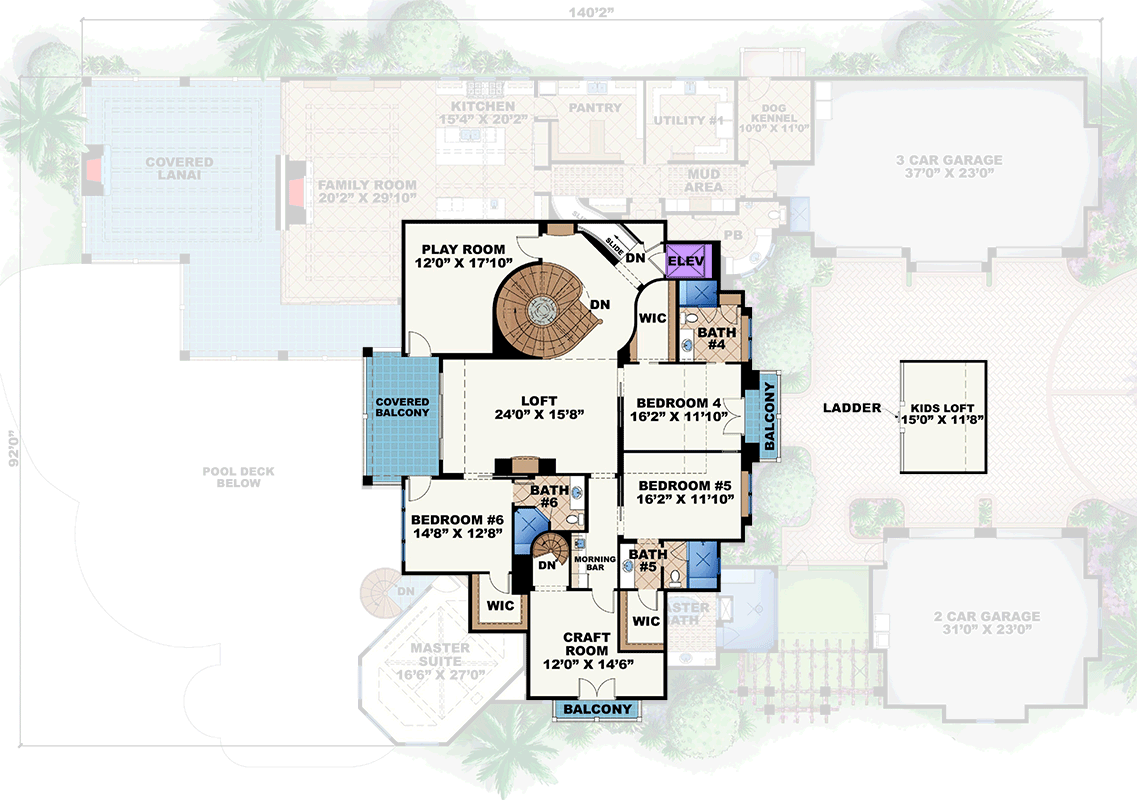

Floor Plan 2

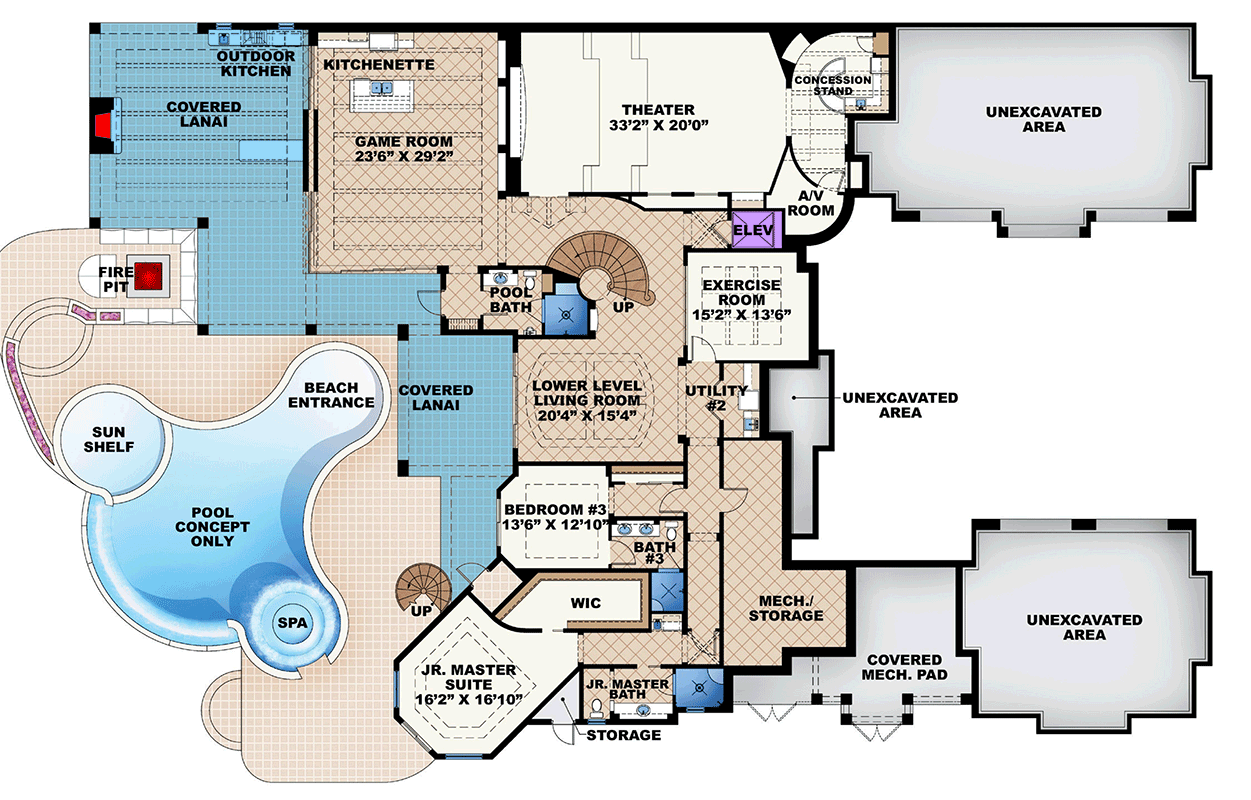

Lower Level
Lower Level

Plan 66376WE

M-F 9am-5pm EST |

1-203-761-8500

Plan 66376WE: Luxury European Coastal House Plan with 6 Bedrooms and 5-Car Garage - Floor Plan - - Coastal, European, Florida-Style, Southern, Tuscan

Plan 66376WE: Luxury European Coastal House Plan with 6 Bedrooms and 5-Car Garage - Floor Plan - - Coastal, European, Florida-Style, Southern, Tuscan

Lower Level

Plan 66376WE: Luxury European Coastal House Plan with 6 Bedrooms and 5-Car Garage - Floor Plan - Lower Level - Coastal, European, Florida-Style, Southern, Tuscan

Plan Details

  • This expansive 11,672 square foot luxury estate features 6 bedrooms, 7.5 baths, and an attached 5-car courtyard garage with a sophisticated European coastal exterior.
  • Upon entering the grand foyer, you are welcomed into an open-concept layout that seamlessly connects formal dining spaces with a central living room and elegant spiral staircase.
  • The gourmet kitchen serves as the heart of the home, flowing effortlessly into the family room and dinette, all oriented to maximize views of the rear outdoor living spaces.
  • The main-level primary suite offers a private retreat with a morning bar, dual walk-in closets, and a spa-inspired bathroom, while five additional bedrooms are distributed across the levels for optimal privacy.
  • The lower level is designed for ultimate recreation, housing a private home theater, a large game room with a kitchenette, and an exercise room.
  • Expansive covered lanais provide a seamless transition to the outdoors, complete with an integrated outdoor kitchen and fireplace overlooking the pool deck.
  • Additional custom amenities include a dedicated library, a craft room, a private dog kennel, an elevator servicing all floors, and a charming kids loft.

What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Material Labels
  • Floor-to-Floor Heights
  • Roof Slope Indicators
Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes
Electrical Layouts
  • Building Section Markers
  • All Electrical Outlets, Fixtures, and Switching
Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor and Deck Joist Size and Spacing
  • Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges, and Valleys
  • Building Section Markers
Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor Joist Size and Spacing
  • Floor-to-Floor Heights
  • Non-Typical Plate Heights Indicated
Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness and Reinforcing
  • Insulation Type and Thickness
Miscellaneous Notes and Details
  • Miscellaneous General Notes
  • Stairway details (if applicable)
We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

11,672 sq. ft.

Lower Level

4,489 sq. ft.

1st Floor

4,569 sq. ft.

2nd Floor

2,426 sq. ft.

Loft

188 sq. ft.

Porch, Front

116 sq. ft.

Balcony / Veranda

186 sq. ft.

Lanai

1,334 sq. ft.

Storage

47 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

7

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Walkout

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

140' 2"

Depth

92' 0"

Max Ridge Height

44' 7"

Garage

Type

Attached

Area

1785 sq. ft.

Count

5 Cars

Entry Location

Courtyard

Roof Details

Primary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Coastal

European

Florida-Style

Southern

Tuscan

Special Features

Bedrooms - Split

Breakfast Nook

Elevator

Formal Dining

Game/Rec Room

Home Theater

In-Law Suite

Laundry - Main Level

Laundry - Upstairs

Library/Study

Loft

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom

Multiple Stairs

Outdoor Fireplace

Outdoor Kitchen

Walk-in Pantry

Wet Bar

Workshop

Plan Collections

Luxury
