Plan 66322WE

Luxury Home Plan with Impressive Features - 5377 Sq Ft

Name: Plan 66322WE: Luxury Home Plan with Impressive Features - 5377 Sq Ft
Brand: Architectural Designs
SKU: 66322WE
Price: 2167.50 USD
Availability: InStock

Heated S.F.

5,377

Beds

Baths

4.5+

Stories

Cars

Floor Plan

Main Level

Plan Details

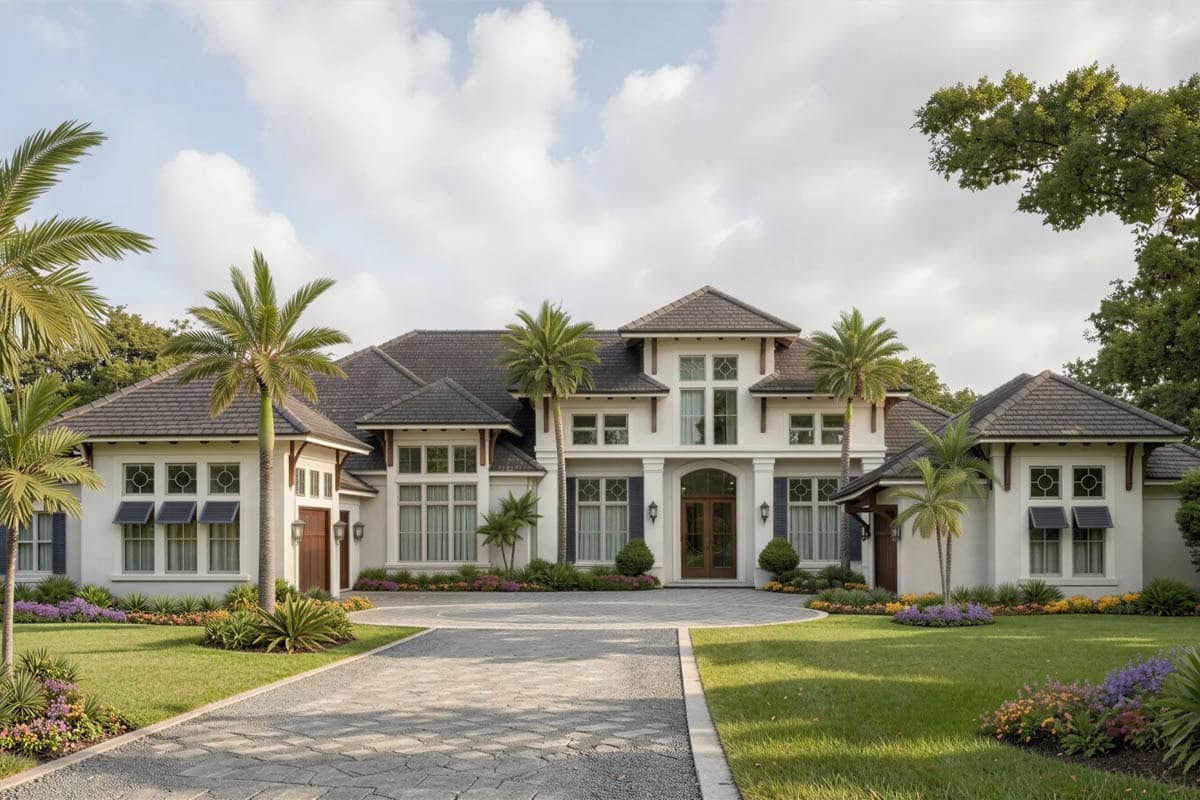

Almost every room in this stunning Florida home plan has a gorgeous ceiling treatment, making the home truly special.
From the foyer you get sweeping views of both the dining room and the formal living room.
A quiet study will give you a luxurious place to work from home.
But the heart of the home is the enormous kitchen/family room area with its curved wet bar that seats 5 people.
Sliding glass doors on all sides open up to the amazing outdoor covered lanai with its summer kitchen.
A walk-through pantry near the kitchen opens to the hall behind it.
Three large bedrooms are on the left wing of the home, each with a private bathroom.
The opulent master suite will knock your socks off with a separate sitting area, a morning bar with fridge and sink plus a spa-like master bathroom with an enormous two-entry shower.
A five car garage is split into two sides.
NOTE: This plan may not be built in Lee & Collier Counties, Florida.

What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor and Deck Joist Size and Spacing
Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)

We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you. Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
