Plan 340069STR
Luxury Mediterranean Home Plan with Multiple Gathering Spaces and Private Master Suite
Heated S.F.
3,817
Beds
4
Baths
3.5
Stories
1
Cars
3
What's Included
Plan Details

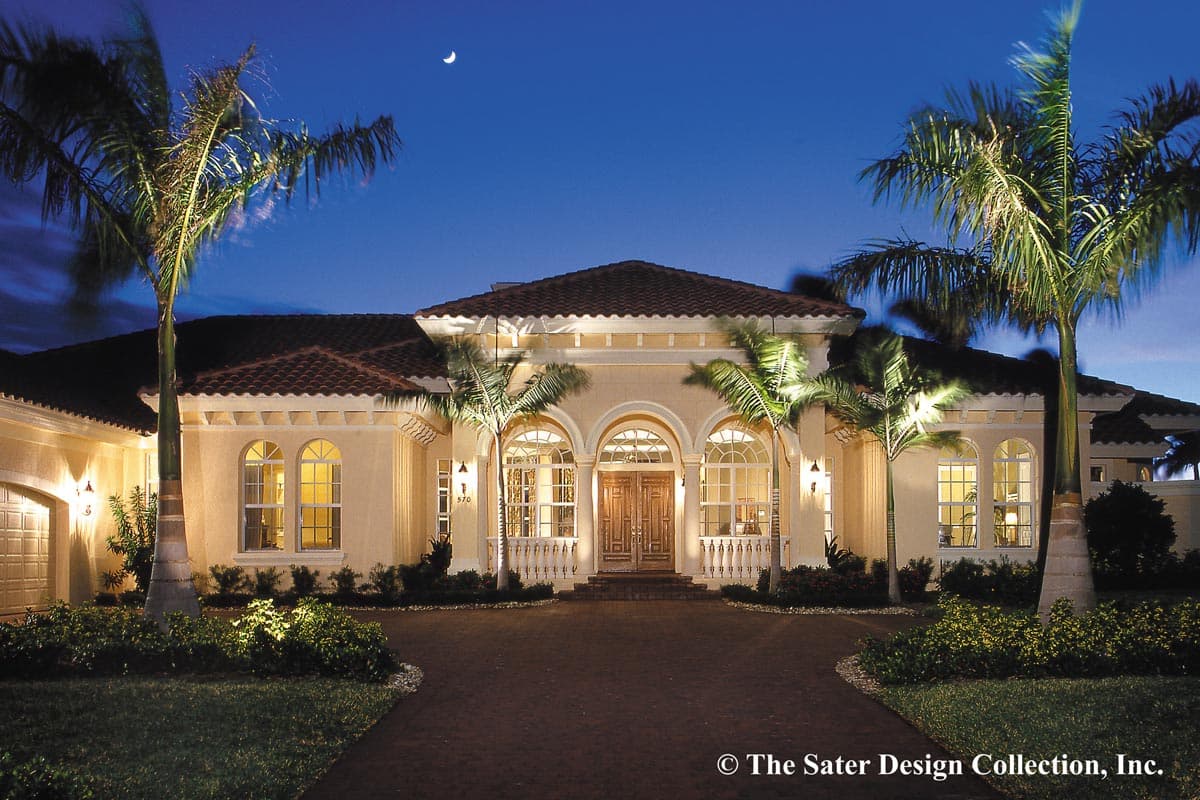

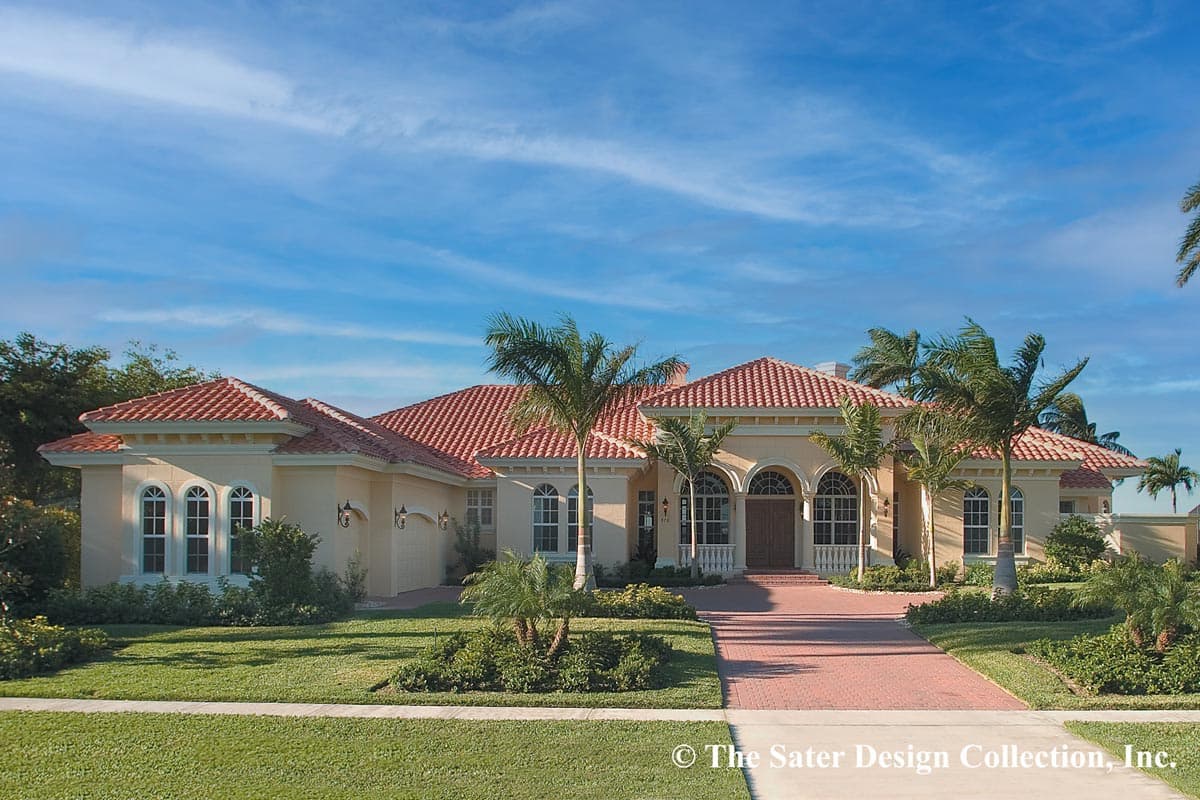

  • A striking mix of arches, columns, carved balusters, and arch-top windows foretell of the beauty waiting within this luxury, Mediterranean home plan.

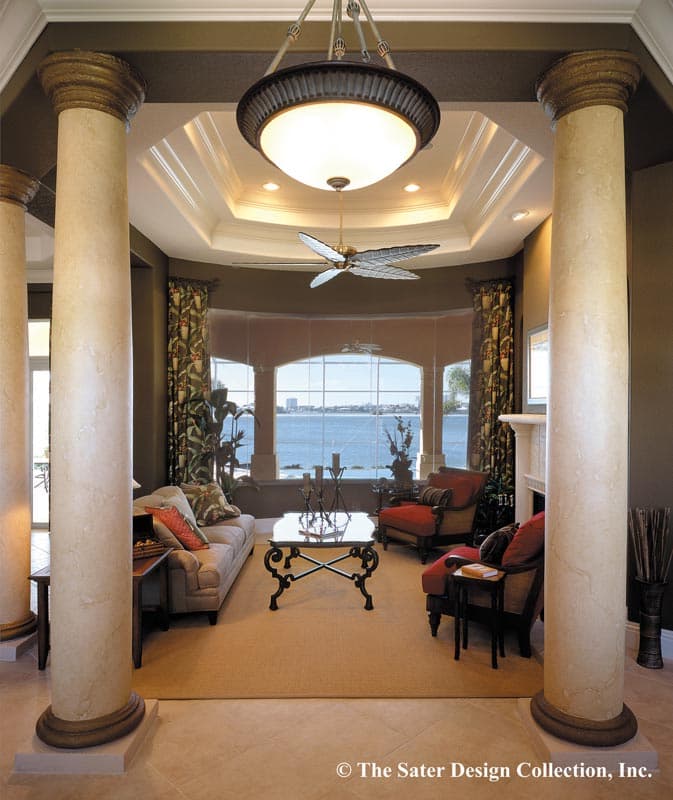

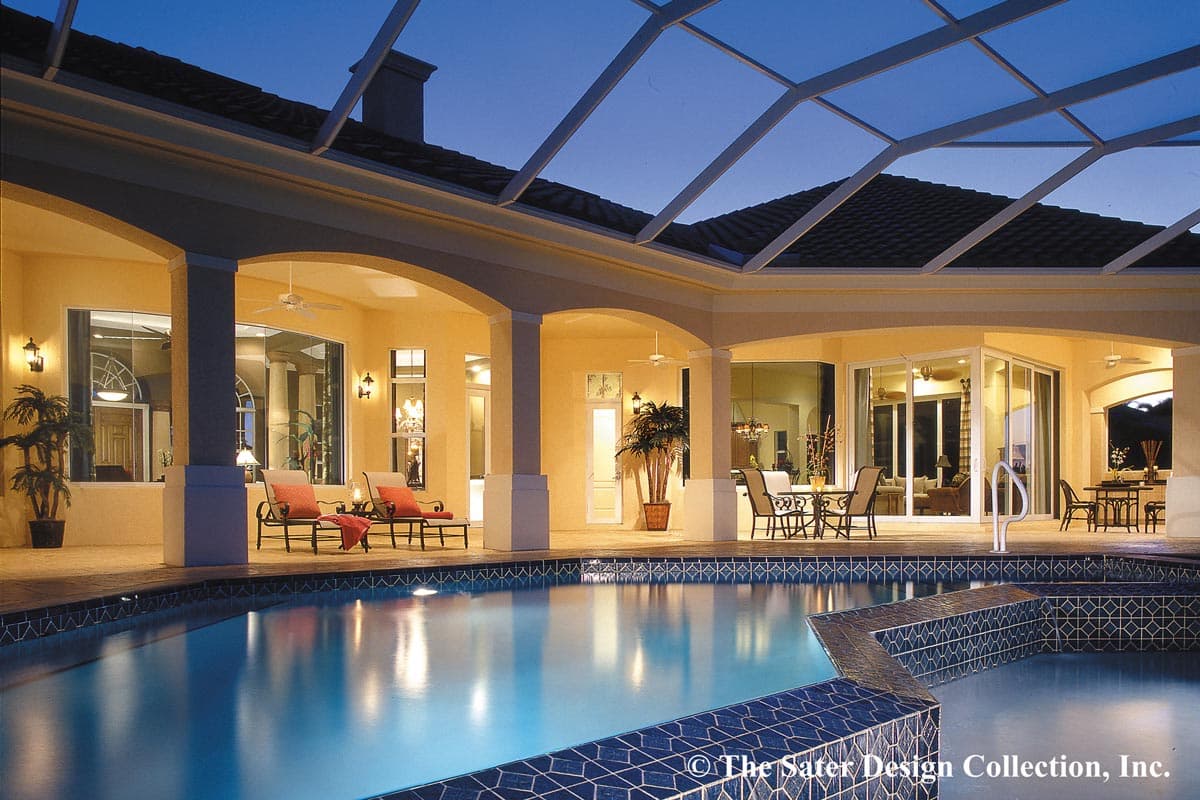

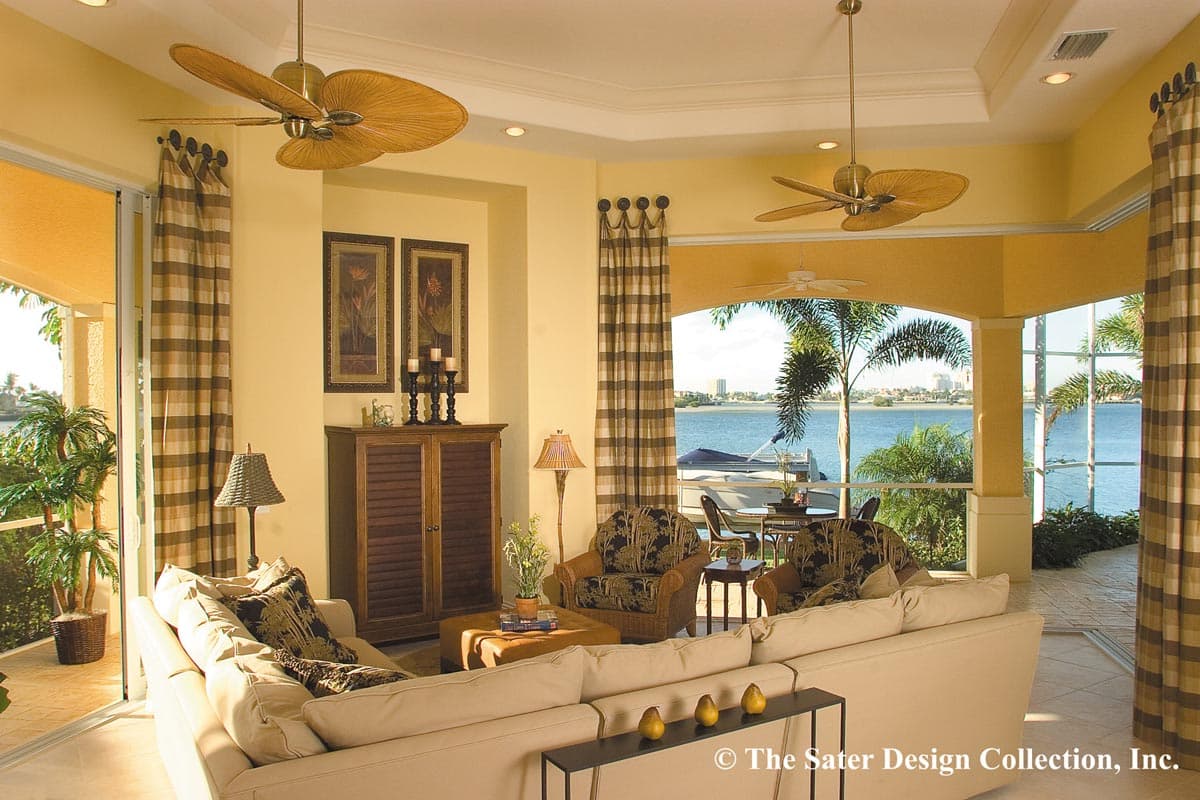

  • Because of a view-oriented design, guests are immediately greeted with stunning vistas past the wall of curved glass in the living room to the wraparound verandah.

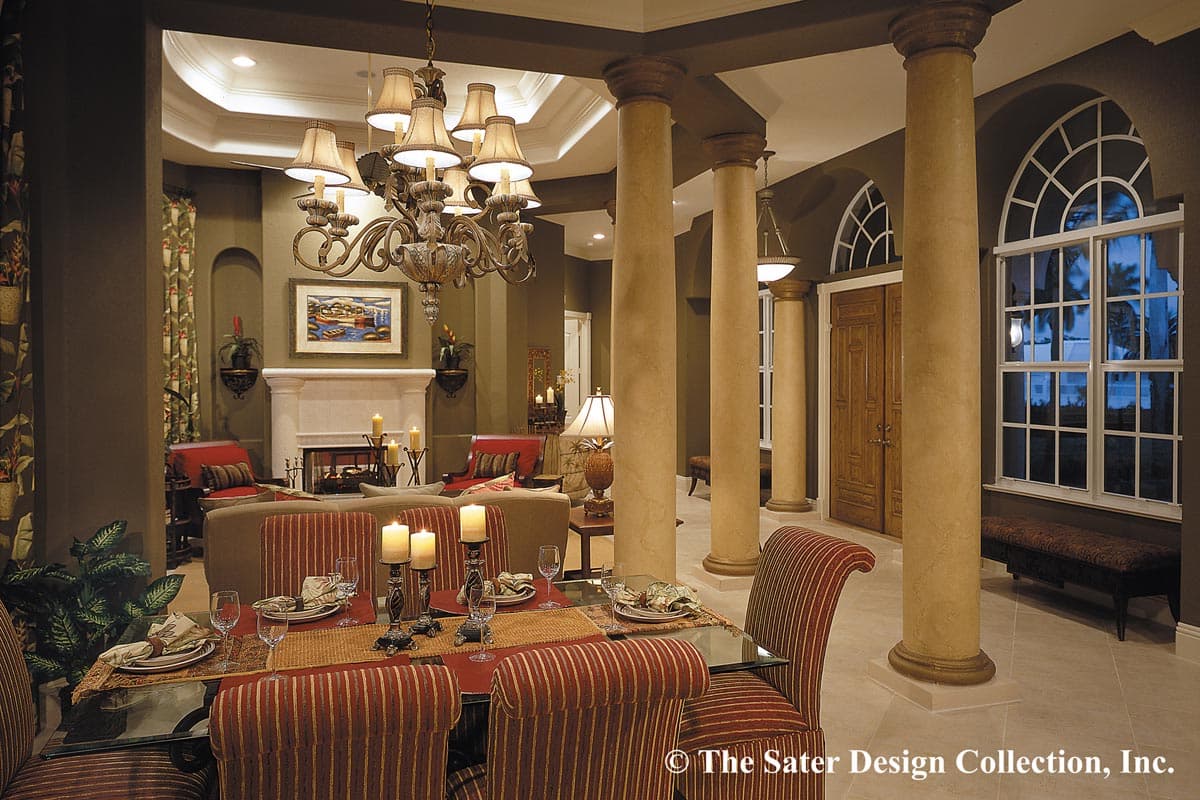

  • A two-sided fireplace warms the formal areas, which are comprised of the living and dining rooms. The fireplace's boundary with the foyer is defined by a line of decorative columns.

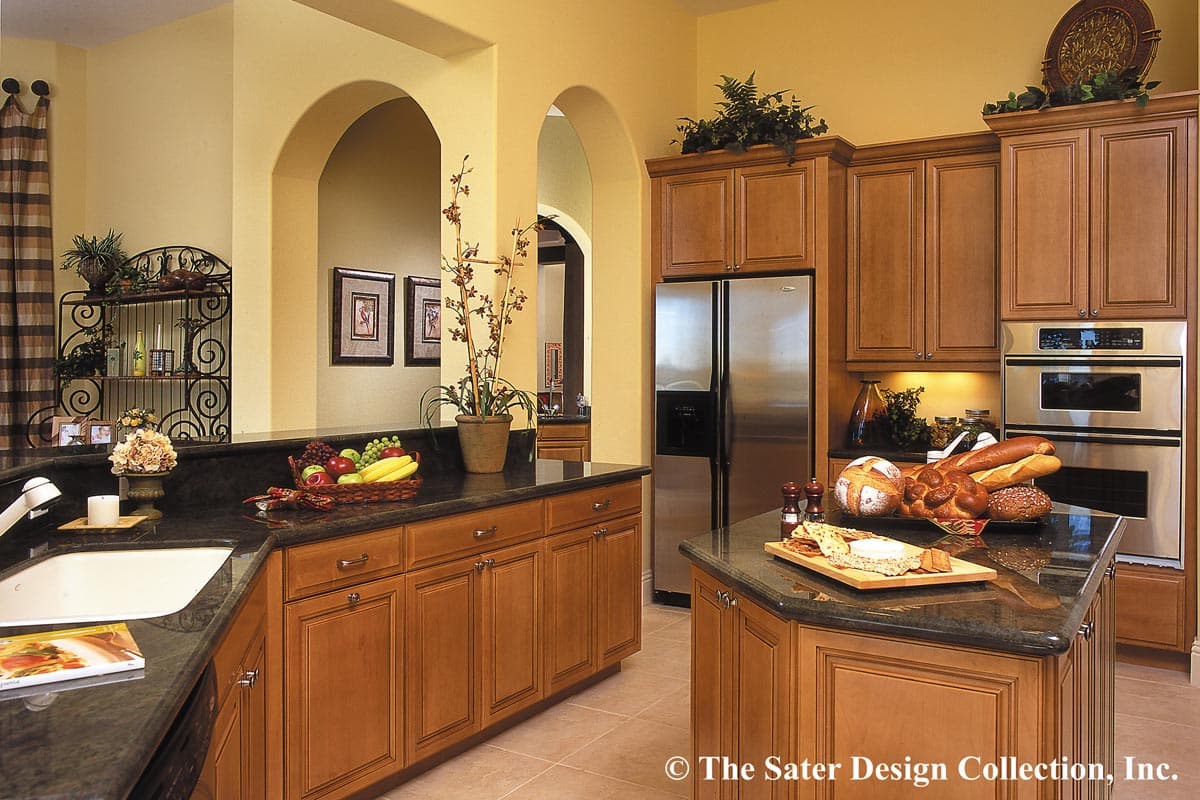

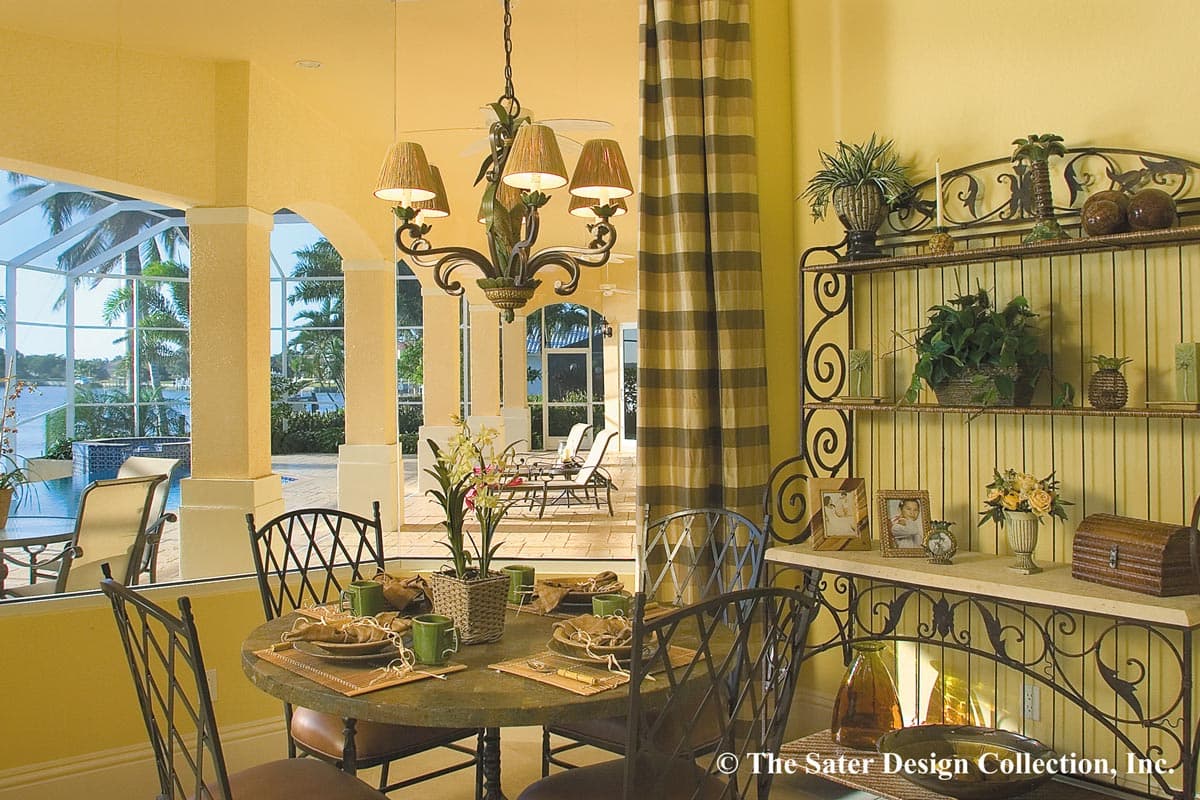

  • A beautiful and functional gourmet kitchen boasts a center prep island, walk-in pantry, and a wraparound eating bar. The kitchen's open connection with the nook and leisure room creates a family-friendly environment.
  • Three guest suites offer friends and family a quiet place to relax at the end of the day.

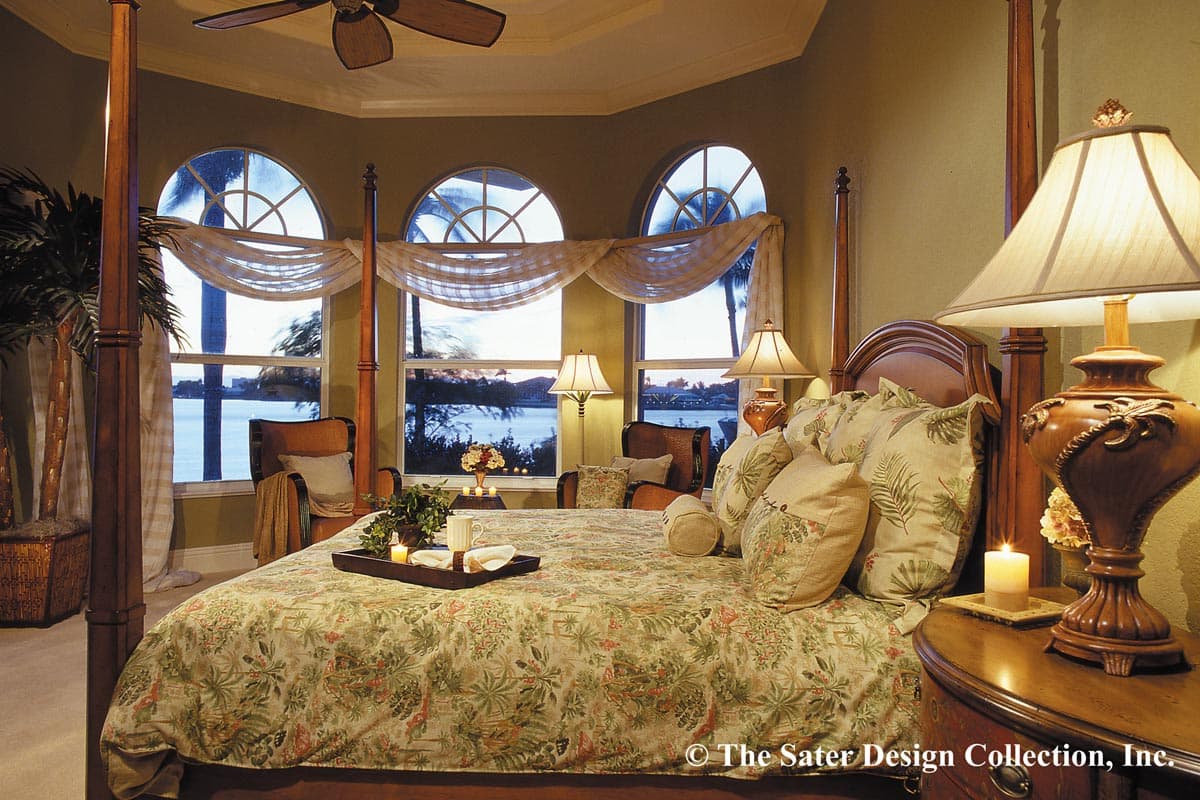

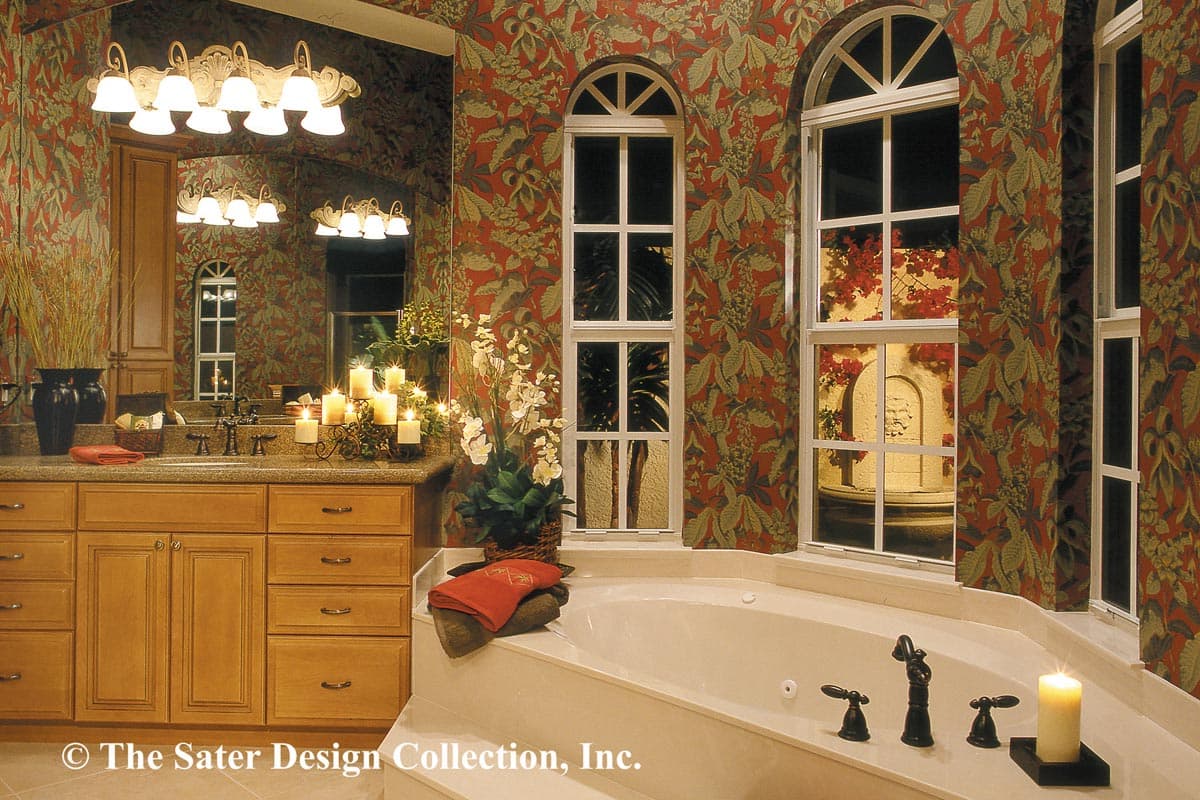

  • On the opposite side, the master suite is a four-star retreat designed to pamper the homeowners with its private foyer, enormous walk-in closet, spa-like bath, private garden, and retreating glass walls to the verandah.
What's Included
  • Cover Sheet, Index
  • Wall Sections & Notes
  • Typical Detail & Notes
  • Foundation Plan
  • Floor Plans
  • Reflected Ceiling Plan showing ceiling heights and treatments
  • Floor Framing Plan (basement, crawlspace or 2-story homes only)
  • Birds Eye Roof Plan
  • All Elevations
  • Building Section & Details
  • Interior Elevations (Details may vary based on the design)
  • Suggested Electrical Layout
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Luxury Mediterranean Home Plan with Multiple Gathering Spaces and Private Master Suite

  • 3,817

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

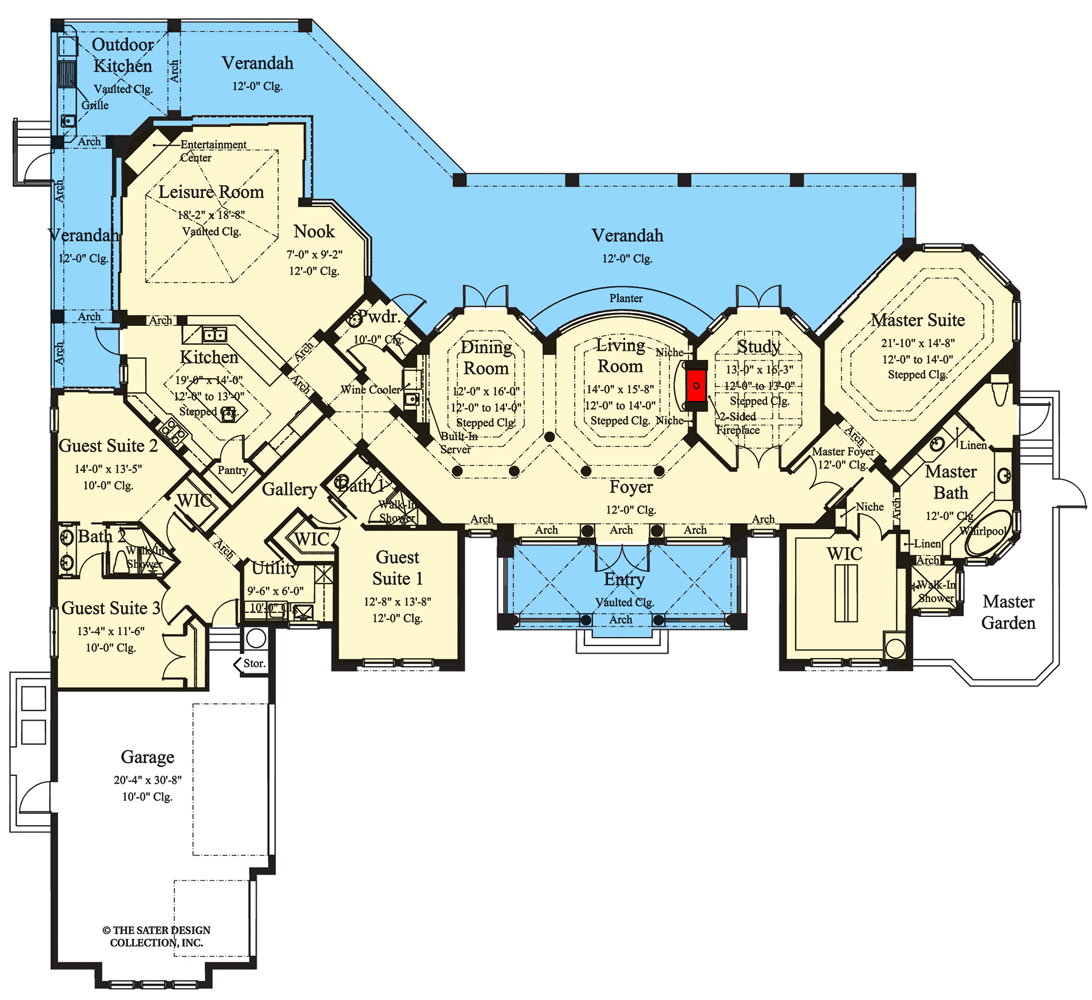

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 3,817 sq. ft.
  • 1st Floor: 3,817 sq. ft.

Dimensions

  • Width: 102' 4"
  • Depth: 102' 4"
  • Max ridge height: 25' 6"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 747 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6
