Plan 65640BS Luxury Mediterranean Home Plan with Split Bedrooms

4,561 4 5.5 1 4
Print
Compare
...

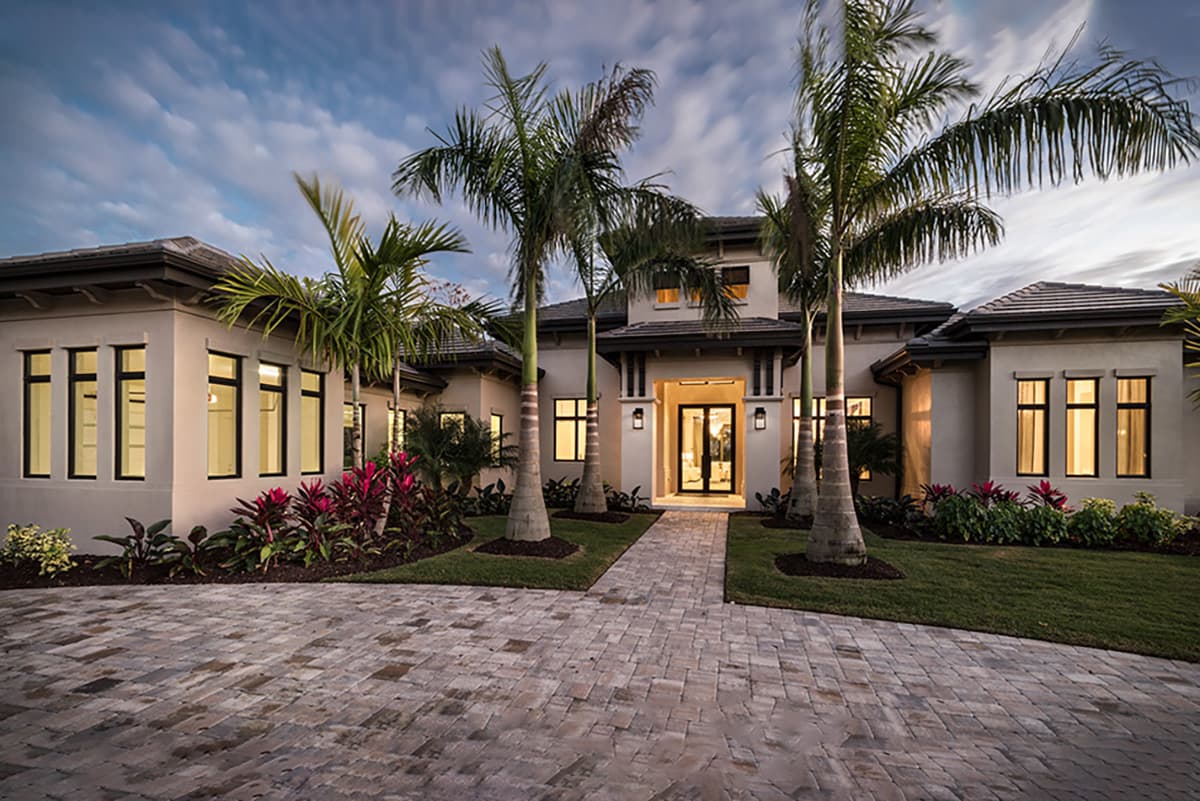

All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Luxury Mediterranean Home Plan with Split Bedrooms

Plan 65640BS

  • 4,561

    Heated s.f.

  • 4

    Beds

  • 5.5

    Baths

  • 1

    Stories

  • 4

    Cars

  • This luxury home plan with Mediterranean influences features a spacious, open-concept floor plan that opens to a generous outdoor living area.
  • An elegant coffered ceiling helps define the great room that flows into the kitchen, where a prep island is paired with a second, snack bar island to complete this dreamy kitchen design.
  • A dedicated space for your fine wines is a nice bonus.
  • The master suite shares the right wing of the home with an exercise room and study, while three bedroom suites can be found on the opposite side
  • Enter from the 4-car garage to find a hallway with a powder bath and nearby laundry room.
  • BUILDING RESTRICTION: This plan my not be built in Lee and Collier Counties, Florida as well as Sarasota, Florida.

Plans include the following:

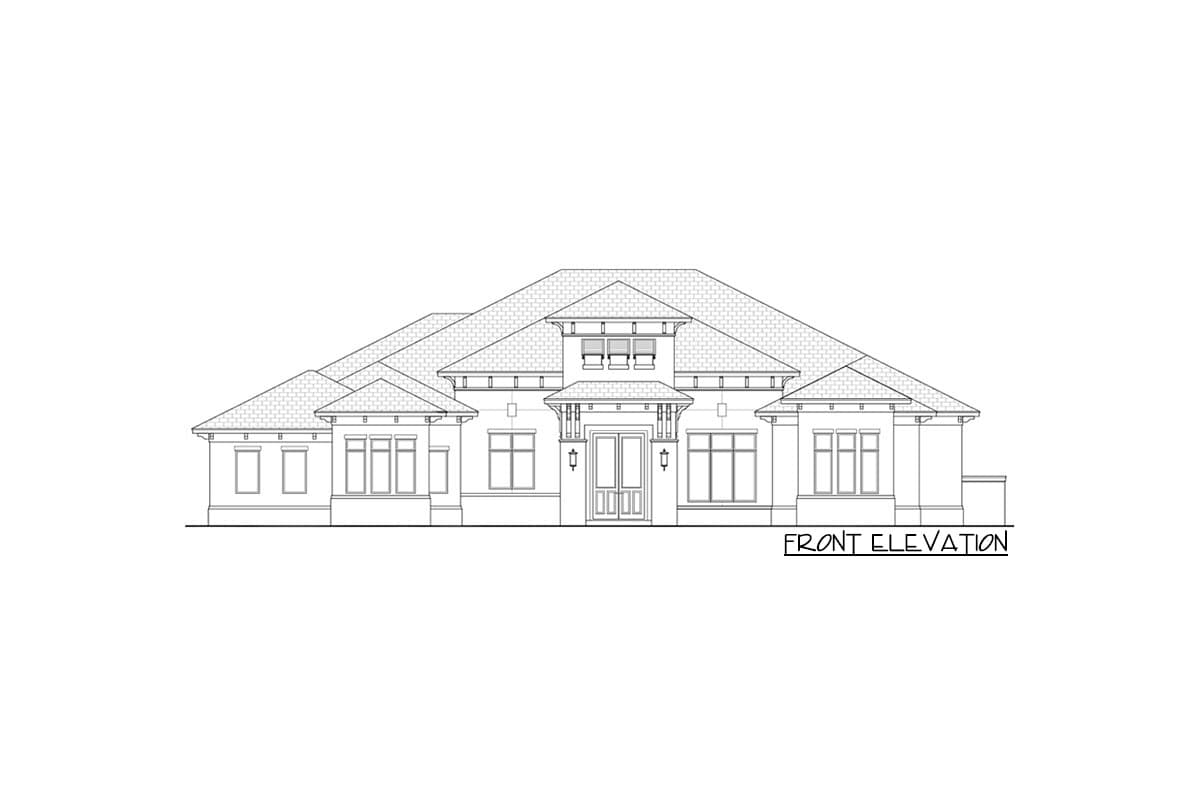

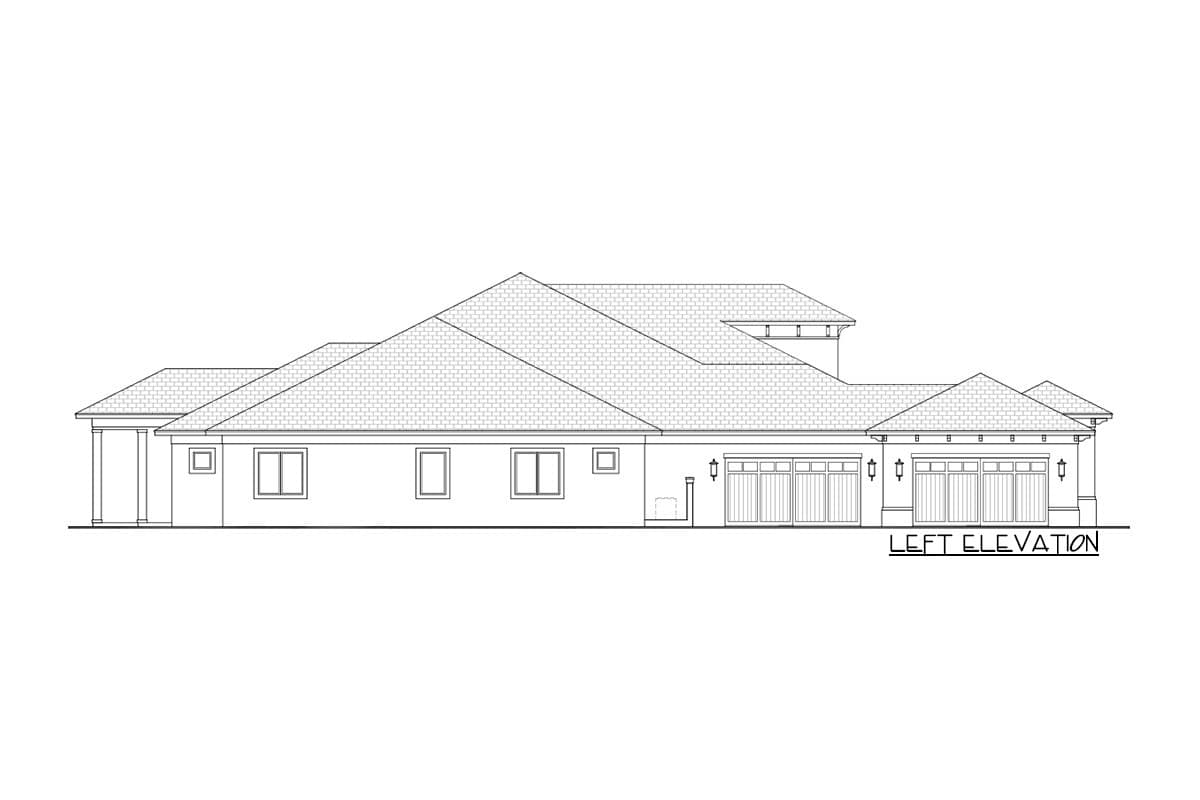

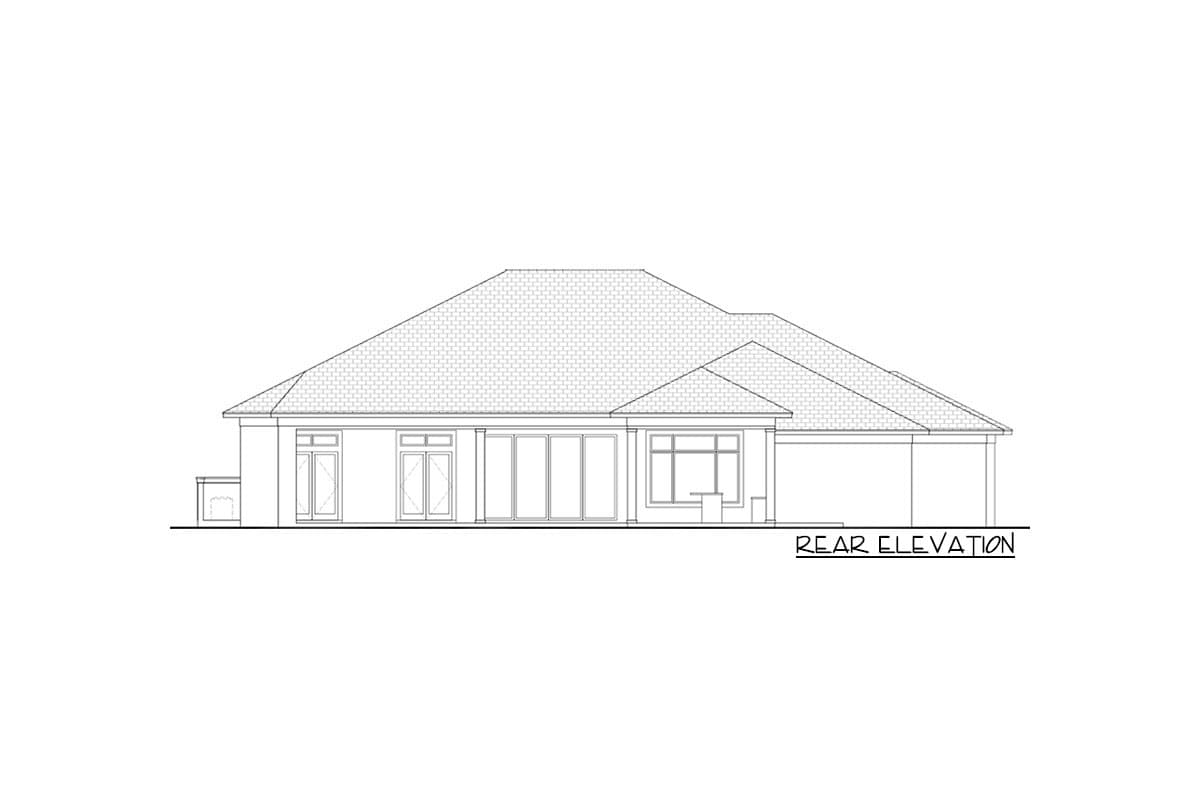

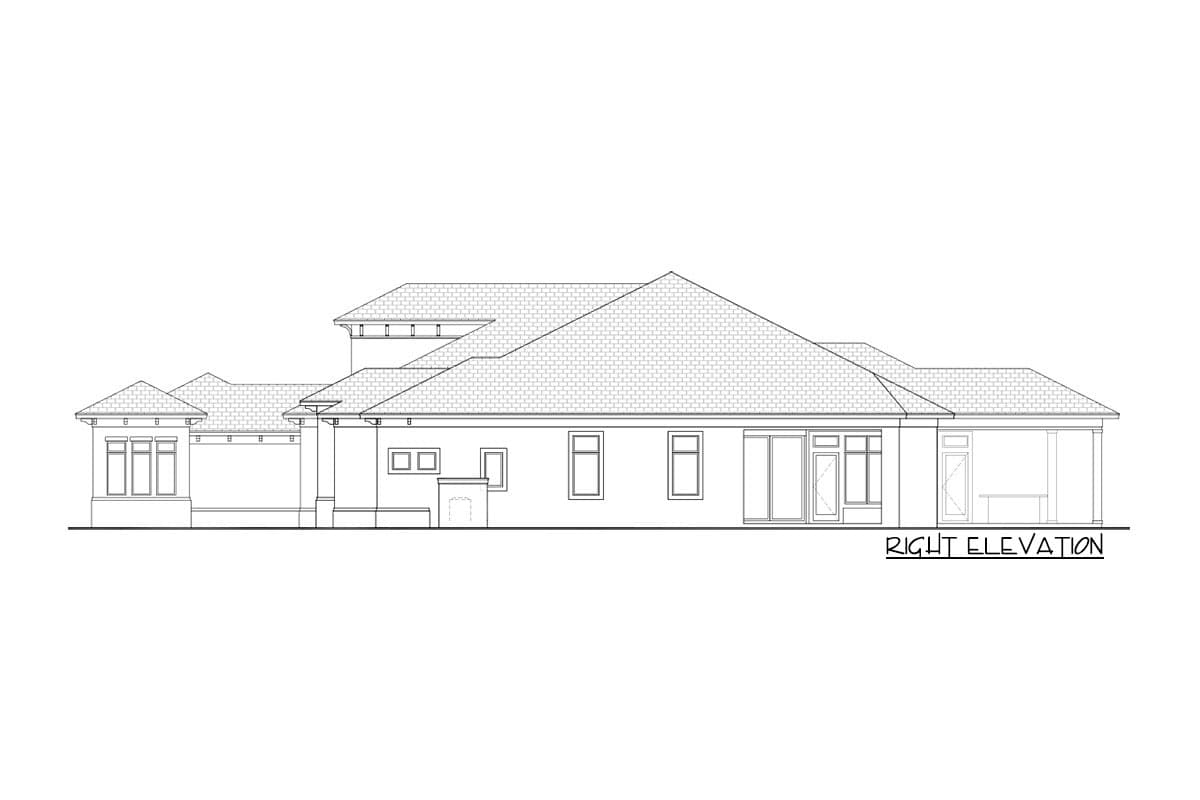

Elevations:

Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes

Electrical Layouts:

  • Building Section Markers
  • All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale

Roof Design Plan:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections:
Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness
  • Insulation Type and Thickness

Miscellaneous Notes and Details:

  • Miscellaneous General Notes
  • Stairway Details (if applicable)
IMPORTANT NOTE:  Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc.  Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

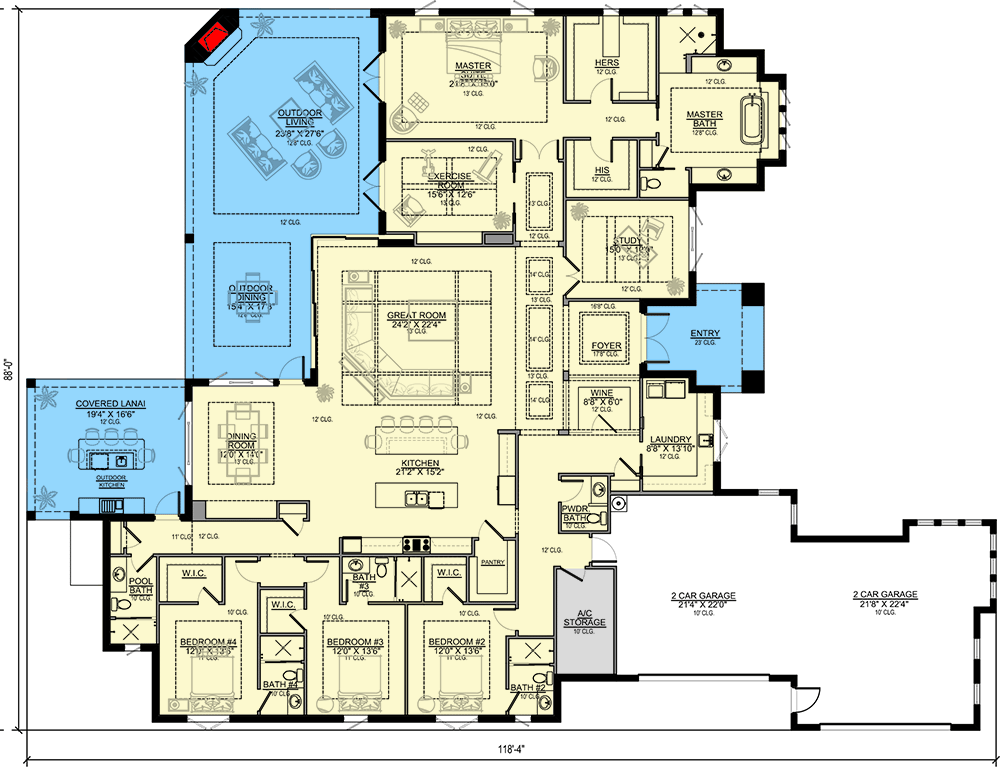

Luxury Mediterranean Home Plan with Split Bedrooms - 65640BS floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,561 sq. ft.
  • 1st Floor: 4,561 sq. ft.
  • Lanai: 1,243 sq. ft.
  • Entry: 157 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 88' 0"
  • Depth: 118' 4"
  • Max ridge height: 29' 3"

Garage

  • Type: Attached
  • Area: 1095 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Luxury Mediterranean Home Plan with Split Bedrooms

  • 4,561

    Heated s.f.

  • 4

    Beds

  • 5.5

    Baths

  • 1

    Floors

  • 4

    Car garage

Buy This Plan
  • CAD + PDF - Single-Build $4,561
  • PDF - Single-Build $4,561
  • View all purchase option online

About This Plan

  • This luxury home plan with Mediterranean influences features a spacious, open-concept floor plan that opens to a generous outdoor living area.
  • An elegant coffered ceiling helps define the great room that flows into the kitchen, where a prep island is paired with a second, snack bar island to complete this dreamy kitchen design.
  • A dedicated space for your fine wines is a nice bonus.
  • The master suite shares the right wing of the home with an exercise room and study, while three bedroom suites can be found on the opposite side
  • Enter from the 4-car garage to find a hallway with a powder bath and nearby laundry room.
  • BUILDING RESTRICTION: This plan my not be built in Lee and Collier Counties, Florida as well as Sarasota, Florida.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,561 sq. ft.
  • 1st Floor: 4,561 sq. ft.
  • Lanai: 1,243 sq. ft.
  • Entry: 157 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 88' 0"
  • Depth: 118' 4"
  • Max ridge height: 29' 3"

Garage

  • Type: Attached
  • Area: 1095 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
