Plan 66123WE

Luxury Mediterranean House Plan with 5 Bedrooms and Expansive Outdoor Lanai

Name: Plan 66123WE: Luxury Mediterranean House Plan with 5 Bedrooms and Expansive Outdoor Lanai
Brand: Architectural Designs
SKU: 66123WE
Price: 1445.00 USD
Availability: InStock

Heated S.F.

4,403

Beds

Baths

5.5

Stories

Cars

Floor Plan

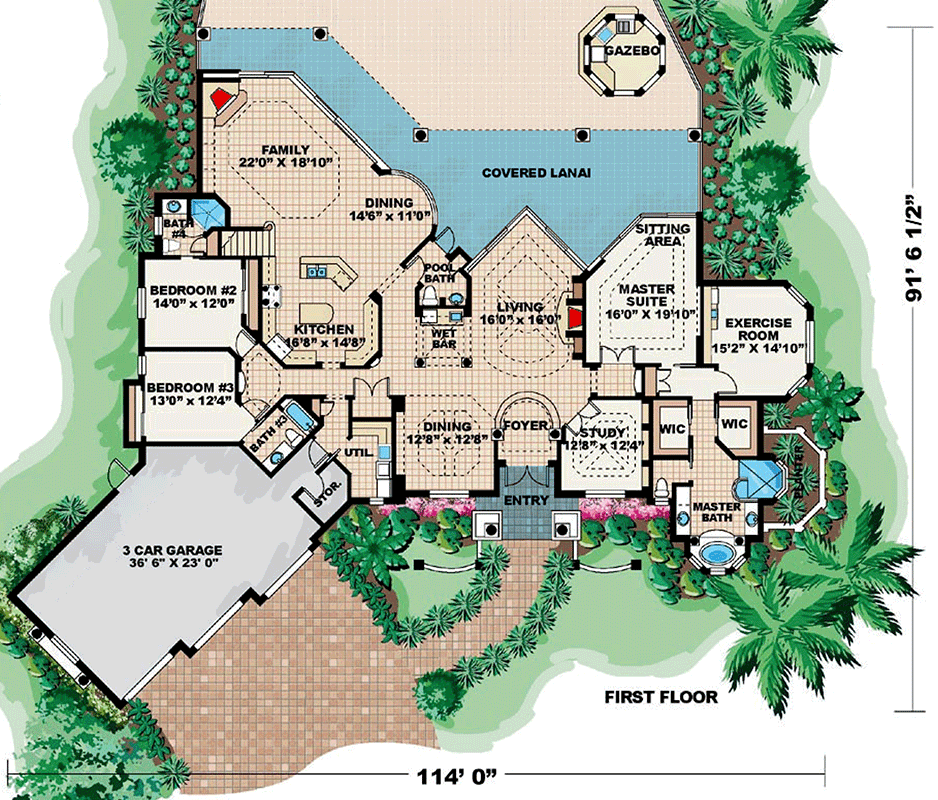

Main Level

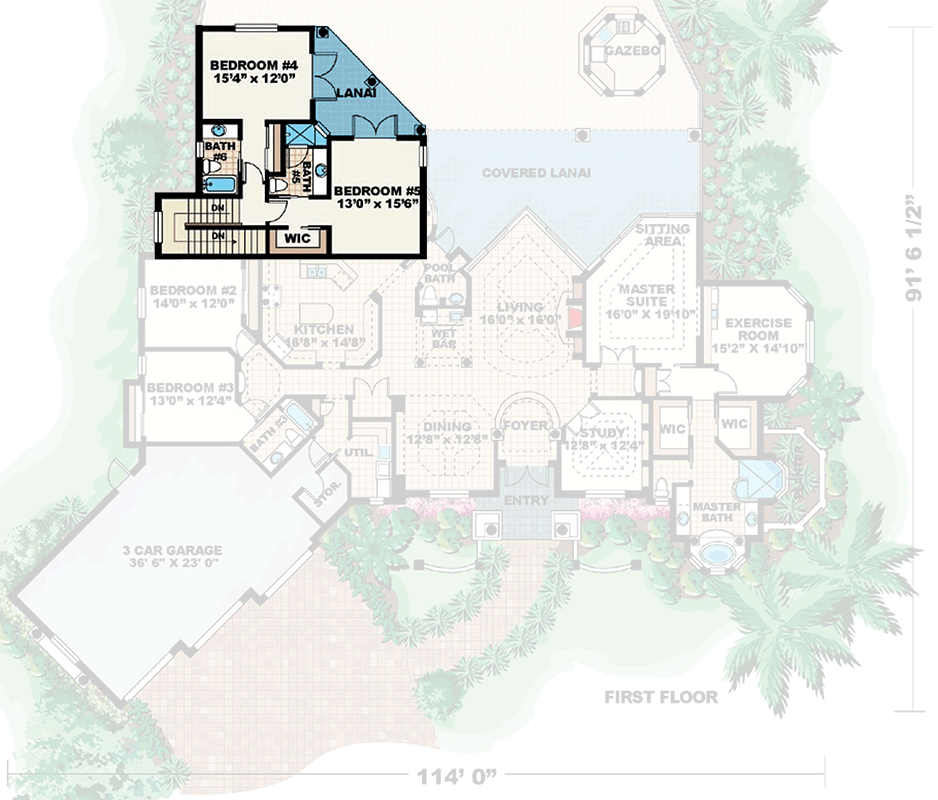

2nd Floor

Plan Details

This 4,403 square foot Florida-style residence features five bedrooms, five full baths, one half bath, and a three-car garage.
The dramatic curb appeal showcases varying roof planes, colorful tile surfaces, and elegant precast rope columns that create a grand arrival.
Inside, the home offers a sophisticated open-concept layout where the formal dining room and living room connect seamlessly to a wet bar and impressive fireplace.
A gourmet kitchen flows into a cozy dinette and an enormous family room, all designed to capture natural light through multiple walls of glass.
The primary suite is a private retreat on the main level featuring an intimate sitting area, a personal exercise room with a wet bar, and a spa-inspired bath.
Two additional bedrooms reside on the main level, while the second floor hosts two more bedrooms that share access to a private covered balcony.
Outdoor living is paramount, highlighted by an entertainment-sized lanai with a dedicated outdoor kitchen and a charming poolside gazebo.

What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor and Deck Joist Size and Spacing
Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)

We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you. Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
