Plan 23896JD
Luxury Modern Farmhouse with 2-Story Great Room and Private Guest Suite
Heated S.F.
4,957
Beds
5
Baths
4.5
Stories
2
Cars
3
Plan Details
  • At just under 5,000 square feet of living space spread out between two floors, this luxury Modern Farmhouse plan delivers everything on your checklist and more.
  • The elongated front porch invites you inside to find a curved staircase in the foyer. A temple and quiet den frame the foyer, while straight ahead, the great room flows onto the outdoor living space through accordion-style doors.
  • The gourmet kitchen will encourage you to entertain friends and family, and includes a walk-in pantry, service kitchen, and spacious dining room attached.
  • French doors lead to a generous media room on the main level, while a guest suite with a private patio completes this floor.
  • The largest of the 3 second-level bedrooms is reserved for the homeowner and includes a 5-fixture bathroom and walk-in closet that connects with the laundry room. Two family bedrooms and a study / exercise room can also be found upstairs.
  • IMPORTANT NOTE: If building in the state of Washington, your plan purchase cannot be done online.  Please contact us directly.
What's Included
  • Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
  • Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
  • Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

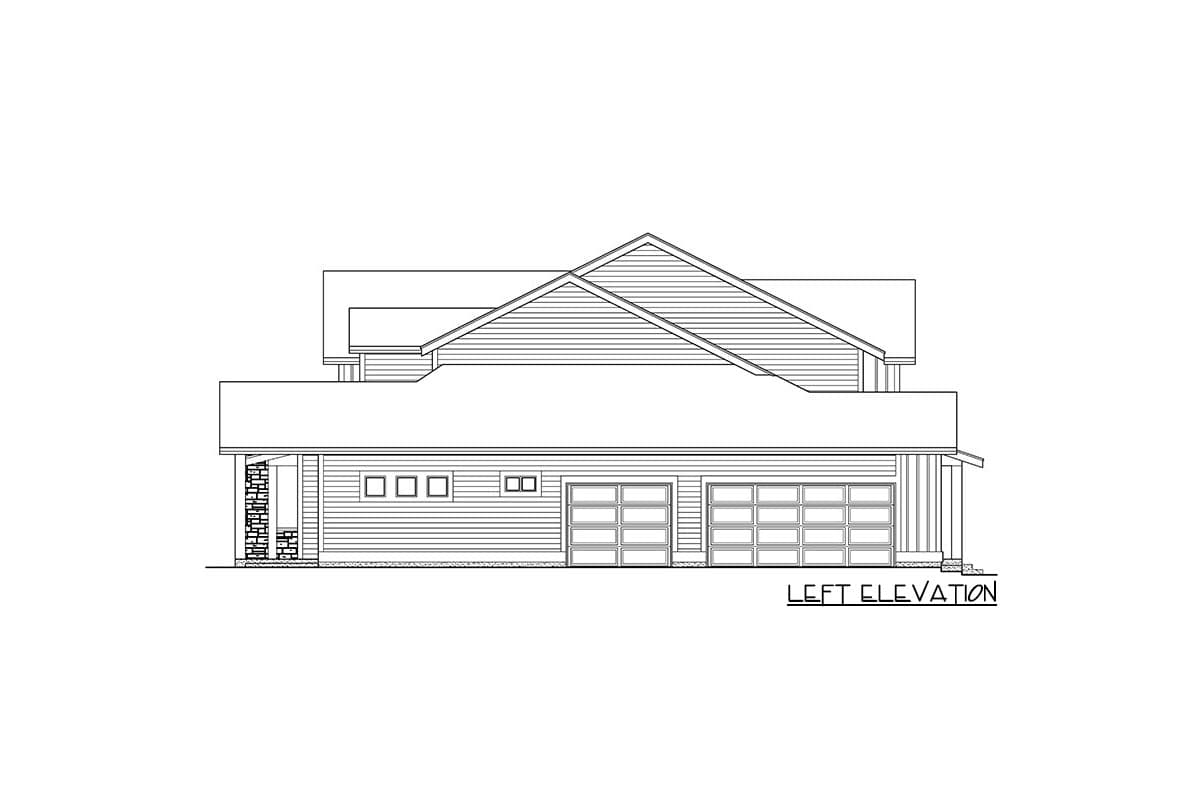

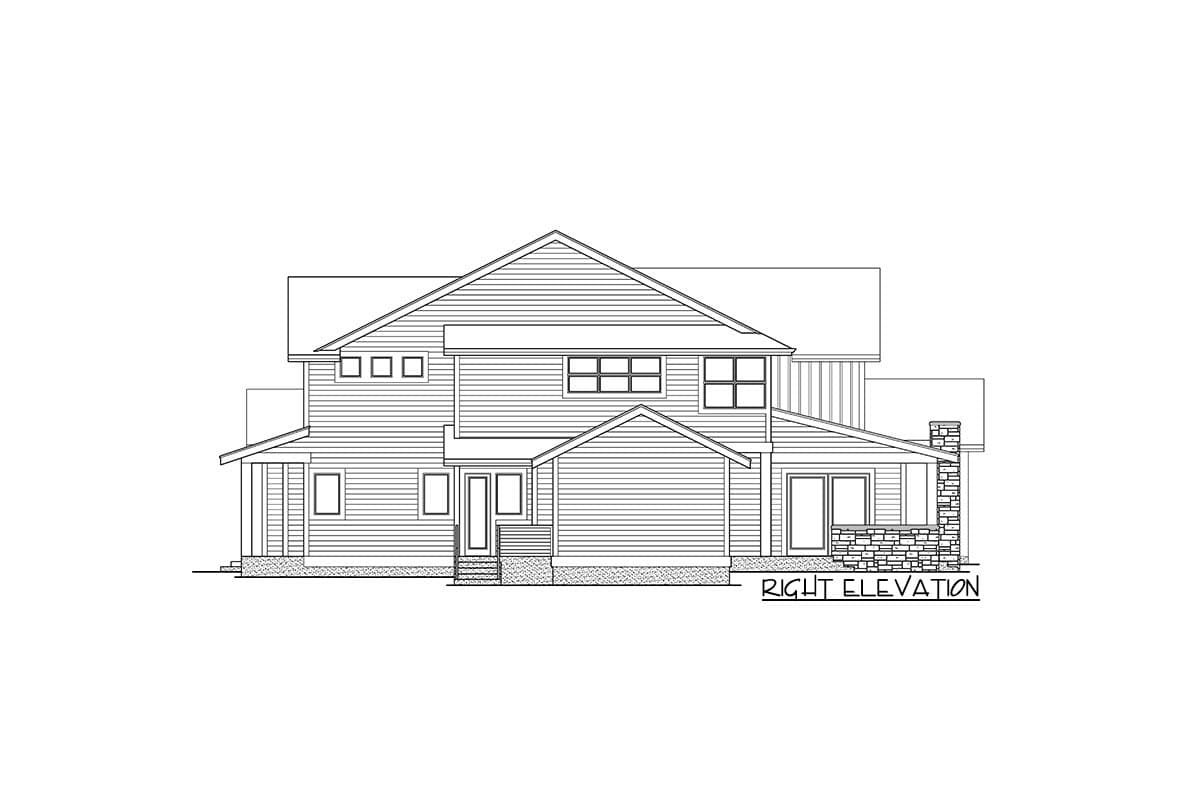

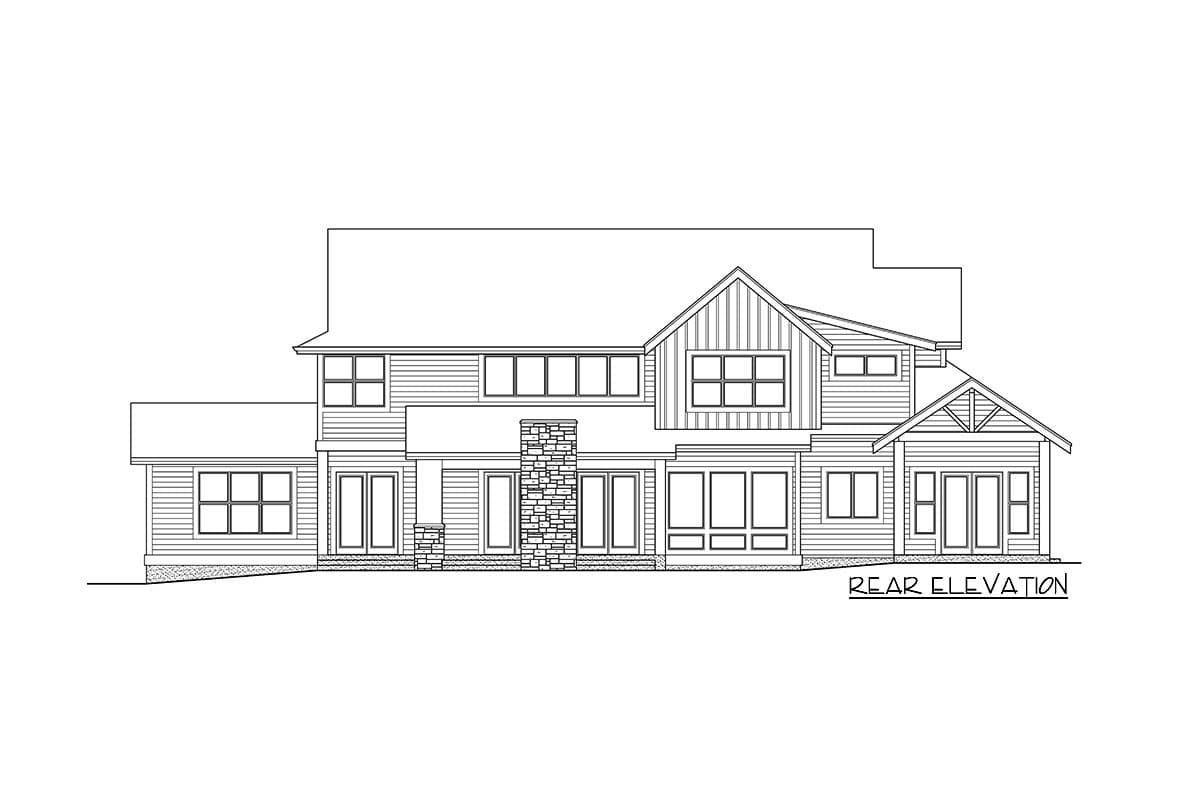

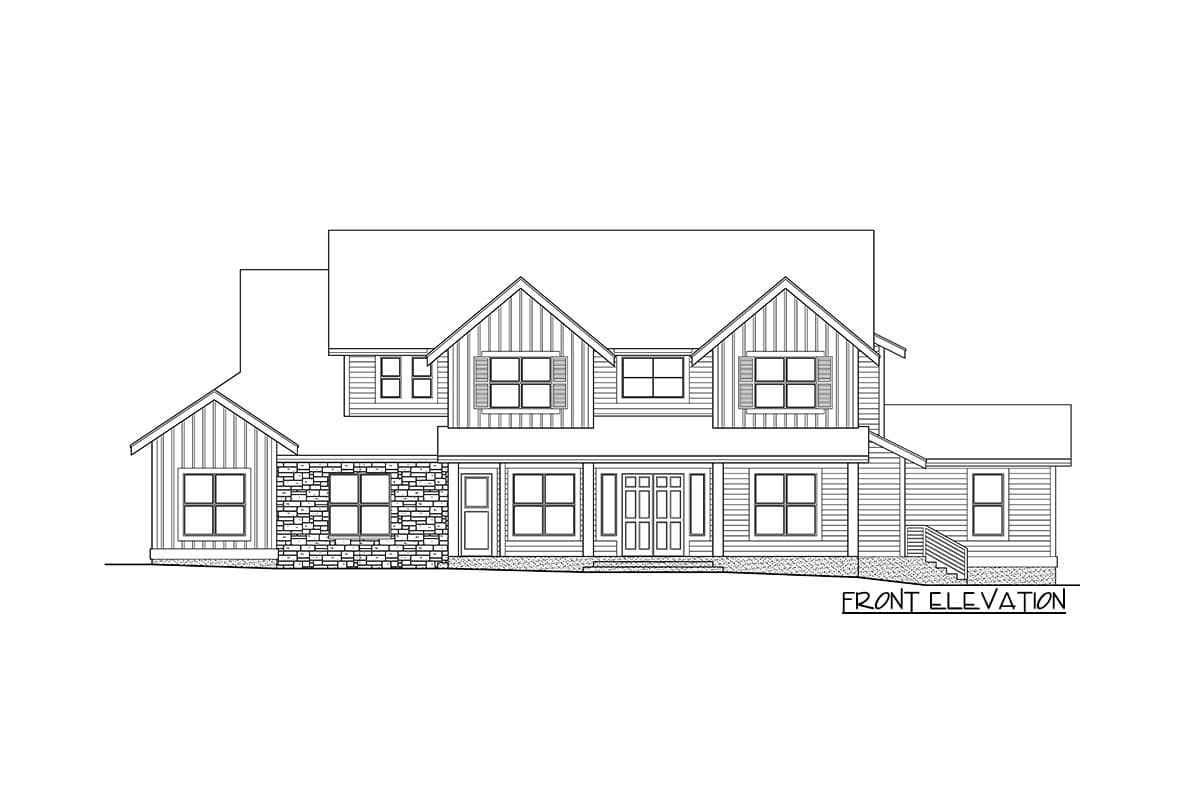

  • Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
What's Not Included
  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Luxury Modern Farmhouse with 2-Story Great Room and Private Guest Suite

  • 4,957

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

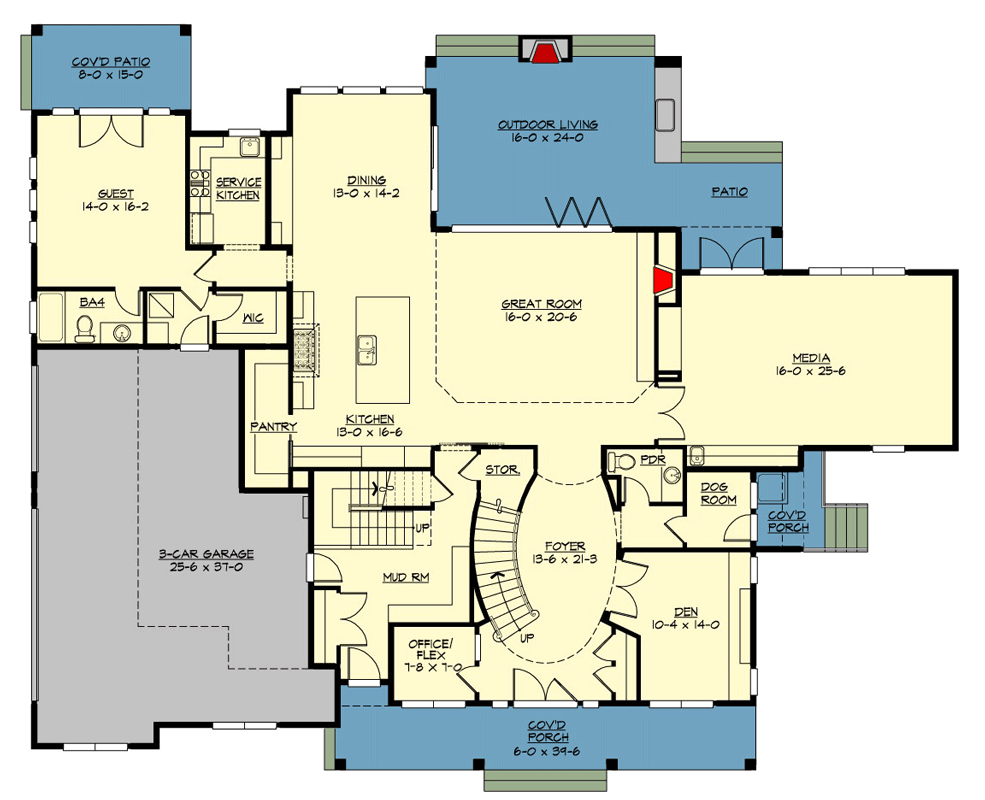

  • Main Level

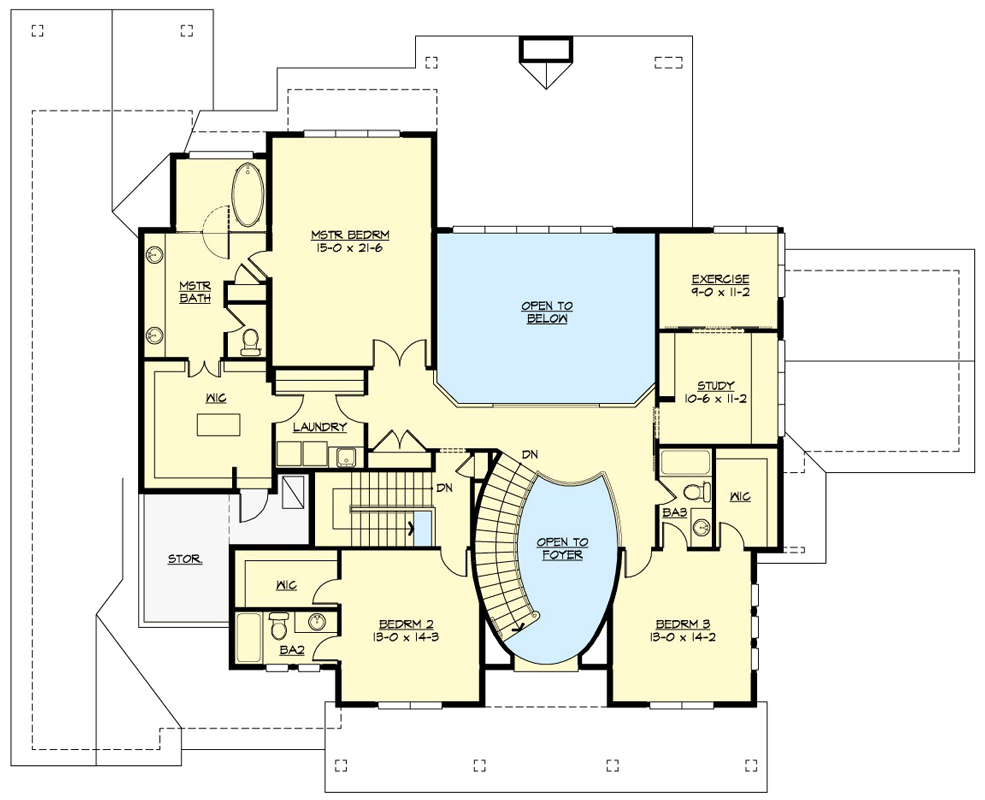

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 4,957 sq. ft.
  • 1st Floor: 2,990 sq. ft.
  • 2nd Floor: 1,967 sq. ft.

Dimensions

  • Width: 87' 0"
  • Depth: 70' 0"
  • Max ridge height: 31' 6"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 875 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

Luxury Modern Farmhouse with 2-Story Great Room and Private Guest Suite

  • 4,957

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Luxury Modern Farmhouse with 2-Story Great Room and Private Guest Suite

  • 4,957

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 4,957 sq. ft.
  • 1st Floor: 2,990 sq. ft.
  • 2nd Floor: 1,967 sq. ft.

Dimensions

  • Width: 87' 0"
  • Depth: 70' 0"
  • Max ridge height: 31' 6"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 875 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss

    Main Level

    2nd Floor
