Plan 871012JEN

Luxury Modern Home Plan with Expansive Outdoor Living Spaces and Pool Concept

Heated S.F.
4,573
Beds
4
Baths
4.5
Stories
2
Cars
3

Floor Plan

Plan 871012JEN

Main Level
Main Level
2nd Floor
2nd Floor
Finished Lower Level
Finished Lower Level

Plan 871012JEN

M-F 9am-5pm EST |

1-203-761-8500

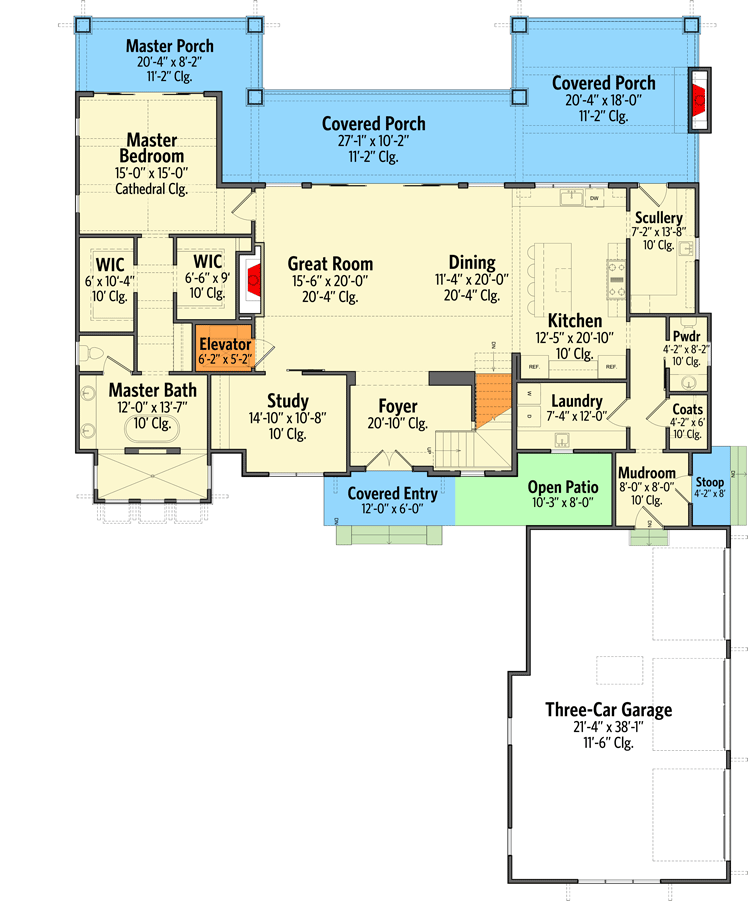

Main Level

Plan 871012JEN: Luxury Modern Home Plan with Expansive Outdoor Living Spaces and Pool Concept - Floor Plan - Main Level - Contemporary, Modern, Prairie, Transitional

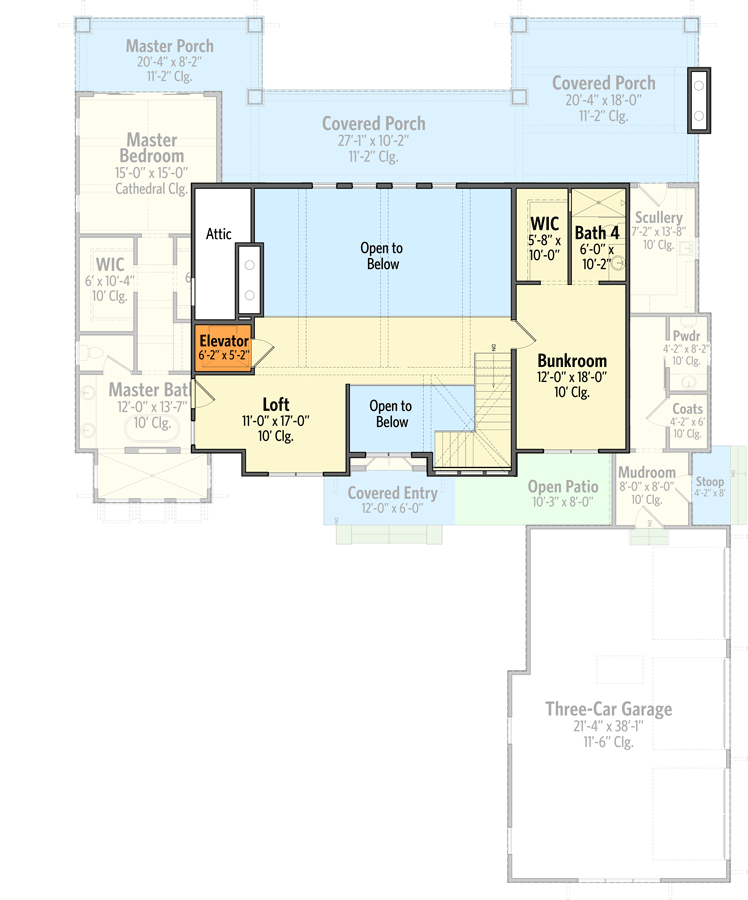

2nd Floor

Plan 871012JEN: Luxury Modern Home Plan with Expansive Outdoor Living Spaces and Pool Concept - Floor Plan - 2nd Floor - Contemporary, Modern, Prairie, Transitional

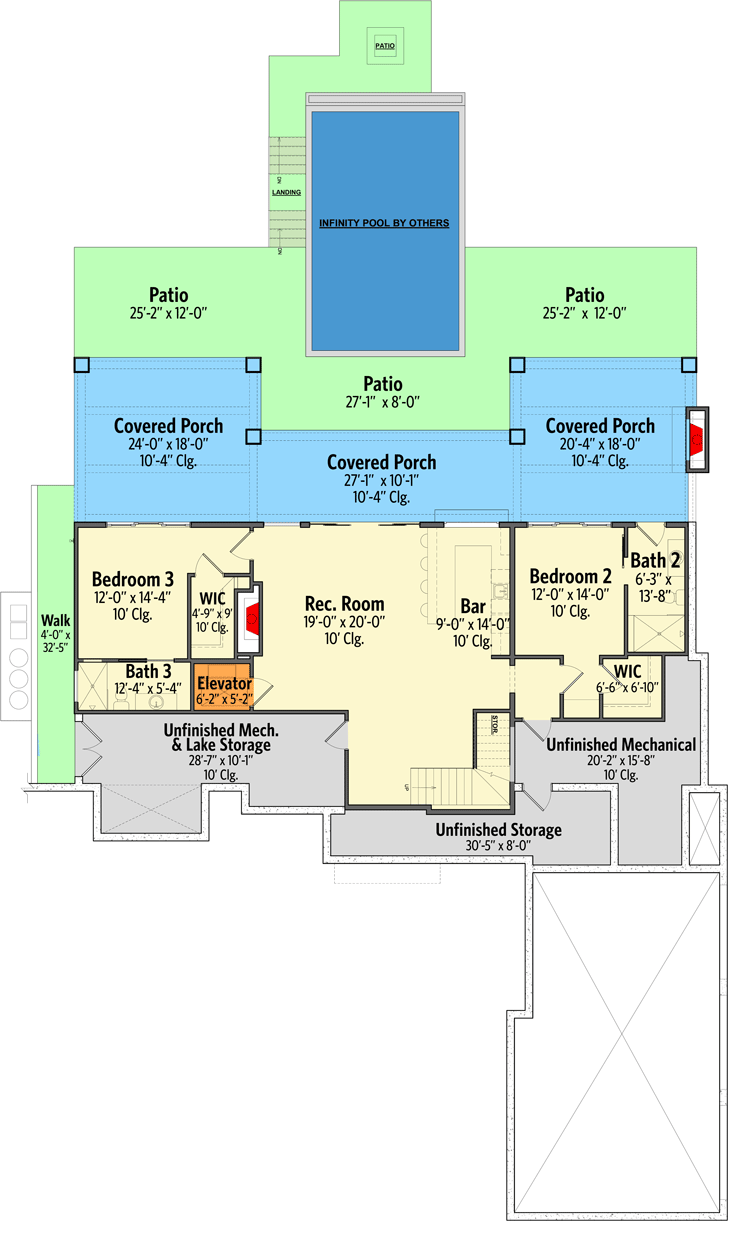

Finished Lower Level

Plan 871012JEN: Luxury Modern Home Plan with Expansive Outdoor Living Spaces and Pool Concept - Floor Plan - Finished Lower Level - Contemporary, Modern, Prairie, Transitional

Plan Details

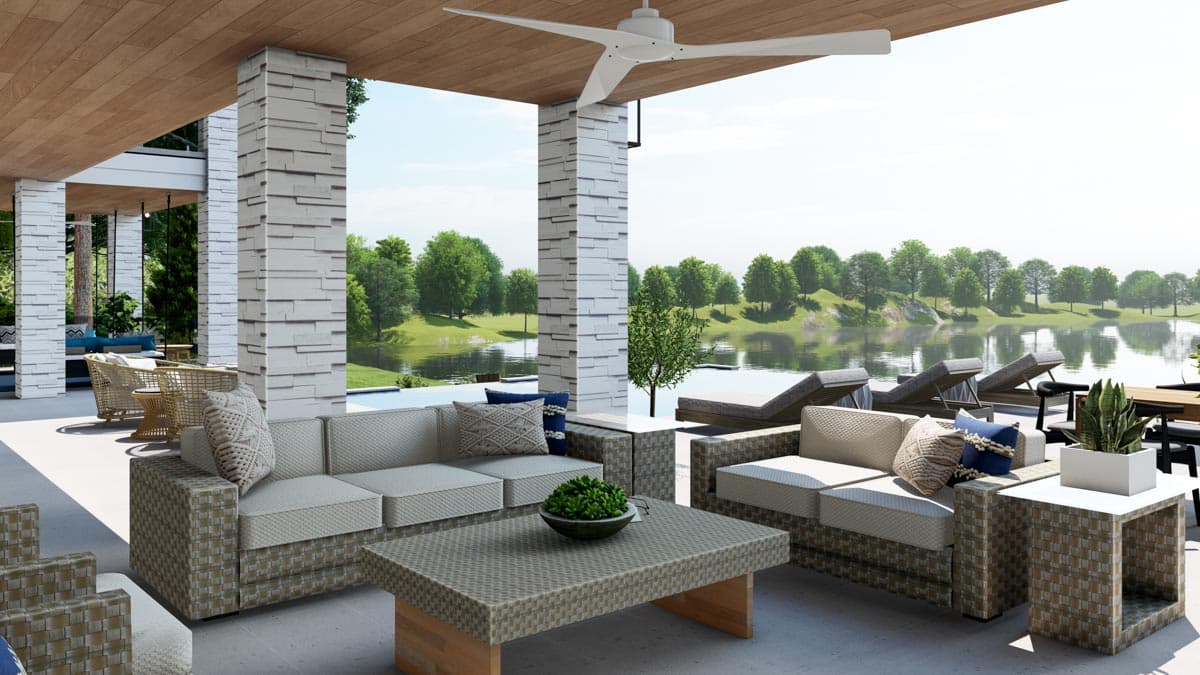

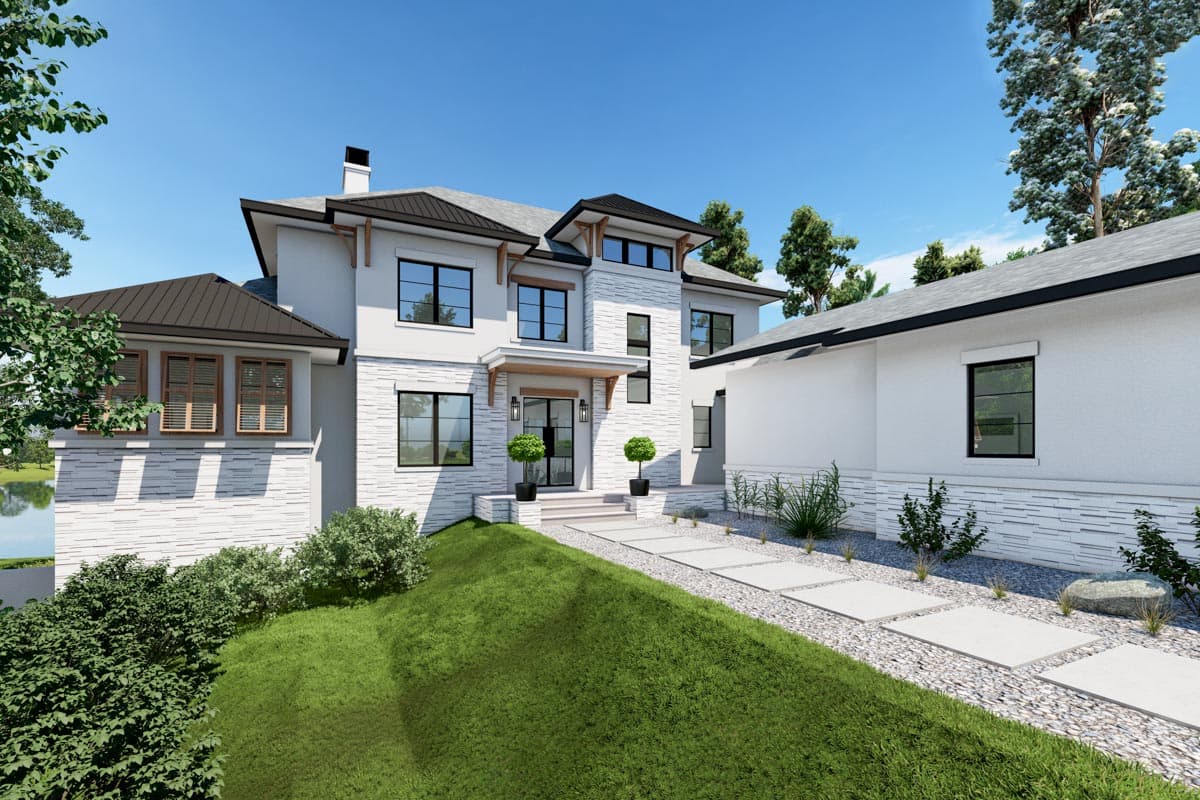

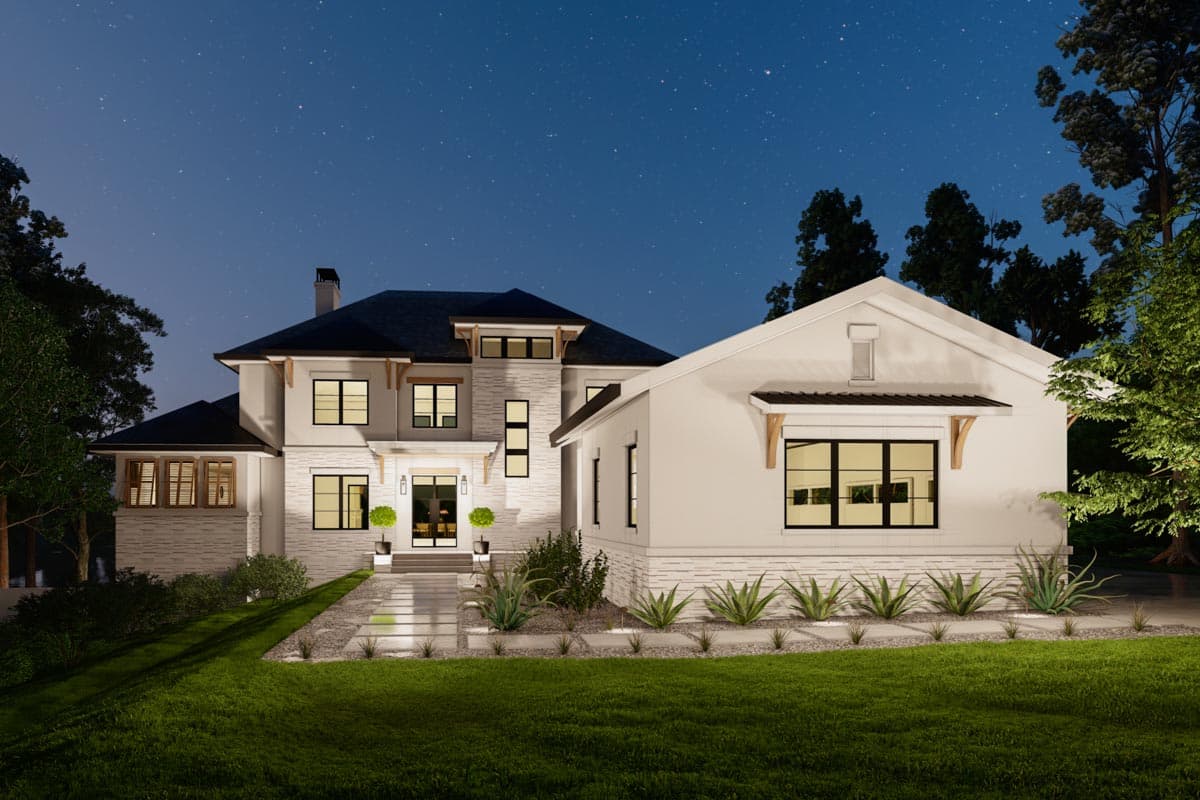

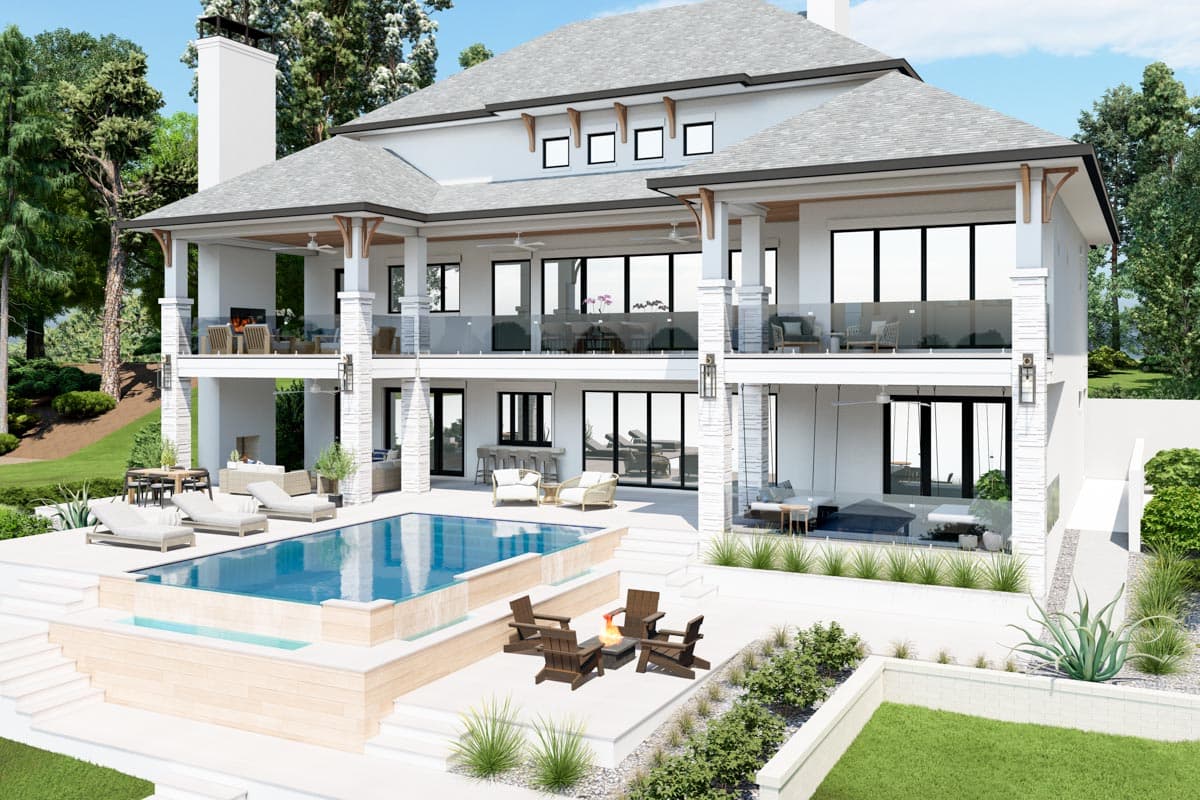

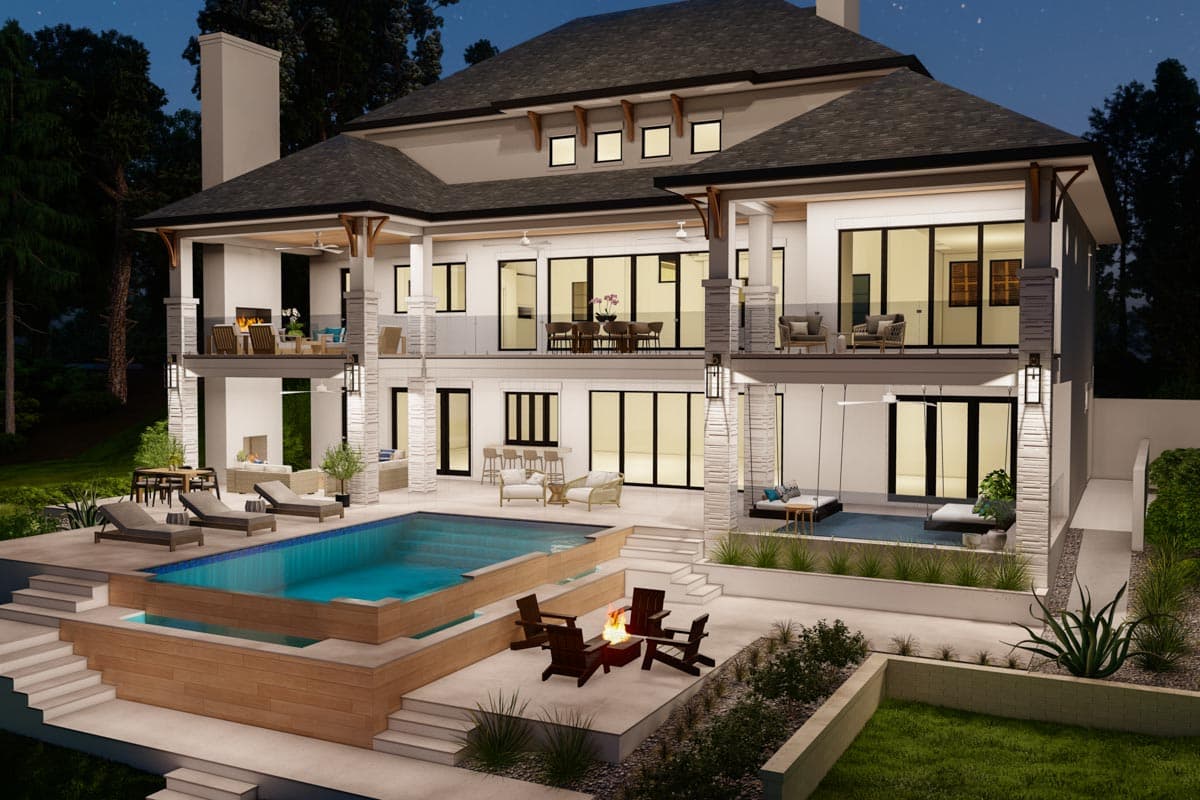

  • Designed for outdoor living, this Modern Home plan presents a stunning exterior with stacked covered porches consuming the rear elevation.

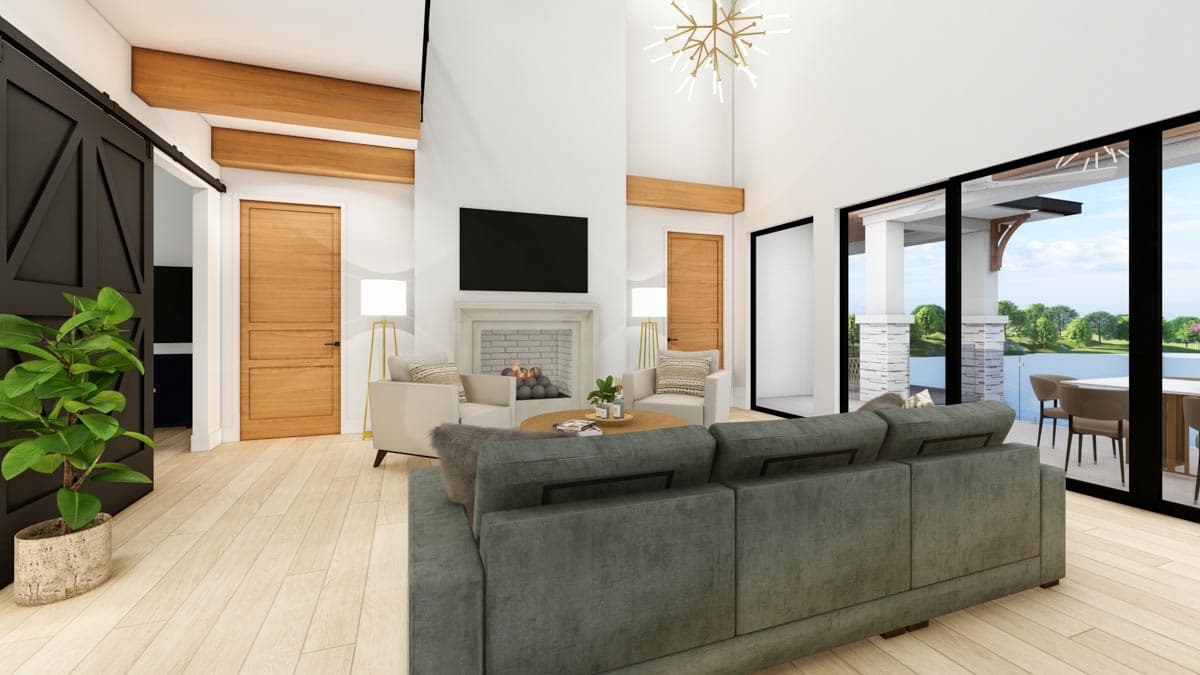

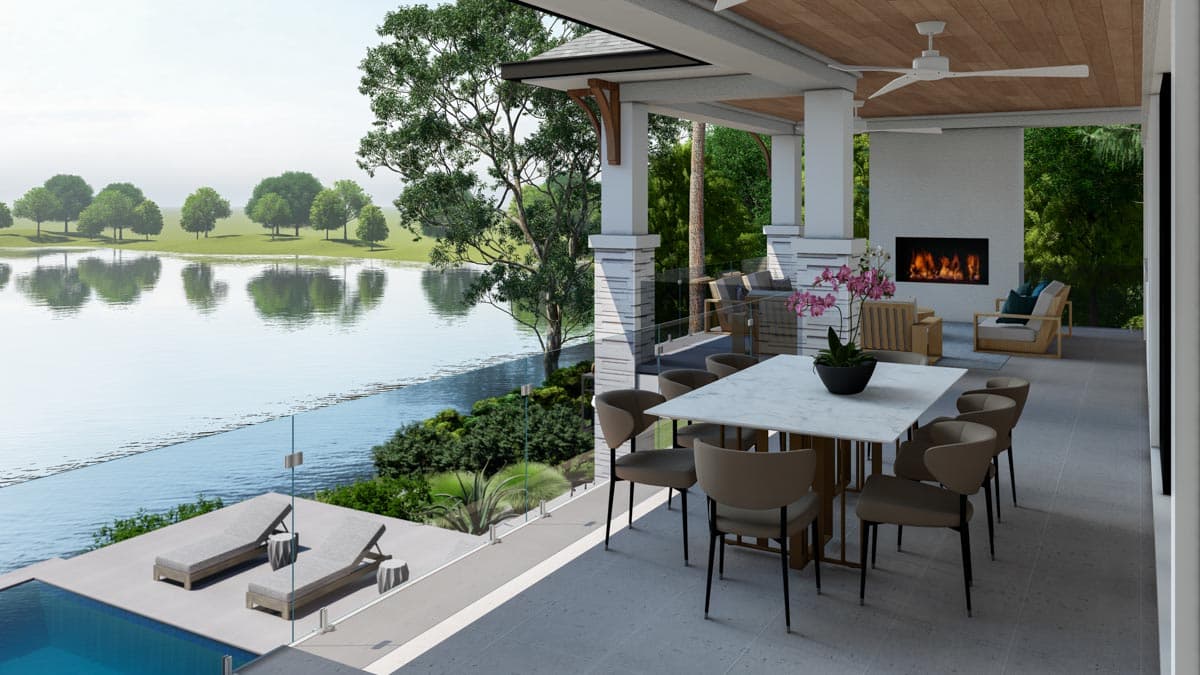

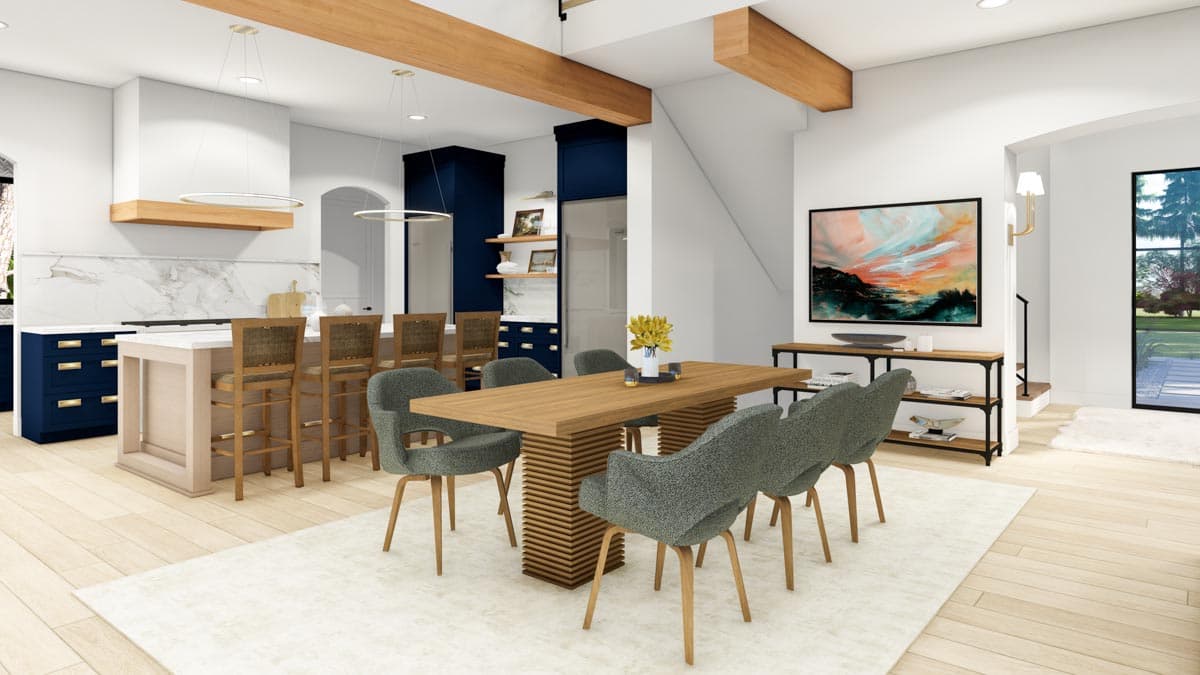

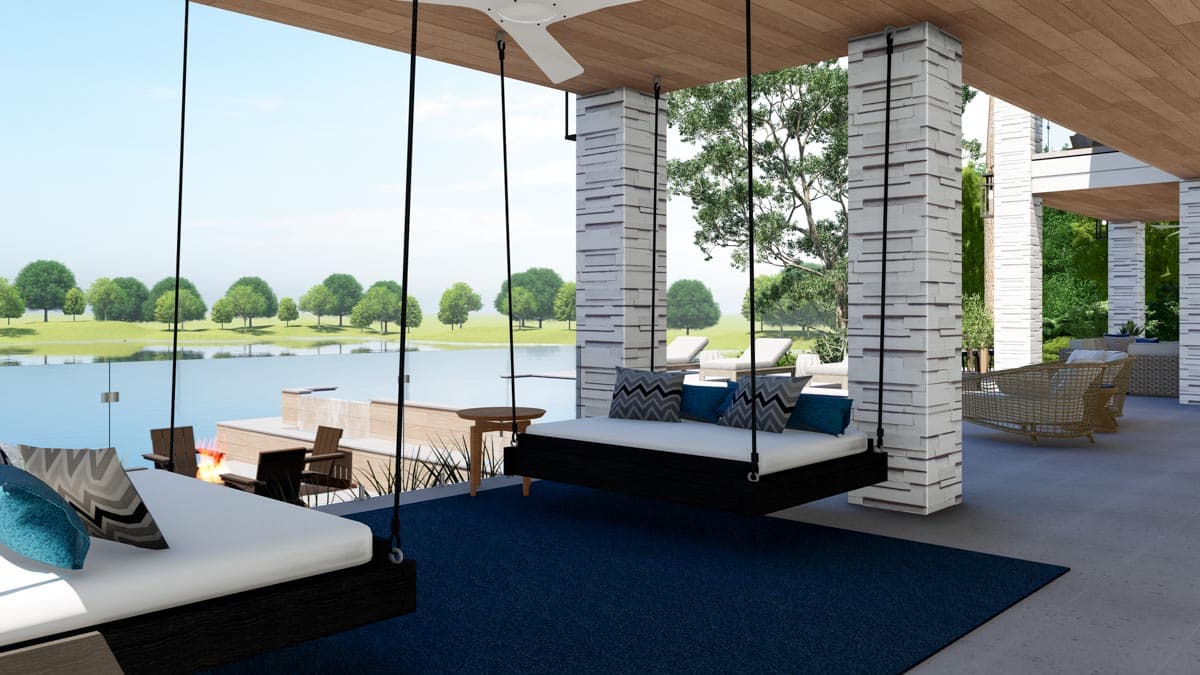

  • Each room invites you to spend time on the covered porch, while the combined great room, dining area, and kitchen make entertaining easy.

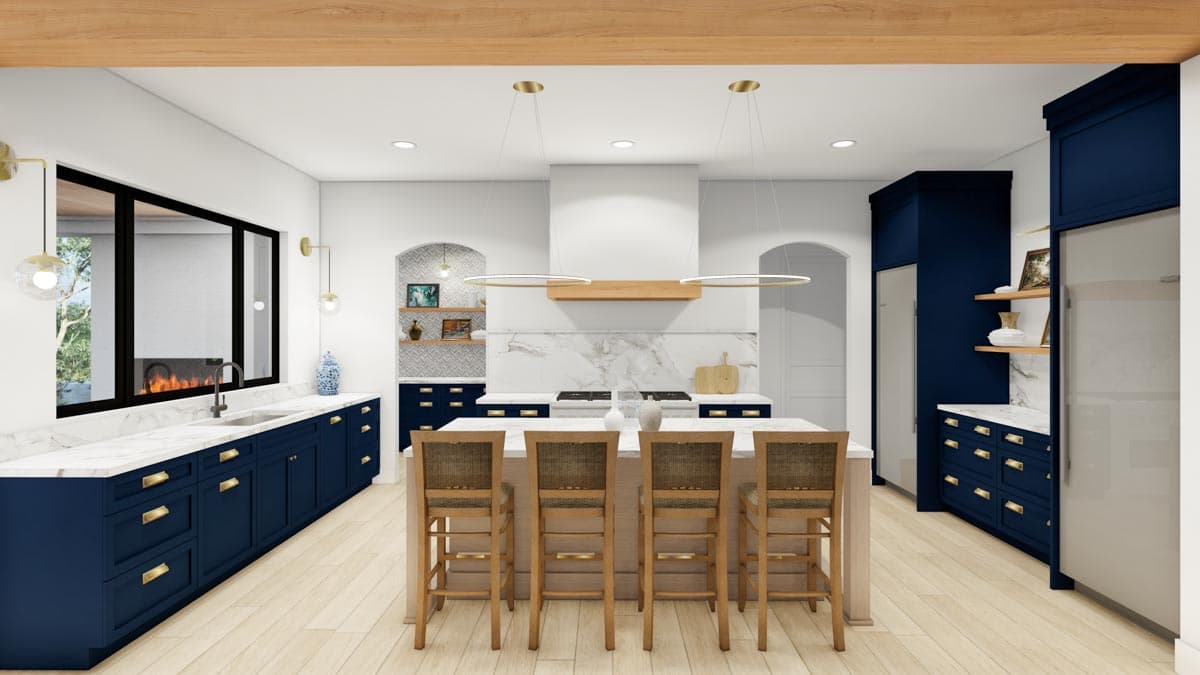

  • The gourmet kitchen hosts a large range, island with casual seating, and a scullery used to prep meals or do dishes when entertaining.
  • The master bedroom is conveniently located on the main level, but the elevator or staircase can guide you up to a sizable bunk room with a full bath.
  • The spacious lower level enjoys a rec room that opens to a lower porch and includes a wet bar, as well as two bedroom suites.
  • BUILDING RESTRICTION: This plan may not be built on Lake Norman, NC; Lake Wylie, NC; Mecklenburg Co. NC; Gaston Co. NC; Iredell Co. NC; Catawba Co. NC; Lincoln Co.; York Co. SC; Lancaster Co. SC.

What's Included

  • Foundation plan
  • Detailed floor plans, all three levels
  • Roof plan
  • Elevations (all four sides)
  • Sections

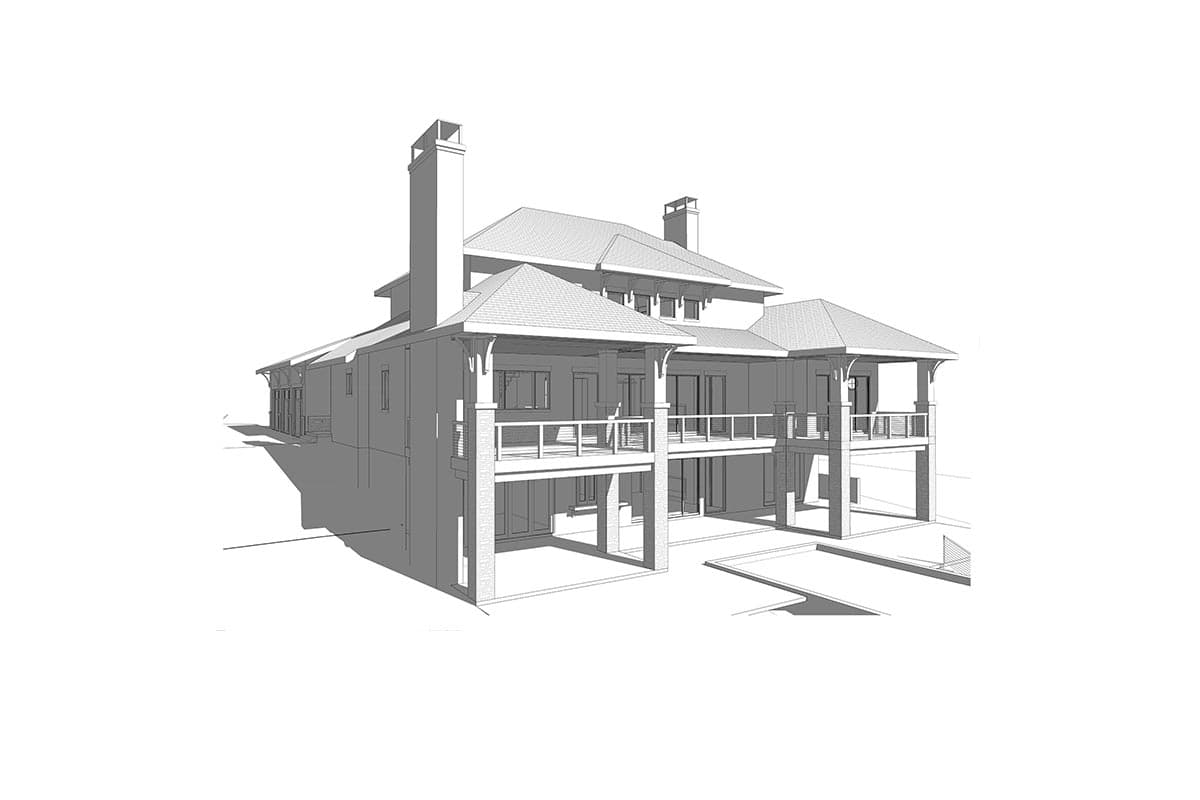

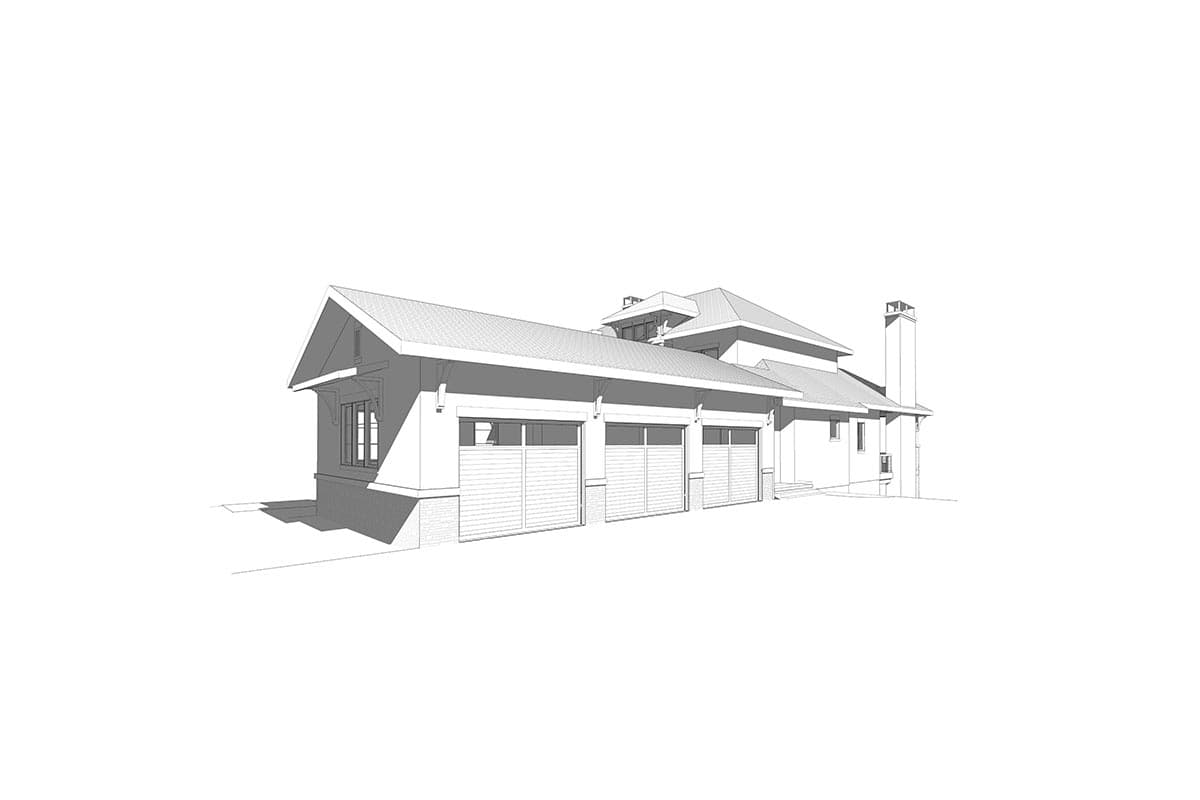

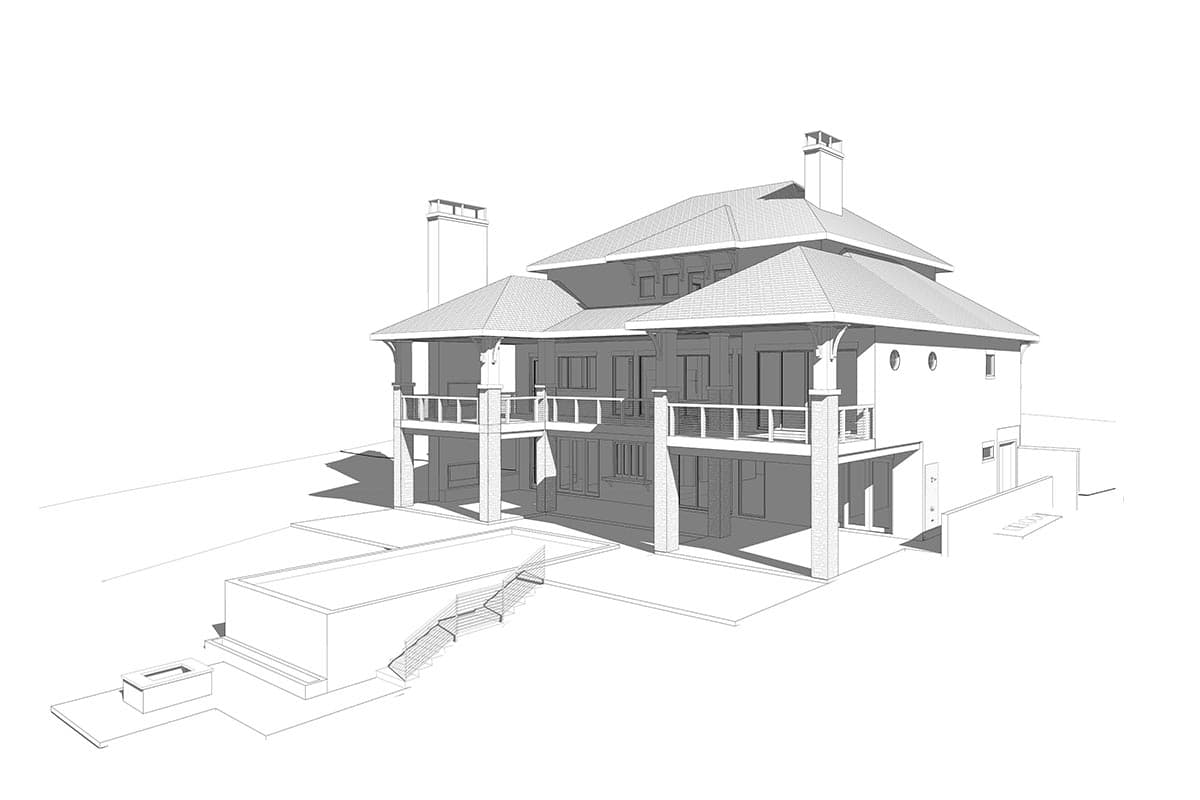

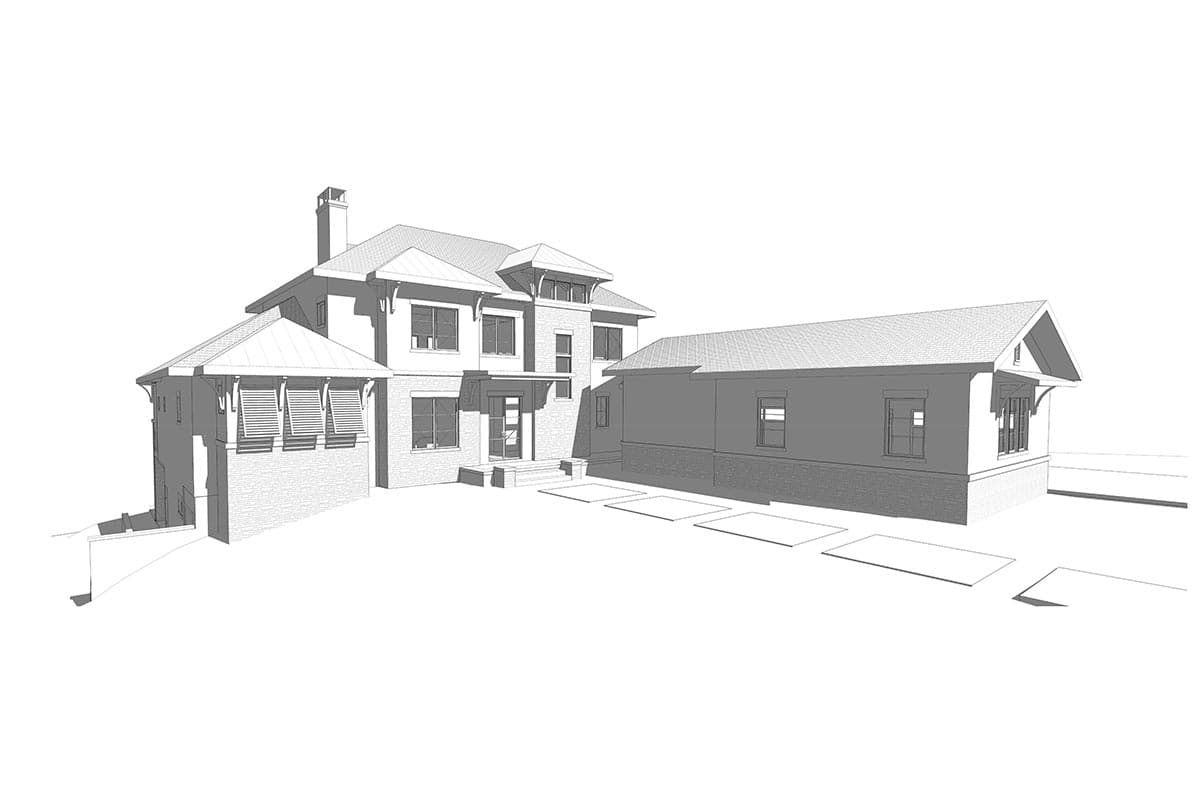

  • 3D model views
  • Electrical plans (all three levels)
  • Framing details

What's Not Included

  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

4,573 sq. ft.

Lower Level

1,478 sq. ft.

1st Floor

2,361 sq. ft.

2nd Floor

734 sq. ft.

Porch, Front

70 sq. ft.

Porch, Combined

1,826 sq. ft.

Storage

423 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

79' 1"

Depth

132' 9"

Max Ridge Height

32' 1"

Garage

Type

Attached

Area

894 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

10'

First Floor

10'

Second Floor

10'

Room

Ceiling Type

Height

Foyer

24' 10''

Great Room

20' 4''

Dining Room

20' 4''

Master Bedroom

Cathedral

0' 0''

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Prairie

Transitional

Special Features

Bunk Room

Butler Walk-in Pantry

Elevator

Game/Rec Room

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor

Mudroom

Outdoor Fireplace

Two Story Great Room

Wet Bar

Plan Collections

Lake House Plans

Luxury

Premium Collection
