Plan 23856JD Luxury Modern House Plan with Wine Room and Private Den with Guest Room Potential

5,050 5 5 2 3
1 Client
Album Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Luxury Modern House Plan with Wine Room and Private Den with Guest Room Potential

Plan 23856JD

  • 5,050

    Heated s.f.

  • 5

    Beds

  • 5

    Baths

  • 2

    Stories

  • 3

    Cars

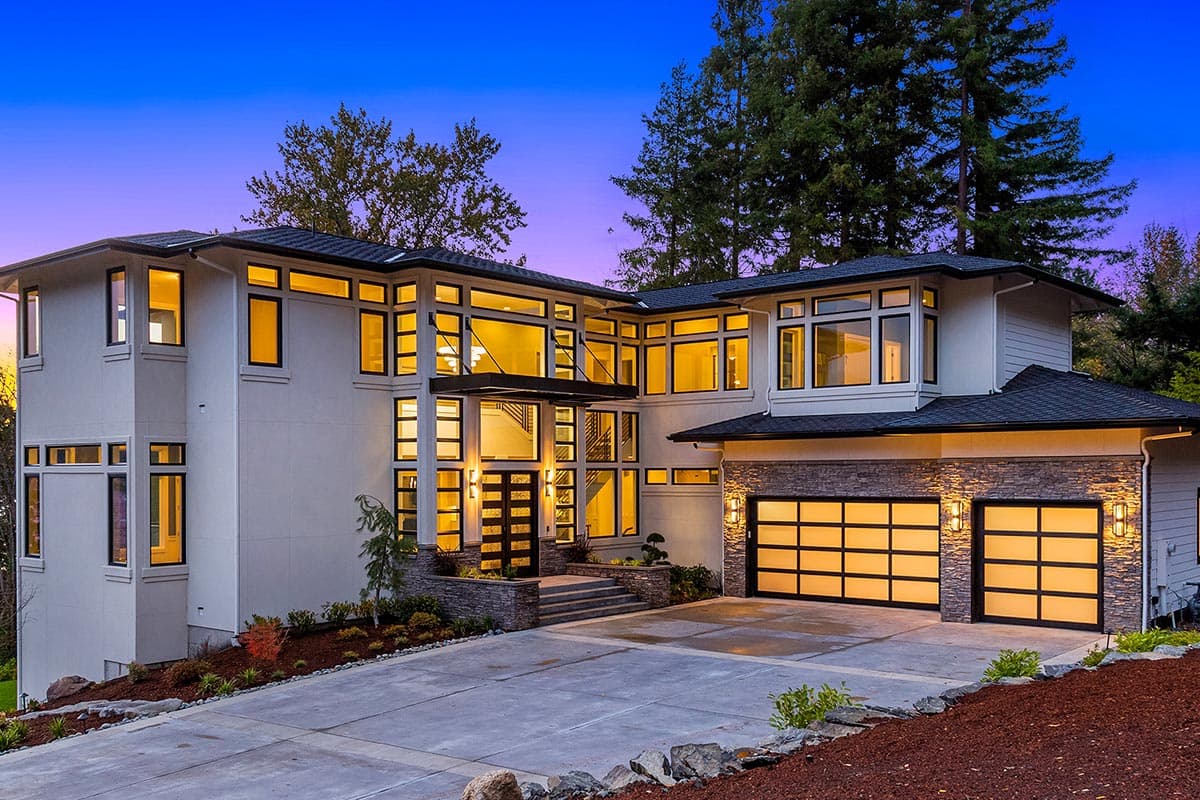

  • A mixed material exterior loaded with windows greets you when approaching this modern house plan, with an open floor plan. The covered entry opens to reveal the foyer with views to the expansive great room.
  • The lack of partition walls on the main level provides clean sightlines between the open great room, dining area, and kitchen. A sliding wall in the dining room leads to your outdoor patio, which has a covered and an uncovered portion.
  • The kitchen has a large island with seating and plenty of workspace. A pantry is located nearby and gives you great storage.
  • A den by day and a guest bedroom by night; the private den offers versatility on the main level.
  • The master bedroom and three family bedrooms are located on the upper floor, along with the laundry room.
  • Gain 1,385 square feet of living space with the lower level, and enjoy a generous recreation / media room that extends onto a covered patio, along with a fifth bedroom.
  • Related Plans: Get an alternate version in reverse with house plan 23632JD and remove the lower level with house plan 23628JD.
  • NOTE:  Additional fees apply when building in the State of Washington. Contact us for more information.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet

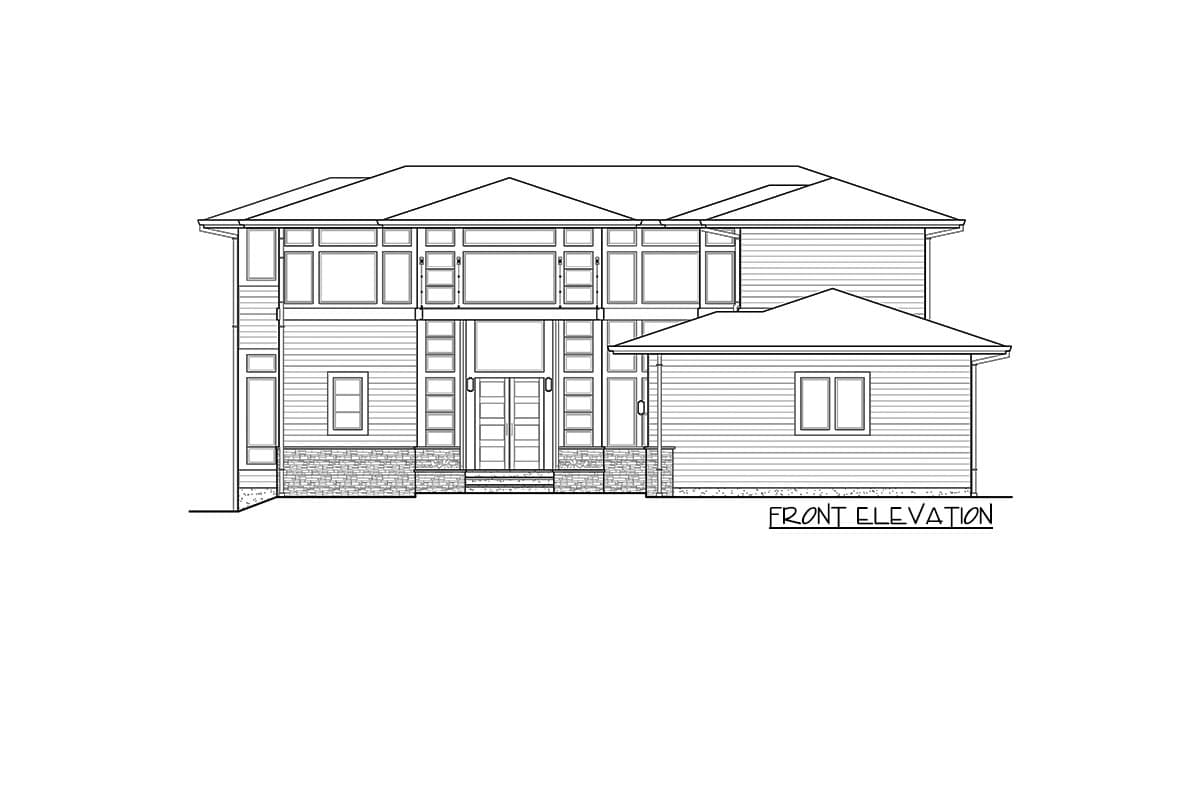

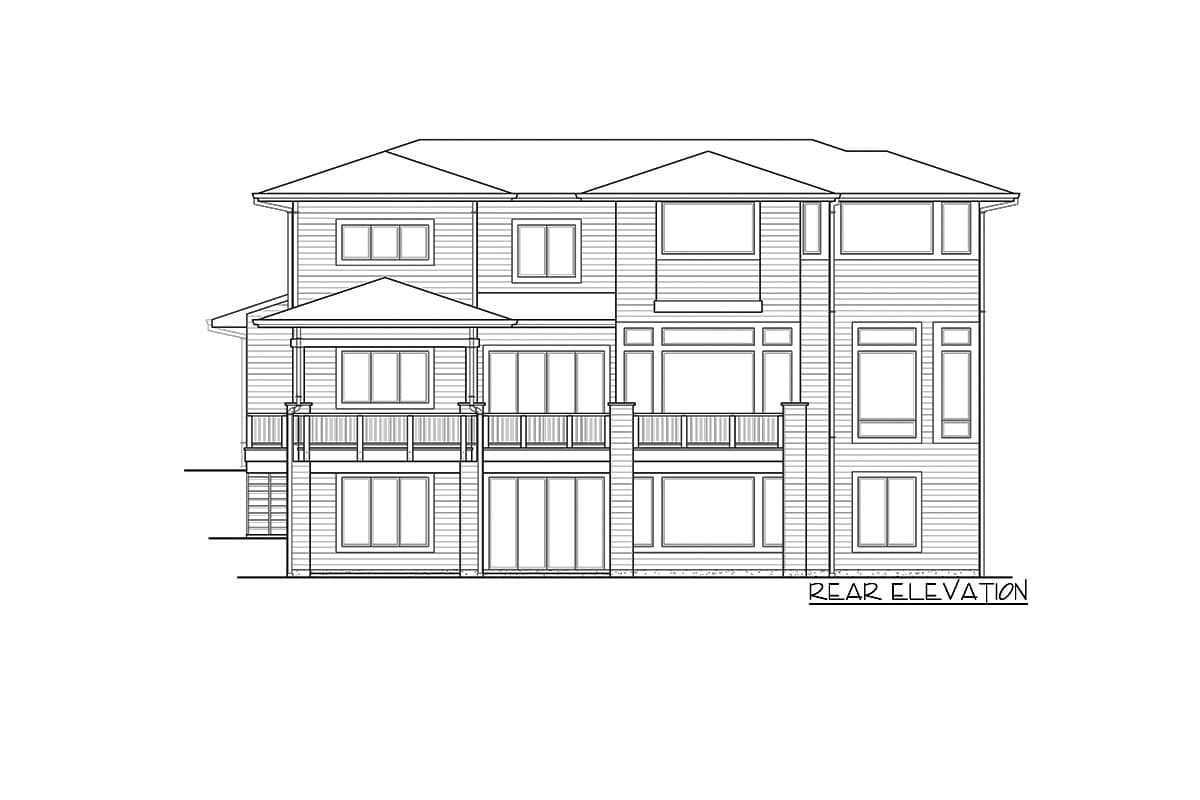

Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

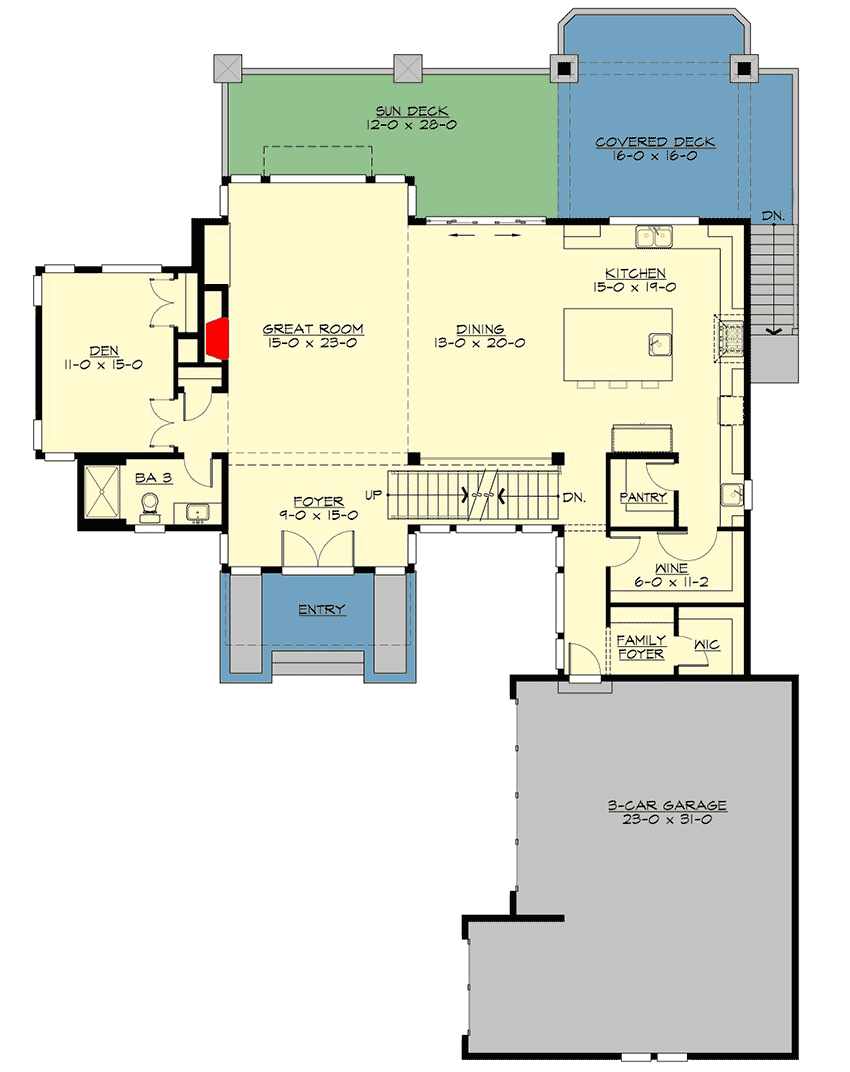

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

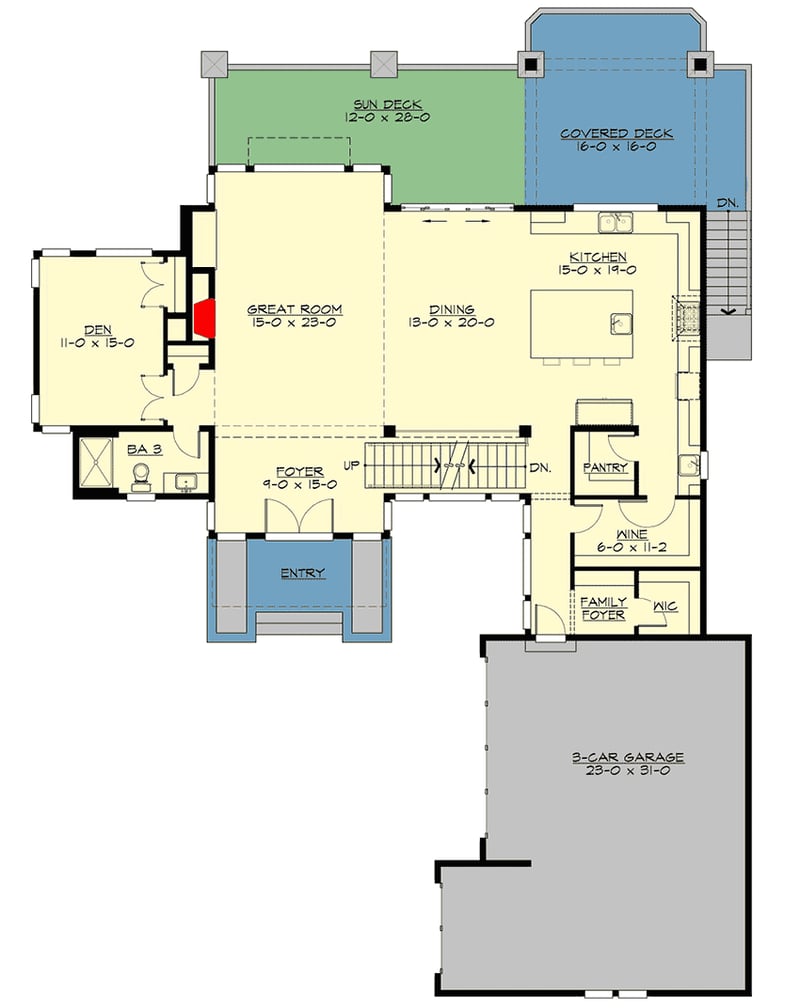

Luxury Modern House Plan with Wine Room and Private Den with Guest Room Potential - 23856JD floor plan - Main Level

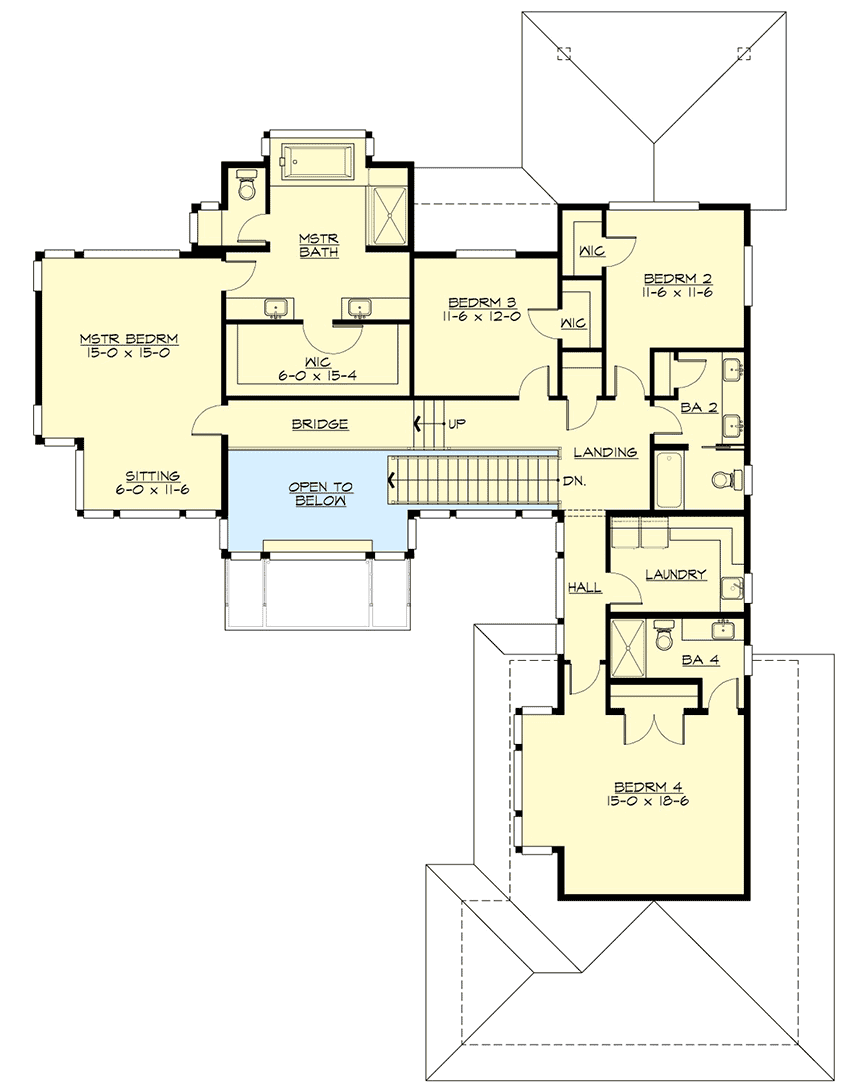

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

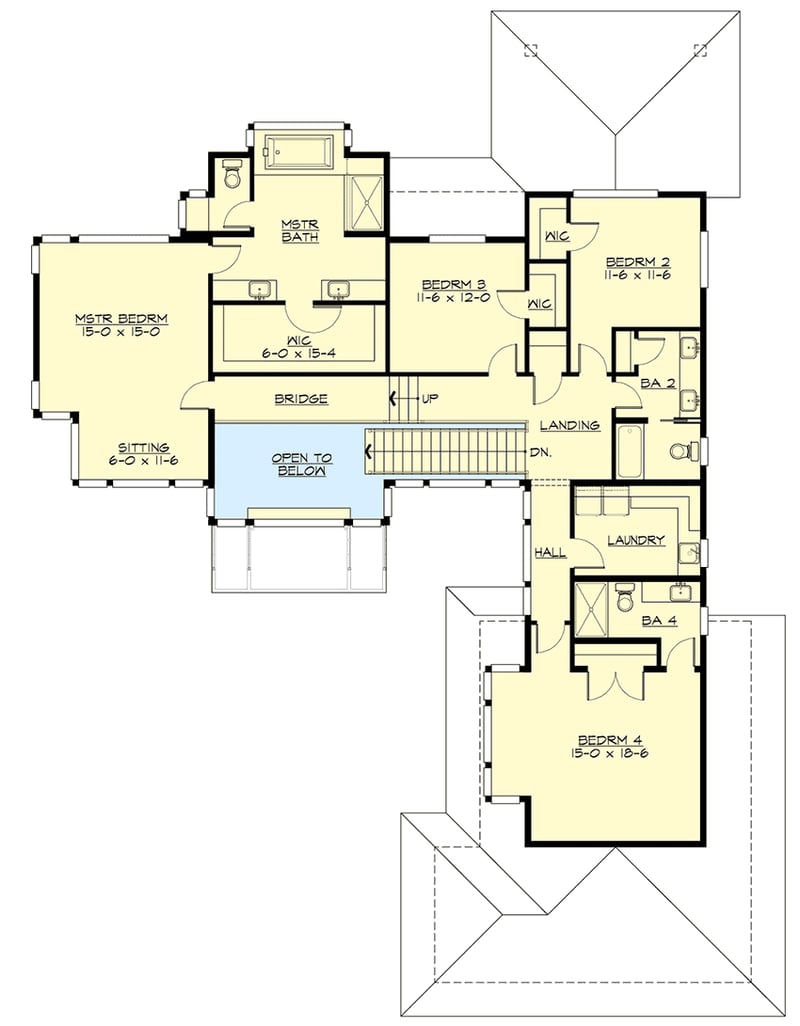

Luxury Modern House Plan with Wine Room and Private Den with Guest Room Potential - 23856JD floor plan - 2nd Floor

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

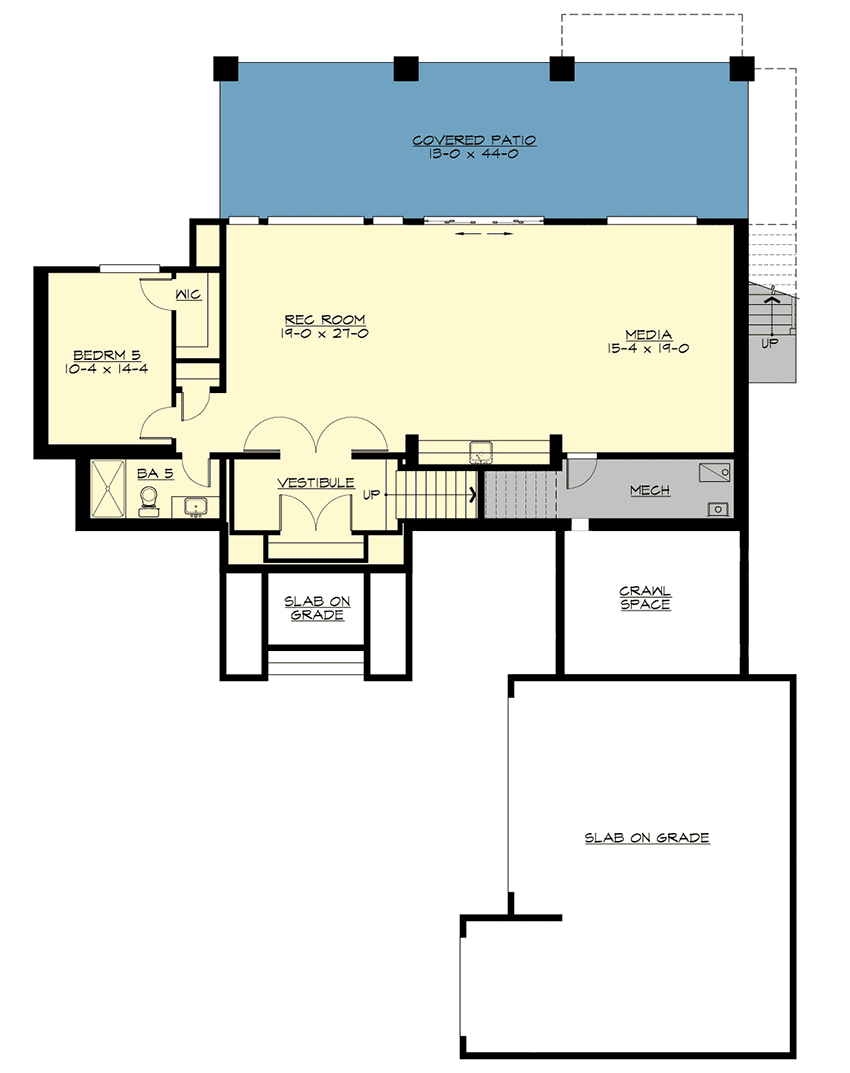

Luxury Modern House Plan with Wine Room and Private Den with Guest Room Potential - 23856JD floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 5,050 sq. ft.
  • Lower Level: 1,385 sq. ft.
  • 1st Floor: 1,760 sq. ft.
  • 2nd Floor: 1,905 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 63' 6"
  • Depth: 83' 6"
  • Max ridge height: 26' 0"

Garage

  • Type: Attached
  • Area: 815 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 4 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Luxury Modern House Plan with Wine Room and Private Den with Guest Room Potential

  • 5,050

    Heated s.f.

  • 5

    Beds

  • 5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $3,100
  • CAD + PDF - Unlimited Build $4,900
  • View all purchase option online

About This Plan

  • A mixed material exterior loaded with windows greets you when approaching this modern house plan, with an open floor plan. The covered entry opens to reveal the foyer with views to the expansive great room.
  • The lack of partition walls on the main level provides clean sightlines between the open great room, dining area, and kitchen. A sliding wall in the dining room leads to your outdoor patio, which has a covered and an uncovered portion.
  • The kitchen has a large island with seating and plenty of workspace. A pantry is located nearby and gives you great storage.
  • A den by day and a guest bedroom by night; the private den offers versatility on the main level.
  • The master bedroom and three family bedrooms are located on the upper floor, along with the laundry room.
  • Gain 1,385 square feet of living space with the lower level, and enjoy a generous recreation / media room that extends onto a covered patio, along with a fifth bedroom.
  • Related Plans: Get an alternate version in reverse with house plan 23632JD and remove the lower level with house plan 23628JD.
  • NOTE:  Additional fees apply when building in the State of Washington. Contact us for more information.

Floor Plans

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,050 sq. ft.
  • Lower Level: 1,385 sq. ft.
  • 1st Floor: 1,760 sq. ft.
  • 2nd Floor: 1,905 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 63' 6"
  • Depth: 83' 6"
  • Max ridge height: 26' 0"

Garage

  • Type: Attached
  • Area: 815 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
Plan 23856JD
View this and more for this plan by visiting www.architechtecturaldesigns.com/23856JD
|
