Plan 54253HU

Luxury Mountain Craftsman House Plan with Five Bedrooms and Two Master Suites

Heated S.F.
4,563
Beds
5
Baths
4.5
Stories
2
Cars
3

Floor Plan

Plan 54253HU

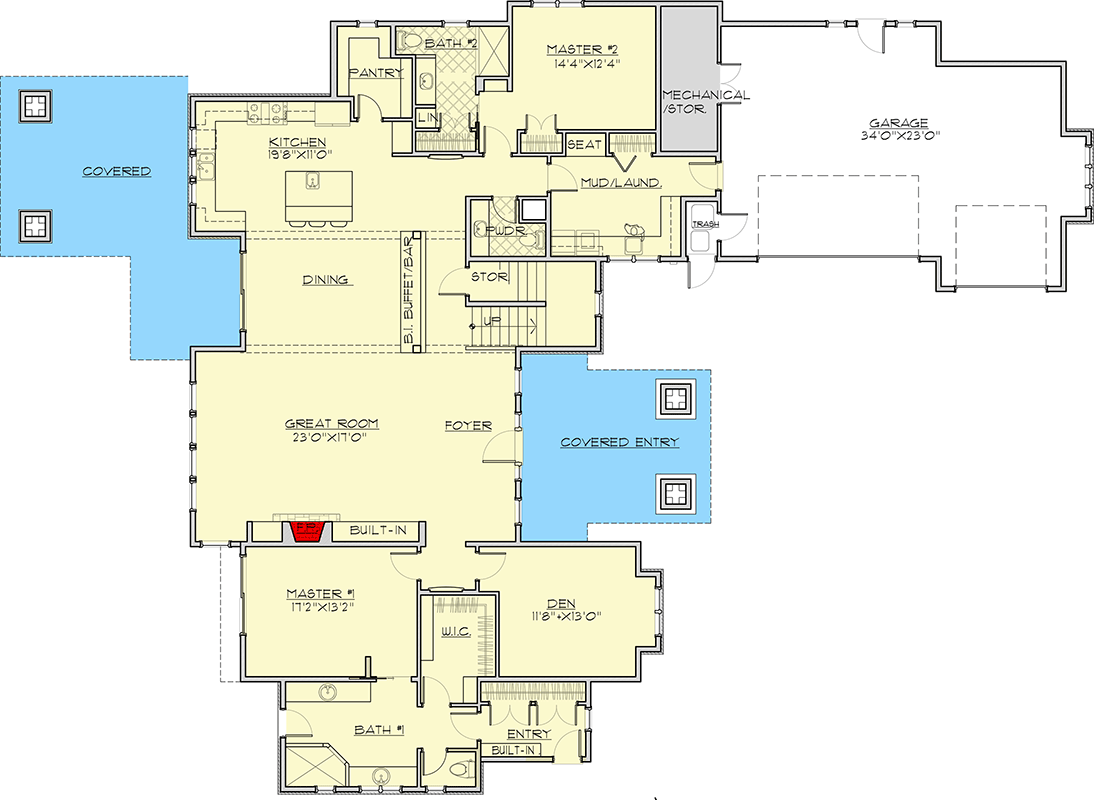

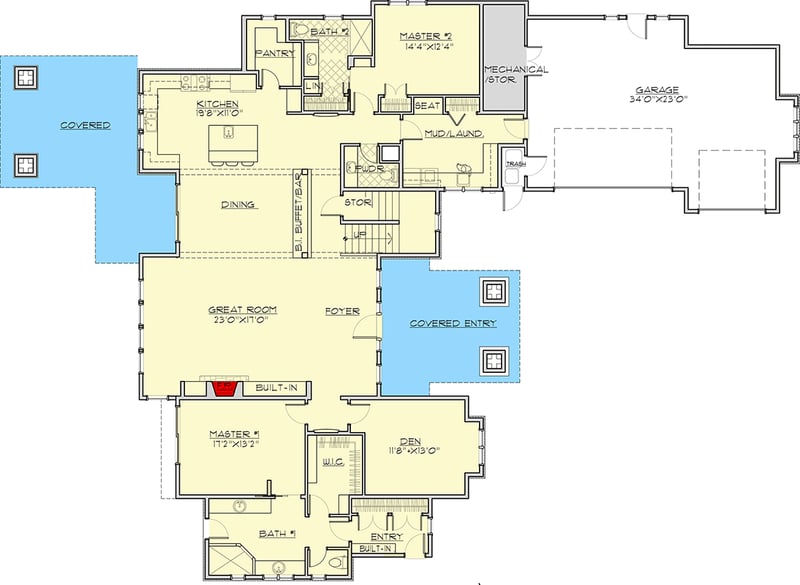

Floor Plan 1

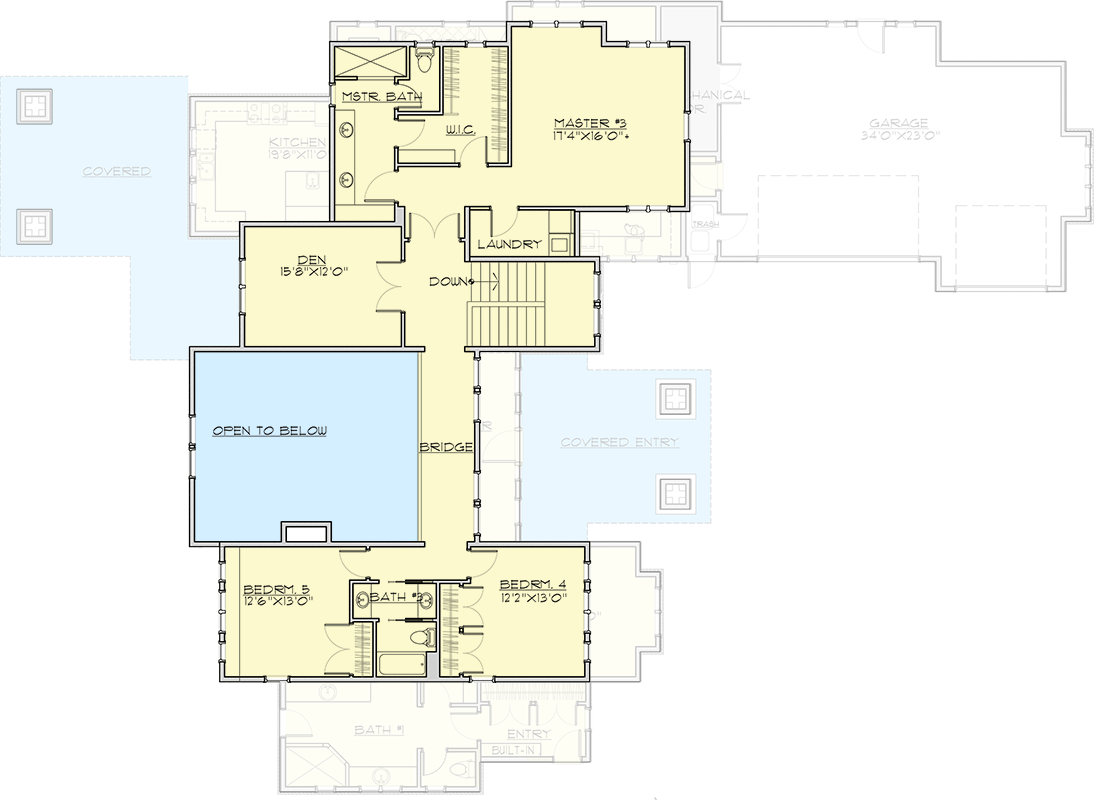

Floor Plan 2

Plan 54253HU

M-F 9am-5pm EST |

1-203-761-8500

Plan 54253HU: Luxury Mountain Craftsman House Plan with Five Bedrooms and Two Master Suites - Floor Plan - - Craftsman, Mountain, New American

Plan 54253HU: Luxury Mountain Craftsman House Plan with Five Bedrooms and Two Master Suites - Floor Plan - - Craftsman, Mountain, New American

Plan Details

  • This 4,563 square foot luxury mountain craftsman home features five bedrooms, four and a half baths, and a spacious three-car attached garage.
  • A grand courtyard arrival leads into a welcoming foyer that flows directly into an impressive two-story great room anchored by a custom fireplace.
  • The open-concept layout connects the expansive living area to a gourmet kitchen complete with a walk-in pantry and a dining room that opens to a rear covered porch.
  • Privacy is prioritized with a main-level master suite, a secondary master suite on the first floor, and an additional luxurious master suite located on the upper level.
  • A dedicated den on each floor offers quiet spaces for a home office, library, or hobby room, while an upstairs bridge overlooks the soaring great room below.

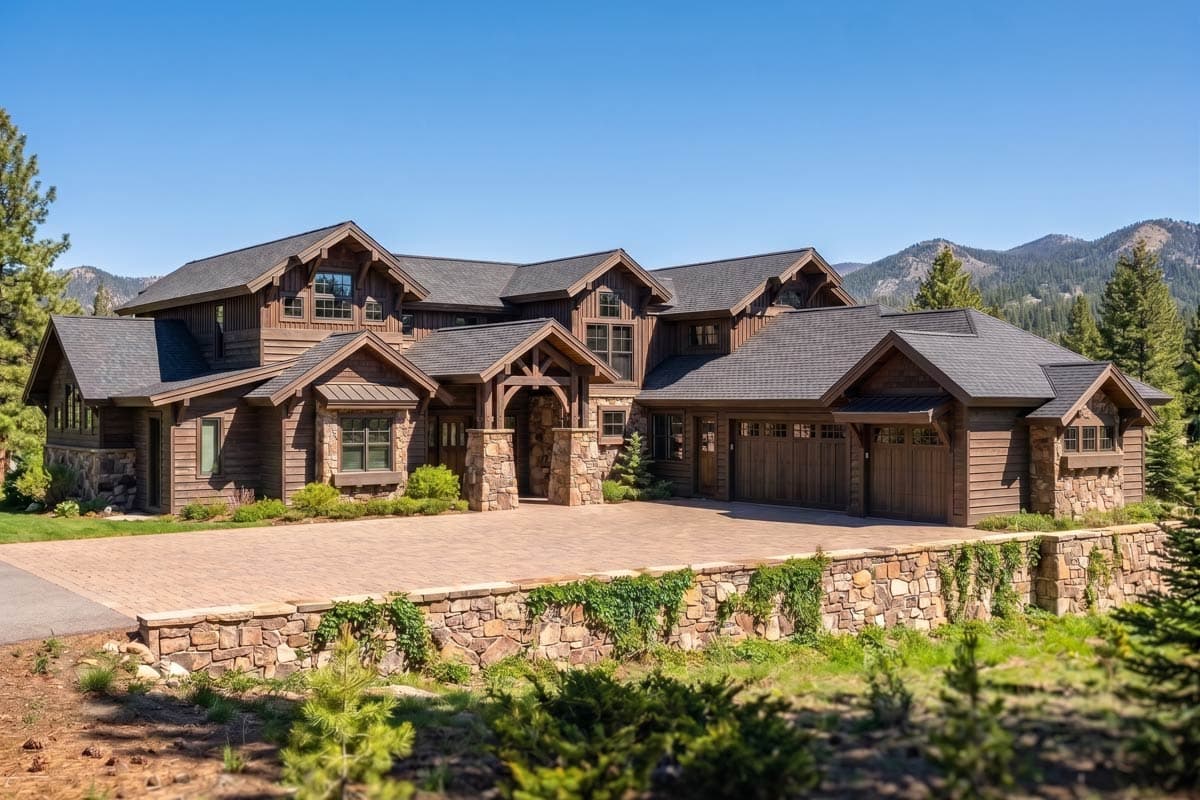

  • The exterior showcases classic mountain-inspired craftsmanship with stone detailing, timber accents, and a sprawling rear porch designed for effortless outdoor living.

What's Included

  • Cover sheet with renderings or photos
  • Site plan from original project for reference, with floor areas and drawing index
  • Main level architectural plan
  • Upper level architectural plan
  • Elevations of four sides
  • Section drawings at ¼” scale
  • Typical construction details and framing details
  • Foundation and floor framing plan
  • Upper level floor and lower roof framing plan
  • Upper roof framing plan
  • Basic lighting plans for main and upper levels available for some plans. (check availability)

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,563 sq. ft.

1st Floor

2,926 sq. ft.

2nd Floor

1,637 sq. ft.

Porch, Rear

338 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

79' 3"

Depth

107' 5"

Max Ridge Height

26' 0"

Garage

Type

Standard, Attached

Area

952 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

5 on 12

Architectural Style

Craftsman

Mountain

New American

Special Features

Bedrooms - Split

Den

Laundry Access from Master Suite

Laundry - Main Level

Laundry - Upstairs

Master Suite - 1st Floor

Master Suite - Upstairs

Mudroom

Two Master Suites

Two Story Great Room

Walk-in Pantry

Plan Collections

Luxury

Premium Collection

Square Footage Breakdown

Total Heated Area

4,563 sq. ft.

1st Floor

2,926 sq. ft.

2nd Floor

1,637 sq. ft.

Porch, Rear

338 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

79' 3"

Depth

107' 5"

Max Ridge Height

26' 0"

Garage

Type

Standard, Attached

Area

952 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

5 on 12

Architectural Style

Craftsman

Mountain

New American

Special Features

Bedrooms - Split

Den

Laundry Access from Master Suite

Laundry - Main Level

Laundry - Upstairs

Master Suite - 1st Floor

Master Suite - Upstairs

Mudroom

Two Master Suites

Two Story Great Room

Walk-in Pantry

Plan Collections

Luxury

Premium Collection
