Plan 95083RW
Luxury New American Home Plan with Split Bedrooms
Heated S.F.
3,237
Beds
3-6
Baths
4 - 5
Stories
2
Cars
3
Floor Plan

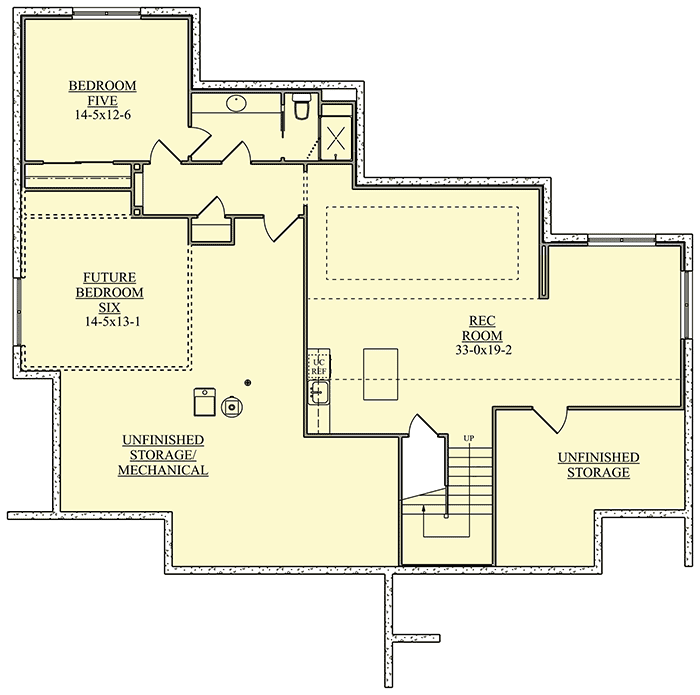

Optional Lower Level Layout
Reverse Floor Plan

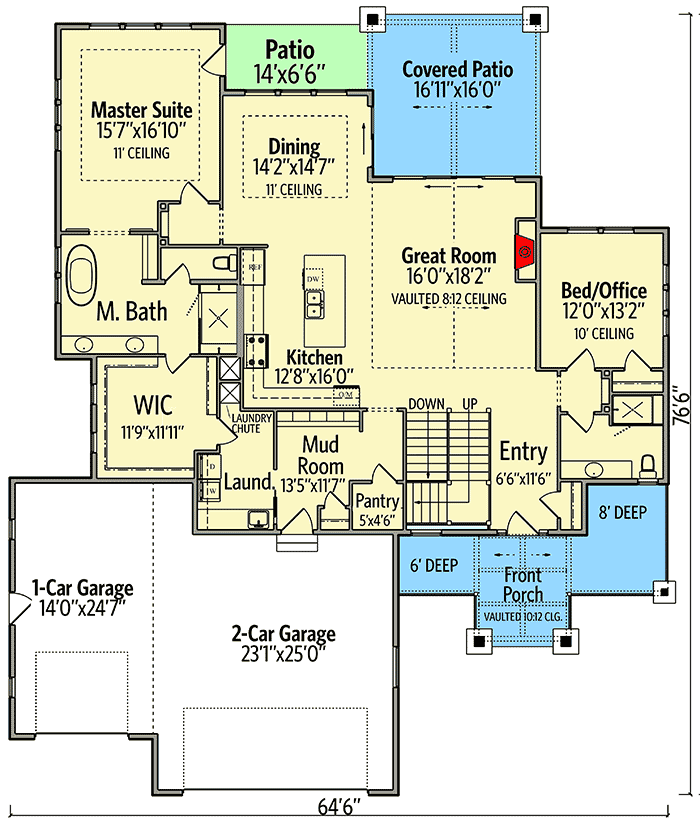

Luxury New American Home Plan with Split Bedrooms - 95083RW floor plan - Optional Lower Level Layout
Plan Details

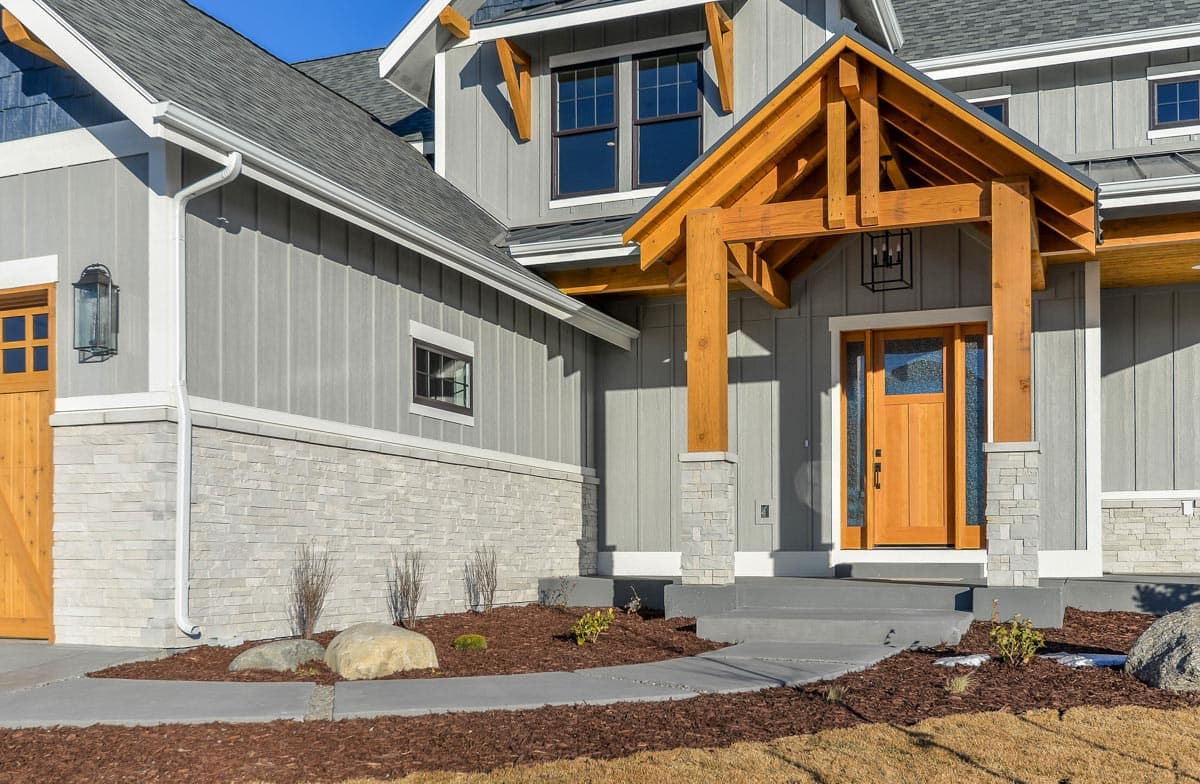

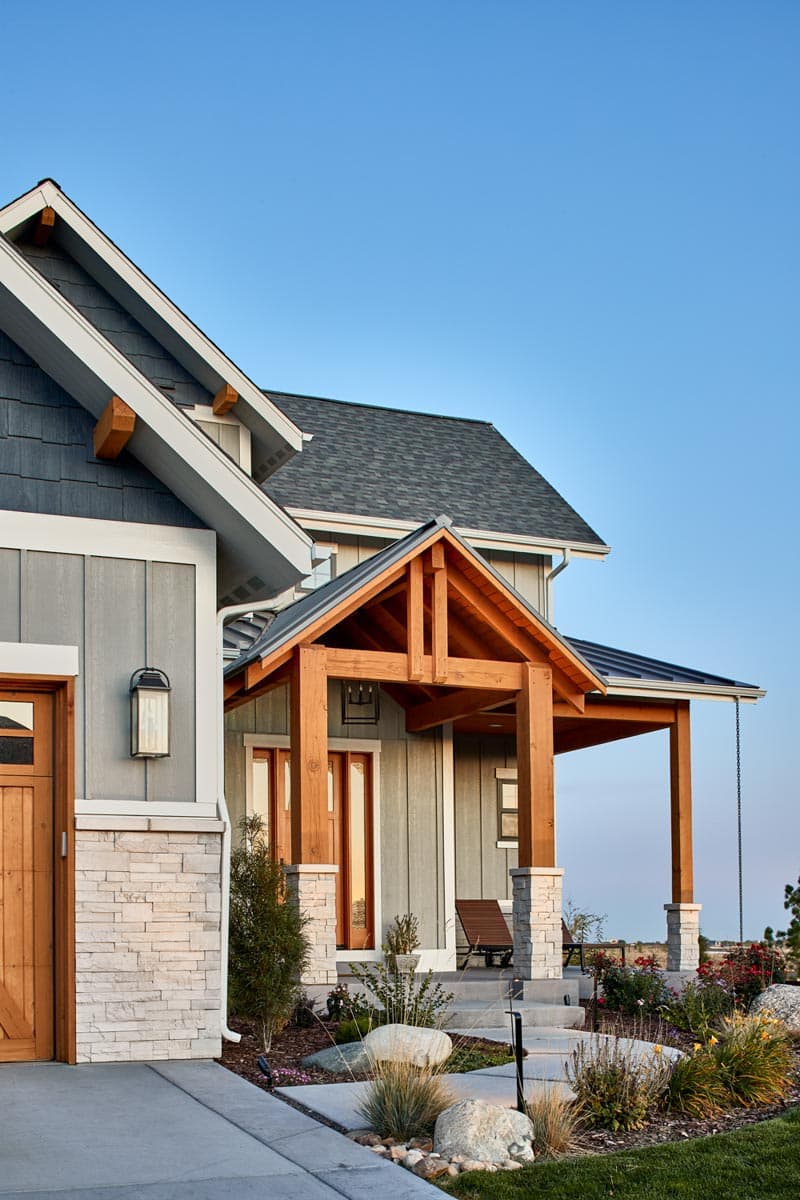

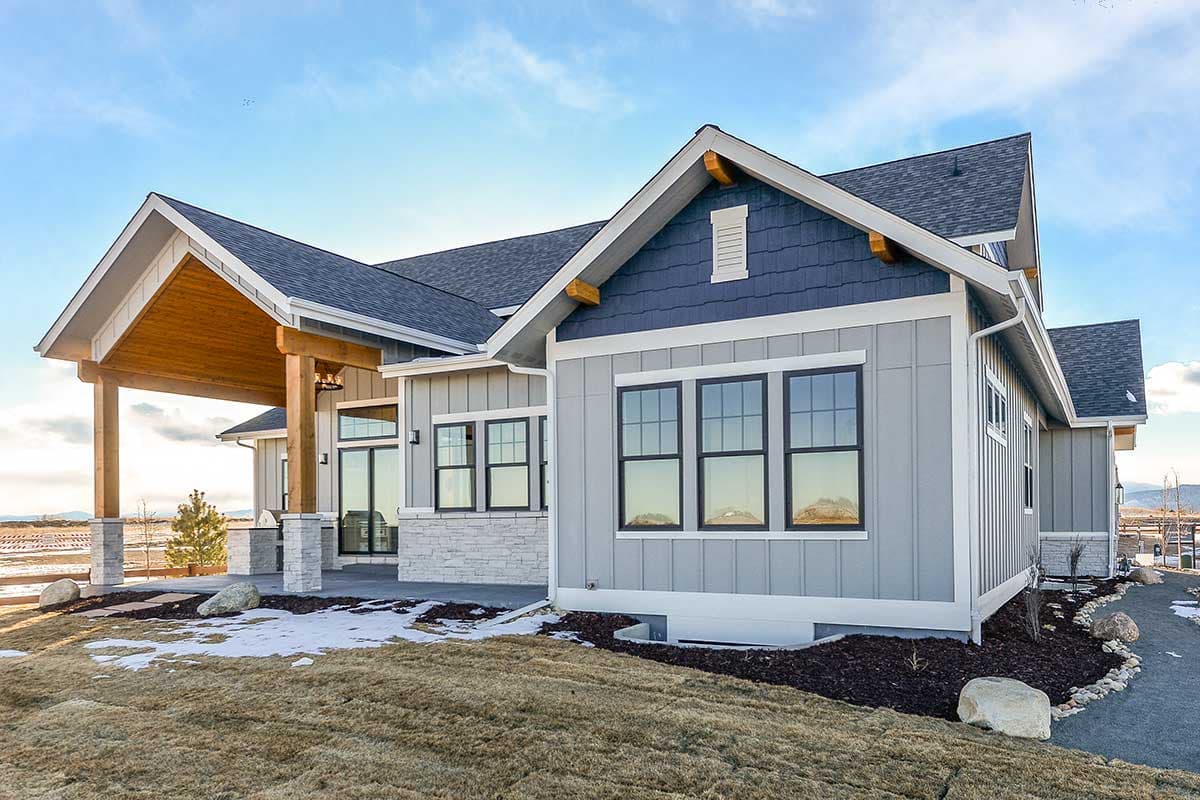

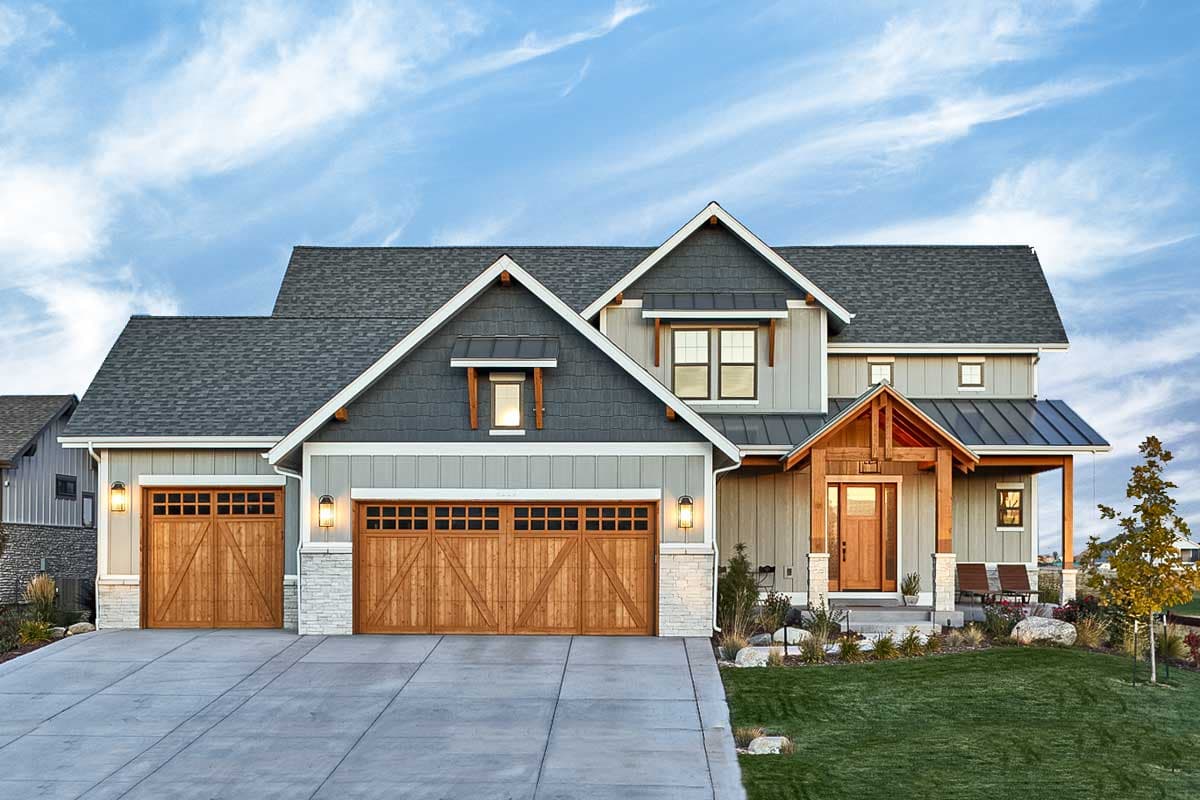

  • Craftsman detailing on the exterior of this luxury, New American home plan compliments the beautiful blend of siding materials. The exposed-truss framing on the front porch completes the look.

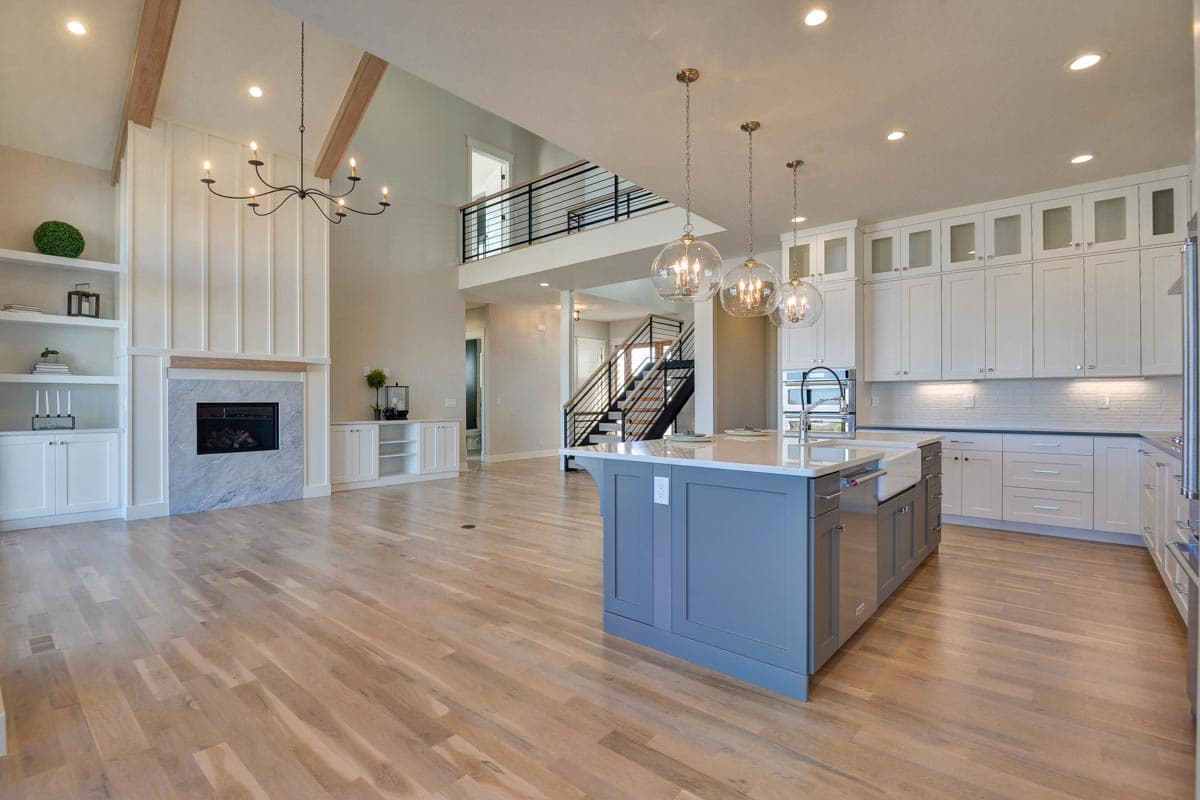

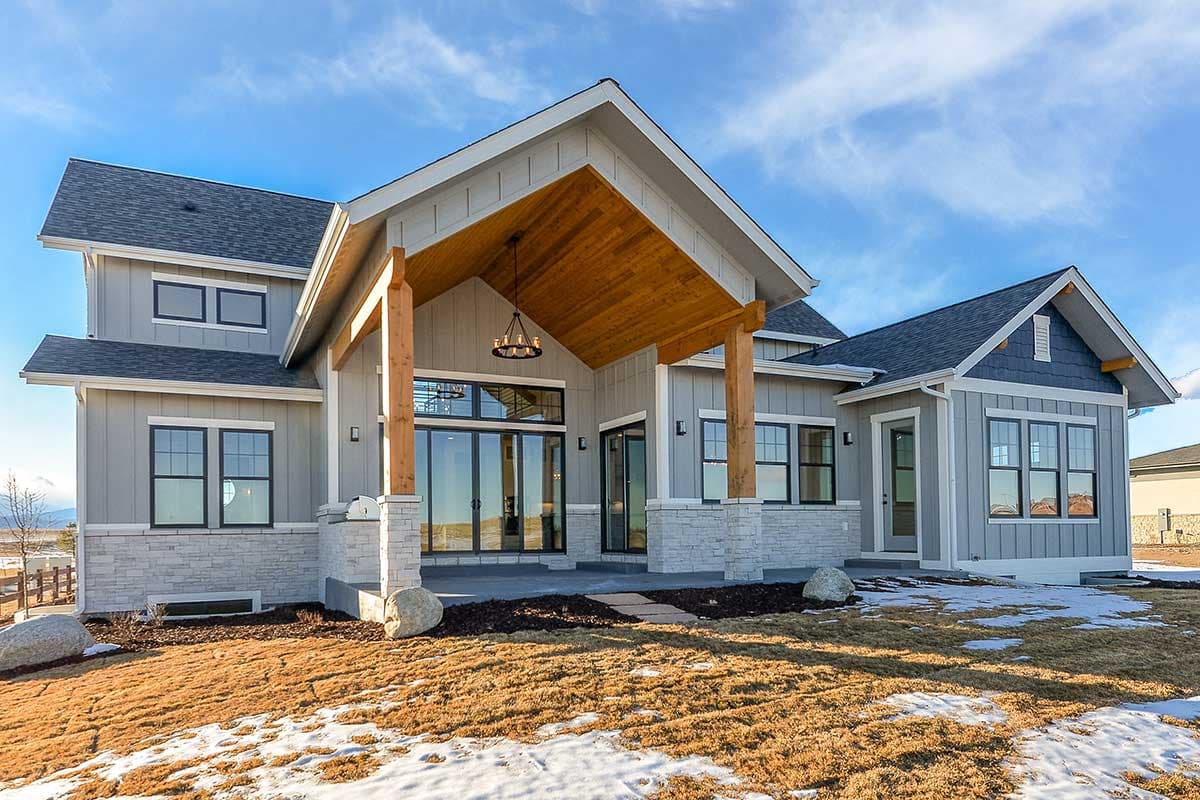

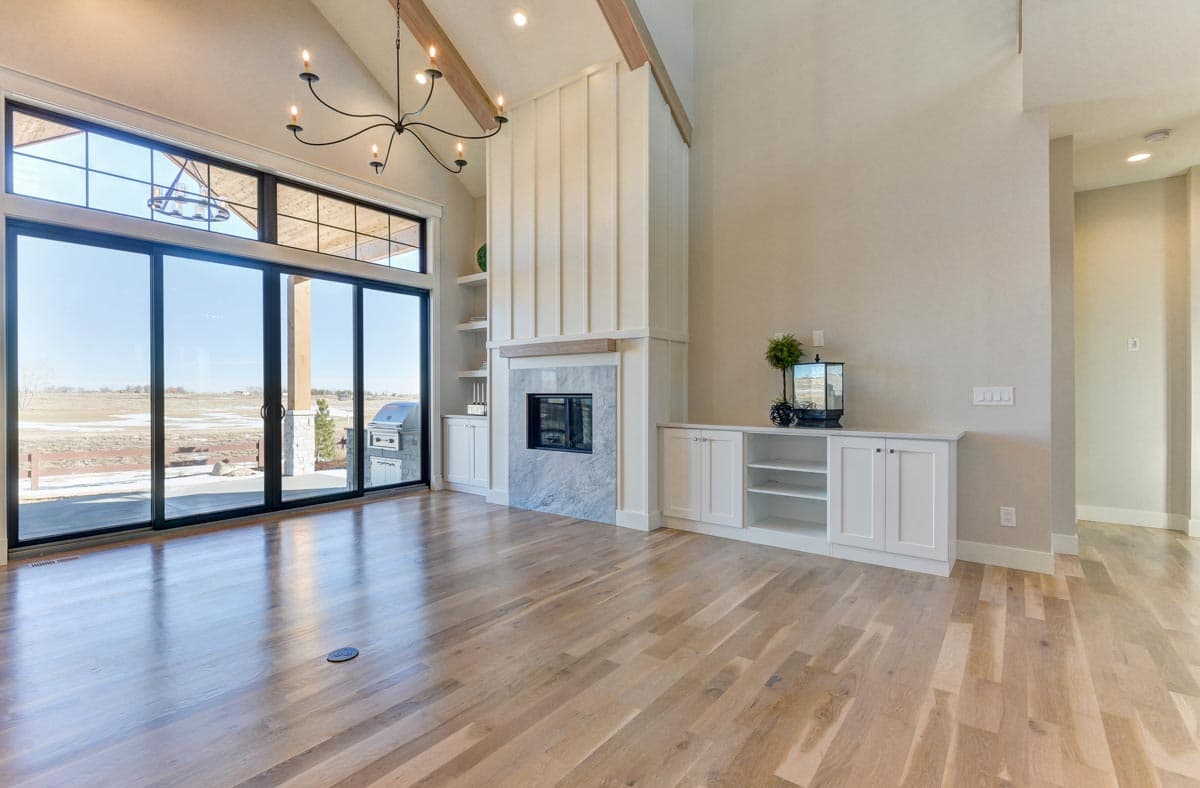

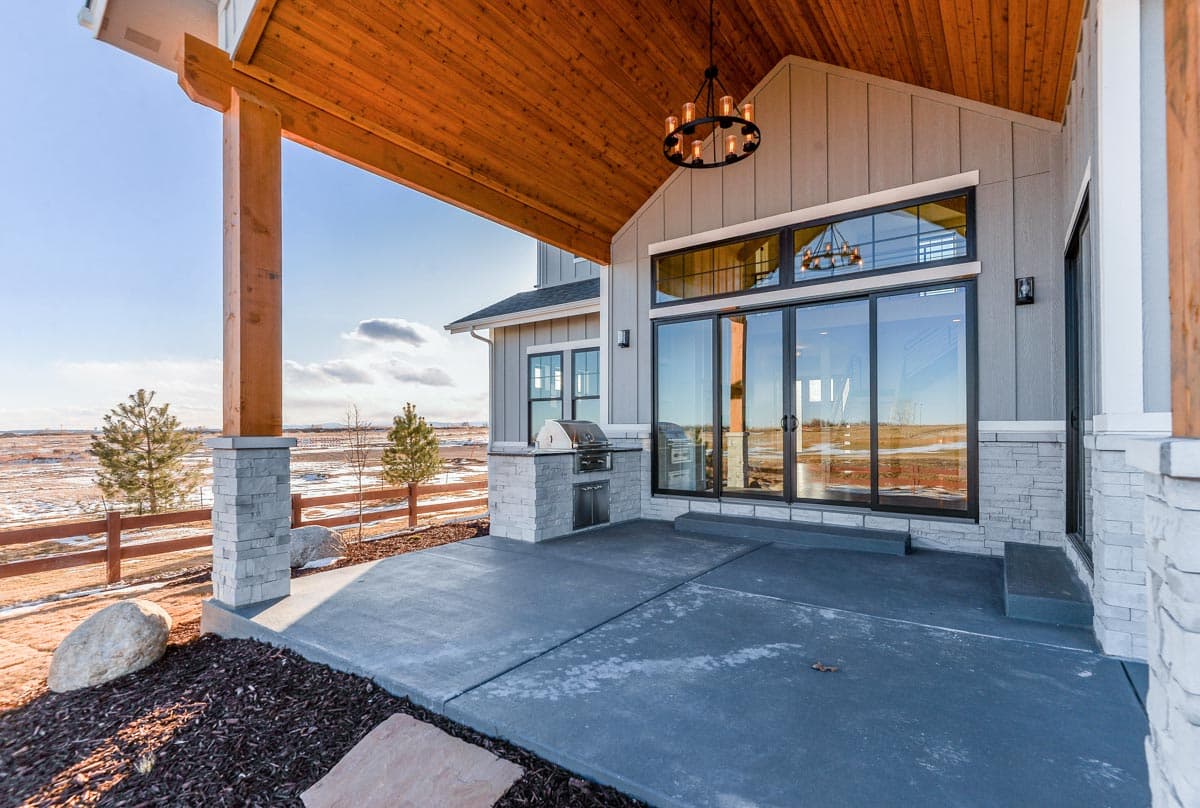

  • Inside, a vaulted ceiling above the great room extends onto the covered patio out back, and the open floor plan allows conversation to easily flow when entertaining. A home office by day, and guest bedroom by night, occupies the right side of the home.

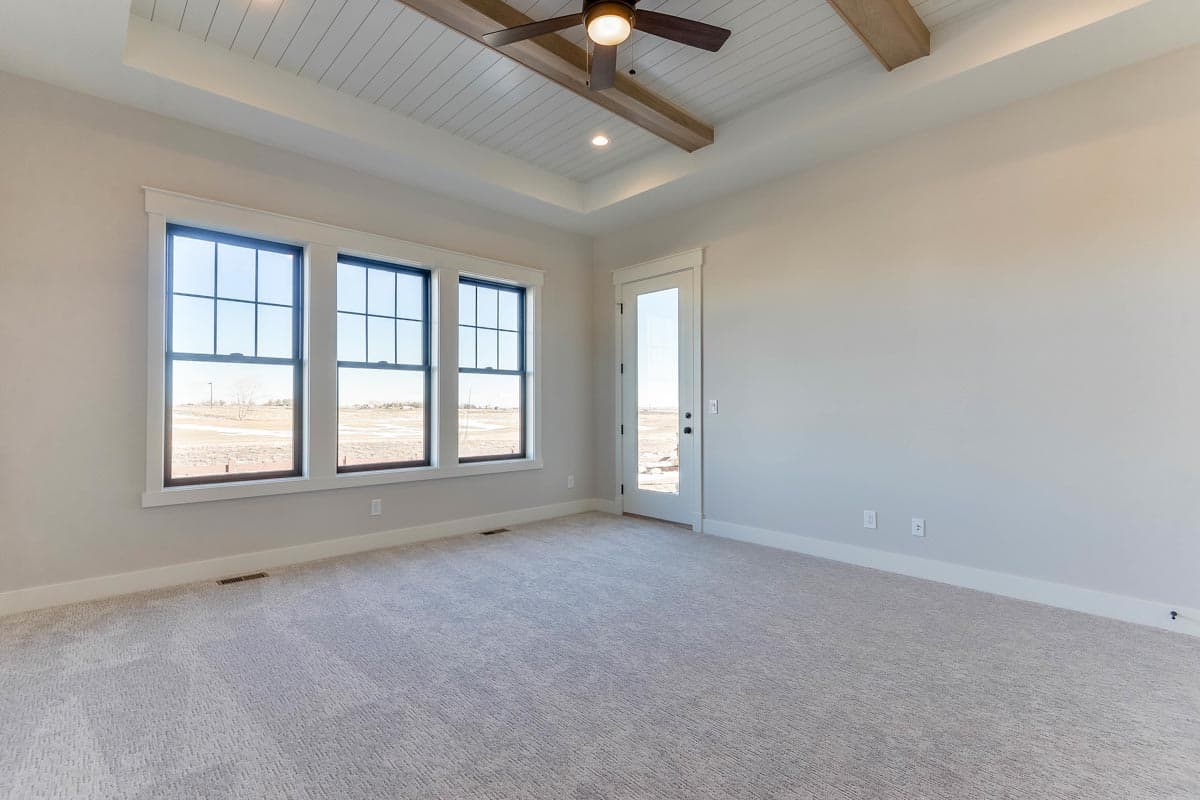

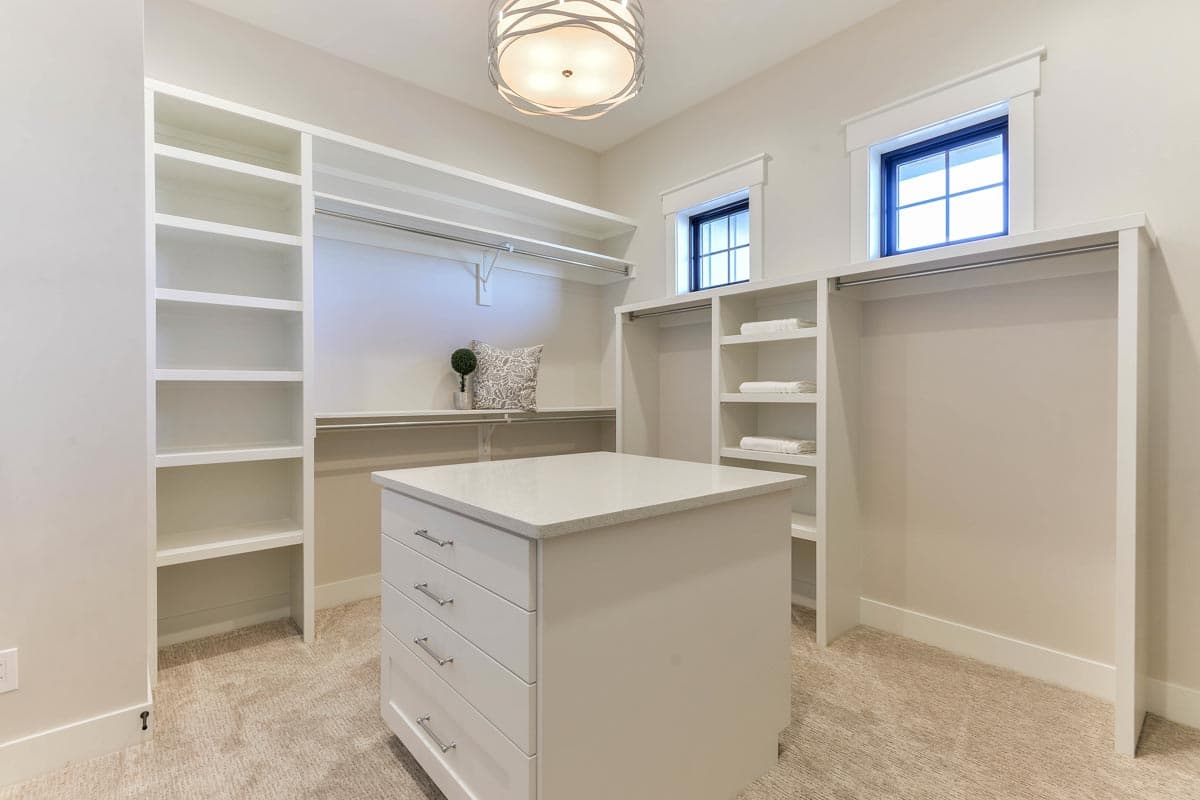

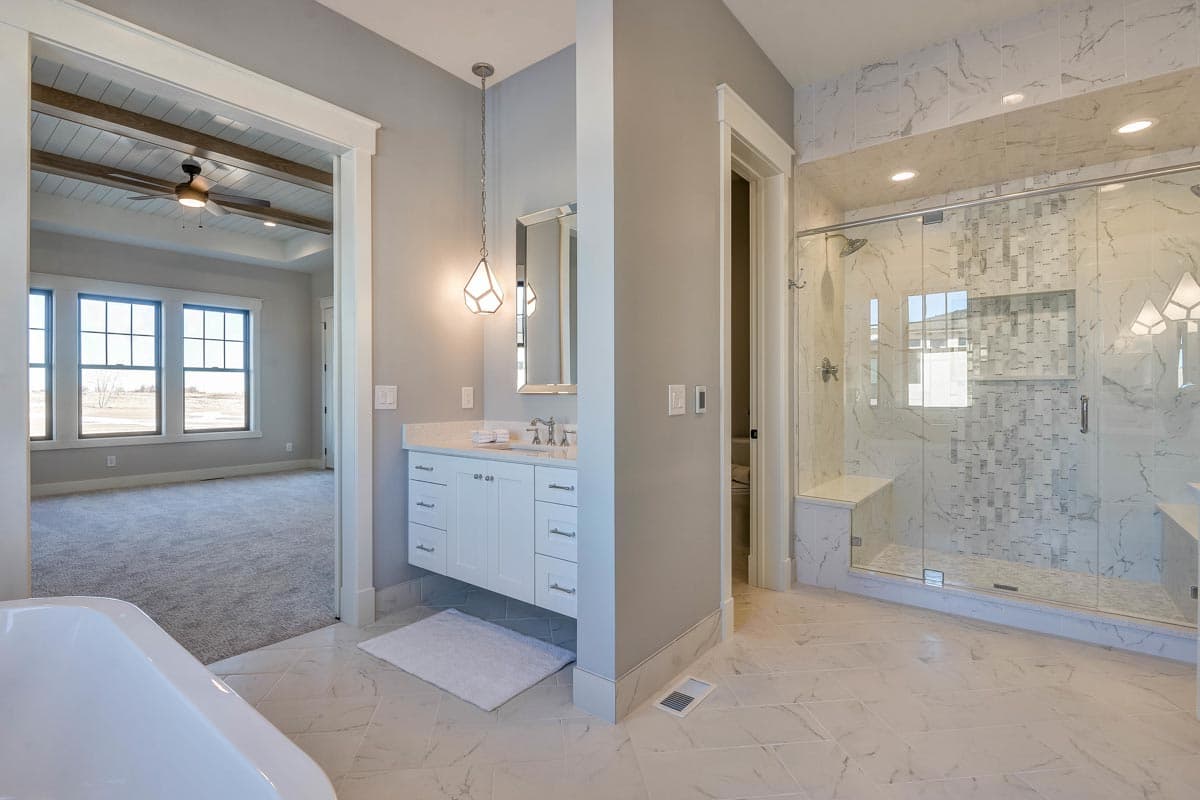

  • A tray ceiling in the master suite adds to the light and airy design, while a door leads to the back patio. The master bath boasts 5 fixtures, as well as a walk-in closet that leads to the laundry room for added convenience.

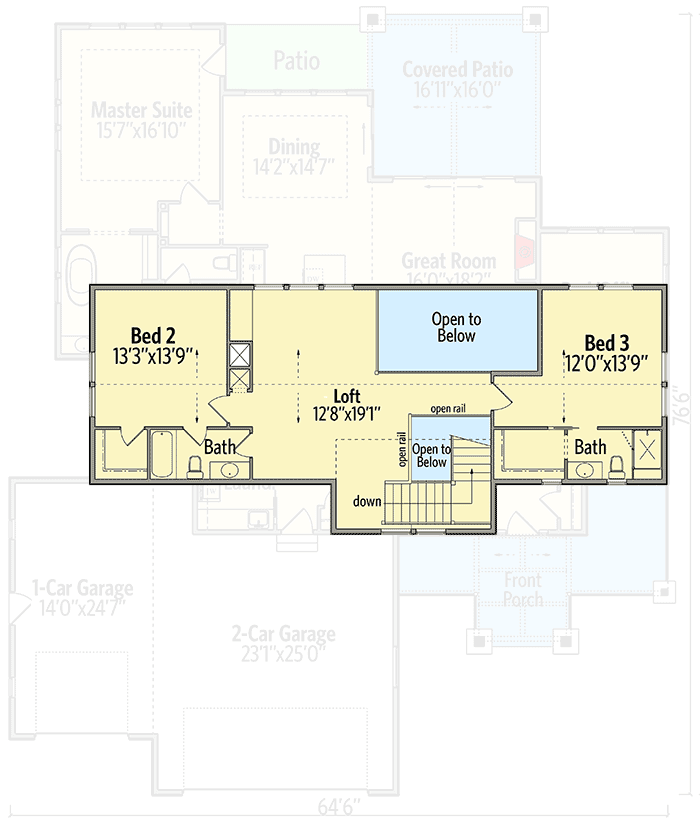

  • Each of the bedrooms upstairs includes a full bath, and a loft offers a communal space for the kids to enjoy.

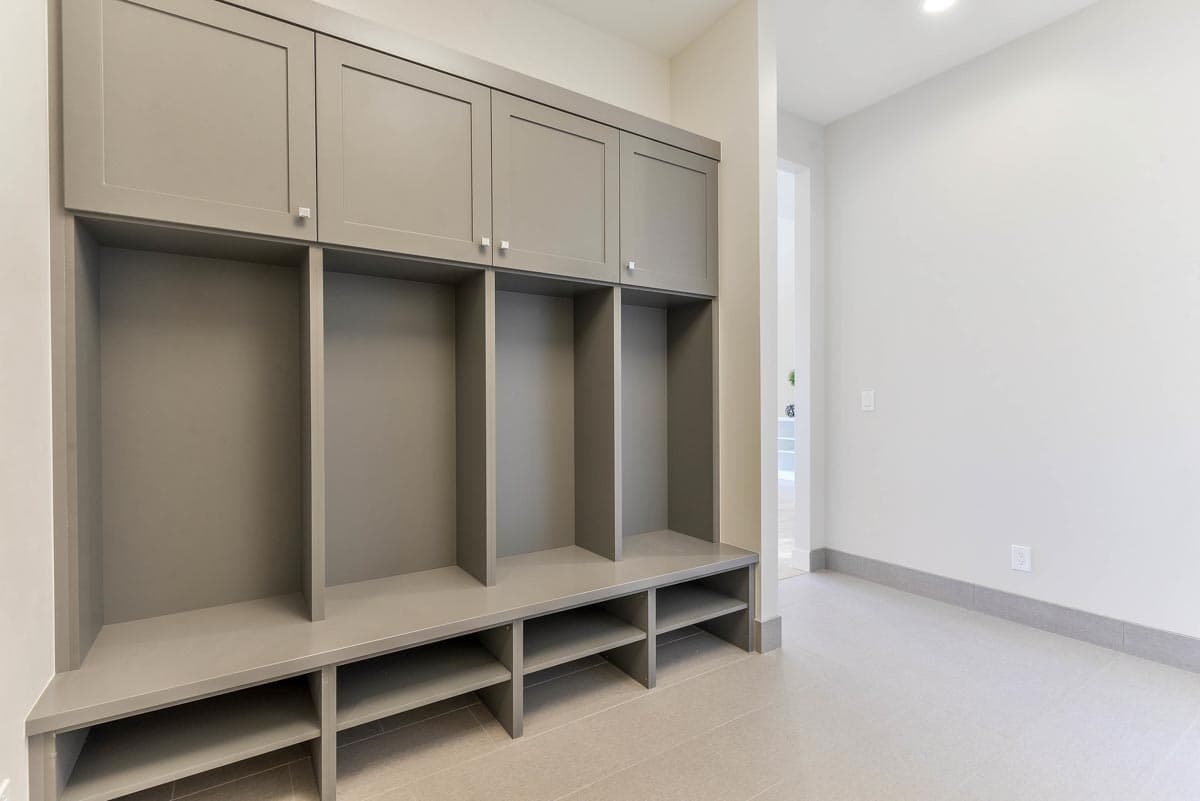

  • The 3-car garage opens into a spacious mudroom with built-in cubbies, a coat closet, and a nearby pantry to help when unloading groceries.
What's Included

  • Cover Page

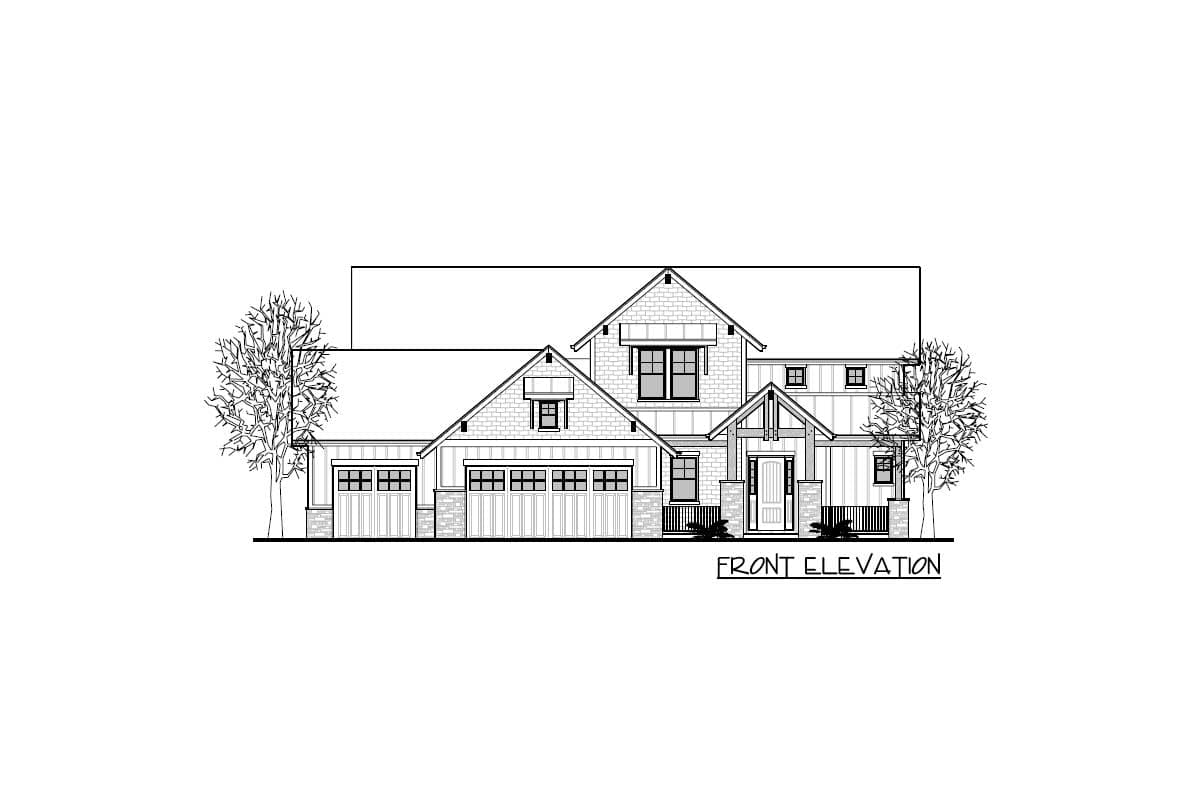

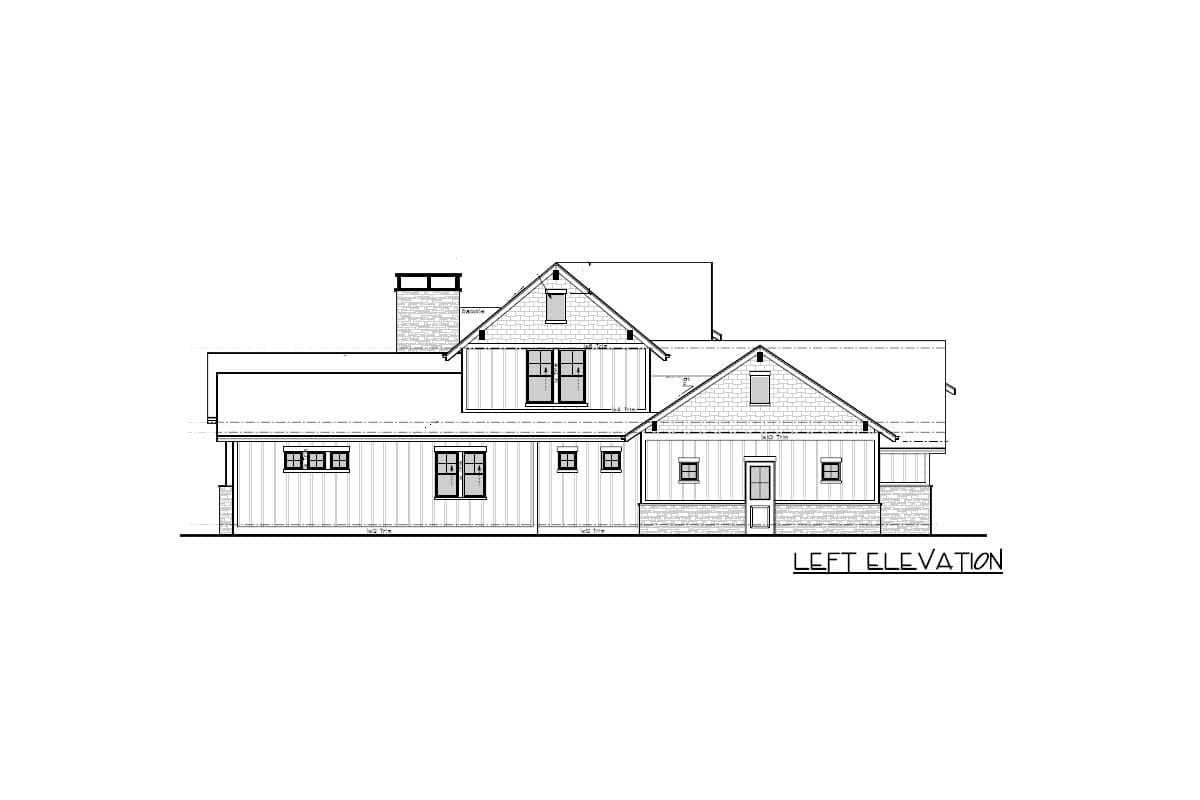

  • 4 Elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Luxury New American Home Plan with Split Bedrooms

  • 3,237

    Heated s.f.

  • 3-6

    Beds

  • 4 - 5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Optional Lower Level Layout

Plan Details

Square Footage Breakdown

  • Total: 3,237 sq. ft.
  • 1st Floor: 2,261 sq. ft.
  • 2nd Floor: 976 sq. ft.

Dimensions

  • Width: 64' 6"
  • Depth: 75' 6"
  • Max ridge height: 23' 0"

Beds/Baths

  • Bedrooms: 3, 4, 5, or 6
  • Full bathrooms: 4 or 5

Garage

  • Type: Attached
  • Area: 985 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
