Plan 16811WG
Luxury Plan with Tuscan Influences
Heated S.F.
3,018
Beds
3 - 4
Baths
3.5
Stories
2
Cars
3
Floor Plan

Plan 16811WG

Main Level
slide image 0
2nd Floor
slide image 1

Plan 16811WG

1-800-854-7852

1-262-521-4596

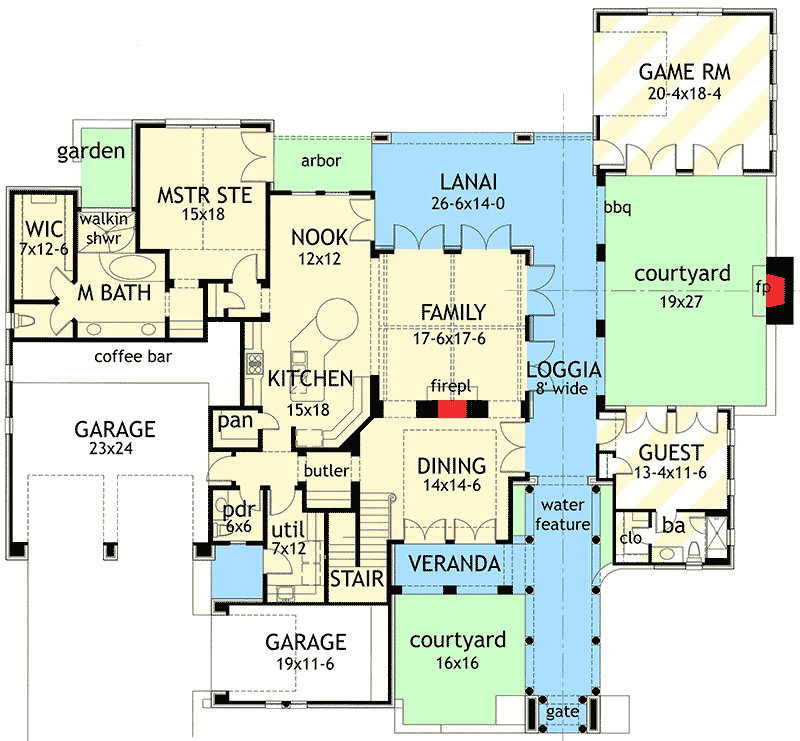

Main Level
floor plan image Main Level

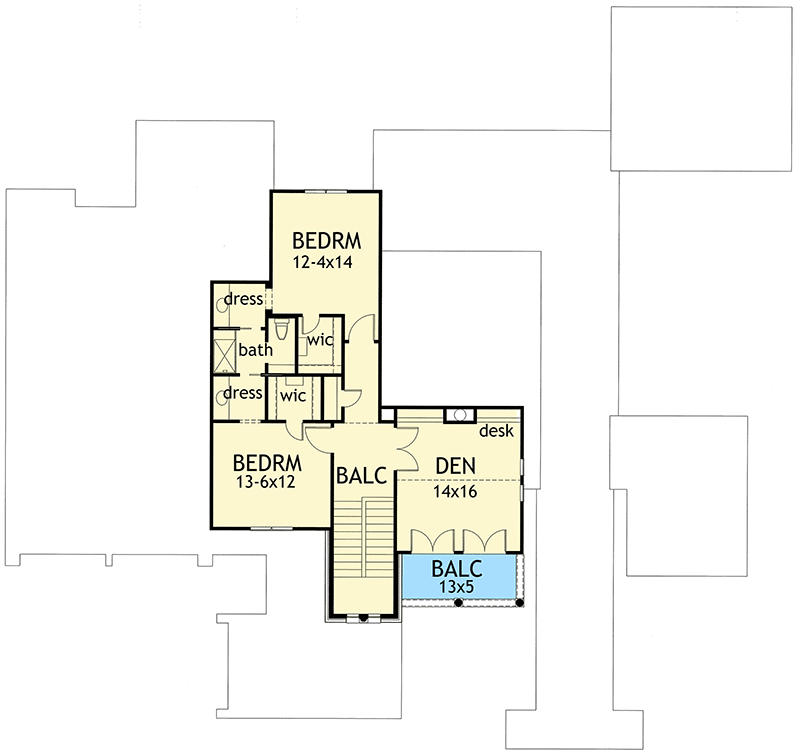

2nd Floor
floor plan image 2nd Floor
Plan Details

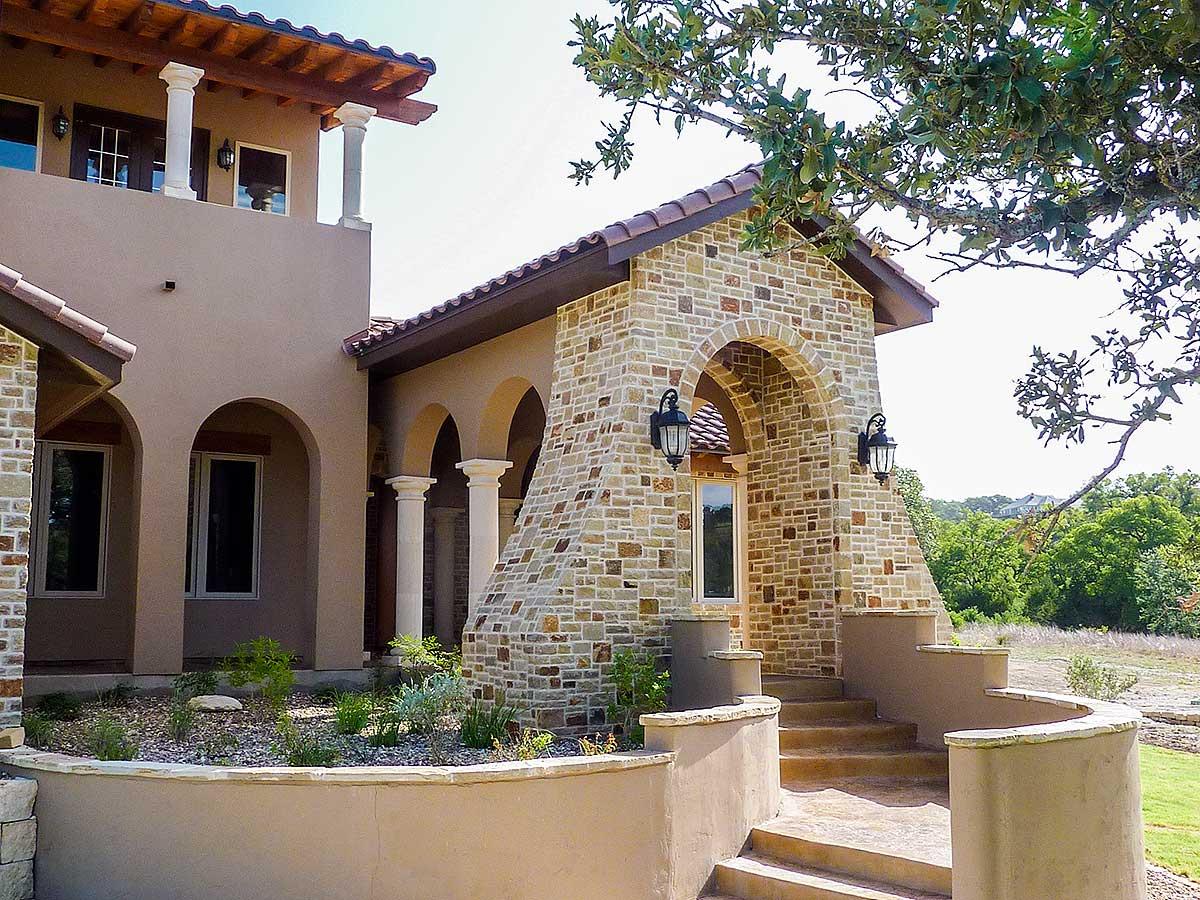

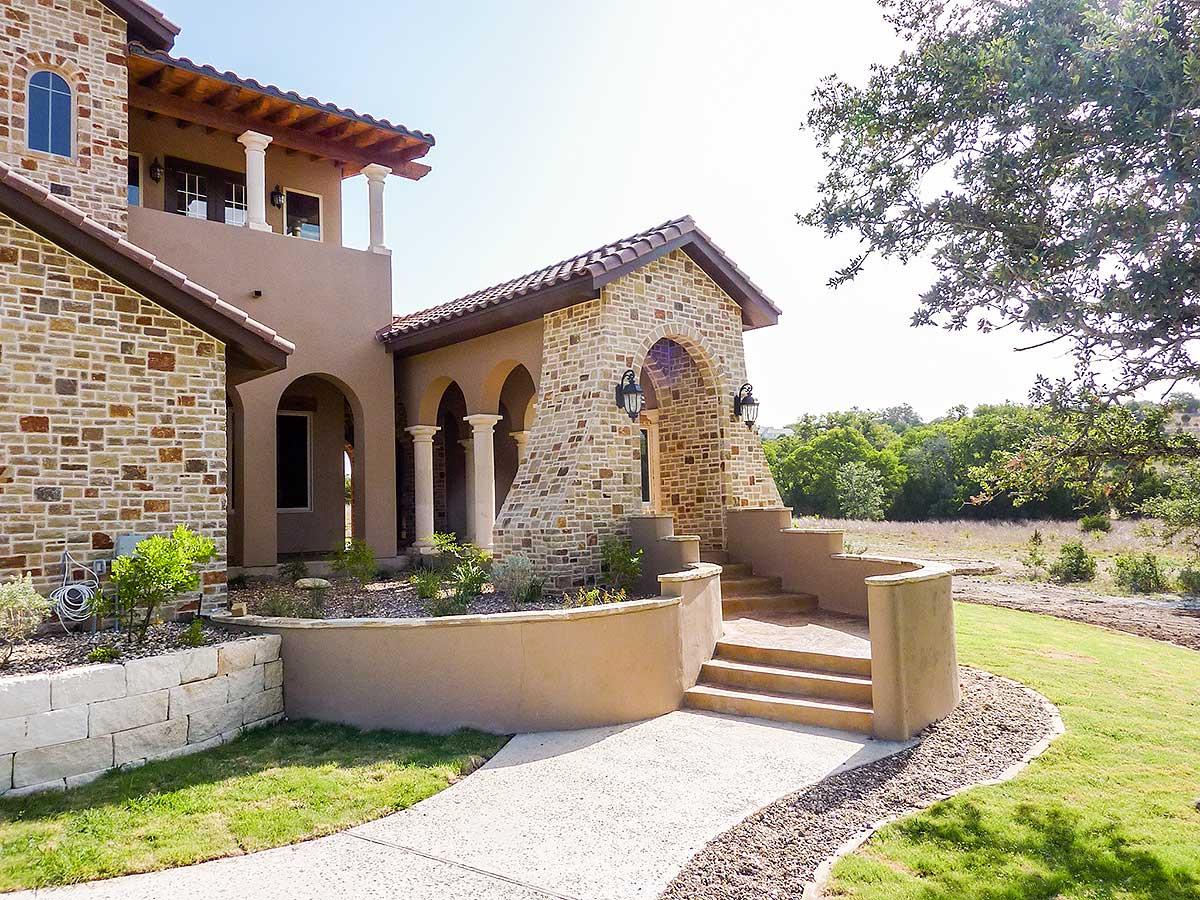

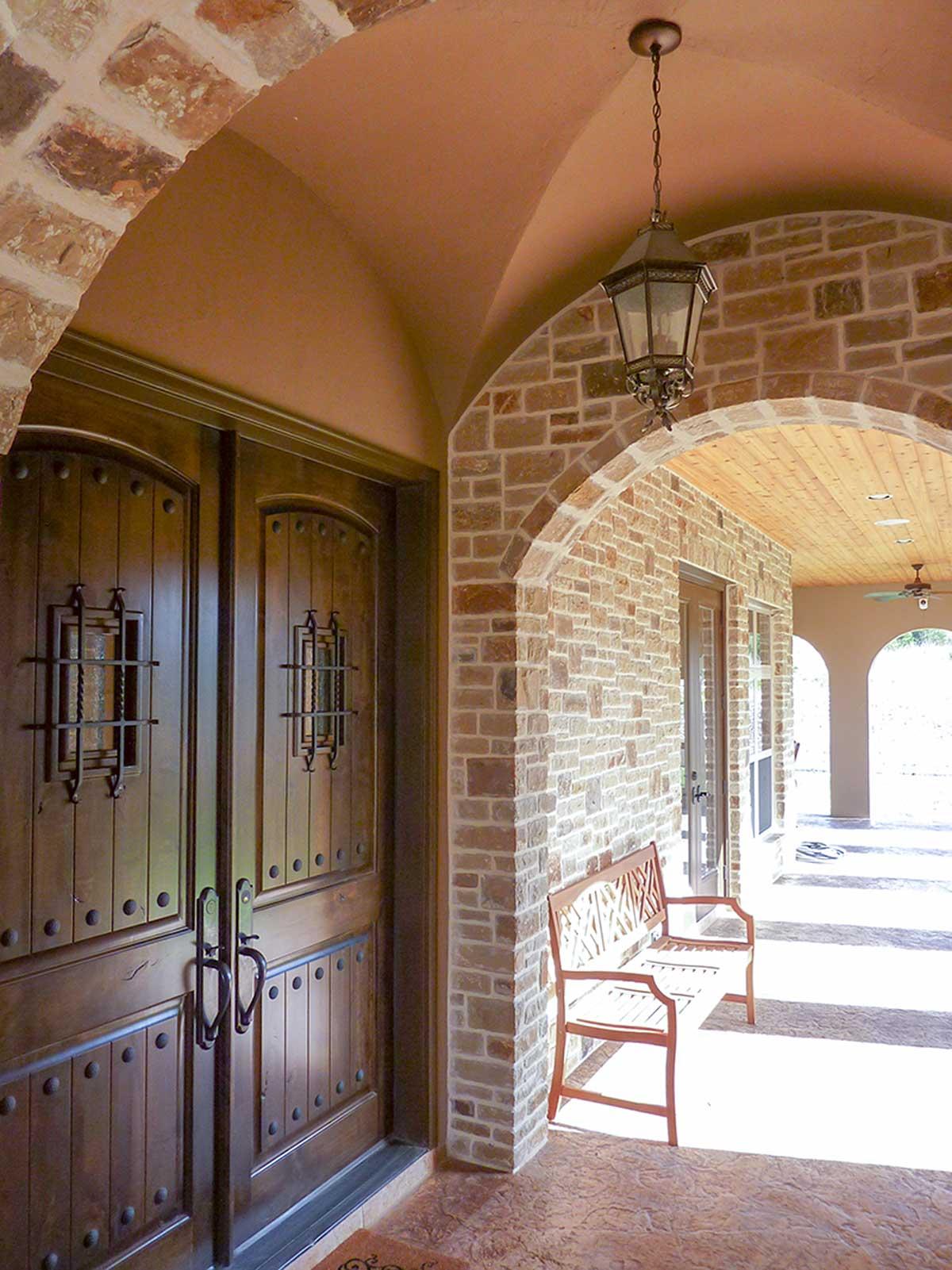

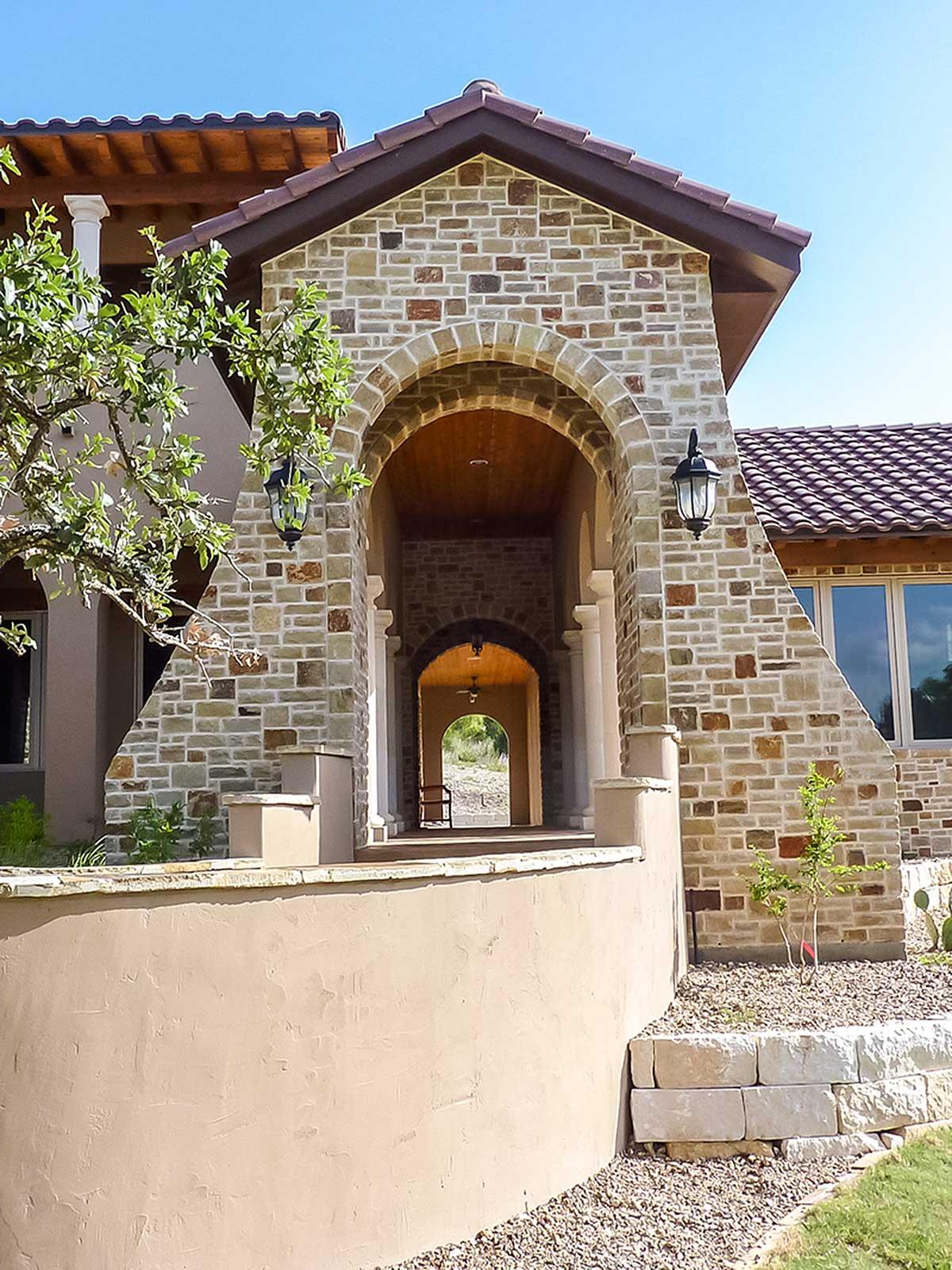

  • A welcoming gate leads you throw a vaulted covered walkway lined by five pairs of matching columns and flanked by a private courtyard on the left.

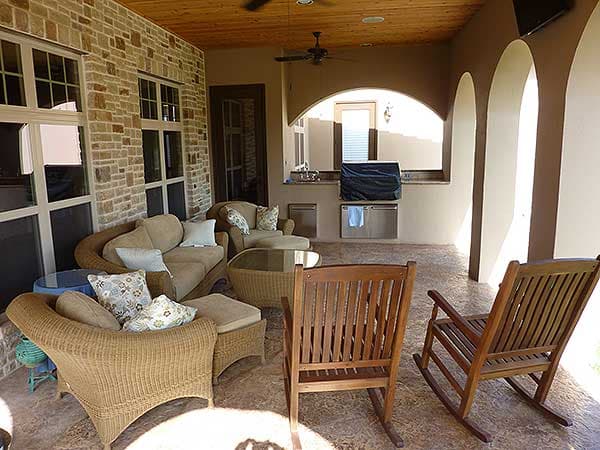

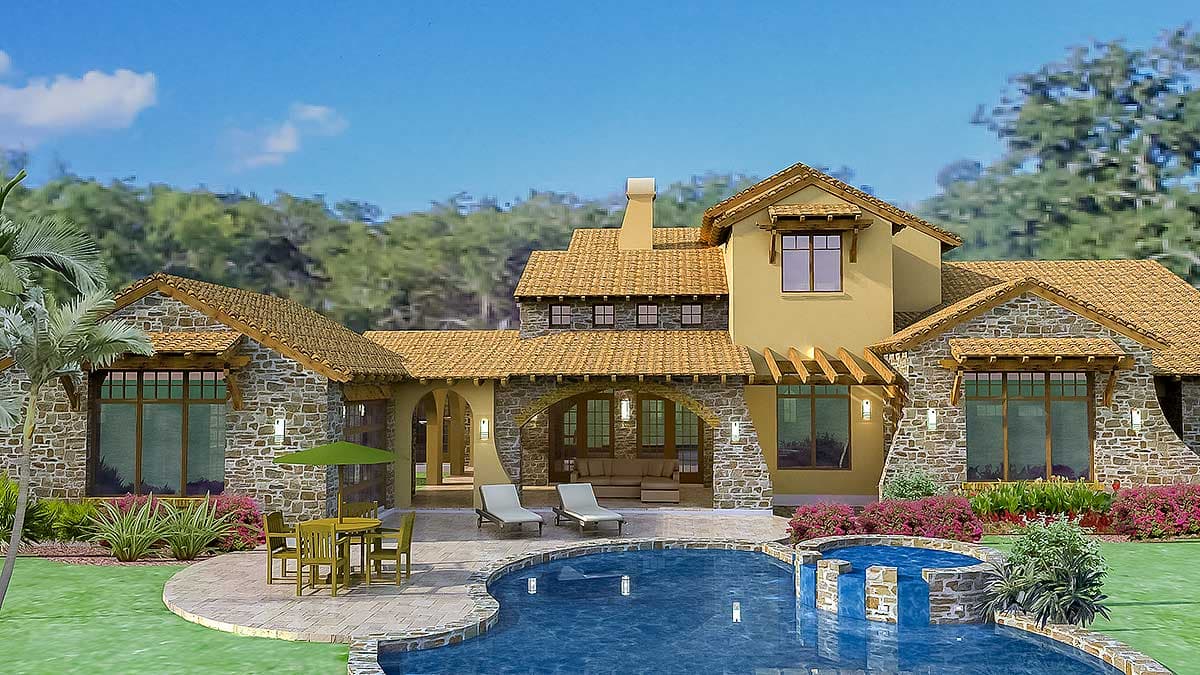

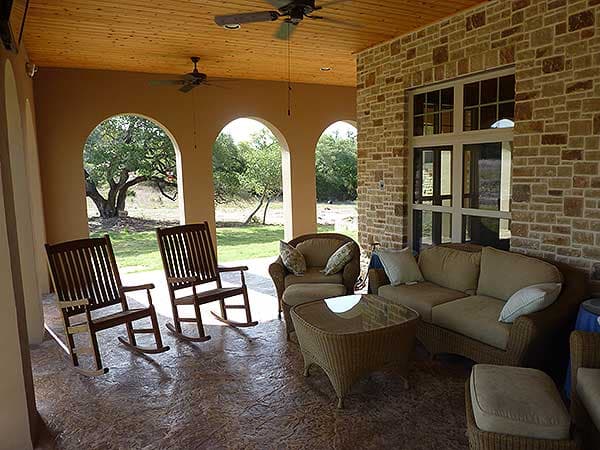

  • Additional outdoor spaces include a rear courtyard with fireplace, a lanai and a balcony off the second story vaulted den.

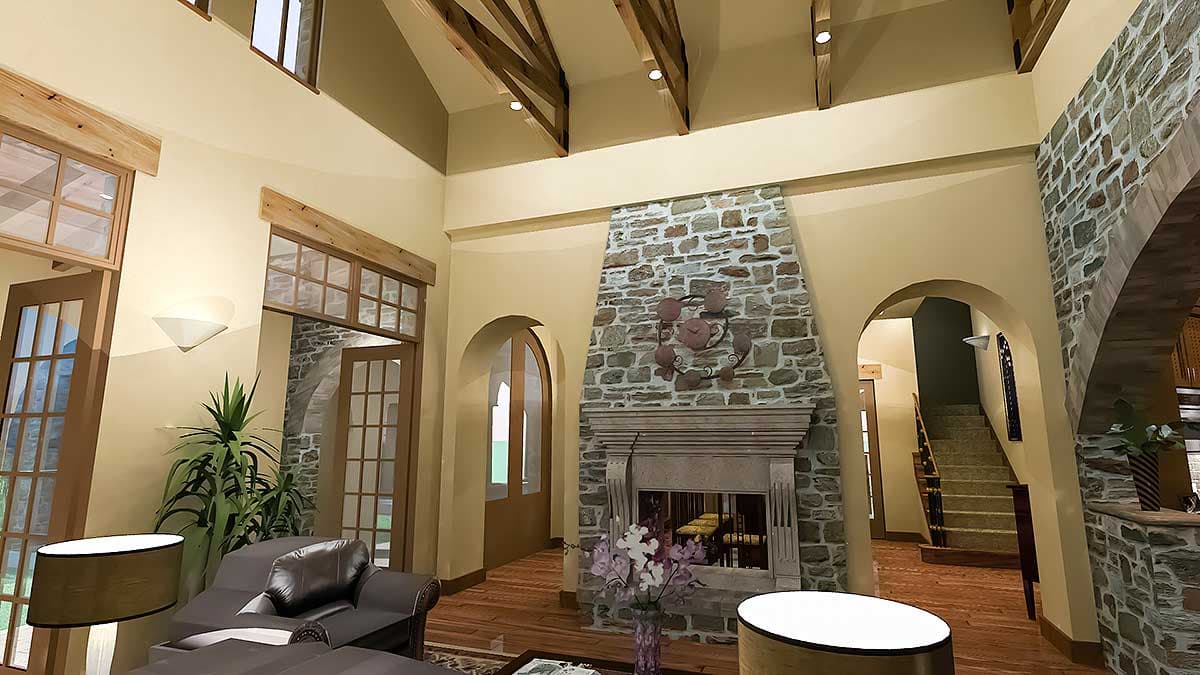

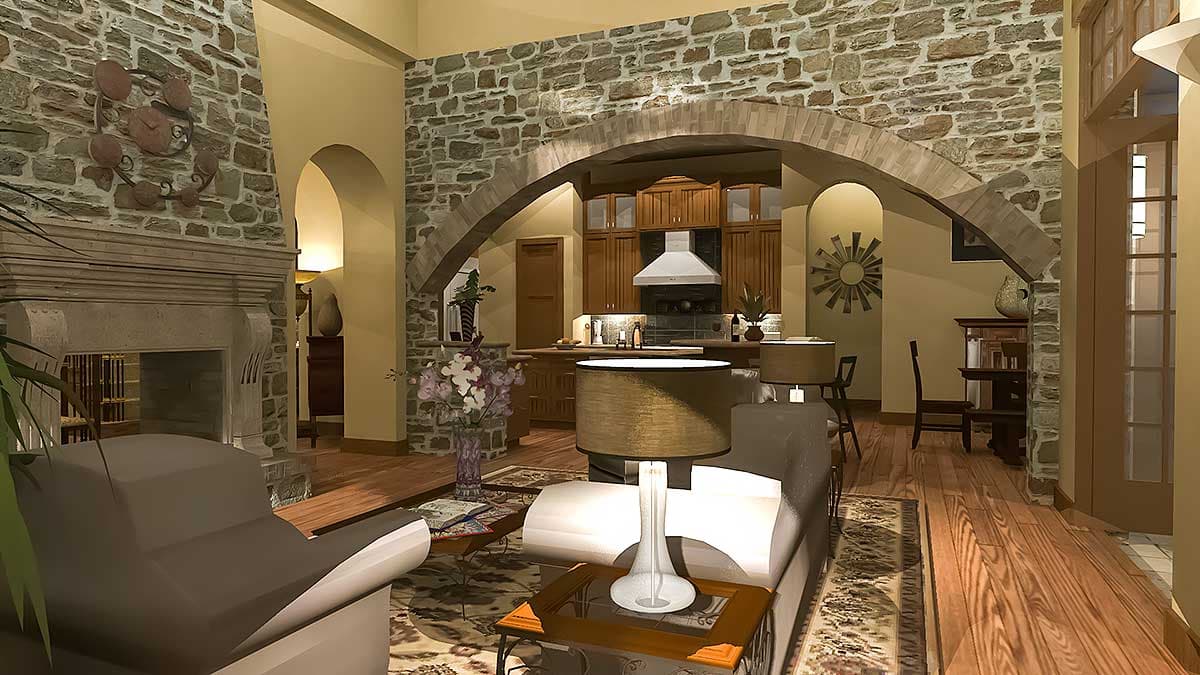

  • The family room is vaulted and has beautiful exposed beams. The master suite is vaulted as well.

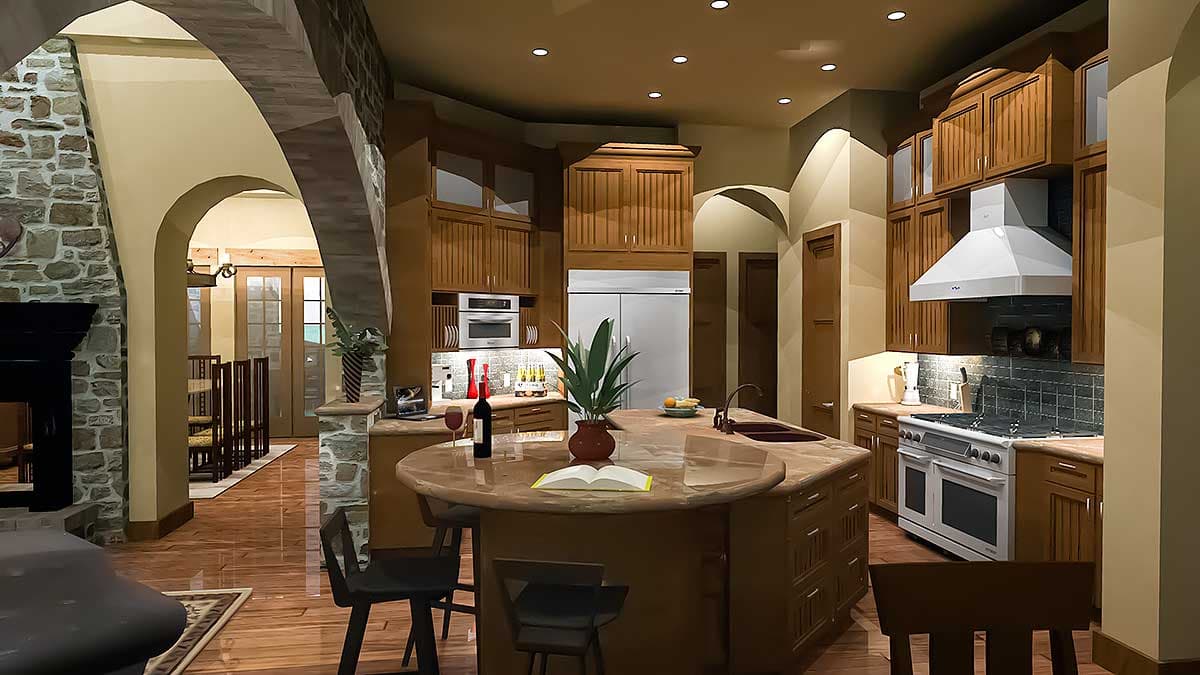

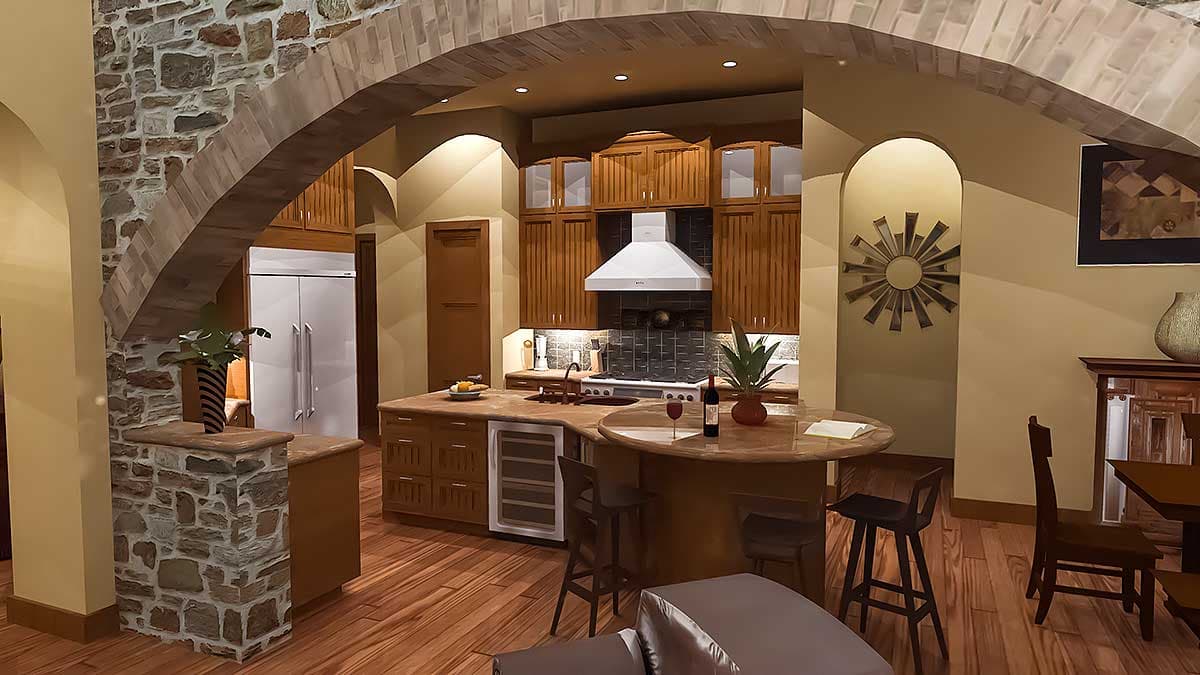

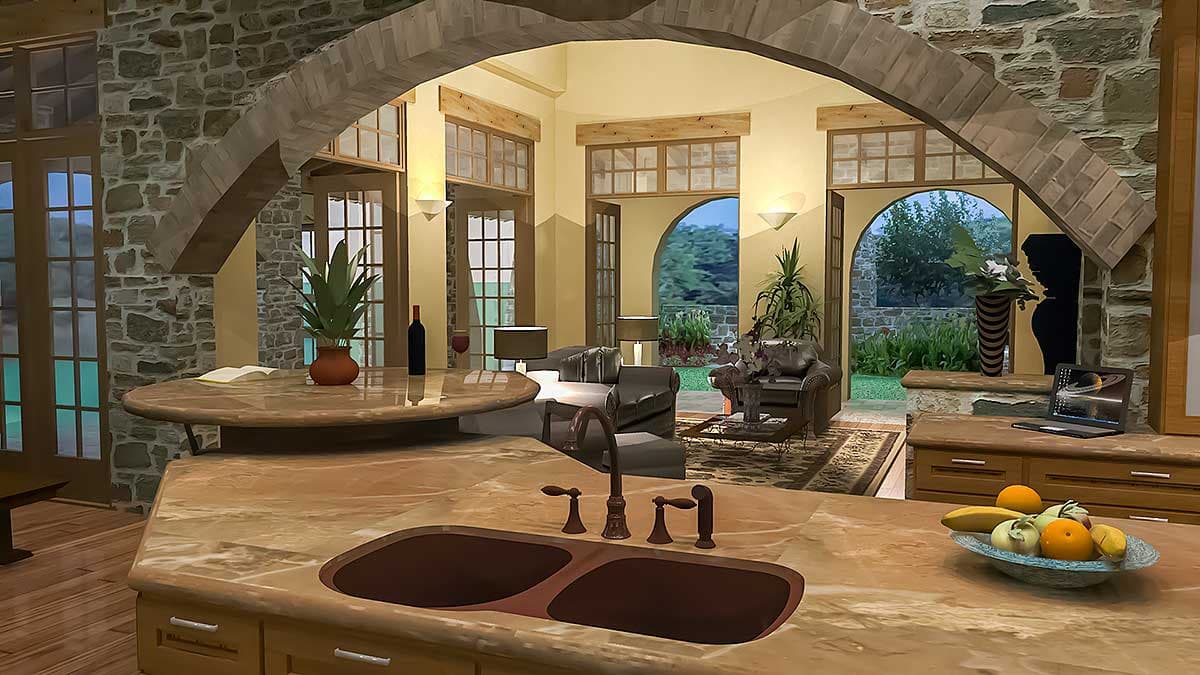

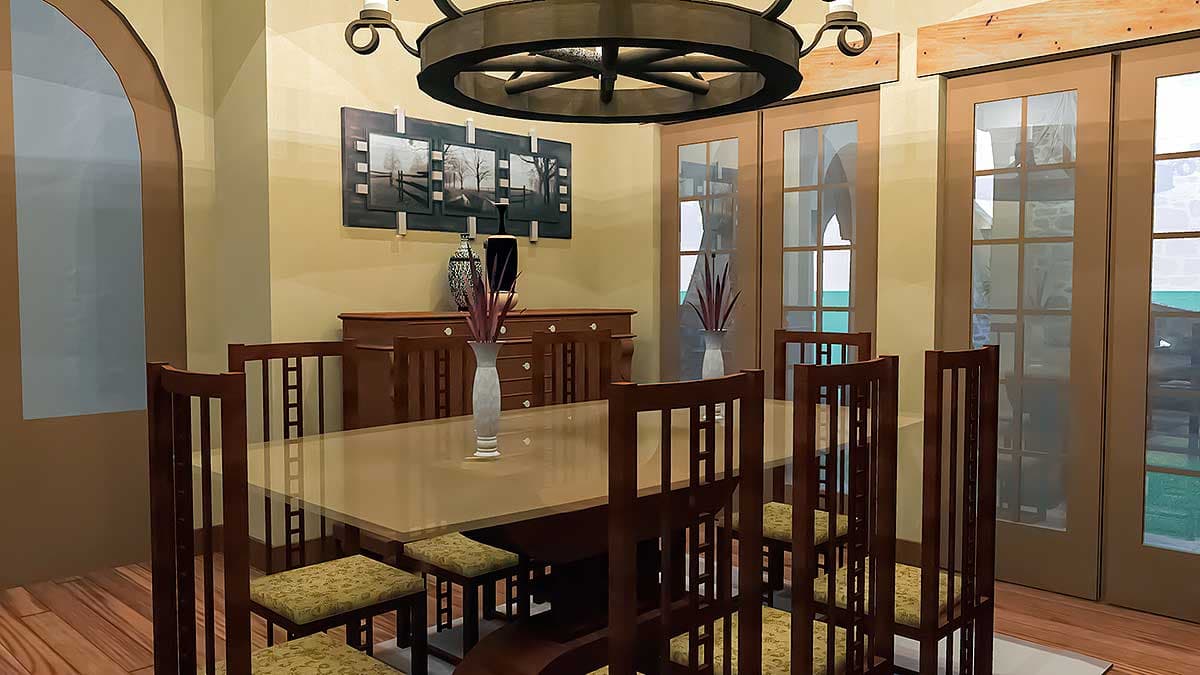

  • The kitchen is spacious and features a large walk-in pantry and a butlery to serve guests in the formal dining room.
  • Check out the optional guest bedroom: two sets of french doors lead to the rear courtyard. This is the perfect room for long term visitors or in-laws and adds 275 square feet to the total living area.
  • The optional detached game room adds an additional 398 square feet to the total living area.
  • The second level has 2" x 4" exterior walls.
What's Included
  • Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.
  • Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases.  Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
  • Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home.  Most of this information can usually be determined from the exterior elevations.
  • Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances,
  • Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.
  • Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns.  Consulting a local engineer is advisable as well as is analysis of soil conditions on site.
  • Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.  Plans do not include circuiting or wire sizing.  Plans will also include specialty items such as hose bibs, gas connections, location of a/c equipment, return air vents or other mechanical/electrical/plumbing items which need to be located.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,018 sq. ft.

1st Floor

2,067 sq. ft.

2nd Floor

951 sq. ft.

Bonus

673 sq. ft.

Porch, Combined

1,044 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

93' 11"

Depth

83' 6"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

855 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

12'

Second Floor

10'

Room

Ceiling Type

Height

Family Room

Vaulted

0' 0''

Master Bedroom

Vaulted

0' 0''

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style

European
