Luxury Shingle House Plan with Spice Kitchen and In-law Suite

Plan 95187RW

  • 5,586

    Heated s.f.

  • 6-7

    Beds

  • 5.5 - 6.5

    Baths

  • 2

    Stories

  • Every room on the main level of this Luxury Shingle house plan extends onto an outdoor living area, while the comfortable interior presents a spacious family room that flows into the dining area and kitchen.
  • An assortment of ceiling treatments throughout the design add a custom appeal and the spice kitchen, paired with a walk-in pantry, make entertaining a breeze in this gourmet kitchen.
  • An in-law suite offers a private entrance from the 4-car garage and includes a kitchenette, private patio, and full bathroom.
  • Five bedroom suites are located upstairs, including the master bedroom with a deck, vaulted ceiling, and access to the laundry room from one of the two closets.
  • The stairs or elevator will guide you to the optional lower level (2,482 square feet) where you'll find a home theatre, exercise room, rec area with wet bar, and a guest suite.

The following details are included with this house plan:
  • Cover Page

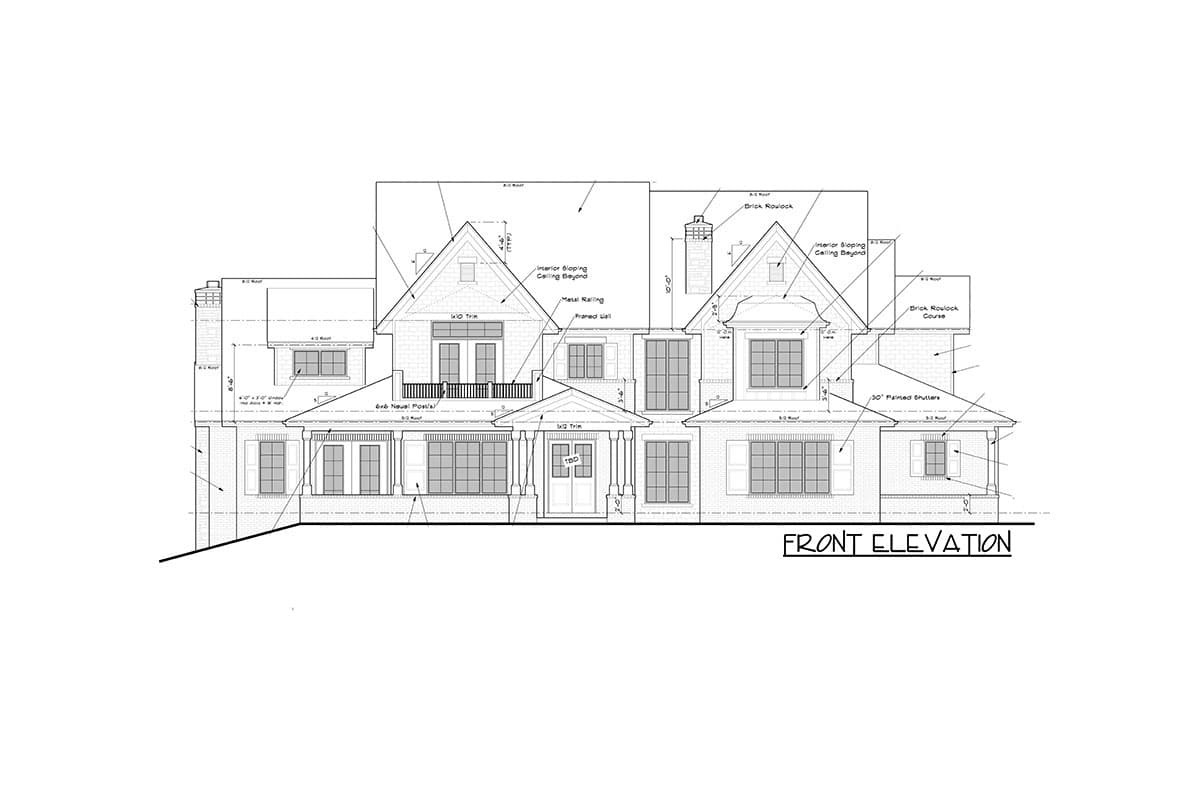

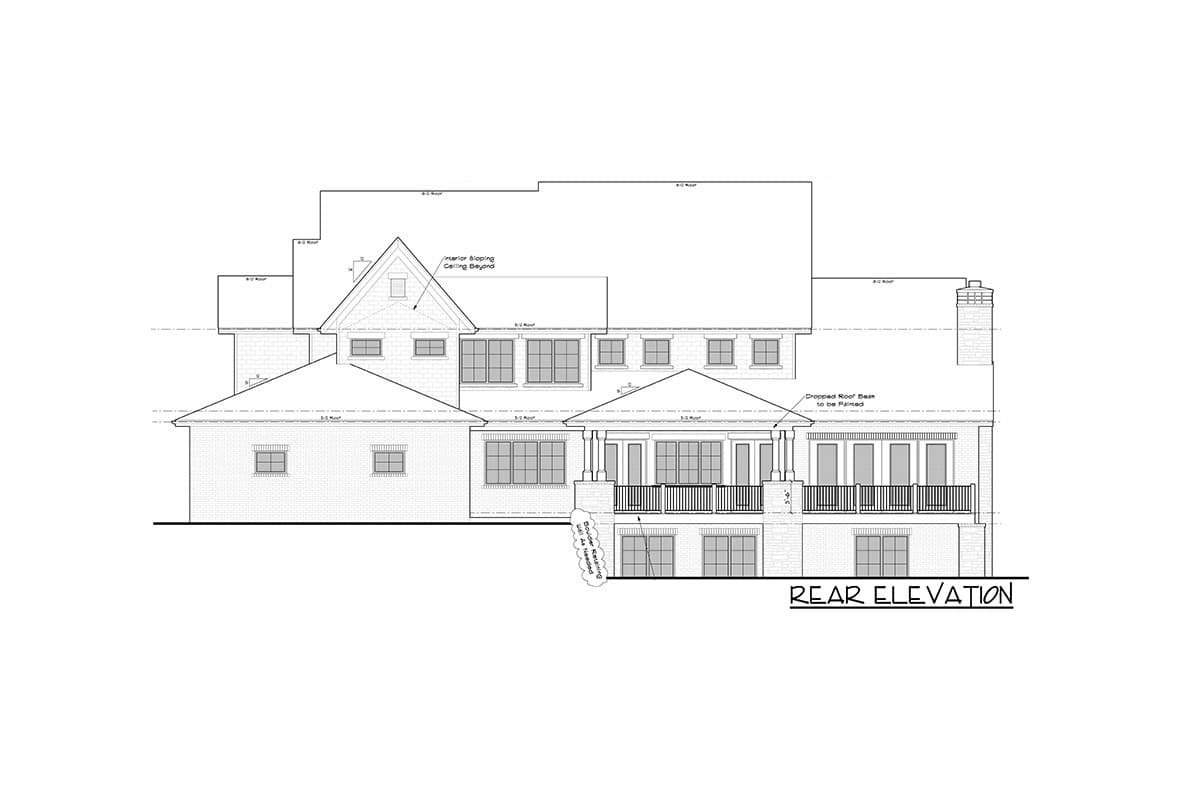

  • 4 elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

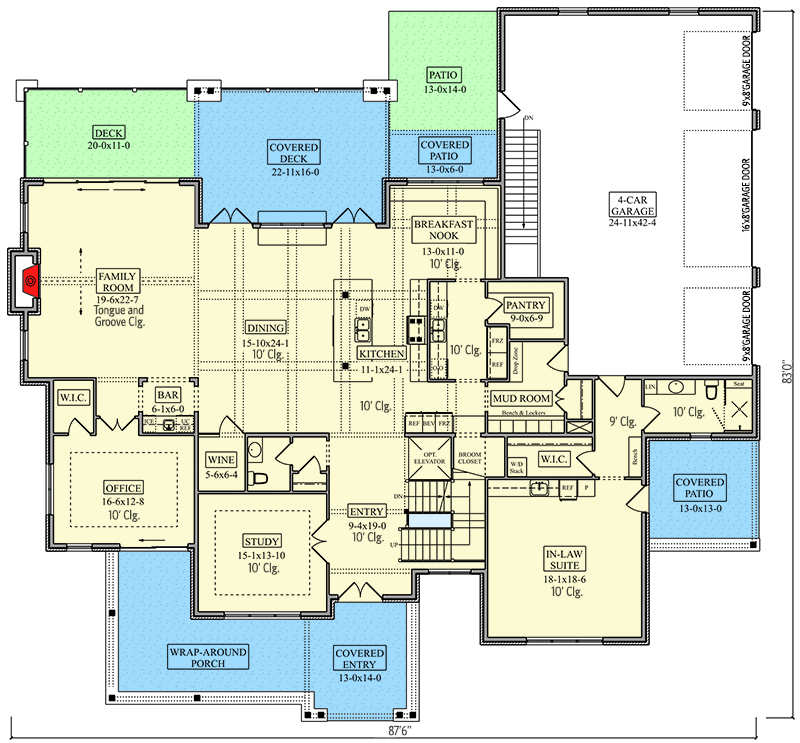

Luxury Shingle House Plan with Spice Kitchen and In-law Suite - 95187RW floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

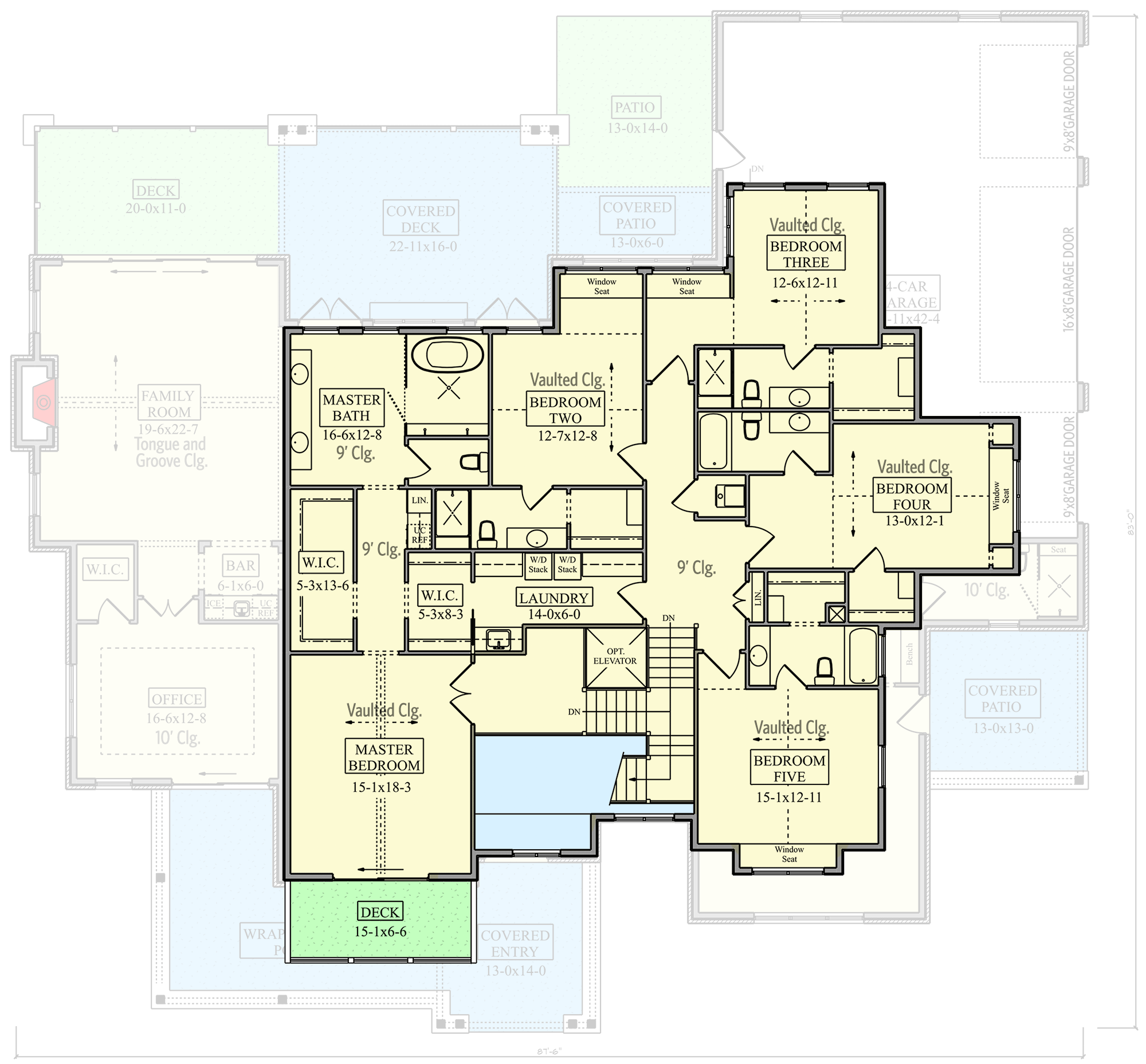

Luxury Shingle House Plan with Spice Kitchen and In-law Suite - 95187RW floor plan - 2nd Floor

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

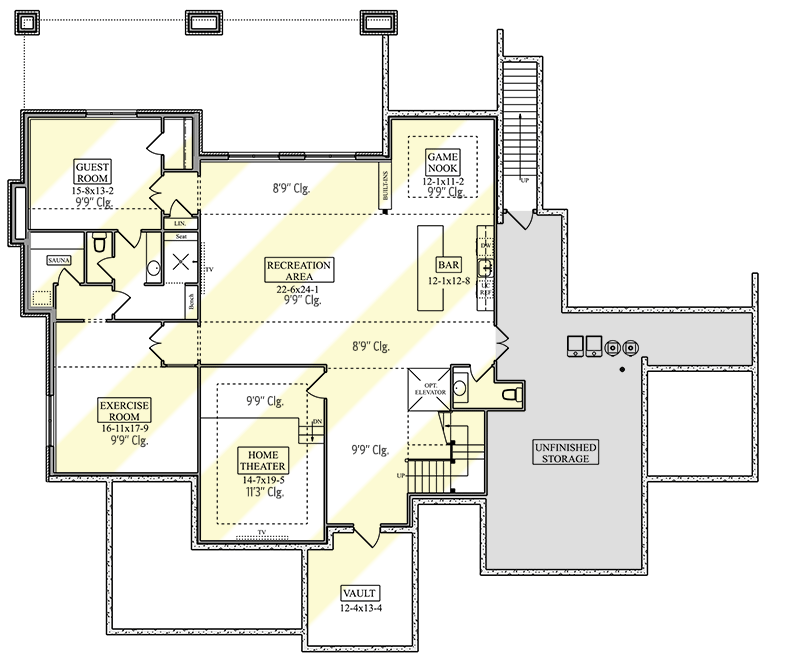

Luxury Shingle House Plan with Spice Kitchen and In-law Suite - 95187RW floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 5,586 sq. ft.
  • 1st Floor: 3,197 sq. ft.
  • 2nd Floor: 2,389 sq. ft.
  • Porch, Combined: 1,612 sq. ft.
  • Optional Lower Level: 2,482 sq. ft.
  • Basement Unfinished: 770 sq. ft.

Beds/Baths

  • Bedrooms: 6 or 7
  • Full bathrooms: 5 or 6
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Daylight

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 87' 6"
  • Depth: 83' 0"
  • Max ridge height: 36' 5"

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Luxury Shingle House Plan with Spice Kitchen and In-law Suite

  • 5,586

    Heated s.f.

  • 6-7

    Beds

  • 5.5 - 6.5

    Baths

  • 2

    Floors

Buy This Plan
  • PDF - Single-Build $4,100
  • CAD + PDF - Single Build $5,800
  • PDF - Unlimited Build $6,150
  • CAD - Unlimited Build $8,700
  • View all purchase option online

About This Plan

  • Every room on the main level of this Luxury Shingle house plan extends onto an outdoor living area, while the comfortable interior presents a spacious family room that flows into the dining area and kitchen.
  • An assortment of ceiling treatments throughout the design add a custom appeal and the spice kitchen, paired with a walk-in pantry, make entertaining a breeze in this gourmet kitchen.
  • An in-law suite offers a private entrance from the 4-car garage and includes a kitchenette, private patio, and full bathroom.
  • Five bedroom suites are located upstairs, including the master bedroom with a deck, vaulted ceiling, and access to the laundry room from one of the two closets.
  • The stairs or elevator will guide you to the optional lower level (2,482 square feet) where you'll find a home theatre, exercise room, rec area with wet bar, and a guest suite.

Floor Plans

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,586 sq. ft.
  • 1st Floor: 3,197 sq. ft.
  • 2nd Floor: 2,389 sq. ft.
  • Porch, Combined: 1,612 sq. ft.
  • Optional Lower Level: 2,482 sq. ft.
  • Basement Unfinished: 770 sq. ft.

Beds/Baths

  • Bedrooms: 6 or 7
  • Full bathrooms: 5 or 6
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Daylight

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 87' 6"
  • Depth: 83' 0"
  • Max ridge height: 36' 5"

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Truss
Plan 95187RW
View this and more for this plan by visiting www.architechtecturaldesigns.com/95187RW
|
Need Help? 800-854-7852
|
Plan 95187RW
