Plan 36429TX Luxury Spanish Villa With 4 Bedrooms

2,845 4 3.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Luxury Spanish Villa With 4 Bedrooms

Plan 36429TX

  • 2,845

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This luxury villa offers four-bedroom living at its best. Enter through the double doors of the foyer, directly into the family room with warming fireplace and patio access.
  • The family gathering area consists of the kitchen, breakfast area and family room. The family room's warming fireplace will warm this entire area. Access to the patio is gained through the family room.
  • The gourmet kitchen features a breakfast bar shared with the family room and breakfast area.
  • The master bedroom has great closet space and a bayed sitting area while a second bedroom is tucked behind the 3-car garage.
  • Upstairs you'll find two family bedrooms with walk-in closets and a shared full bath, completing this luxury villa.
  • Related Plan: Add a cabana and shop with house plans 36182TX (2,502 sq. ft.) and 36428TX (2,845 sq. ft.).

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

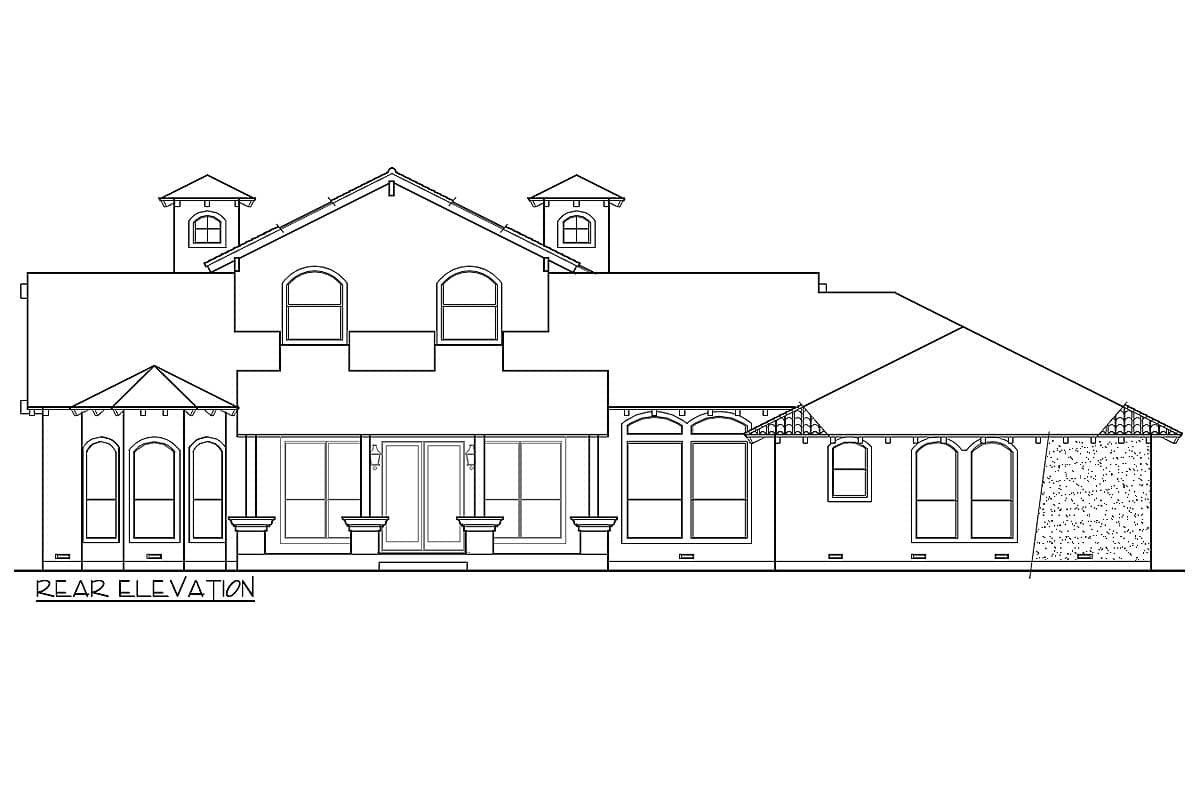

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

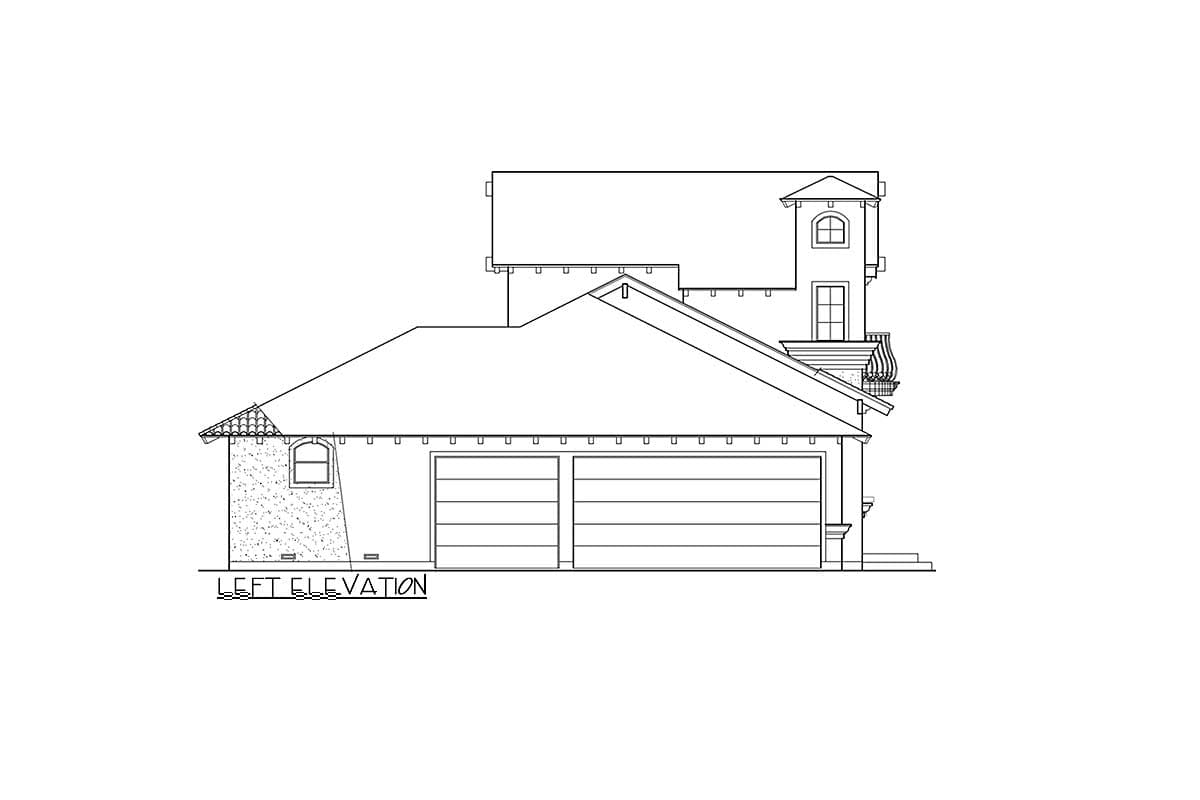

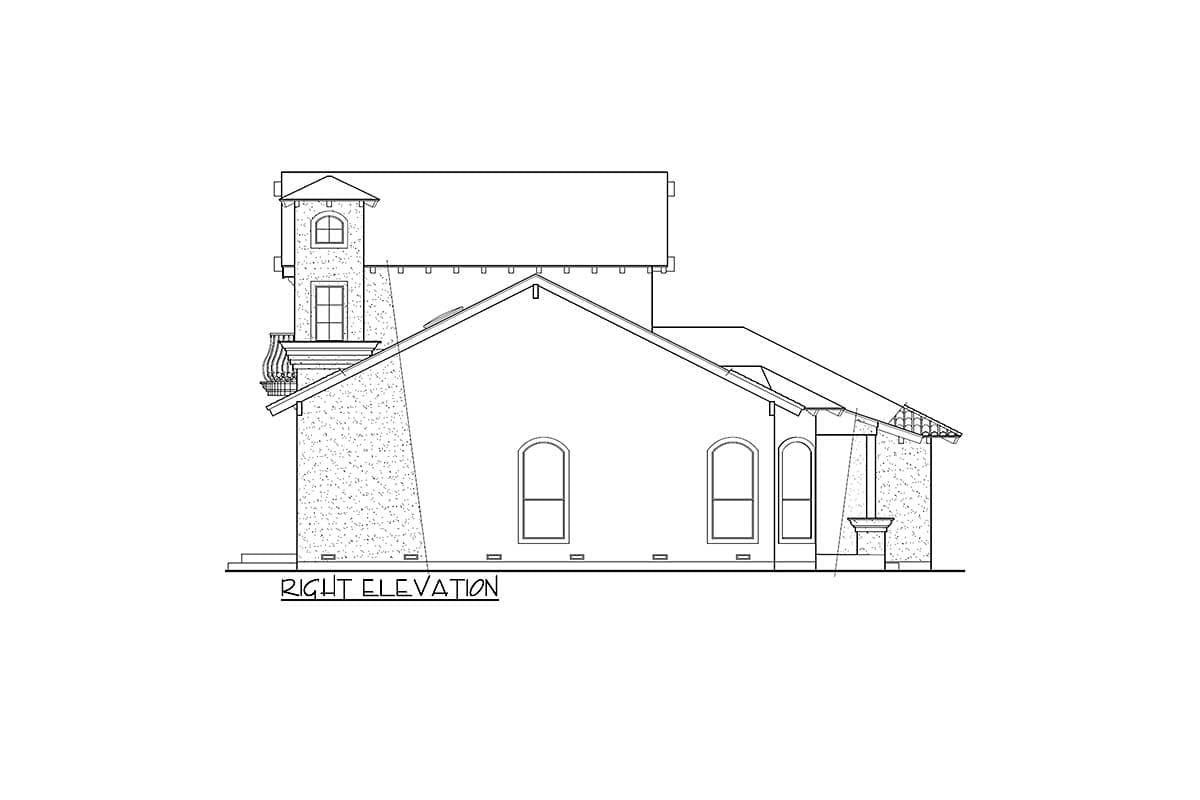

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

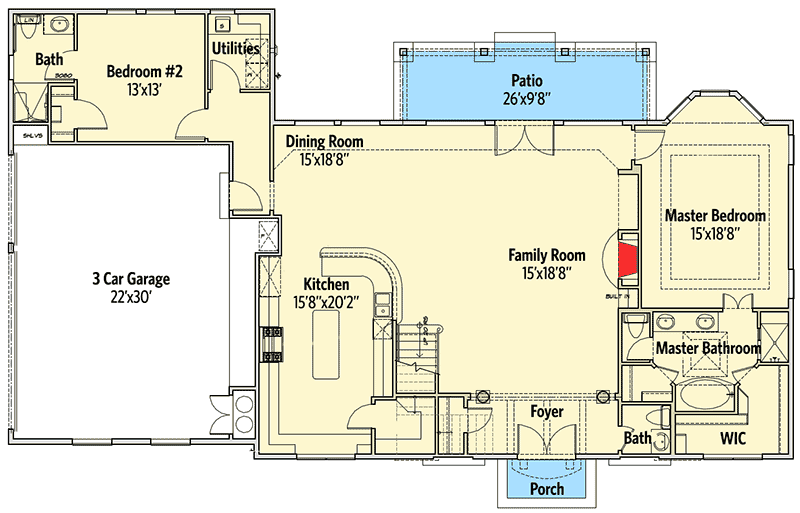

Luxury Spanish Villa With 4 Bedrooms - 36429TX floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

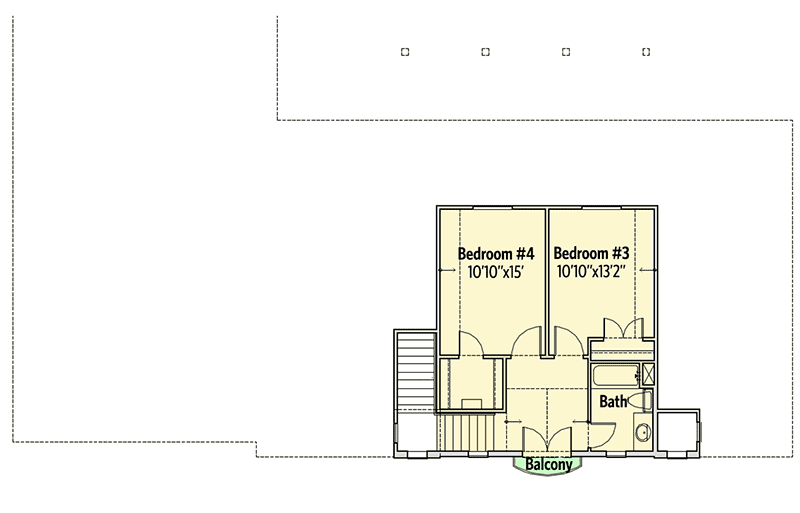

Luxury Spanish Villa With 4 Bedrooms - 36429TX floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,845 sq. ft.
  • 1st Floor: 2,289 sq. ft.
  • 2nd Floor: 556 sq. ft.
  • Covered Patio: 168 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 80' 0"
  • Depth: 46' 0"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 764 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 10' 0"

Roof Details

  • Framing Type: Stick

Architectural Style

Special features

Luxury Spanish Villa With 4 Bedrooms

  • 2,845

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,075
  • 5 Sets $1,275
  • CAD - Single-Build $1,620
  • View all purchase option online

About This Plan

  • This luxury villa offers four-bedroom living at its best. Enter through the double doors of the foyer, directly into the family room with warming fireplace and patio access.
  • The family gathering area consists of the kitchen, breakfast area and family room. The family room's warming fireplace will warm this entire area. Access to the patio is gained through the family room.
  • The gourmet kitchen features a breakfast bar shared with the family room and breakfast area.
  • The master bedroom has great closet space and a bayed sitting area while a second bedroom is tucked behind the 3-car garage.
  • Upstairs you'll find two family bedrooms with walk-in closets and a shared full bath, completing this luxury villa.
  • Related Plan: Add a cabana and shop with house plans 36182TX (2,502 sq. ft.) and 36428TX (2,845 sq. ft.).

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,845 sq. ft.
  • 1st Floor: 2,289 sq. ft.
  • 2nd Floor: 556 sq. ft.
  • Covered Patio: 168 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 80' 0"
  • Depth: 46' 0"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 764 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 10' 0"

Roof

  • Framing Type: Stick
Plan 36429TX
View this and more for this plan by visiting www.architechtecturaldesigns.com/36429TX
|
