Plan 89892AH Luxury Tuscan Ranch Home Plan with 2 Bedrooms

Luxury Tuscan Ranch Home Plan with 2 Bedrooms

Plan 89892AH

  • 3,214

    Heated s.f.

  • 2

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 5

    Cars

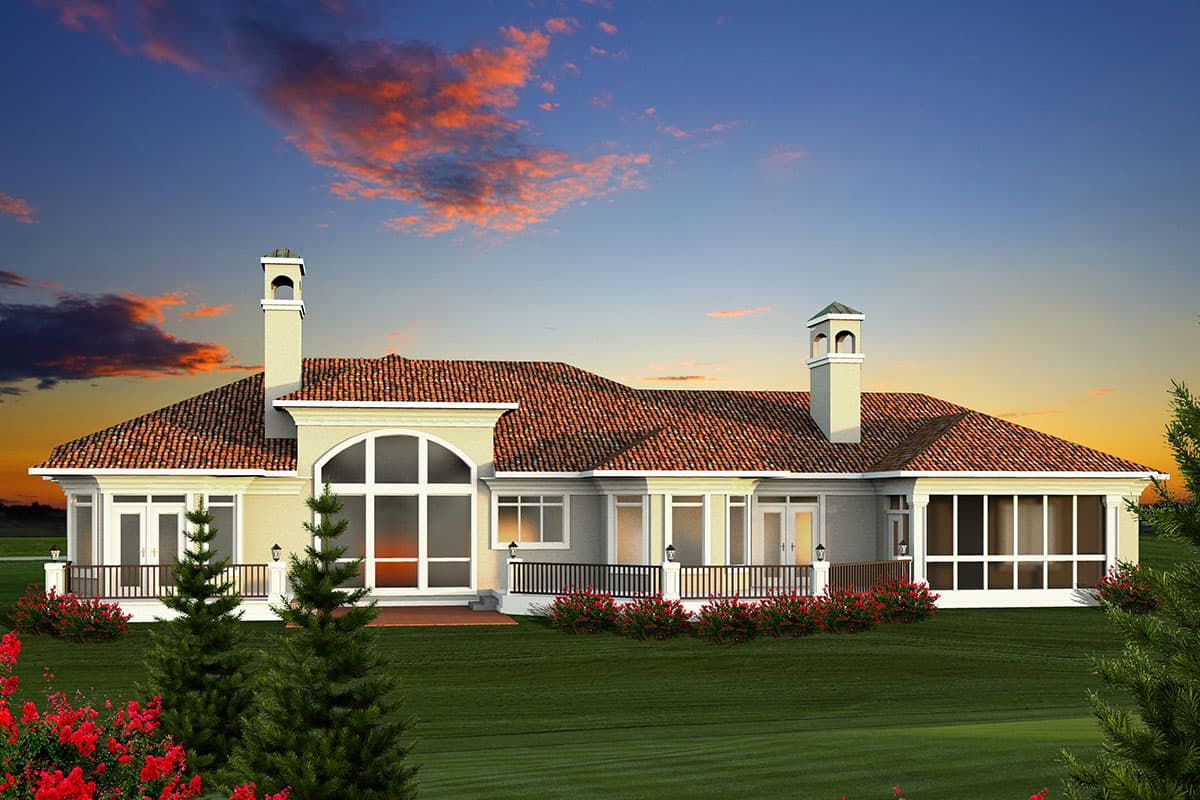

  • Tuscan in design, this ranch features a traditional plan with extra details that are sure to please, beginning with a curved staircase leading to the lower level just to the right of the entry.

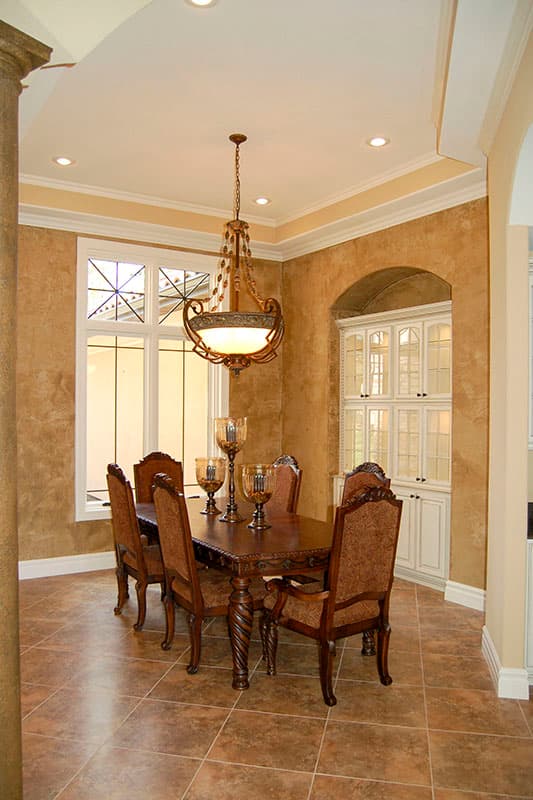

  • The great room directly ahead, and the dining room to the left of the entry are both defined by gracious columns that carry you into the main living area of the home.

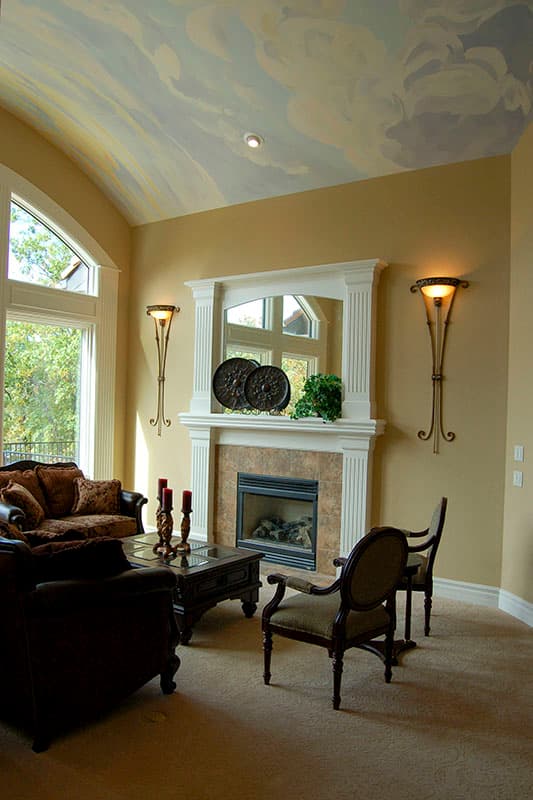

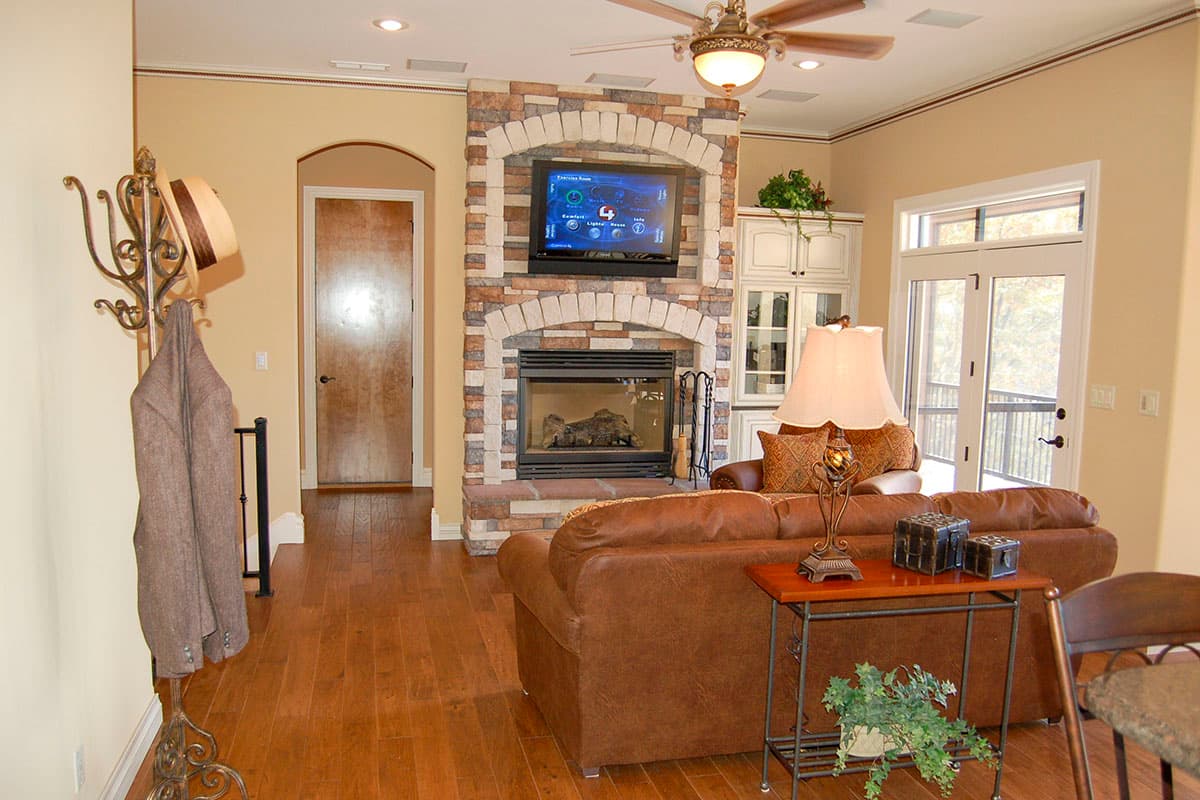

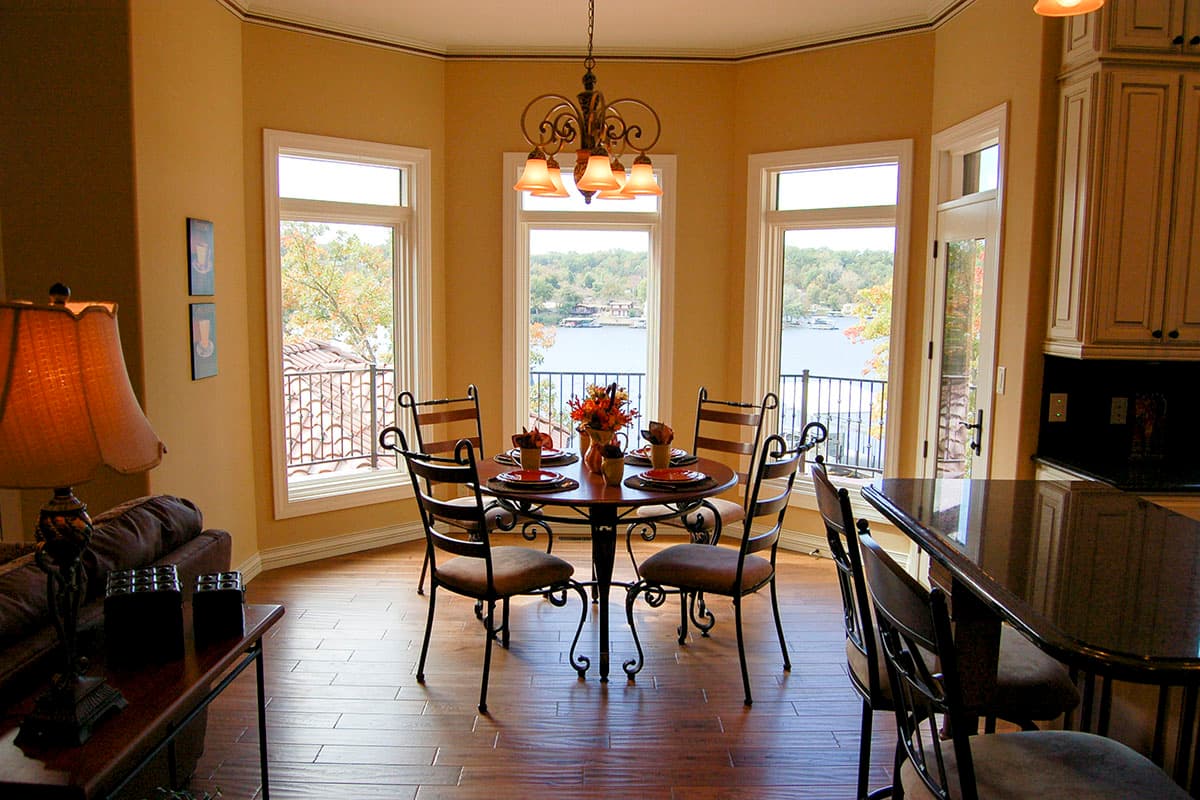

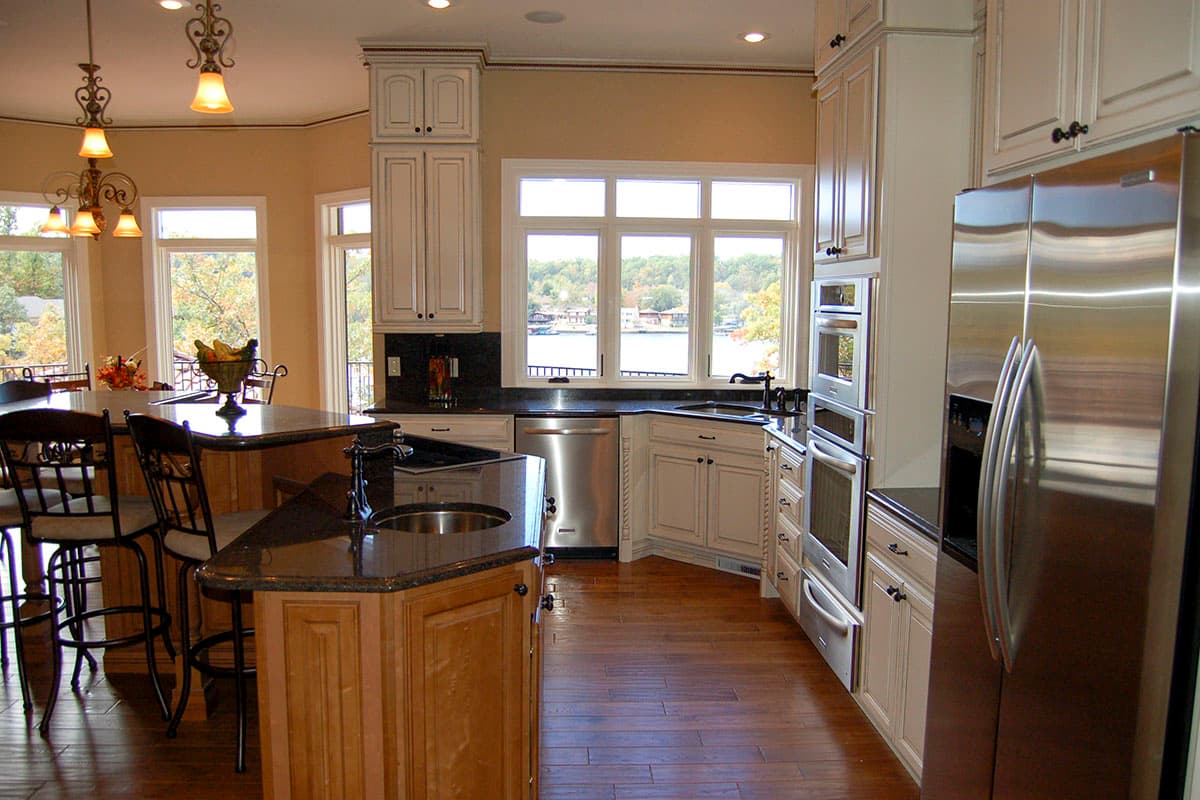

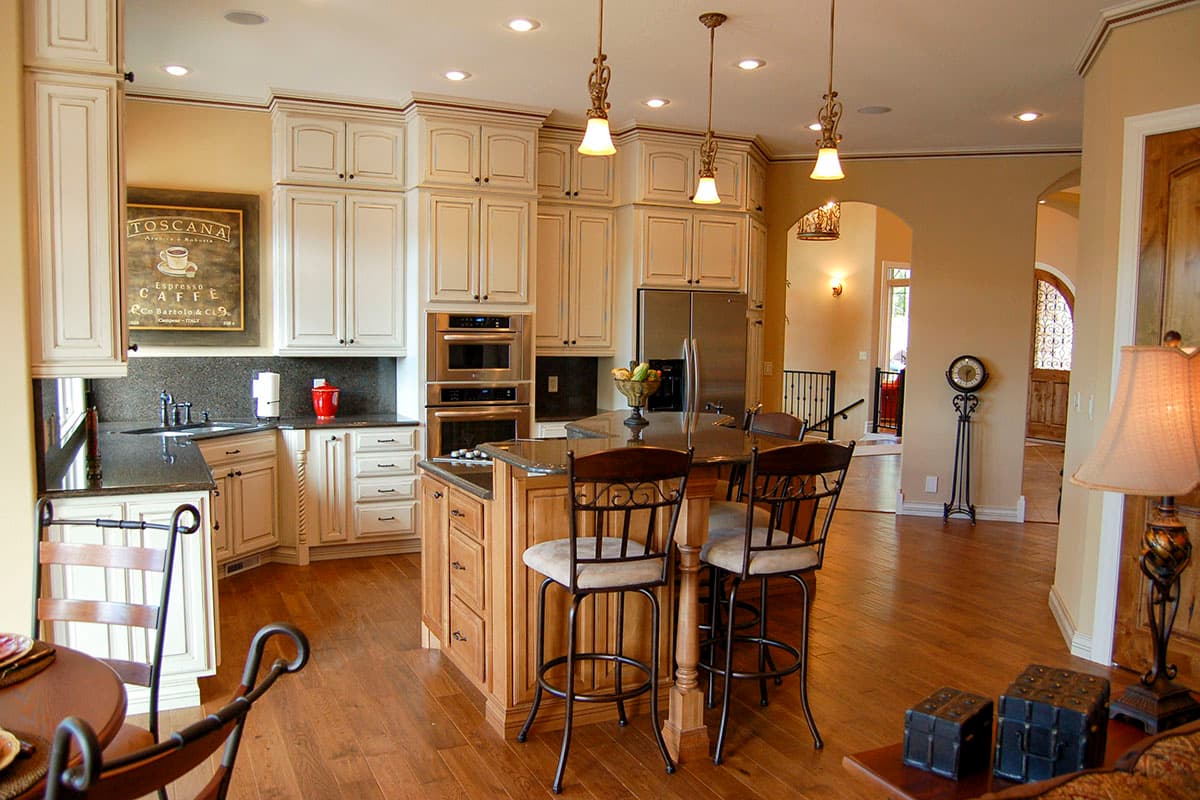

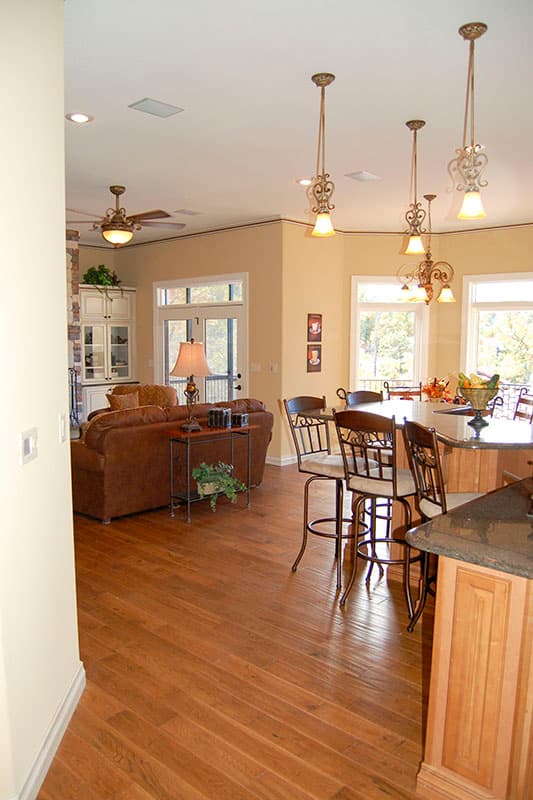

  • The kitchen, hearth room and nook are combined into an open floor plan concept to create a large daily living area while still having access to the great room.

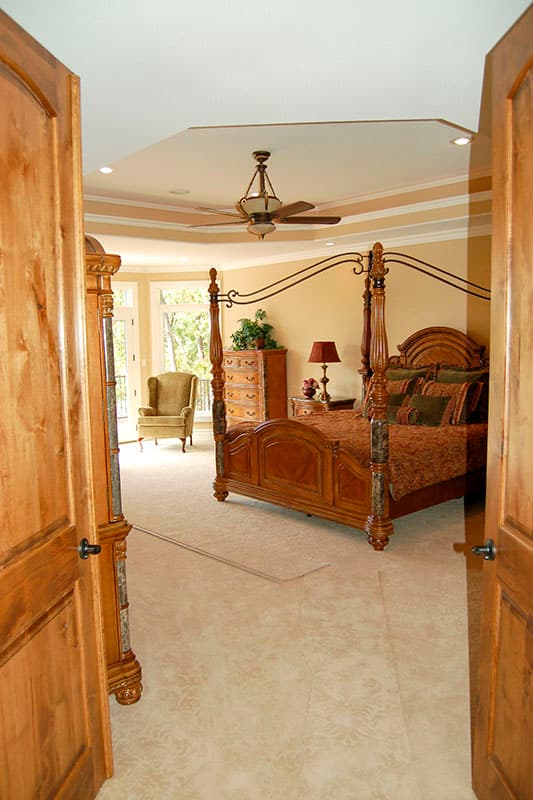

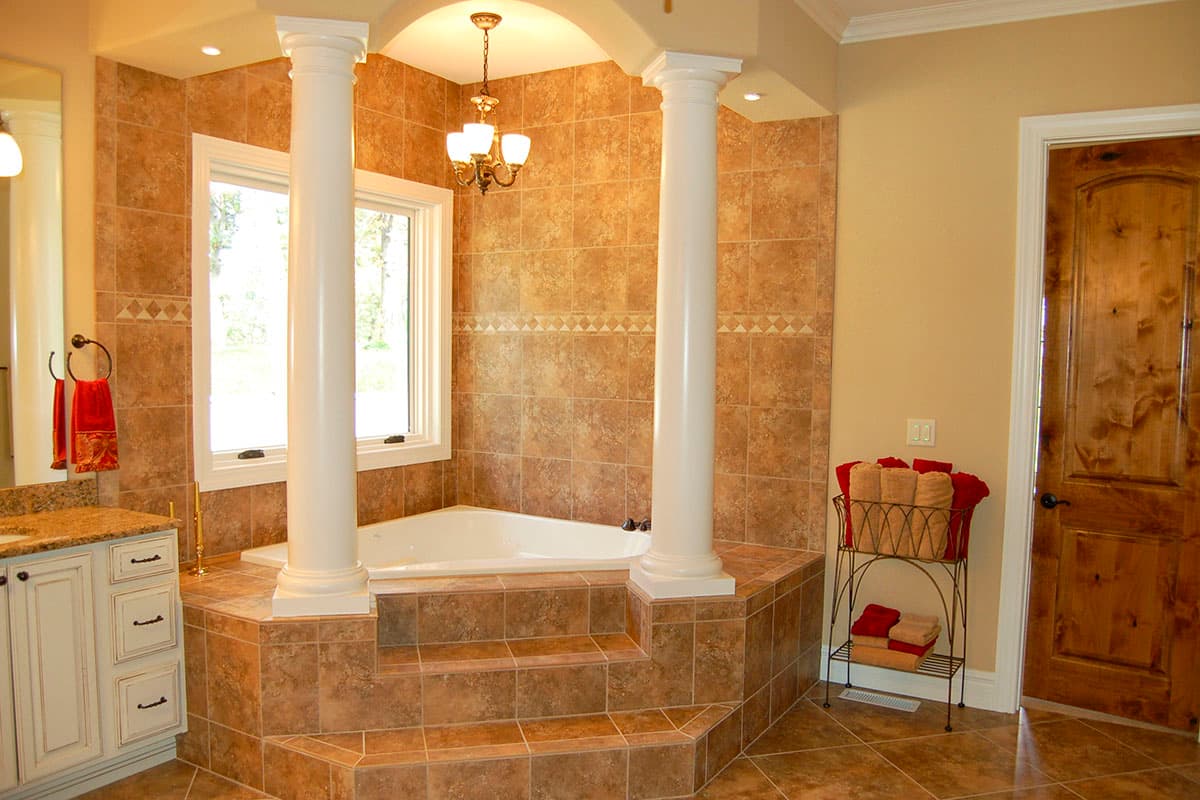

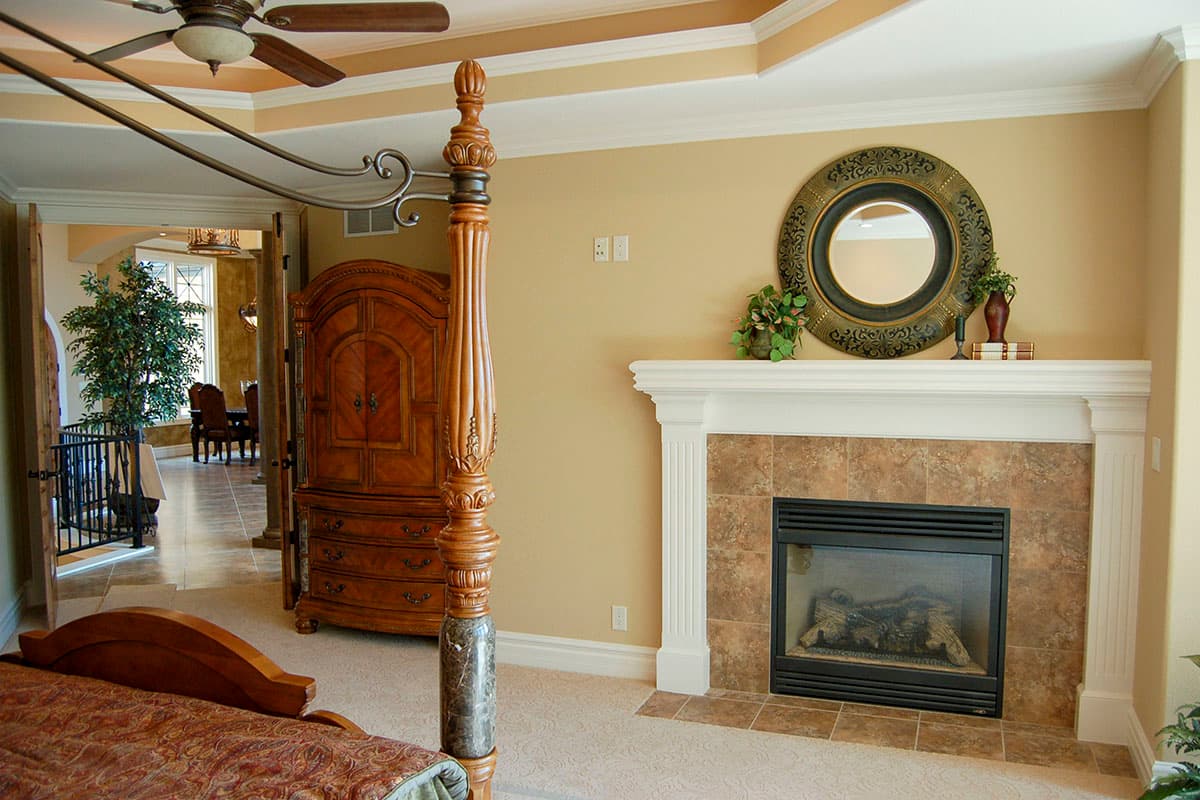

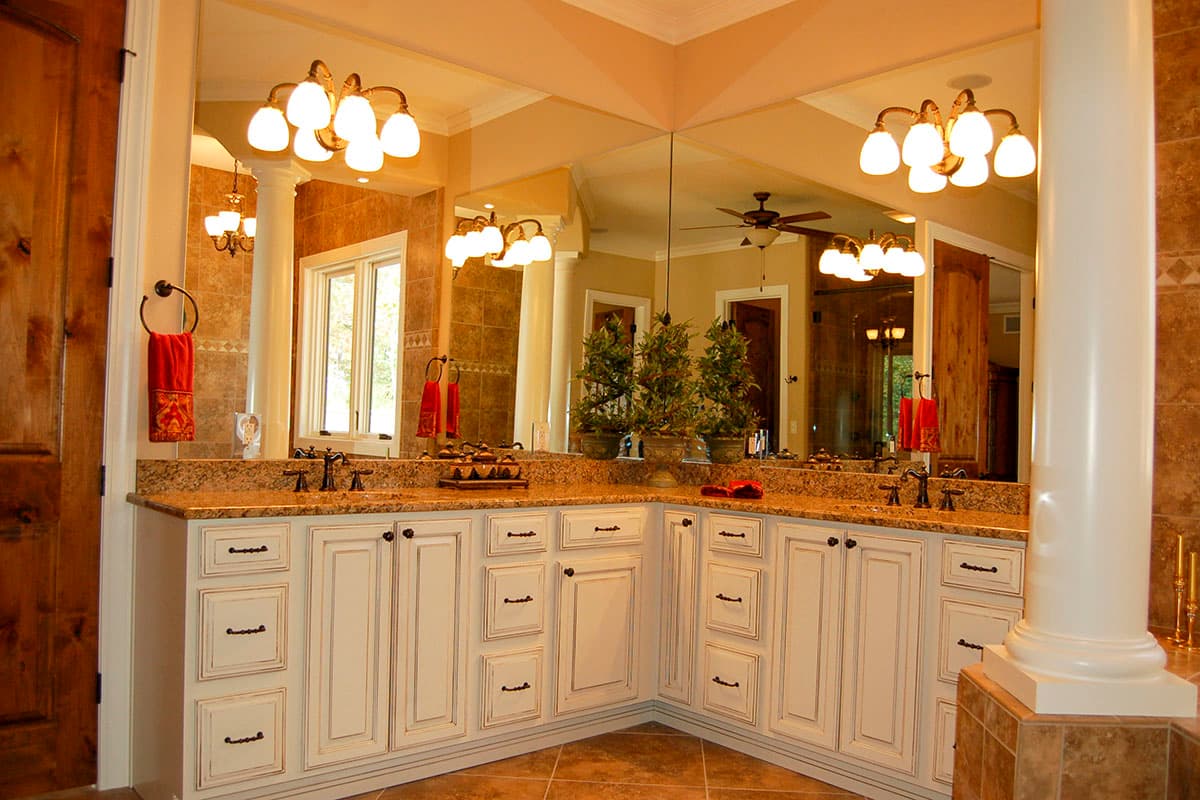

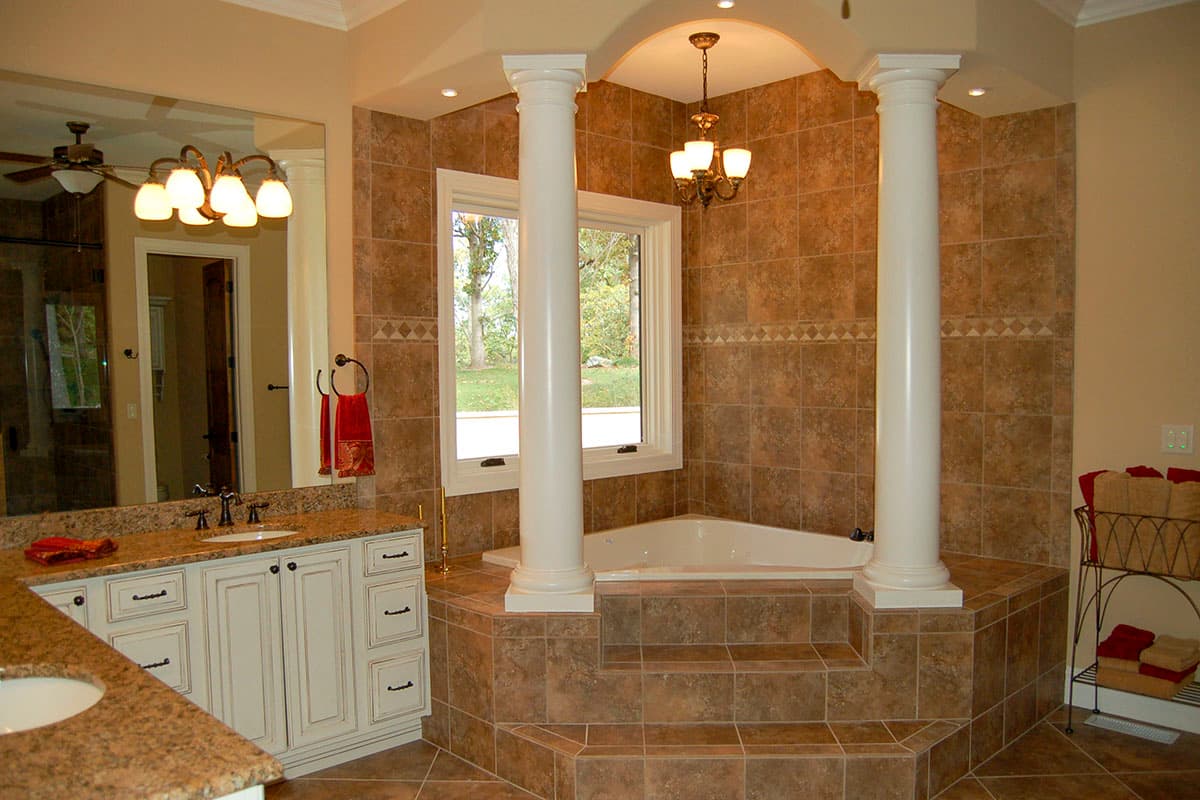

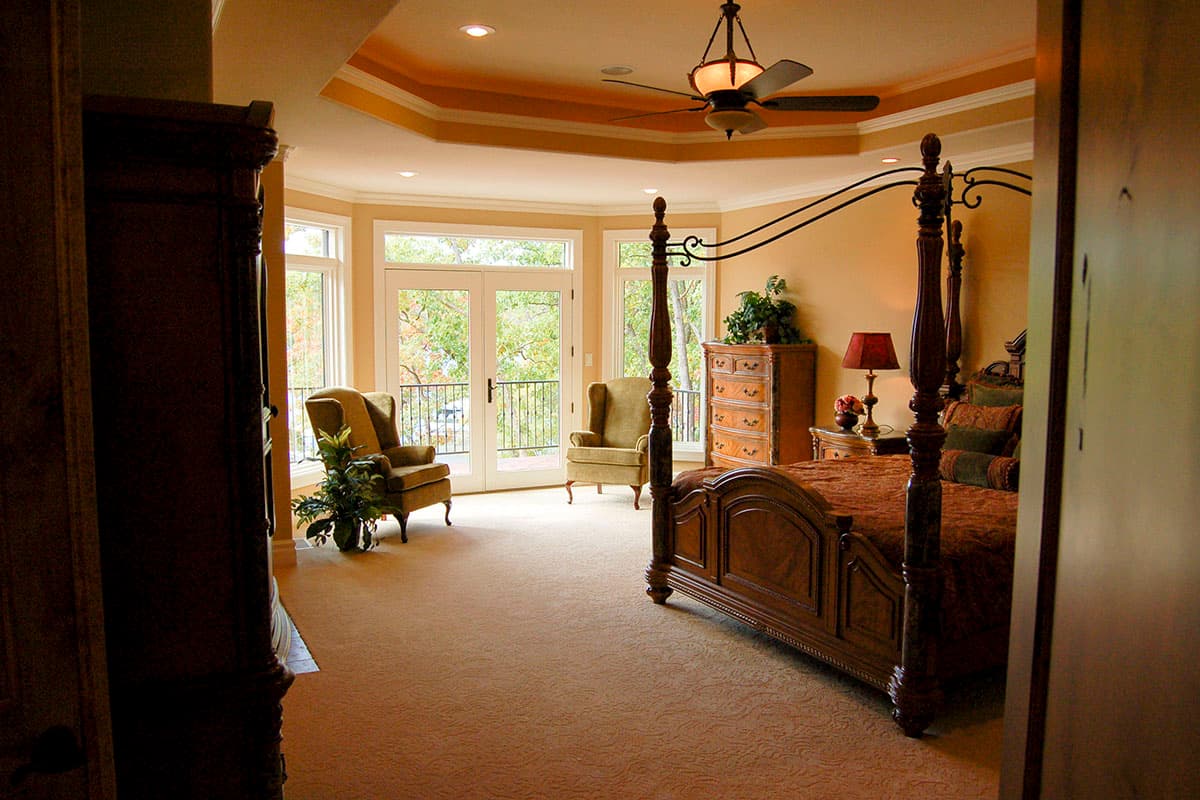

  • A spacious master suite includes double French doors that lead to a private deck, Jacuzzi tub and spacious walk-in closet. A second bedroom is tucked behind the garage and has a private bath.

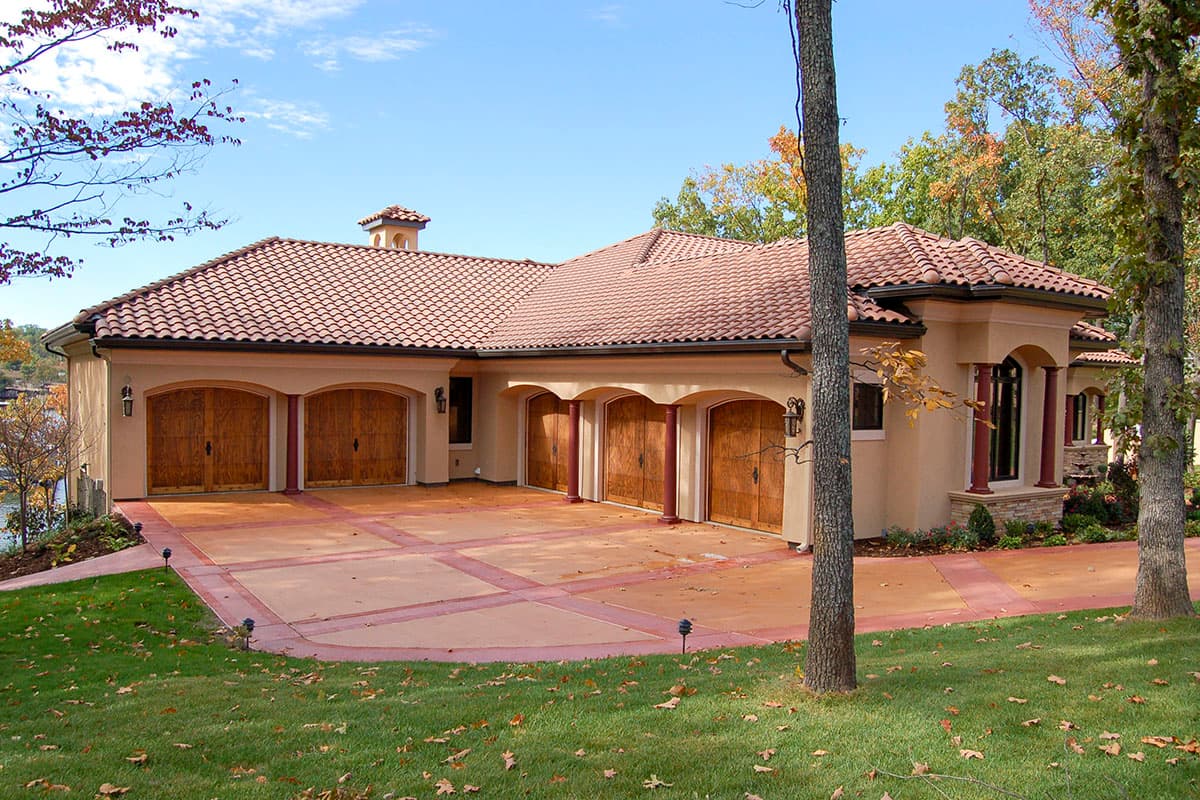

  • A 5-stall, split-load garage provides ample parking and storage space.
  • Related Plan: Get a finished lower level with house plan 890120AH.

Plans include the following:

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What is NOT included in the plans:

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations

Floor Plan

Plan details



Luxury Tuscan Ranch Home Plan with 2 Bedrooms

  • 3,214

    Heated s.f.

  • 2

    Beds

  • 3

    Baths

  • 1

    Floors

  • 5

    Car garage

Buy This Plan
  • 5 Sets $1,112
  • 8 Sets $1,158
  • Reproducible Set $1,397
  • PDF - Single-Build $1,397
  • CAD - Single-Build $2,224
  • View all purchase option online

About This Plan

  • Tuscan in design, this ranch features a traditional plan with extra details that are sure to please, beginning with a curved staircase leading to the lower level just to the right of the entry.
  • The great room directly ahead, and the dining room to the left of the entry are both defined by gracious columns that carry you into the main living area of the home.
  • The kitchen, hearth room and nook are combined into an open floor plan concept to create a large daily living area while still having access to the great room.
  • A spacious master suite includes double French doors that lead to a private deck, Jacuzzi tub and spacious walk-in closet. A second bedroom is tucked behind the garage and has a private bath.
  • A 5-stall, split-load garage provides ample parking and storage space.
  • Related Plan: Get a finished lower level with house plan 890120AH.

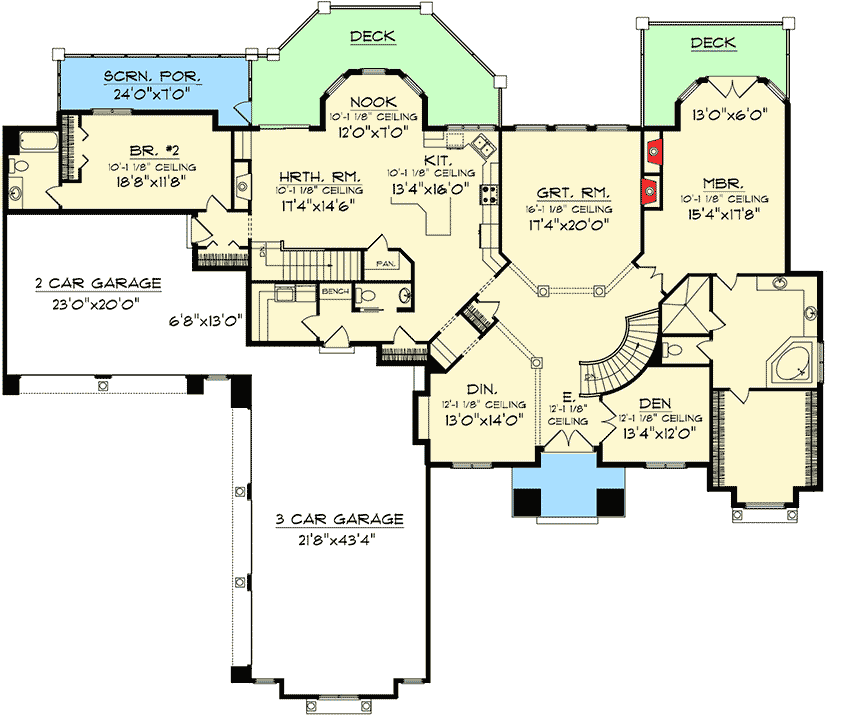

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,214 sq. ft.
  • 1st Floor: 3,214 sq. ft.
  • Screened Porch: 168 sq. ft.
  • Porch, Rear: 176 sq. ft.
  • Porch, Front: 94 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 101' 4"
  • Depth: 79' 8"
  • Max ridge height: 23' 0"

Garage

  • Type: Attached
  • Area: 1495 sq. ft.
  • Count: 5 Cars
  • Entry Location: Front, Side

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss
