Plan 76010GW

Mediterranean House Plan with 3-car Courtyard-style Garage

Heated S.F.

2,897

Beds

3

Baths

3

Stories

1

Cars

3

What's Included

Floor Plan

Main Level

Reverse Floor Plan

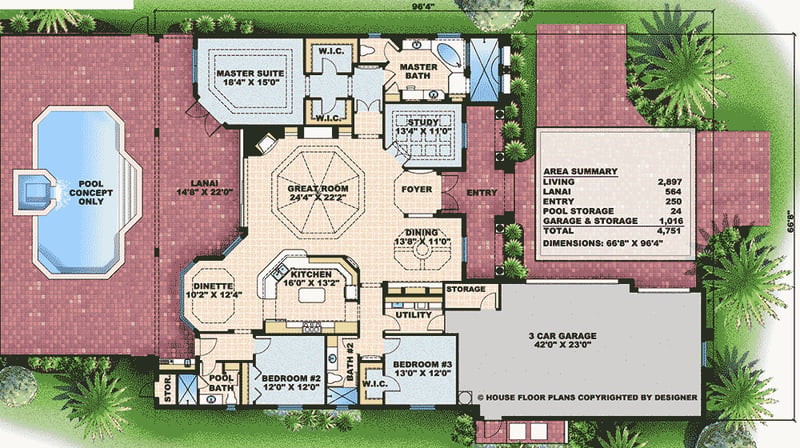

Mediterranean House Plan with 3-car Courtyard-style Garage - 76010GW floor plan - Main Level

Plan Details

Circle-top windows span the front of this stylish Mediterranean home plan creating an enticing appearance.
From the moment you step in the foyer, the views are wide open, creating wonderful sightlines.
Special ceiling treatments abound throughout the home, for visual interest.
The master suite is set off by itself and boasts an amazing bathroom with a huge walk-in shower and jetted tub.
Double doors in the master bedroom lead out to the covered lanai in the rear.
From the kitchen sink, you can see out to the dinette, lanai and magnificent great room with its corner fireplace and built-in entertainment center.
The pool bath has a door to the lanai for easy access.
Related Plans: Get alternate elevations with house plans 66061WE and 76011GW.

What's Included

This house plan includes the following details:

Foundation Plan

Noted Floor Plan

Dimensioned floor plan

Electrical Plan

4 exterior elevations

Roof Plan

Typical wall section and cross section

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Square Footage Breakdown

Total Heated Area:

2,897 sq. ft.

1st Floor:

2,897 sq. ft.

Lanai:

564 sq. ft.

Entry:

250 sq. ft.

Beds/Baths

Bedrooms:

3

Full bathrooms:

3

Foundation Type

Standard Foundations:

Slab

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

Block / CMU (main floor)

Optional Type(s):

2x6

Dimensions

Width:

66' 8"

Depth:

96' 4"

Max Ridge Height:

28' 5"

Garage

Type:

Attached

Area:

1016 sq. ft.

Count:

3 Cars

Entry Location:

Courtyard

Ceiling Heights

Floor / Height:

First Floor / 10' 0"

Roof Details

Primary Pitch:

7 on 12

Framing Type:

Truss

Architectural Style

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor
