Plan 80714PM

Majestic European Styling

Majestic European Styling

Plan 80714PM

  • 2,984

    Heated s.f.

  • 4

    Beds

  • 1.5+

    Baths

  • 2

    Stories

  • 2

    Cars

  • This house plan gives you majestic European styling and has a formal covered entry and a symmetrical main body of the home.
  • Formal stairs occupy the center of the home creating a traffic-directing hub.
  • The living room has a fireplace centered on the left wall and has access via a pocket door to the kitchen.
  • The dining room has an angled arched entry leading to the kitchen. More informal meals will be a joy in the cozy nook.
  • Flanking the foyer you'll find a private study and a sealed mudroom giving you acccess to the 2-car garage.
  • Upstairs, the master bedroom is spacious as is the master bath and walk-in.
  • Three bedrooms share a bath and laundry is conveniently located upstairs as well.

Plan sets include the following:

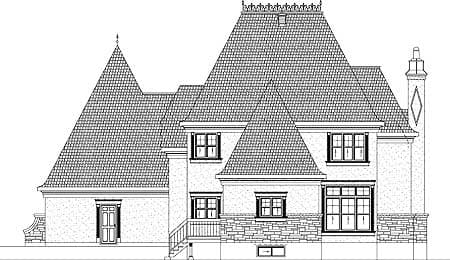

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.
  • **Plans DO NOT include electrical, HVAC or plumbing details (other than the location of plumbing fixtures)**

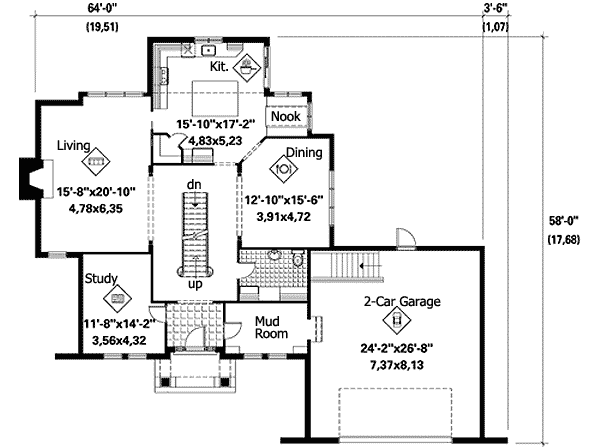

Floor Plan

Plan details



Majestic European Styling

  • 2,984

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,135
  • 8 Sets $1,180
  • Reproducible Set $1,335
  • PDF - single-use $1,335
  • CAD $2,010
  • View all purchase option online

About This Plan

  • This house plan gives you majestic European styling and has a formal covered entry and a symmetrical main body of the home.
  • Formal stairs occupy the center of the home creating a traffic-directing hub.
  • The living room has a fireplace centered on the left wall and has access via a pocket door to the kitchen.
  • The dining room has an angled arched entry leading to the kitchen. More informal meals will be a joy in the cozy nook.
  • Flanking the foyer you'll find a private study and a sealed mudroom giving you acccess to the 2-car garage.
  • Upstairs, the master bedroom is spacious as is the master bath and walk-in.
  • Three bedrooms share a bath and laundry is conveniently located upstairs as well.

Floor Plans

  • Main Level

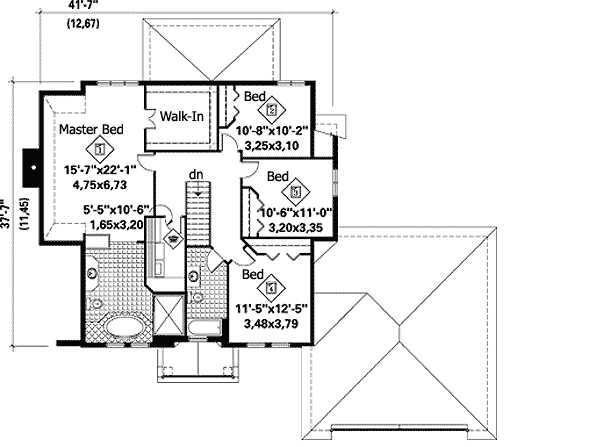

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,984 sq. ft.
  • 1st Floor: 1,582 sq. ft.
  • 2nd Floor: 1,402 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 1
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 64' 0"
  • Depth: 58' 0"
  • Max ridge height: 40' 6"

Garage

  • Type: Attached
  • Area: 698 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof

  • Framing Type: Truss
