Marvelous New American House Plan with Large Covered Porches

Plan 69714AM

2,495
Heated s.f.
3
Beds
2.5
Baths
1
Stories
3
Cars

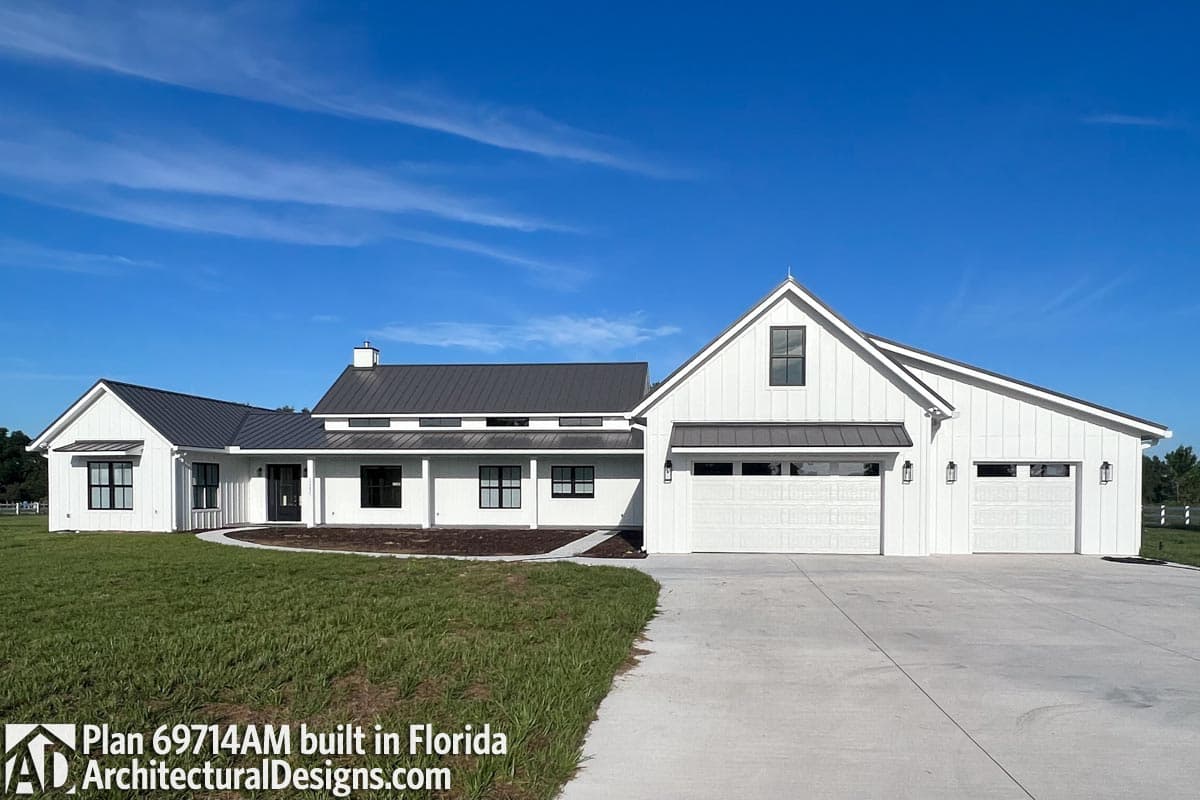

This marvelous, 3-bedroom New American farmhouse plan includes natural wood tones against bright-white siding and contrasting dark garage doors and window sashes, along with a cross-gable roof, side-entry garage. Three shed dormer windows add character to the front elevation.

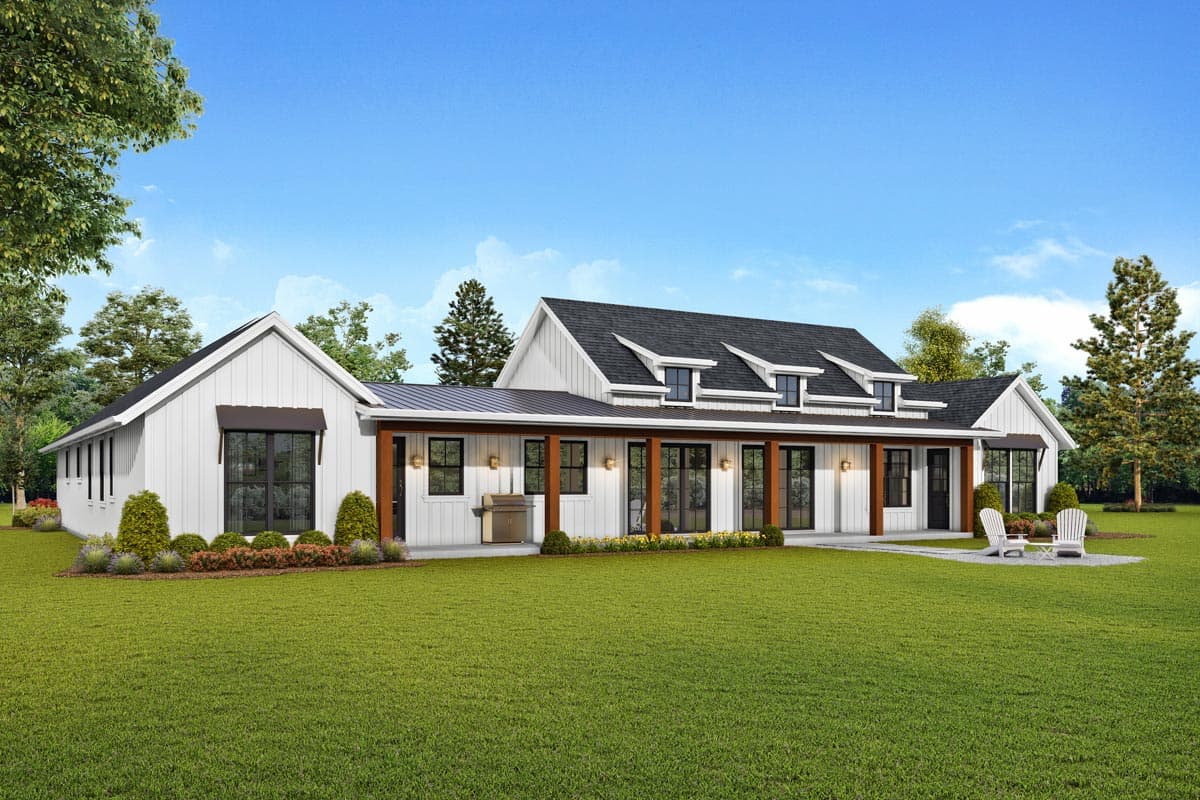

Enjoy front or rear views from one of the two oversized, covered porches. The shared living space sits in the middle of the home, separating the master bedroom from the others for an added touch of privacy.

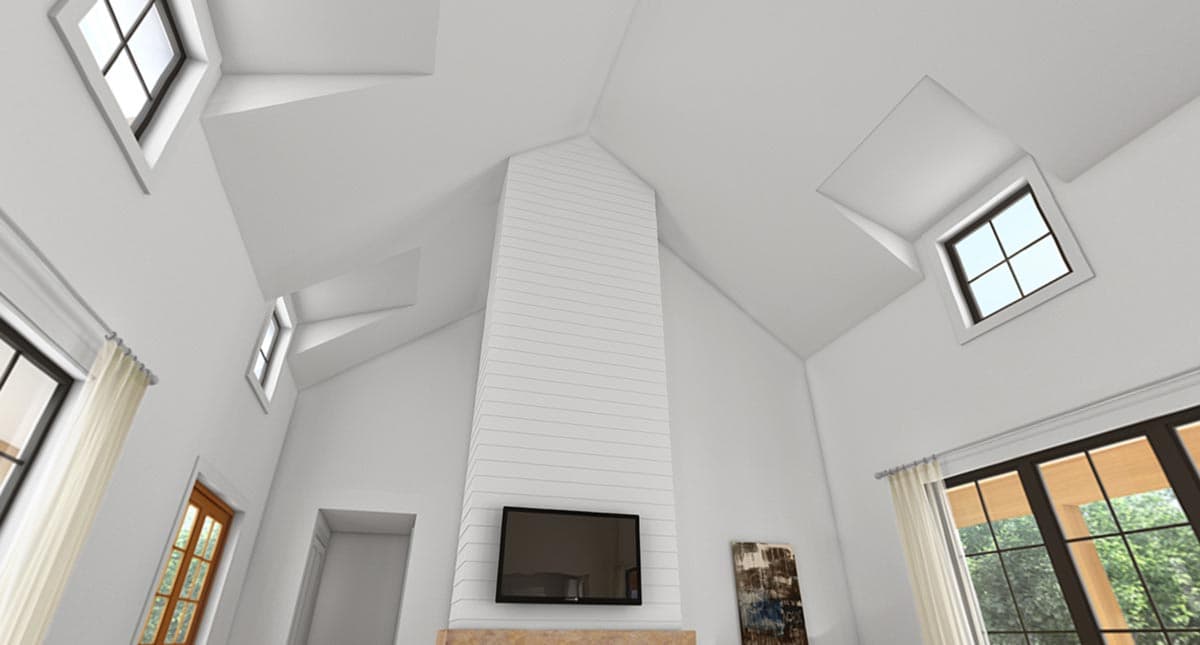

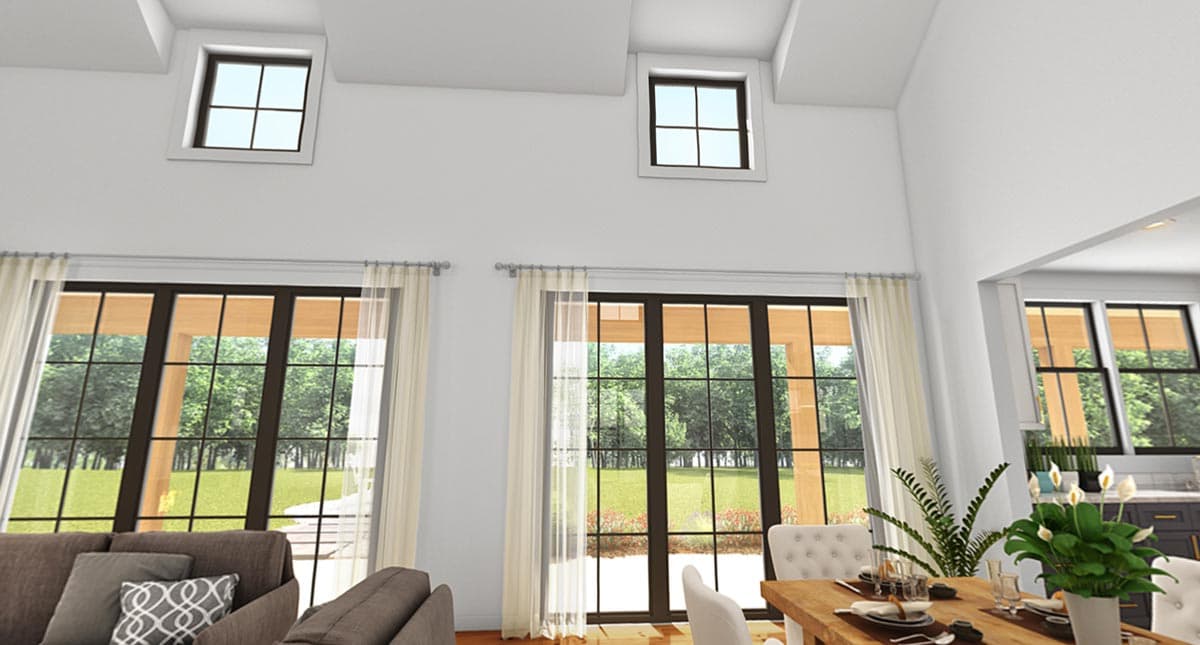

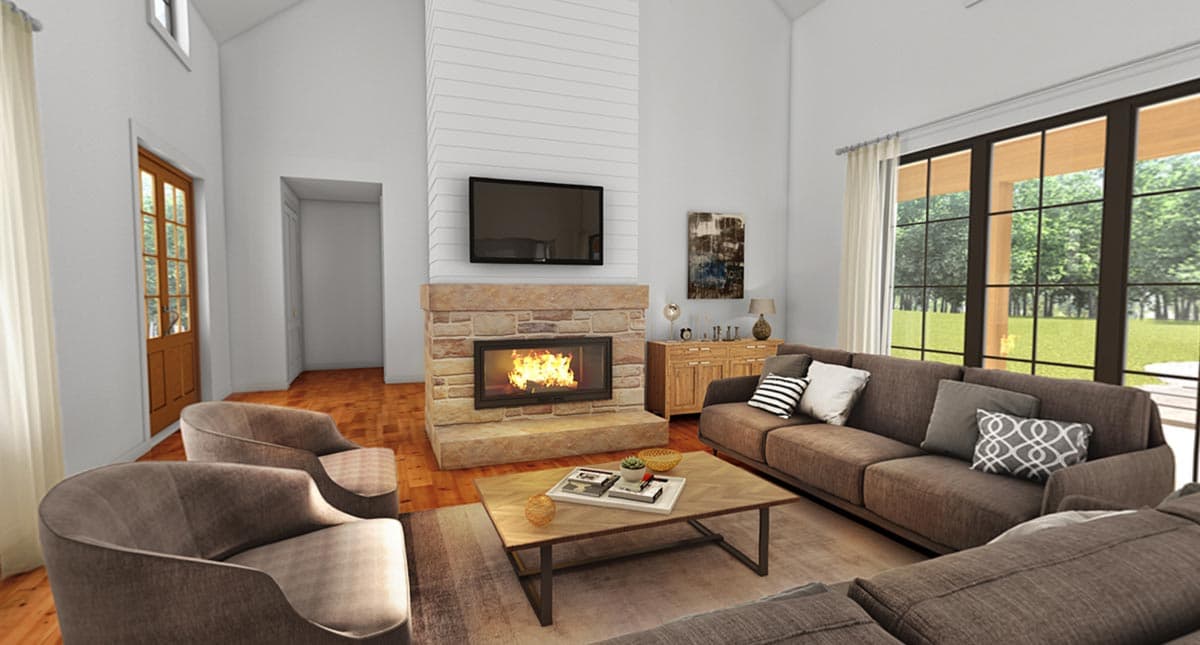

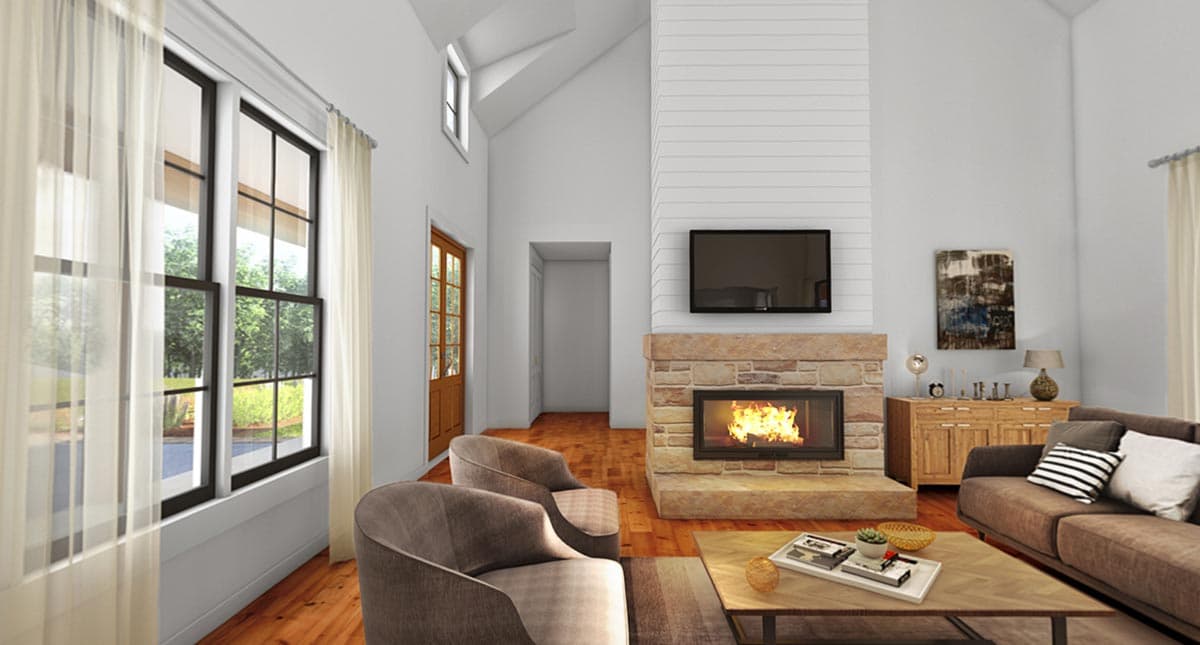

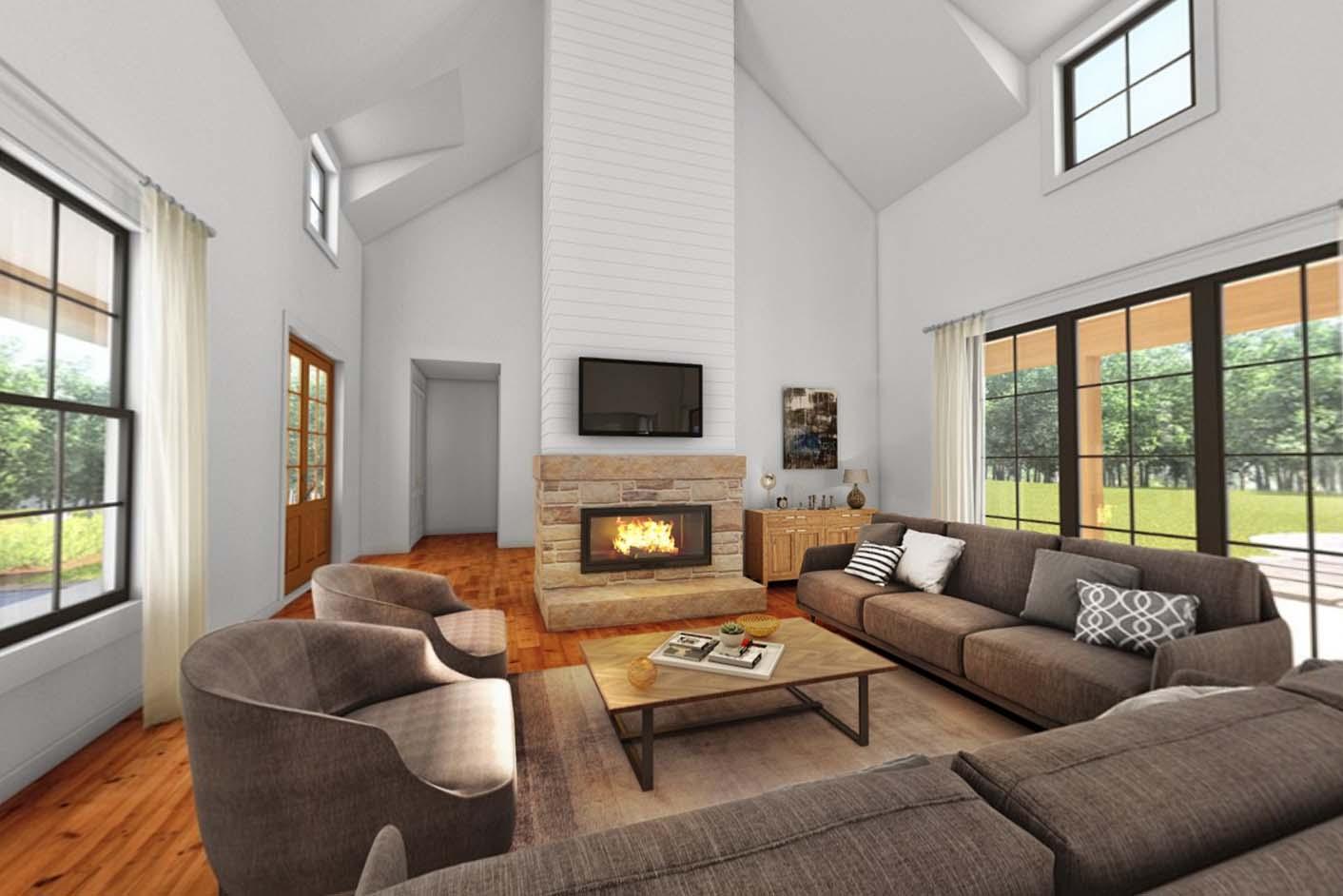

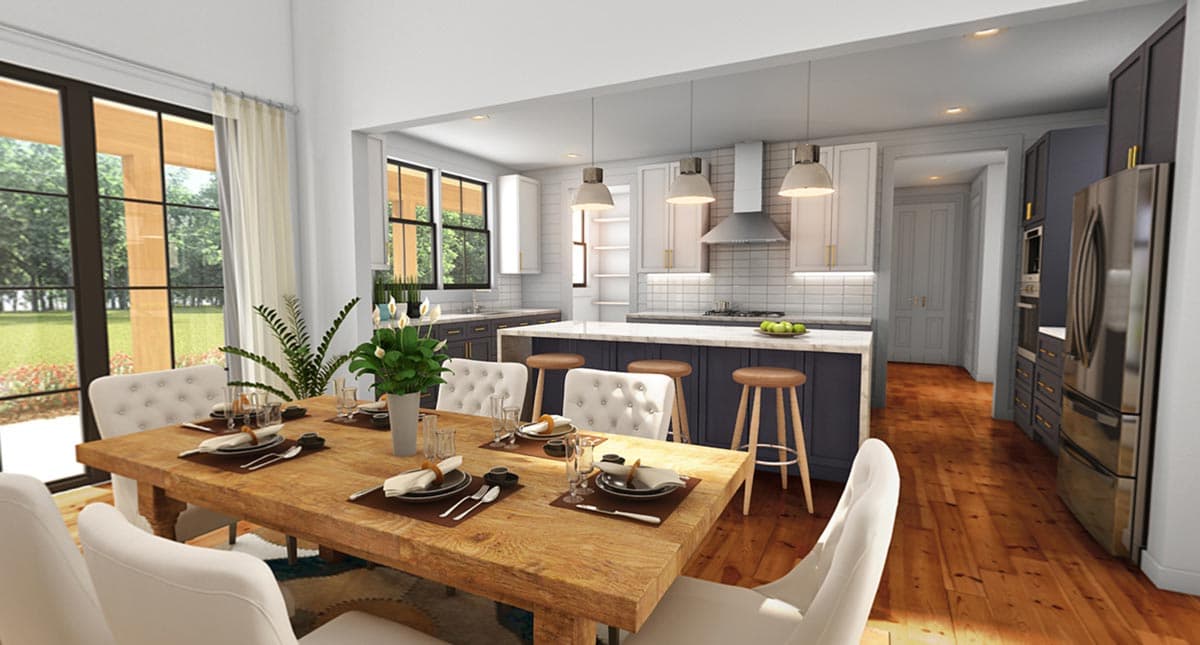

The living and dining room offers a feeling of spaciousness provided by the vaulted ceiling and two sets of retractable glass doors. Prioritize organization with the grand walk-in pantry and large mudroom.
To the left of the home, your master bedroom awaits, and features a vaulted ceiling, door to the back porch, walk-in closet, and a master bathroom with two sinks, a separate tub and shower, and a commode room.
A quiet office sits across from the master bedroom.
Two additional bedrooms reside on the other side of the home and share a Jack-and-Jill bathroom.
NOTE: Please allow approximately 10 business days for the basement option.
Related Plan: Get a 4-bedroom version with house plan 69690AM and an alternate version with house plan 69806AM.

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE: Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

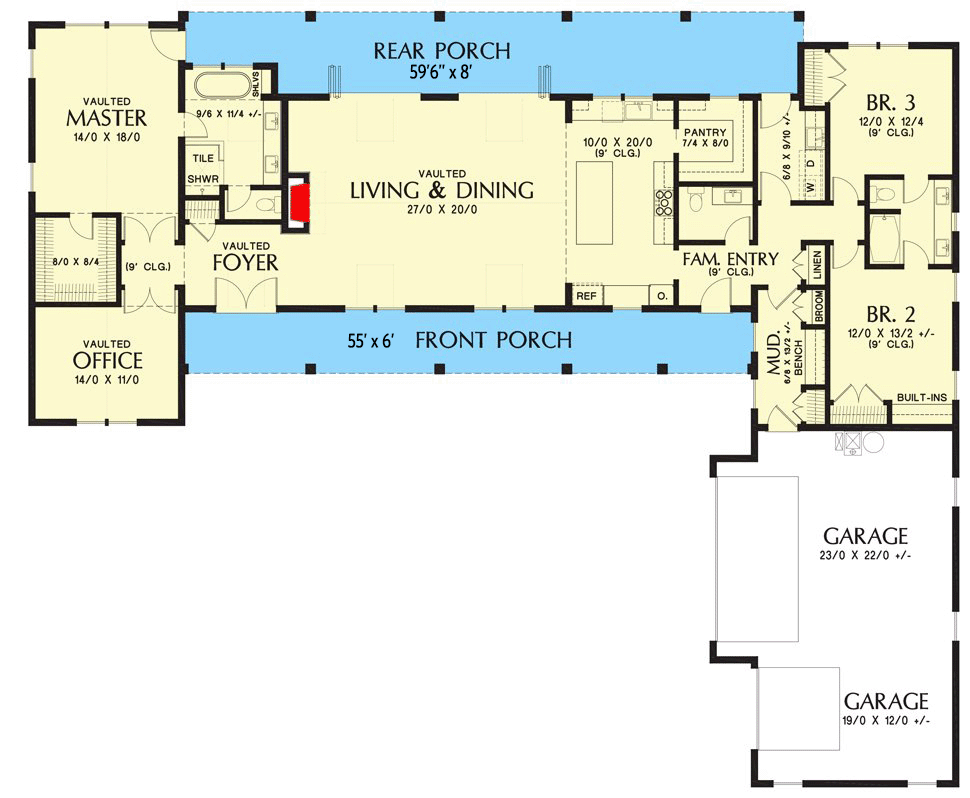

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Marvelous New American House Plan with Large Covered Porches - 69714AM floor plan - Main Level

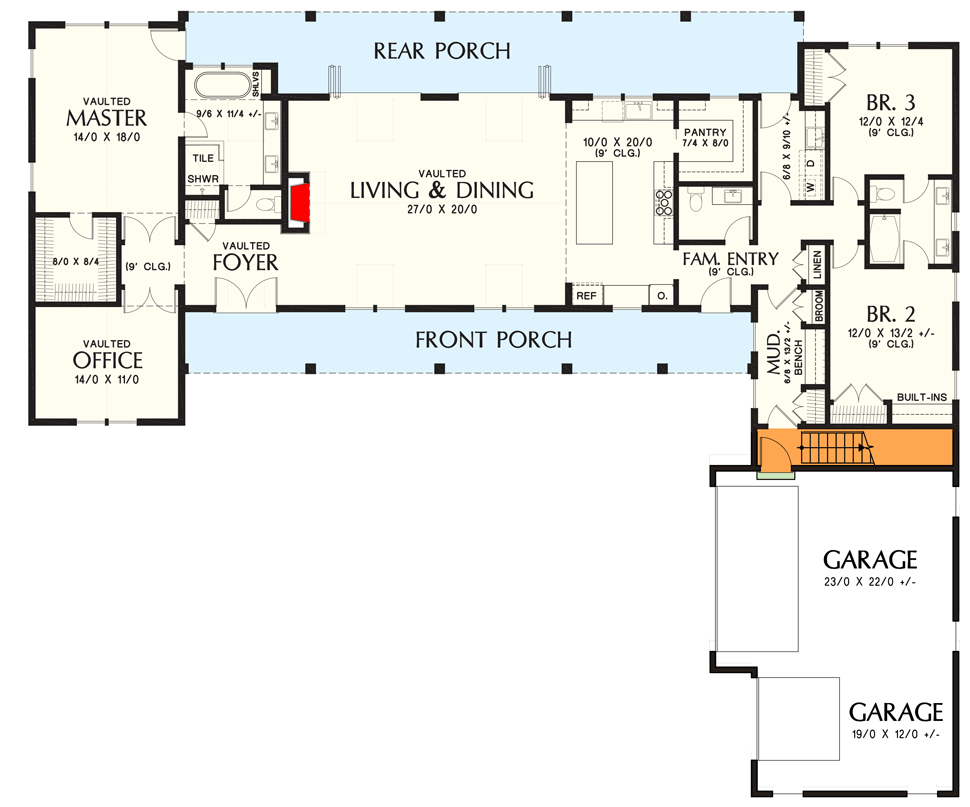

Main Level - Basement Stair Location

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Marvelous New American House Plan with Large Covered Porches - 69714AM floor plan - Main Level - Basement Stair Location

Plan details

Square Footage Breakdown

Total Heated Area: 2,495 sq. ft.
1st Floor: 2,495 sq. ft.

Beds/Baths

Bedrooms: 3

Full bathrooms: 2
Half bathrooms: 1

Foundation Type

Standard Foundations: Slab, Crawl

Optional Foundations: Basement

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 90' 0"
Depth: 75' 0"
Max ridge height: 21' 8"

Garage

Type: Attached
Area: 770 sq. ft.
Count: 3 Cars
Entry Location: Courtyard

Ceiling Heights

Floor / Height: First Floor / 9' 0"

Roof Details

Primary Pitch: 10 on 12

Framing Type: Truss

Architectural Style

Special features

Plan Collections
