Plan 57272HA

Marvelous Open Floor Plan

Heated S.F.

1,298

Beds

3

Baths

2

Stories

1

Cars

2

What's Included

Floor Plan

Main Level

Reverse Floor Plan

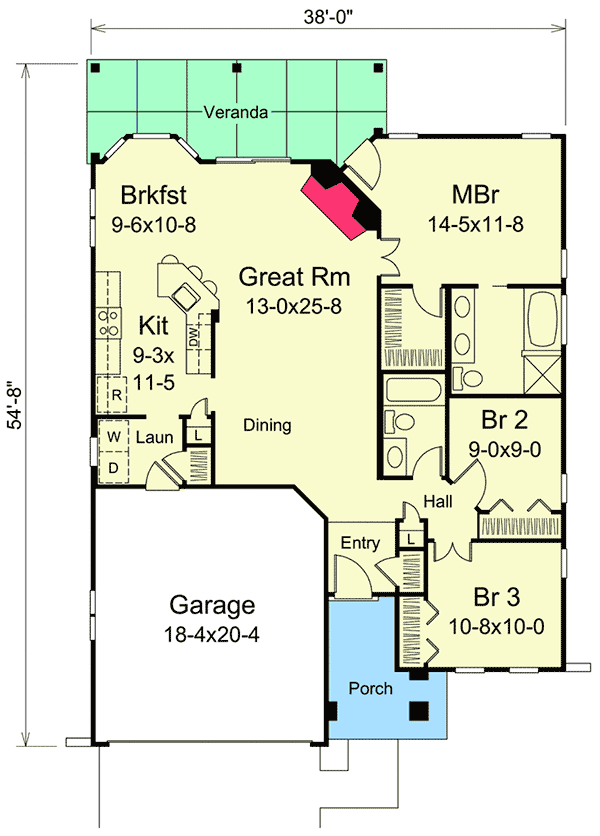

Marvelous Open Floor Plan - 57272HA floor plan - Main Level

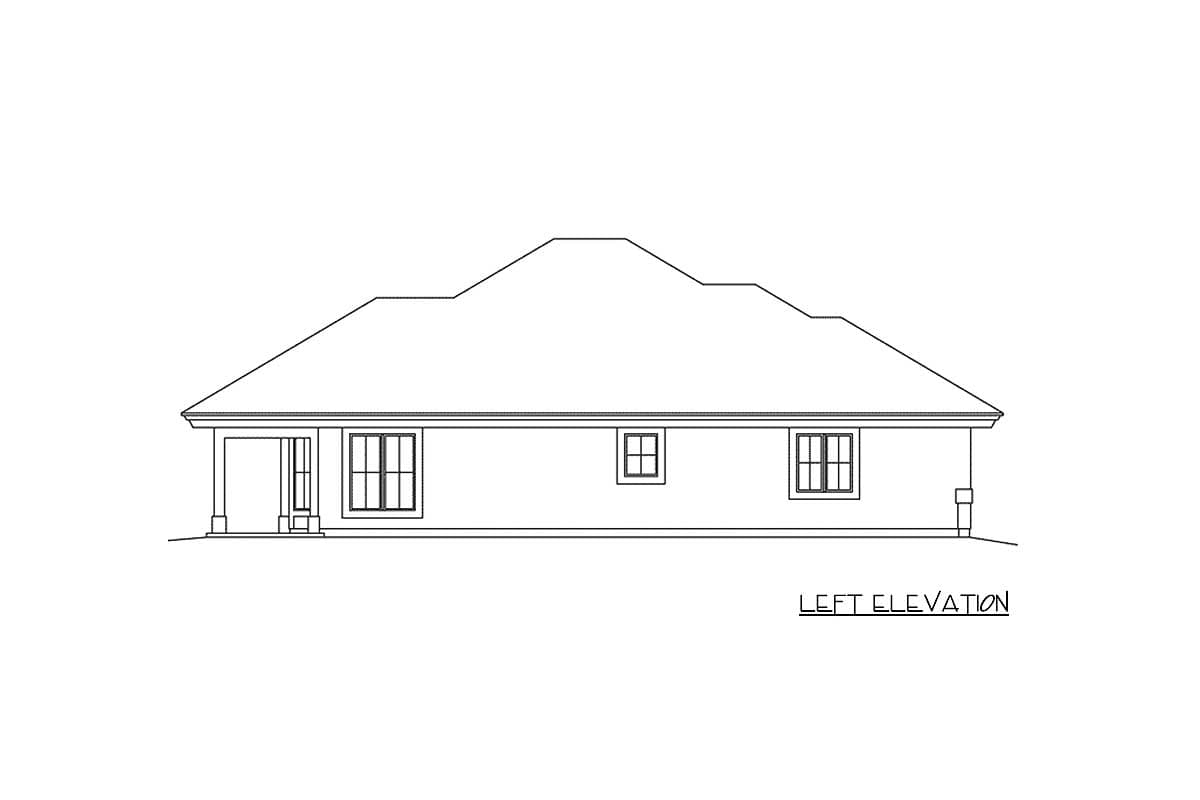

Plan Details

An open floor plan makes the most of the space in this compact Mediterranean home.
It's the perfect size for empty-nesters or a family just starting out.
Three bedrooms including a large master suite with private bath, all lie on the right wing of the home.
A bay window extends the space in the breakfast nook and floods the room with light.

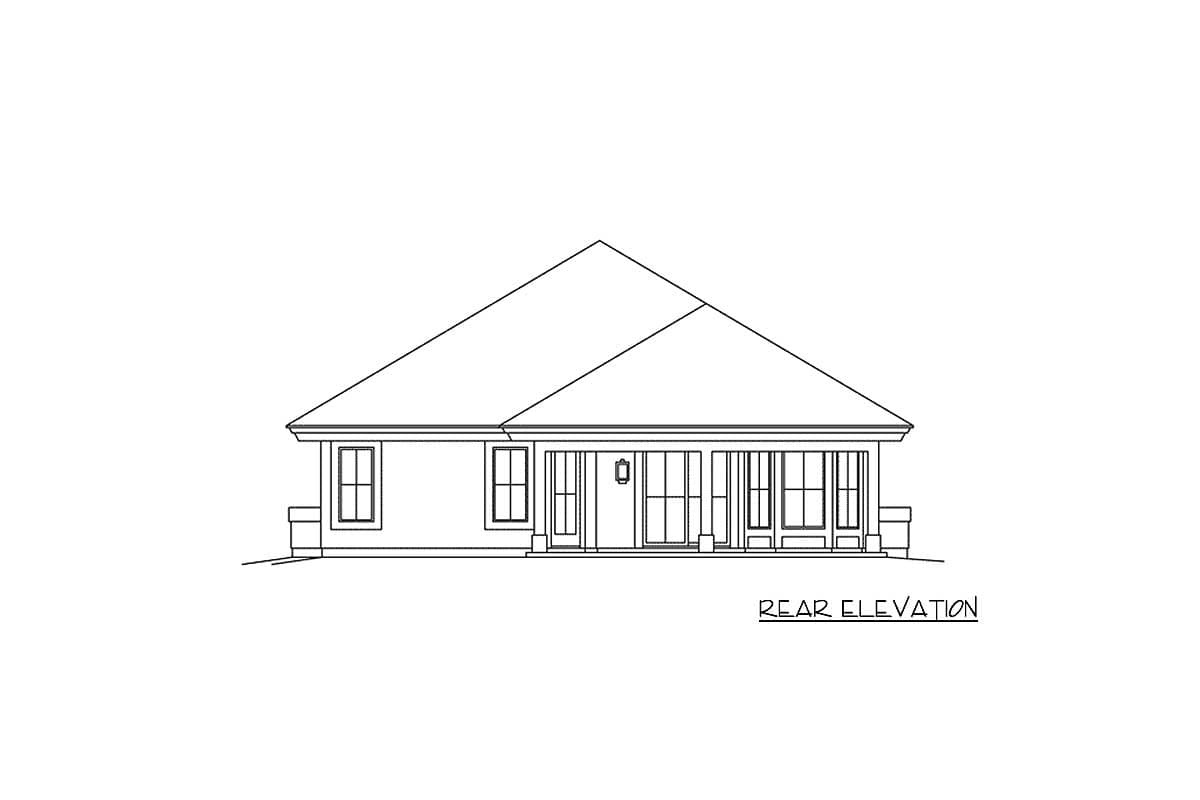

The big rear veranda is covered to give you shelter from the sun.

What's Included

Front Cover Sheet
Detailed Floor Plans
Foundation Plan
Roof Plan
Exterior Elevations
Interior Elevations
Cross Section
Mechanical – Shows location of furnace
Electrical – Shows location of outlets, switches and fixtures
Plumbing – Shows location of fixtures

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Square Footage Breakdown

Total Heated Area:

1,298 sq. ft.

1st Floor:

1,298 sq. ft.

Porch, Combined:

223 sq. ft.

Beds/Baths

Bedrooms:

3

Full bathrooms:

2

Foundation Type

Standard Foundations:

Slab

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x4

Dimensions

Width:

38' 0"

Depth:

54' 8"

Max Ridge Height:

21' 0"

Garage

Type:

Attached

Area:

385 sq. ft.

Count:

2 Cars

Entry Location:

Front

Ceiling Heights

Floor / Height:

First Floor / 9' 0"

Roof Details

Primary Pitch:

7 on 12

Framing Type:

Truss

Architectural Style

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor
