Plan 36276TX

Media and Game Rooms

6,612 5 8 2 3
Pageloader

Media and Game Rooms

Plan 36276TX

  • 6,612

    Heated s.f.

  • 5

    Beds

  • 8

    Baths

  • 2

    Stories

  • 3

    Cars

  • This high-end Mediterranean home plan was designed for entertaining on a grand scale with both a media room with wet bar and a game room.
  • Two walk-in pantries in the gourmet Kitchen will solve all your storage needs and two bonus rooms on the second floor add extra options.
  • Your family will love spending time in the spacious family room with a corner fireplace and coffered ceilings.
  • The first floor master suite has a large sitting bay perfect for a chaise lounge, and a romantic fireplace.
  • Each of the three bedrooms on the second floor has its own bath and walk-in closet.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

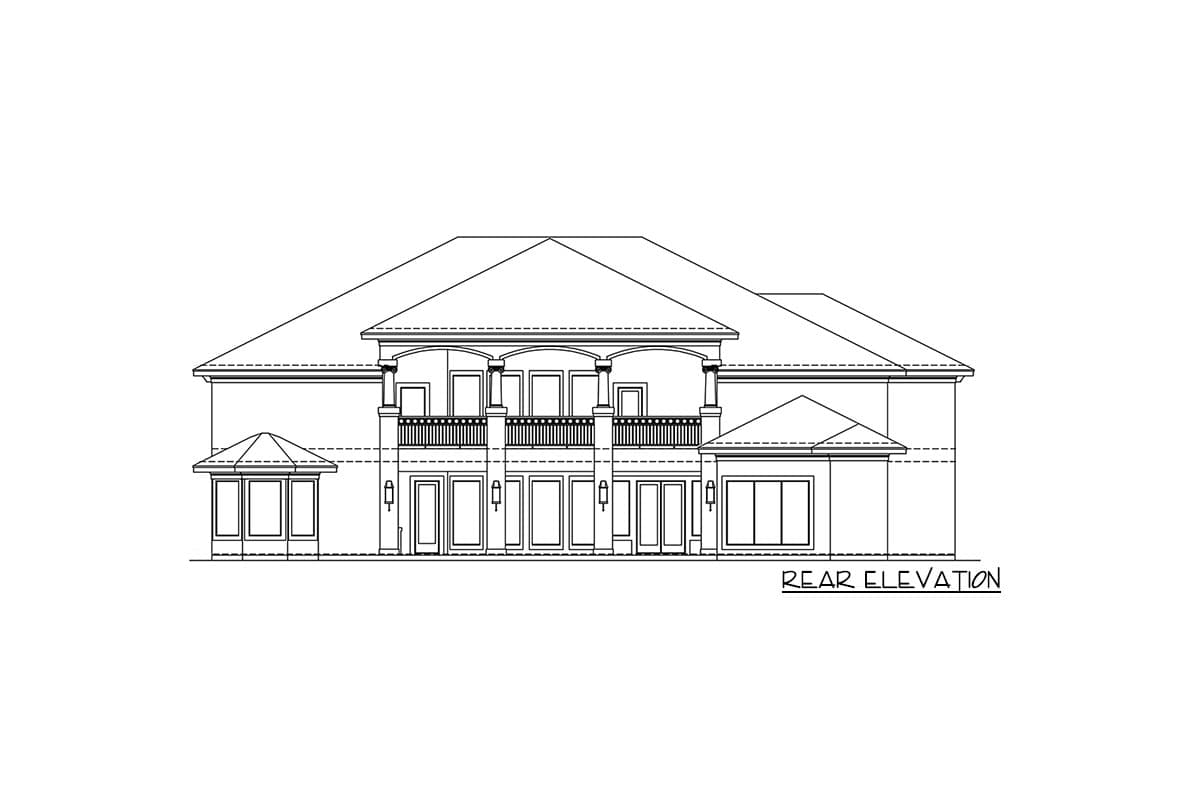

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

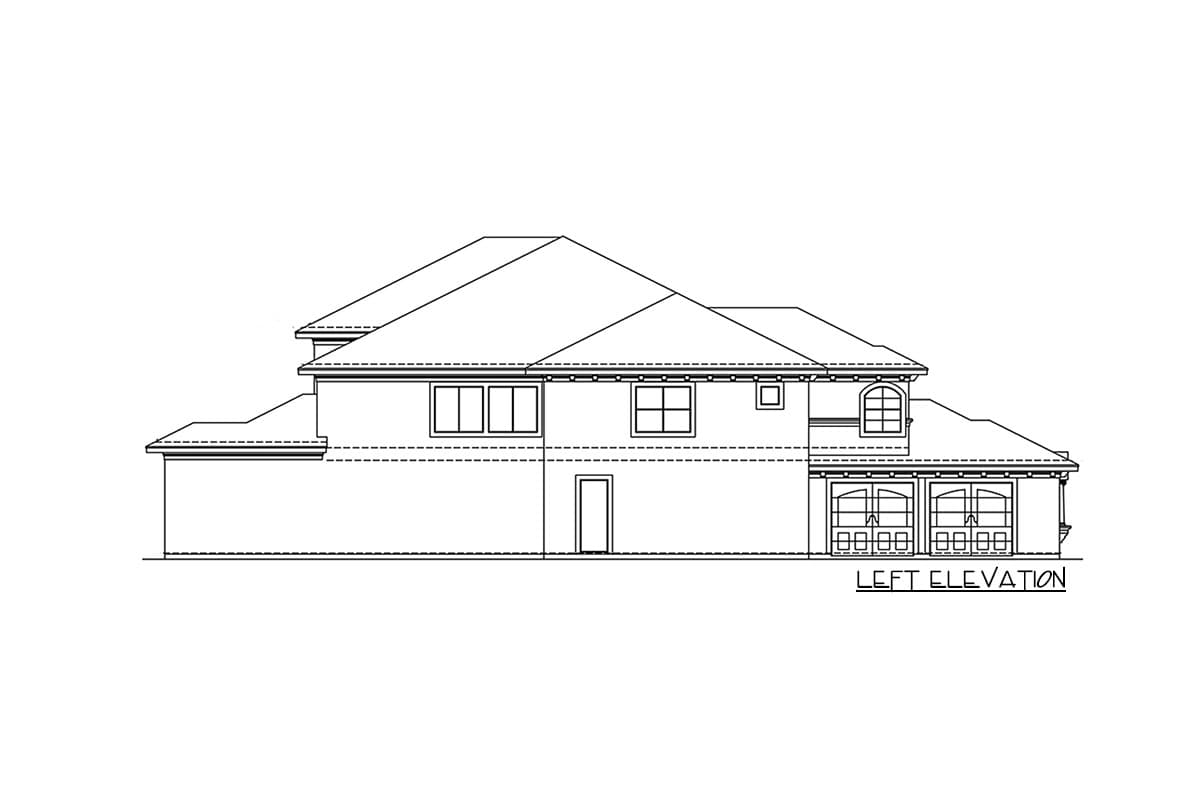

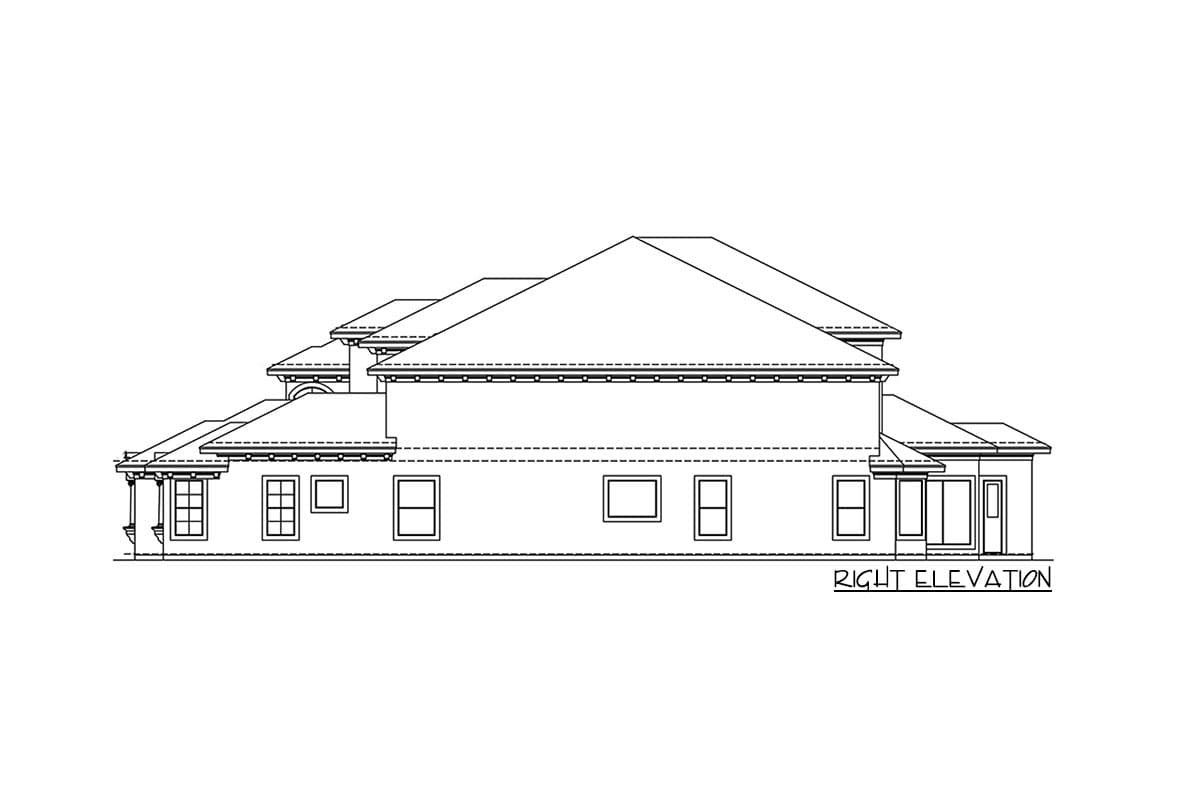

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page - NOT all of our house plans include sections because they may not have been required with the original design.

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

Floor Plan

Plan details



Media and Game Rooms

  • 6,612

    Heated s.f.

  • 5

    Beds

  • 8

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $3,295
  • 5 Sets $3,495
  • CAD $4,950
  • View all purchase option online

About This Plan

  • This high-end Mediterranean home plan was designed for entertaining on a grand scale with both a media room with wet bar and a game room.
  • Two walk-in pantries in the gourmet Kitchen will solve all your storage needs and two bonus rooms on the second floor add extra options.
  • Your family will love spending time in the spacious family room with a corner fireplace and coffered ceilings.
  • The first floor master suite has a large sitting bay perfect for a chaise lounge, and a romantic fireplace.
  • Each of the three bedrooms on the second floor has its own bath and walk-in closet.

Floor Plans

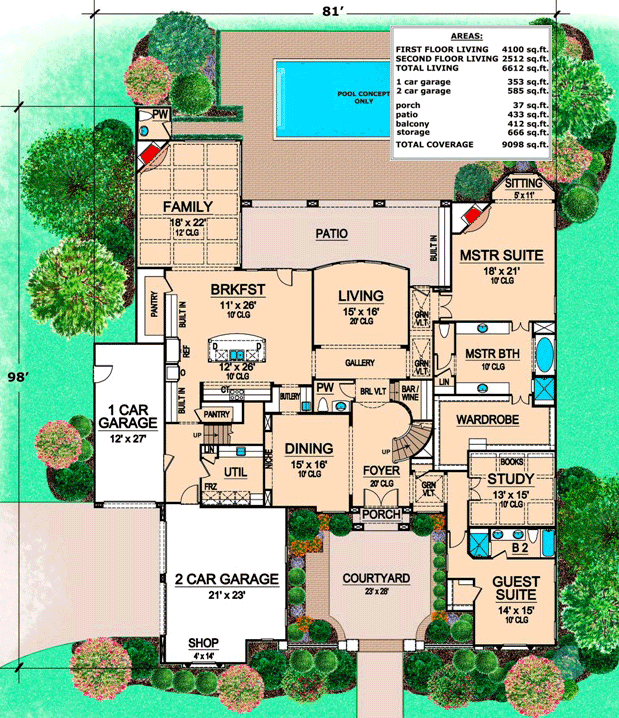

  • Main Level

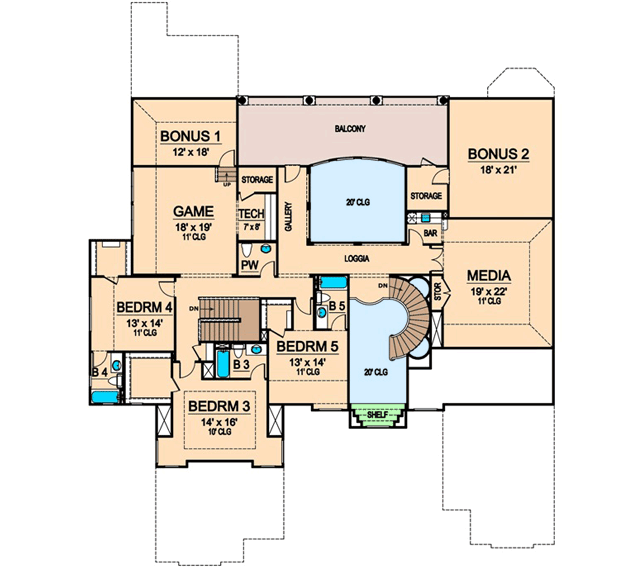

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 6,612 sq. ft.
  • 1st Floor: 4,100 sq. ft.
  • 2nd Floor: 2,512 sq. ft.
  • Balcony / Veranda: 412 sq. ft.
  • Porch, Front: 37 sq. ft.
  • Bonus: 666 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 3

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 81' 0"
  • Depth: 98' 0"
  • Max ridge height: 36' 0"

Garage

  • Type: Attached
  • Area: 938 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 11' 0"

Roof

  • Framing Type: Truss
