Plan 80765PM

Media Room

Heated S.F.
1,591
Beds
3
Baths
1.5
Stories
2
Cars
1

Floor Plan

Plan 80765PM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 80765PM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

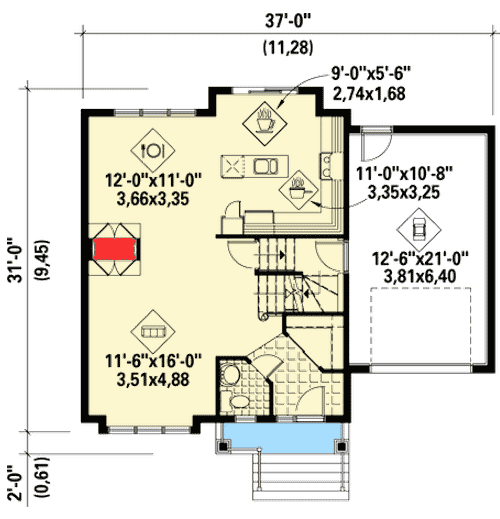

Plan 80765PM: Media Room - Floor Plan - Main Level - Traditional

2nd Floor

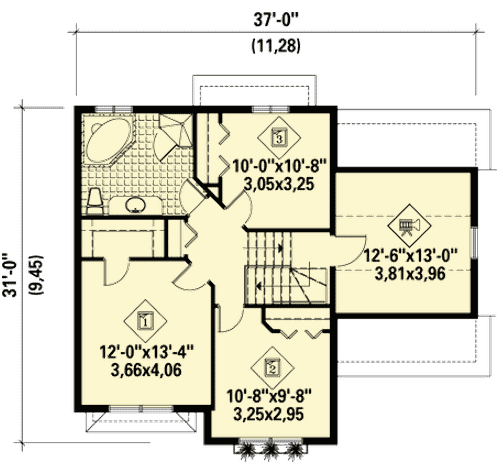

Plan 80765PM: Media Room - Floor Plan - 2nd Floor - Traditional

Plan Details

  • This compact Traditional home plan is only 37' wide yet it offers a lot for its size.
  • You get a walk-in coat closet with pocket doors, a two way fireplace that warms both the living room and dining room plus an open concept floor plan.
  • As you head up to the second floor, stop on the landing to see the cozy media room with sloped ceilings.
  • Continue on up to the bedroom level where the master suite enjoys a walk-in closet and views that face the front of the home.
  • A large four piece bathroom has a jetted tub set in the corner.

What's Included

Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,591 sq. ft.

1st Floor

701 sq. ft.

2nd Floor

890 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

37' 0"

Depth

31' 0"

Max Ridge Height

36' 8"

Garage

Type

Attached

Area

286 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Traditional

Special Features

Master Suite - Upstairs

Media Room

Plan Collections

Canadian House Plans

Metric

Photo Gallery

Square Footage Breakdown

Total Heated Area

1,591 sq. ft.

1st Floor

701 sq. ft.

2nd Floor

890 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

37' 0"

Depth

31' 0"

Max Ridge Height

36' 8"

Garage

Type

Attached

Area

286 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Traditional

Special Features

Master Suite - Upstairs

Media Room

Plan Collections

Canadian House Plans

Metric

Photo Gallery
