Plan 66306WE

Mediterranean Coastal House Plan with Three Bedrooms and Outdoor Kitchen

Name: Plan 66306WE: Mediterranean Coastal House Plan with Three Bedrooms and Outdoor Kitchen
Brand: Architectural Designs
SKU: 66306WE
Price: 650.25 USD
Availability: InStock

Heated S.F.

2,203

Beds

2 - 3

Baths

Stories

Cars

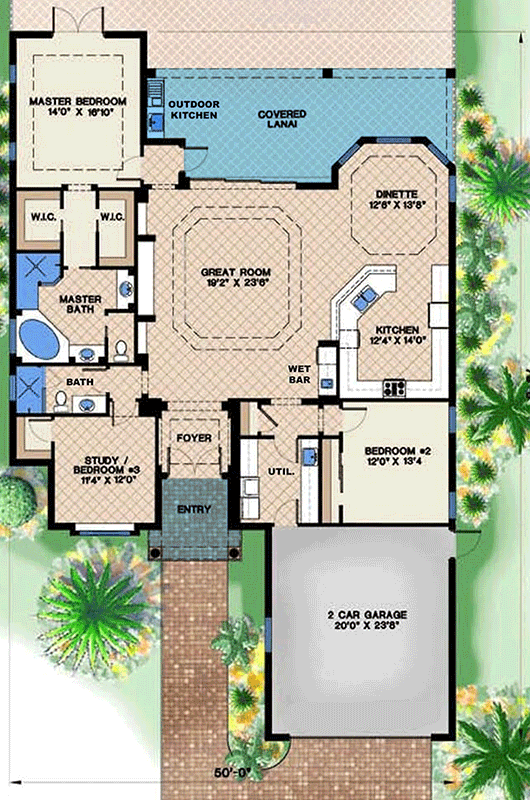

Floor Plan

Main Level

Plan Details

This 2,203 square foot Mediterranean-style home features three bedrooms, two bathrooms, and a two-car garage within an efficient one-story layout.
A welcoming covered front entry leads into a bright foyer with soaring ceiling heights that set a sophisticated tone for the entire residence.
The heart of the home is an expansive open-concept great room defined by elegant double-coffered ceilings, seamlessly flowing into a kitchen equipped with a functional peninsula and butler’s pantry.
Pocketing sliding glass doors in the great room dissolve the boundary between indoors and out, leading to a sprawling 363 square foot rear lanai designed for alfresco dining with a built-in outdoor kitchen.
The private primary suite is tucked away from the two secondary bedrooms to ensure maximum tranquility and includes dual walk-in closets plus a spa-inspired bath with a garden tub and separate shower.
Designed for narrow lots, this home expertly balances architectural character with practical features like a dedicated flex room and a convenient main-level laundry area.

What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor and Deck Joist Size and Spacing
Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)

We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you. Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
