Mediterranean Florida-Style House Plan with 3 Bedrooms and Covered Lanai

Name: Plan 66004WE: Mediterranean Florida-Style House Plan with 3 Bedrooms and Covered Lanai
Brand: Architectural Designs
SKU: 66004WE
Price: 794.75 USD
Availability: InStock

Heated S.F.

2,885

Beds

Baths

2.5

Stories

Cars

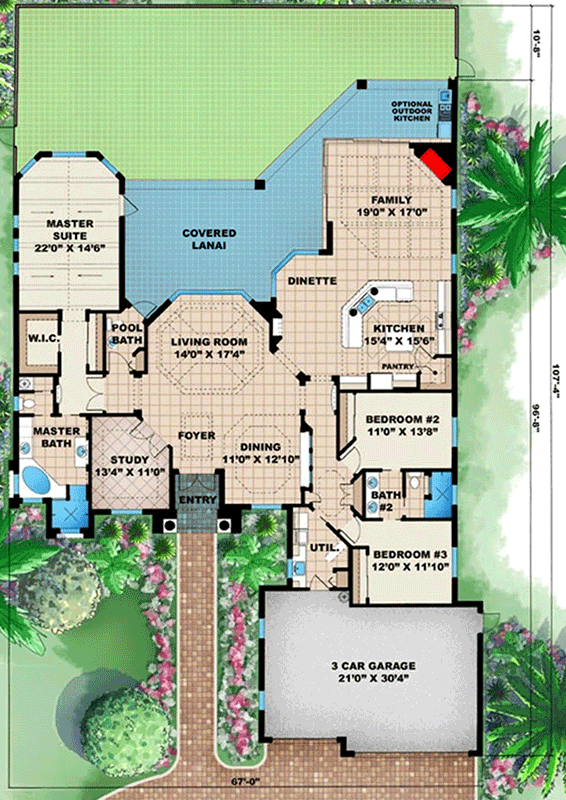

Floor Plan

Main Level

Plan Details

This single-story Mediterranean house plan offers 2,885 finished square feet, 3 bedrooms, 2.5 bathrooms, and a spacious 685-square-foot 3-car garage.
The elegant entry opens into a grand foyer featuring a double-coffered ceiling that immediately draws the eye toward the heart of the home.
The open-concept layout centers on a dramatic living room that flows seamlessly into the gourmet kitchen and cozy dinette area, all enhanced by sophisticated coffered ceilings.
A private primary suite occupies its own wing for ultimate seclusion, while two secondary bedrooms are located on the opposite side of the home for optimal family privacy.
A dedicated study provides a quiet, refined space perfect for a home office, library, or reading room.
The expansive covered lanai at the rear serves as a beautiful outdoor living extension, ideal for enjoying the local climate or hosting guests in a sheltered, open-air environment.

What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor and Deck Joist Size and Spacing
Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)

We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you. Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
