Plan 66053WE

Mediterranean Florida Style House Plan with 3 Bedrooms and Outdoor Kitchen

Name: Plan 66053WE: Mediterranean Florida Style House Plan with 3 Bedrooms and Outdoor Kitchen
Brand: Architectural Designs
SKU: 66053WE
Price: 1340.0 USD
Availability: InStock

Heated S.F.

2,851

Beds

Baths

Stories

Cars

Floor Plan

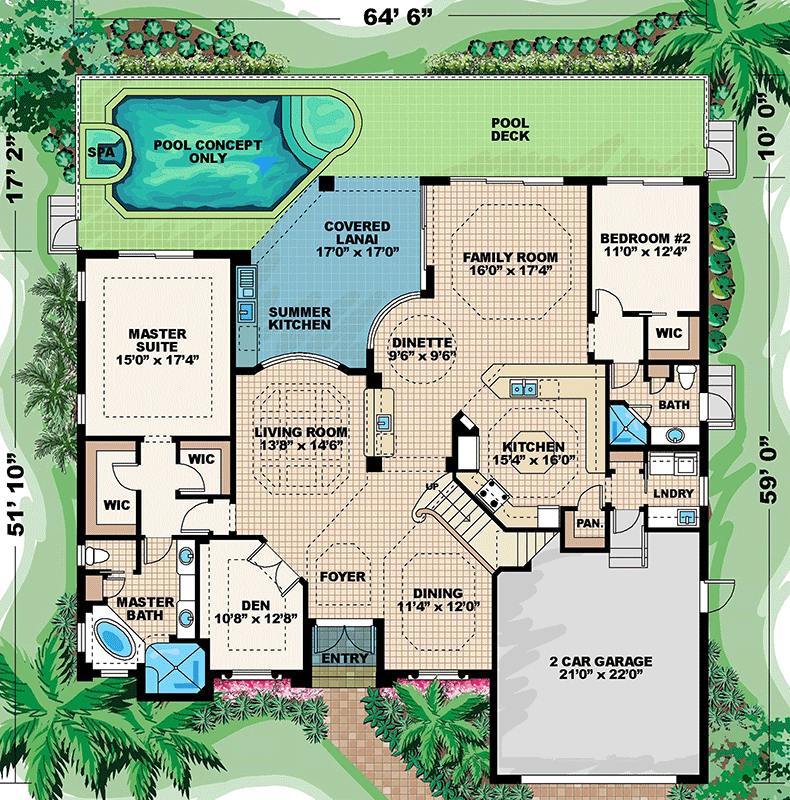

Main Level

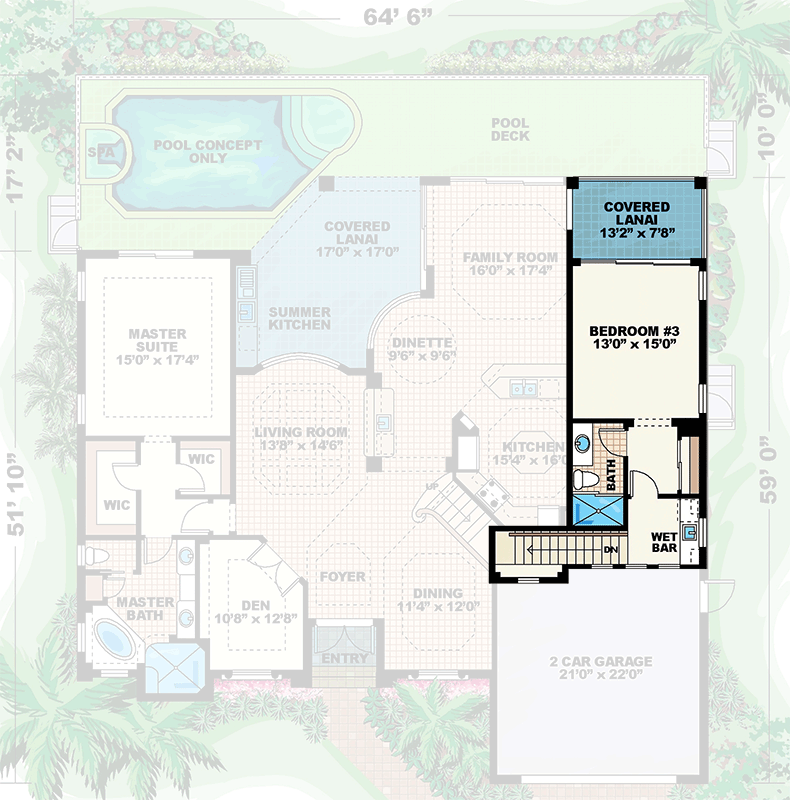

2nd Floor

Plan Details

This 2,851 square foot Mediterranean residence features three bedrooms, three bathrooms, a two-car garage, and elegant Florida-style architectural details.
Upon entering through the grand foyer, you are greeted by an expansive layout that blends formal and casual living spaces under soaring coffered ceilings.
The gourmet kitchen serves as the heart of the home, flowing seamlessly into the family room and dining area, complemented by a sophisticated wet bar for effortless hosting.
The primary suite offers a private first-floor sanctuary with dual walk-in closets and direct access to the outdoor living area, while secondary bedrooms are strategically positioned for optimal privacy.
A dedicated home office and den provide quiet space for work or relaxation, while the main level also includes a convenient laundry room.
Outdoor living is paramount, highlighted by a massive lanai with a built-in summer kitchen, perfect for enjoying the temperate climate.
The upper level reveals a versatile third bedroom with a private balcony, offering elevated views and a tranquil retreat for guests.

What's Included

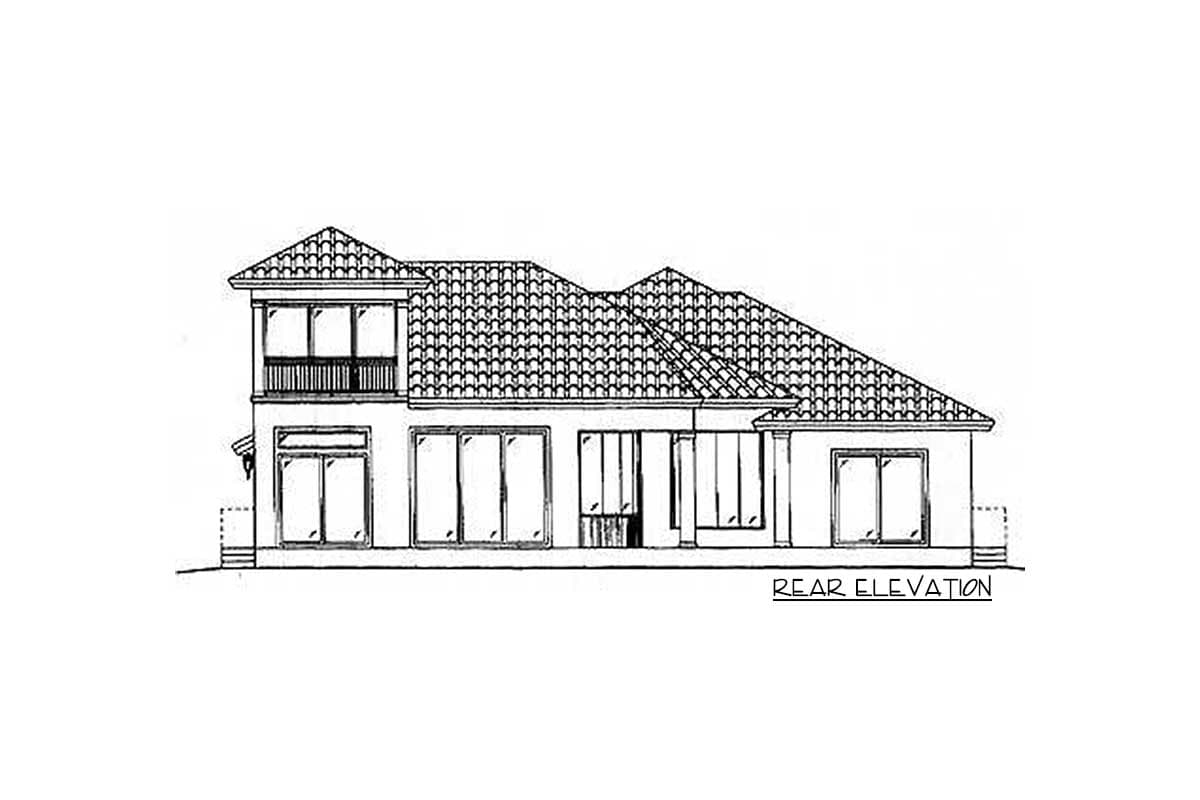

Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor and Deck Joist Size and Spacing
Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)

We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you. Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Price Guarantee

Explore the costs

Discover the cost to build & furnish this home.

Need a modified version?

Get a free quote within 3 business days.

Square Footage Breakdown

Total Heated Area

2,851 sq. ft.

1st Floor

2,400 sq. ft.

2nd Floor

451 sq. ft.

Entry

41 sq. ft.

Balcony / Veranda

112 sq. ft.

Lanai

525 sq. ft.

Beds/Baths

Bedrooms

Full bathrooms

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

64' 6"

Depth

59' 0"

Max Ridge Height

28' 1"

Garage

Type

Attached, Standard

Area

462 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

12'

Second Floor

9' 4"

Room

Ceiling Type

Height

Bedroom 2

Flat

12' 0''

Lanai

Flat

12' 0''

Family Room

Coffered

13' 0''

Kitchen

Coffered

12' 0''

Bedroom 3

Flat

9' 4''

Dining Room

Coffered

14' 8''

Living Room

Coffered

13' 0''

Master Bedroom

Coffered

11' 0''

Foyer

Coffered

15' 8''

Dinette

Coffered

13' 0''

Master Bath

Flat

10' 0''

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Florida-Style

Mediterranean

Special Features

Master Suite - 1st Floor

Master Suite - Sitting Area

Outdoor Kitchen

Walk-in Pantry

Wet Bar
