Plan 57280HA

Mediterranean Garage Apartment

Heated S.F.
1,091
Beds
1
Baths
1
Stories
2
Cars
2

Floor Plan

Plan 57280HA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 57280HA

M-F 9am-5pm EST |

1-203-761-8500

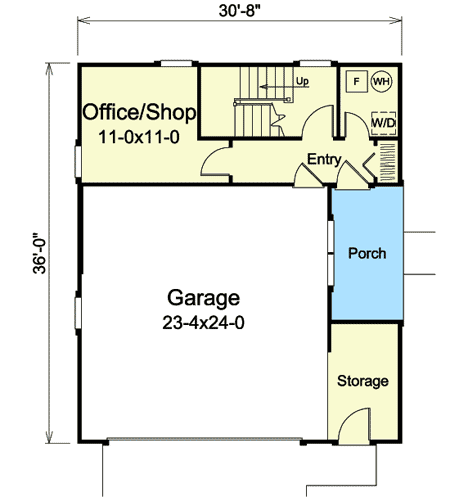

Main Level

Plan 57280HA: Mediterranean Garage Apartment - Floor Plan - Main Level - Carriage, Cottage, Mediterranean

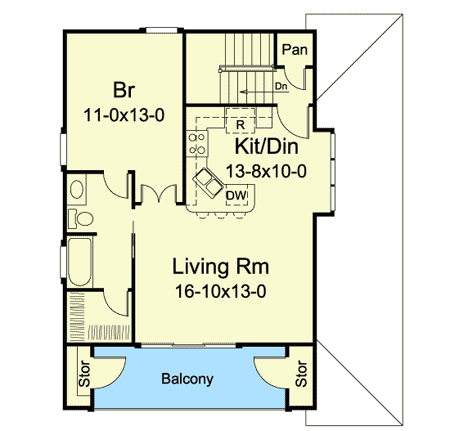

2nd Floor

Plan 57280HA: Mediterranean Garage Apartment - Floor Plan - 2nd Floor - Carriage, Cottage, Mediterranean

Plan Details

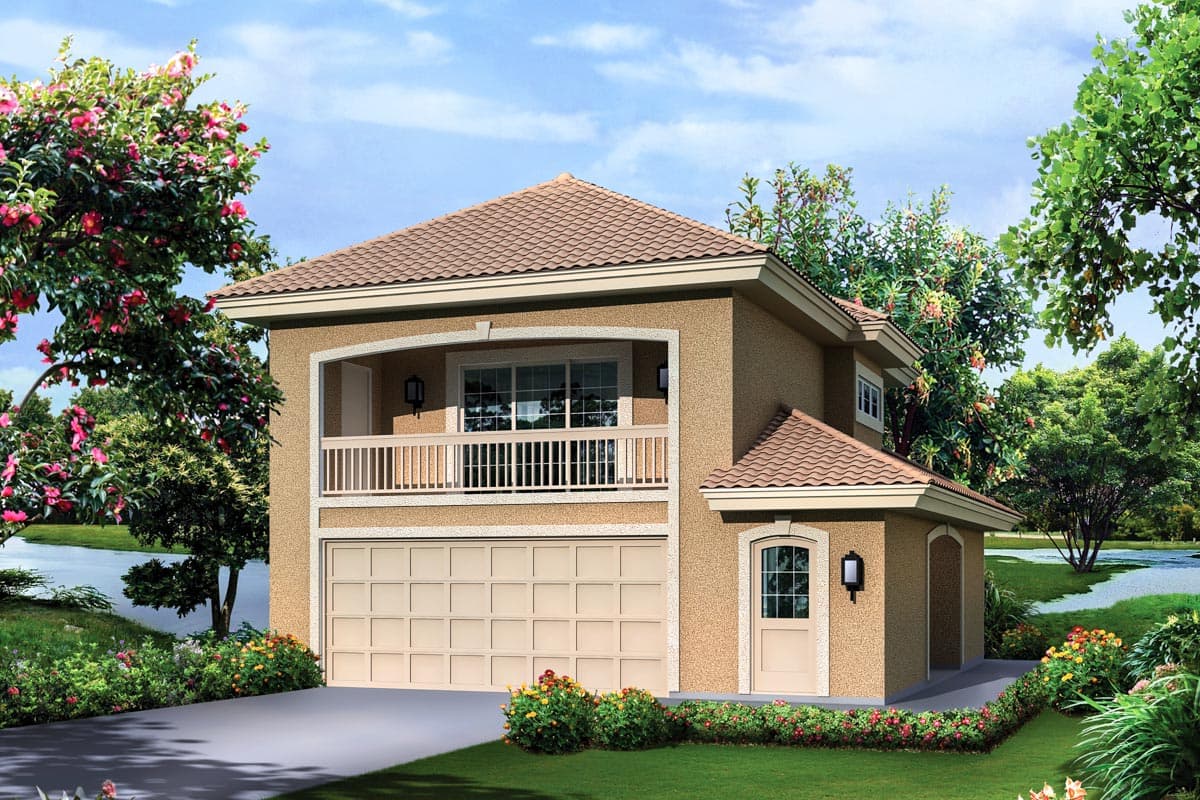

  • The clay tile roof and stucco exterior of this garage apartment give it an attractive Mediterranean look.
  • On the ground floor, a sheltered side porch opens to an office/shop area with stairs leading up.
  • On the upper floor, there is more storage in the form of a pantry and two outdoor closets off the balcony.
  • The compact kitchen is efficient and centrally placed to enjoy views of the living room.
  • The bedroom is a good size and has a walk-in closet.

What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan
  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,091 sq. ft.

1st Floor

357 sq. ft.

2nd Floor

734 sq. ft.

Entry

82 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

30' 8"

Depth

36' 0"

Max Ridge Height

25' 6"

Garage

Type

Attached

Area

654 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Carriage

Cottage

Mediterranean

Special Features

Home Office

Laundry - Main Level

Master Suite - Upstairs

Plan Collections

Home Office

Square Footage Breakdown

Total Heated Area

1,091 sq. ft.

1st Floor

357 sq. ft.

2nd Floor

734 sq. ft.

Entry

82 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

30' 8"

Depth

36' 0"

Max Ridge Height

25' 6"

Garage

Type

Attached

Area

654 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Carriage

Cottage

Mediterranean

Special Features

Home Office

Laundry - Main Level

Master Suite - Upstairs

Plan Collections

Home Office
