Plan 33198ZR
Mediterranean Home Plan Under 3000 Square Feet with 3 Guest Bedrooms - 2953 Sq Ft
Heated S.F.
2,953
Beds
4
Baths
3
Stories
1
Cars
3
Plan Details

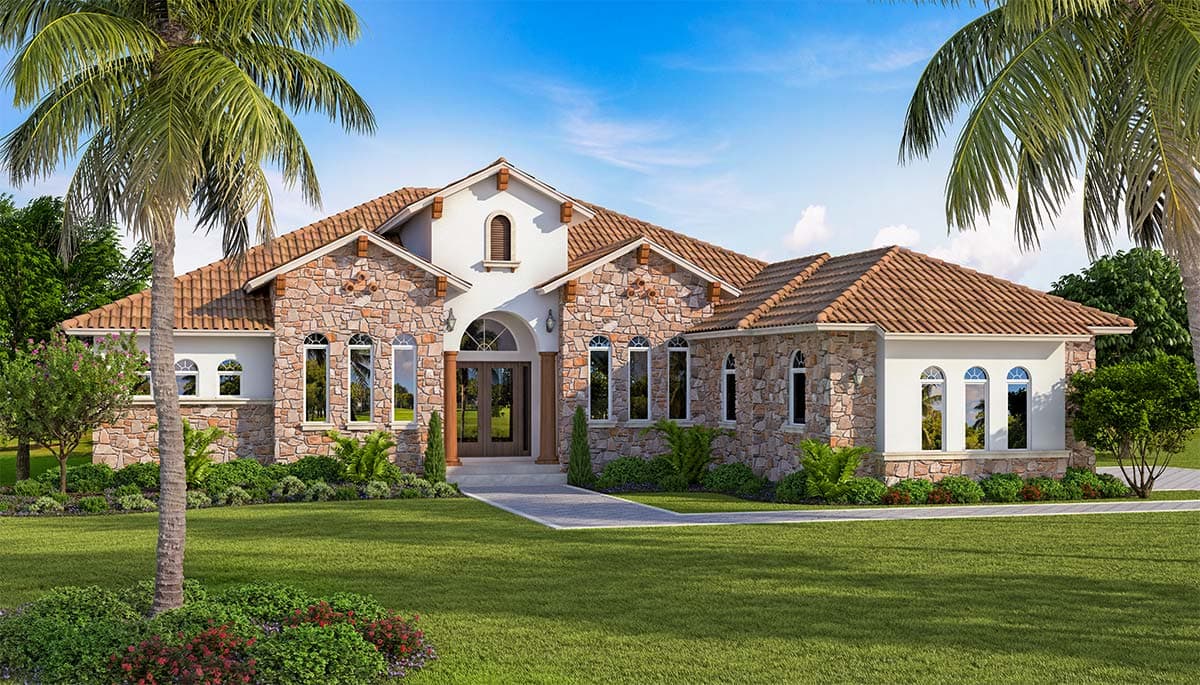

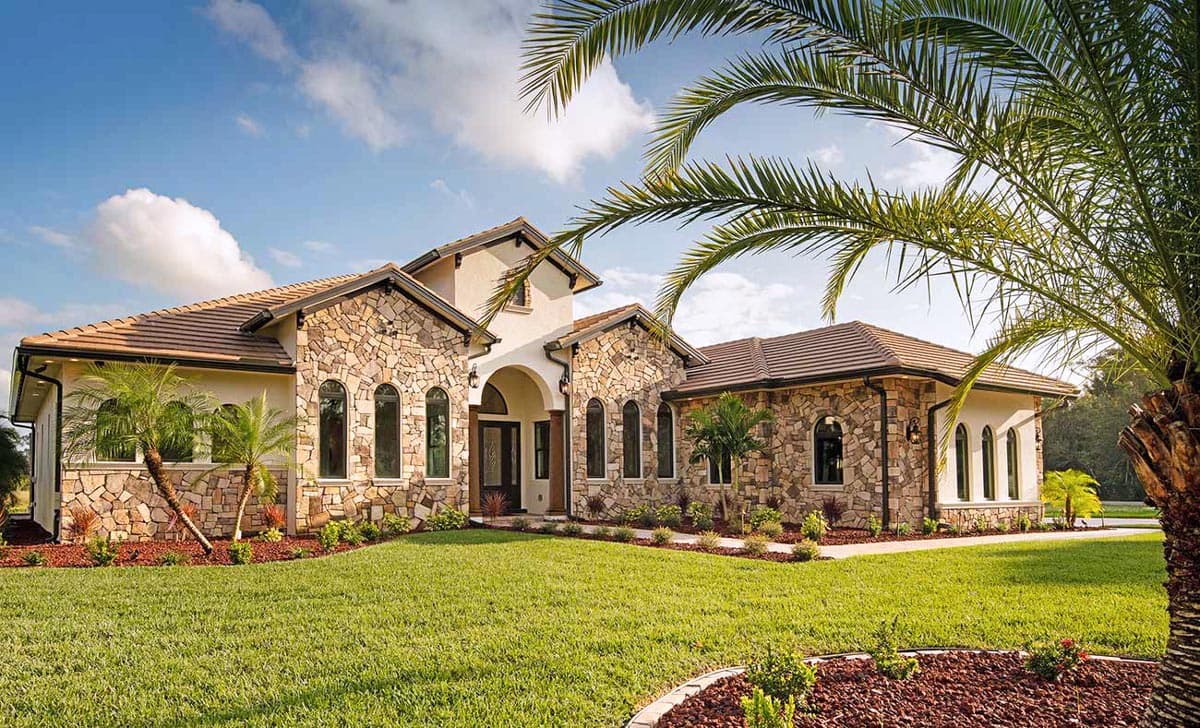

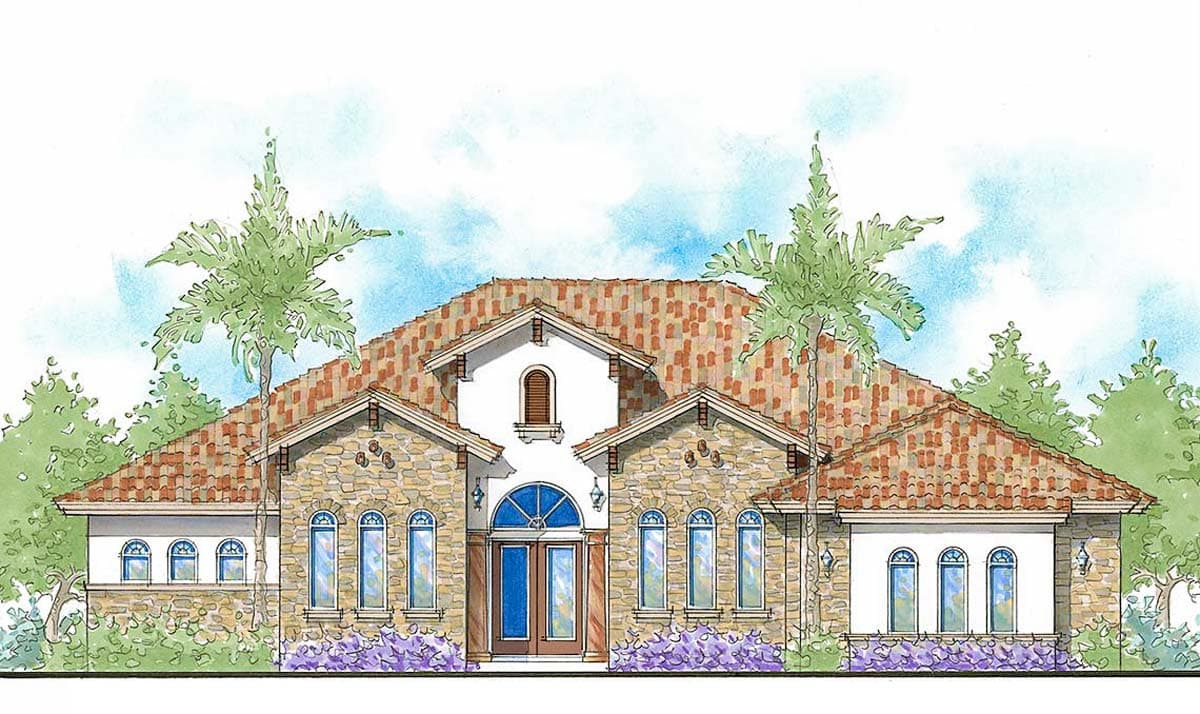

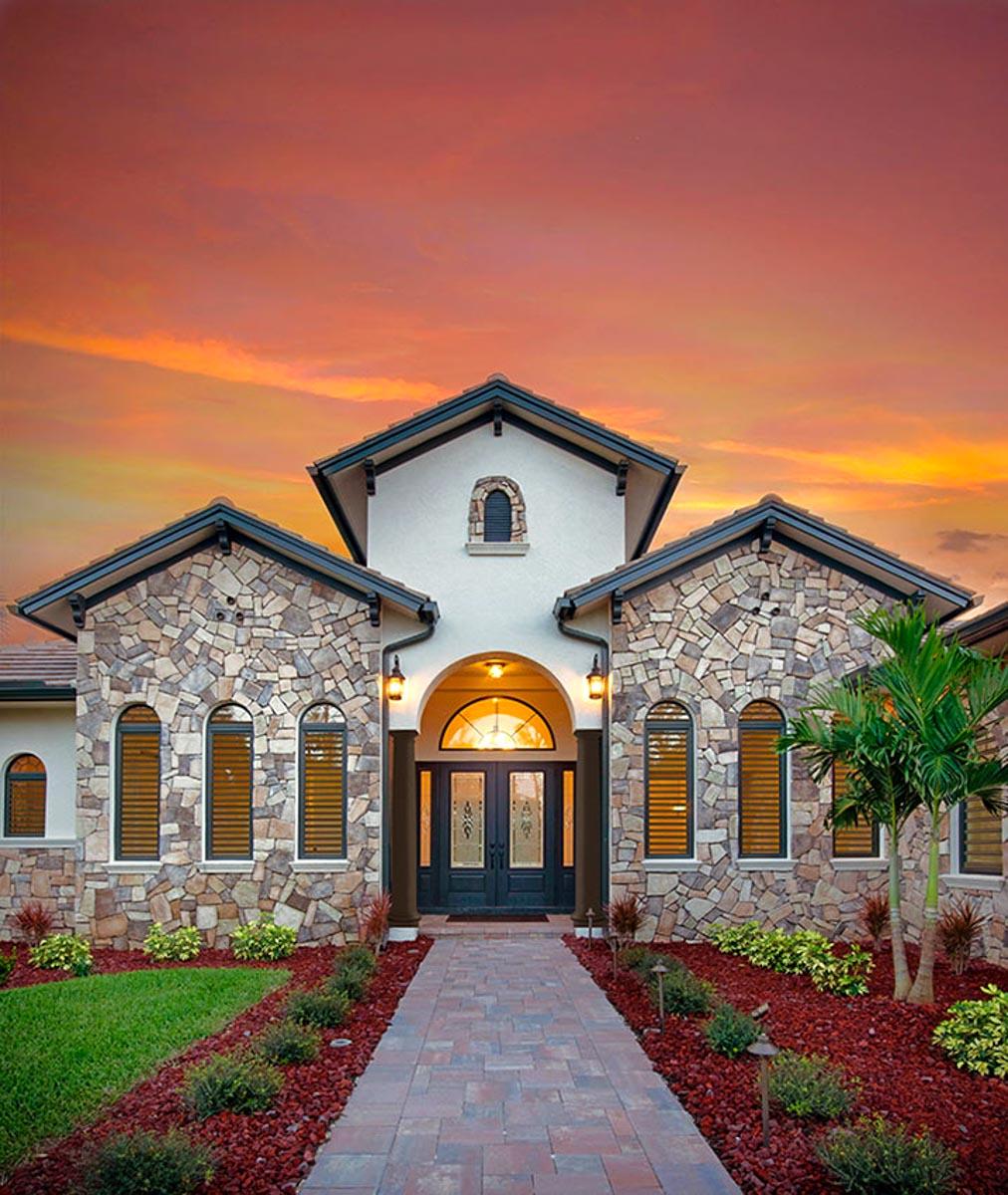

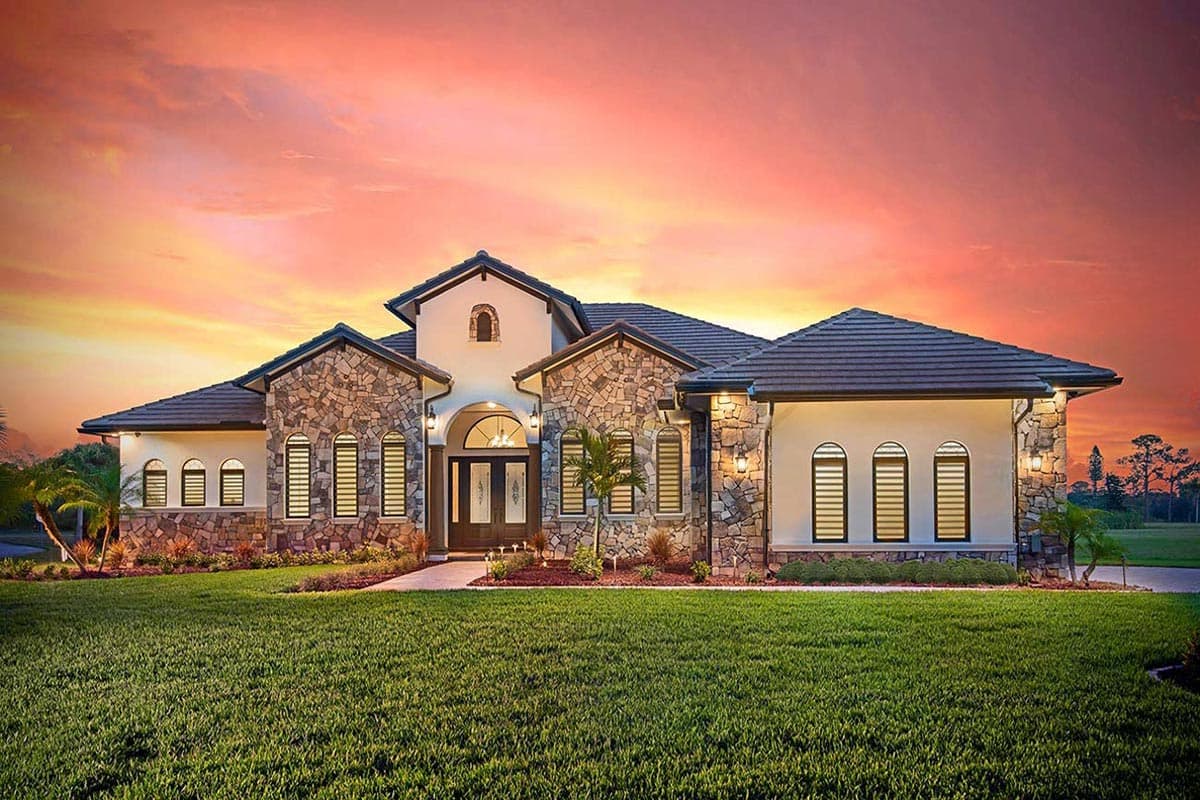

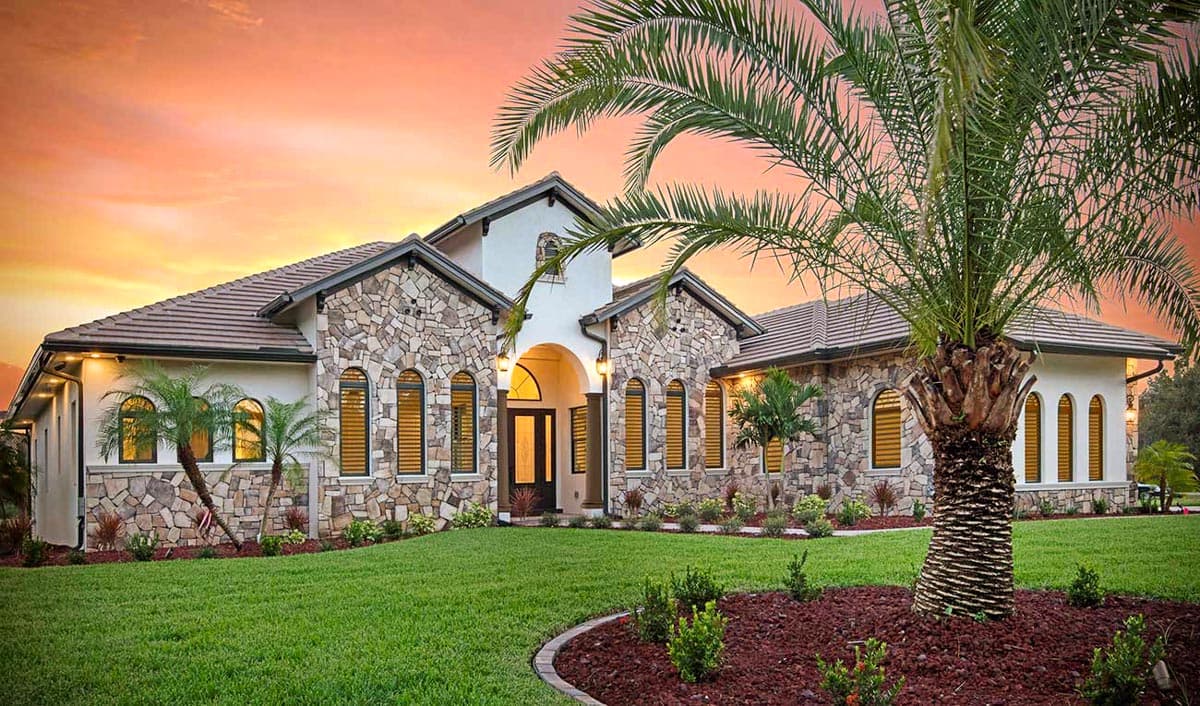

  • This Tuscan-style house plan gives you 4 beds, 3 baths and 2,953 square feet of heated living space. The elevated entry is flanked by tapered columns and is centered between Palladian windows. Rough cut stone contrasts with the cream stucco and the terra-cotta tile roof.

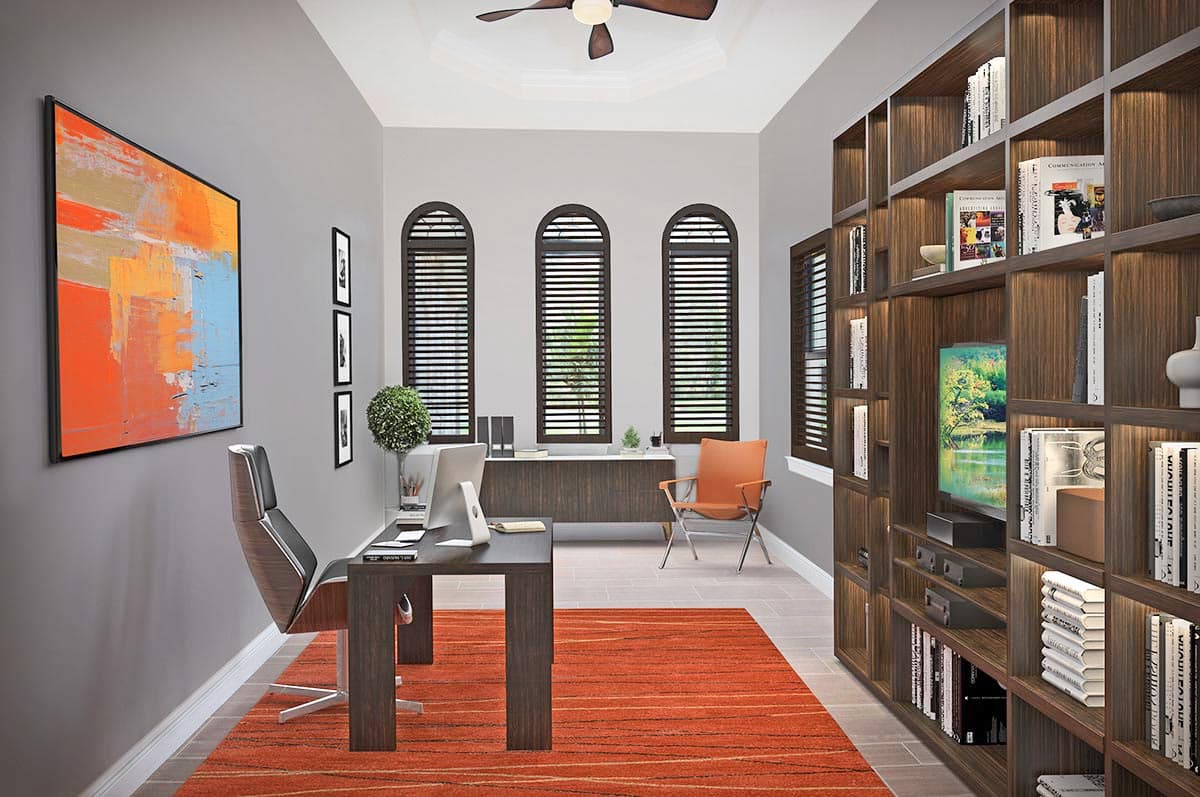

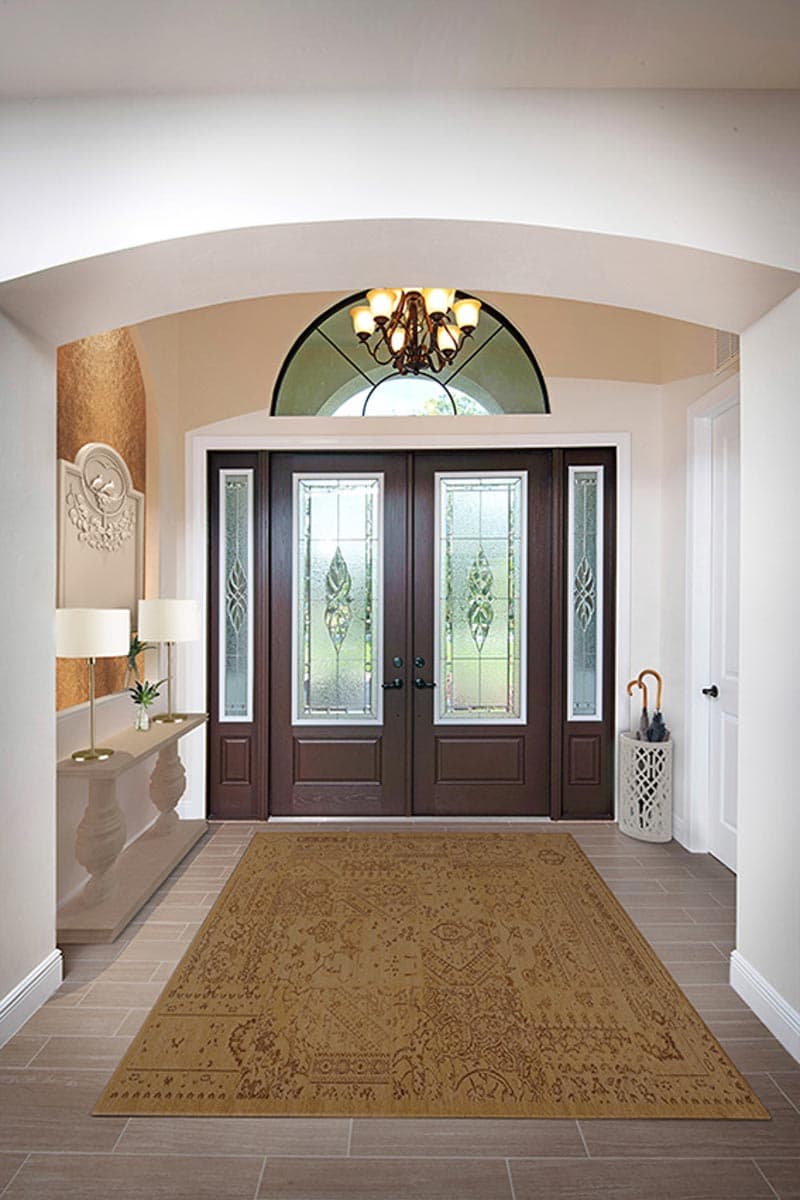

  • At the entry, the double glass doors are topped by a fan-light transom window. The dramatic foyer with 13’4" tray ceiling looks straight thru to the dramatic rear view. On one side of the foyer is access to a guest bedroom and bath, while on the other side is the spacious den.

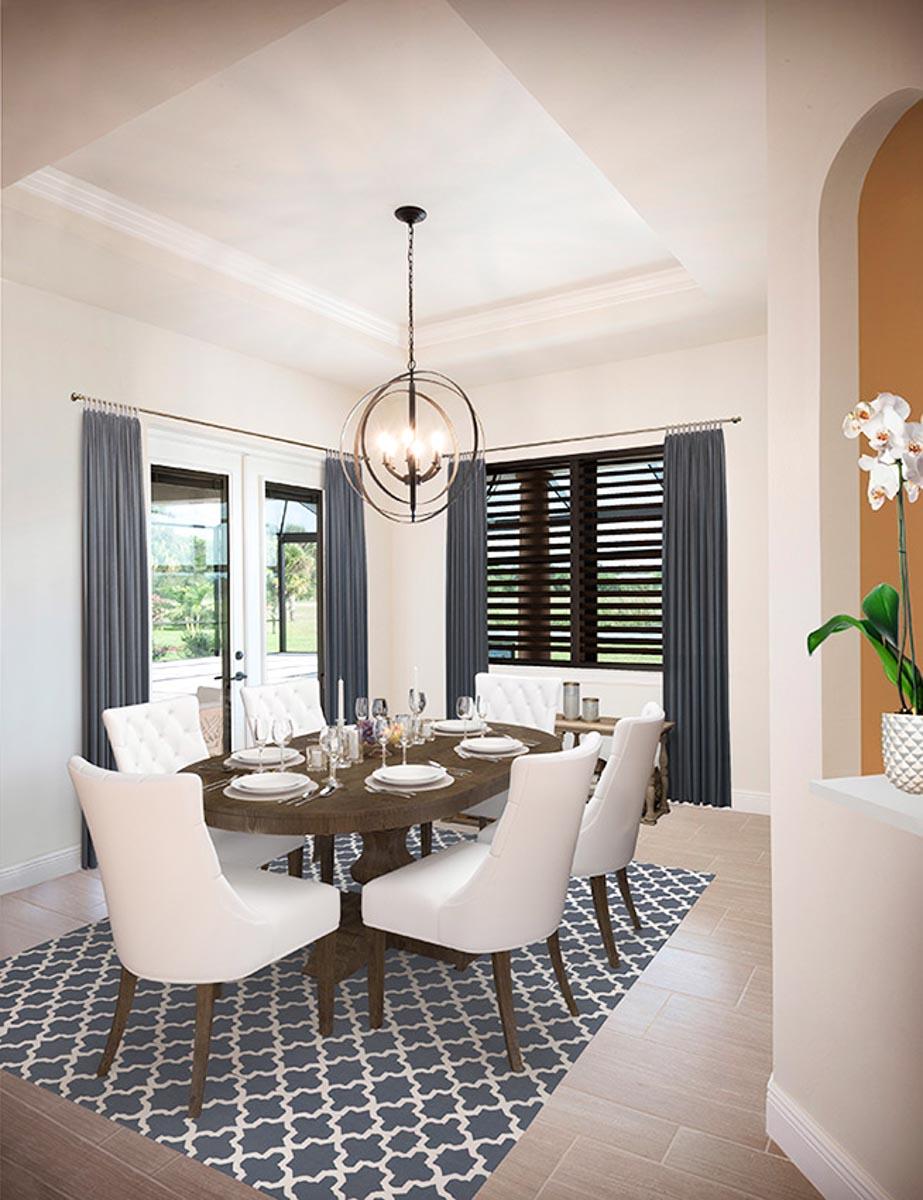

  • Much of the living is oriented to the rear of the home, the great room, kitchen and dining room all take in views of the rear porch.

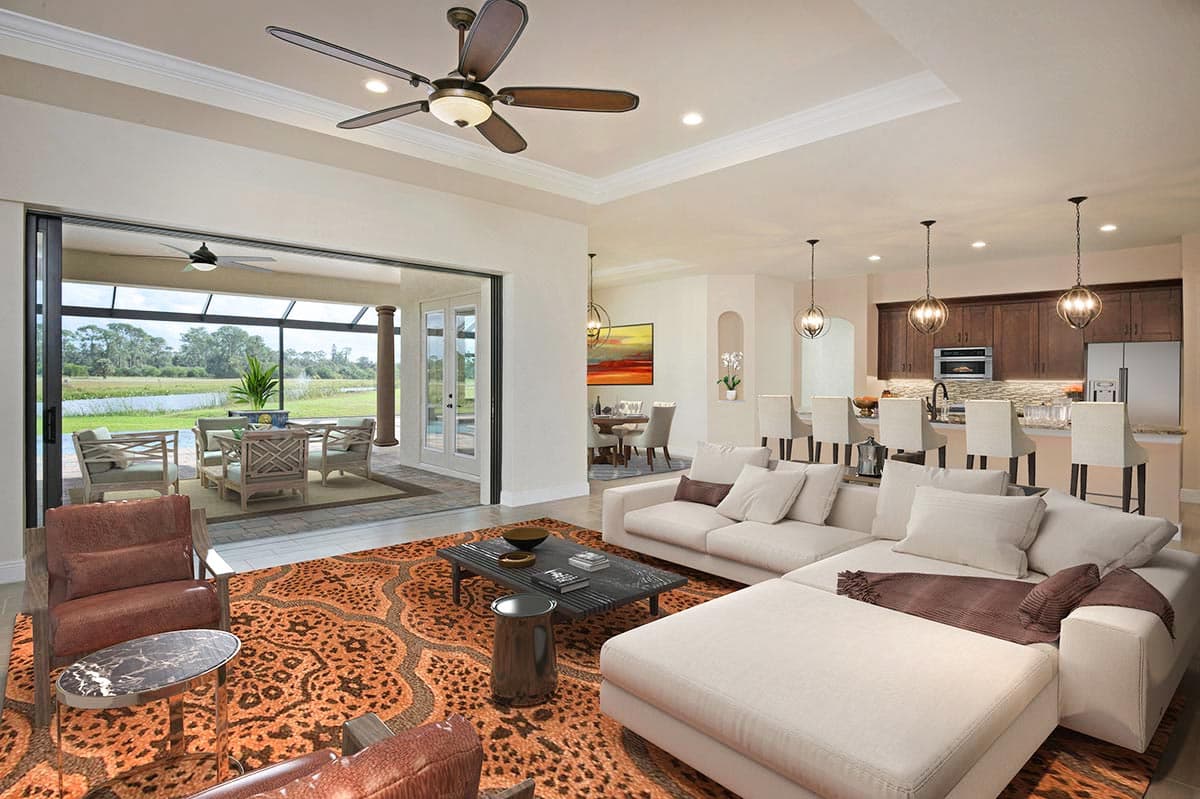

  • The spacious great room is anchored by a wall of built-ins. A glass wall of pocketing sliders making an easy transition to the outside.

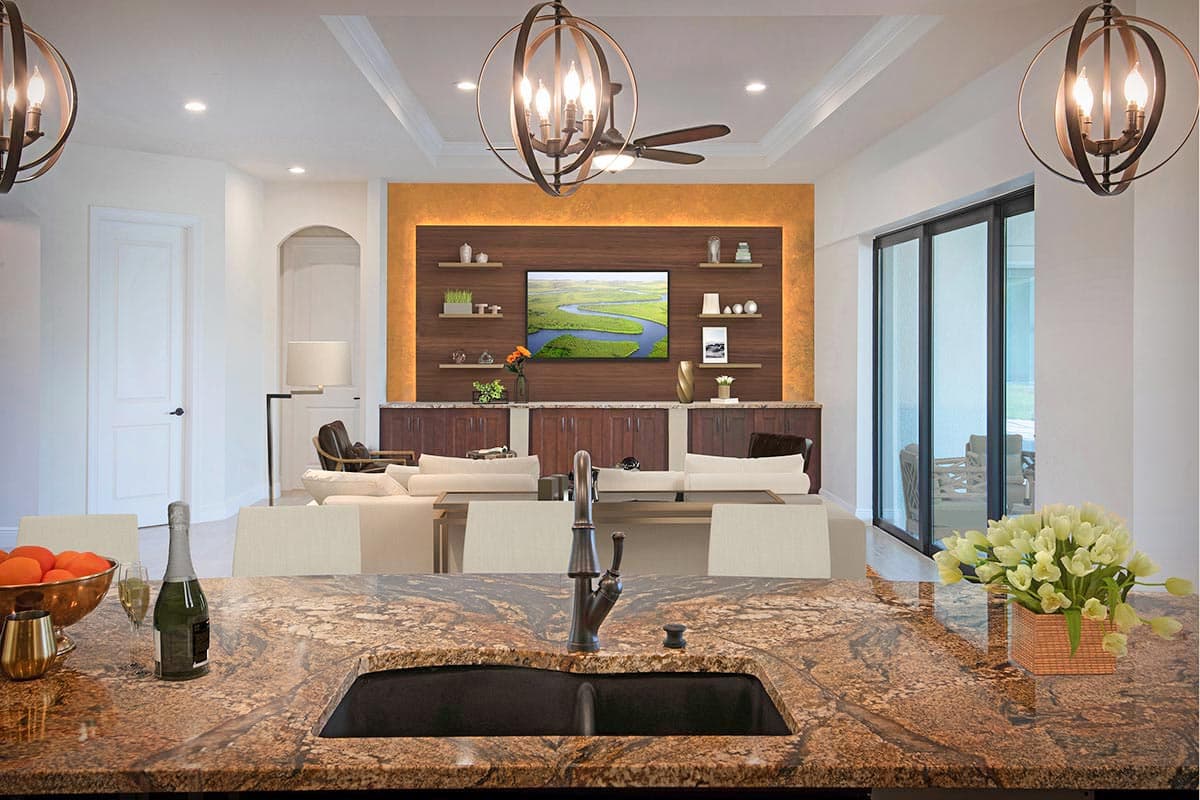

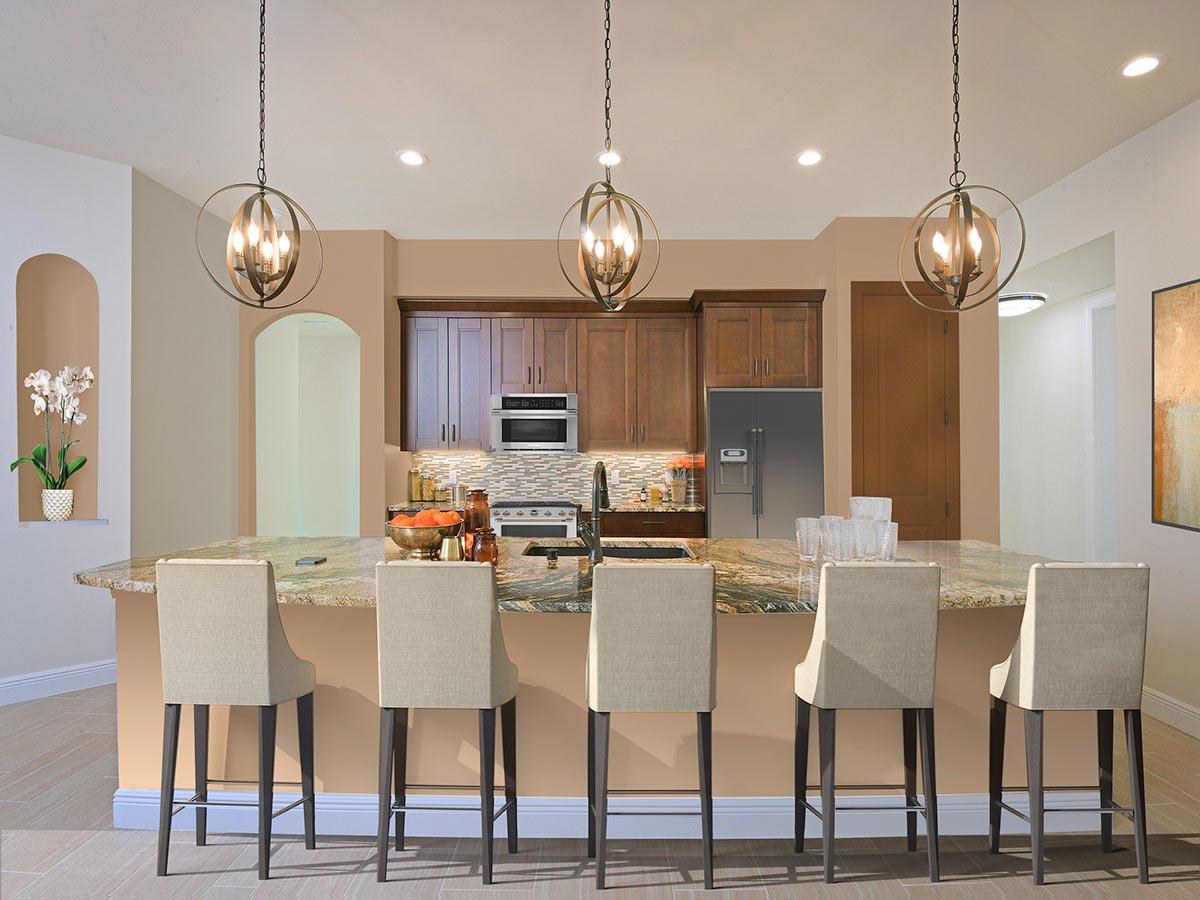

  • The gourmet kitchen has a central island ready for food prep. A corner pantry is conveniently located near the garage door making grocery unloading a breeze.

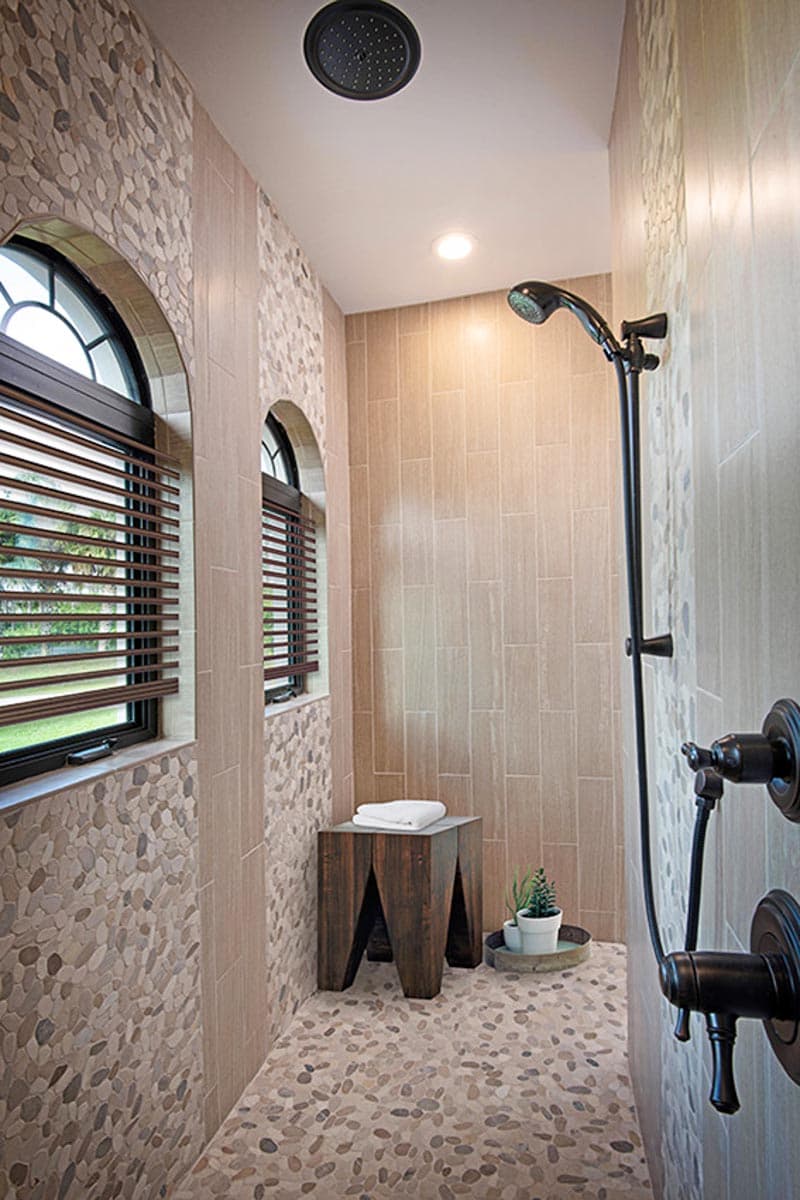

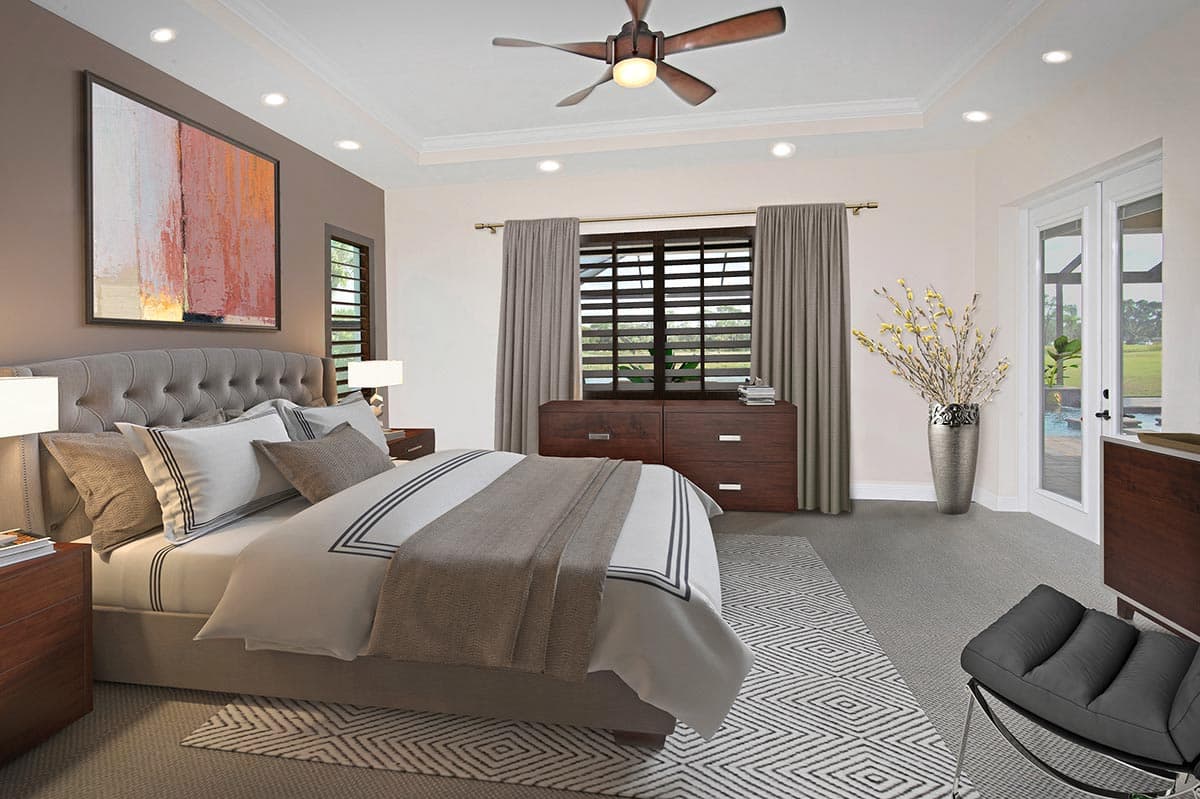

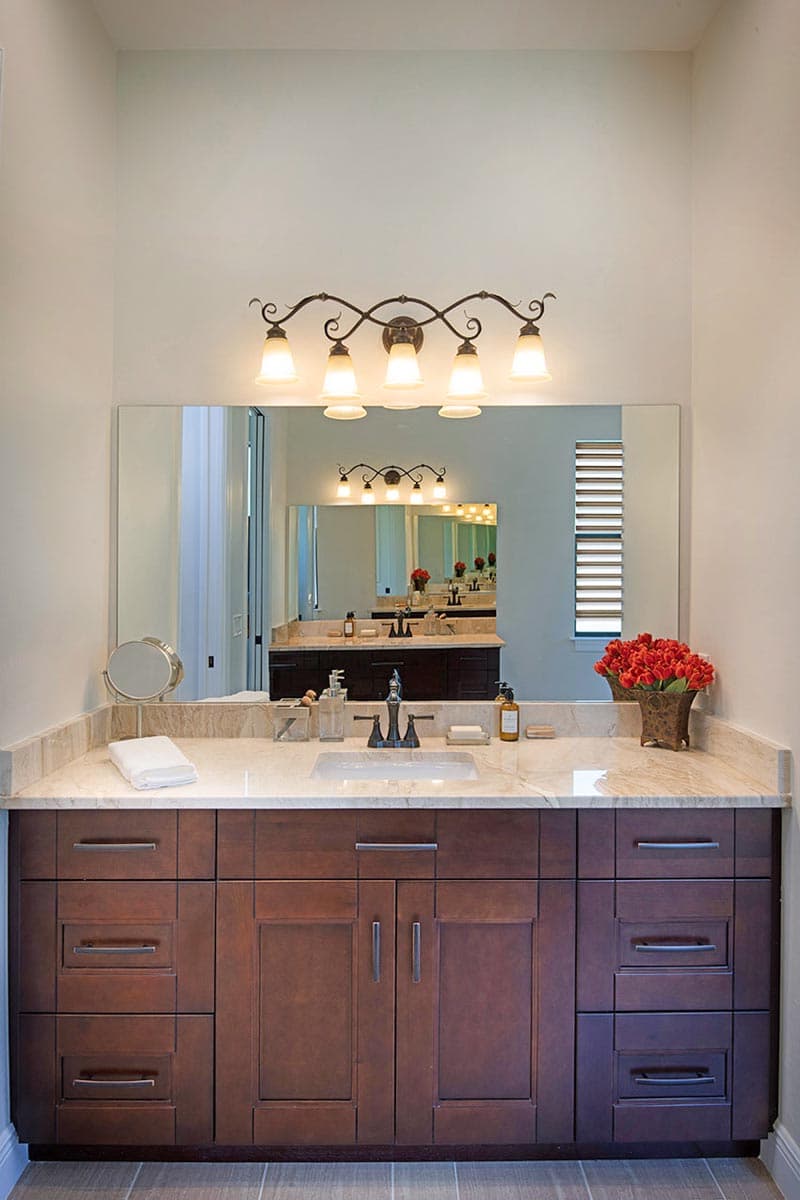

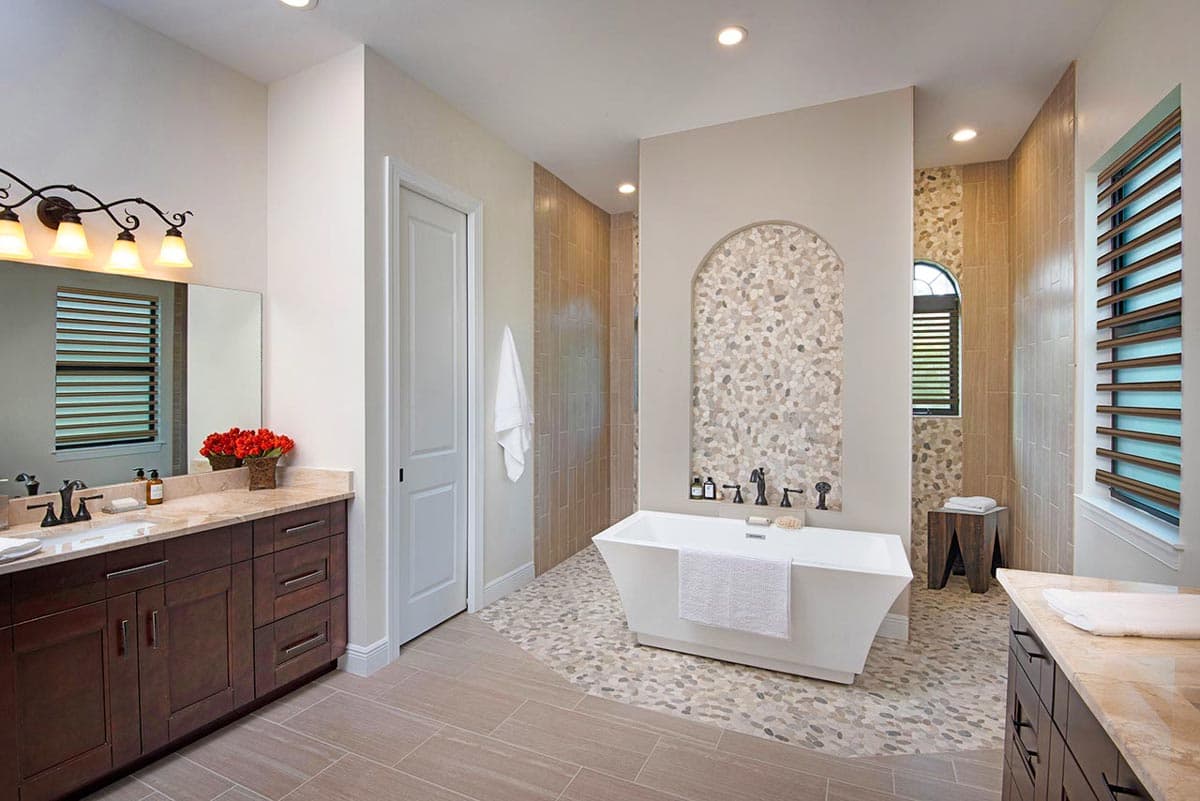

  • The split bedroom plan allows for a secluded master wing accessed thru a private entrance. The master bedroom and bath with walk-through shower behind a free-standing soaker tub, also provides over 12’ of a his and hers vanity space. The 470 sq. ft. master includes a generous 110 sq. ft. in two separate walk-in closets.

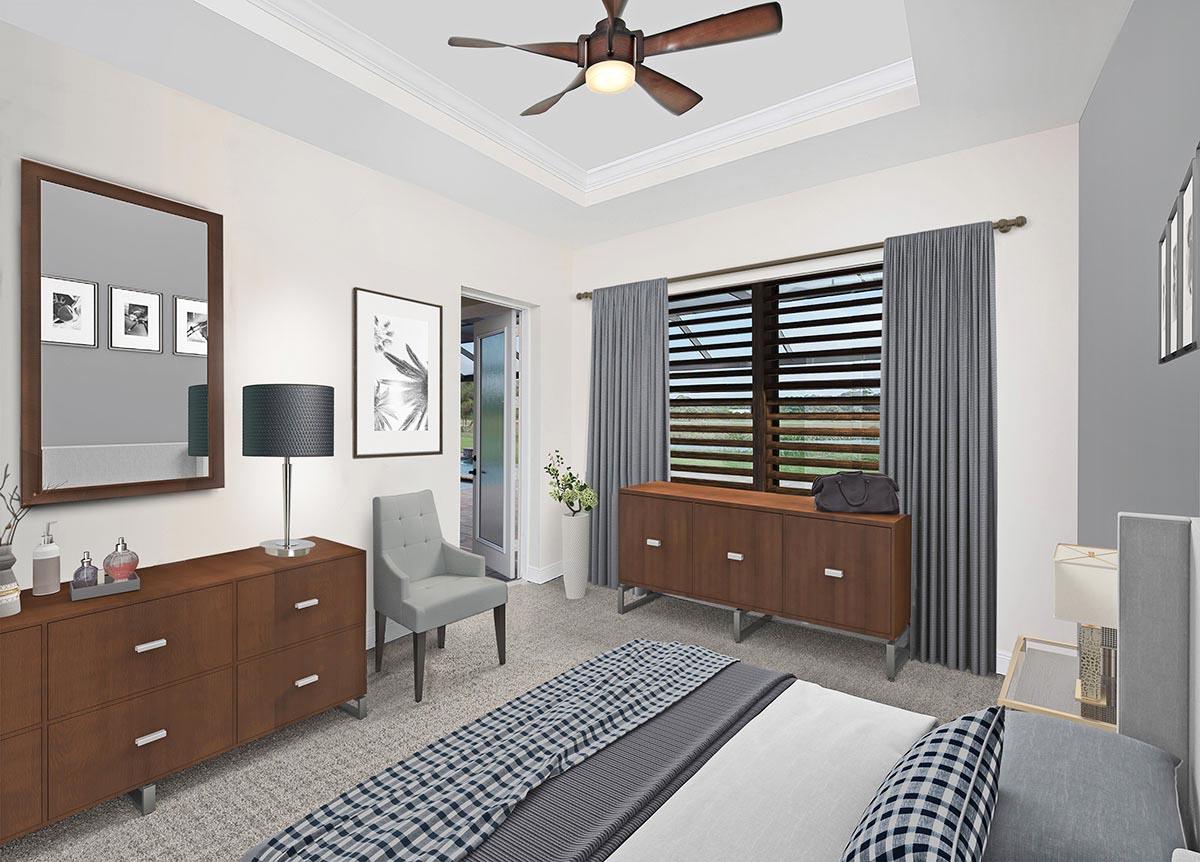

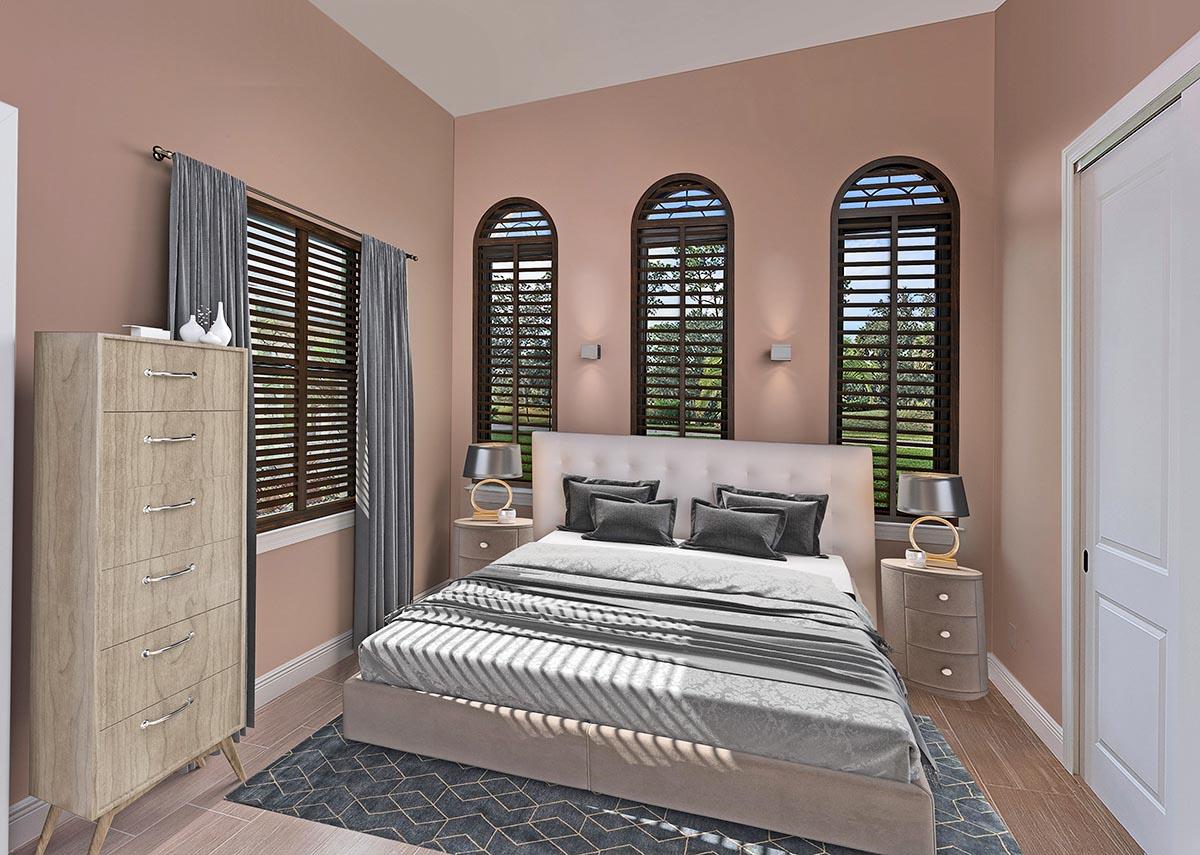

  • The guest wing has two bedrooms with walk-in closets and share a bath. The spacious utility room is tucked away near the garage and offers a sink and plenty of counter top space.
  • Related Plan: Get an alternate version with house plan 33249ZR.
  • NOTE: If building in Lee County, Florida, contact us as restrictions apply.
What's Included
  • COVER SHEET – / INDEX / SITE PLAN - The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.
  • WALL SECTIONS -The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.
  • FOUNDATION PLAN - The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.
  • SECOND FLOOR FRAMING (where appropriate) - The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.
  • FLOOR PLANS - The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.
  • ROOF PLAN & SOFFIT (CHASE LAYOUT) PLAN - The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.
  • REFLECTED CEILING PLAN - The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.
  • EXTERIOR ELEVATIONS - The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.
  • CROSS SECTION & INTERIOR ELEVATIONS - The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design. (Interior elevations may not be available for all stock plans.)
  • ELECTRICAL PLAN - The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Mediterranean Home Plan Under 3000 Square Feet with 3 Guest Bedrooms - 2953 Sq Ft

  • 2,953

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

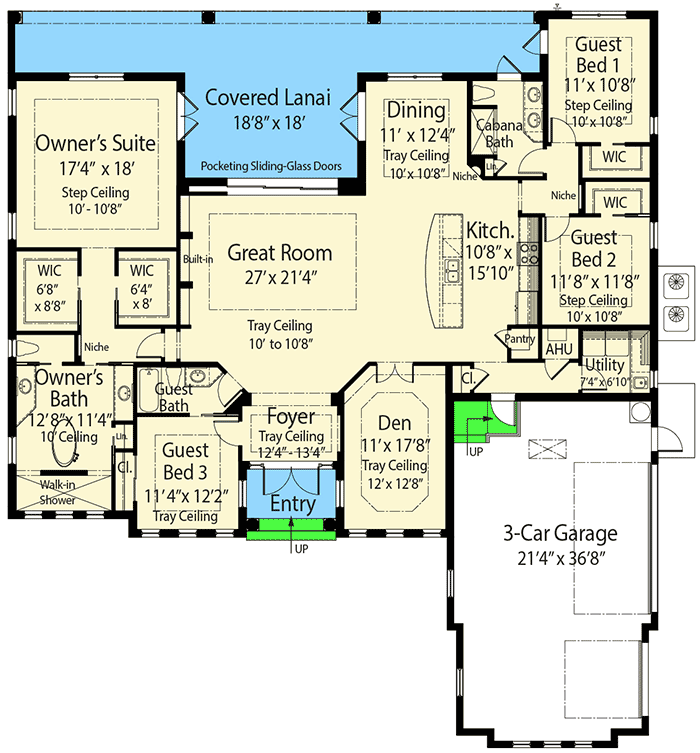

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,953 sq. ft.
  • 1st Floor: 2,953 sq. ft.

Dimensions

  • Width: 79' 0"
  • Depth: 79' 4"
  • Max ridge height: 25' 3"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 802 sq. ft.
  • Count: 3 Cars

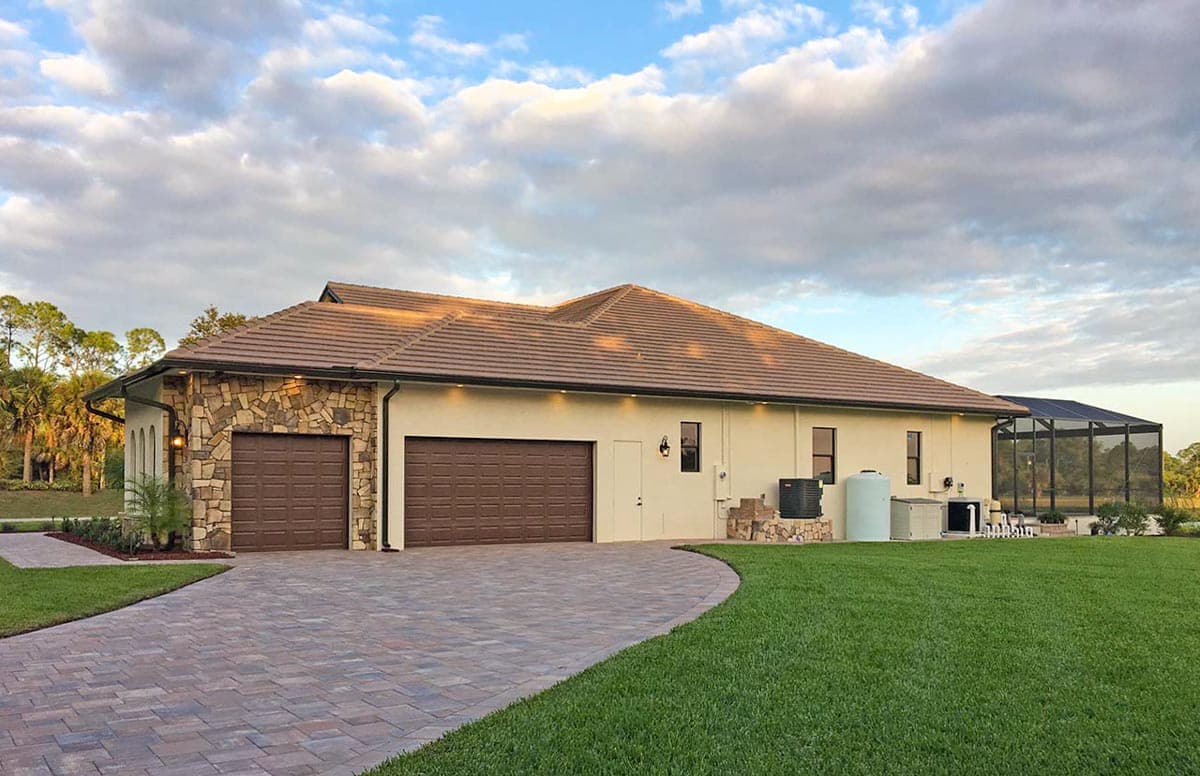

  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
