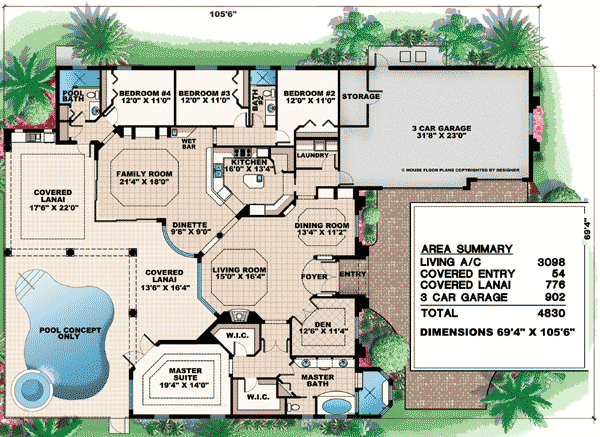

Mediterranean House Plan with Arched Windows and a Huge Covered Lanai - 3098 Sq Ft

Elevations - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

• Material Labels
• Floor-To-Floor Heights
• Roof Slope Indicators

Floor Plans - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

• Door and Window Sizes
• Completely Dimensioned Floor Plan
• Room Labels and Interior Room Size

Electrical Layouts

• Building Section Markers
• Electrical Outlets, Fixtures and Switching

Foundation Plan - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

• Floor and Deck Joist Sizes, Spacing and Direction
• Electrical Locations

Roof Plan - Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:

• All Beam and Header Heights and Locations
• All Hips, Gables, Ridges and Valley
• Building Section Markers

Building Sections - Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:

• Floor Joist Size and Spacing
• Floor-To-Floor Heights
• Non-Typical Plate Heights Indicated

Typical Wall Sections - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

• All Labels Indicating Wall Construction
• Foundation Wall Thickness and Reinforcing
• Insulation Type and Thickness

Miscellaneous Notes and Details

• Miscellaneous General Notes
• Stairway Details (if applicable)

• Architectural or Engineering Stamp - handled locally if required
• Site Plan - handled locally when required
• Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
• Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
• Energy calculations - handled locally when required
