Plan 849185PGE

Mediterranean House Plan with Courtyard, Home Theater, and 5,921 Square Feet

Heated S.F.
5,921
Beds
3
Baths
3.5+
Stories
1
Cars
2

Floor Plan

Plan 849185PGE

Main Level
Main Level
Lower Level
Lower Level

Plan 849185PGE

M-F 9am-5pm EST |

1-203-761-8500

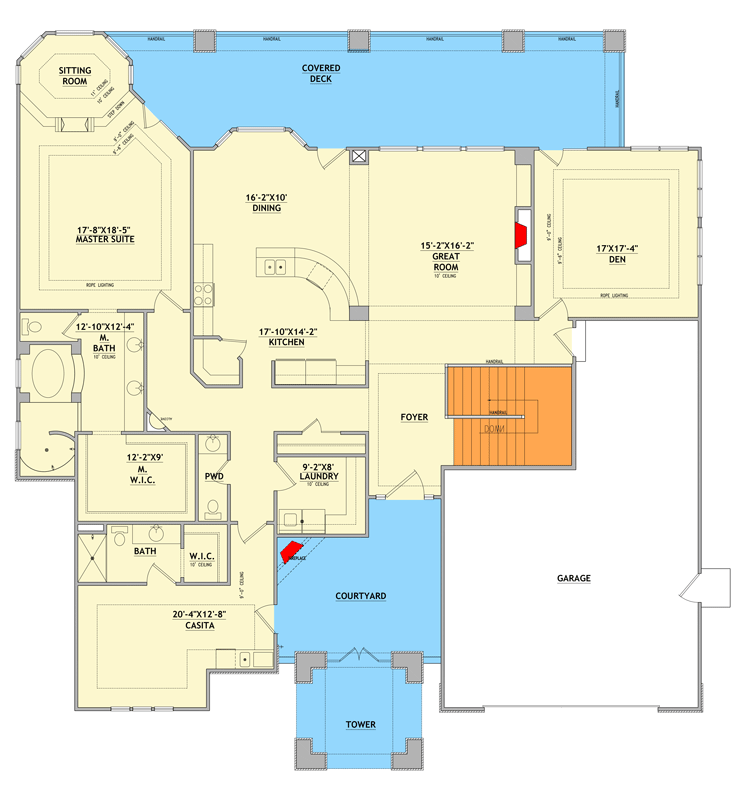

Main Level

Plan 849185PGE: Mediterranean House Plan with Courtyard, Home Theater, and 5,921 Square Feet - Floor Plan - Main Level - Mediterranean, Southwest, Tuscan

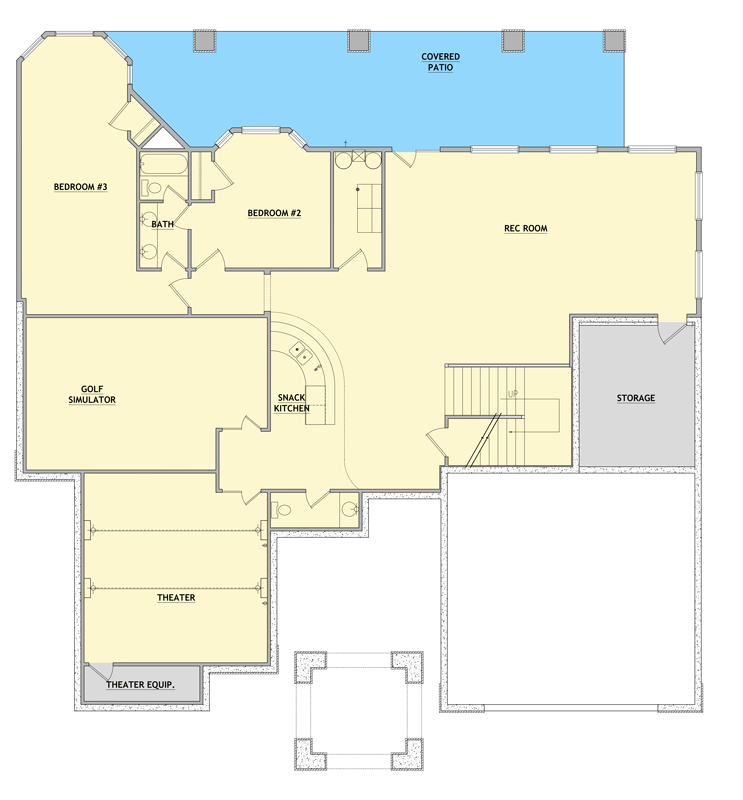

Lower Level

Plan 849185PGE: Mediterranean House Plan with Courtyard, Home Theater, and 5,921 Square Feet - Floor Plan - Lower Level - Mediterranean, Southwest, Tuscan

Plan Details

  • Spanning 5,921 finished square feet, this Mediterranean-style home features 3 bedrooms, 3 full baths, 2 half baths, and an attached 2-car garage totaling 846 square feet.
  • A stately arched entryway leads into a private courtyard, providing an elegant and secure transition into the residence.
  • The interior showcases a spacious open-concept layout with 10-foot ceilings on the main level, creating an airy atmosphere for daily living and social gatherings.
  • The primary suite is situated on the main level for ultimate convenience, featuring a private sitting area and a luxurious spa-like bathroom, while secondary bedrooms are thoughtfully separated to ensure privacy.
  • The lower level is designed for recreation and entertainment, offering a dedicated game room and a private home theater for cinematic experiences.
  • Outdoor living is elevated by an inviting outdoor fireplace, perfect for enjoying quiet evenings or hosting guests in a serene environment.
  • The walkout lower level provides versatile additional living space, including an in-law suite with its own living quarters for guests or multi-generational needs.

What's Included

  • Cover Sheet

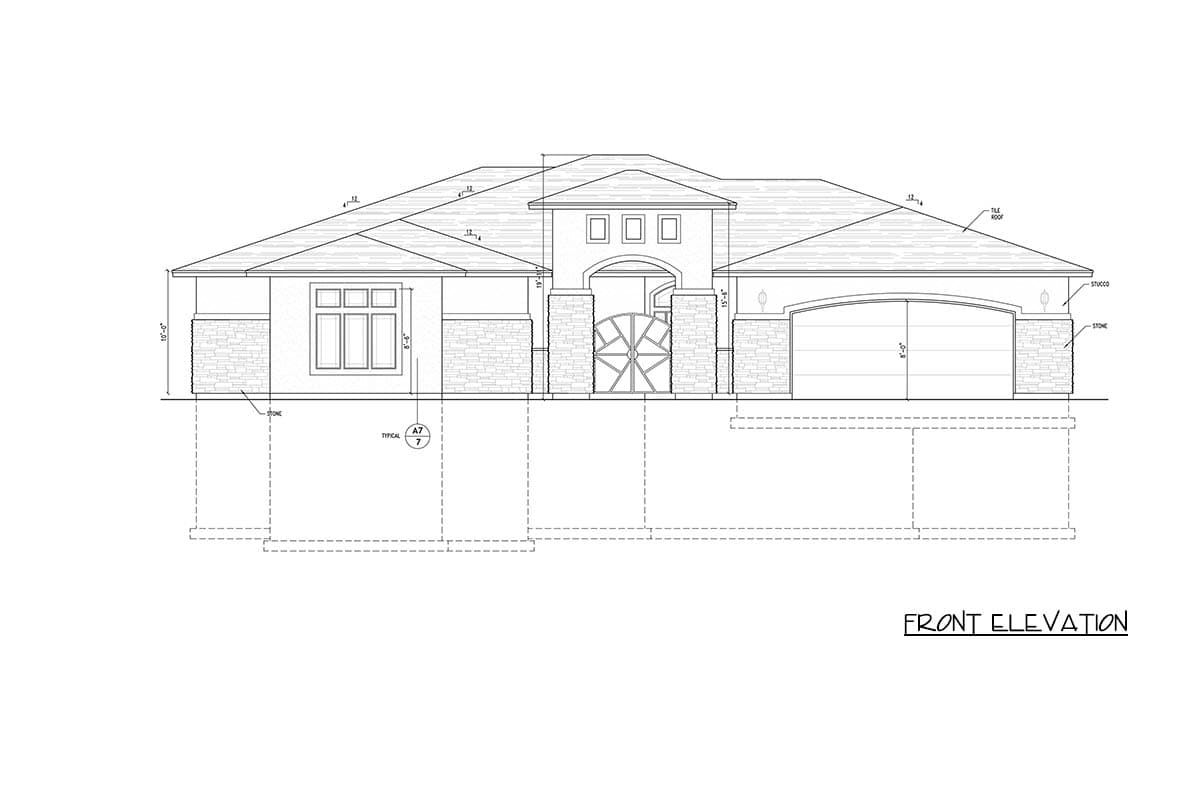

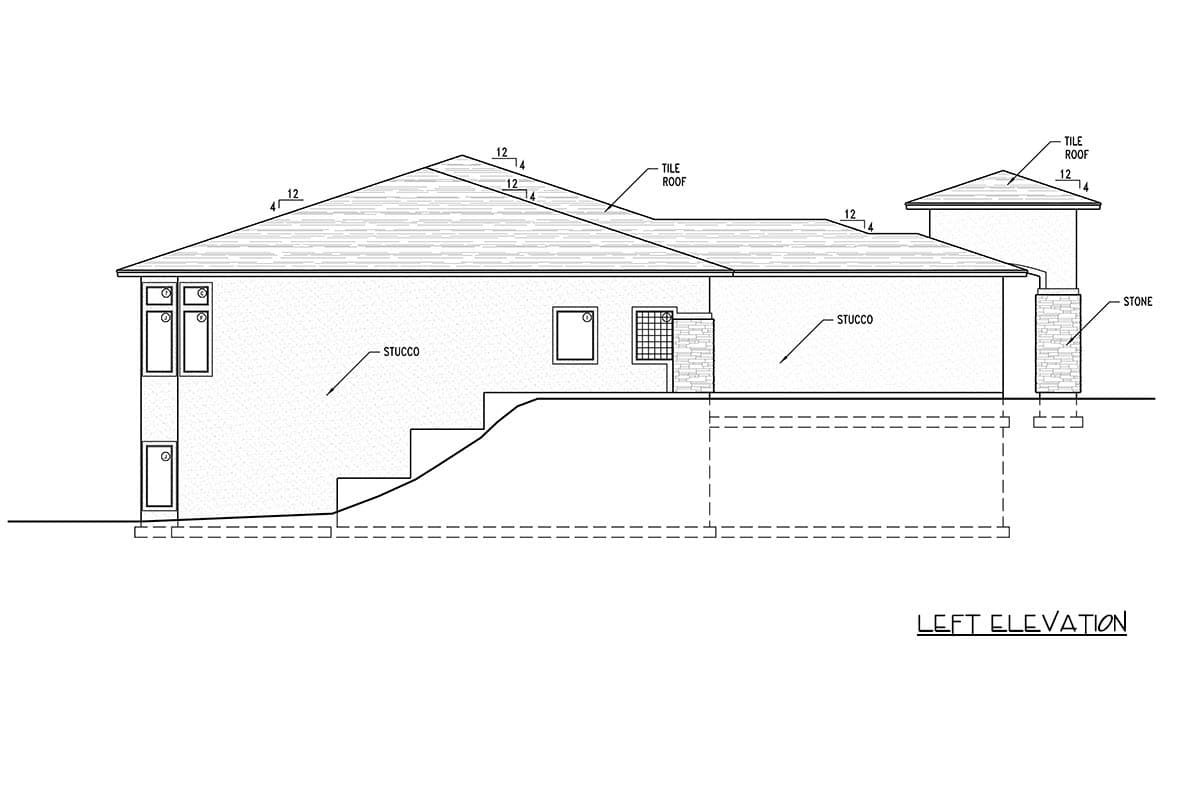

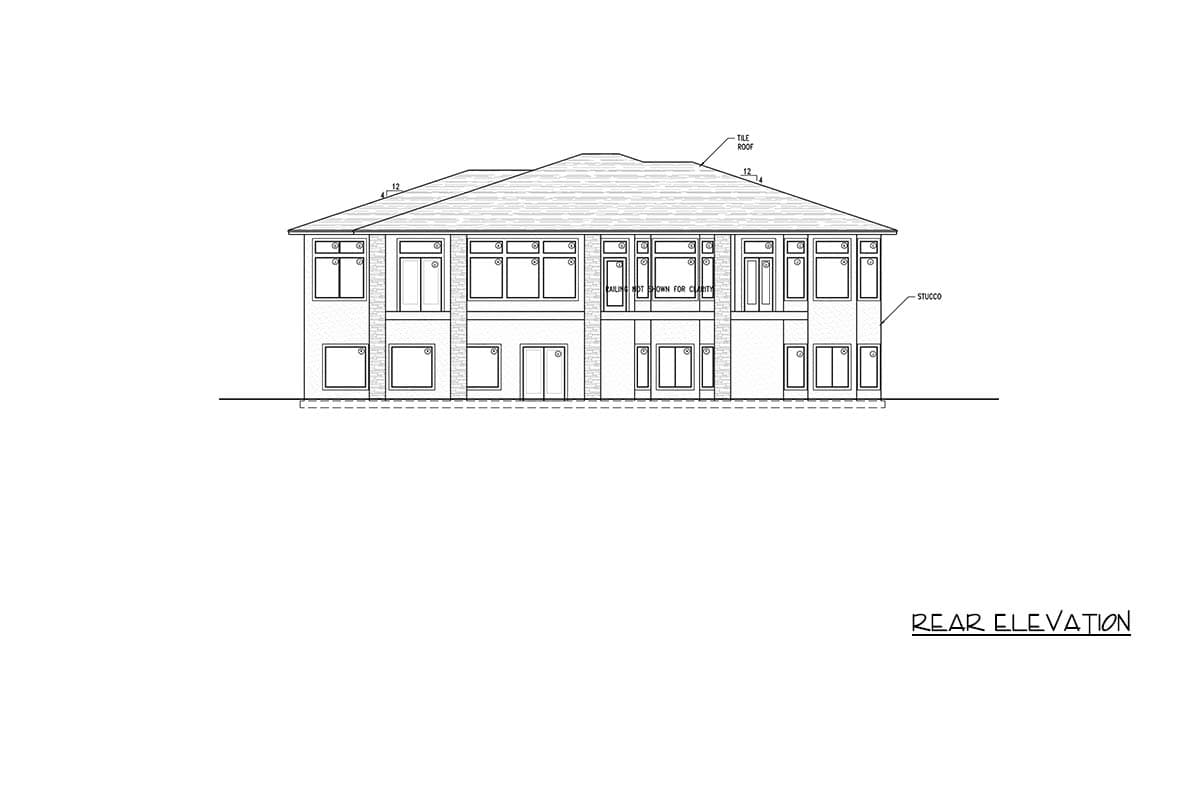

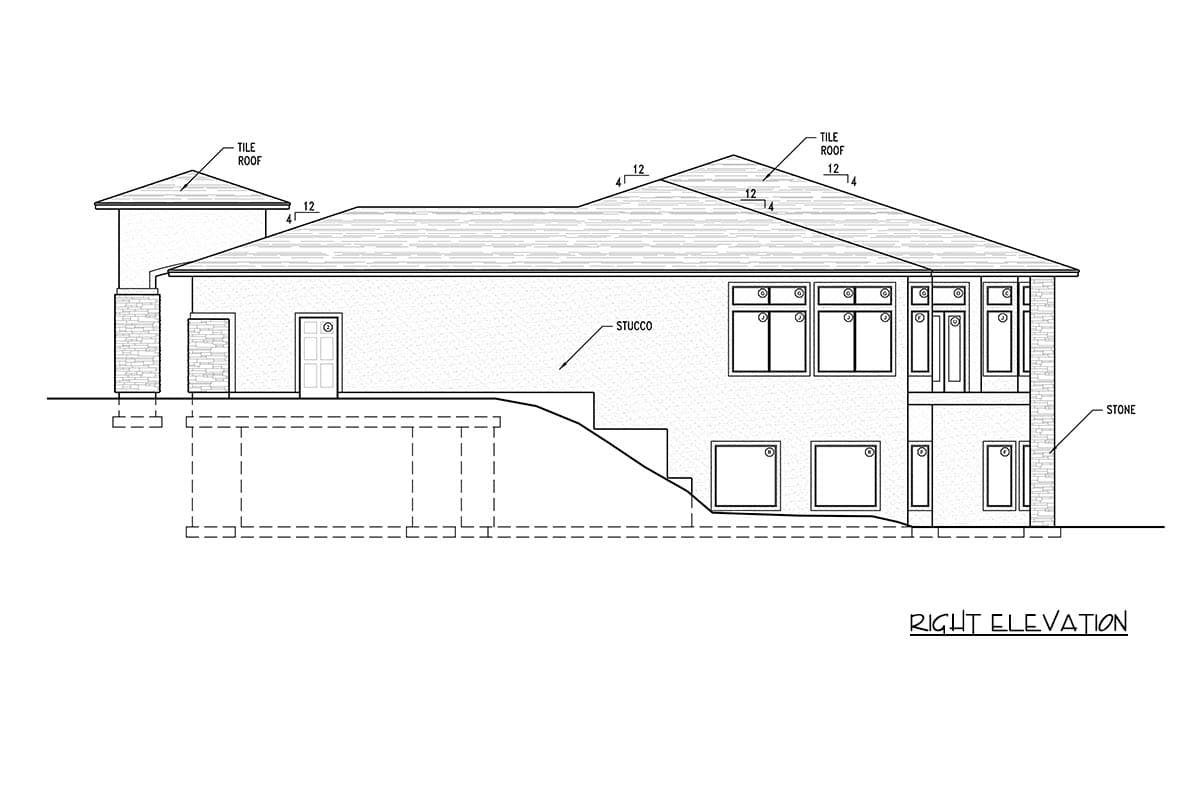

  • Elevations
  • Foundation Plan
  • Floor Plan
  • Electrical Plan
  • Details and Schedules
  • Upper Floor Framing Plan
  • Roof Flaming Plan
  • Details
  • Sections and Notes
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Price Guarantee

Explore the costs

Discover the cost to build & furnish this home.

Need a modified version?

Get a free quote within 3 business days.

Square Footage Breakdown

Total Heated Area

5,921 sq. ft.

Lower Level

2,987 sq. ft.

1st Floor

2,934 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

71' 0"

Depth

70' 6"

Max Ridge Height

19' 11"

Garage

Type

Standard

Area

846 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

10'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Mediterranean

Southwest

Tuscan

Special Features

Bedrooms - Split

Courtyard

Game/Rec Room

Home Theater

In-Law Suite

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Outdoor Fireplace

Plan Collections

Unlimited Build License
