Plan 93089EL
EXCLUSIVE
Mediterranean House Plan with Custom Features
Heated S.F.
5,274
Beds
5
Baths
5.5
Stories
2
Cars
3
What's Included
Plan Details

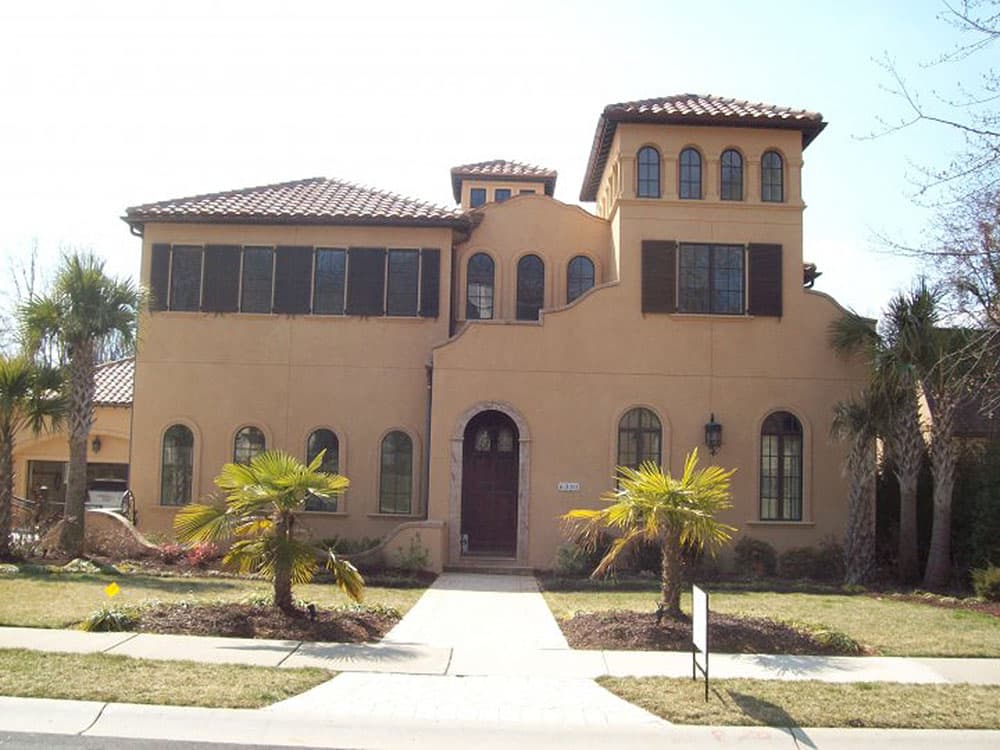

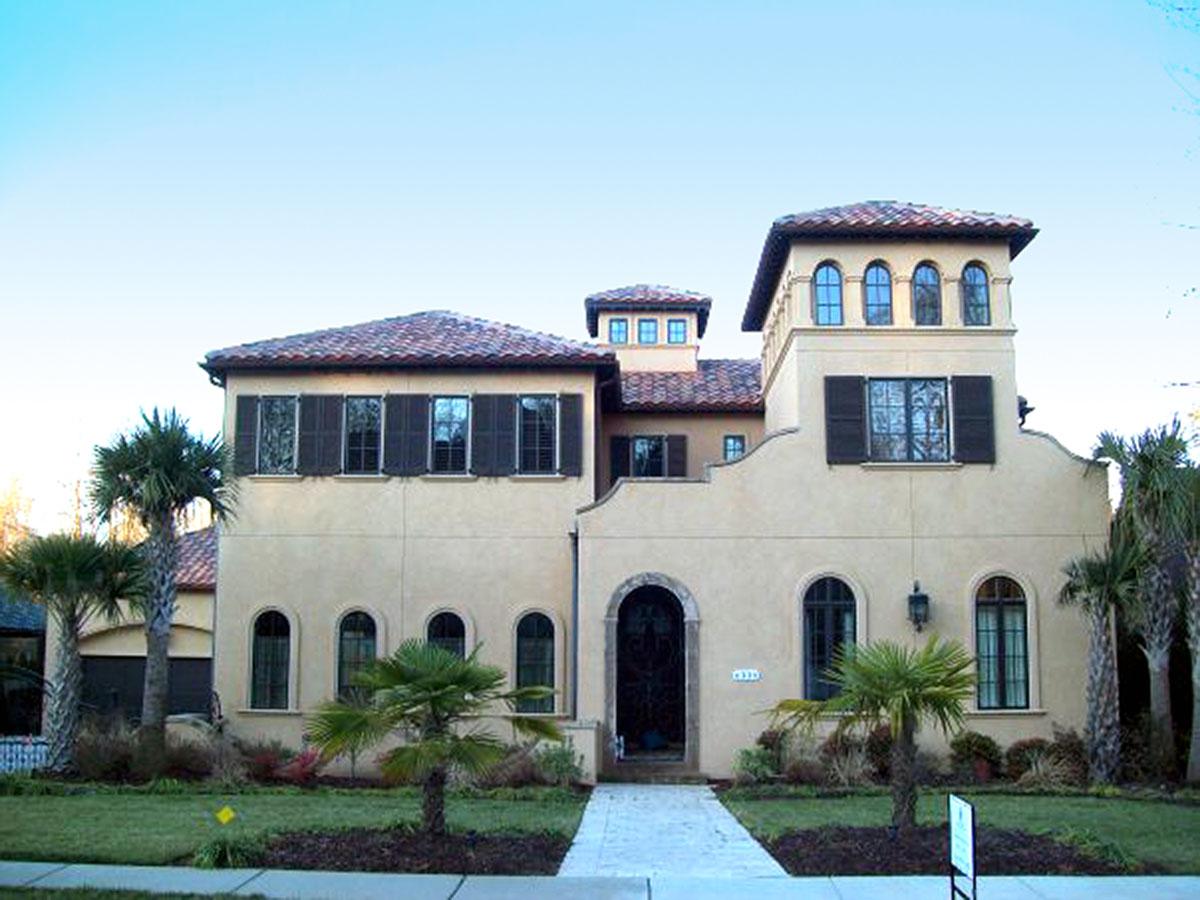

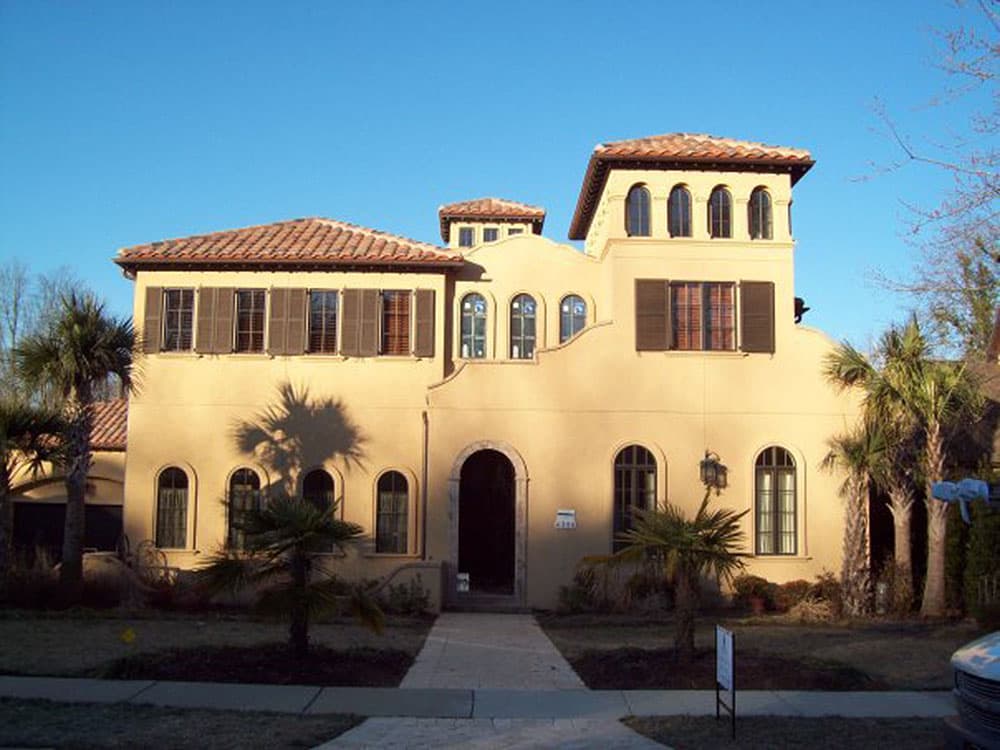

  • Arches all across the front of this spacious Mediterranean house plan blend seamlessly into the stucco exterior.
  • Five luxurious bedrooms and a 3 car garage suit the home for a large family.
  • The home is embellished with custom features such as a wine cellar, special ceiling treatments and a huge second floor game room with wet bar.
  • An L-shaped living area combines the kitchen, breakfast nook and gathering room with a big fireplace flanked by built-ins.
  • The outdoor living area has a fireplace to encourage you to spend time outside, even when its chilly.
  • A magnificent owner's suite has a sitting area and a fabulous master bathroom with a huge walk-in shower.
  • Even the master walk-in closet is luxurious and is compartmented into his and her sections.
  • Every bedroom in the house was a private bathroom and walk-in closet.
What's Included

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan

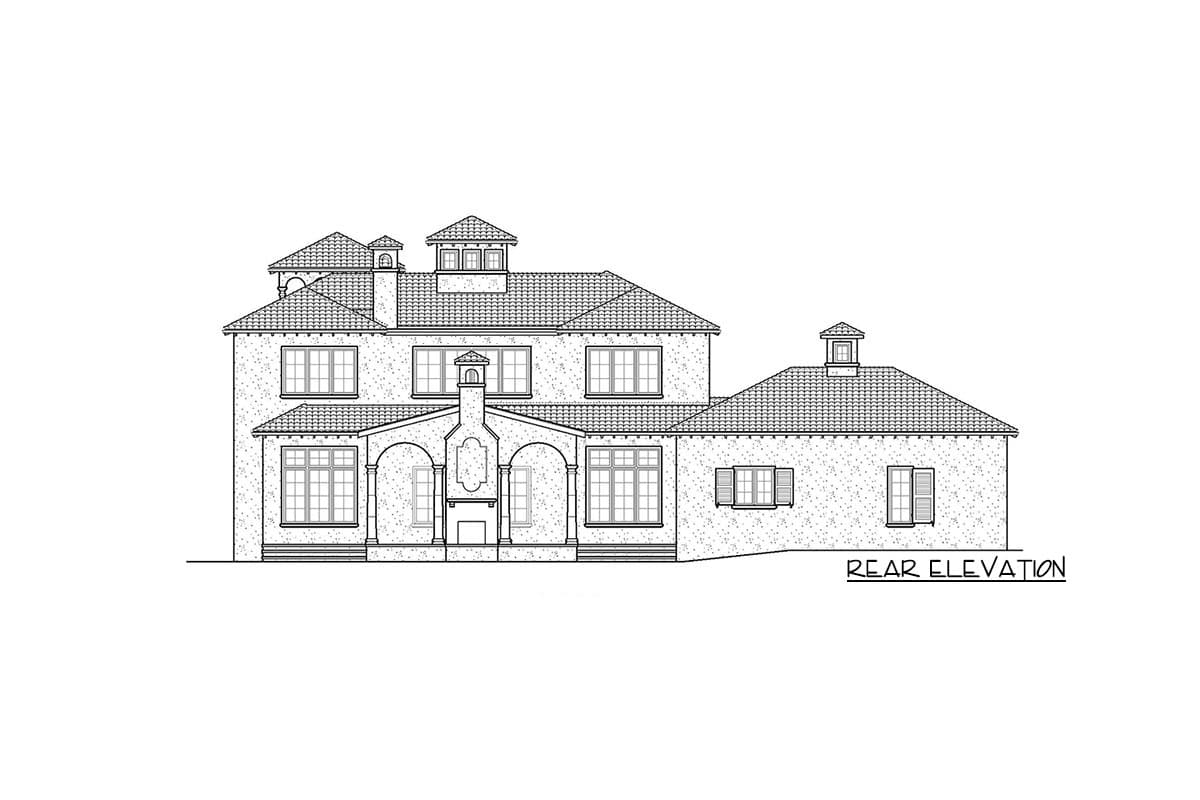

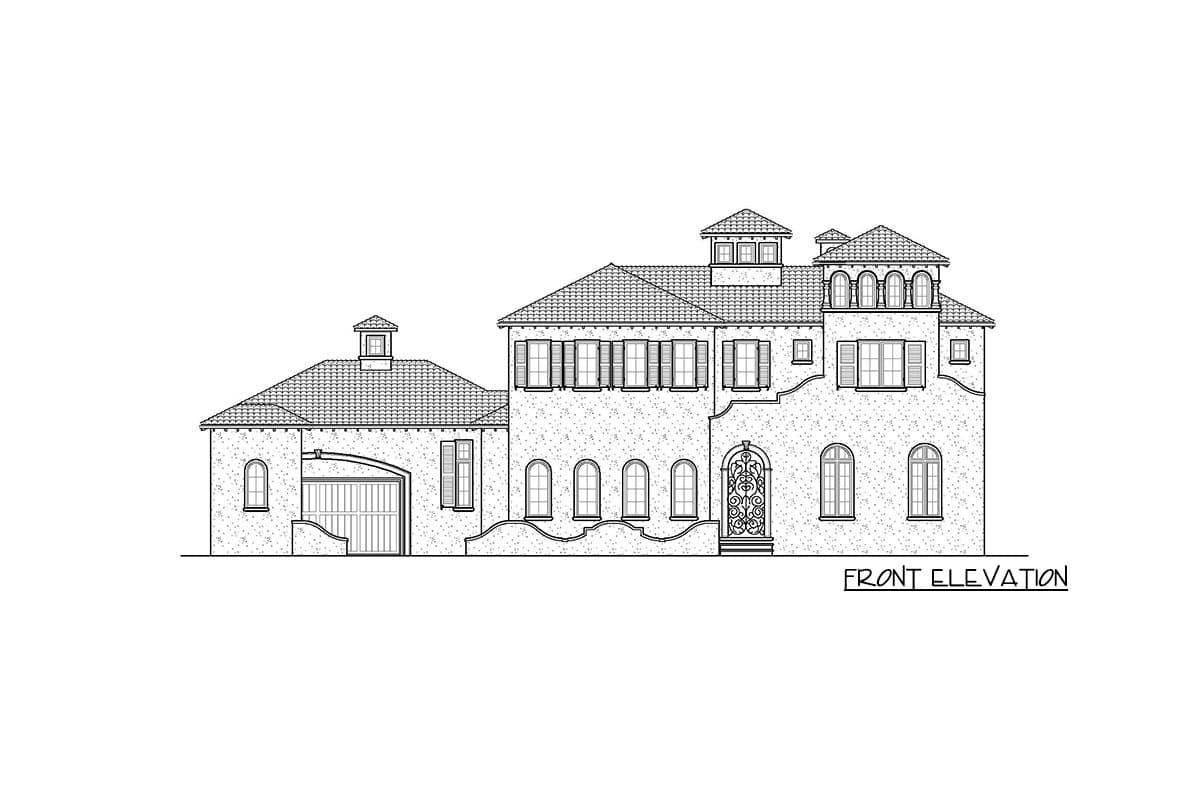

  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Mediterranean House Plan with Custom Features

  • 5,274

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

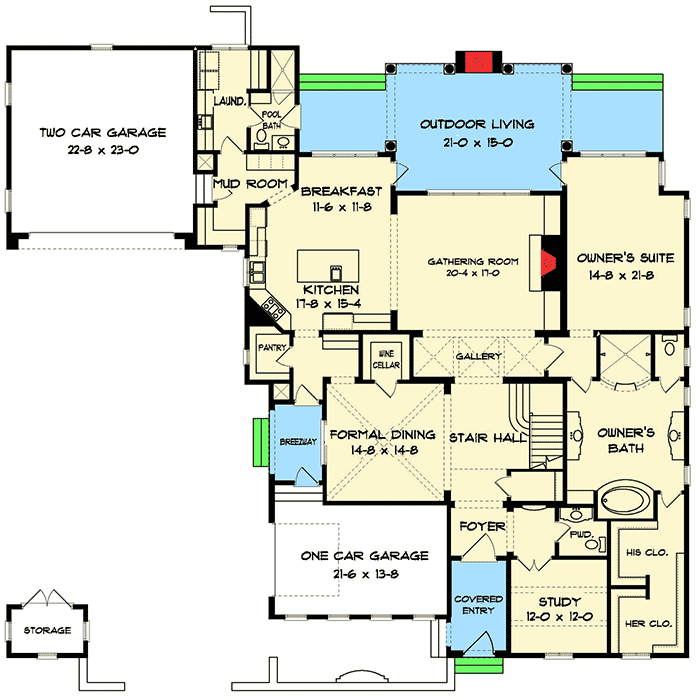

  • Main Level

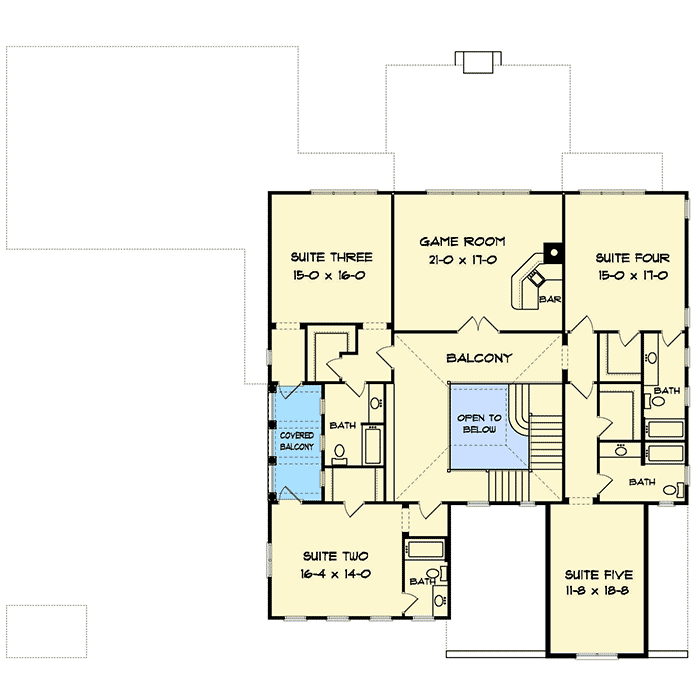

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 5,274 sq. ft.
  • 1st Floor: 2,928 sq. ft.
  • 2nd Floor: 2,346 sq. ft.

Dimensions

  • Width: 76' 4"
  • Depth: 85' 1"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 950 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Walkout, Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"
